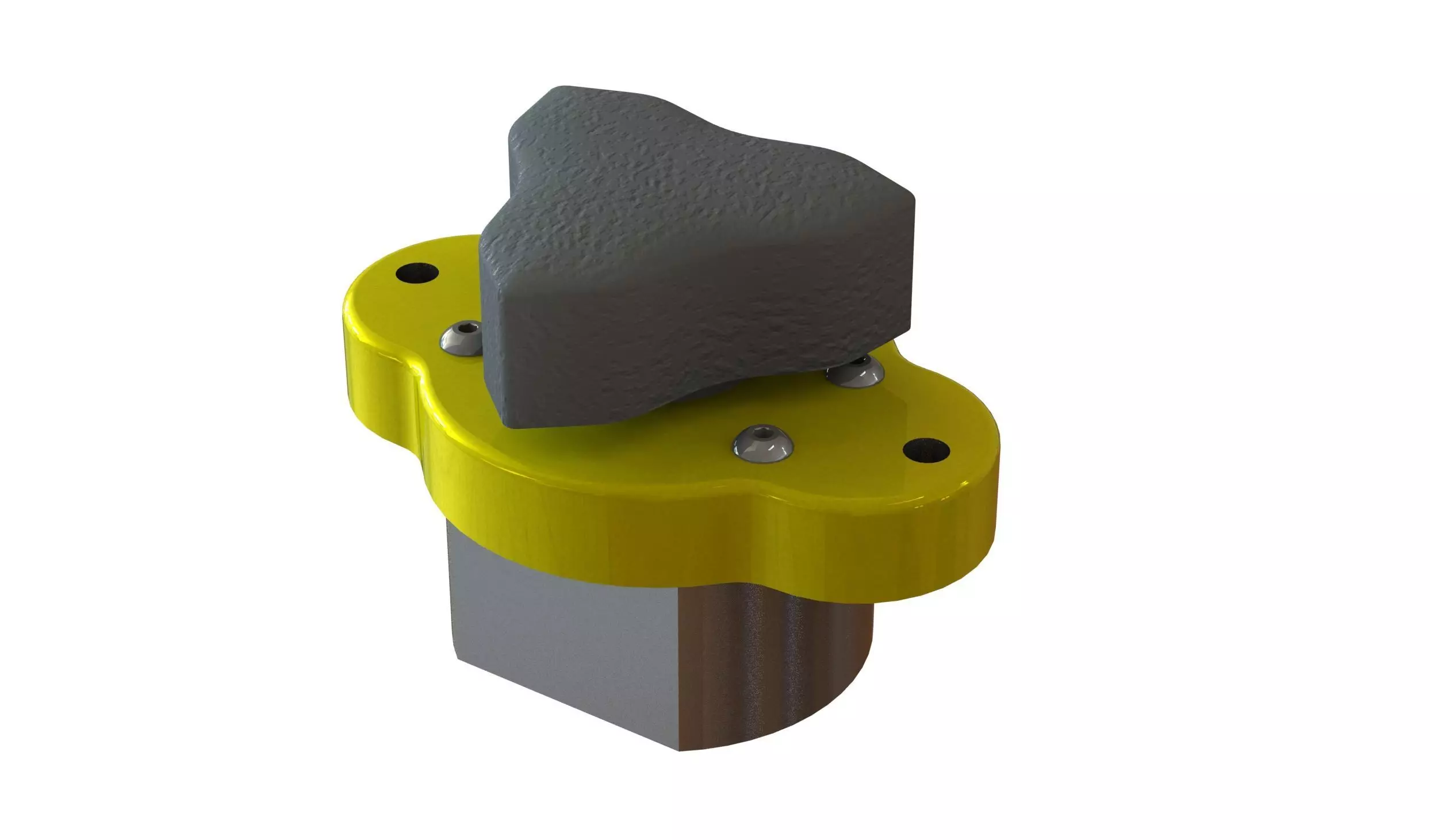

MagJig MagSwitch 150 3D model

MagJig MagSwitch 150

All models are drawn dimensionally accurate from the actual product using various measurement tools from Mitutoyo and Starrett (caliper, micrometer, depth gauge, hole gauges, angle gauge, thickness gauge, etc).Note: variances in design from the manufacturer may have occured over the years since this model was made.File package typically includes the Solidworks parts and assembly files as well as STEP (.stp), STL (.stl, if model is only one file) file and a raster image (.jpg) render of the comlete model. If you require other file formats please contact, accomodations may be possible.
