HAND WINCH CRANE HOIST DRUM BARREL LIFTER LIFTING CLAMP GRAB JIB 3D model

The model contains the most popular formats:

1. 3DS MAX: *.max
2. Blender: *.blend
3. Rhinoceros: *.3dm
4. SketchUp: *.skp
5. Wavefront OBJ: *.obj *.mtl (Multi Format)
6. FBX: *.fbx (Multi Format)
7. STEP: *.step *.stp (NURBS)
8. IGES: *.iges *.igs (NURBS)
9. ACIS: *.sat (NURBS)
10. 3DS MAX all ver.: *.3ds (Multi Format)
11. Stereolithography: *.stl
12. AutoCAD: *.dwg

• Each file was checked for opening and full content by the model.
• The 3D model was created on real base. It’s created accurately, in real units of measurement, qualitatively and maximally close to the original.
• Renders Are made in Luxion Keyshot
• “WE PROVIDE 3D MODEL CHEAP PRICE BUT WITH GOOD QUALITY”
• If you need any other formats we are more than happy to make them for you. Contact me for any question :)

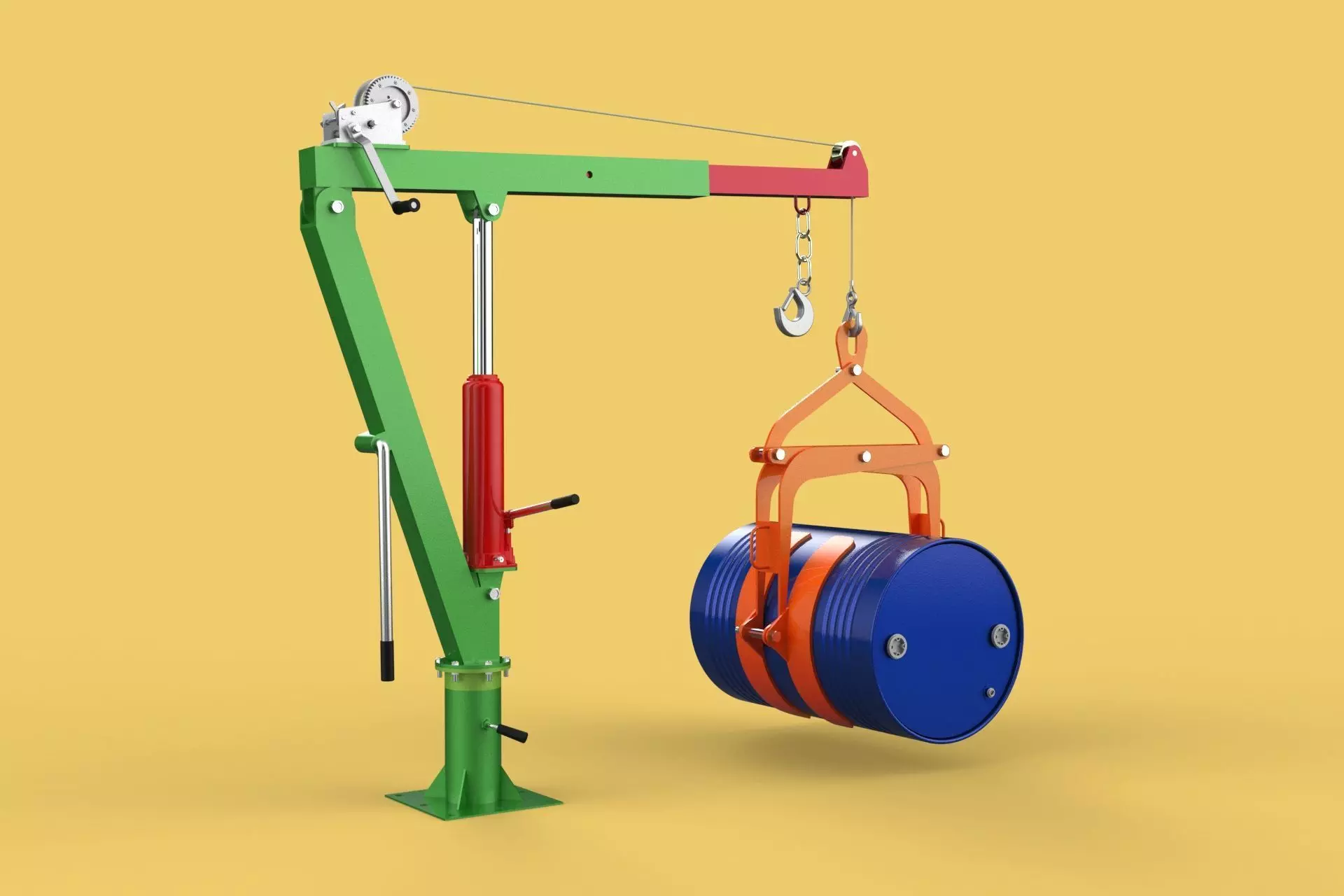

Sincerely Your, SURF3DMORE INFORMATION ABOUT 3D MODELS :DRUM/BARREL LIFTER CRANE WITH HAND WINCH HOIST & HORIZONTAL CLAM GRAB: Secure and Controlled Horizontal Drum Handling

This describes a specialized lifting device designed for the safe and controlled horizontal lifting and movement of drums and barrels. It features a lifting crane structure, a manual hand winch hoist for vertical lifting, and a horizontal clam grab mechanism specifically engineered to securely grip drums from their sides.

Key Features and Functionality:

Lifting Crane Structure: A robust frame (often a gantry, jib, or overhead style, though typically smaller and more localized for drum handling) designed to support the lifting mechanism and provide a stable lifting point.Manual Hand Winch Hoist: A hand-operated winch mechanism that uses a cable or strap to provide controlled vertical lifting and lowering of the drum. The manual operation allows for precise positioning and is ideal for situations where power is unavailable or for delicate movements.   Horizontal Clam Grab: The key feature – a specialized lifting attachment designed to grip a drum or barrel horizontally from its sides. This mechanism typically uses two opposing clams or jaws that securely clamp onto the drum's circumference when engaged.Secure Grip: The horizontal clam grab ensures a firm and stable hold on the drum, preventing slippage during lifting and movement in a horizontal orientation.Manual or Mechanical Engagement: The clam grab mechanism can be engaged and disengaged manually using levers or handles, or it may feature a semi-automatic or fully mechanical engagement triggered by lifting or lowering.Load Capacity: Engineered with a specific safe working load (SWL) rated for lifting the weight of filled drums/barrels.Durable Construction: Built with robust materials to withstand the weight and stresses of lifting and moving drums.Safety Features: Includes safety mechanisms such as locking mechanisms on the clam grab to prevent accidental release, and potentially a brake on the hand winch to control lowering.Versatile Drum Compatibility: Designed to handle standard-sized steel or plastic drums/barrels within its specified capacity range. Some models may offer adjustability for different drum diameters.Benefits:

Safe Horizontal Lifting: The horizontal clam grab provides a secure and stable method for lifting drums in a horizontal orientation, which can be necessary for specific handling or pouring tasks.Controlled Manual Operation: The hand winch offers precise control over the vertical movement of the drum.Reduced Risk of Damage: The clam grab design minimizes the risk of denting or damaging the drum during lifting.Ergonomic Handling: Facilitates easier and safer handling of heavy drums compared to manual lifting.Accessibility: Allows lifting and maneuvering of drums in tighter spaces or when top access is restricted.Power Independence: The manual winch requires no external power source.Potential Applications:

Drum Pouring and Emptying: Lifting drums horizontally to facilitate controlled pouring of liquids.Horizontal Drum Storage and Retrieval: Moving and stacking drums in a horizontal position.Manufacturing Processes: Integrating horizontal drum lifting into production lines.Waste Management: Handling drums of waste materials horizontally.Laboratories and Chemical Handling: Safely manipulating drums of chemicals.Any environment where controlled horizontal lifting and movement of drums/barrels is required.In summary, a drum/barrel lifter crane with a hand winch hoist featuring a horizontal clam grab provides a safe, controlled, and manually operated solution for lifting and moving drums and barrels in a horizontal orientation, offering advantages for specific handling and storage requirements.
