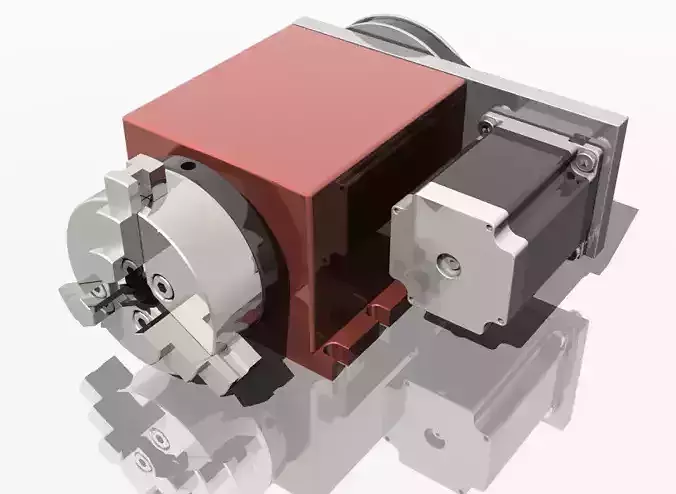

CNC Router Rotational Axis the 4th Axis A axis 3D model
Description
CNC Router Rotational Axis, the 4th Axis, A axis
| **-
stepper motor type: Nema 23 stepper motor 3A 2 phase 4 wiresChuck type: 80mm 3 claws centring chuck
center height:50mm
total height: 110mm
Total length: 220mm
Rated torque: 1.2N/M
Reduction ratio: 6:1**
|
CNC Router Rotational Axis the 4th Axis A axis
Royalty Free License
CNC Router Rotational Axis the 4th Axis A axis
Royalty Free License
3D Model formats
Format limitations
- 3D Studio (.3ds)1.92 MB
- Lightwave (.lwo, .lw, .lws)1.21 MB
- STEP (.stp)4.74 MB
- DXF (.dxf)3.25 MB
- Stereolithography (.stl)19.9 MB
- Rhinoceros 3D (.3dm)7.4 MB
3D Model details
- Publish date2013-06-19
- Model ID#17982
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
