Air Motor 3D model

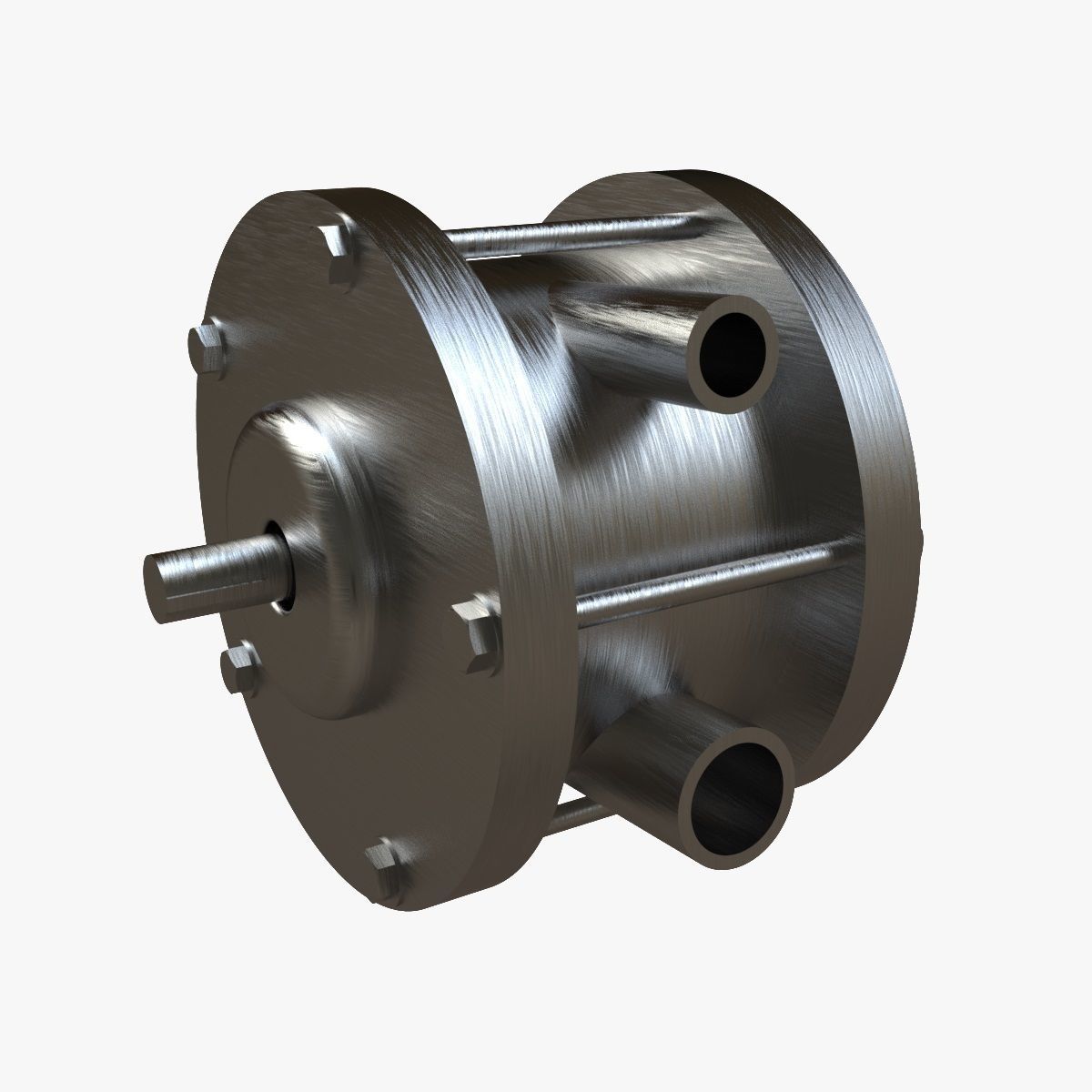

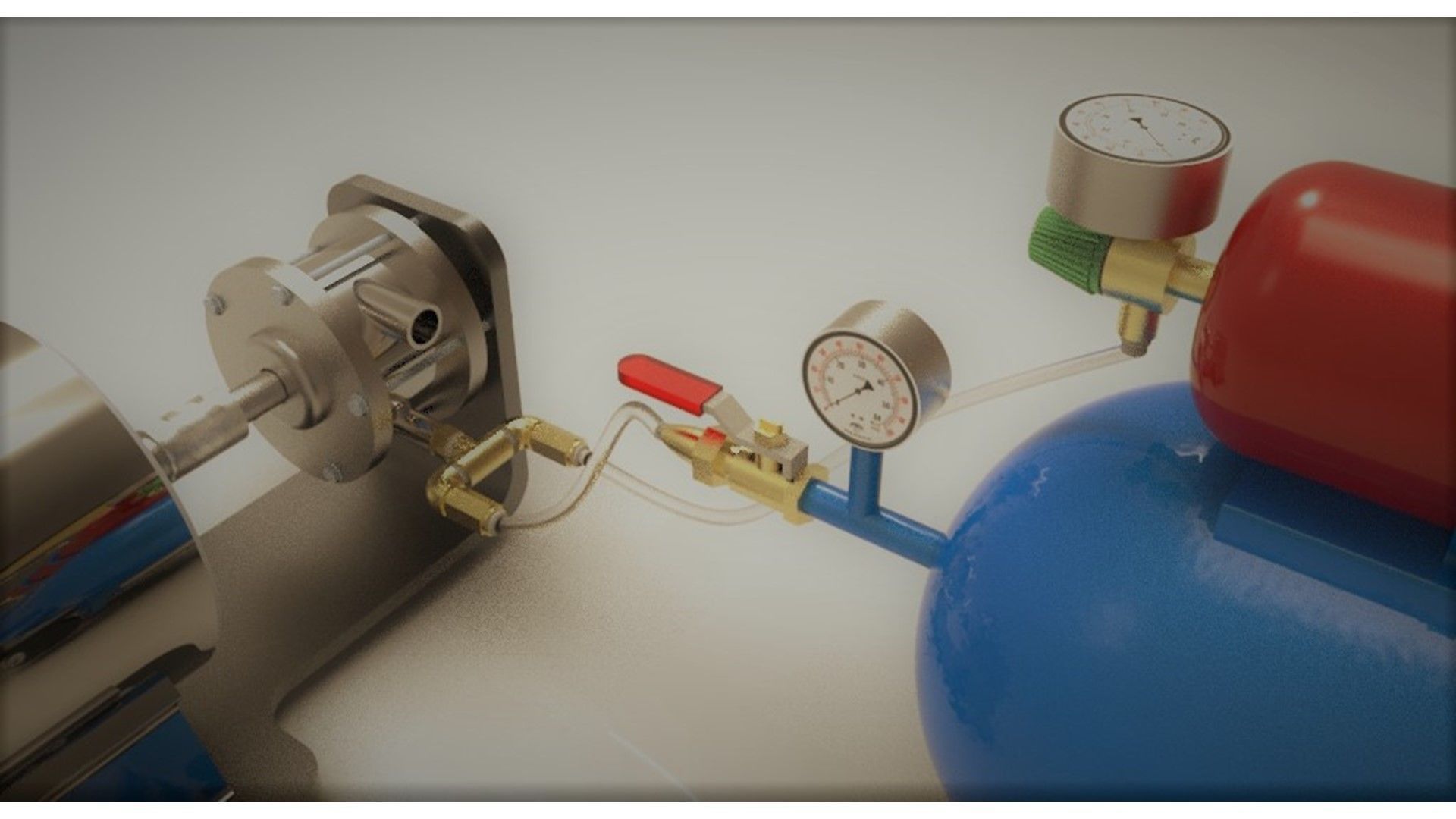

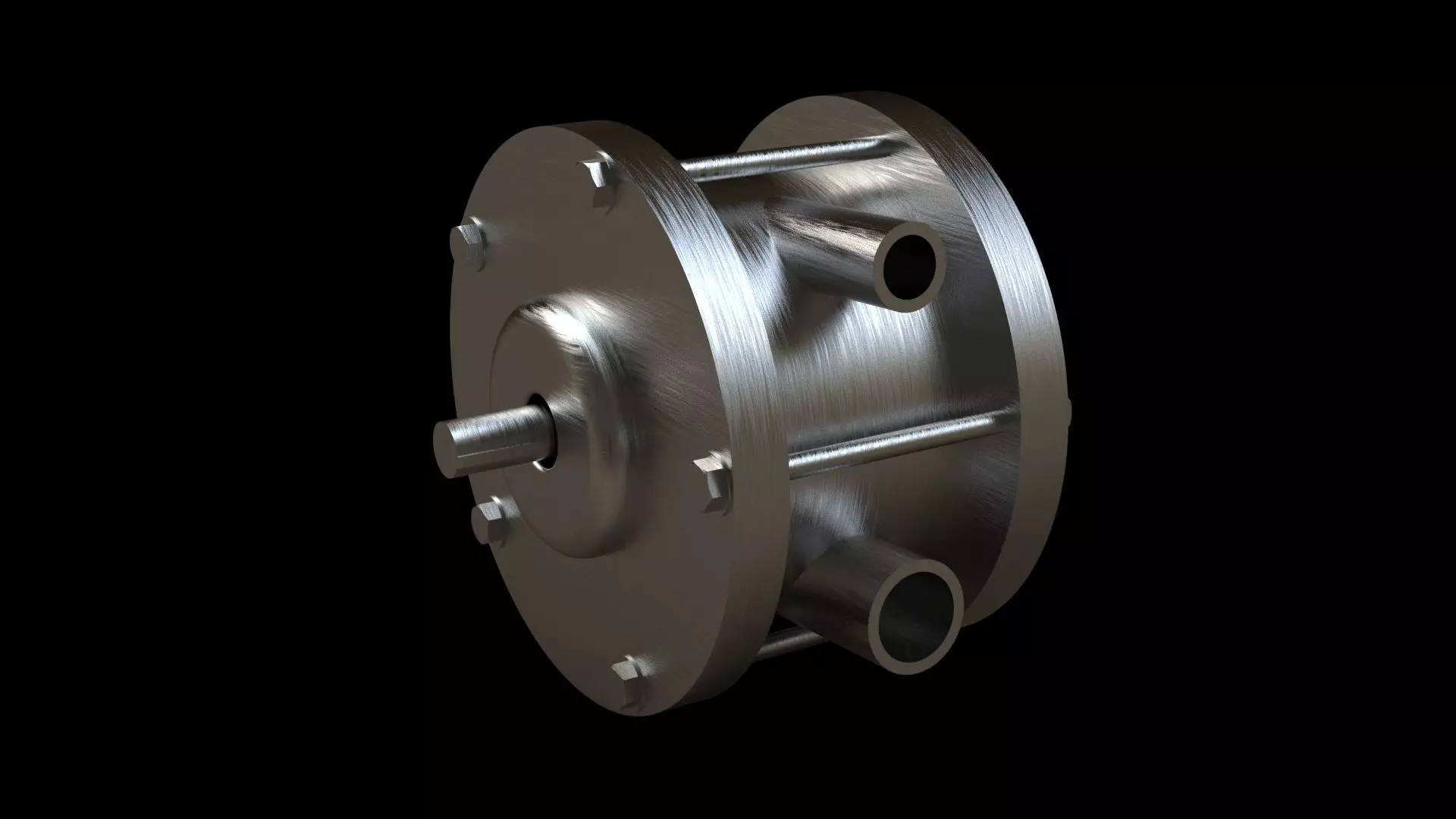

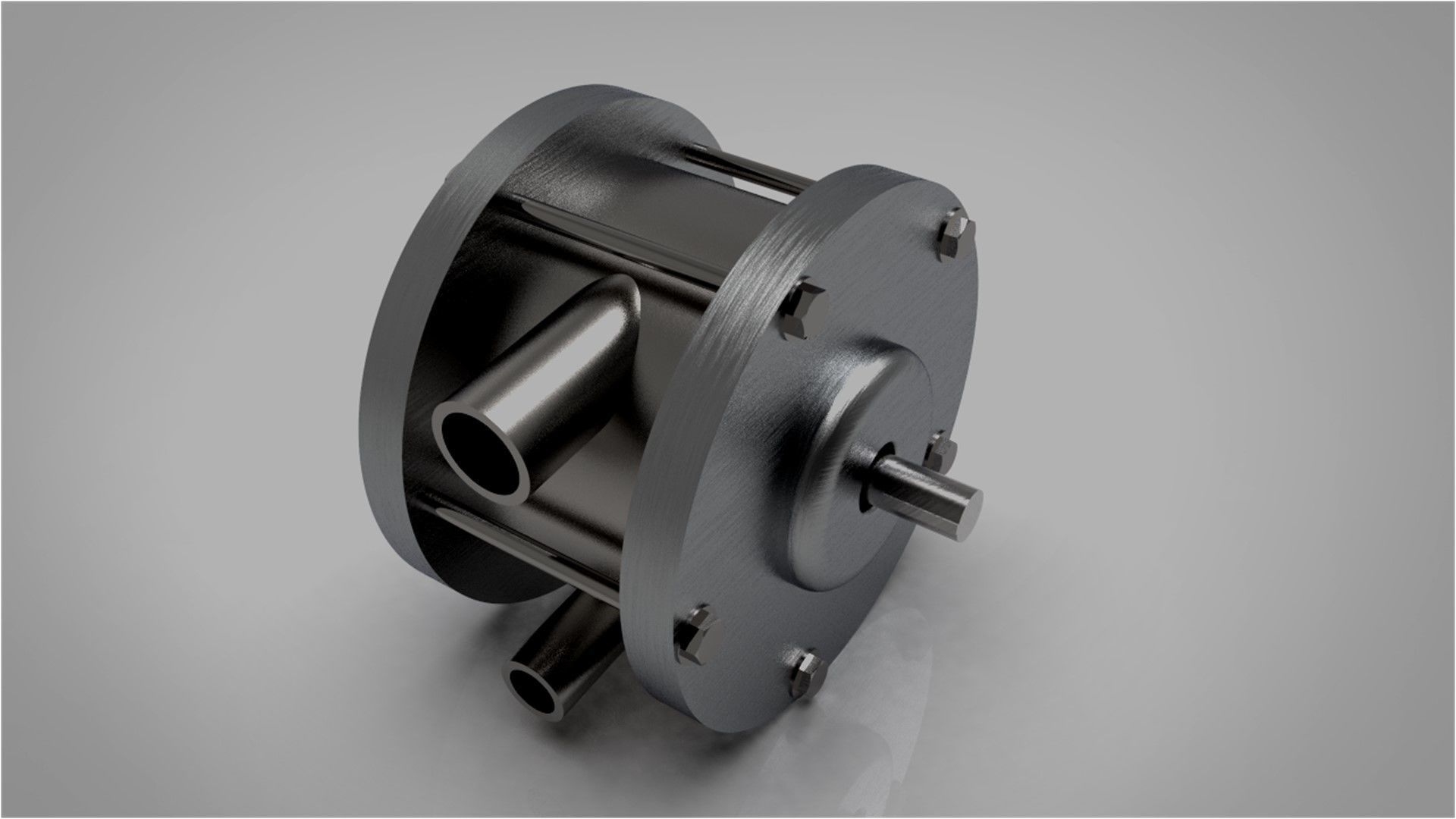

The model was made and animated in Solid Edge ST10 and rendered in Solid Edge and KeyShot.

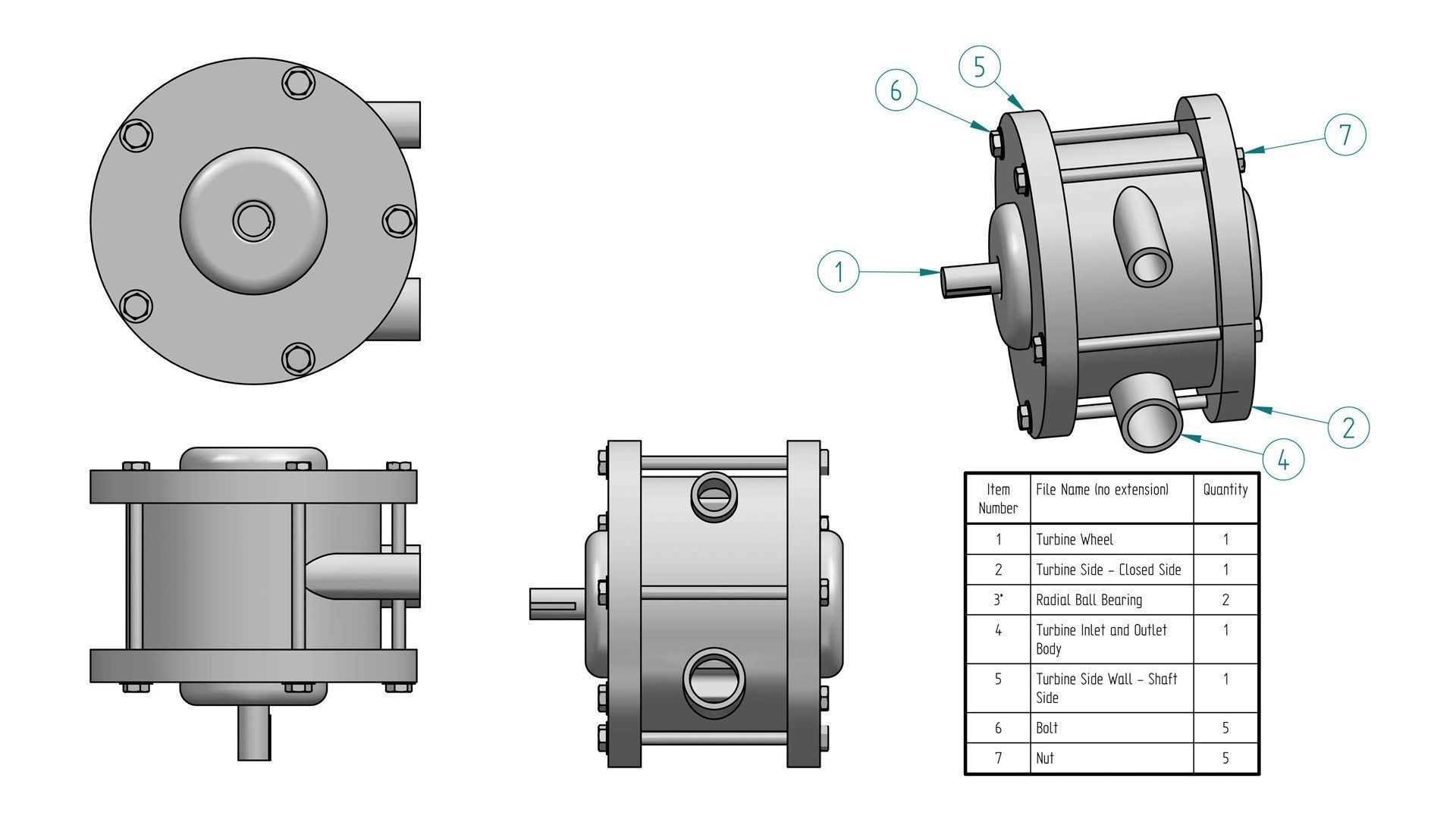

Includes Solid Edge Part files (.par), Solid Edge Assembly file (.asm) and Solid Edge Draft file (.dft). SolidWorks Assembly file (.sldasm), SolidWorks Part files (.sldprt), Autodesk Inventor Assembly file (.iam) and Autodesk Inventor Part files (.ipt) of the model are added as well.
Other converted file formats are also included. File formats (.iges, .sat, .x_t, .3mf) were exported using SolidWorks 2022. File formats (.obj, .stl) were exported using Autodesk Inventor 2023. File formats (.fbx, .glb) were exported using Marmoset Toolbag 4. Both the (.stp) files were exported using Solid Edge ST10. Also included are the KeyShot 12 Package files (.ksp) which include the used materials, textures and HDRI files in the KeyShot renders.

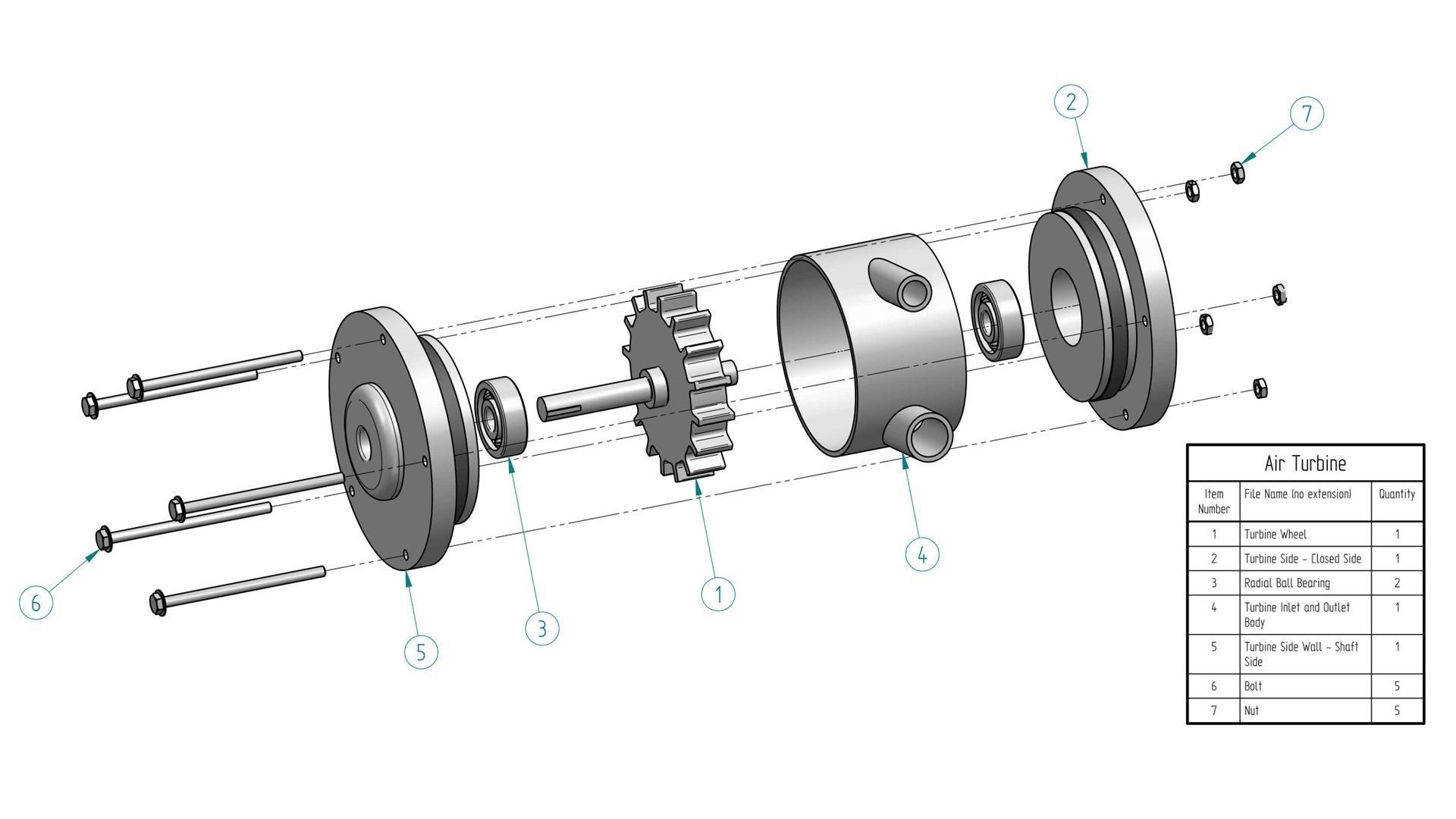

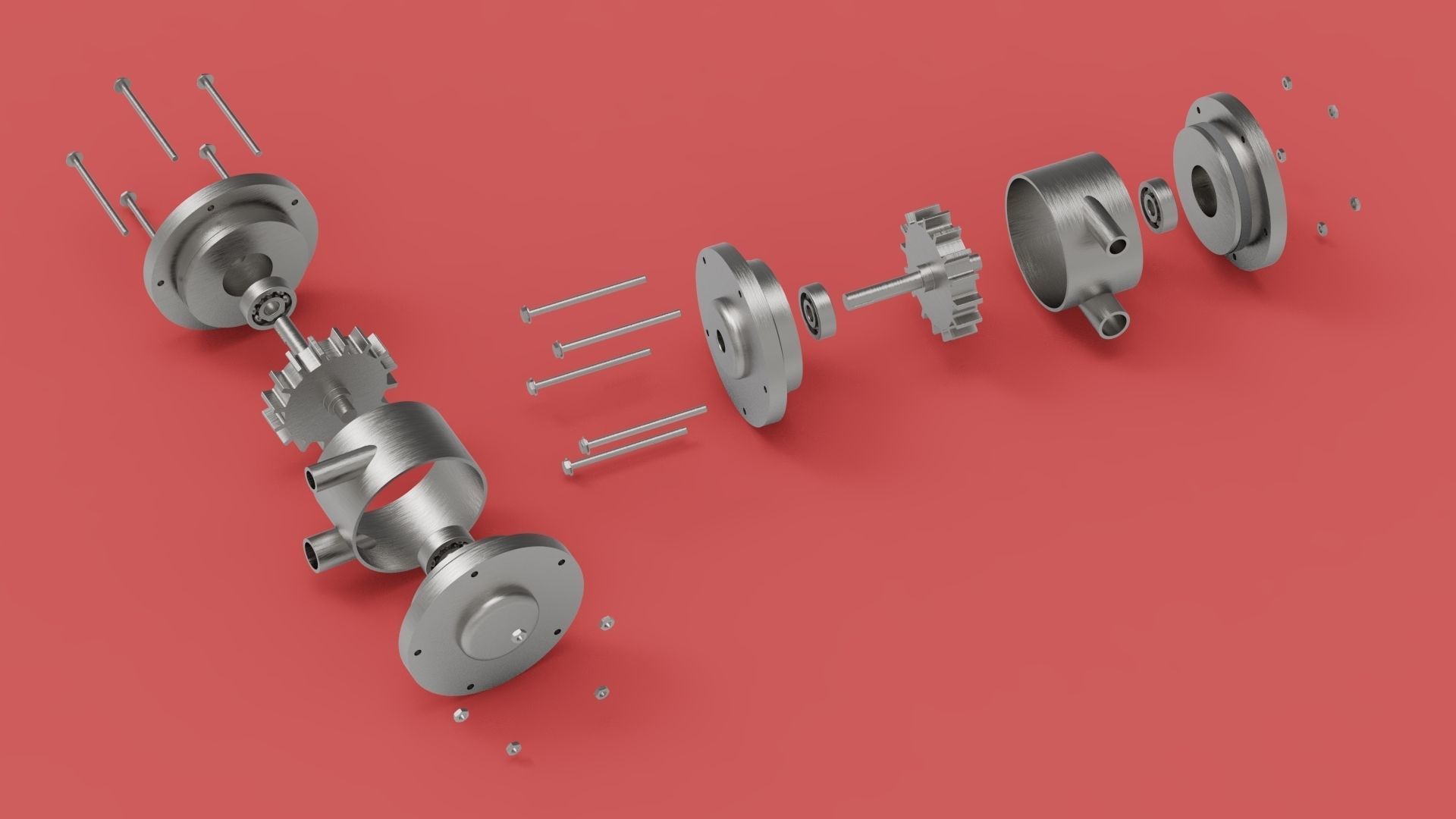

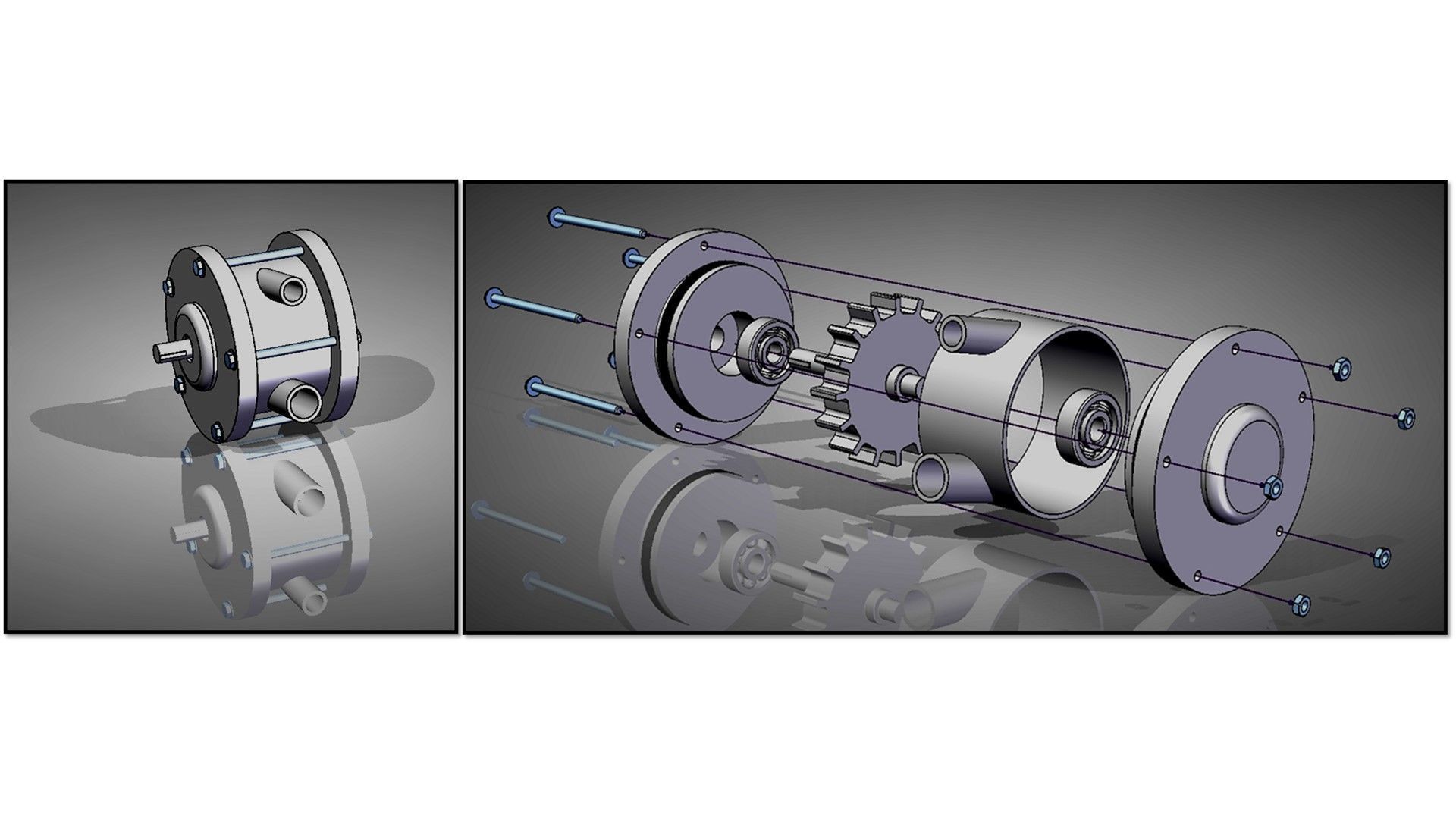

All of the above rendered images as well as animations showing working and explosion of the model are included in zip files.
A 3D pdf file of the model is added as well.
3D Model formats
Format limitations
- Solid Edge ST10 (.asm, .par, .psm, .dft)1.82 MB
- Autodesk FBX (.fbx)1000 KB
- OBJ (.obj, .mtl)594 KB
- glTF (.gltf, .glb)1.54 MB
- SolidWorks 2022 (.sldprt, .sldasm, .slddrw)1.07 MB
- Autodesk Inventor 2023 (.iam, .ipt)1.58 MB
- 3D Manufacturing File (.3mf)612 KB
- Stereolithography (.stl)1.65 MB
- 3D ACIS (.sat)4.06 MB
- Parasolid (.x_t, .x_b)639 KB
- IGES (.ige, .igs, .iges)3.48 MB
- STEP (.stp)1.42 MB
- Other 2.44 MB
- PDF (.pdf)276 KB
- KeyShot 12 (.bip, .ksp)20.5 MB
- High-Res Renderings (.hrd) (2 files)29.1 MB
3D Model details
- Publish date2023-08-16
- Model ID#4711006
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Nurbs
- Polygons 34,516
- Vertices 28,910
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Mixed
- Plugins used
- Ready for 3D Printing
