Stainless Steel Rack 3D model
Description

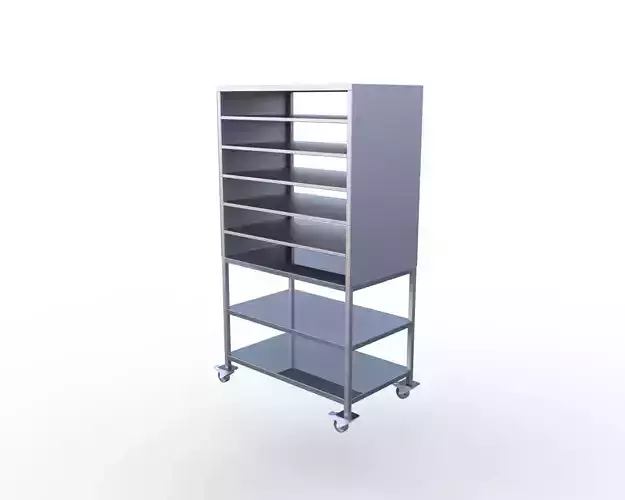

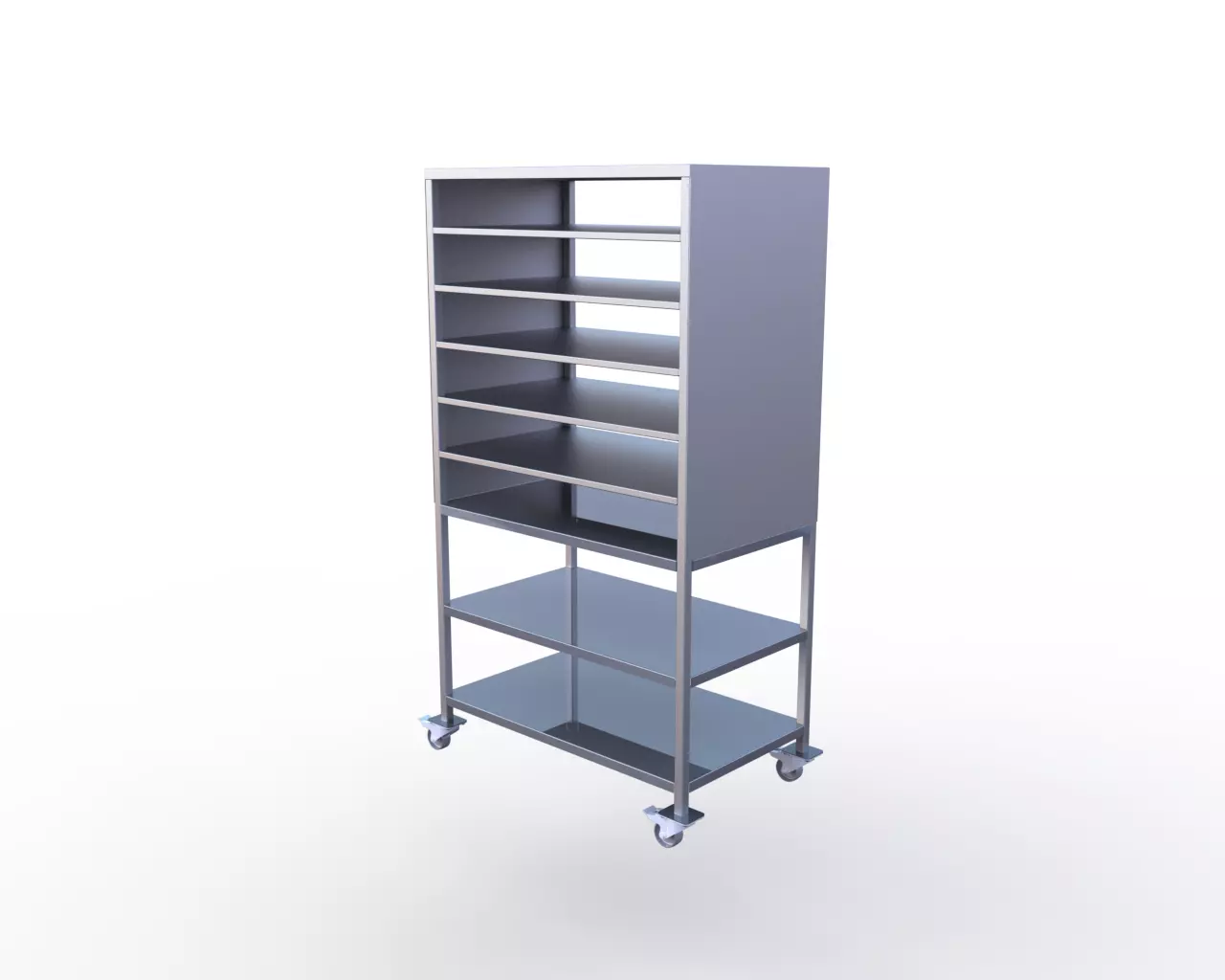

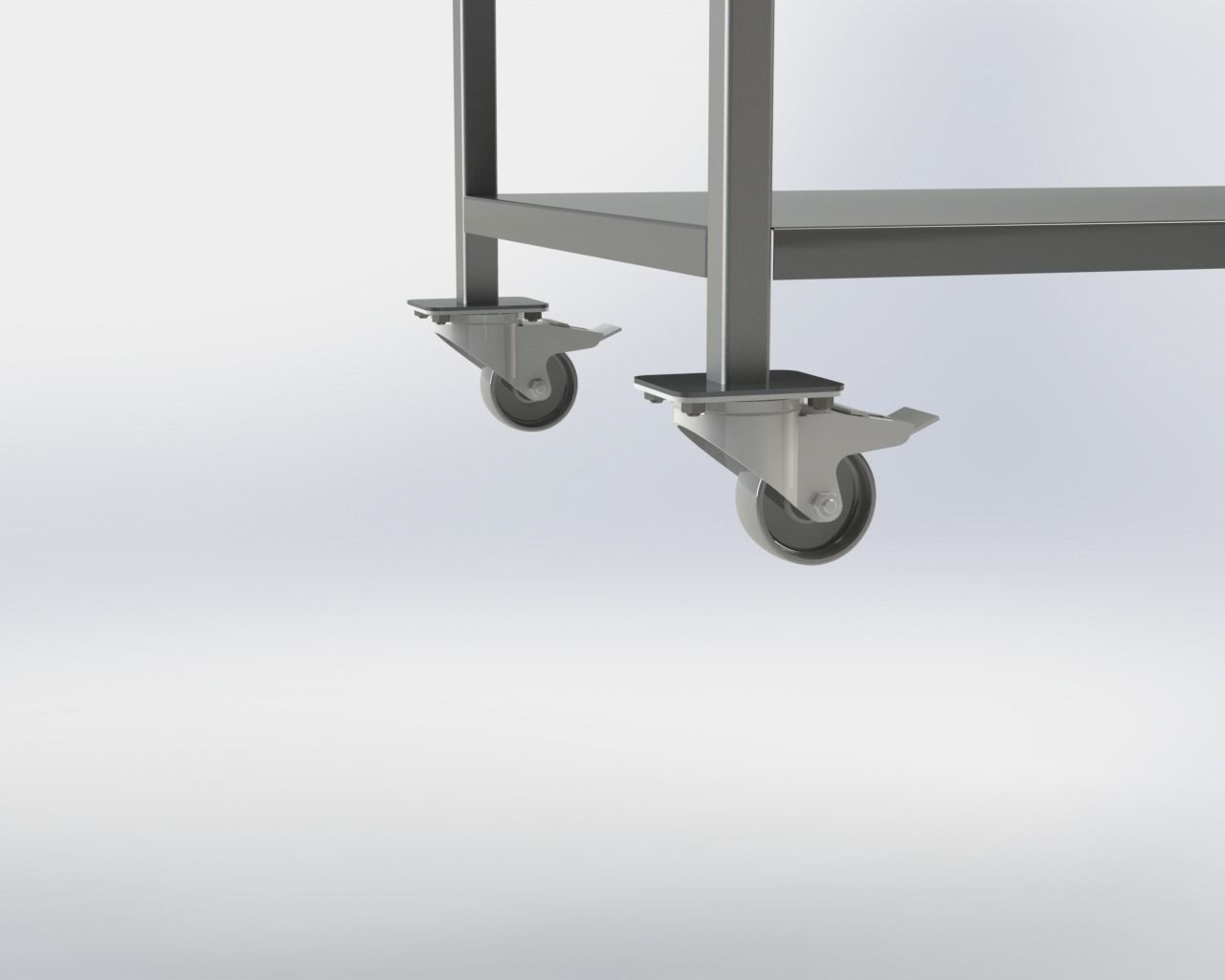

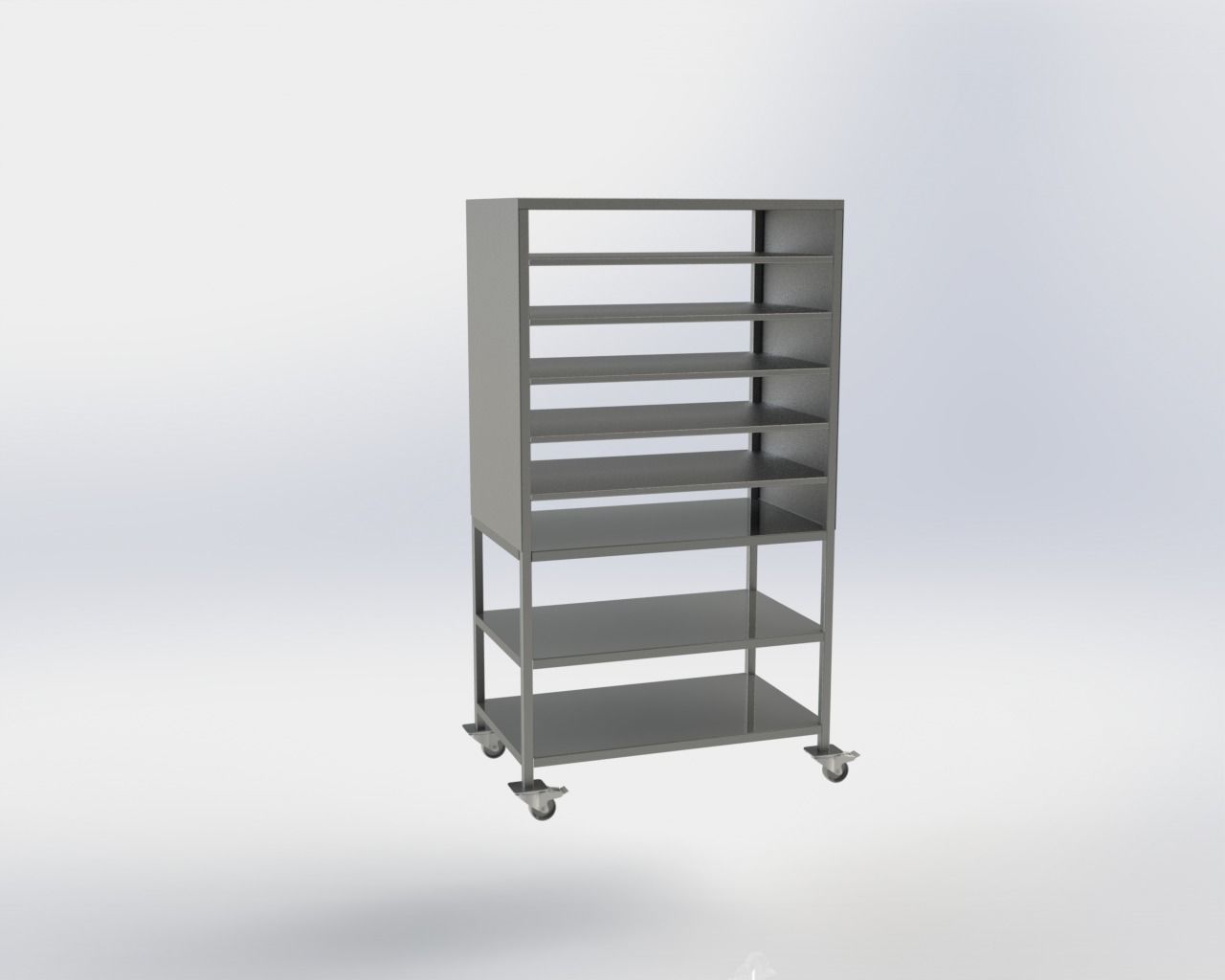

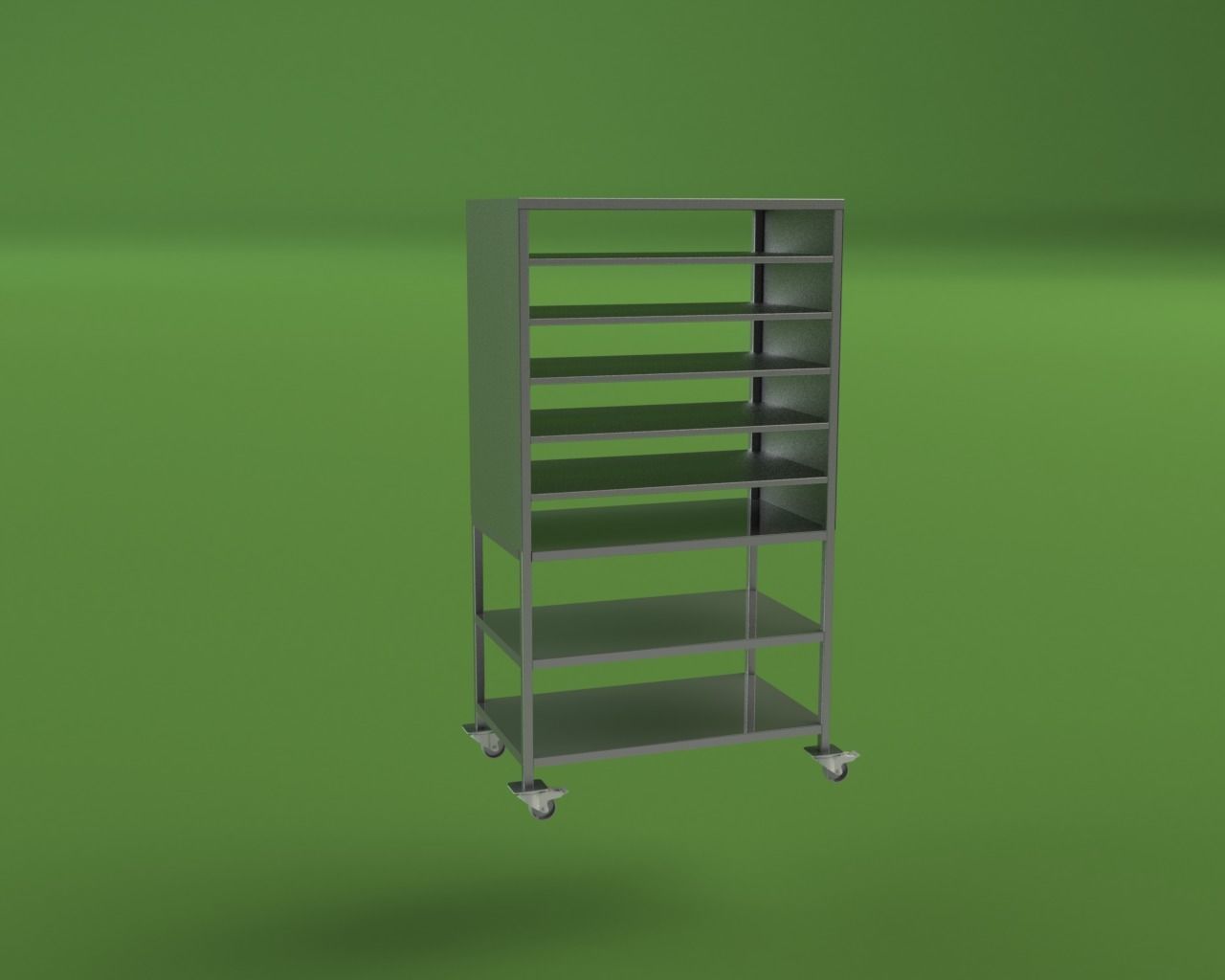

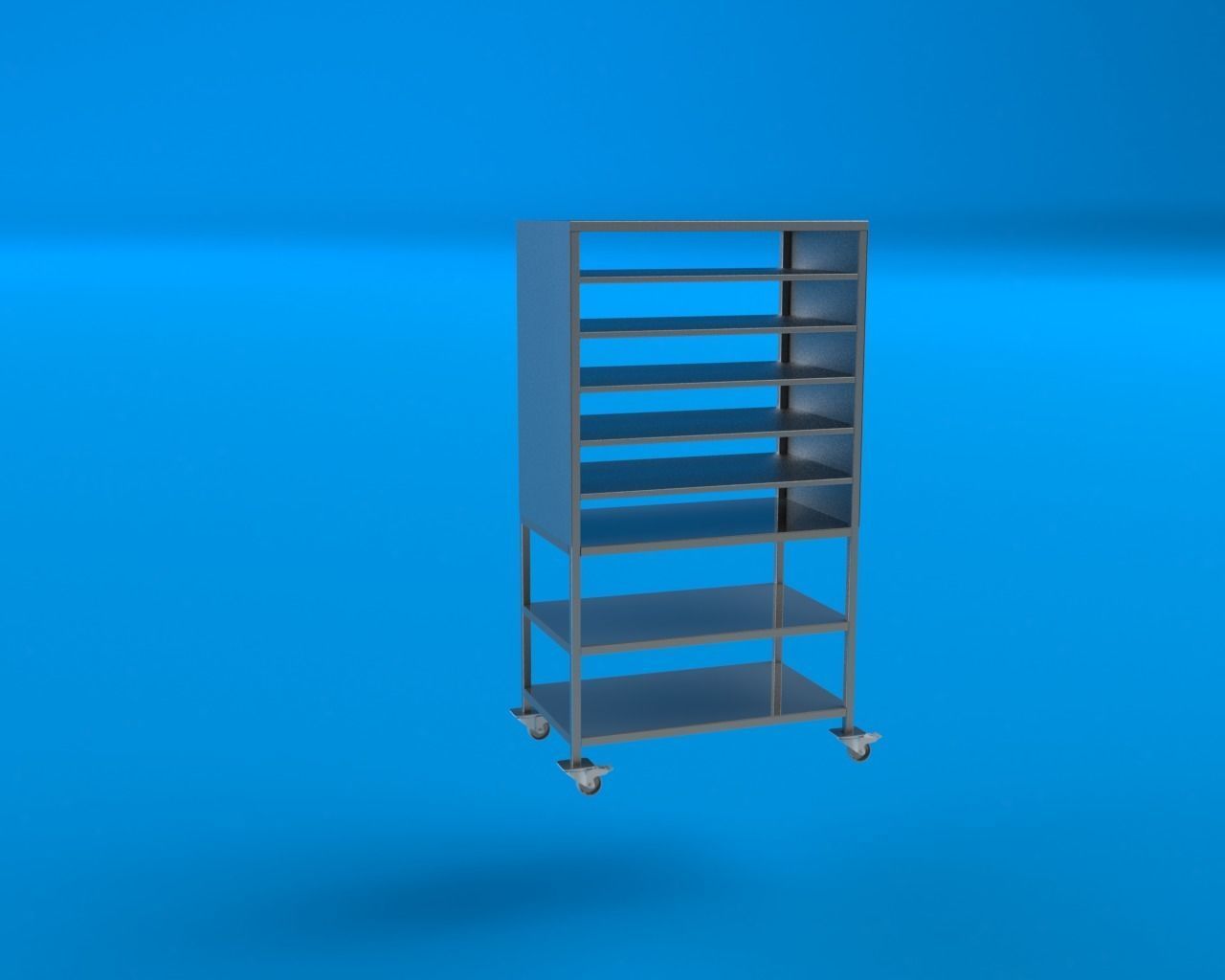

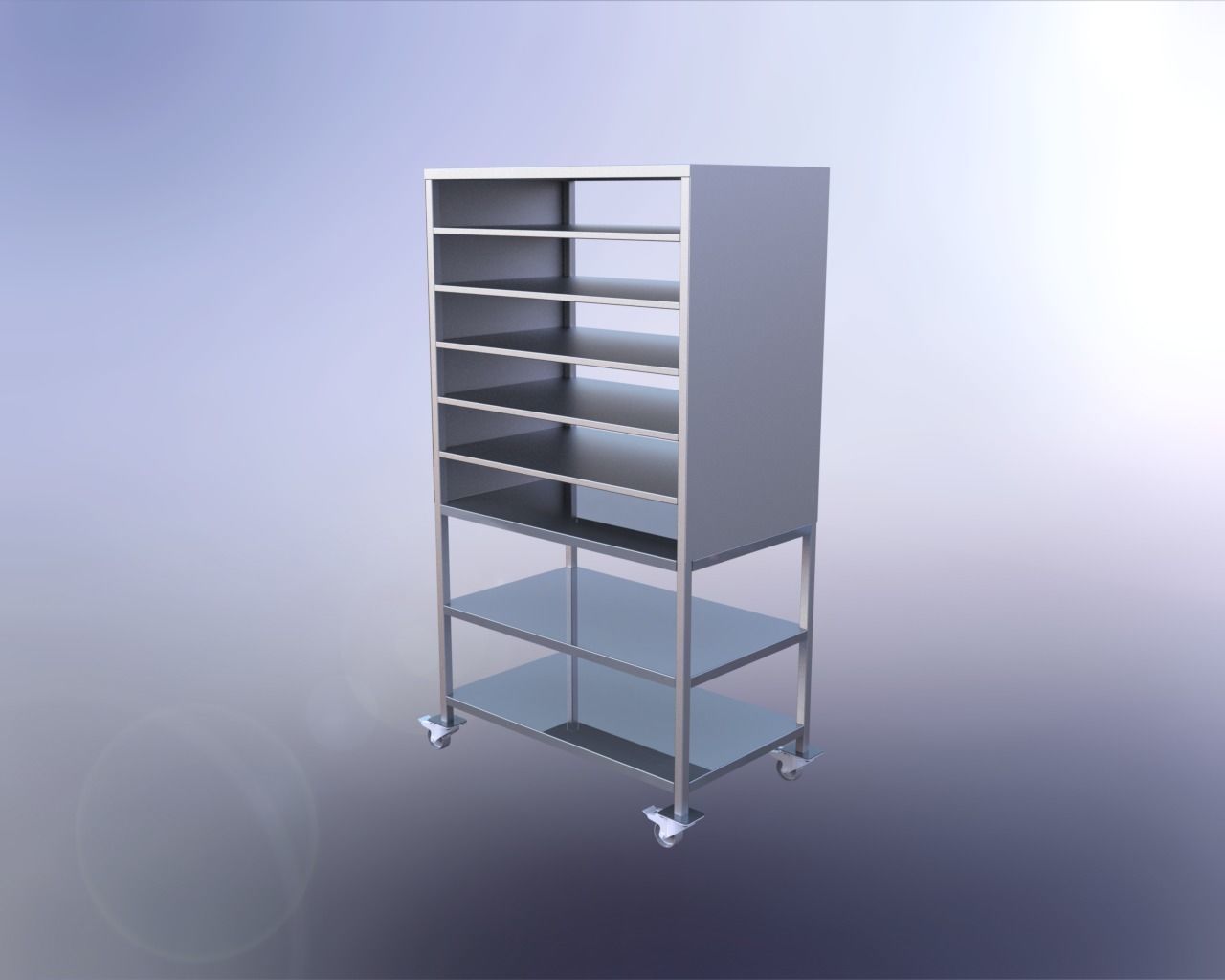

This assembly was made in Solidworks 2021 version. It represents a stailess steel welded rack, used in the food or pharmaceutical industry, to store food or medicines. I have uploaded the dimensioned assembly drawing, step, obj and other files. The stainless steel rack is made of square pipe 30x30x1.5 AISI 304 and bent stainless steel sheet AISI 304. The wheels used are also made of stainless steel and have a diameter of 80 mm. This model was physically created and tested.
Stainless Steel Rack
Royalty Free License
Stainless Steel Rack
Royalty Free License
Available in these collections
- Welded Stainless Steel Fabrications (3 items)$8.39$7.7save 8%
3D Model formats
Format limitations
Native
- SolidWorks (.sldprt, .sldasm, .slddrw) (9 files)3.55 MBVersion: 2021Version: 2021Version: 2021Version: 2021Version: 2021Version: 2021Version: 2021Version: 2021Version: 2021
Exchange
- PDF (.pdf)163 KB
- OBJ (.obj, .mtl)27.5 MB
- IGES (.ige, .igs, .iges)4.07 MB
3D Model details
- Publish date2022-09-27
- Model ID#4015488
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
