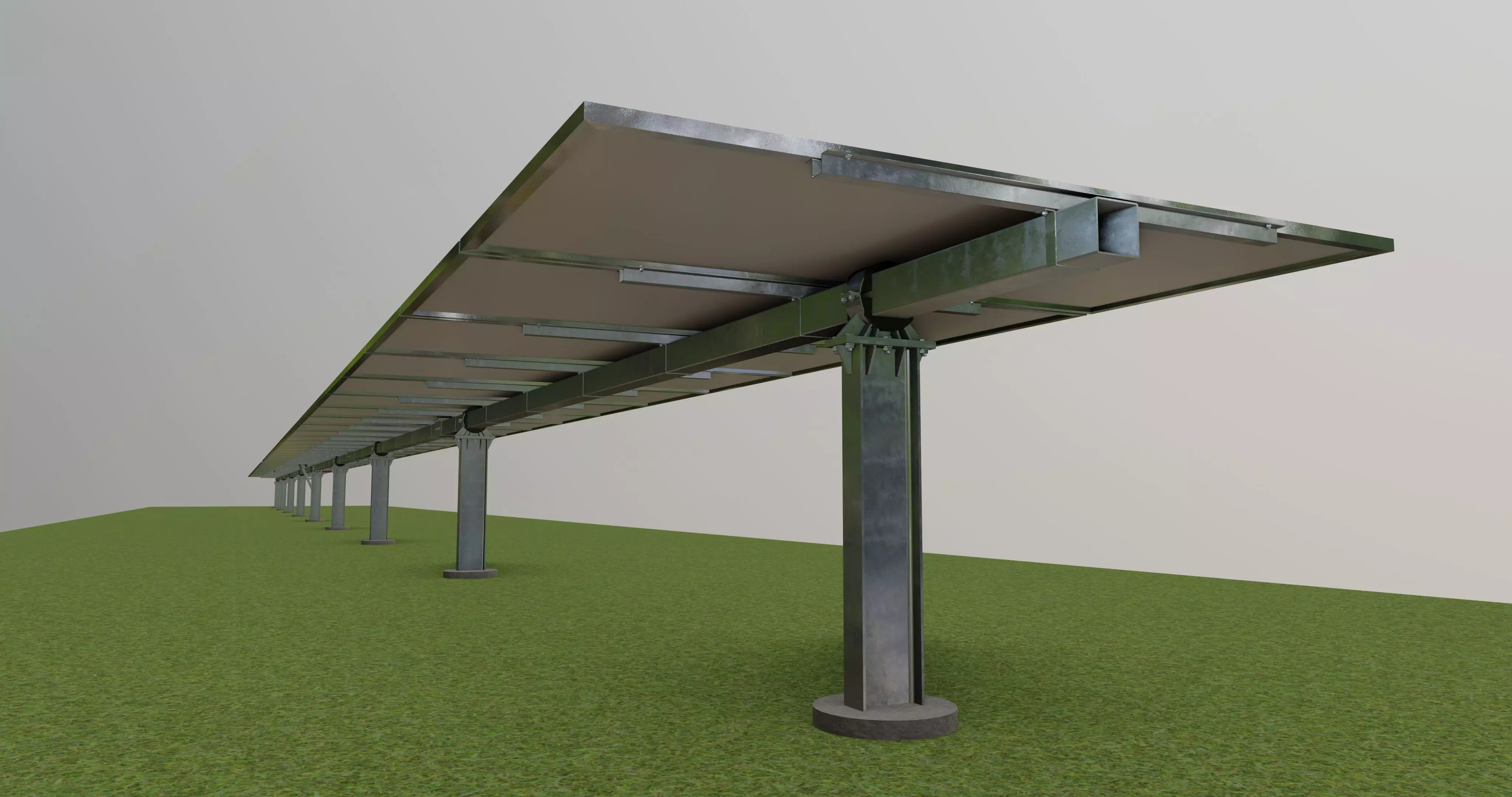

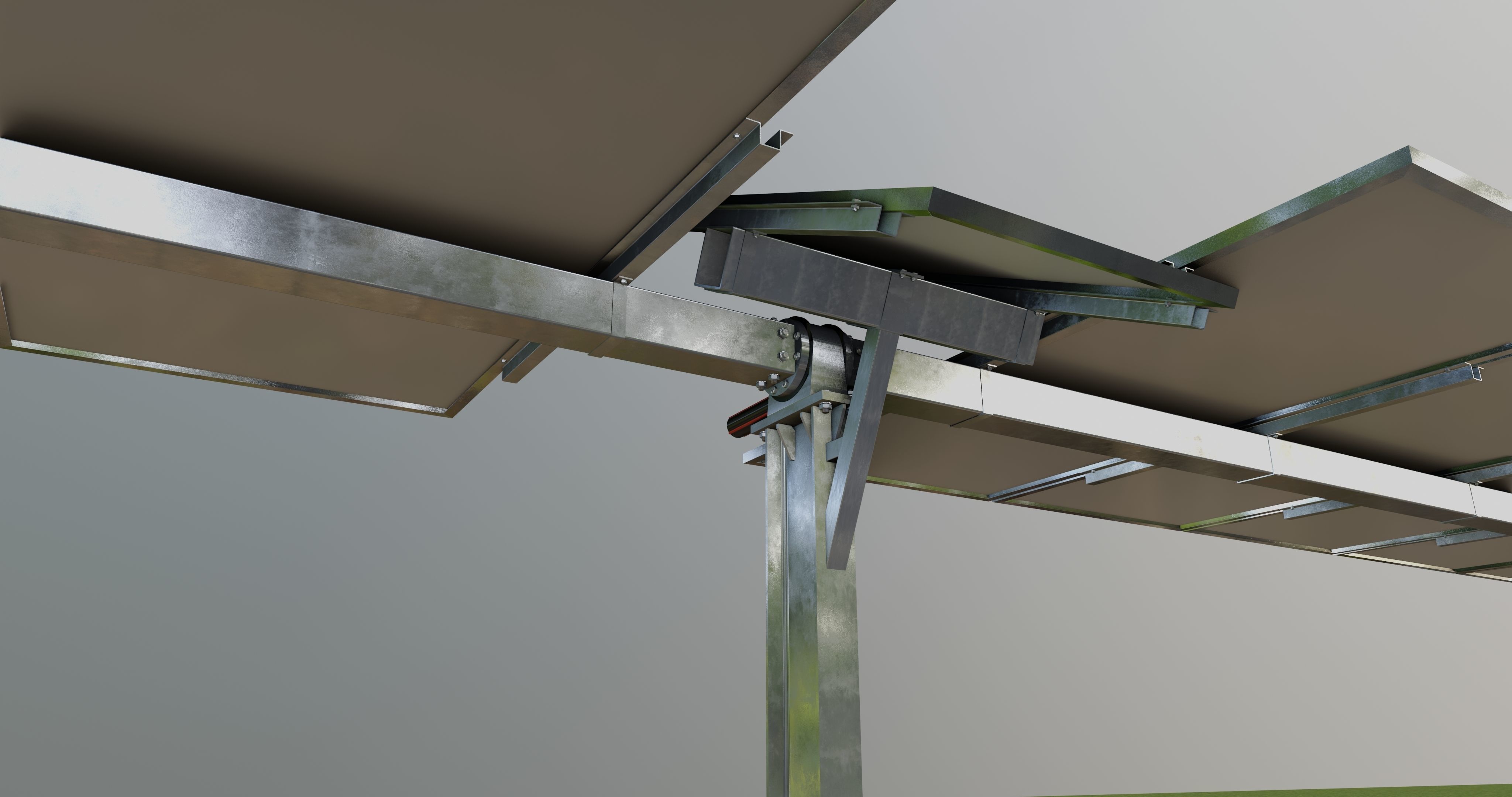

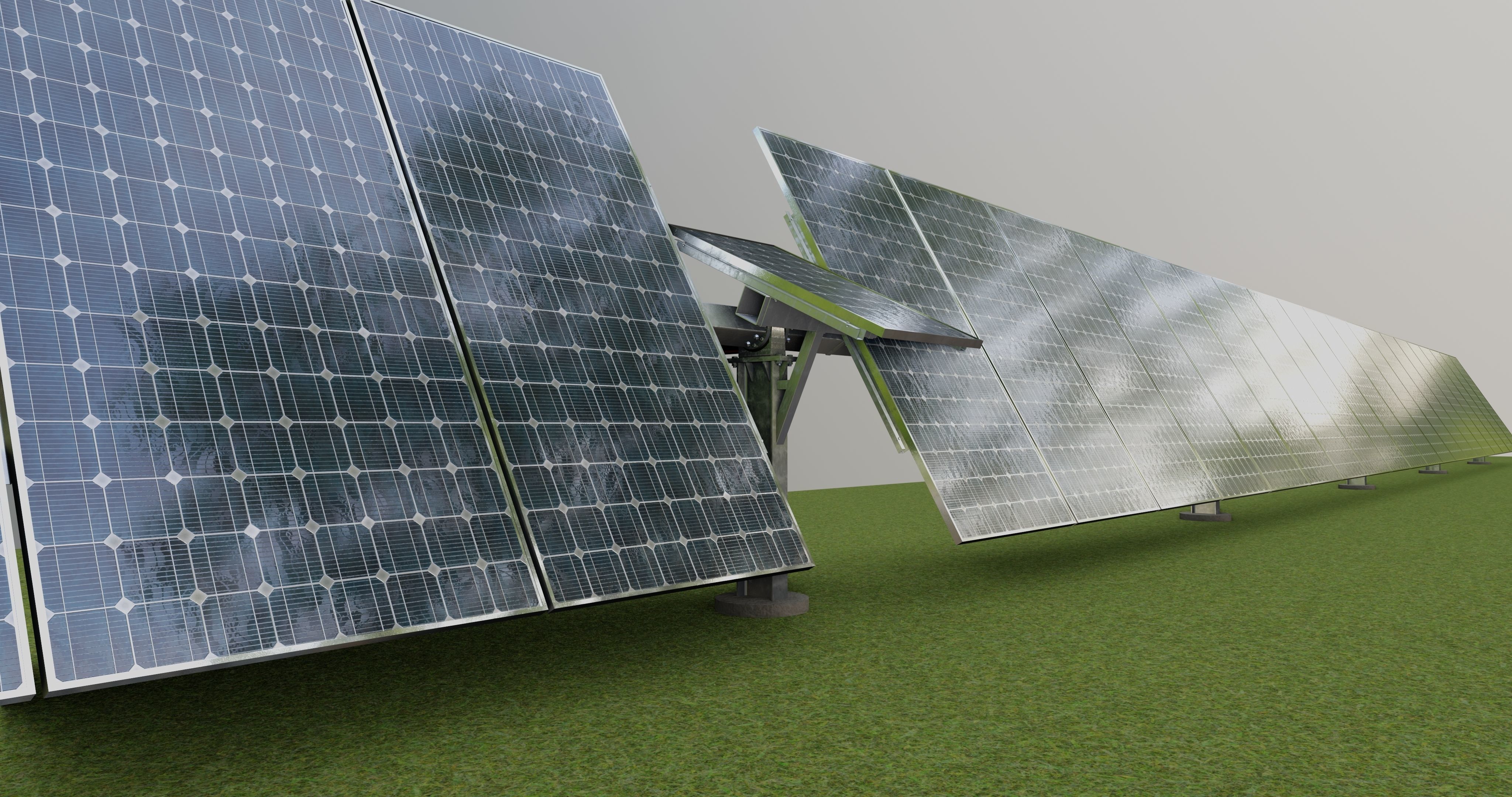

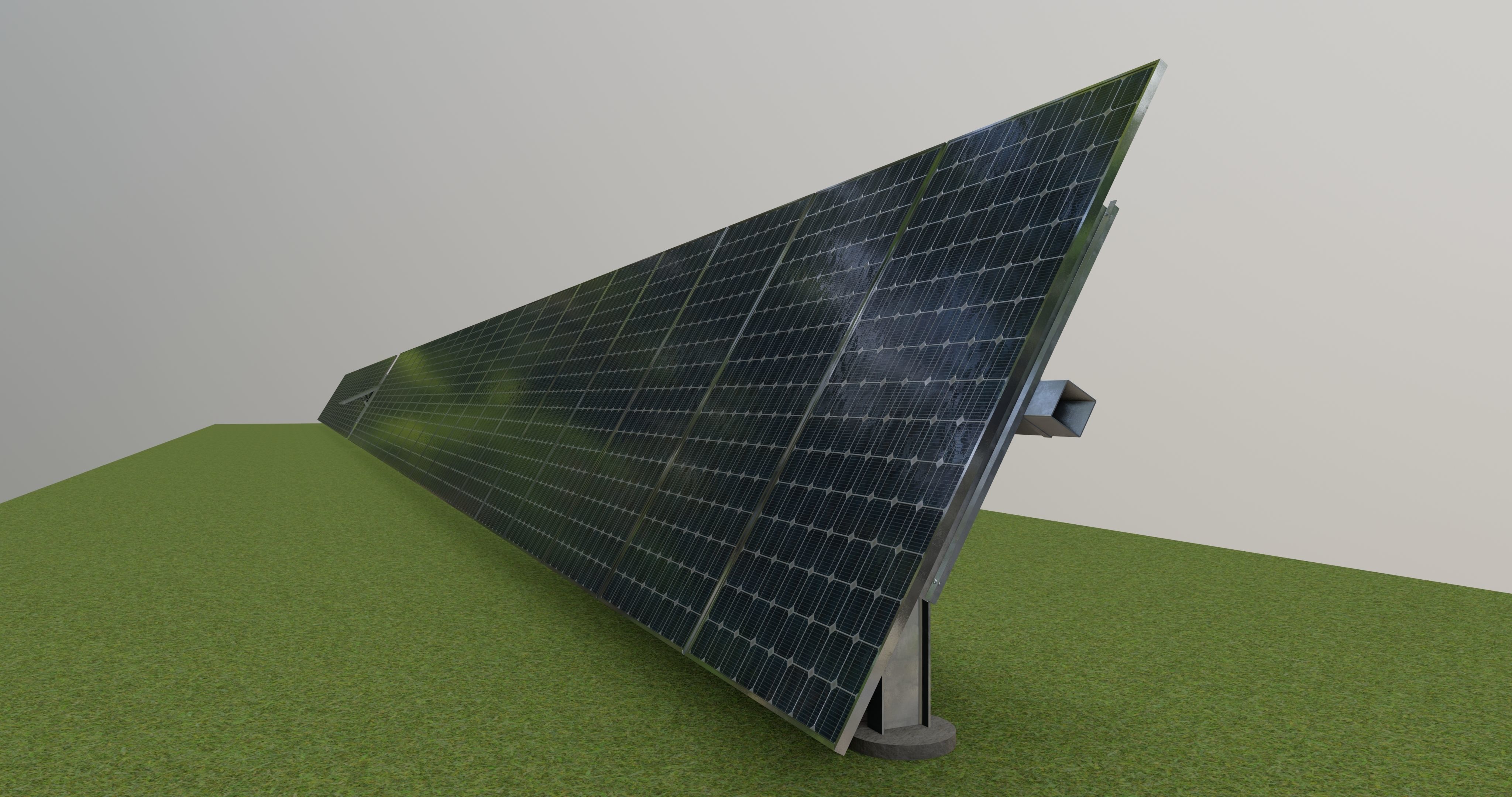

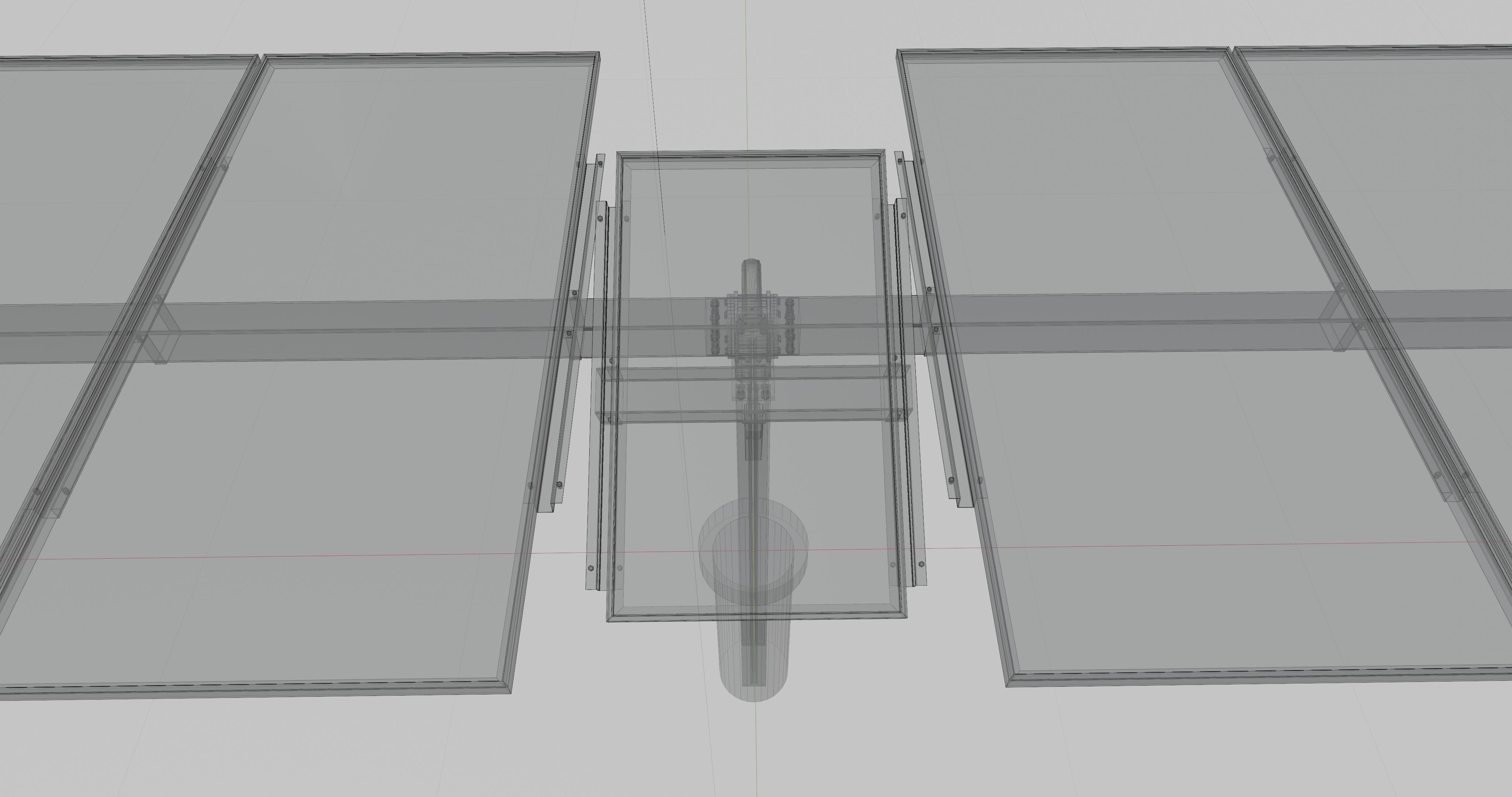

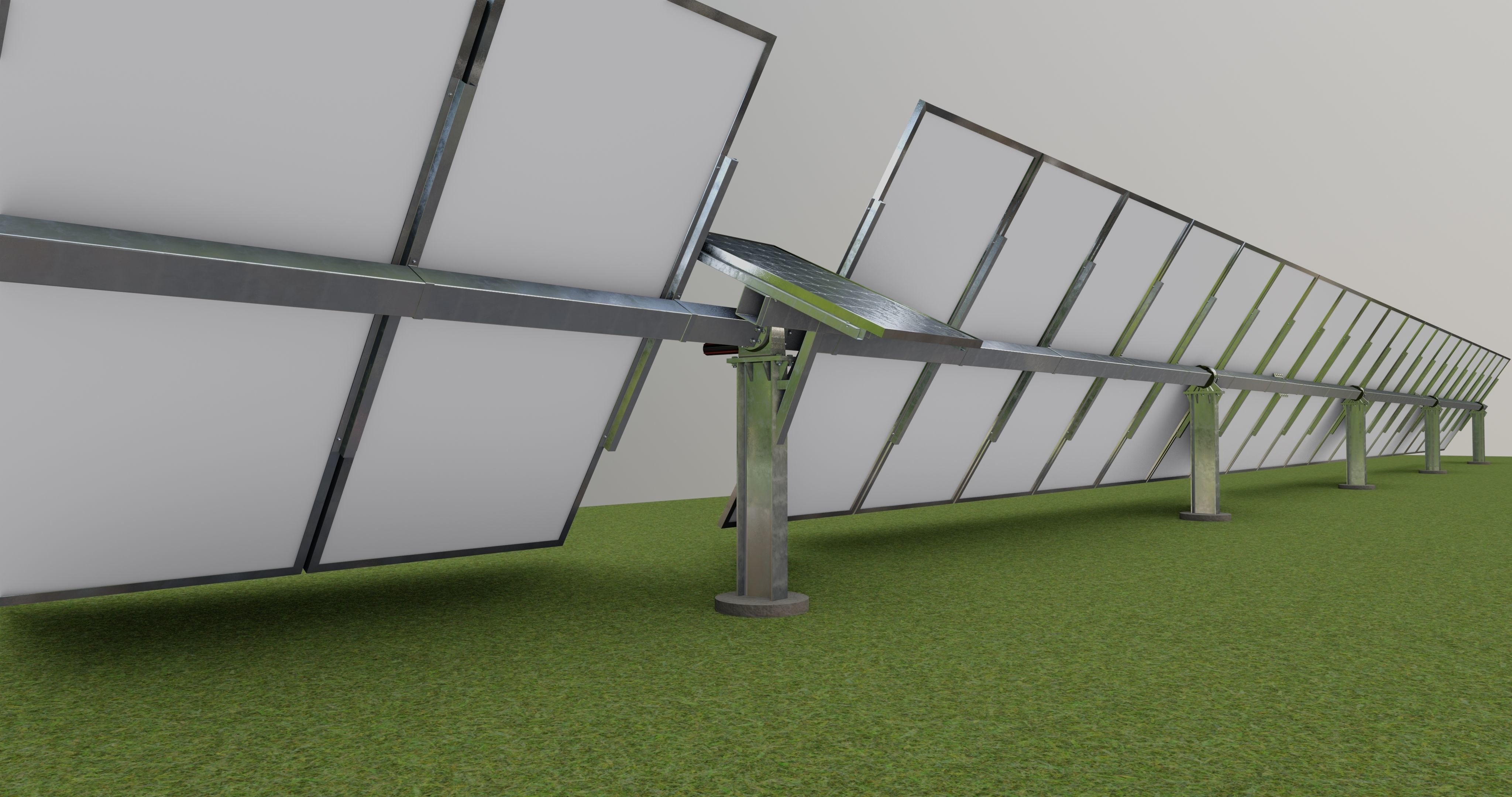

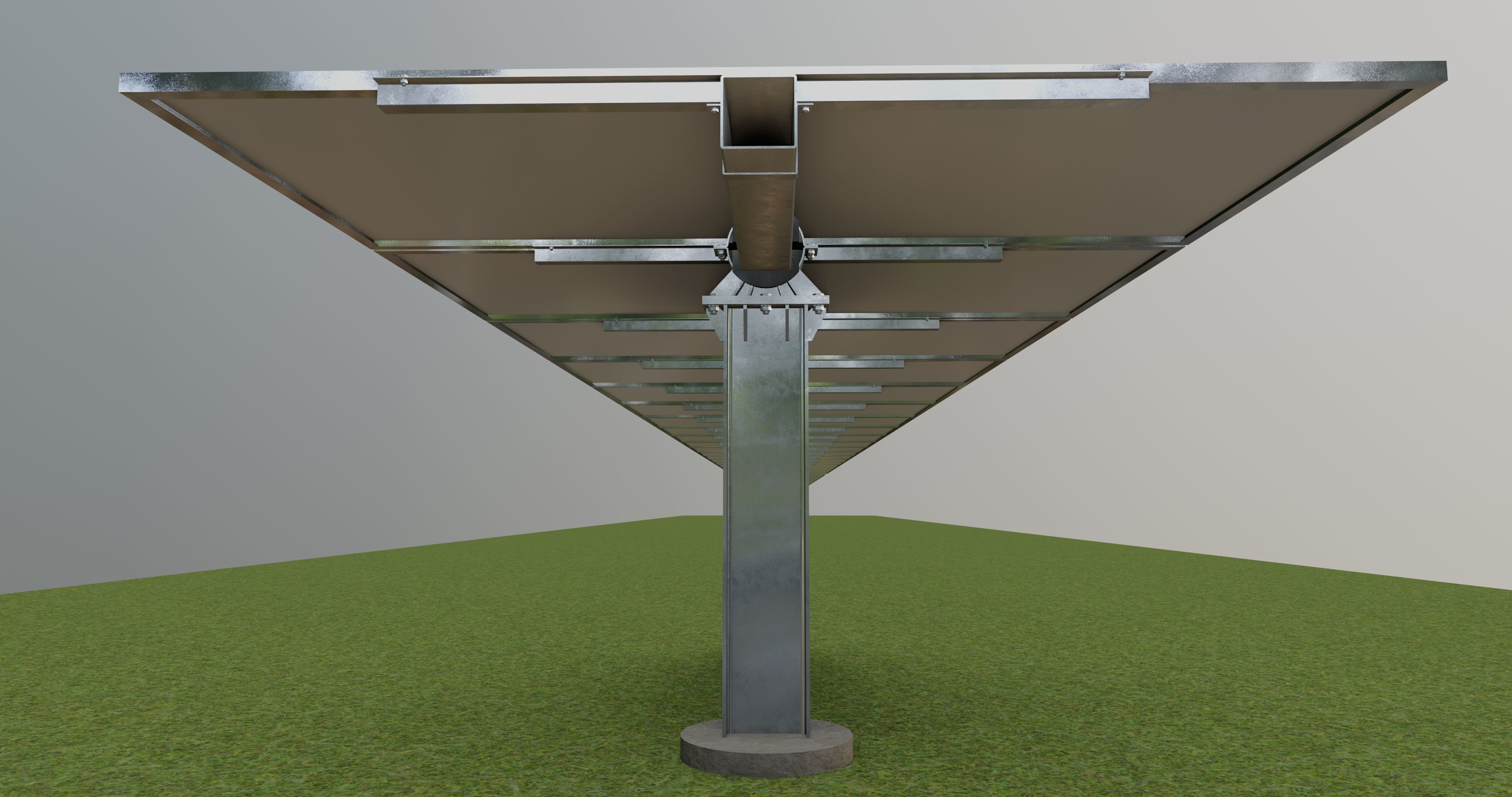

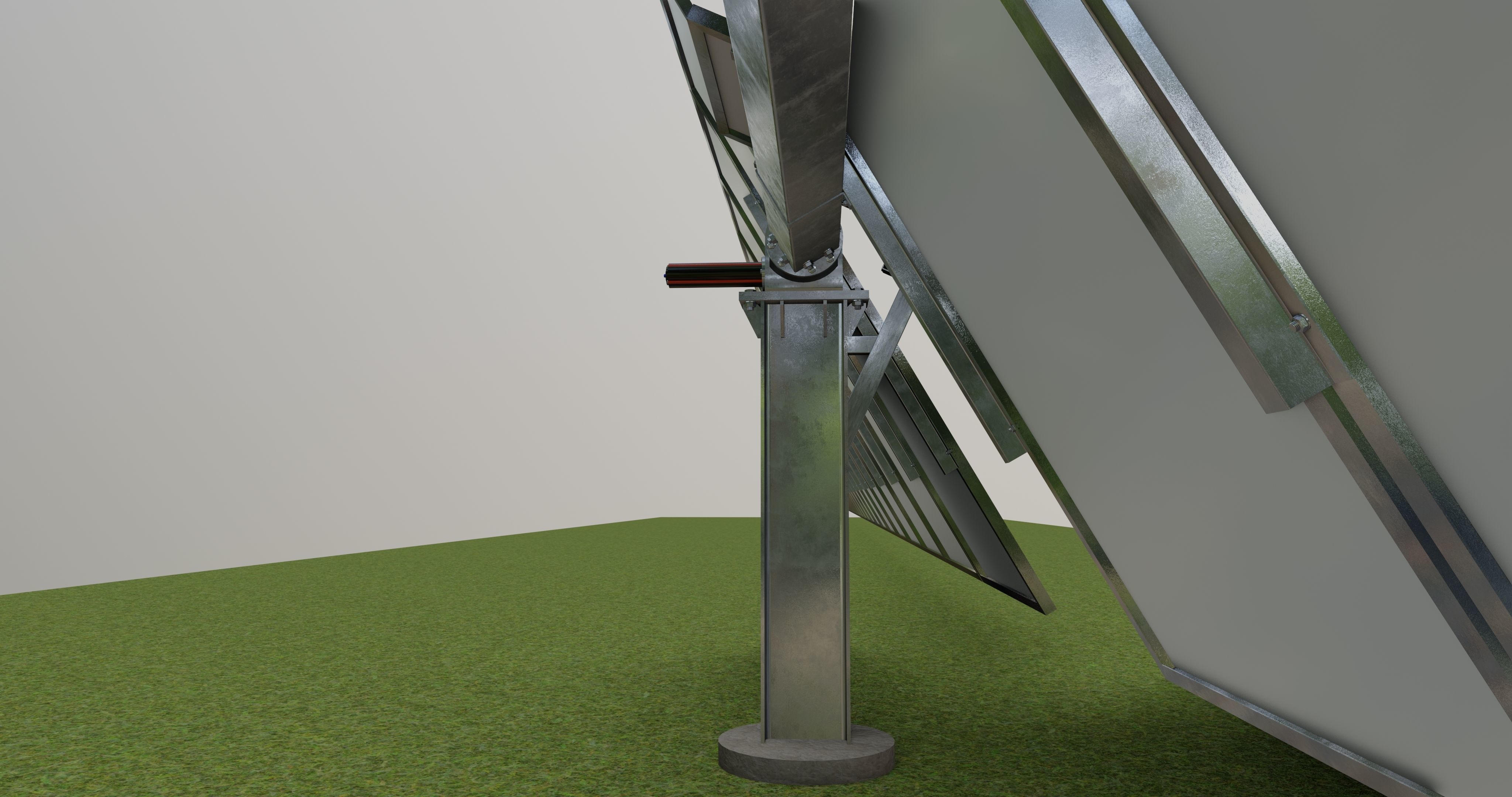

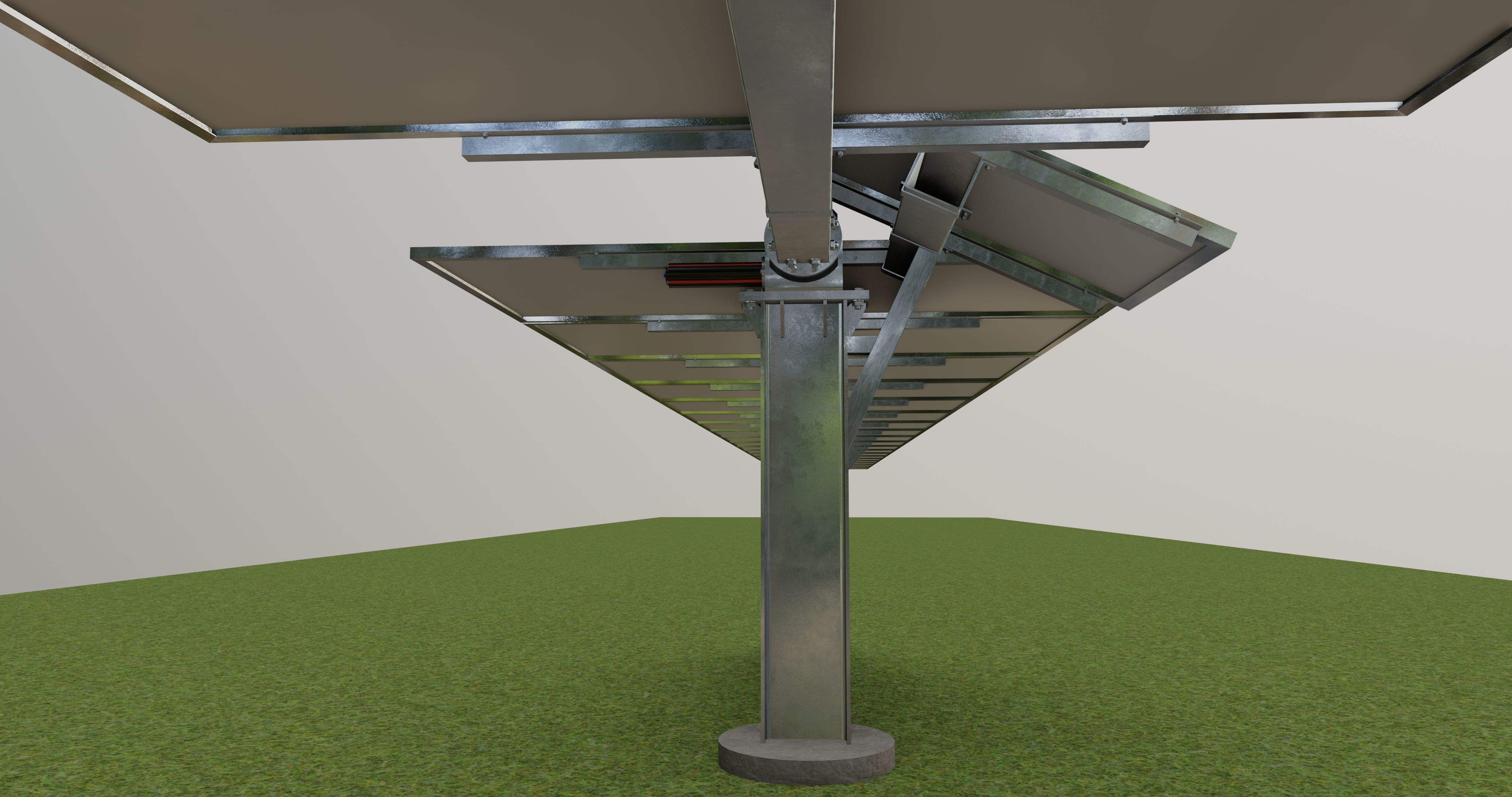

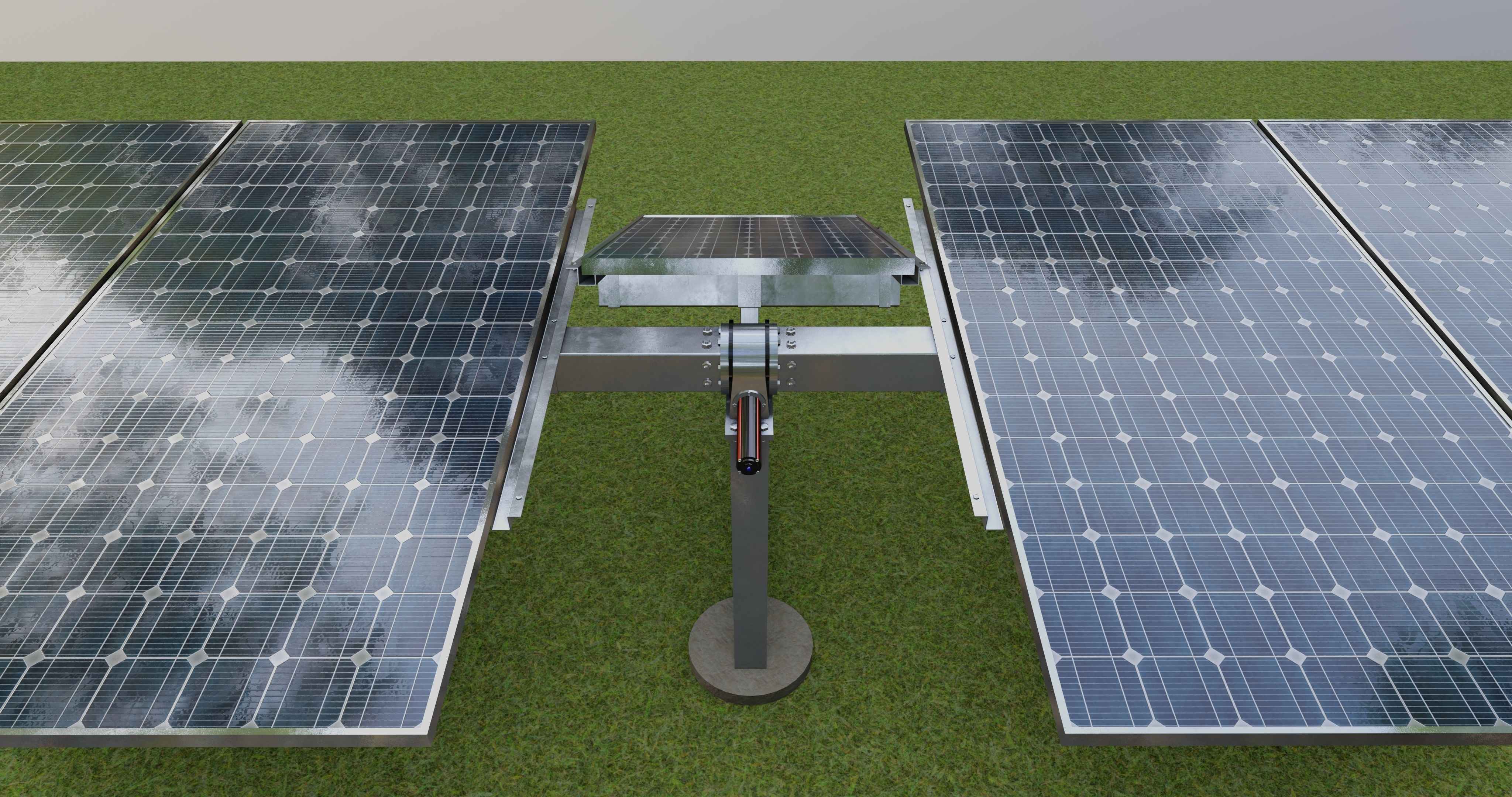

Solar Tracking Systems 3D model
Description

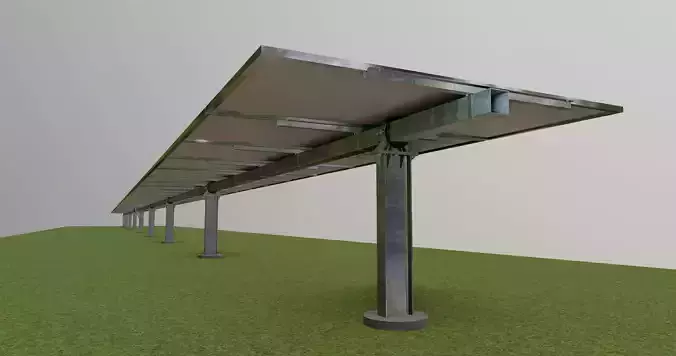

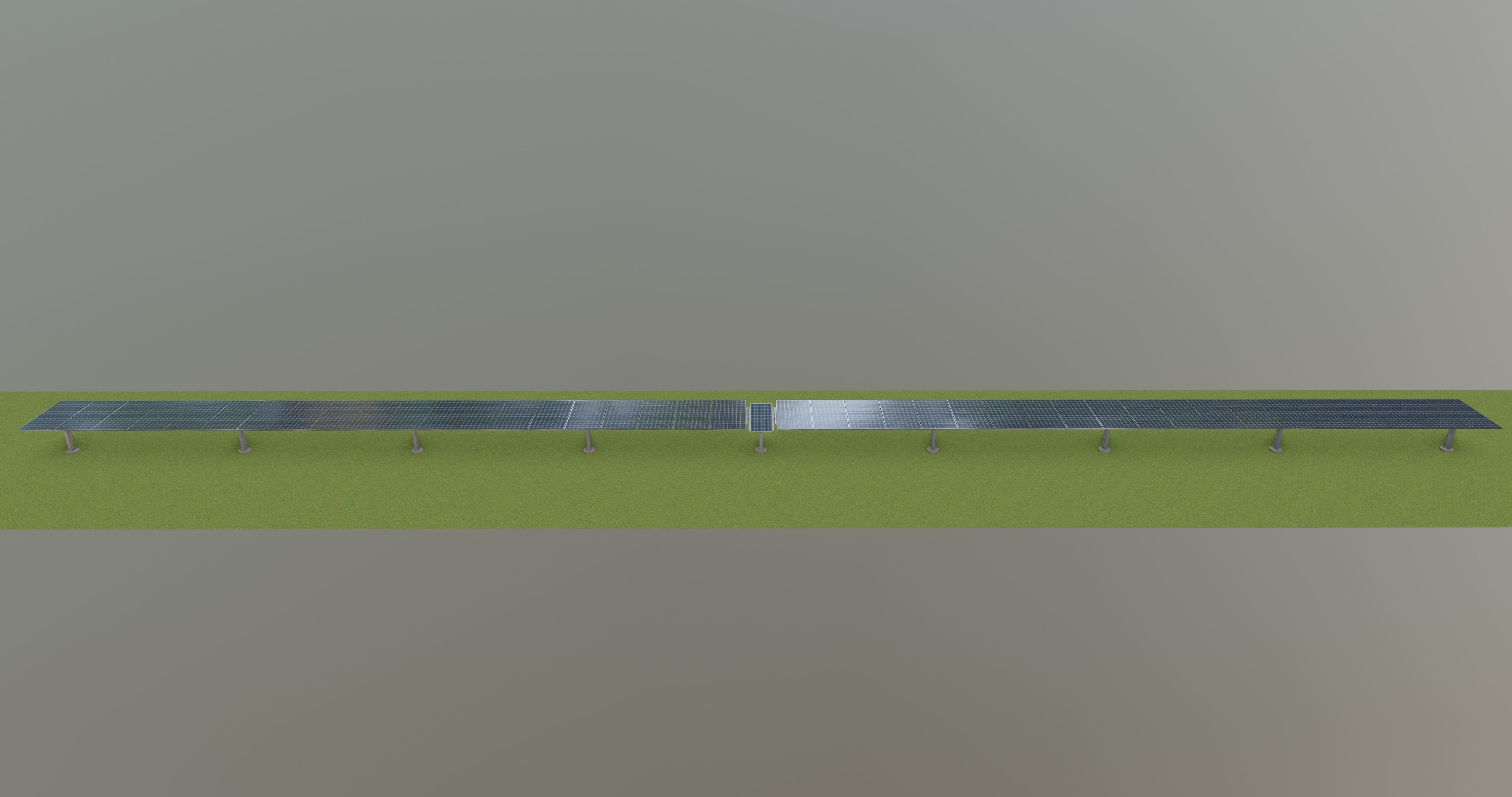

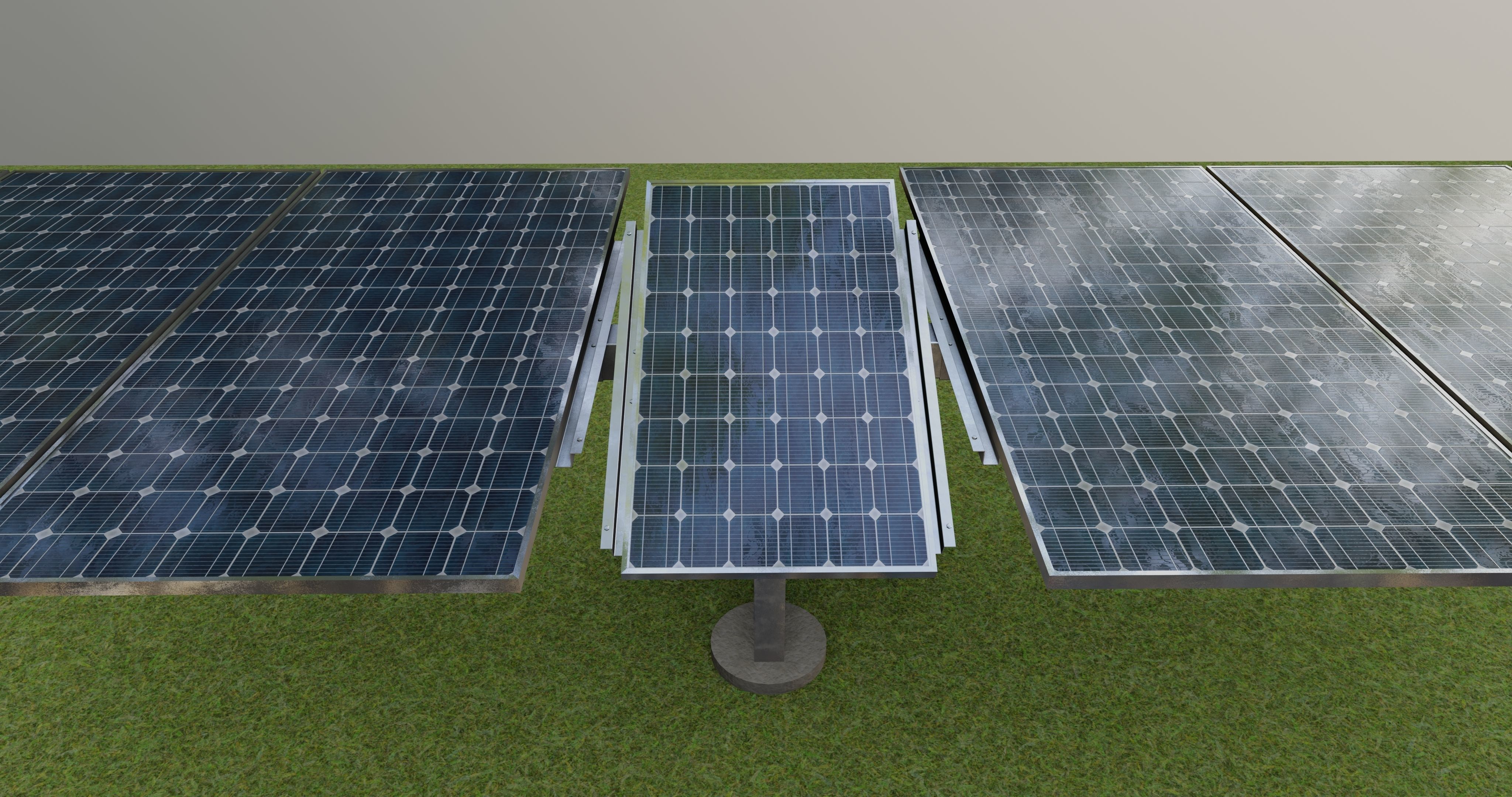

Solar Tracking Systems

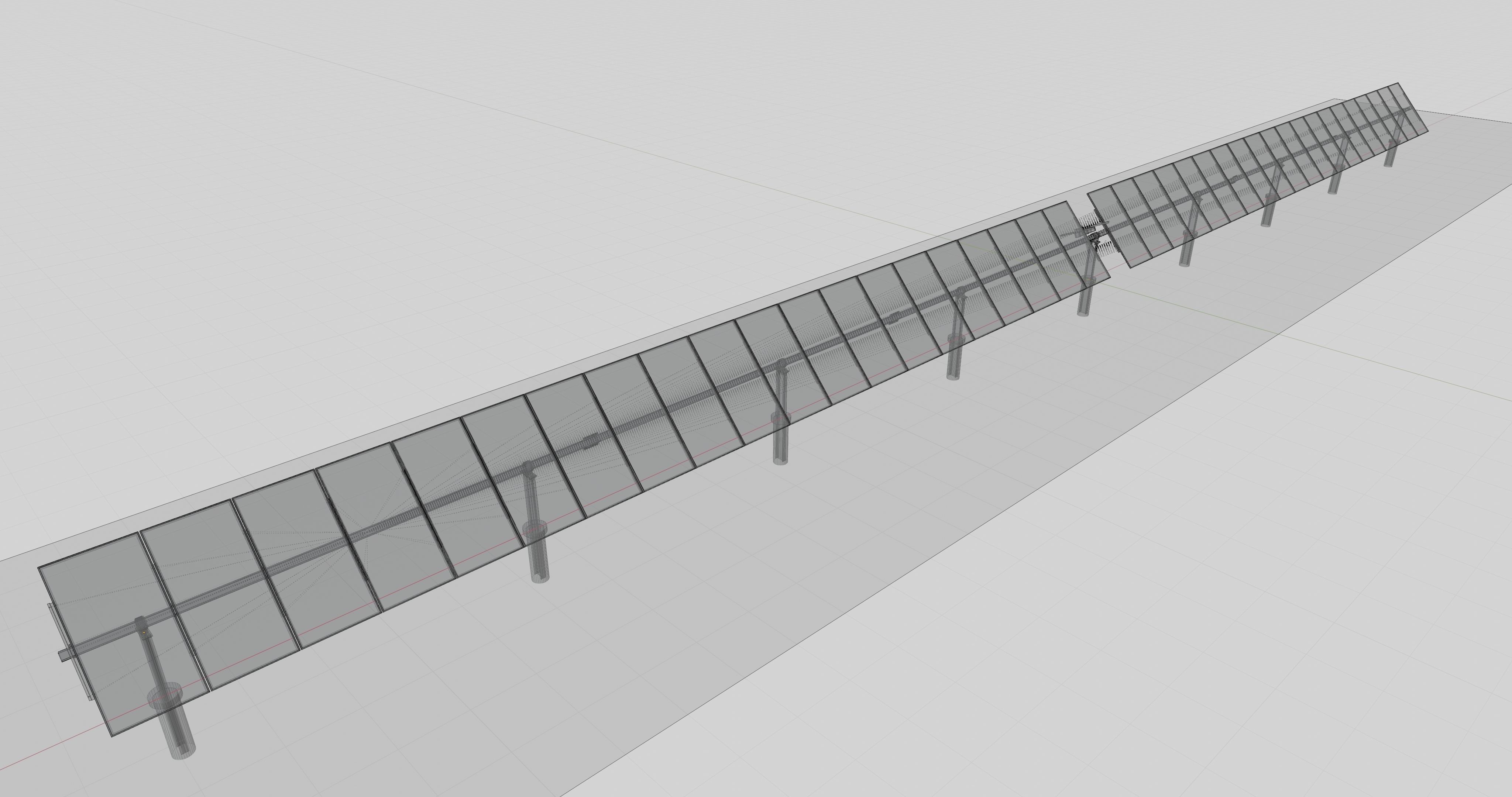

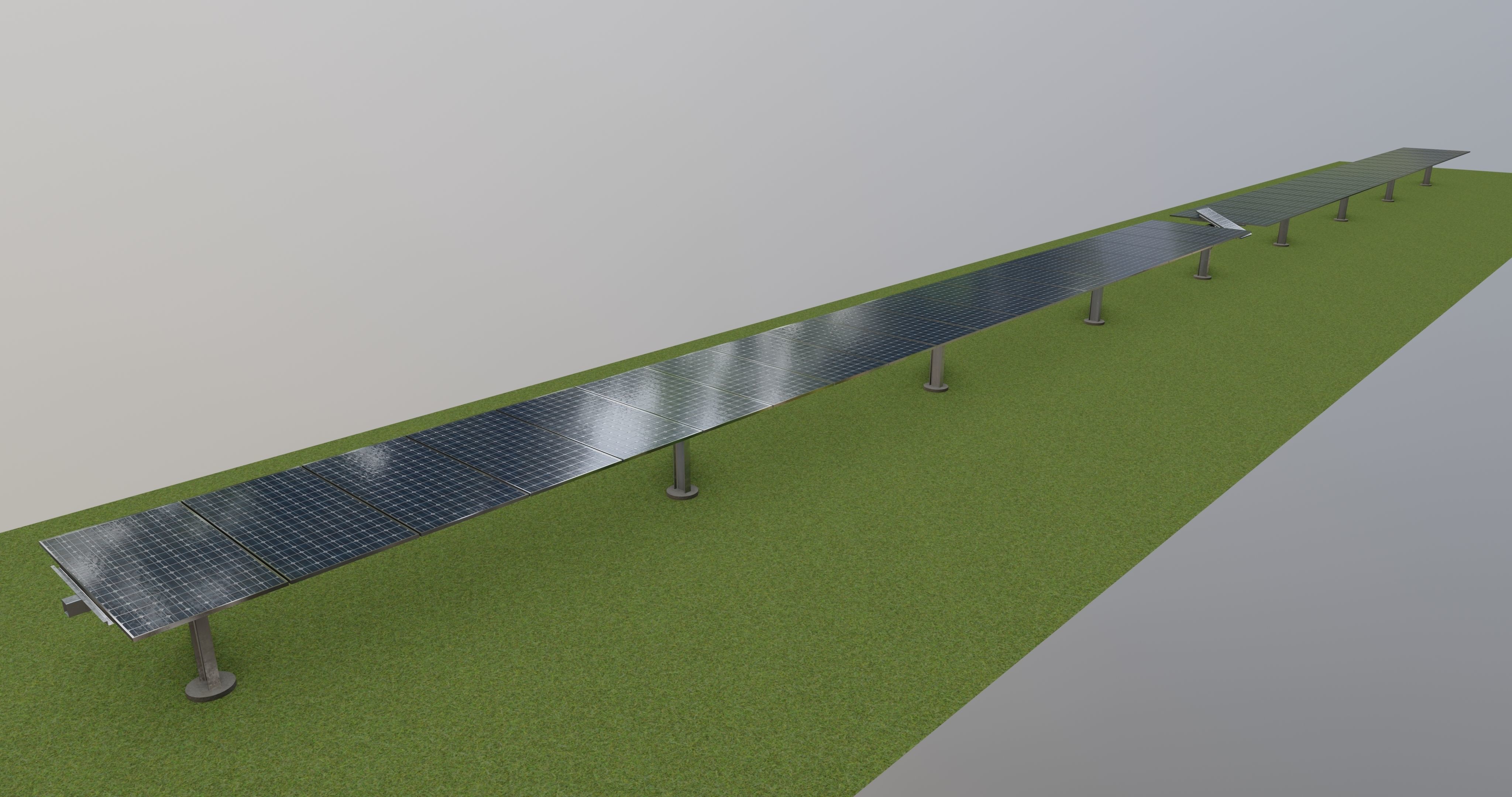

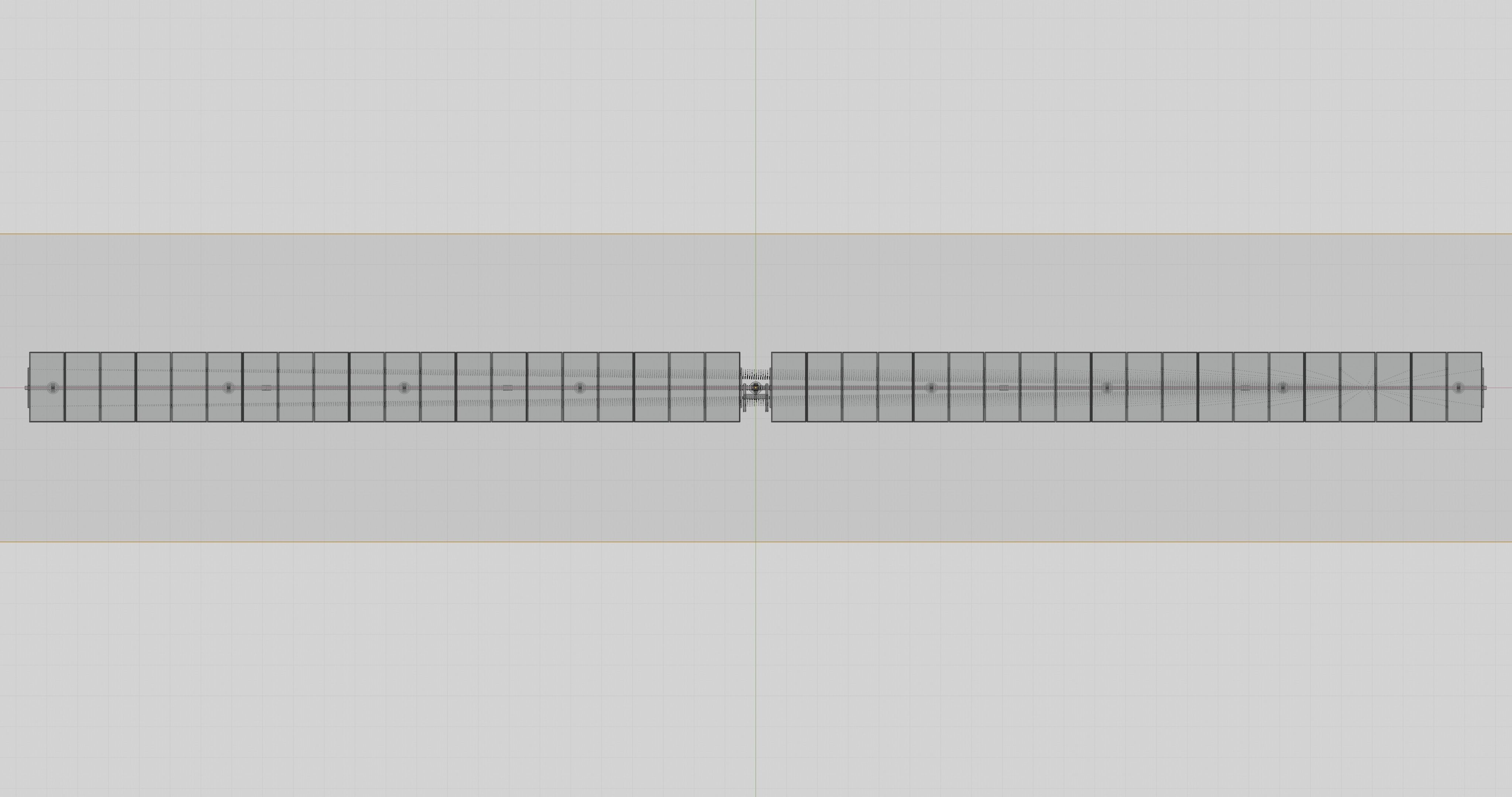

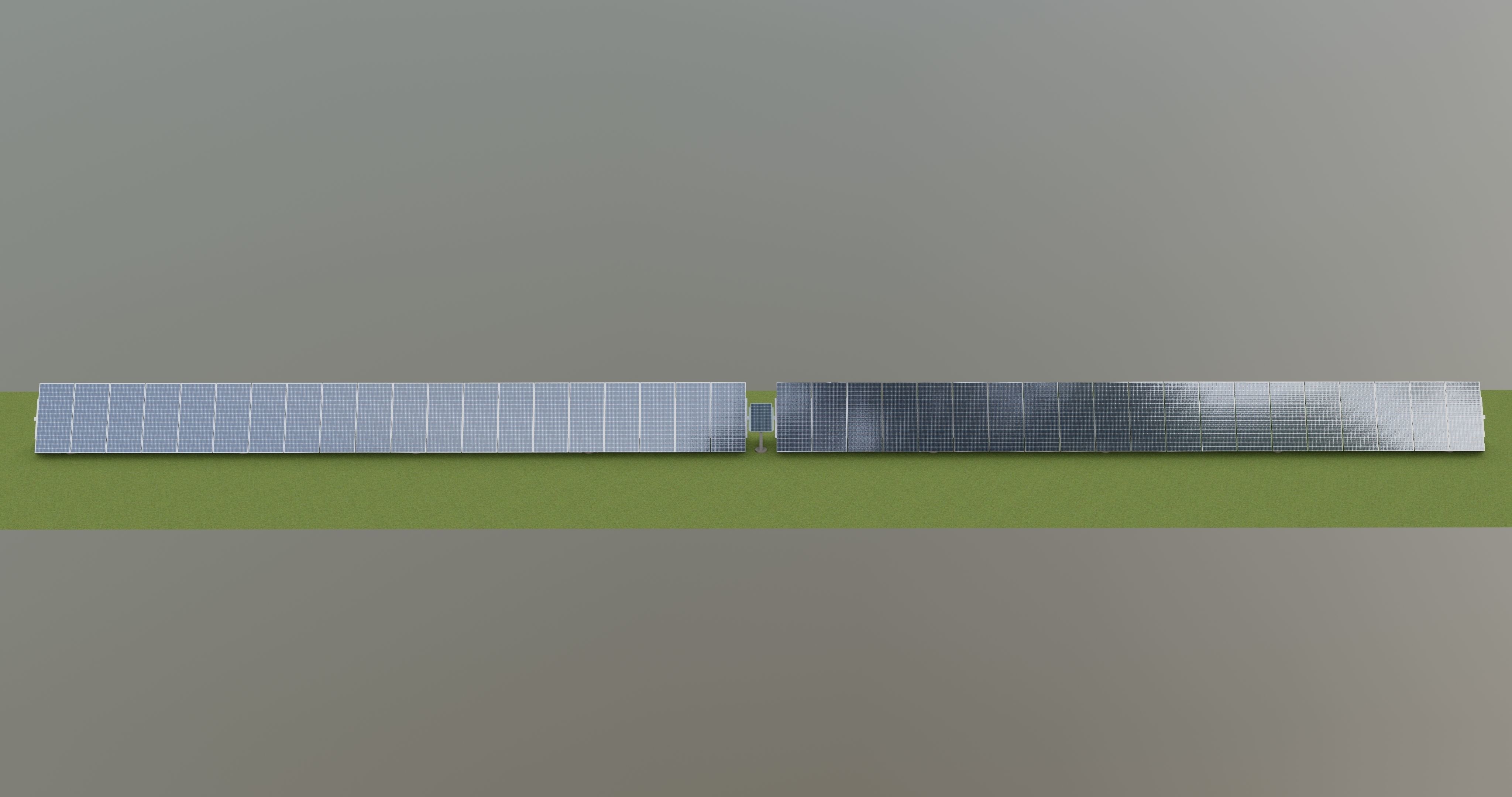

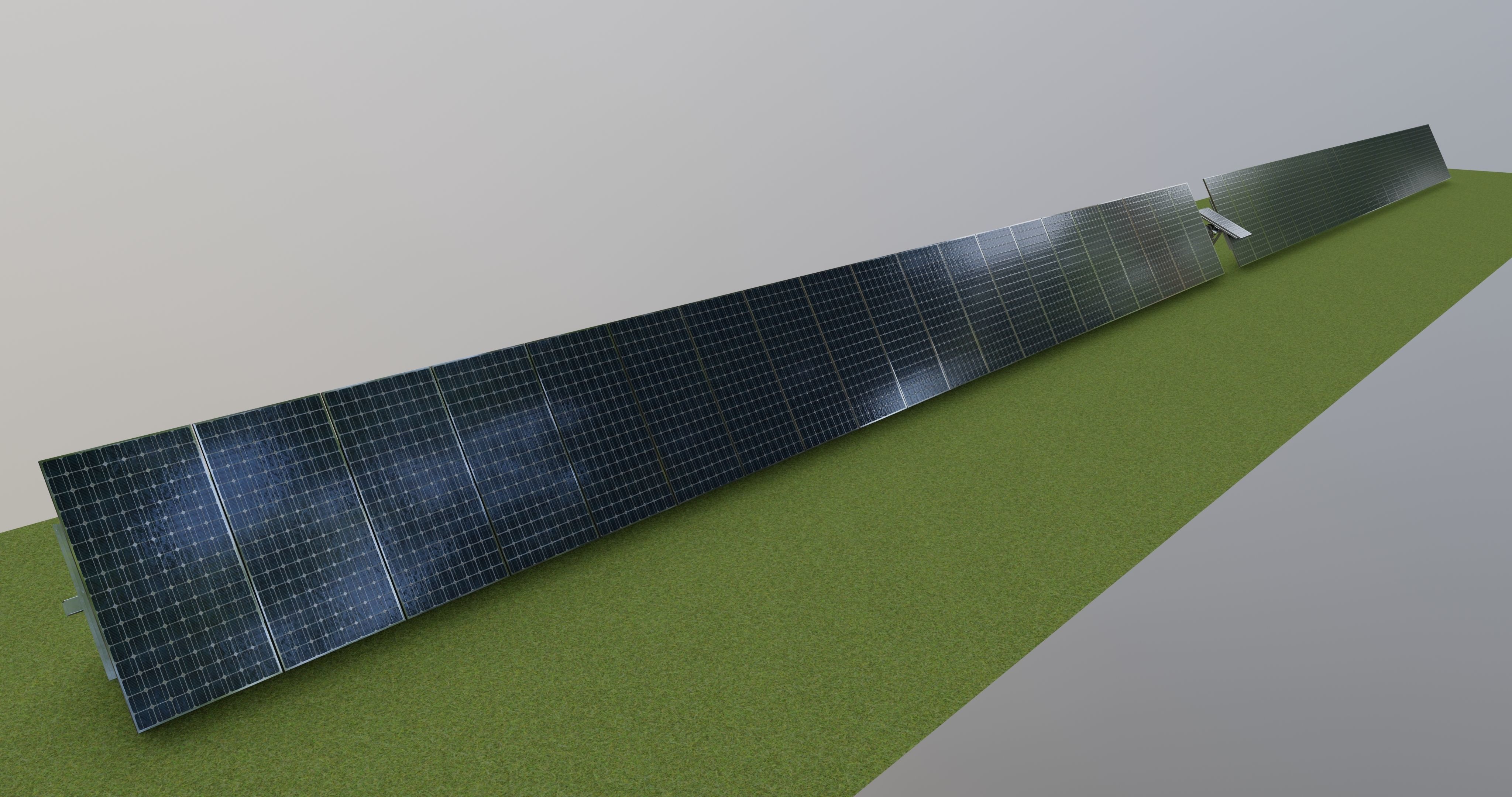

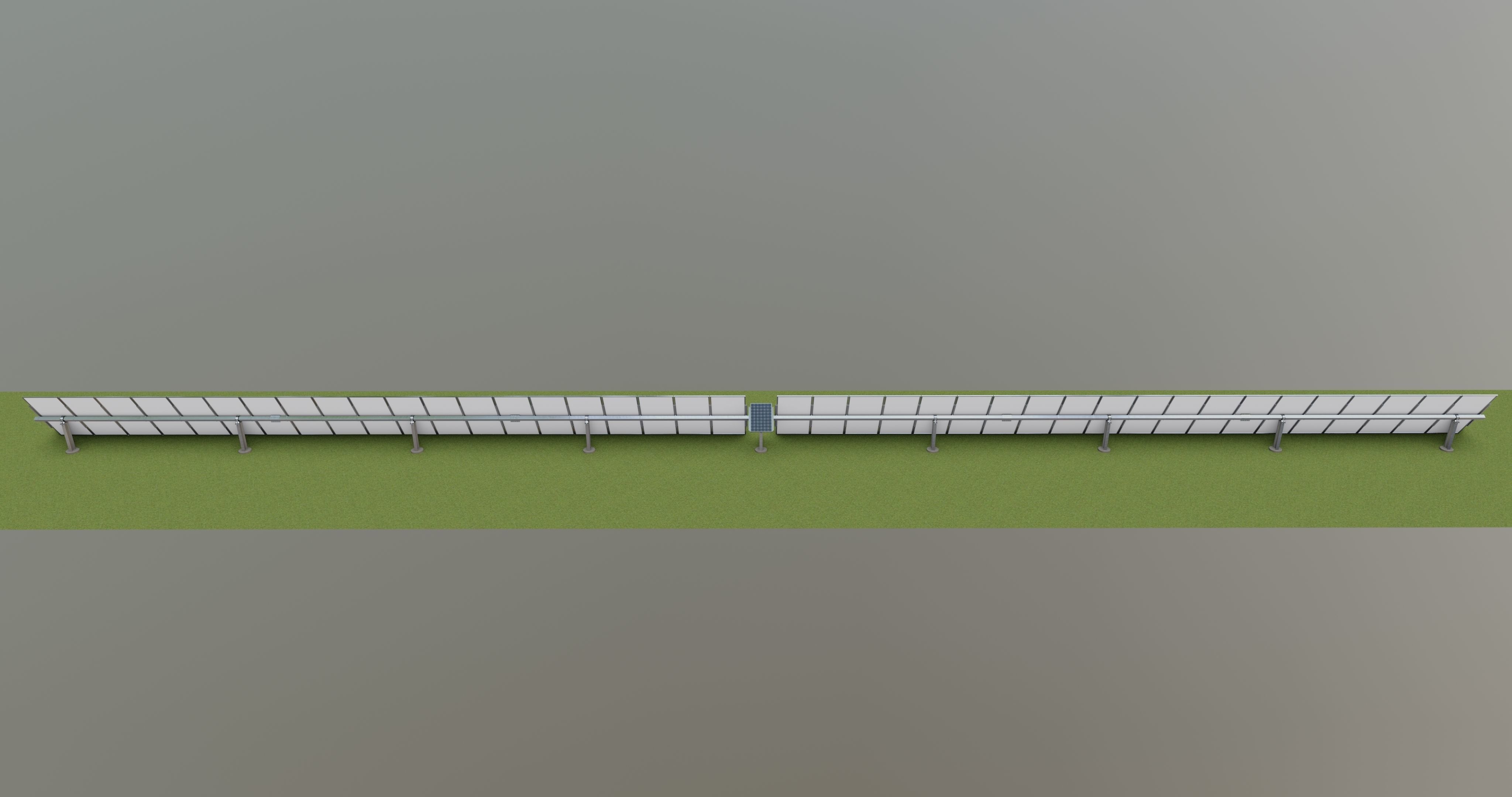

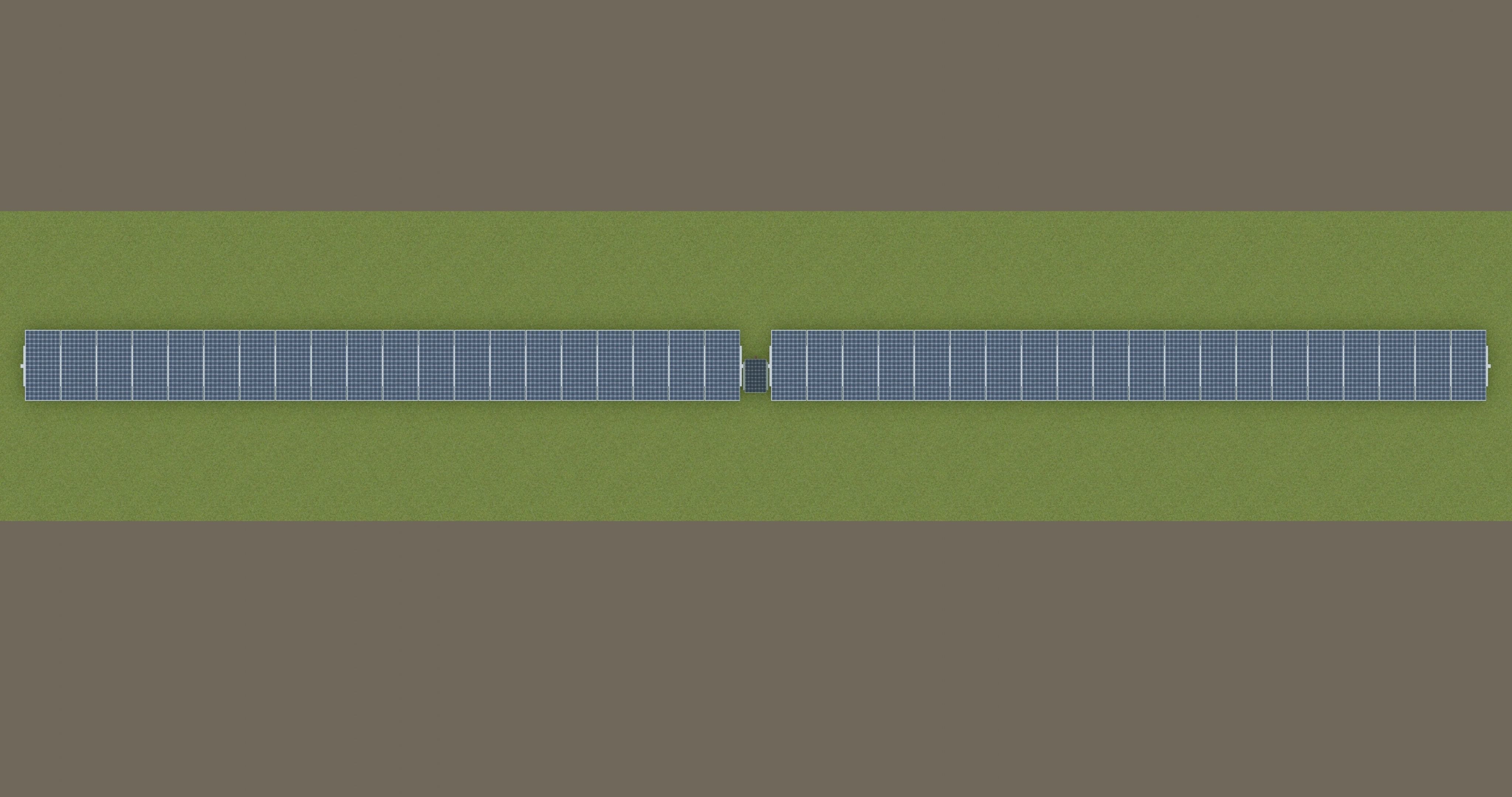

20+20 Panel Layout
Ground Connection Type; With Concrete Friction Pile
Distance of Columns Below Ground 1000 mm.

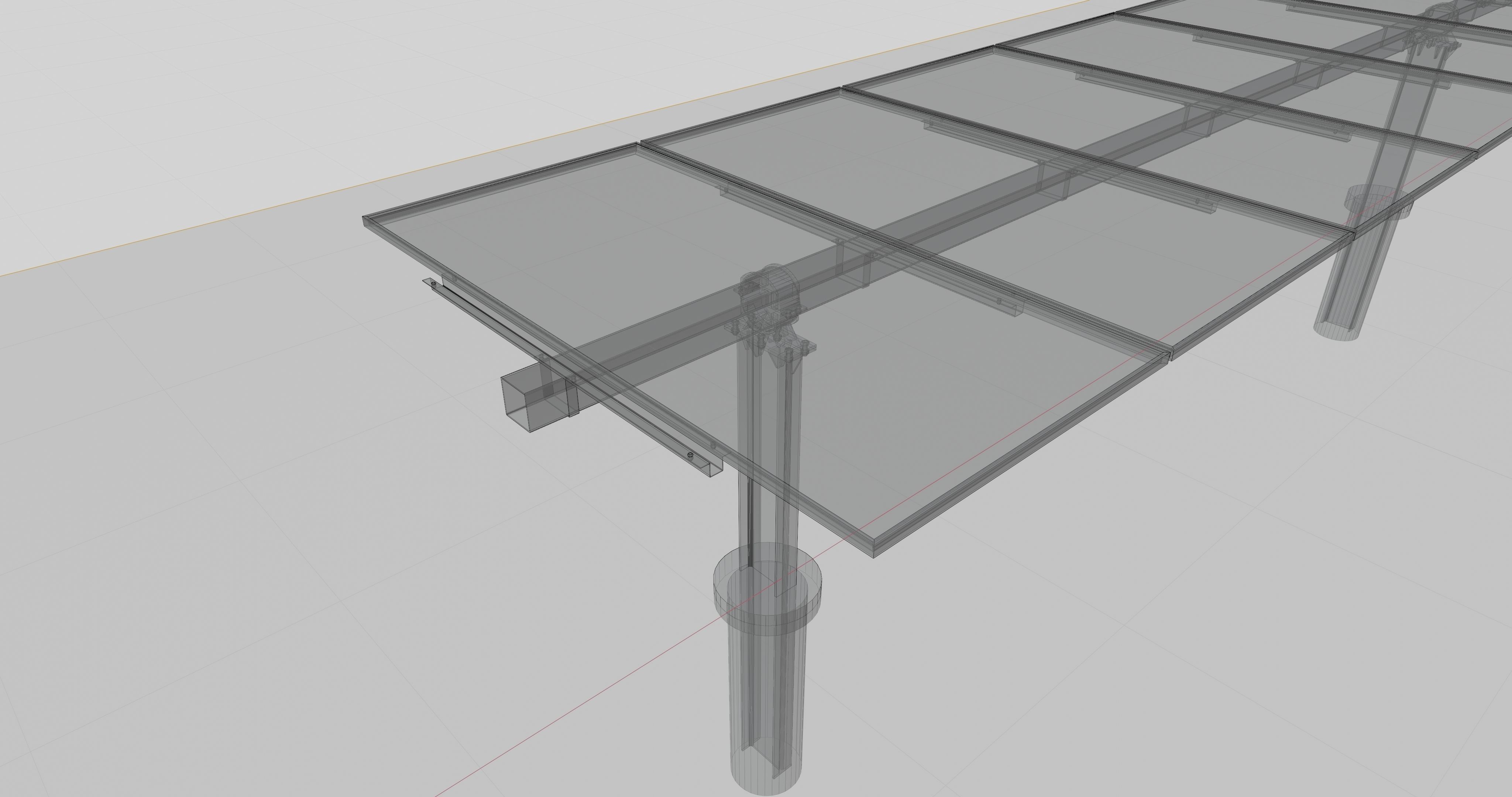

Concrete Friction Pile Dimensions : Ø300 mm H= 1000 mm
Distance of Columns Below Ground 5700 mm.

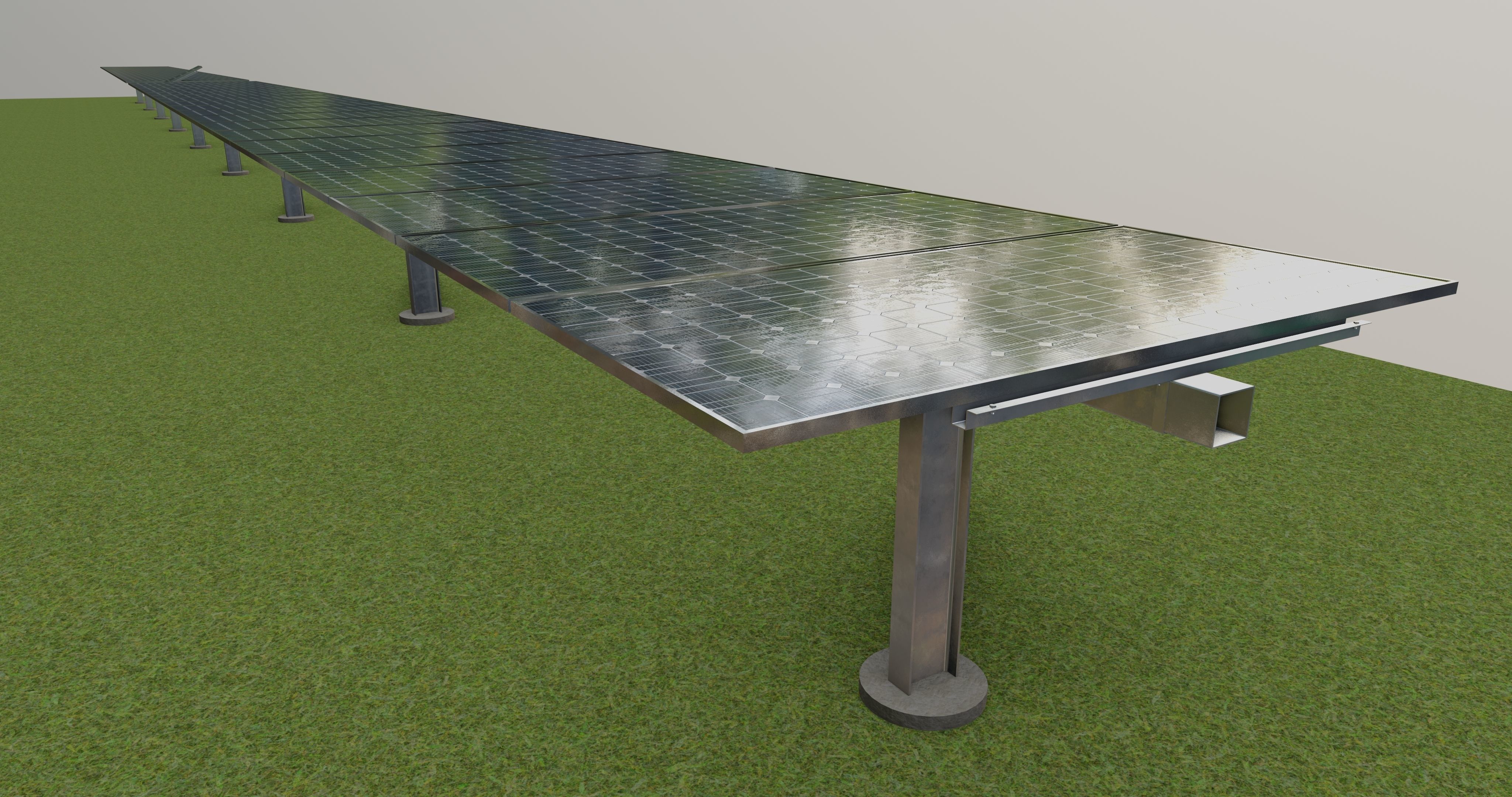

Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 22 kWp power in 1 hour

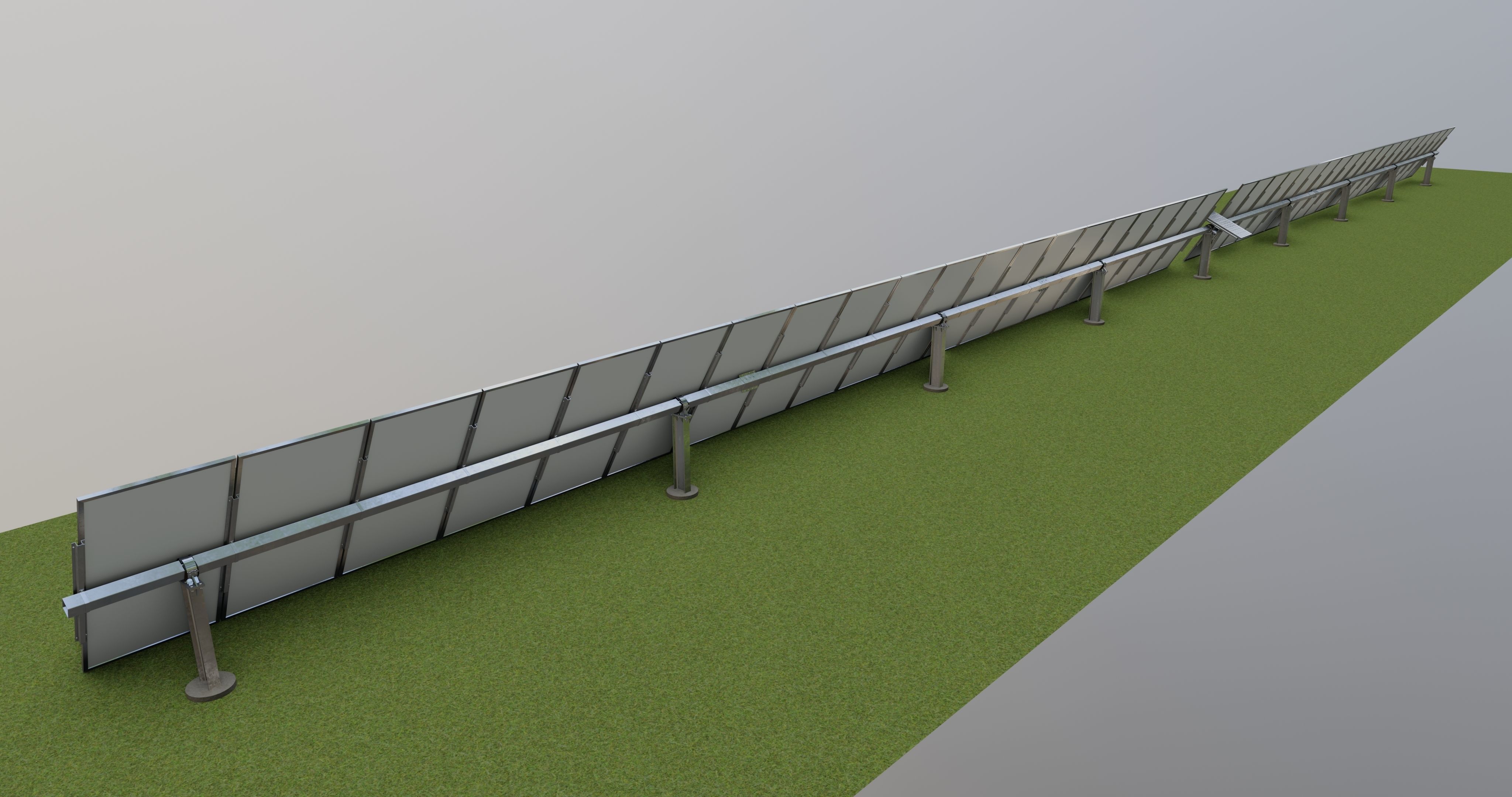

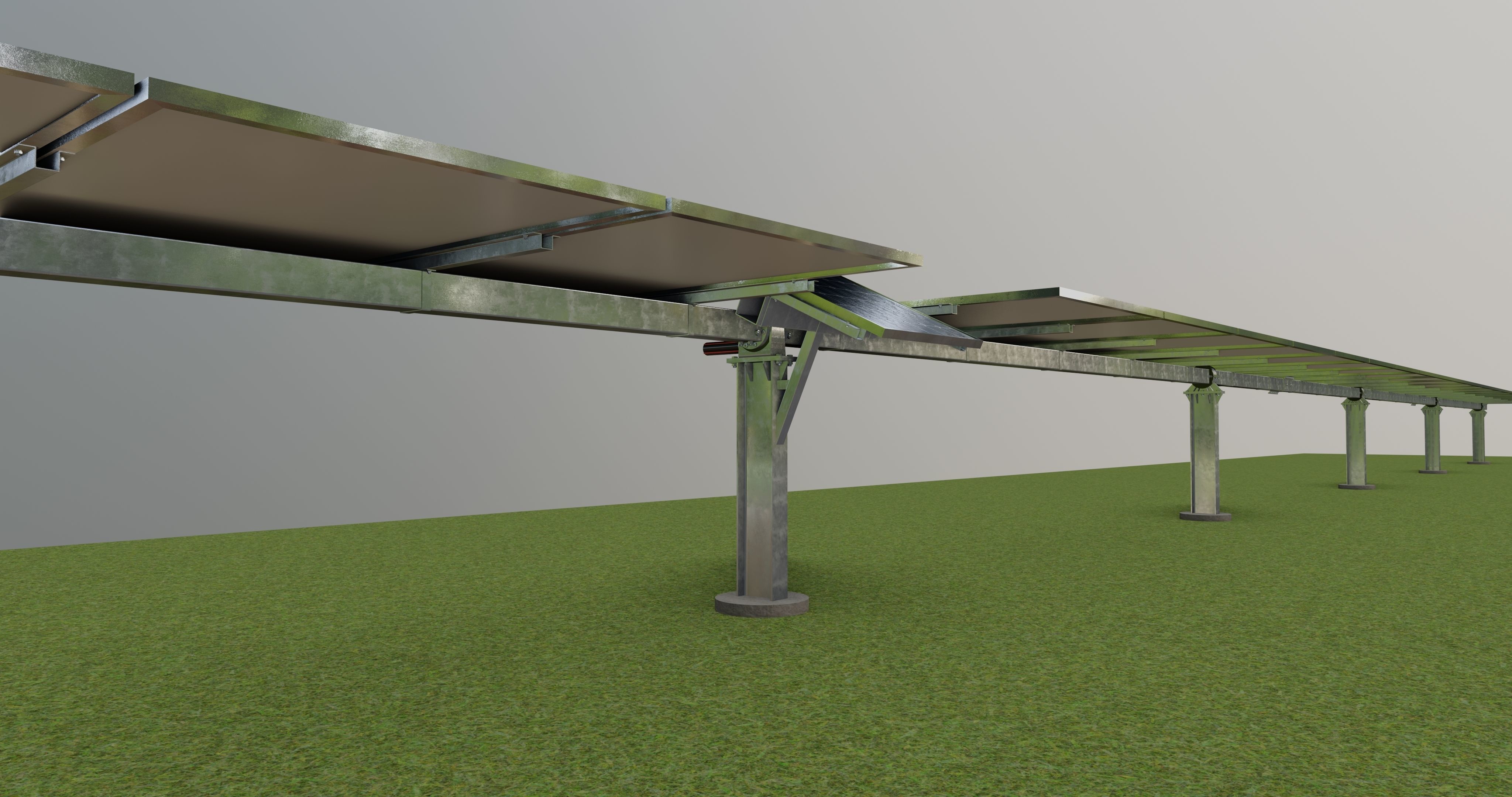

The system consists of 9 axles and the distance between each axle is 5700 mm.

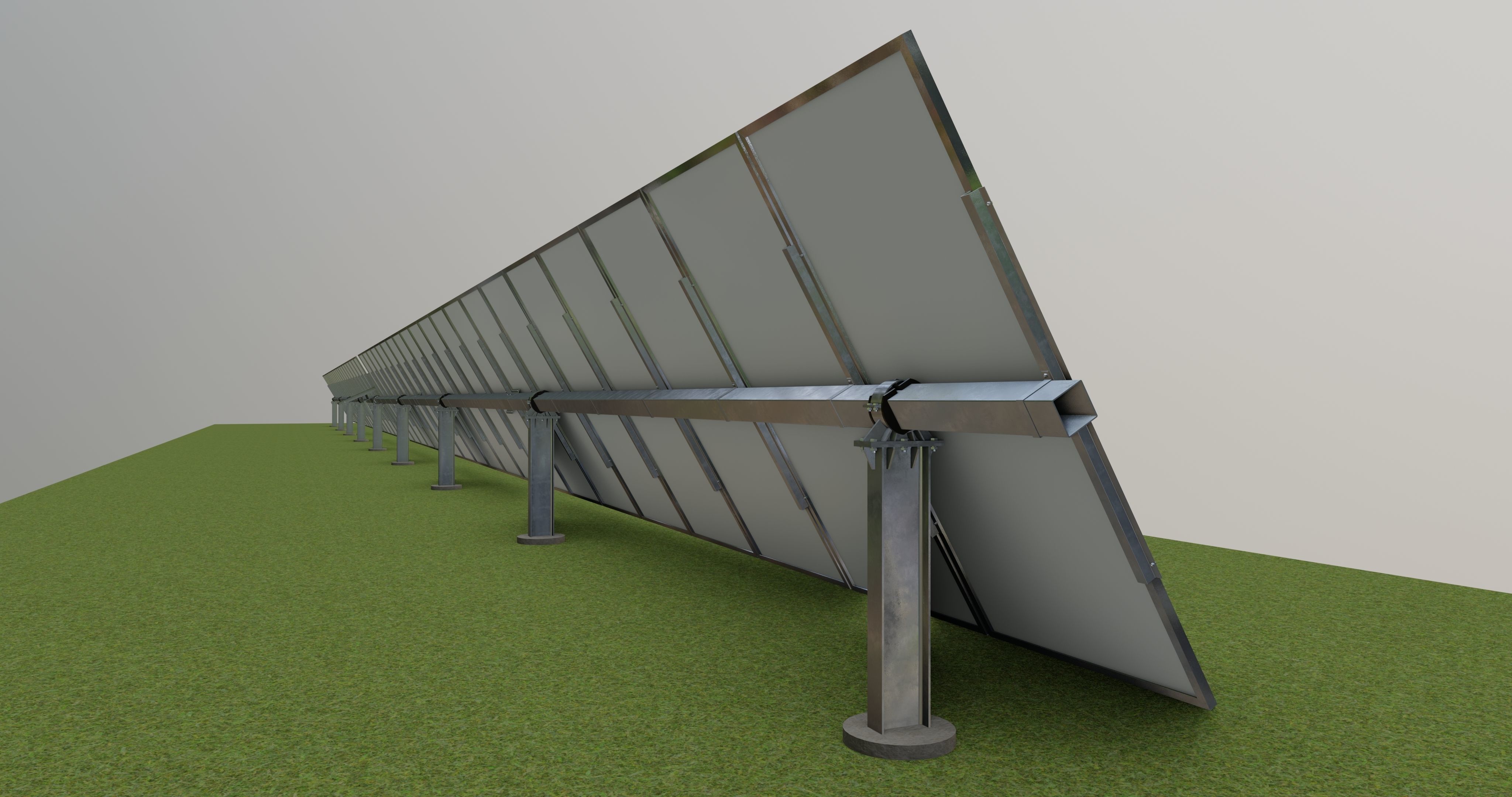

Panel angle range -60° , +60°

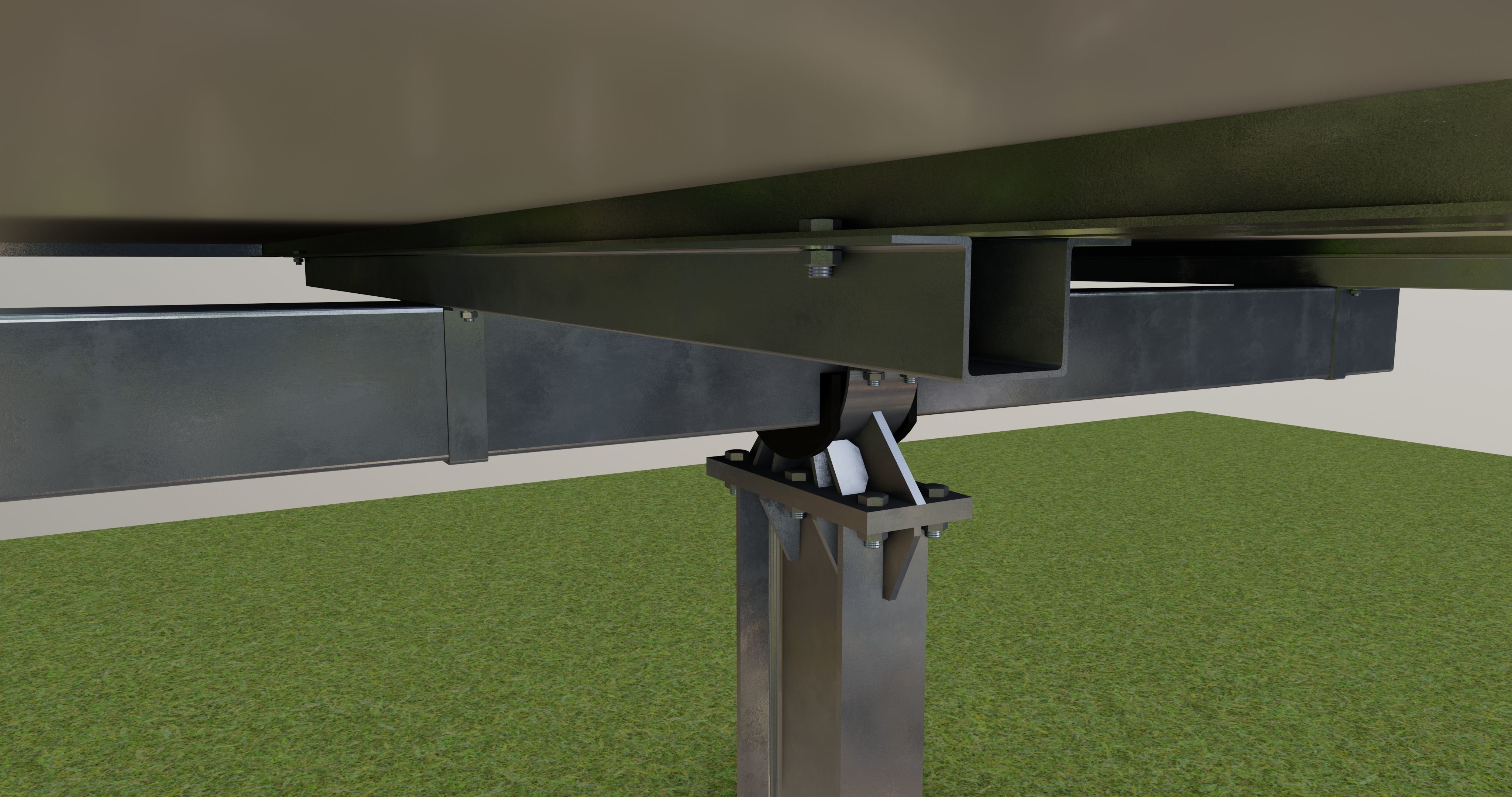

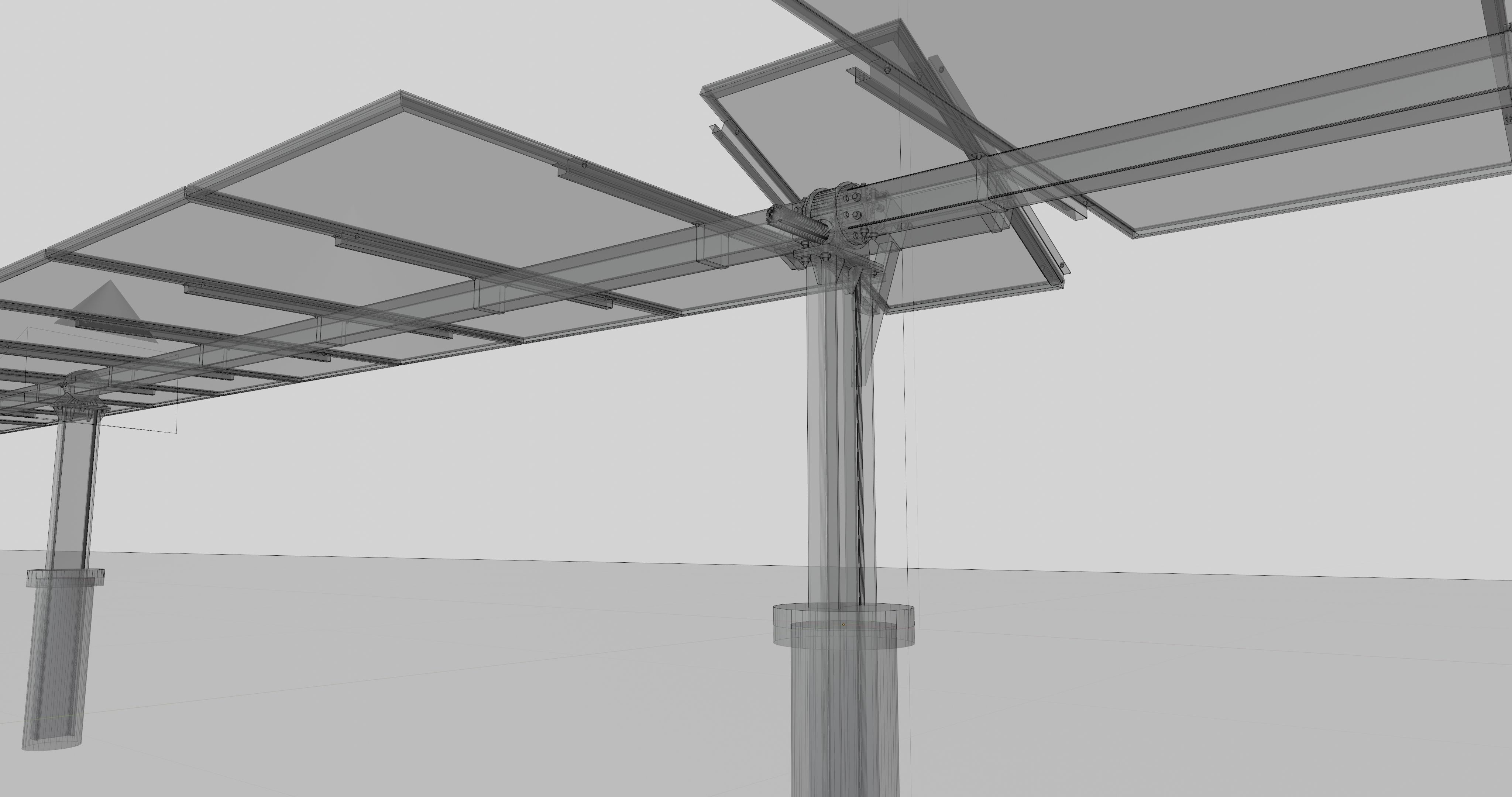

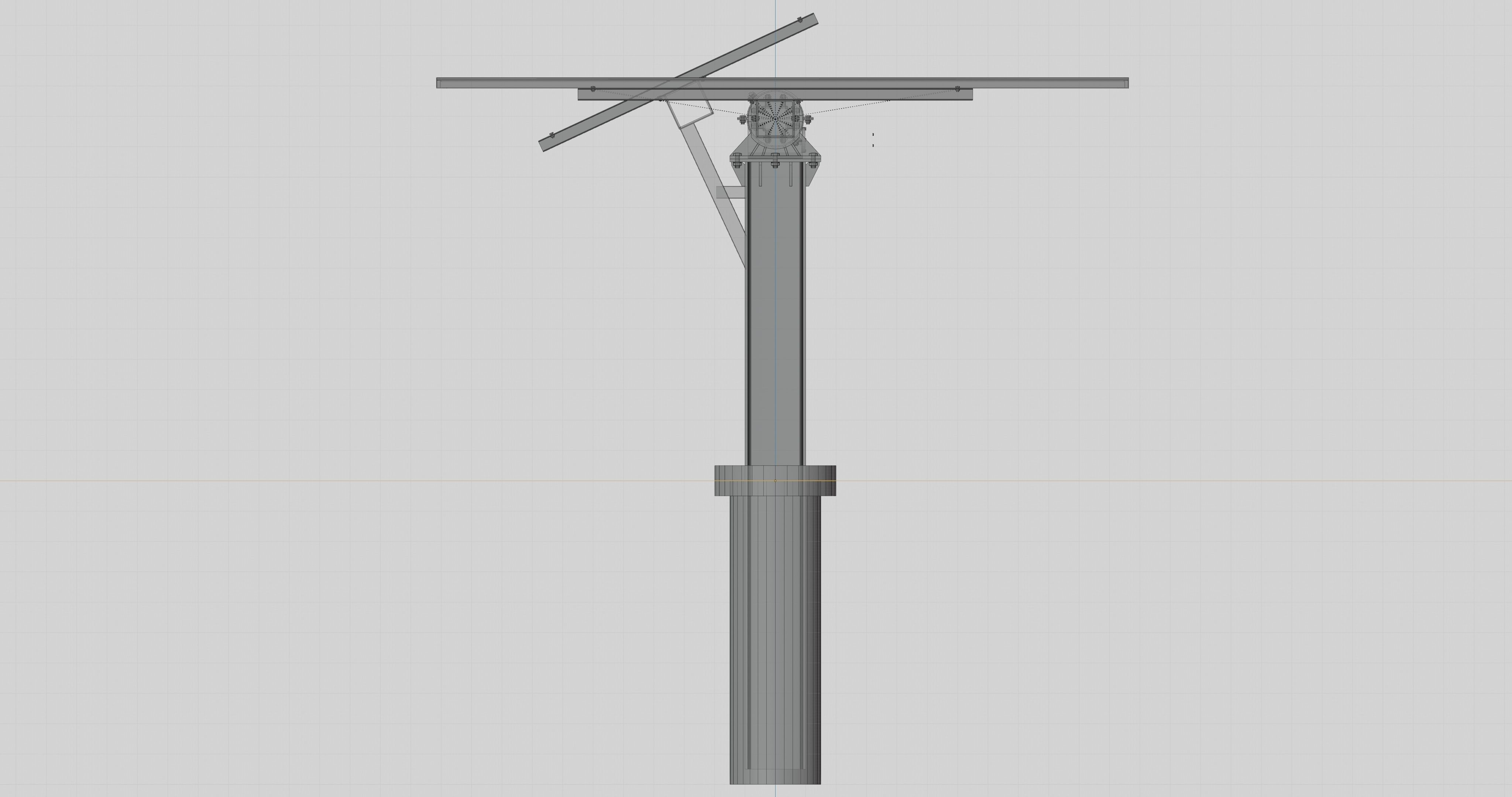

Profile Section;

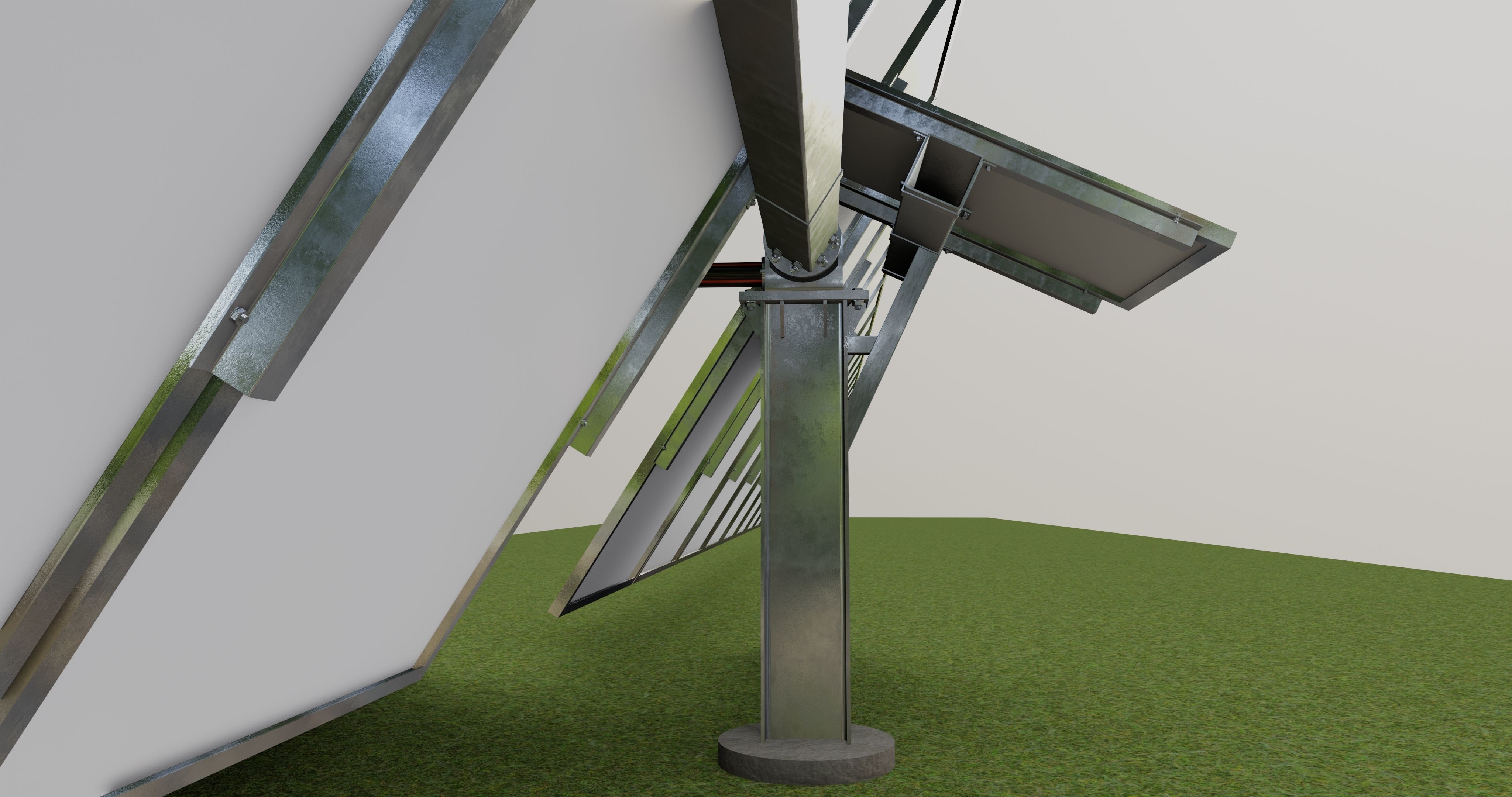

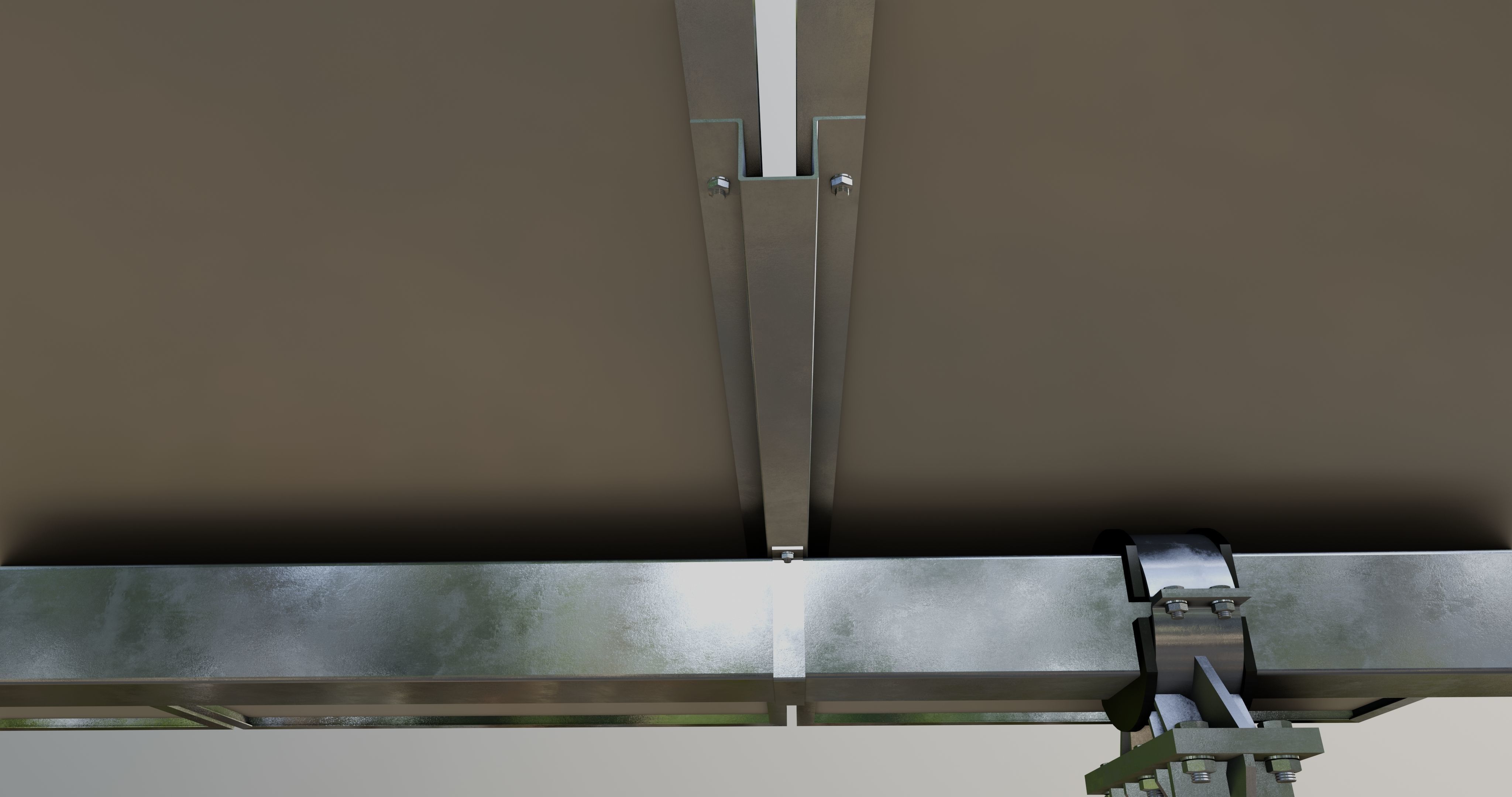

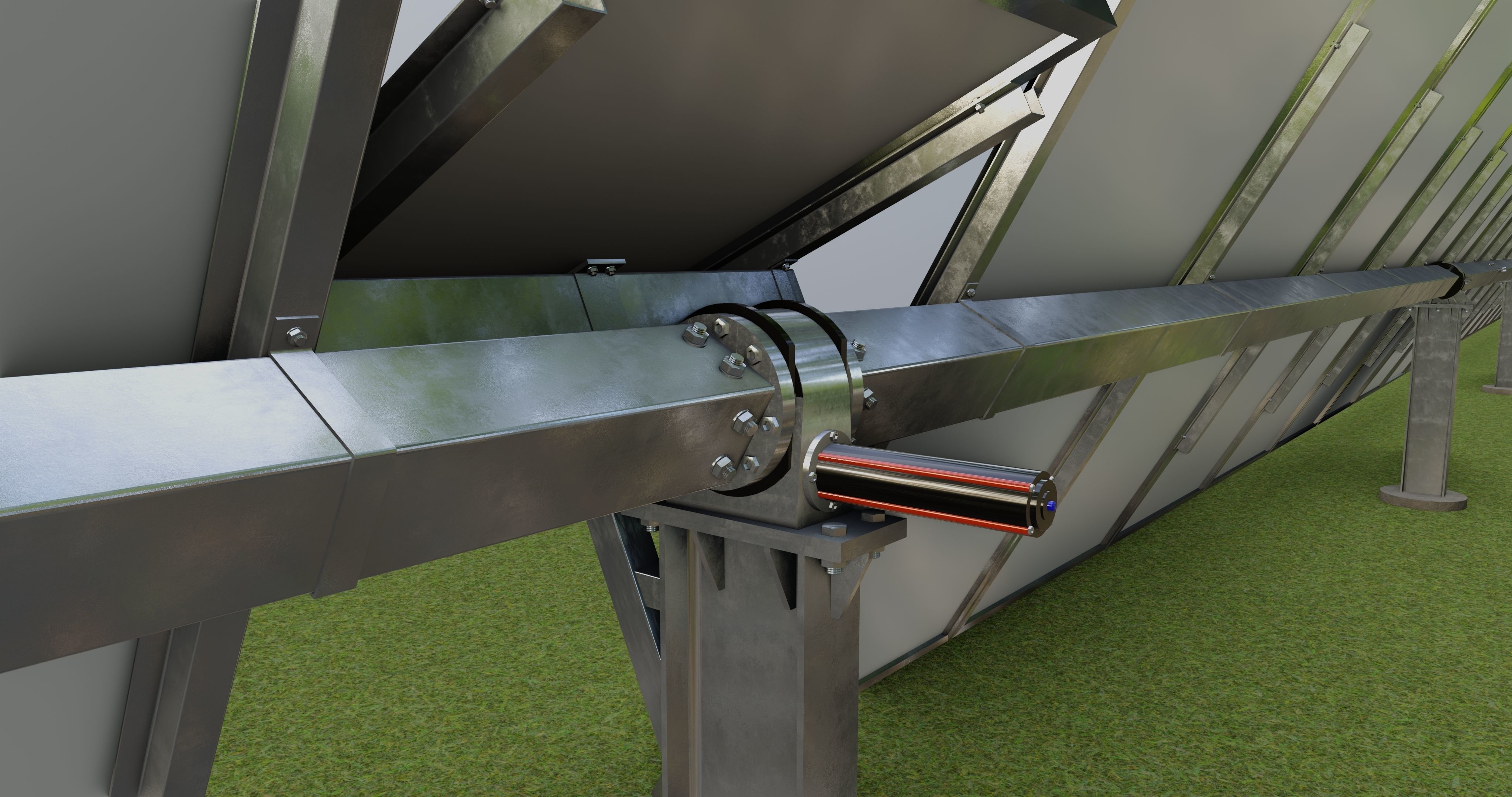

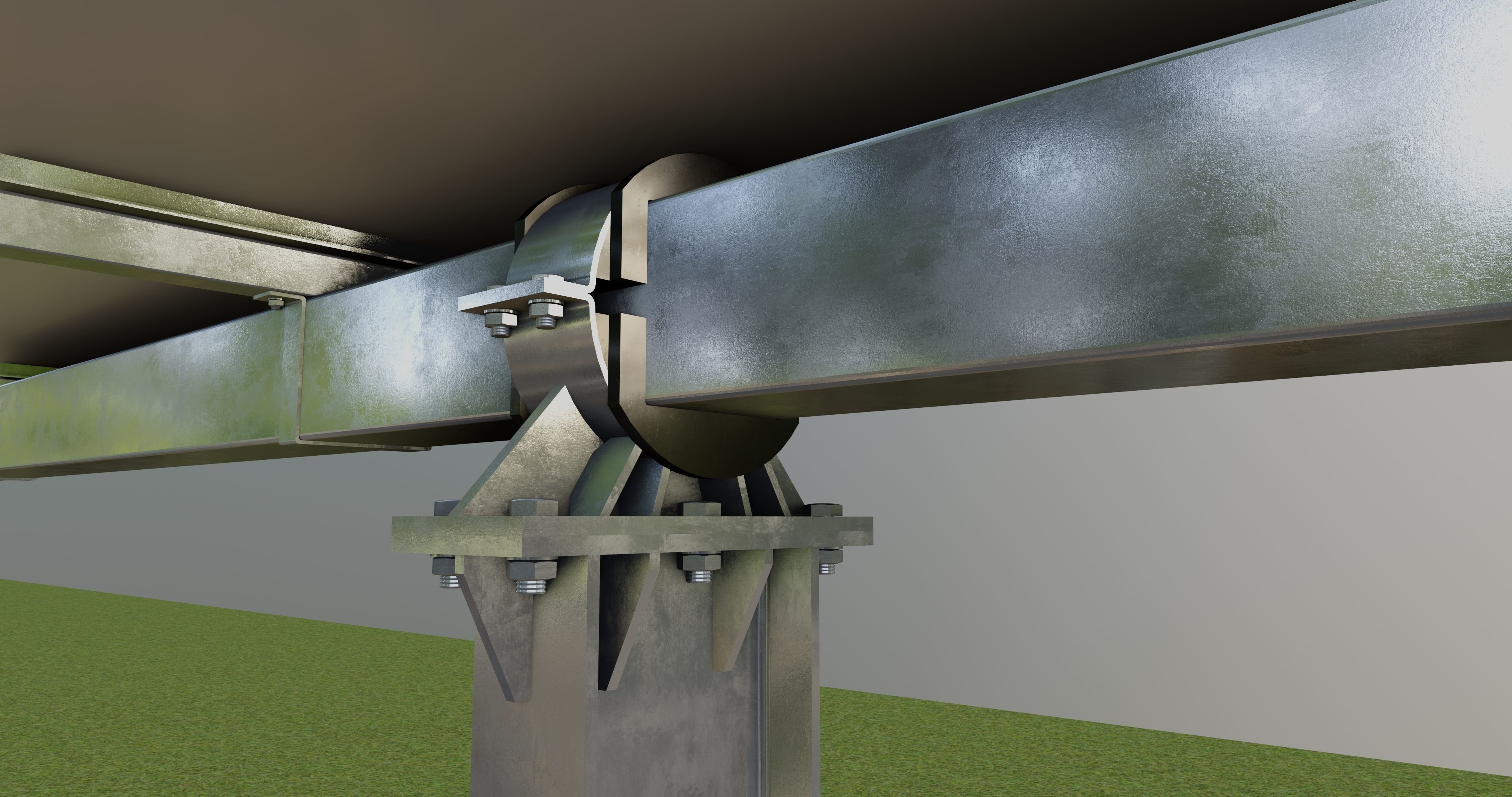

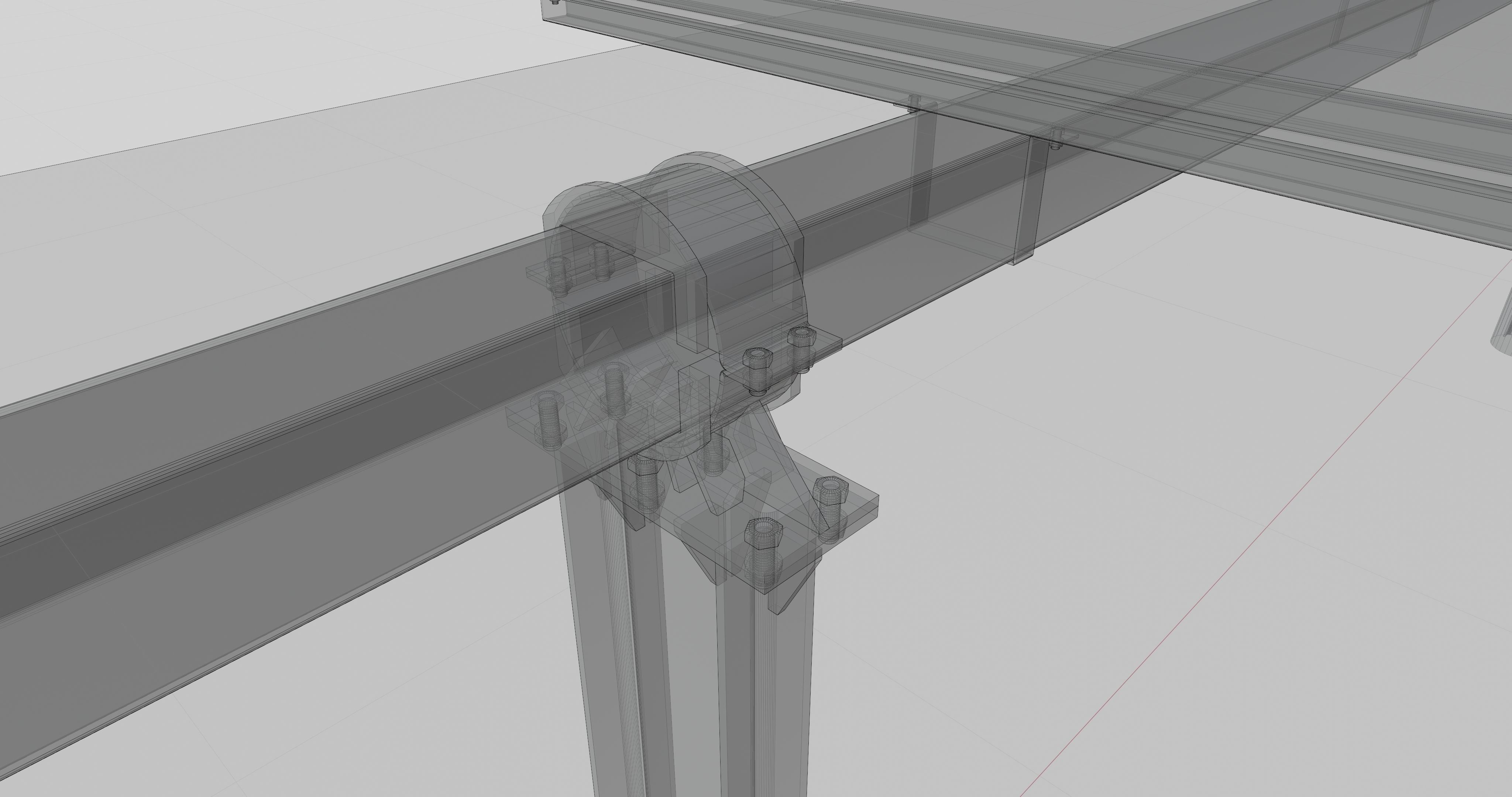

Column : IPE 200 Beam : BOX PROFILE 120x120x3mm Purlin : OMEGA PURLIN HS40x40x25-2mm

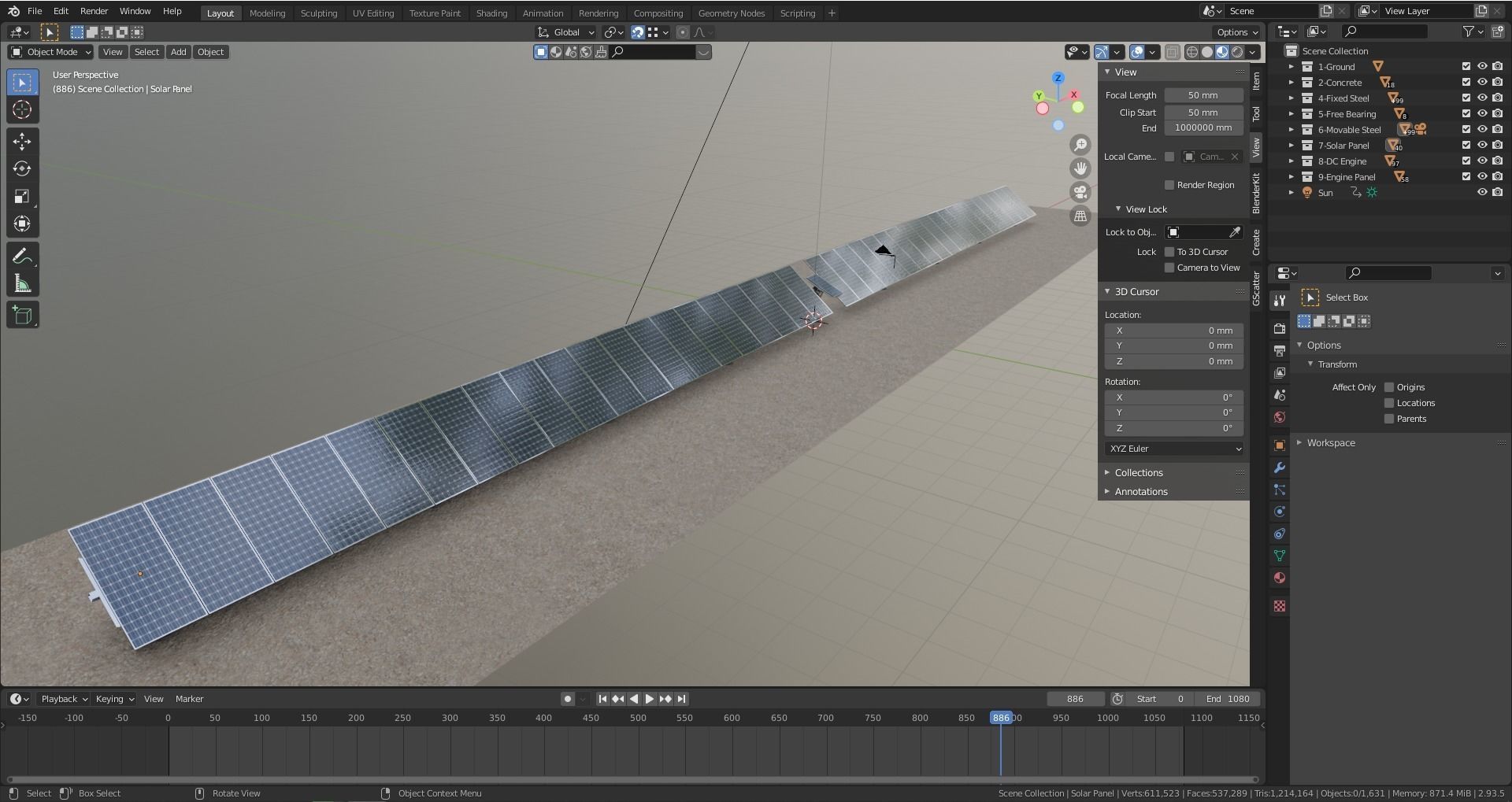

Prepared With BLENDER Version 2.93.5
Polygons : 537289
Vertices : 611523
Objects : 1631
Solar Tracking Systems
Royalty Free License
Solar Tracking Systems
Royalty Free License
3D Model formats
Format limitations
Native
- Blender (.blend) (4 files)150 MBVersion: 2.93.5Renderer: Eevee 2.93.5Version: 2.93.5Renderer: Eevee 2.93.5Version: 2.93.5Renderer: Eevee 2.93.5Version: 2.93.5Renderer: Eevee 2.93.5
Exchange
- Blender (.blend) (4 files)150 MBVersion: 2.93.5Renderer: Eevee 2.93.5Version: 2.93.5Renderer: Eevee 2.93.5Version: 2.93.5Renderer: Eevee 2.93.5Version: 2.93.5Renderer: Eevee 2.93.5
- OBJ (.obj, .mtl)15.3 MB
3D Model details
- Publish date2023-04-28
- Model ID#4467839
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 537,289
- Vertices 611,523
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
