Solar Panel Steel Construction Type 9 3D model
Description

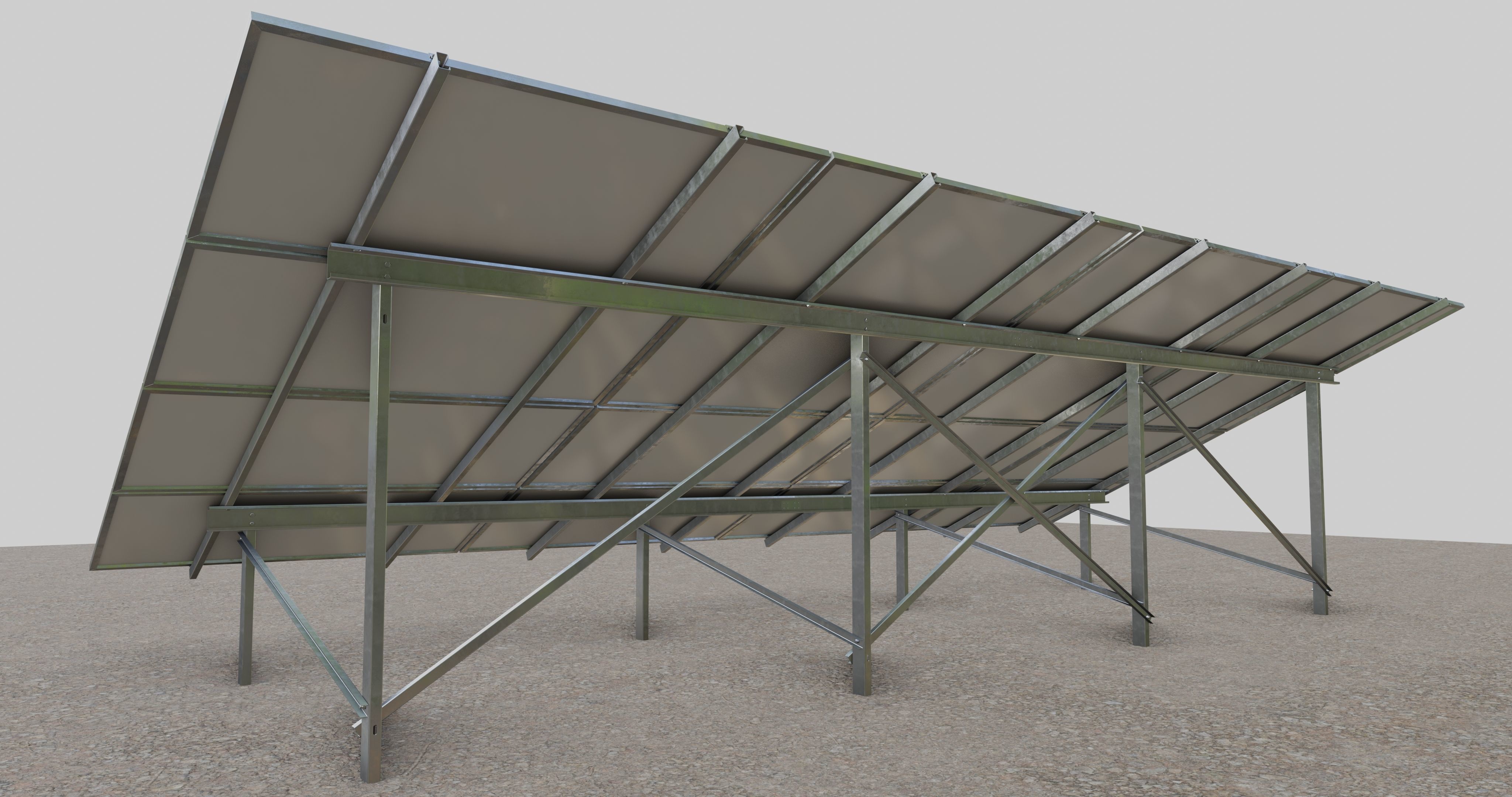

Solar Panel Steel Construction Type 9

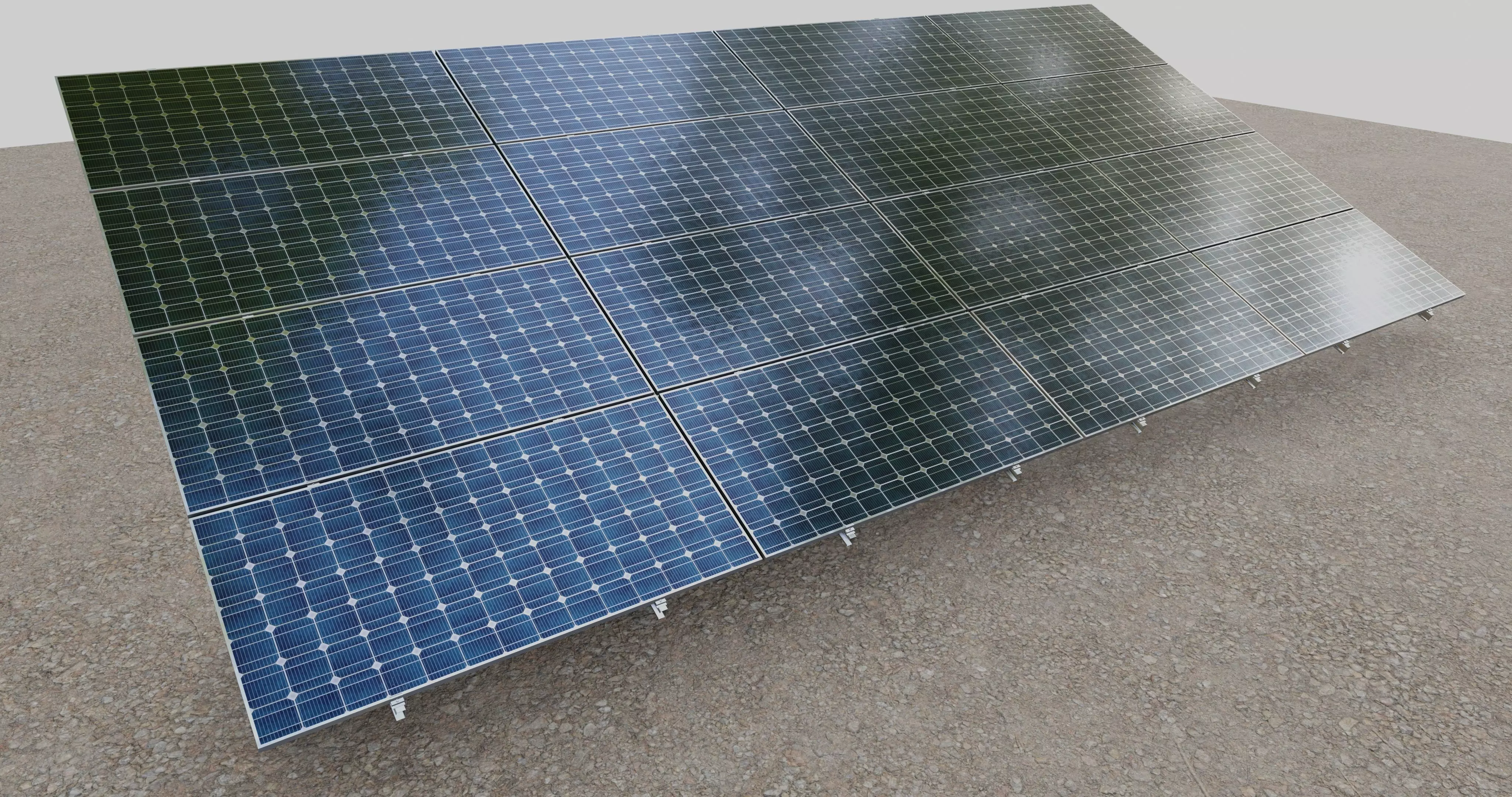

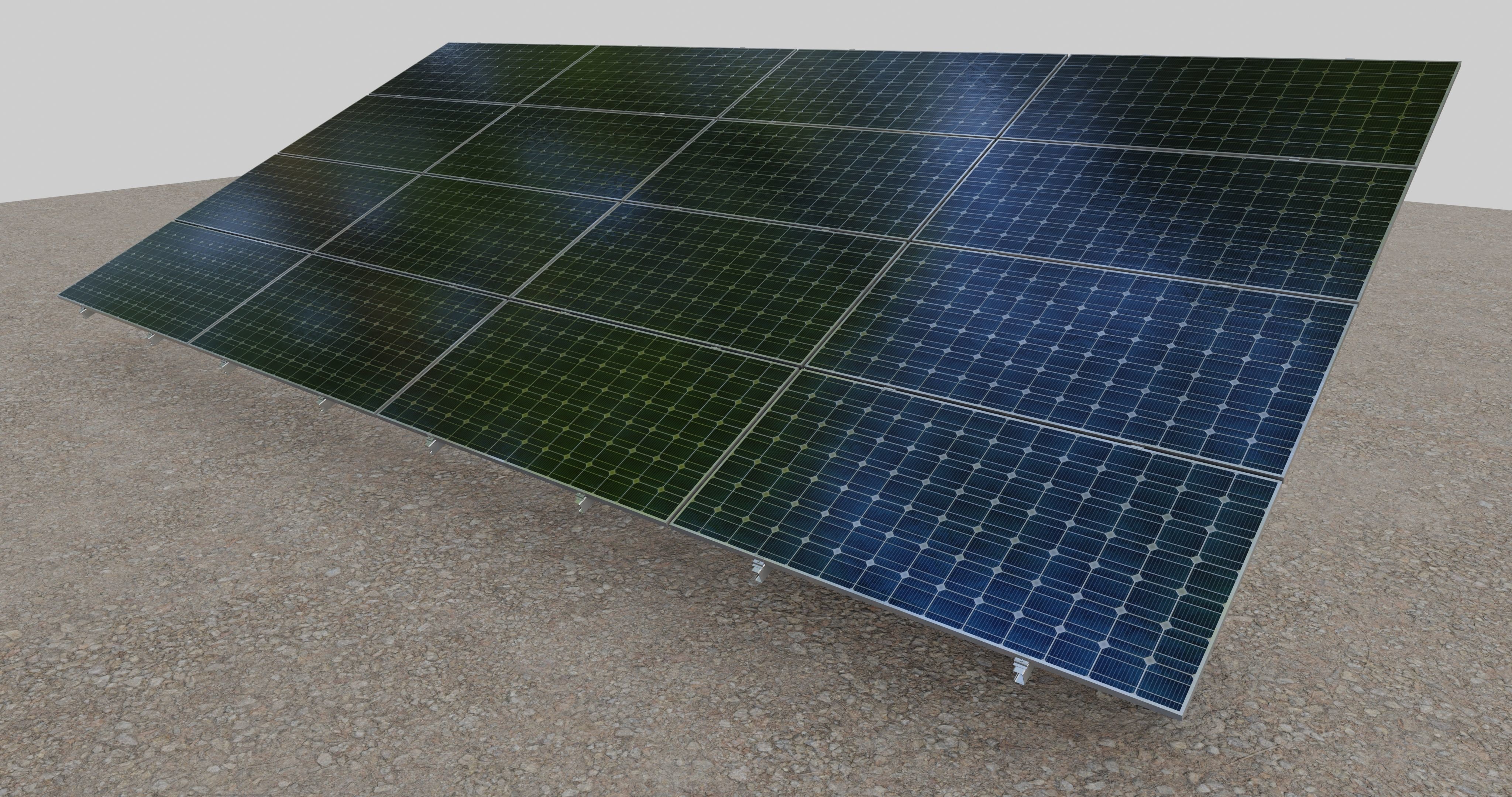

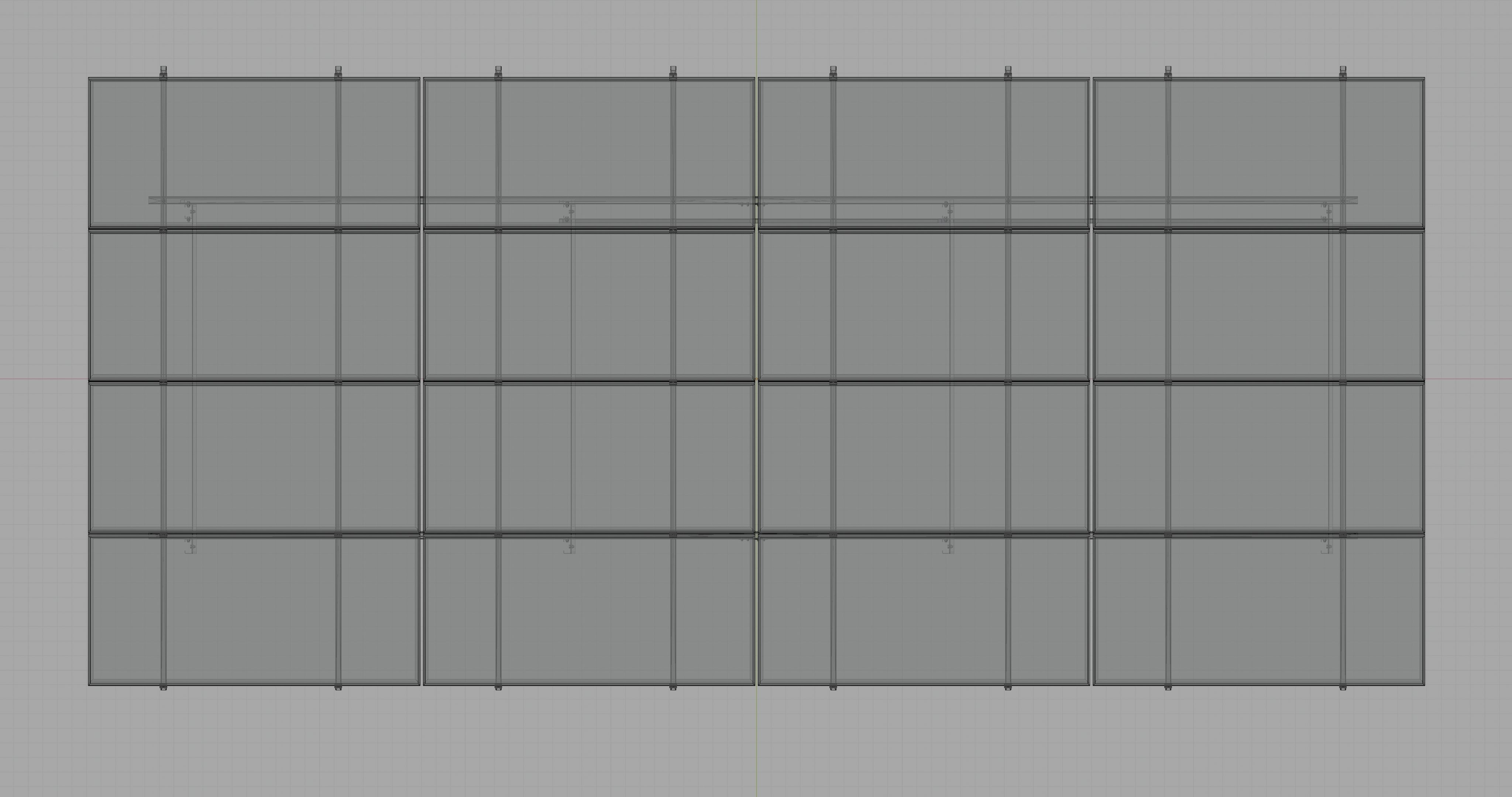

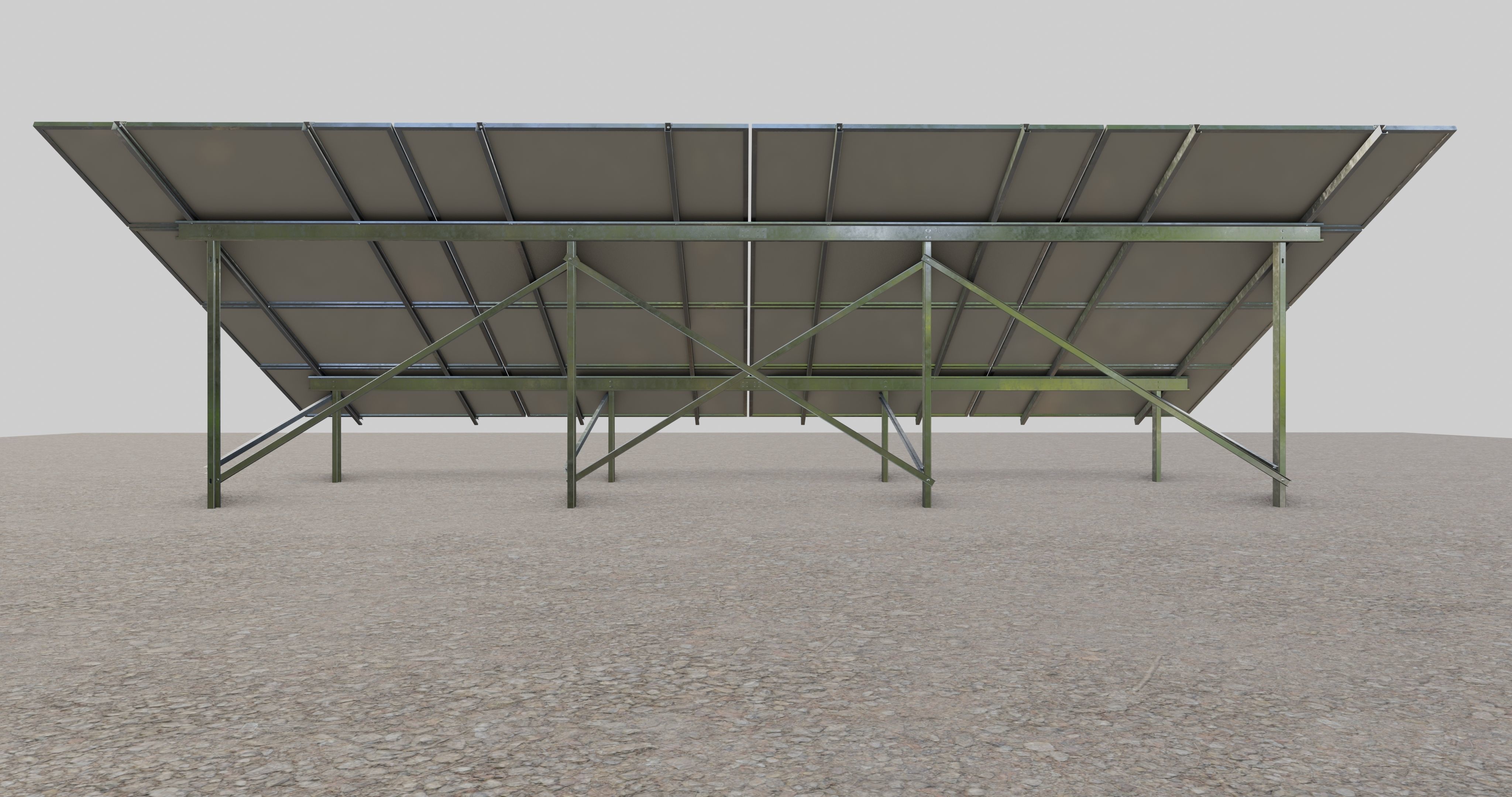

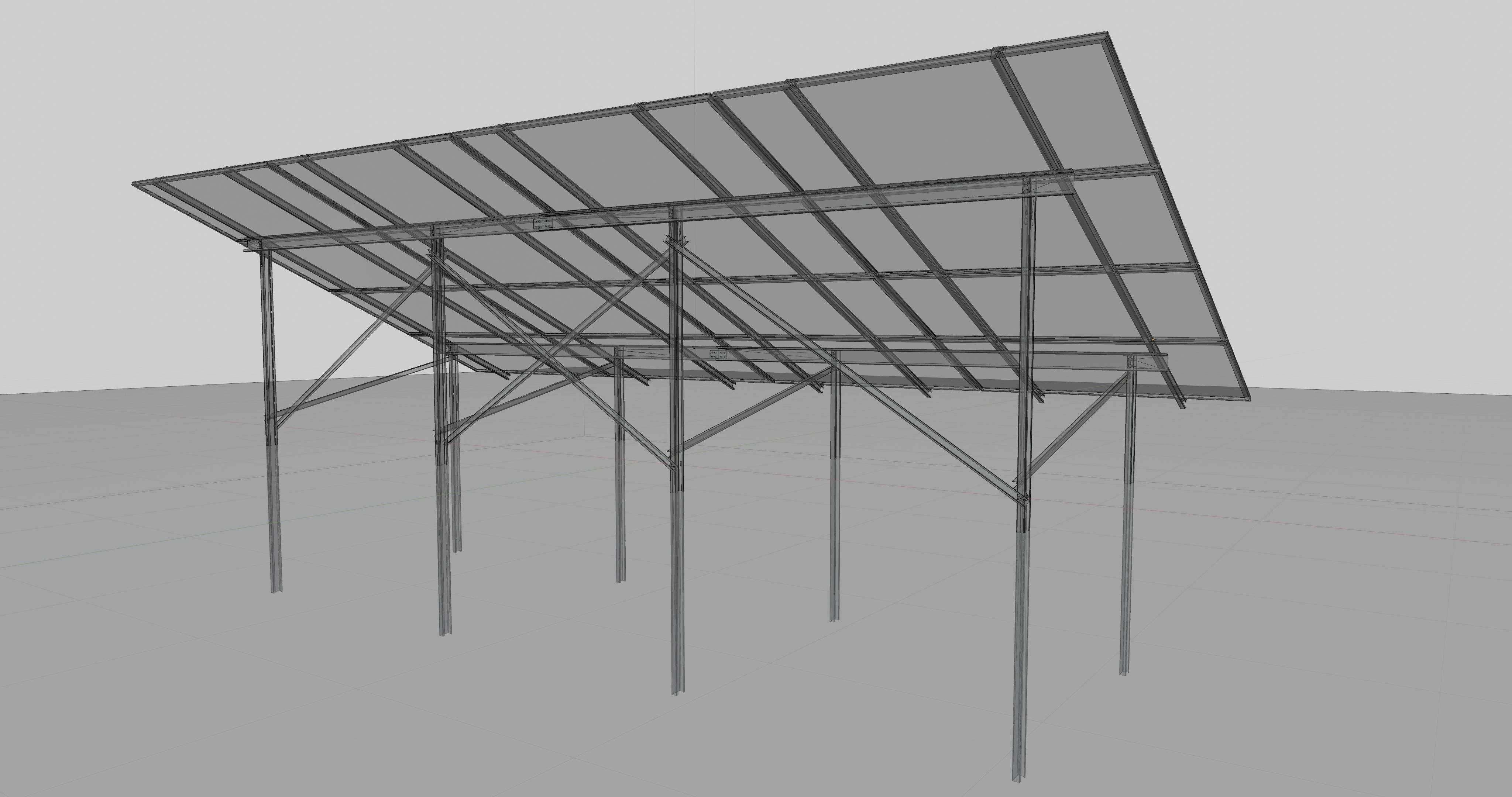

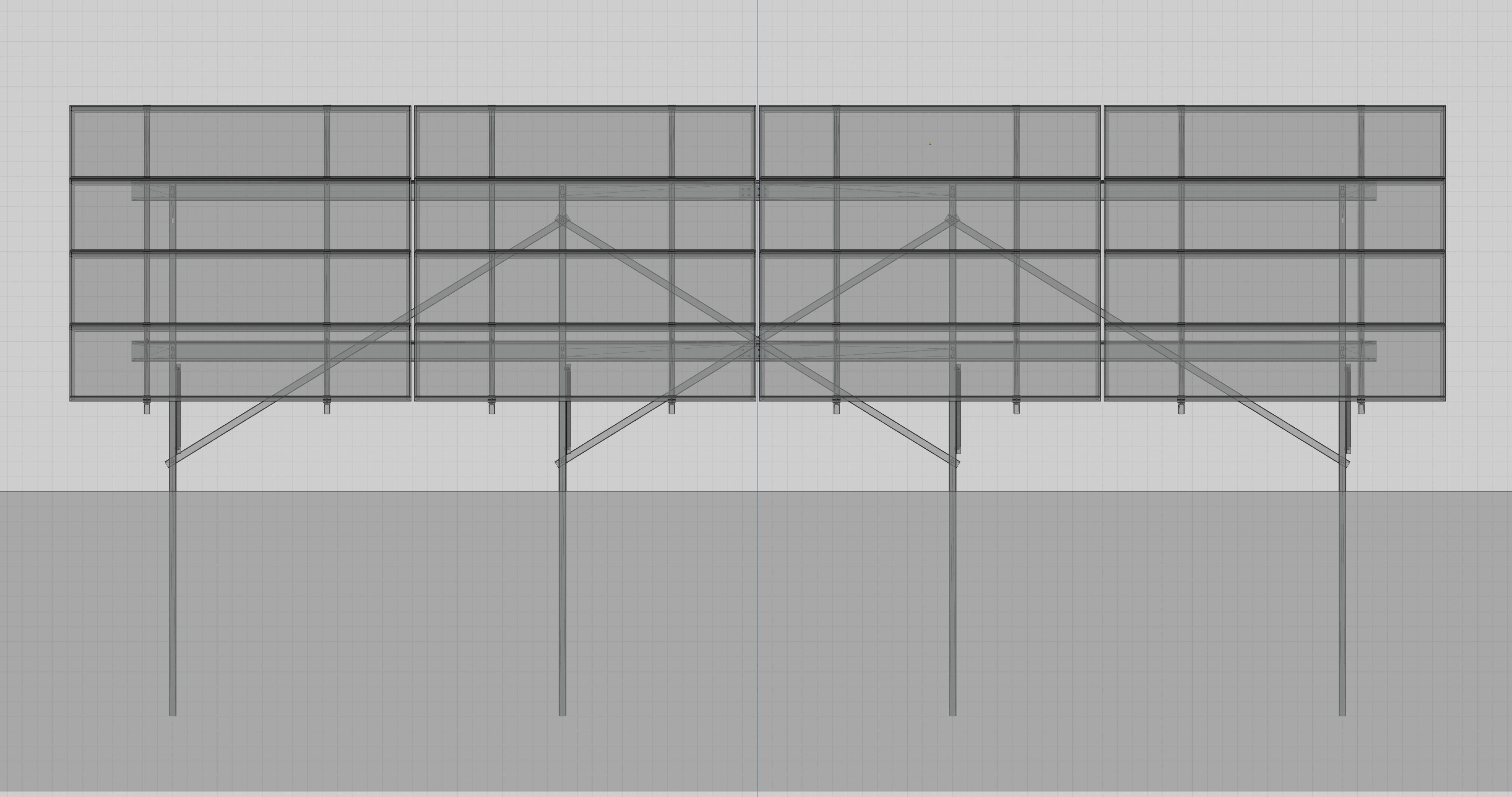

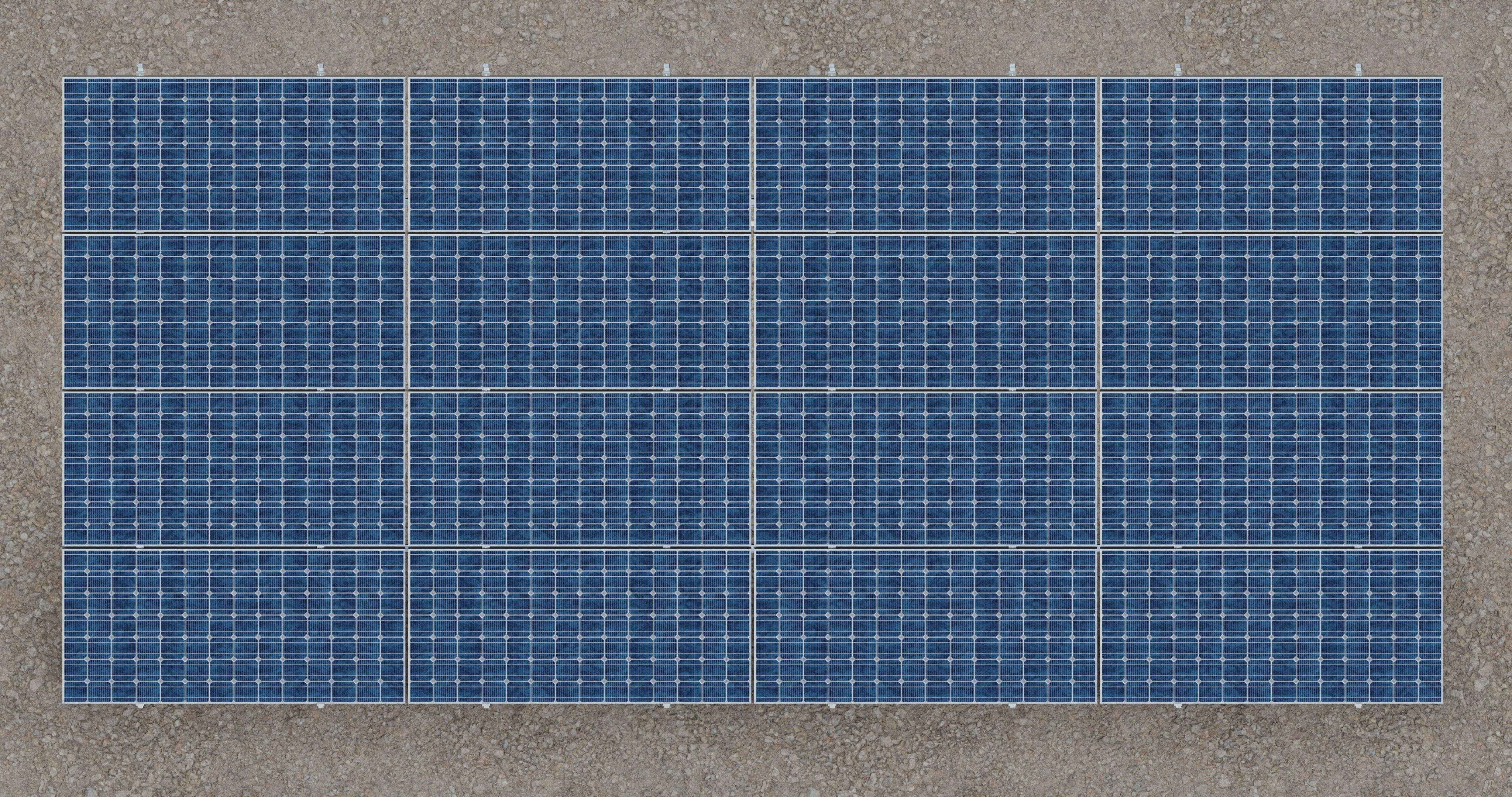

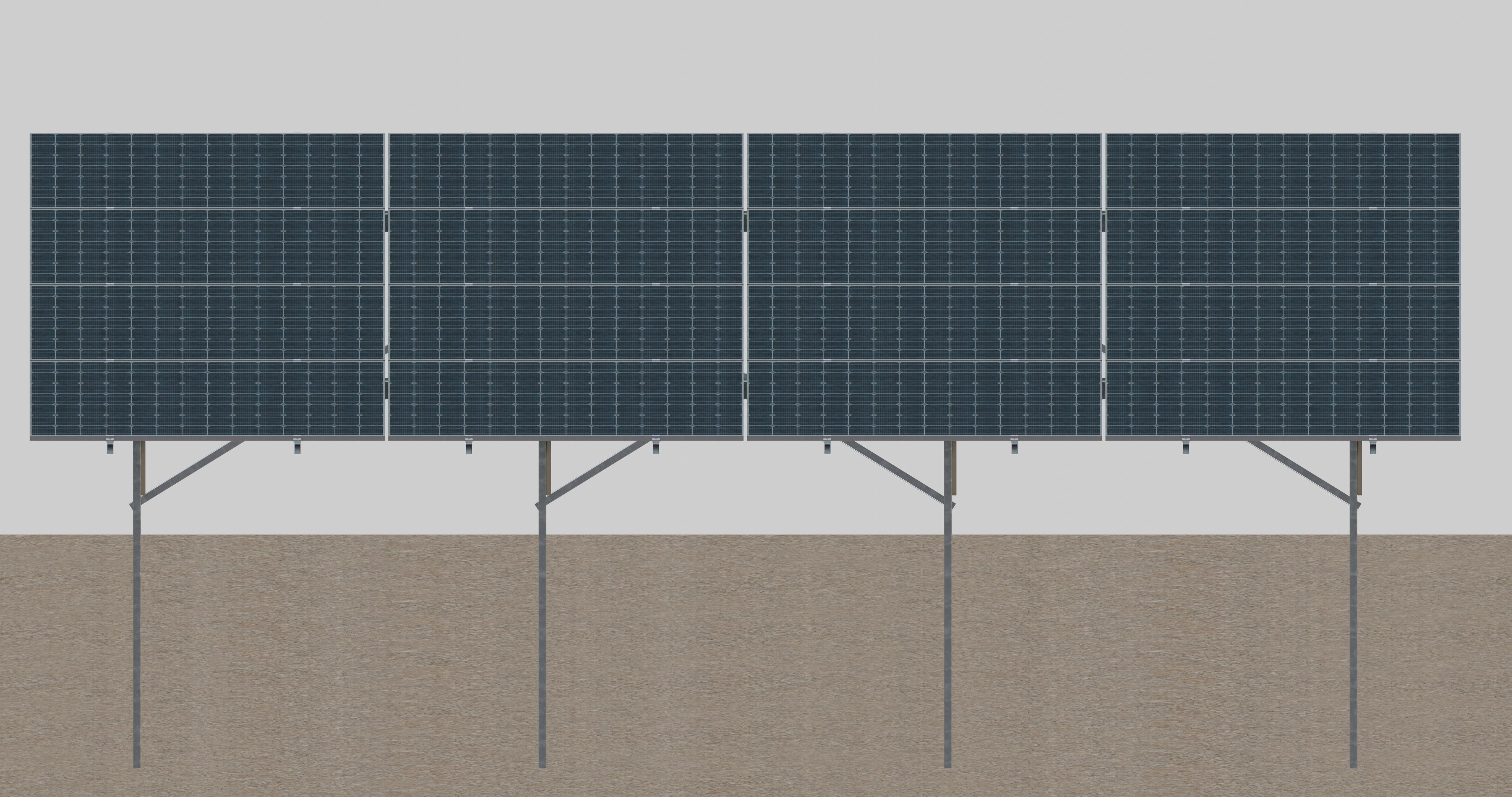

4x4 Horizontal Panel Layout
Ground Connection Type; Steel Driven Column
Distance of Columns Below Ground 1500 mm.
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 8,8 kWp power in 1 hour

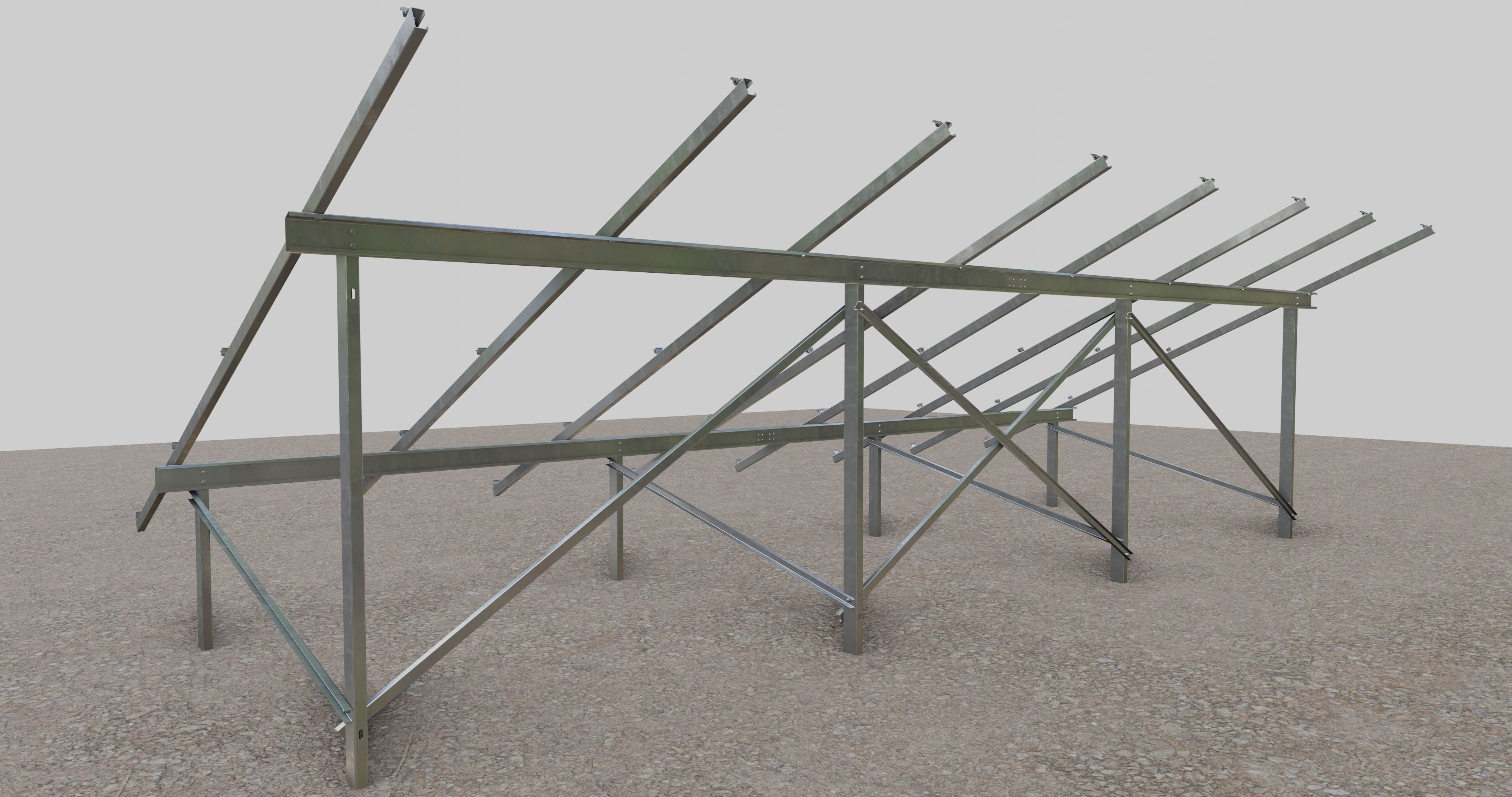

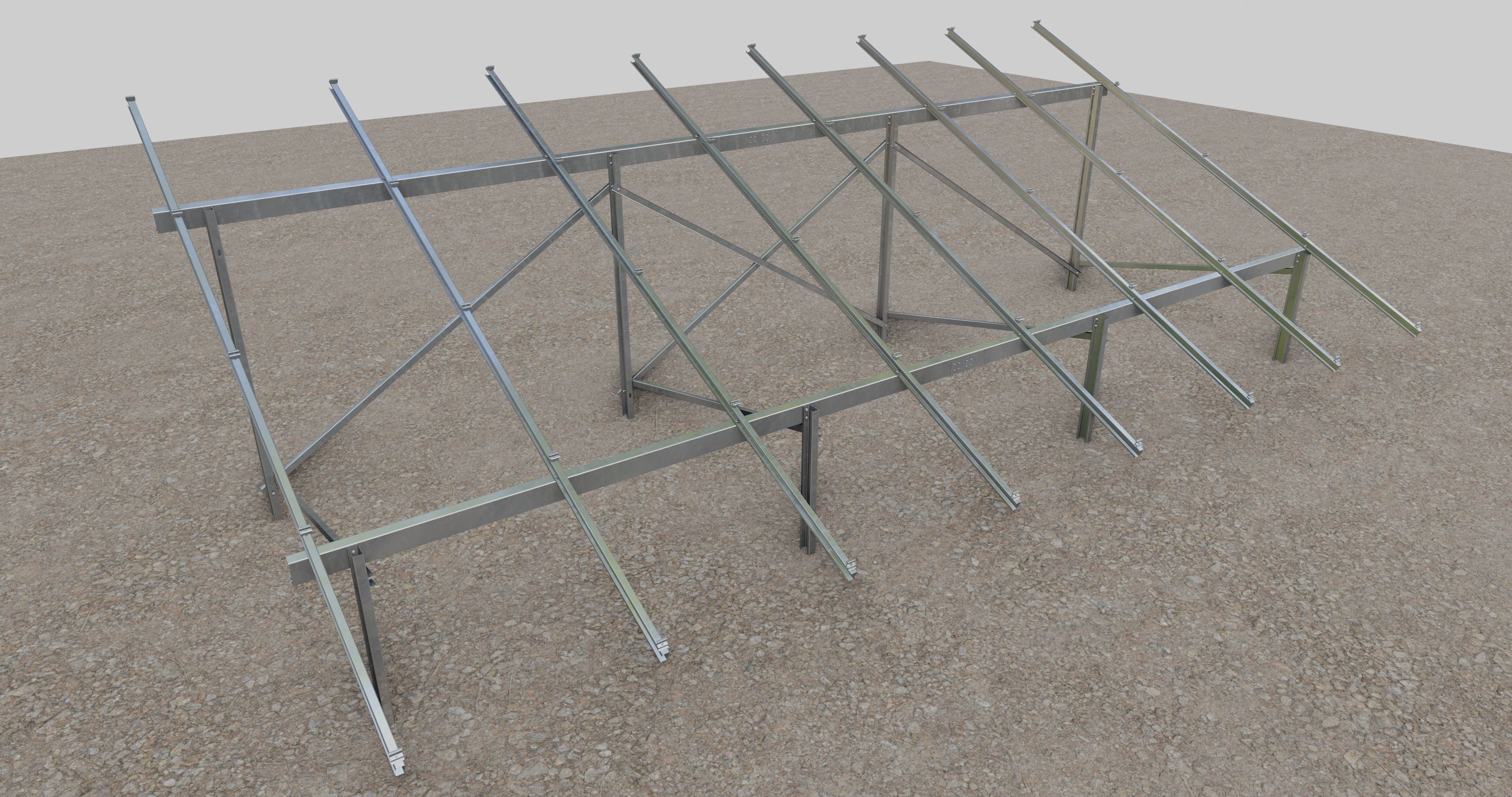

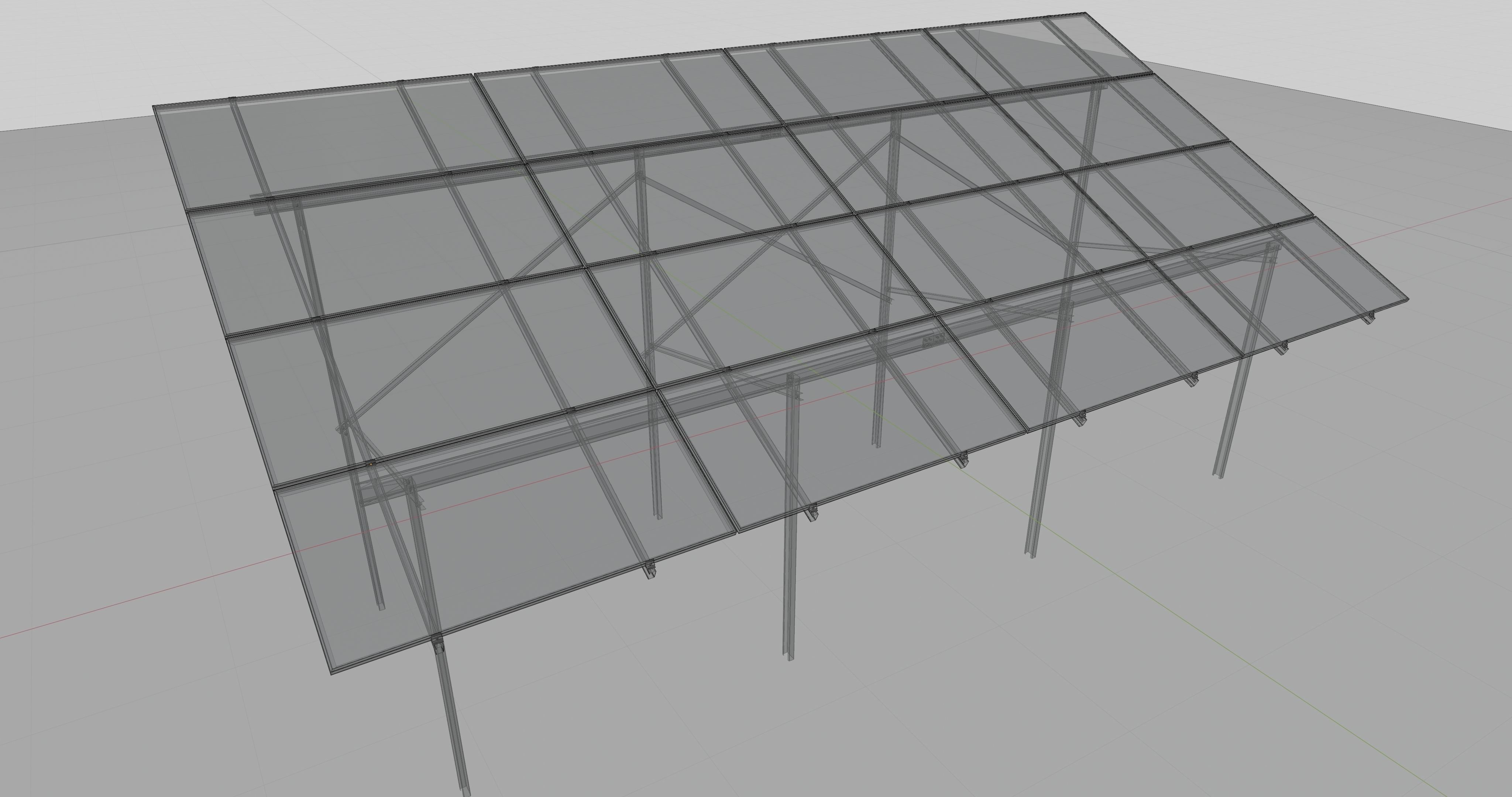

The system consists of 4 axles and the distance between each axle is 2600 mm.
Distance between two columns 2300 mm.

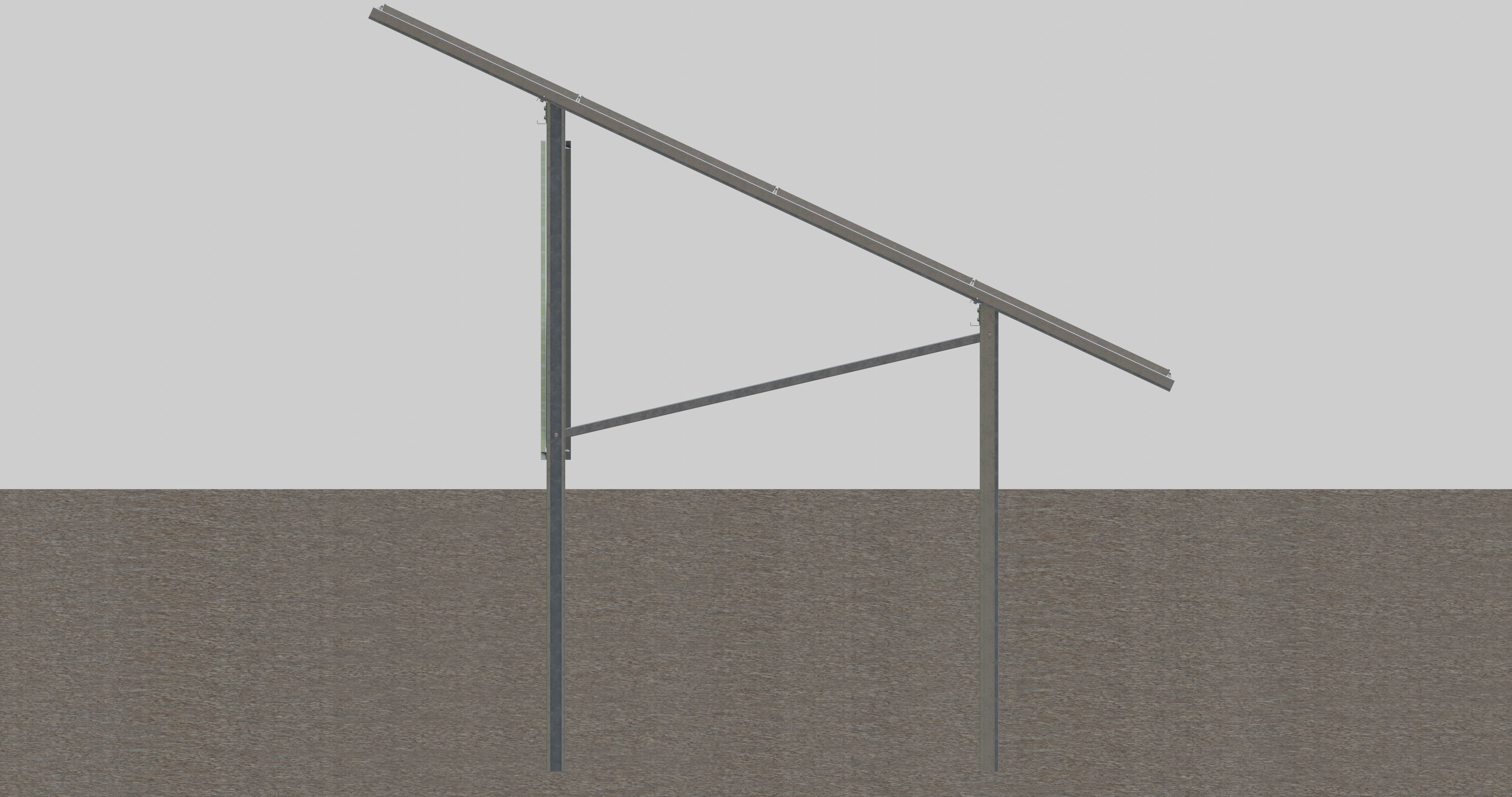

Horizantal angle of panel 25°

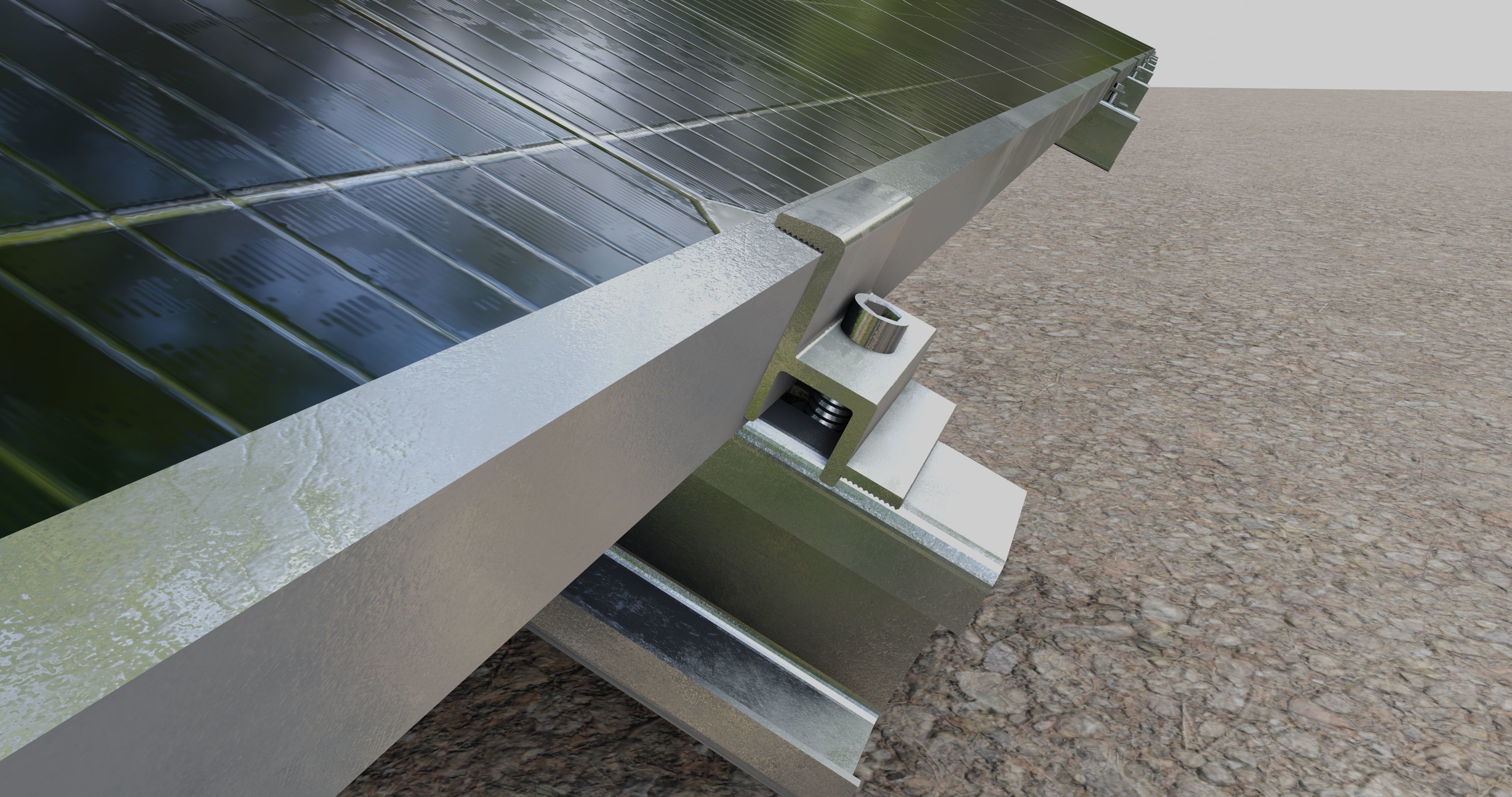

The closest distance of the panels to the floor 600 mm.
Profile Section;

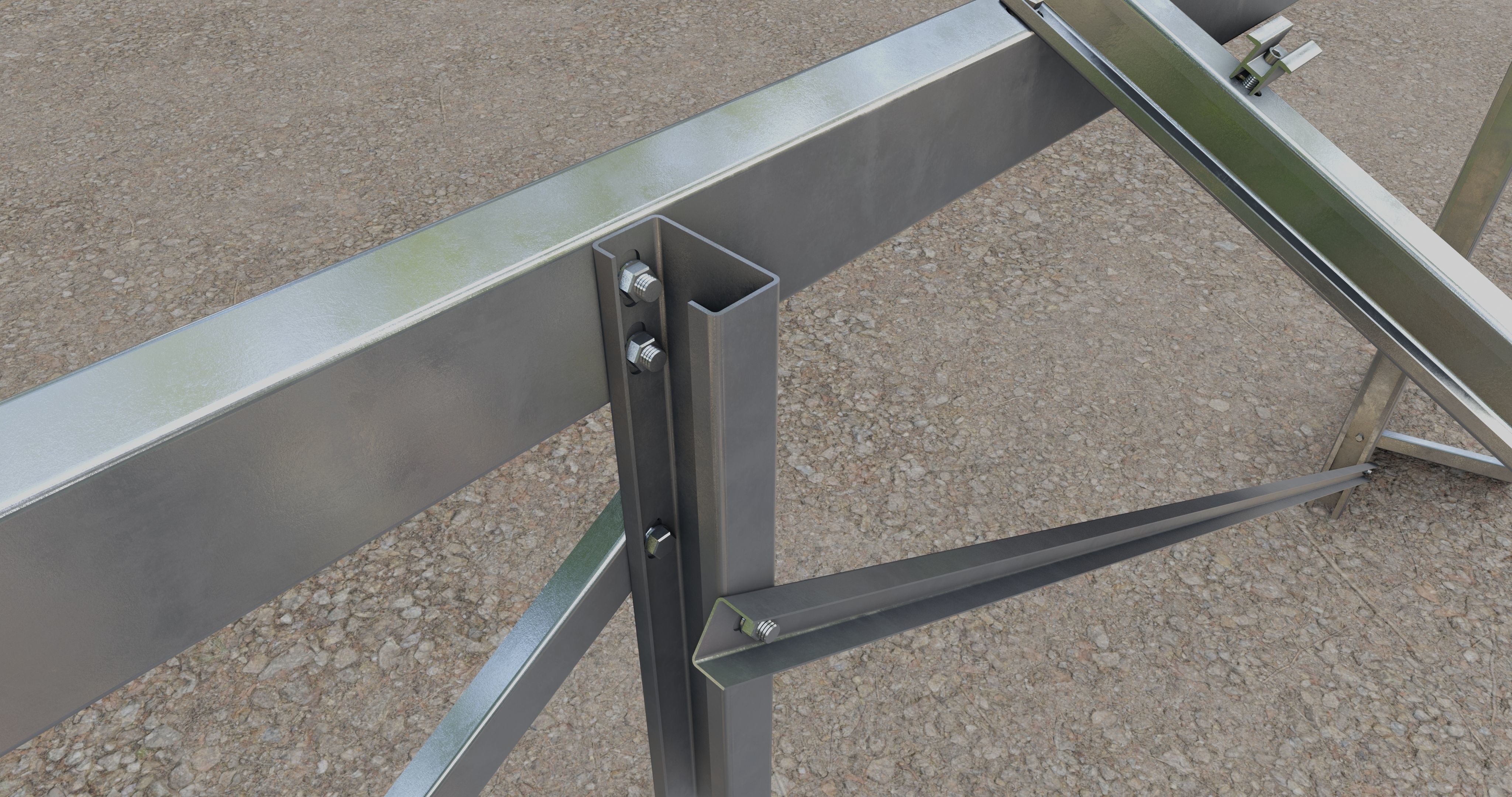

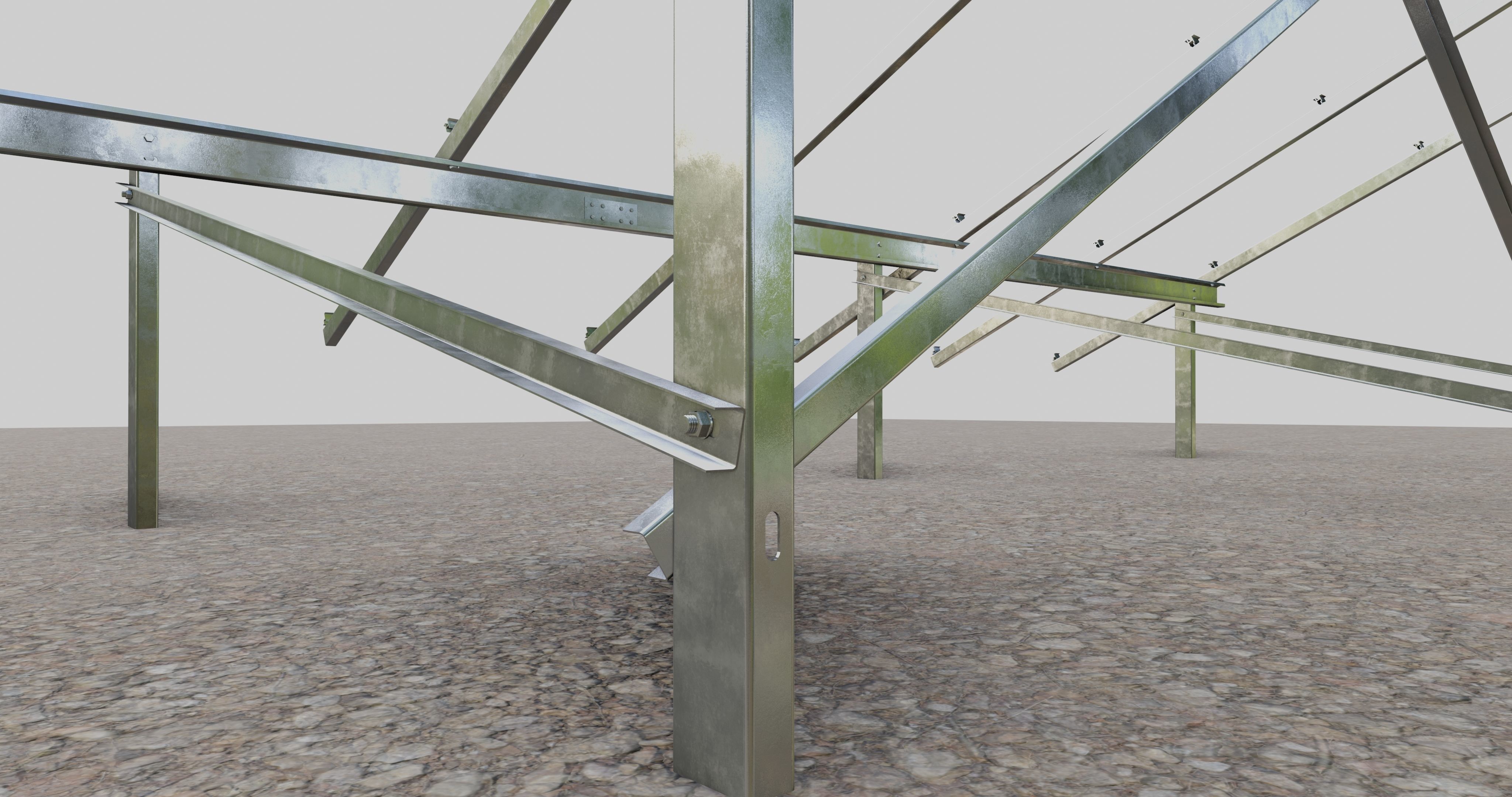

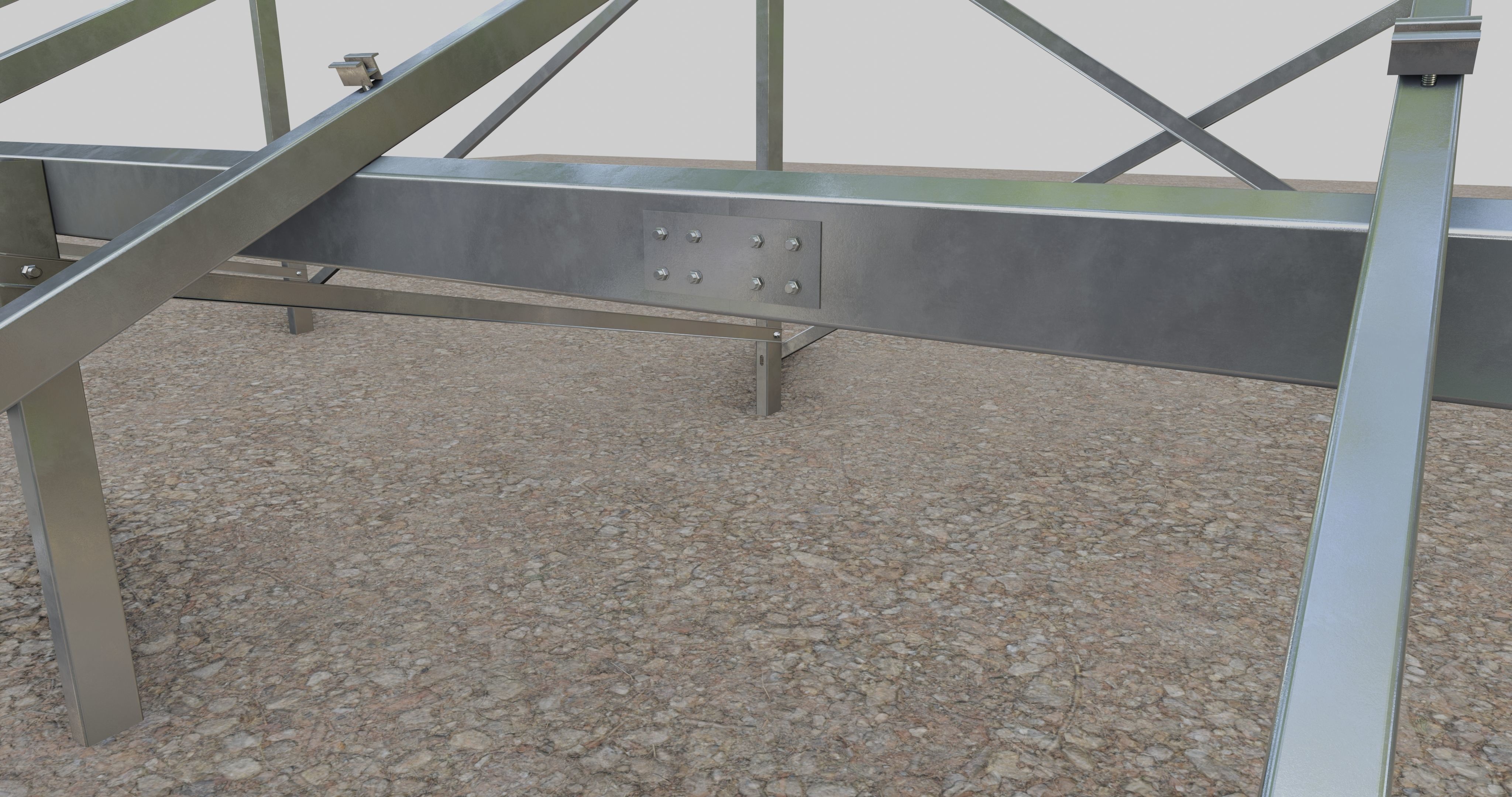

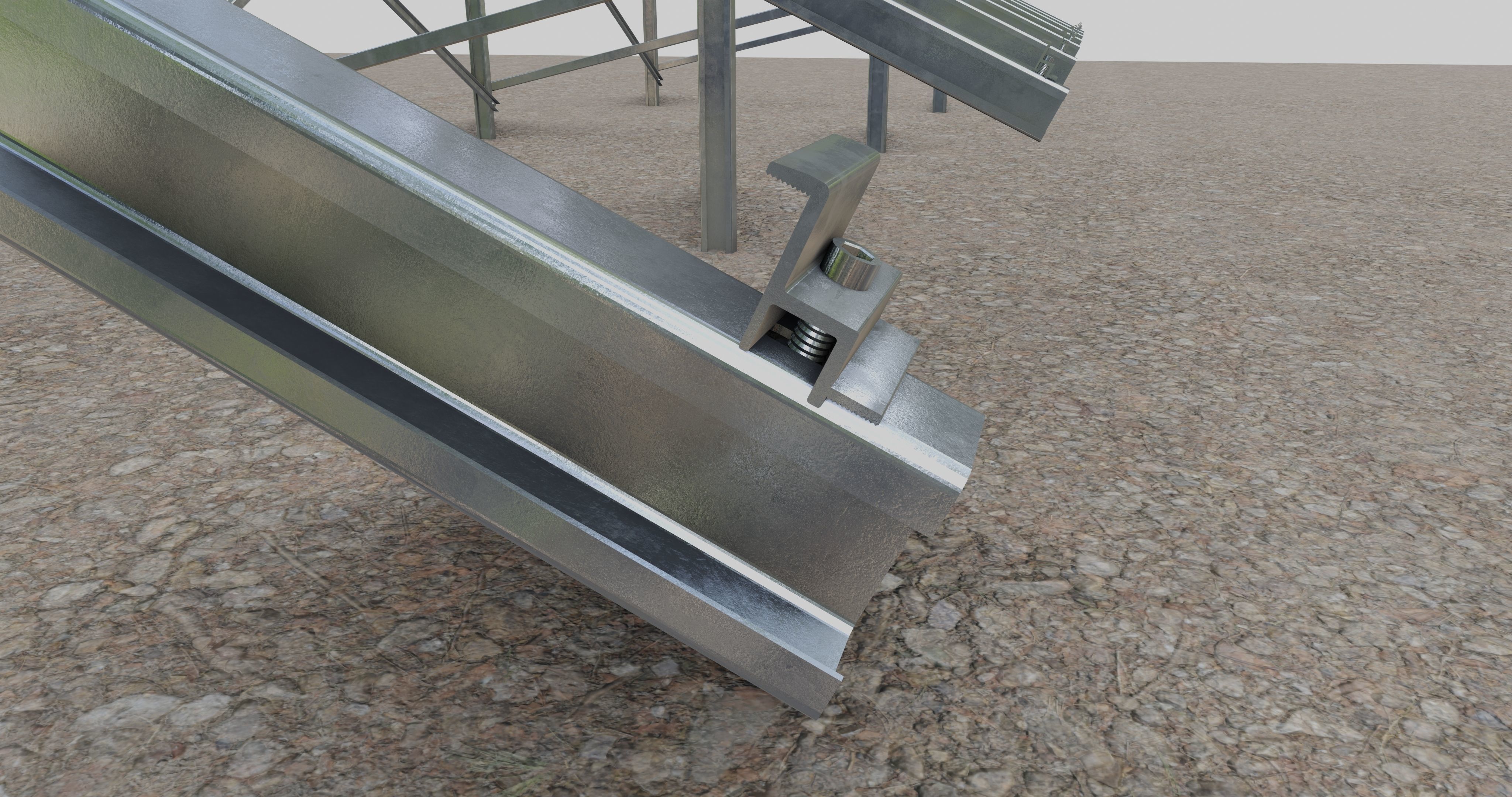

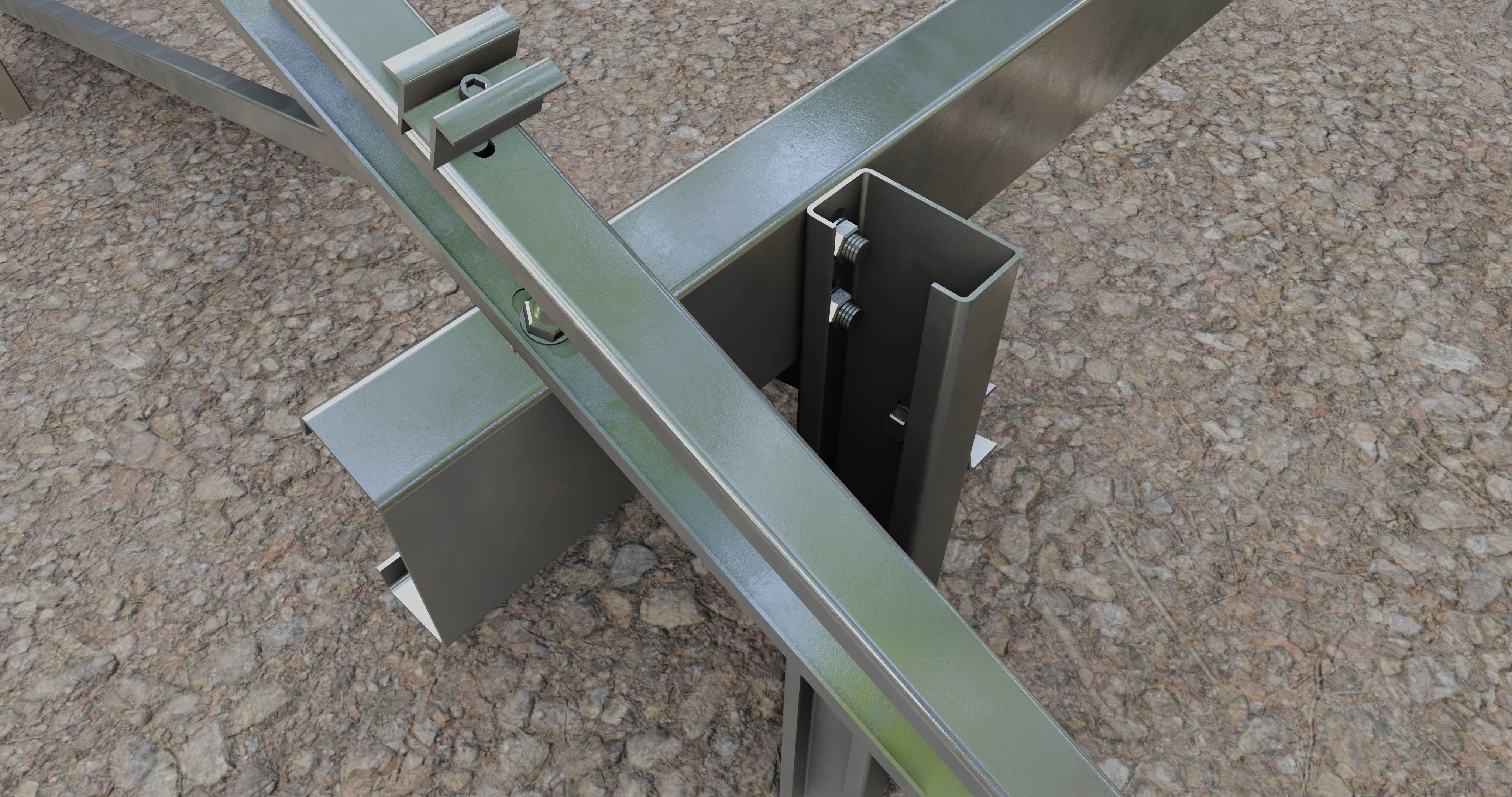

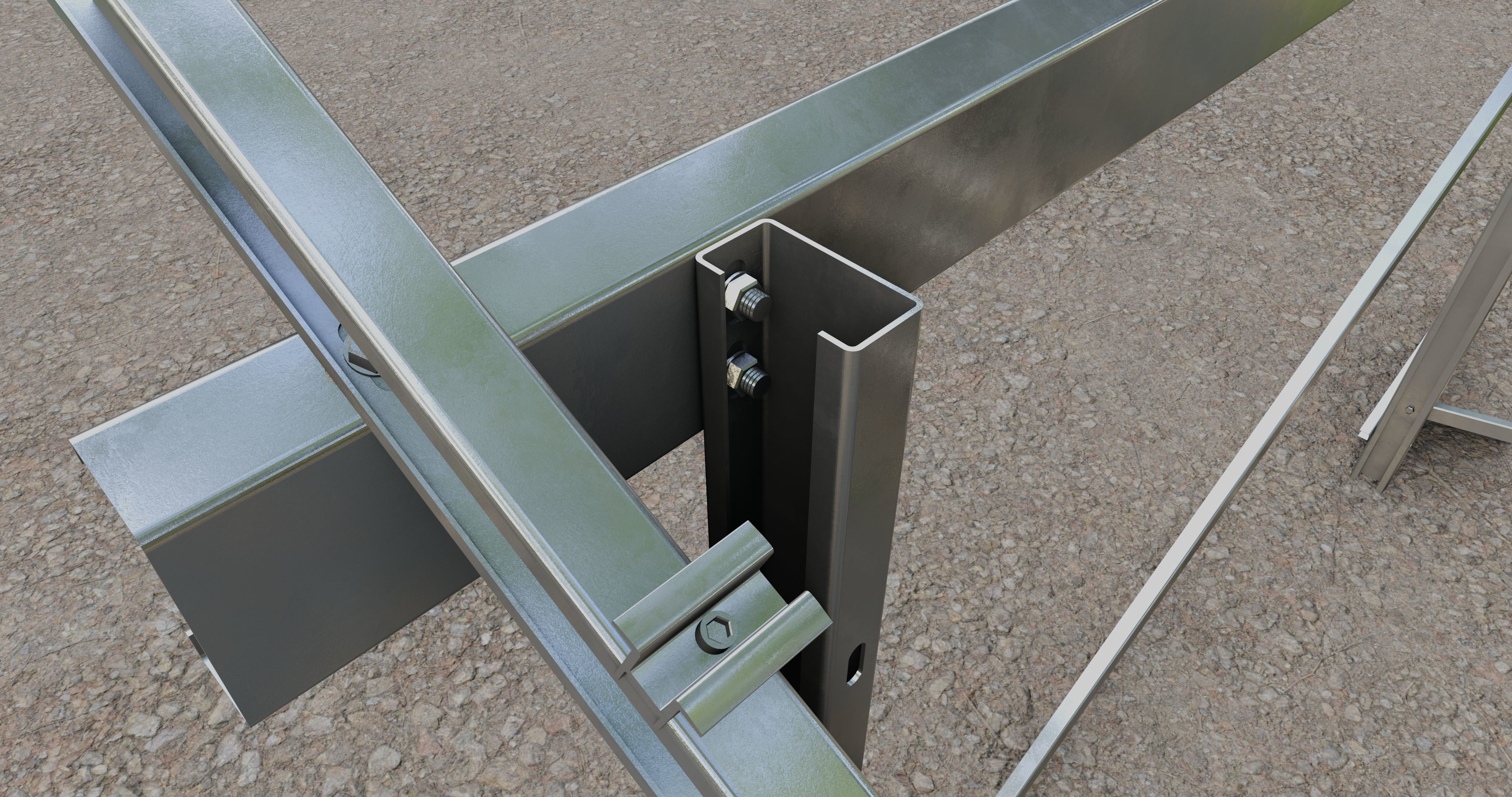

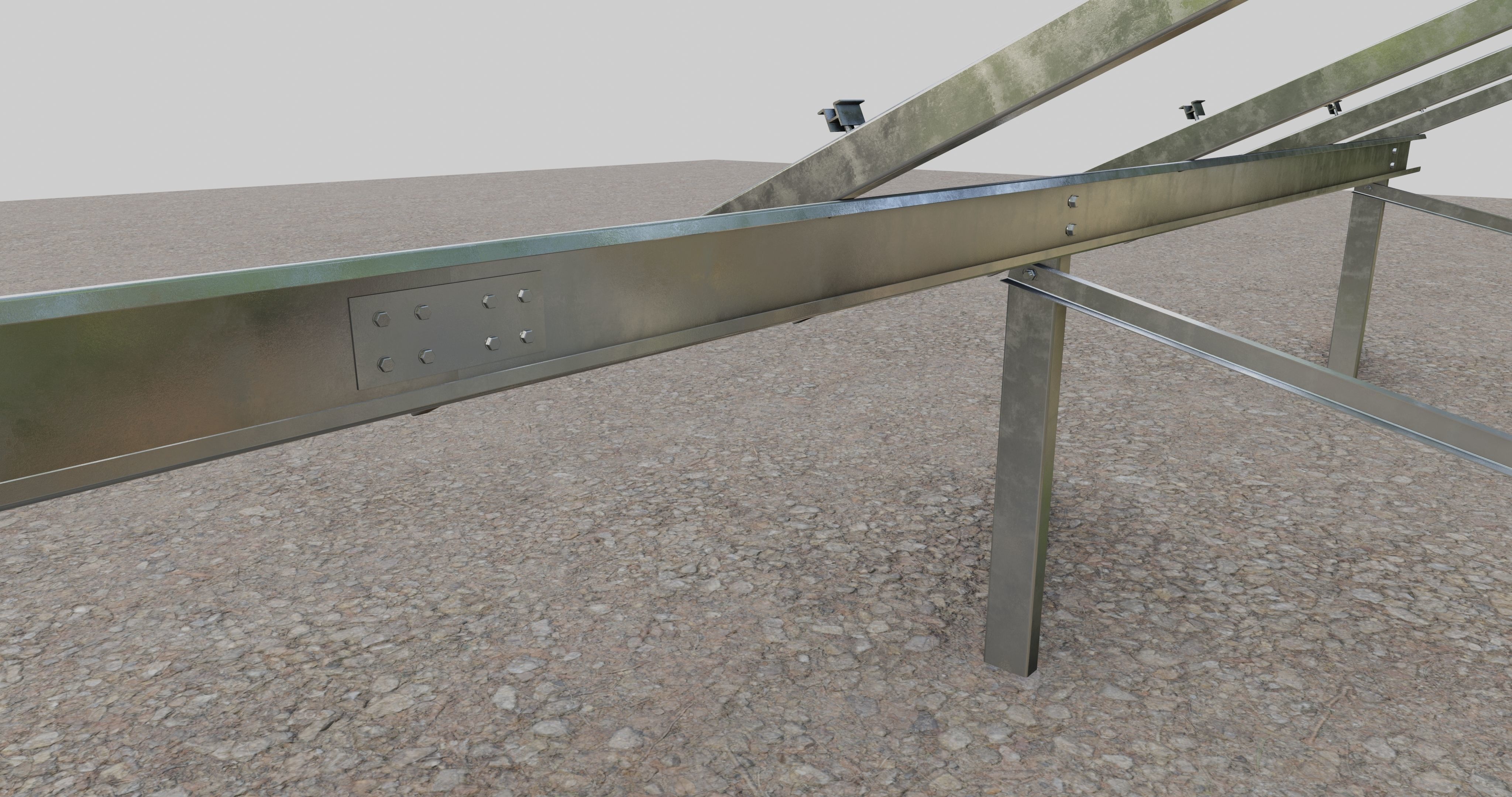

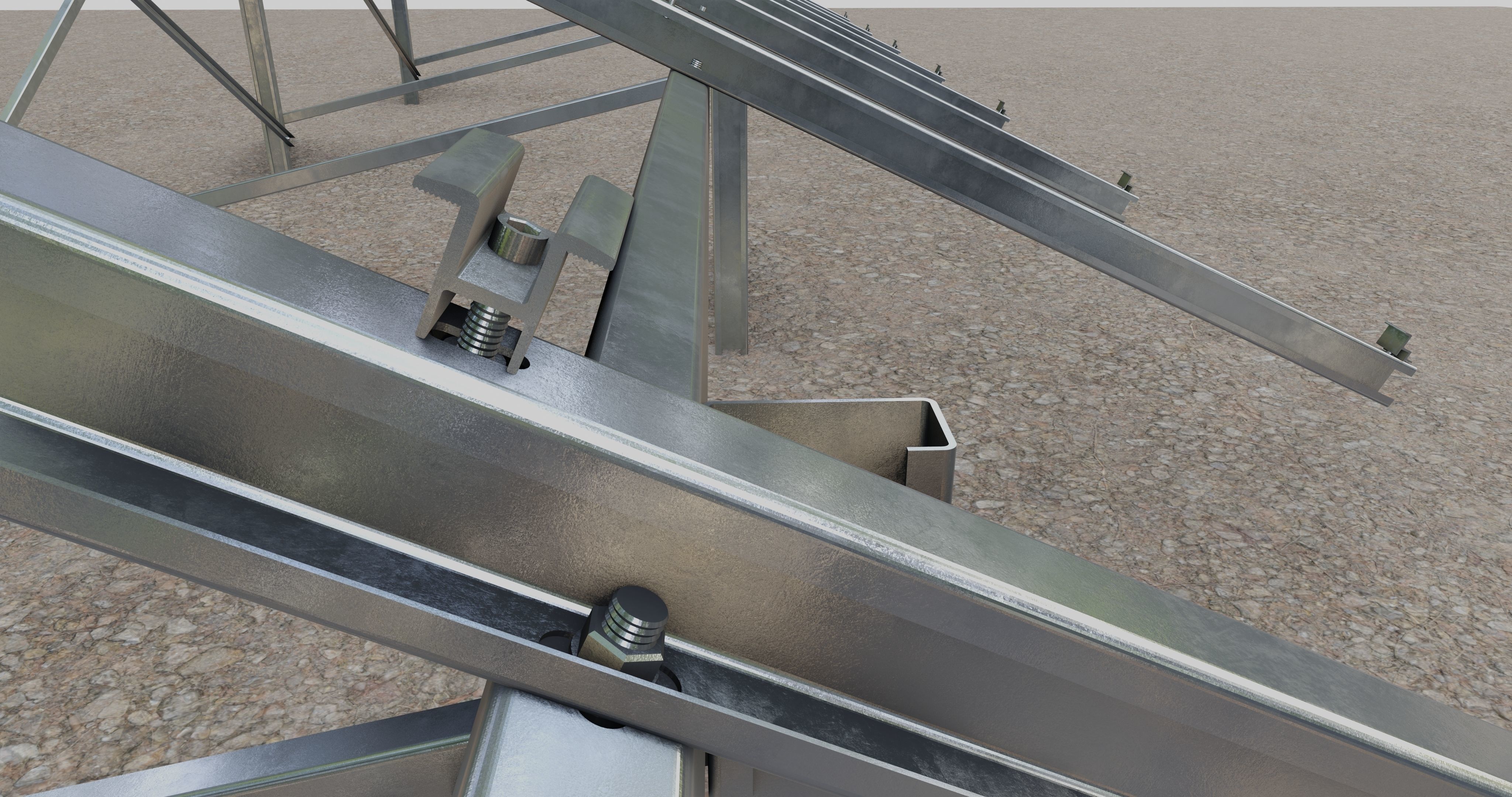

Column : C Profile C100x50x20-3mmBeam : C Profile CE120x50x20_25°-3mmPurlin : C Profile C70x40x15x-2mmDiagonal : U Profile U50x30-2mm

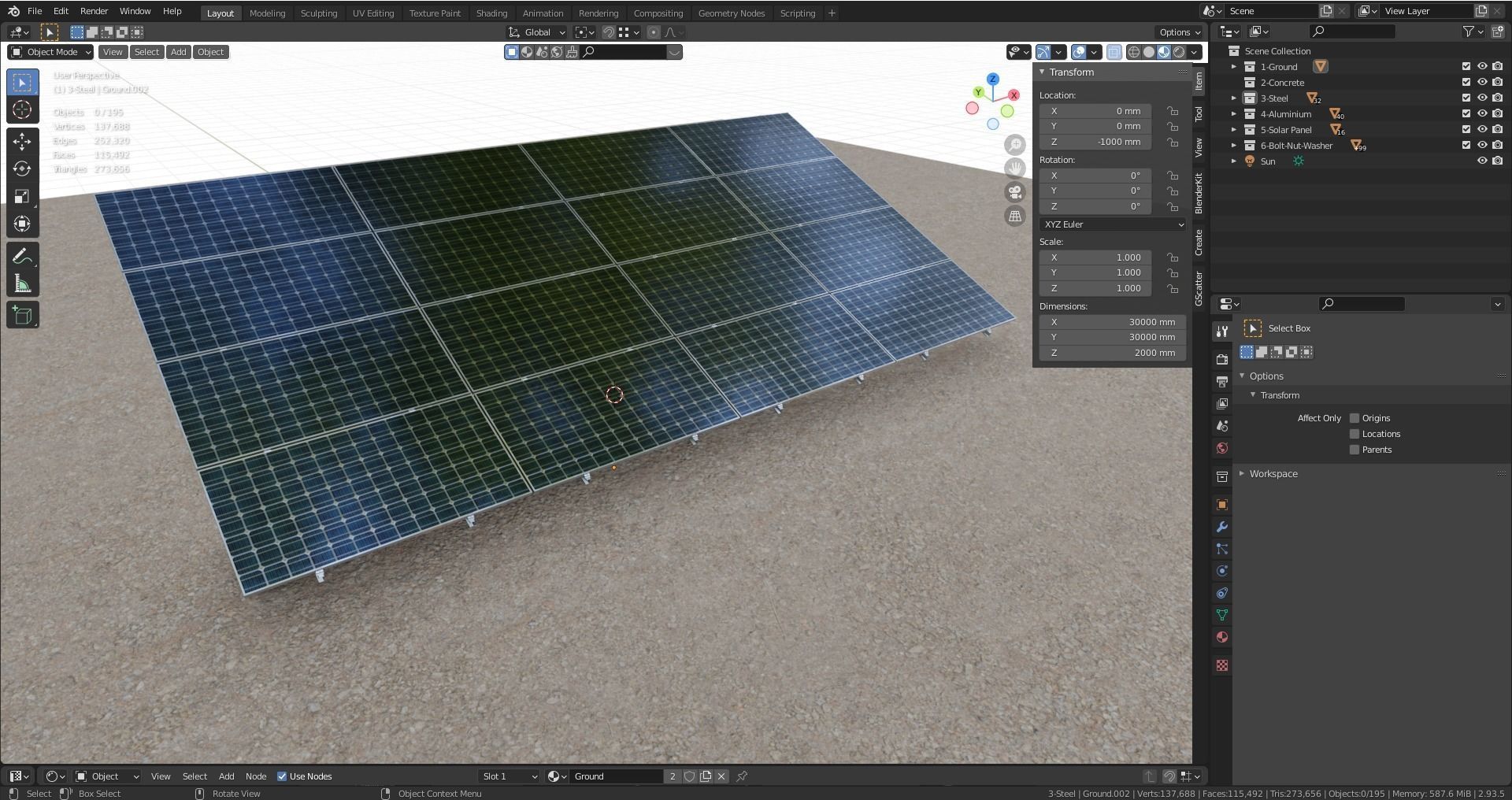

Prepared With BLENDER Version 2.93.5
Polygons : 115492
Vertices : 137688
Objects : 195
Solar Panel Steel Construction Type 9
Royalty Free License
Solar Panel Steel Construction Type 9
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- Blender 2.93.5 (.blend)18.6 MBVersion: 2.93.5Renderer: Eevee 2.93.5
Exchange
3D Model details
- Publish date2023-04-25
- Model ID#4460536
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 115,492
- Vertices 137,688
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
