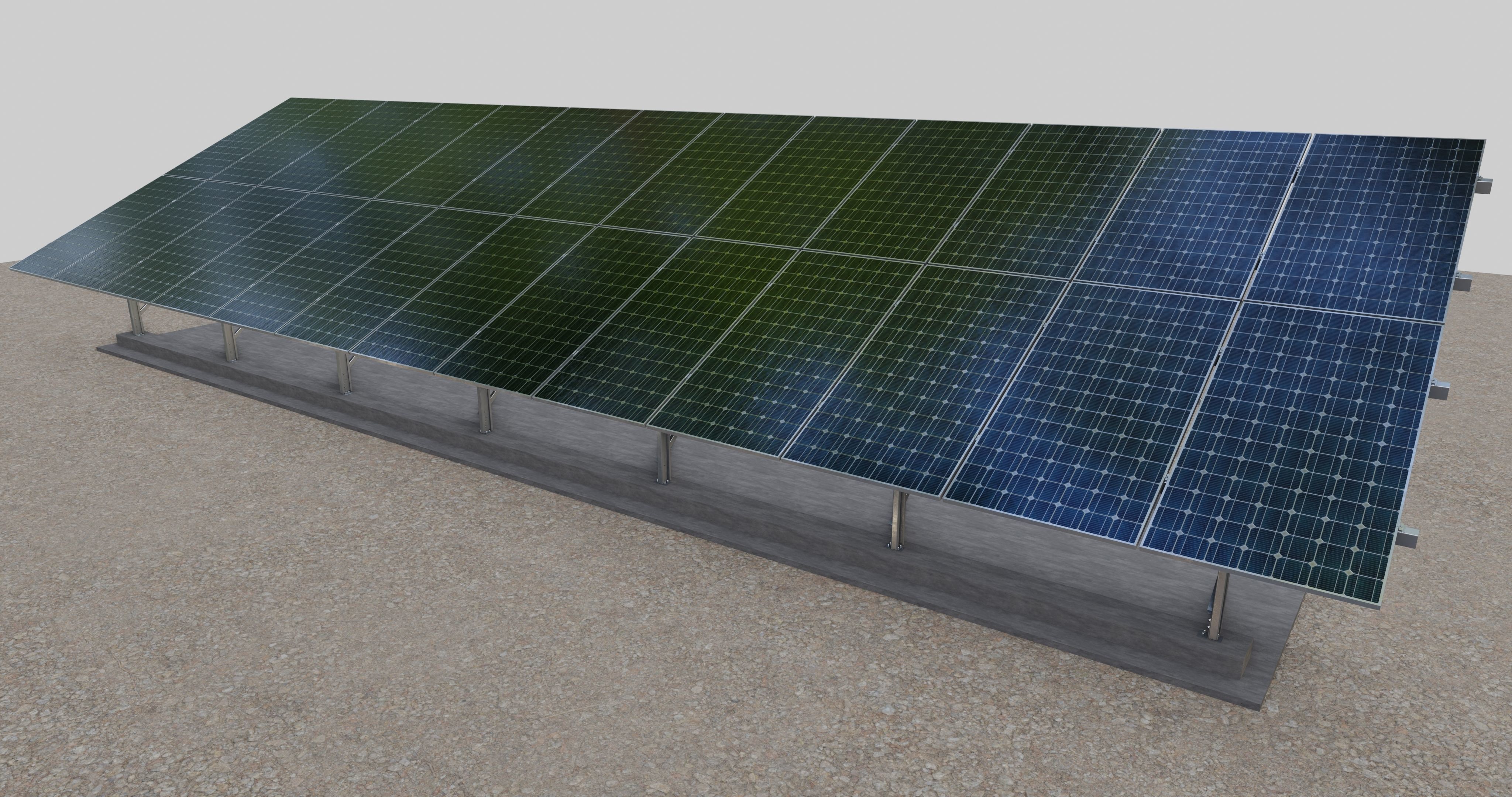

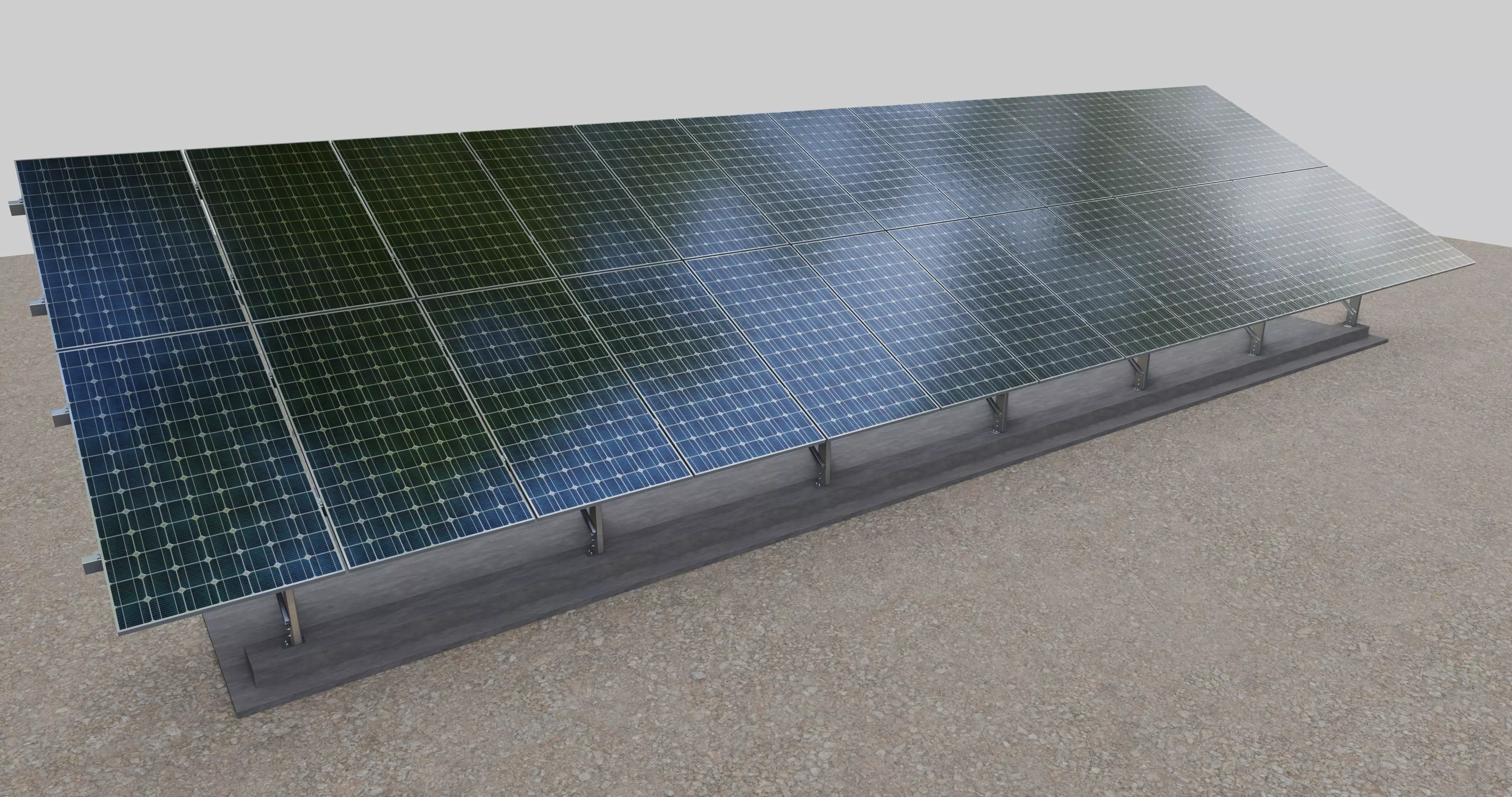

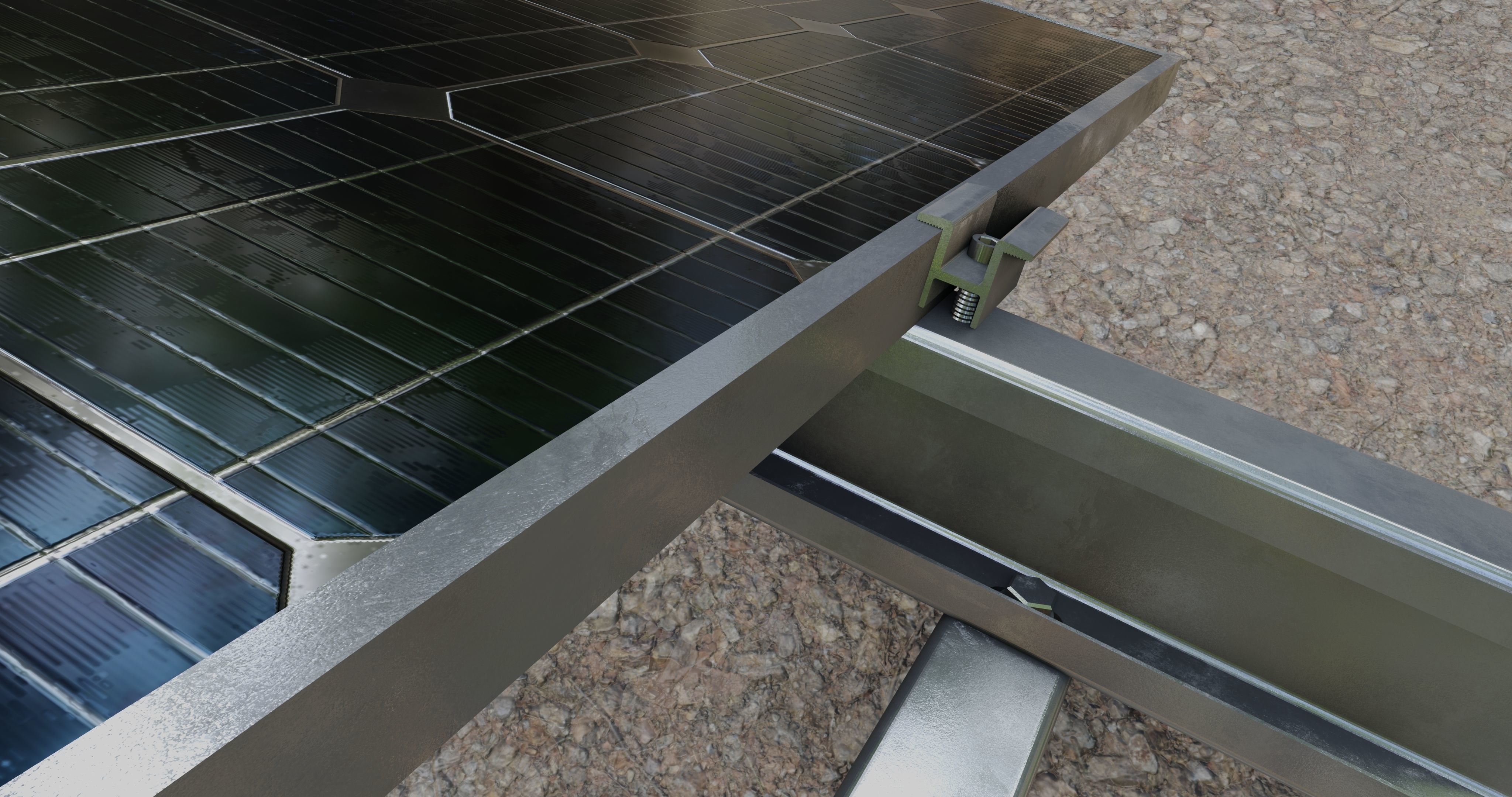

Solar Panel Steel Construction Type 8 3D model

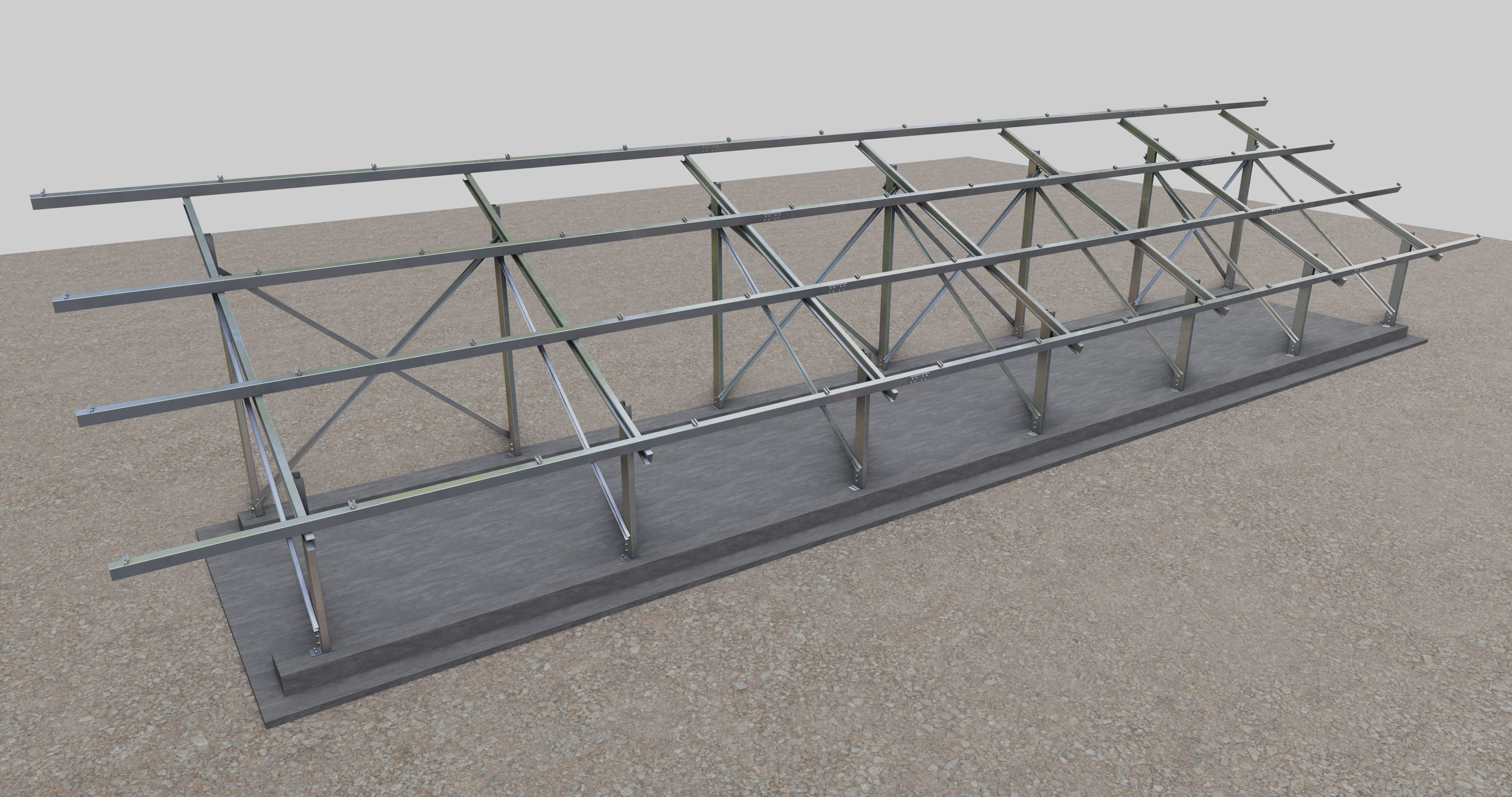

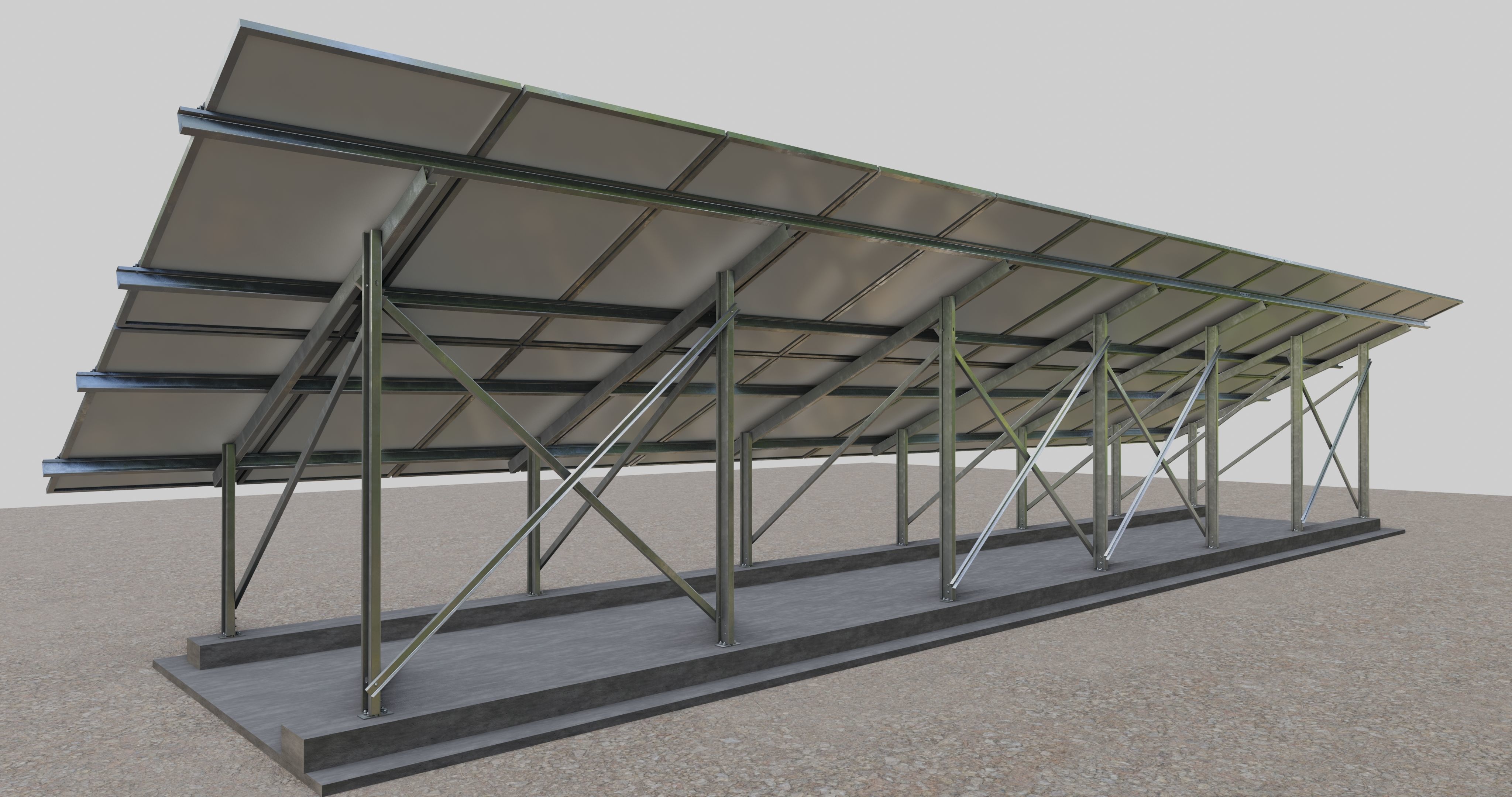

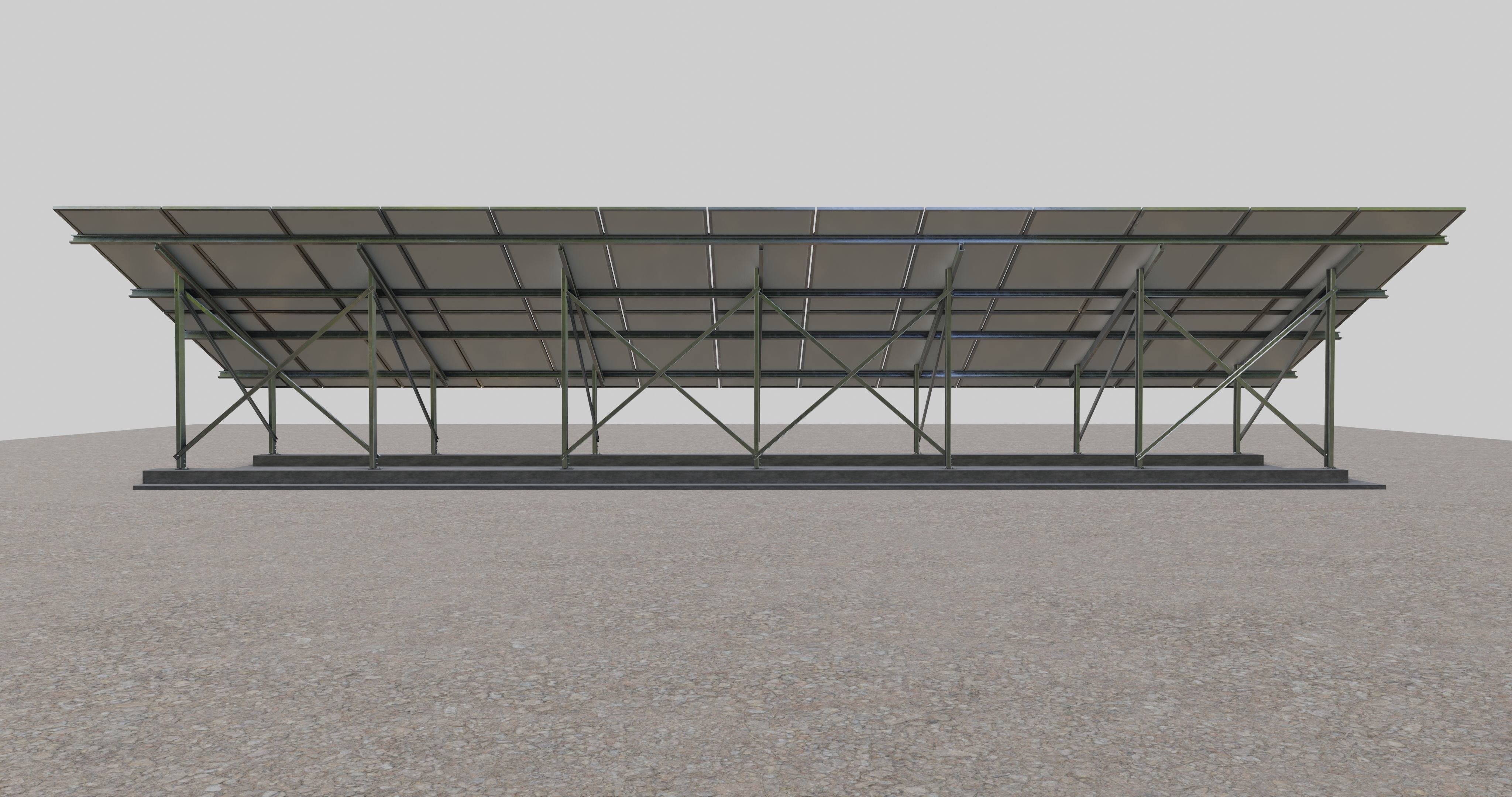

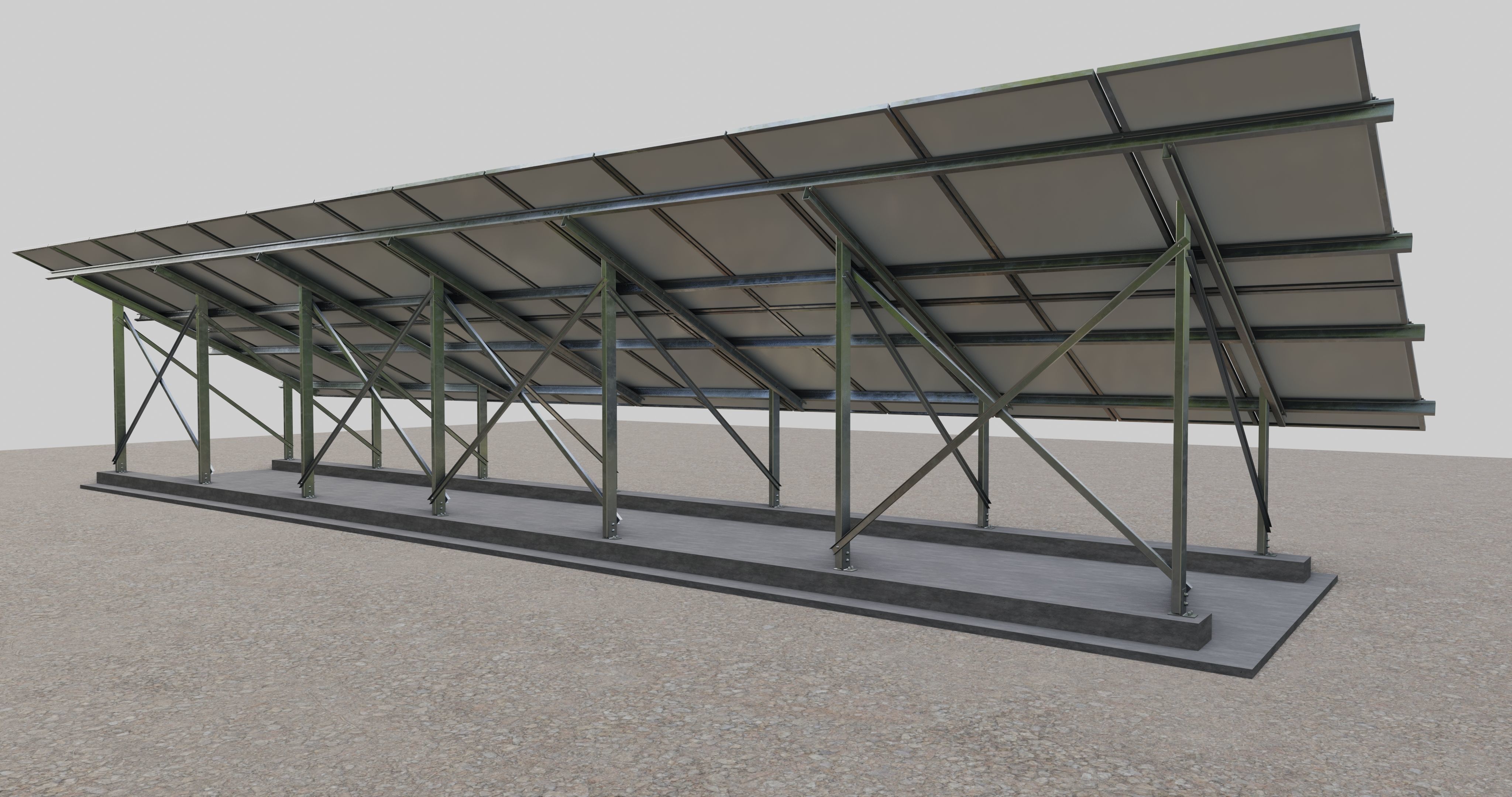

Solar Panel Steel Construction Type 8

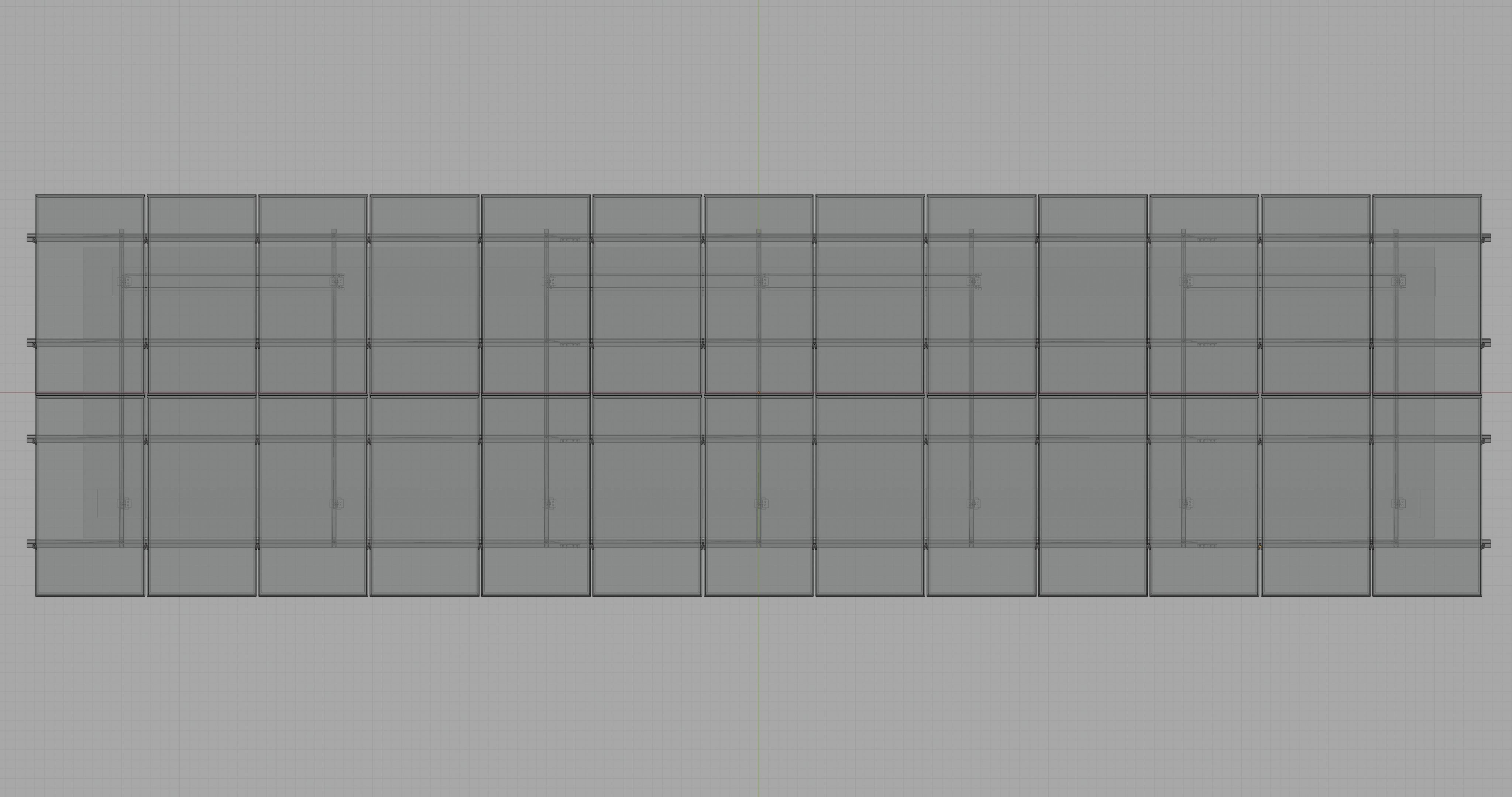

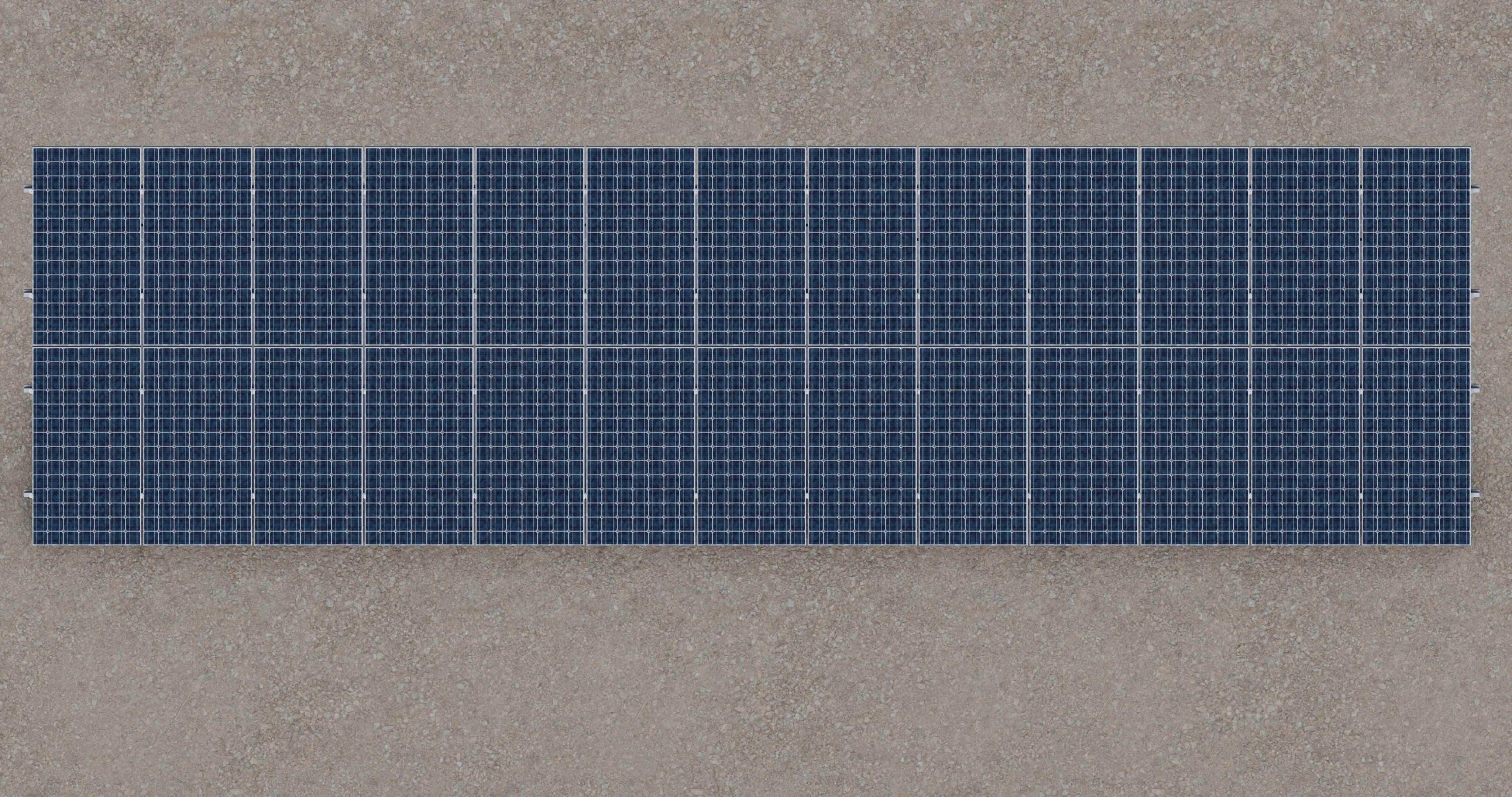

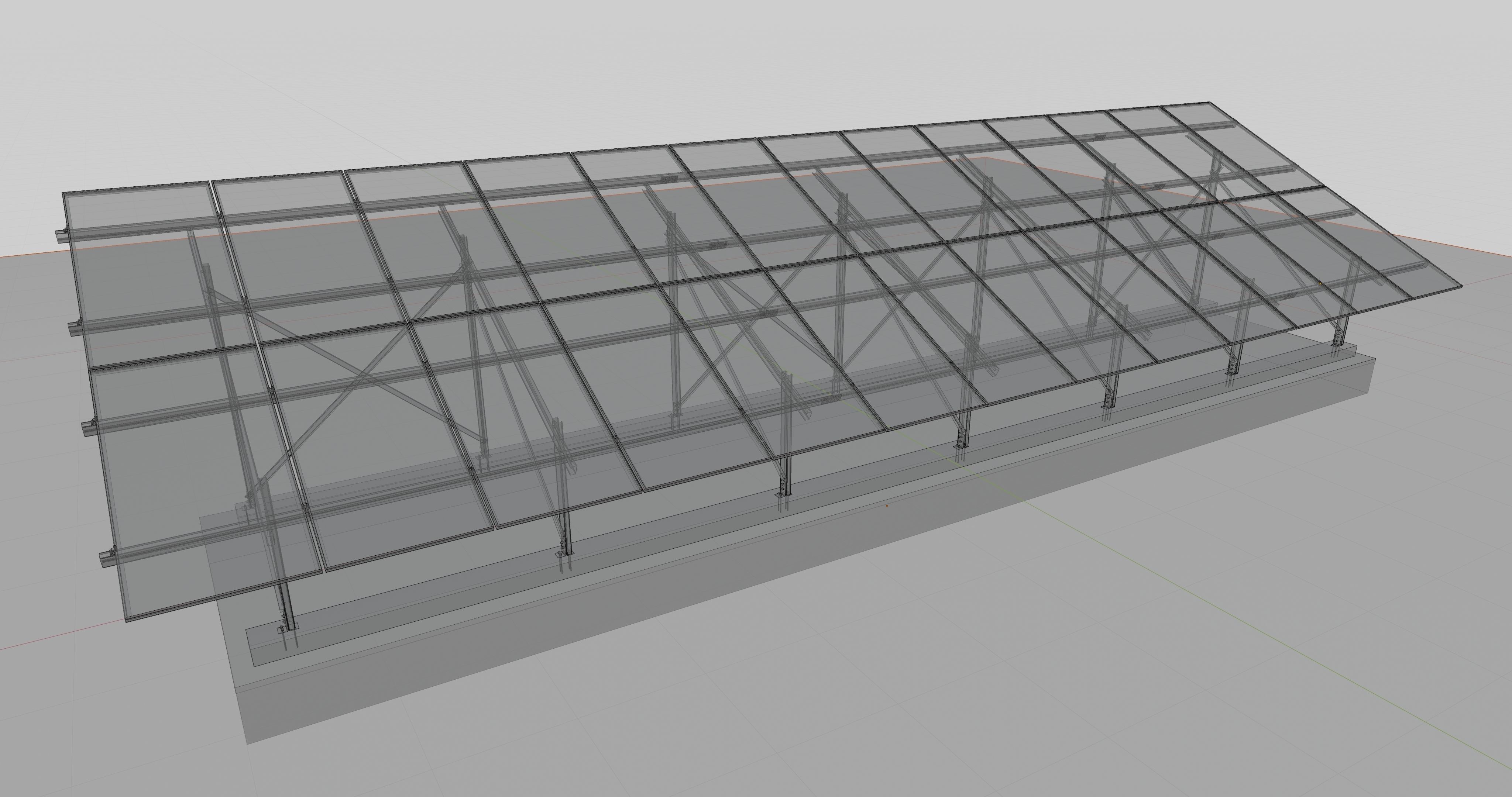

2x13 Vertical Panel Layout

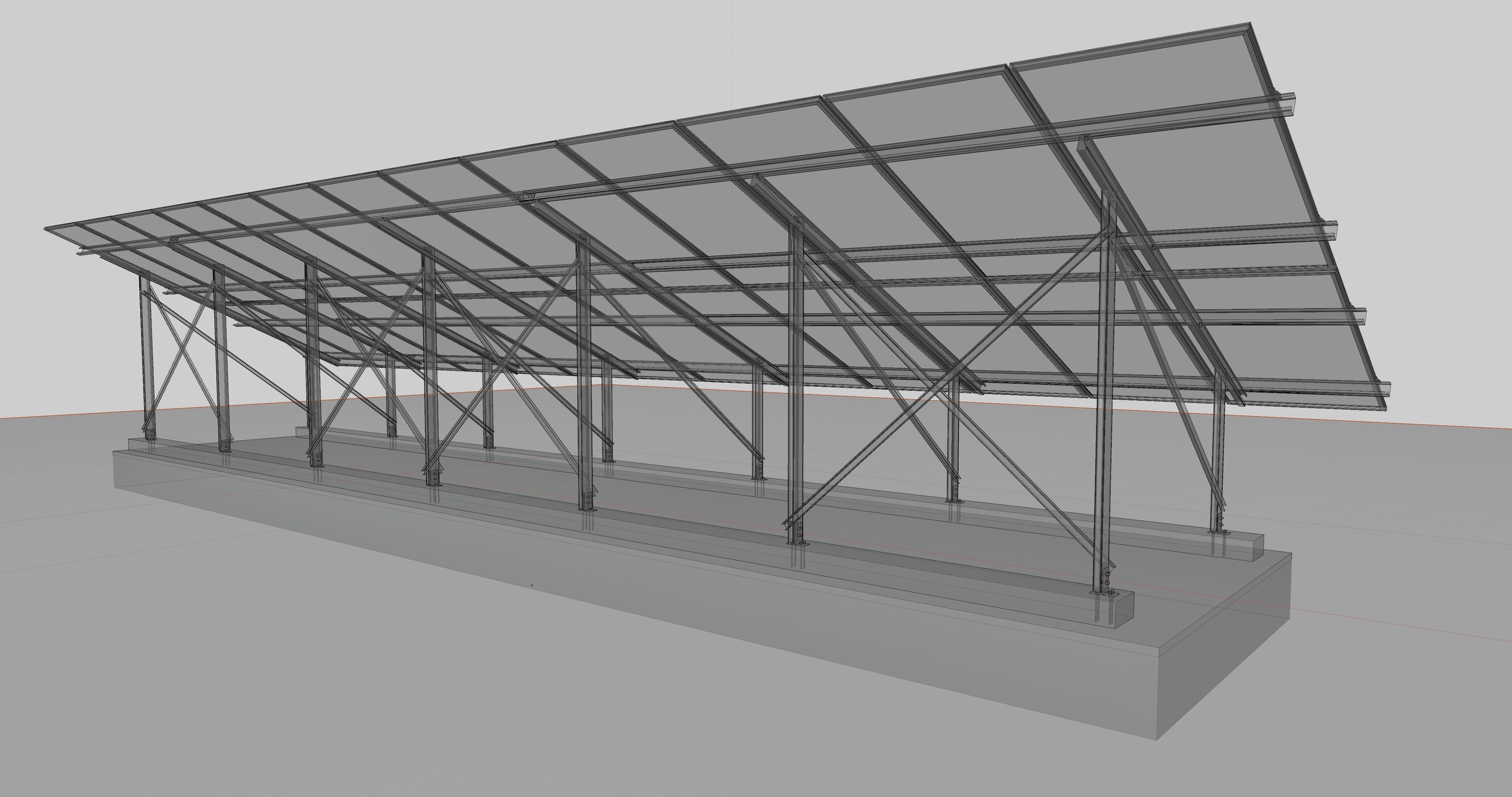

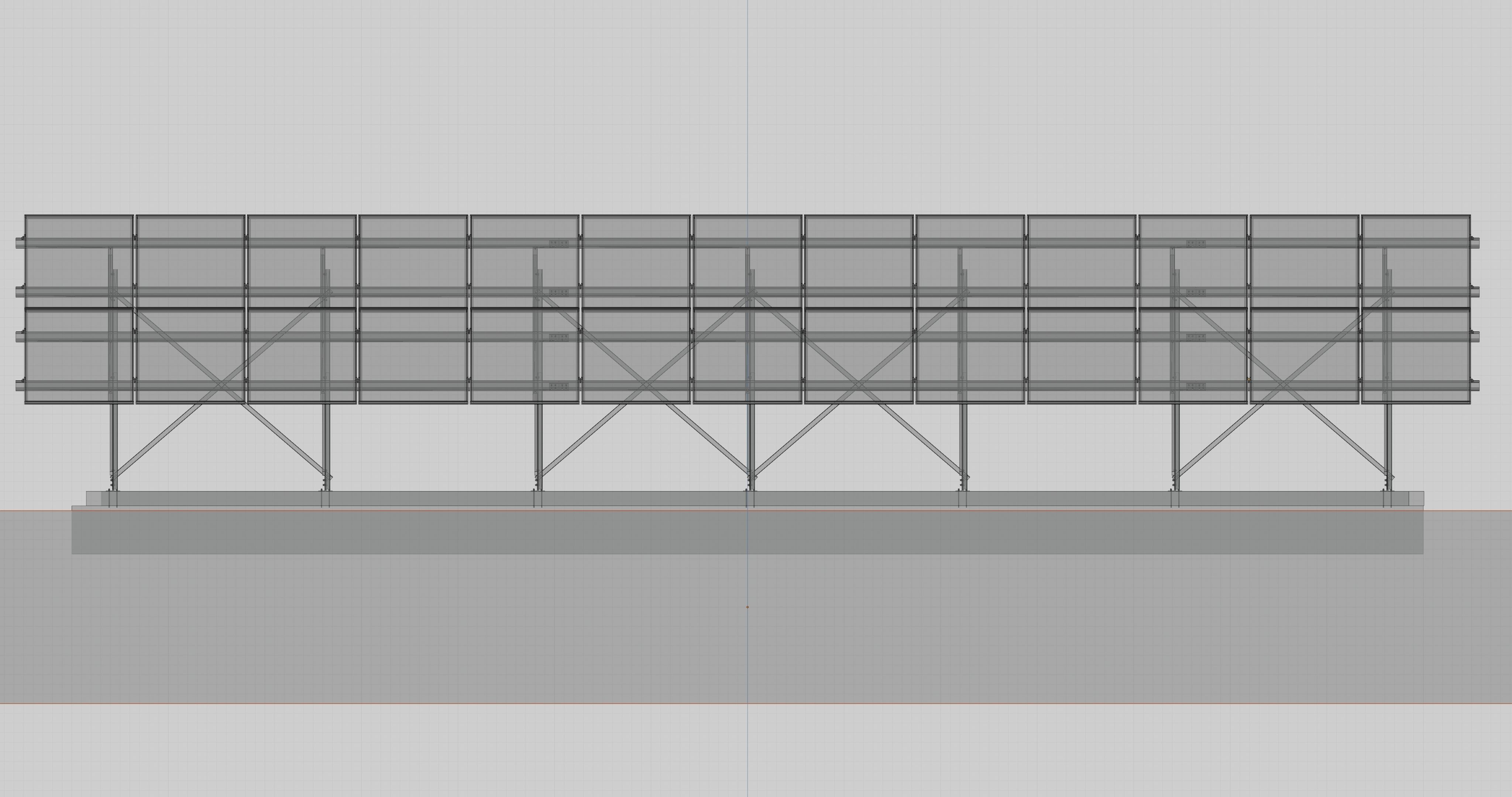

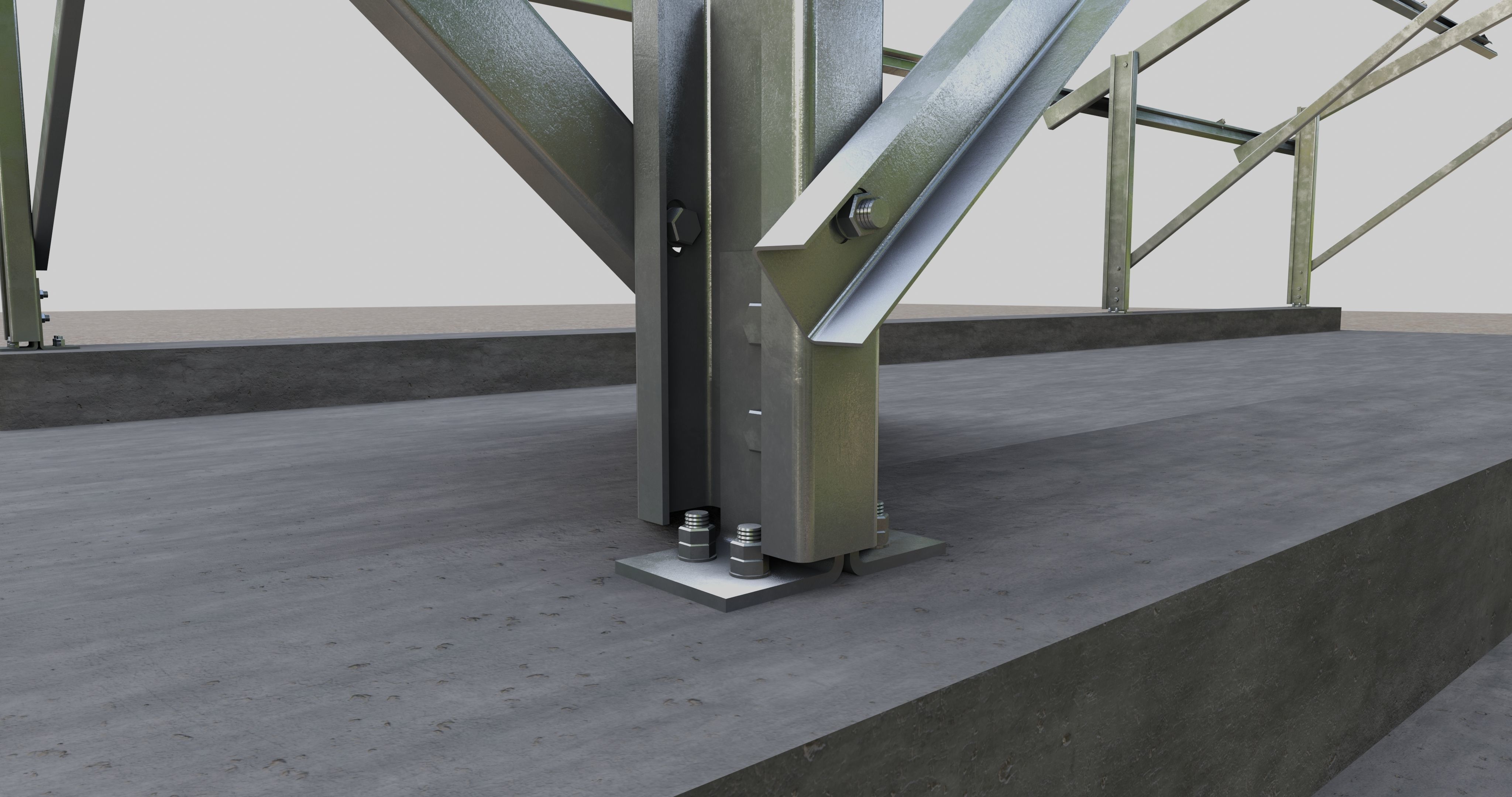

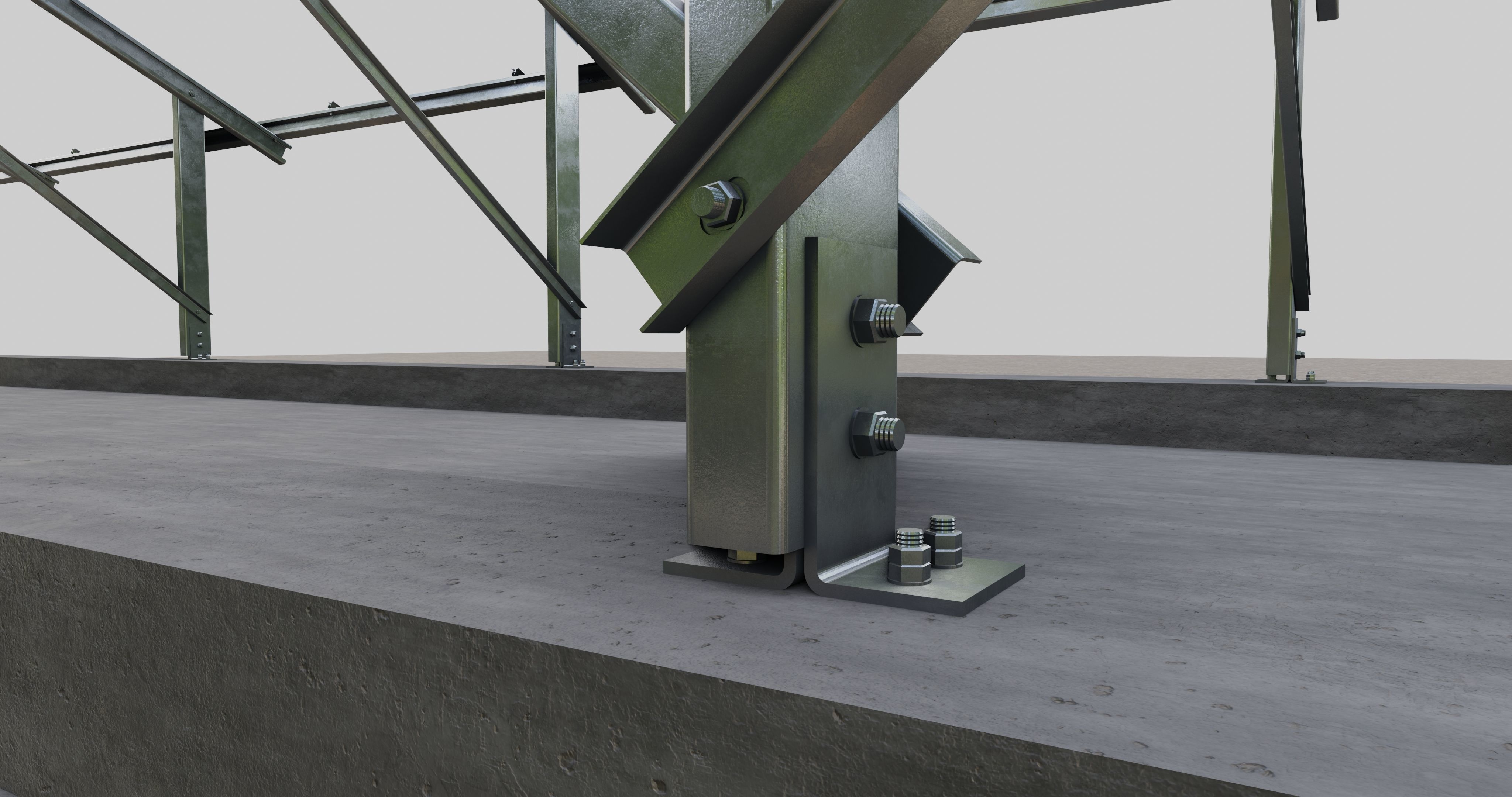

Ground Connection Type; With Double Angle Anchor Connection
Foundation Dimensions : 3000mm x 14000mm x 500mm
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 14,3 kWp power in 1 hour

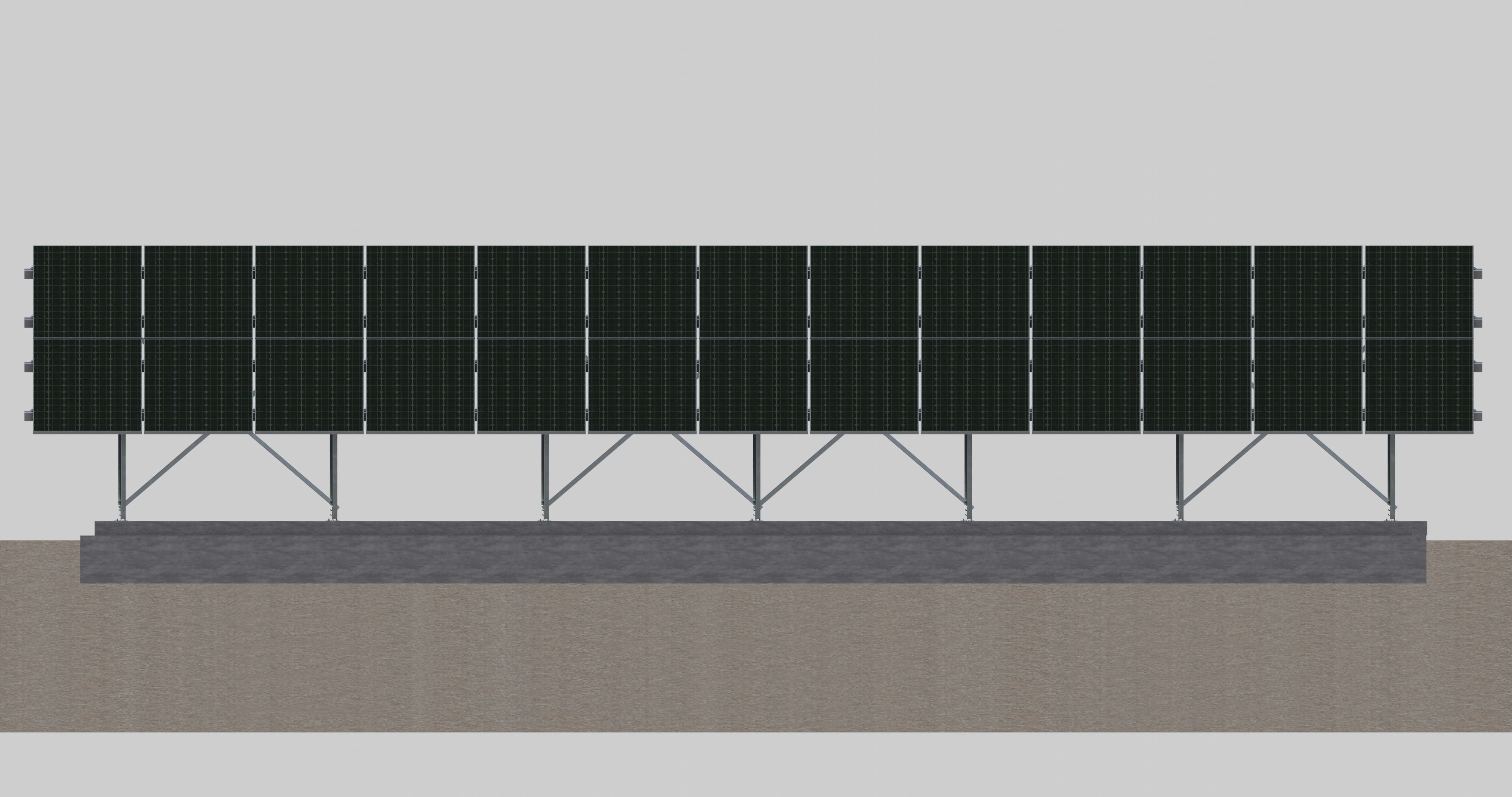

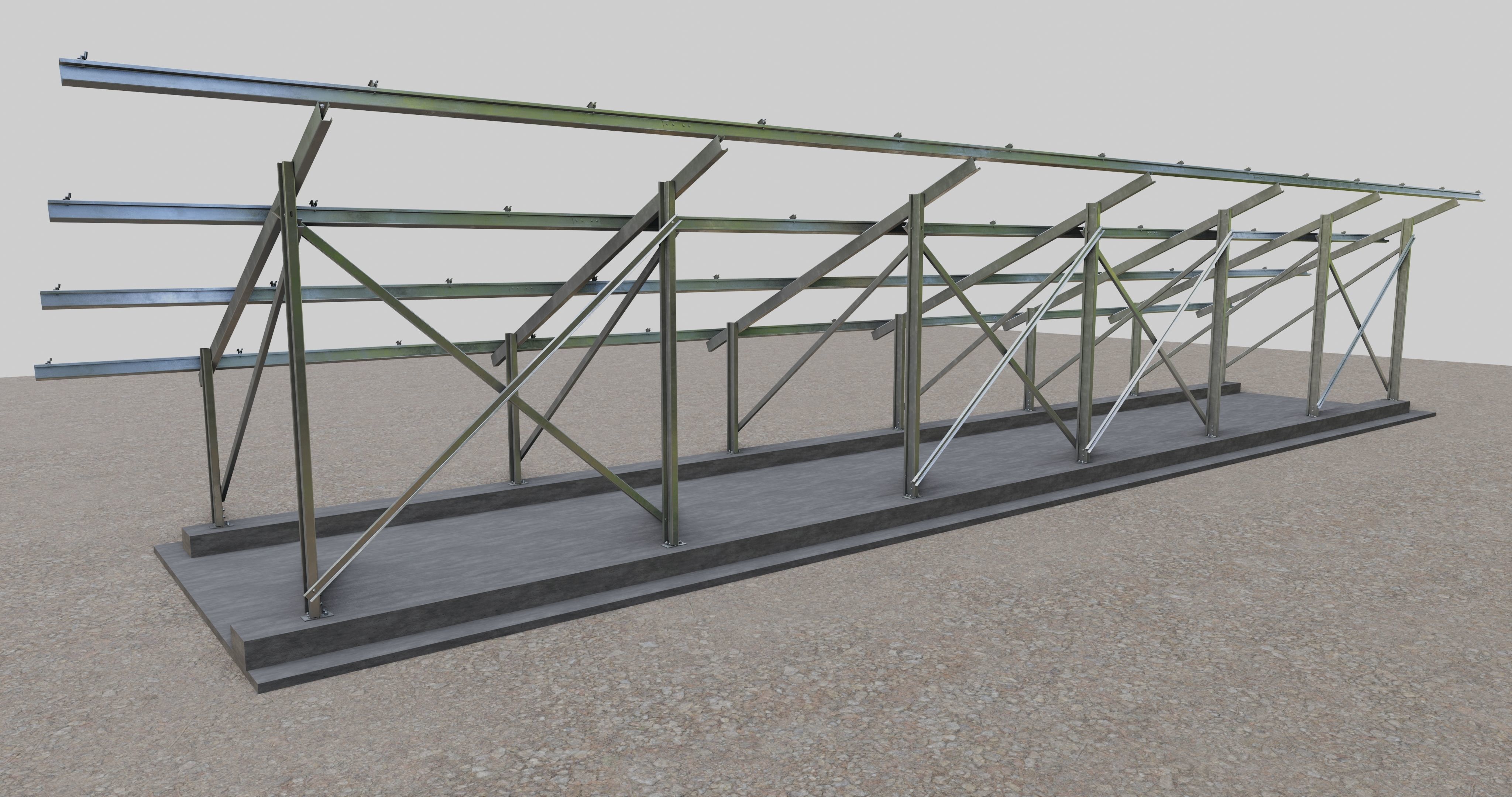

The system consists of 7 axles and the distance between each axle is 2200 mm.
Distance between two columns 2300 mm.
Horizantal angle of panel 25°
The closest distance of the panels to the floor 1000 mm.

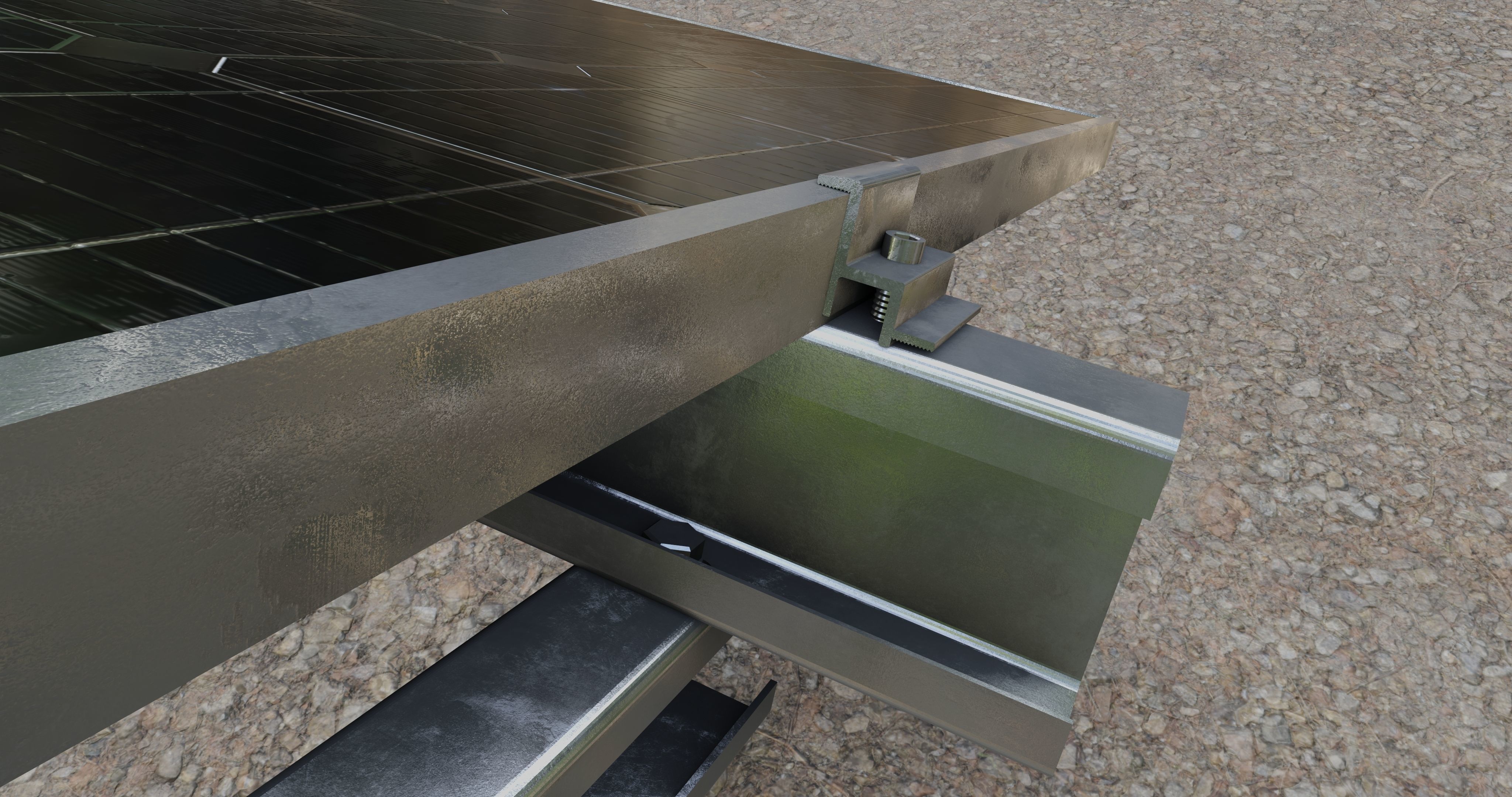

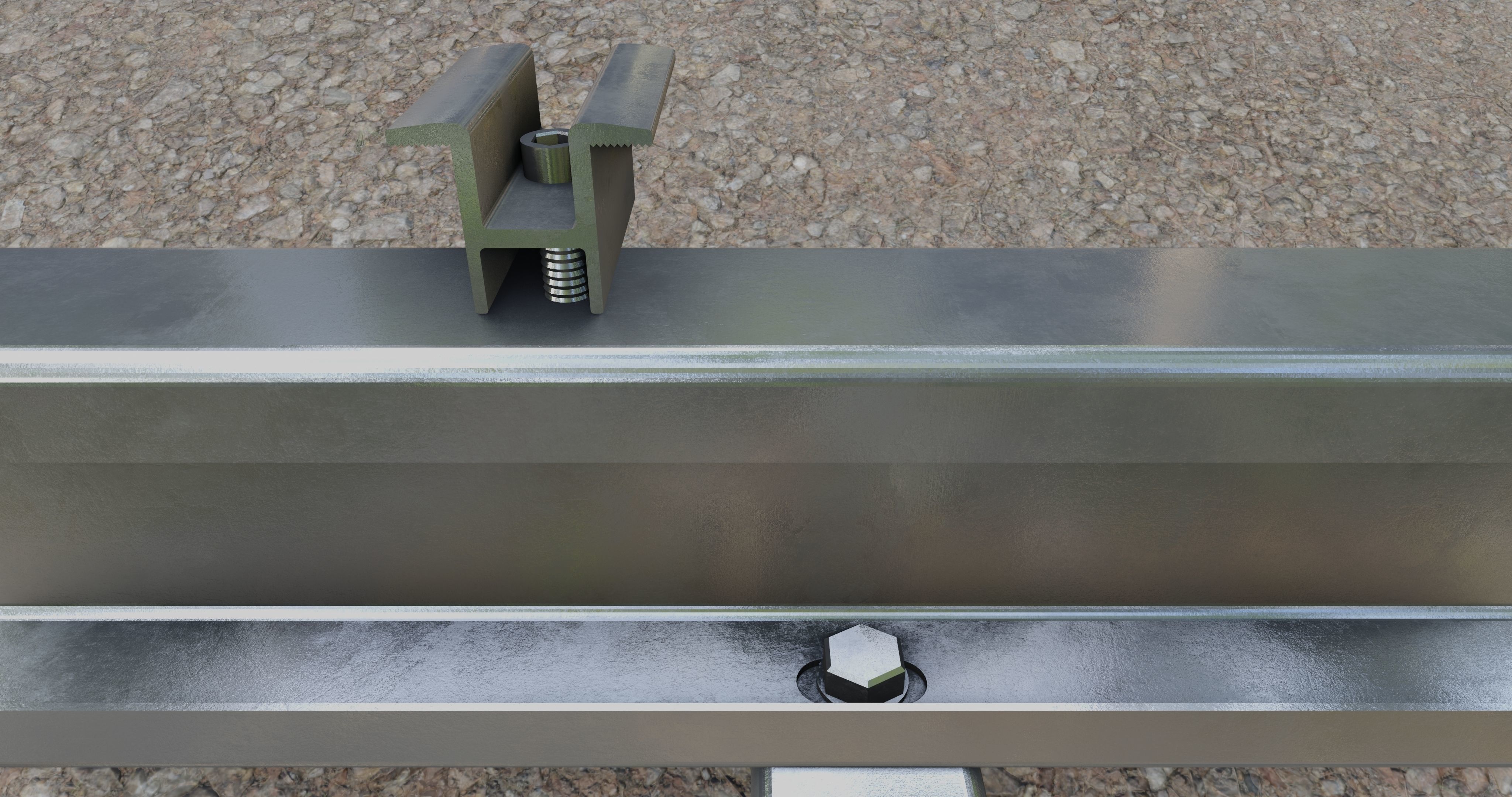

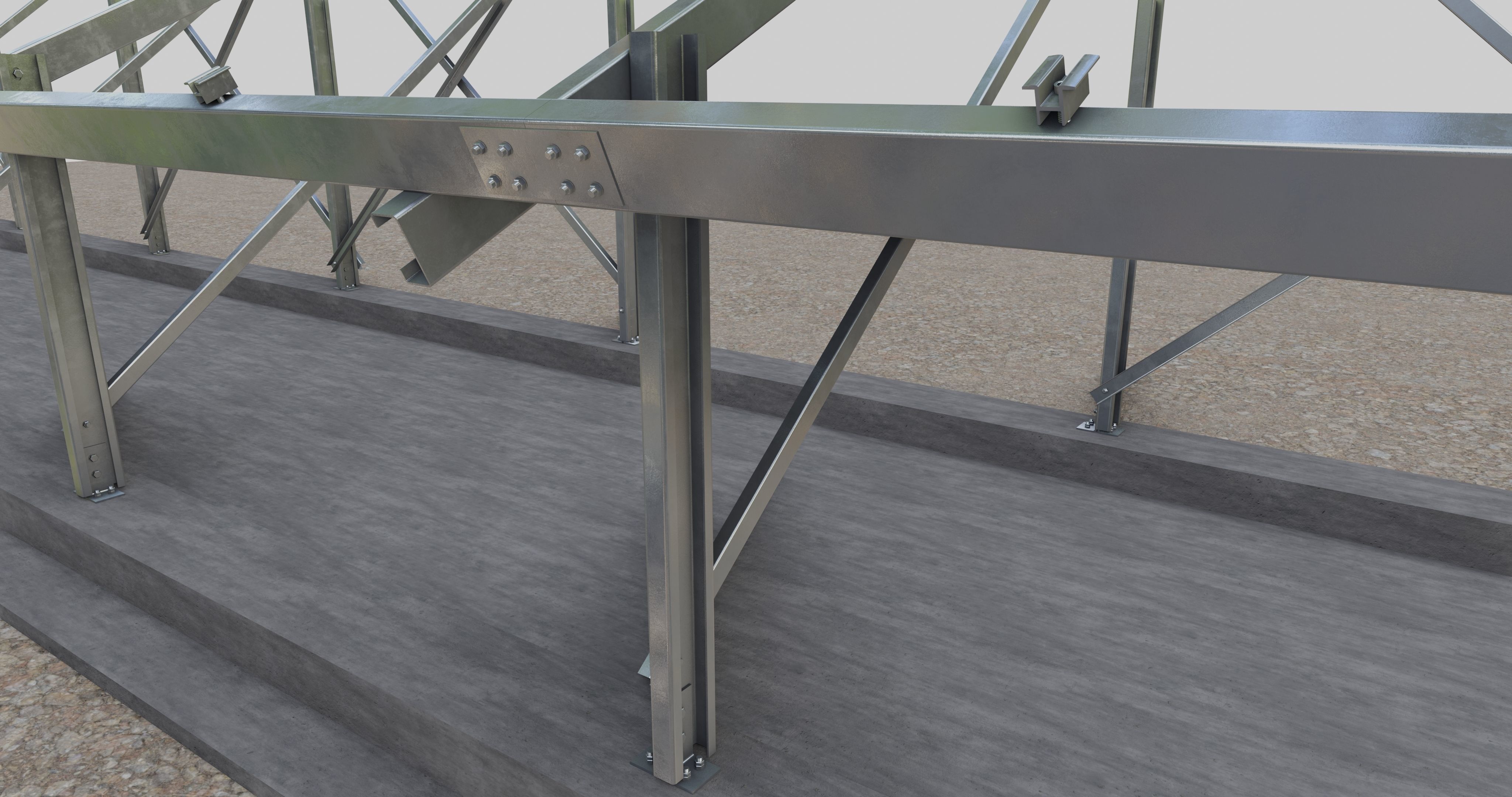

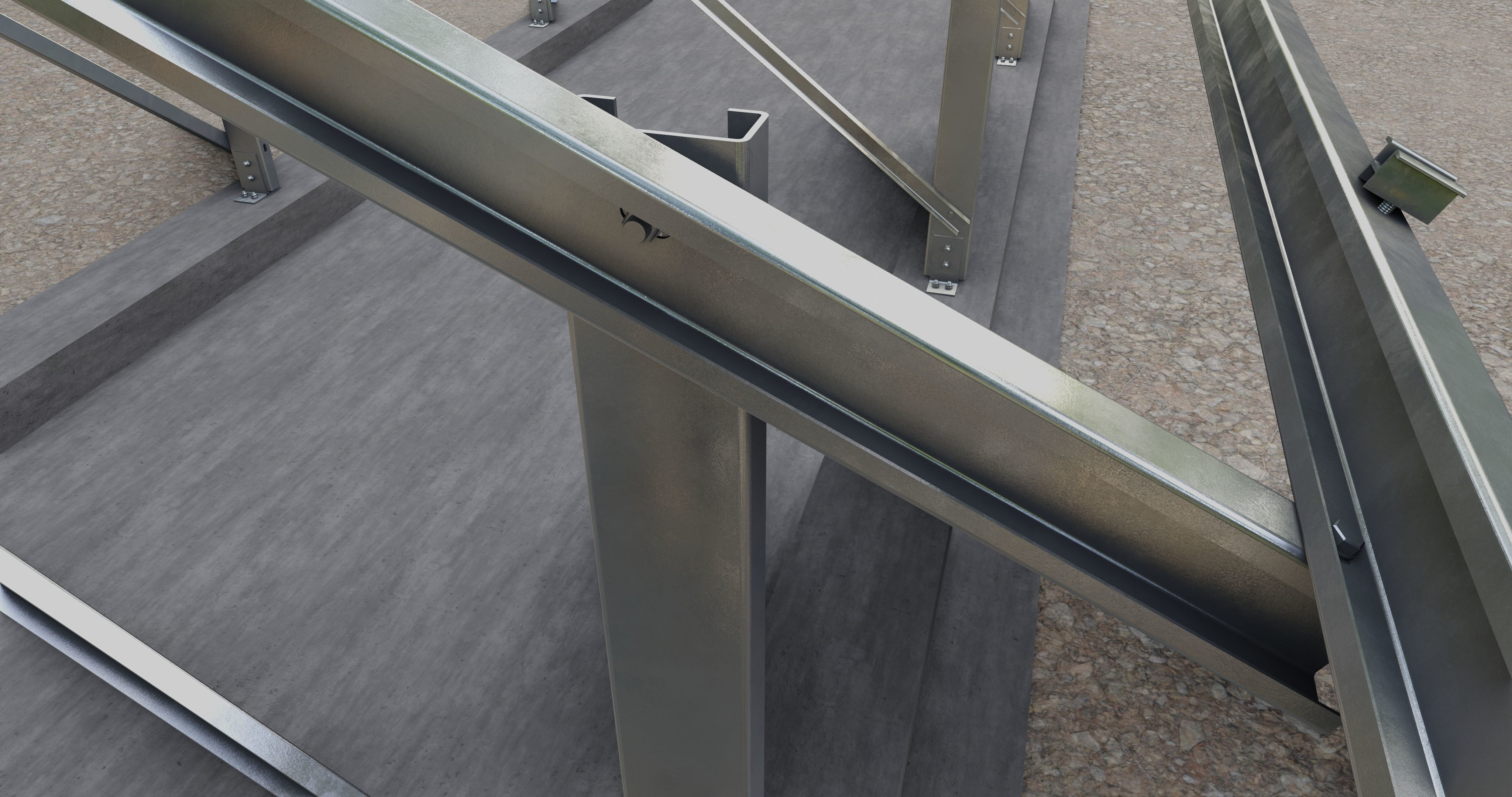

Profile Section;

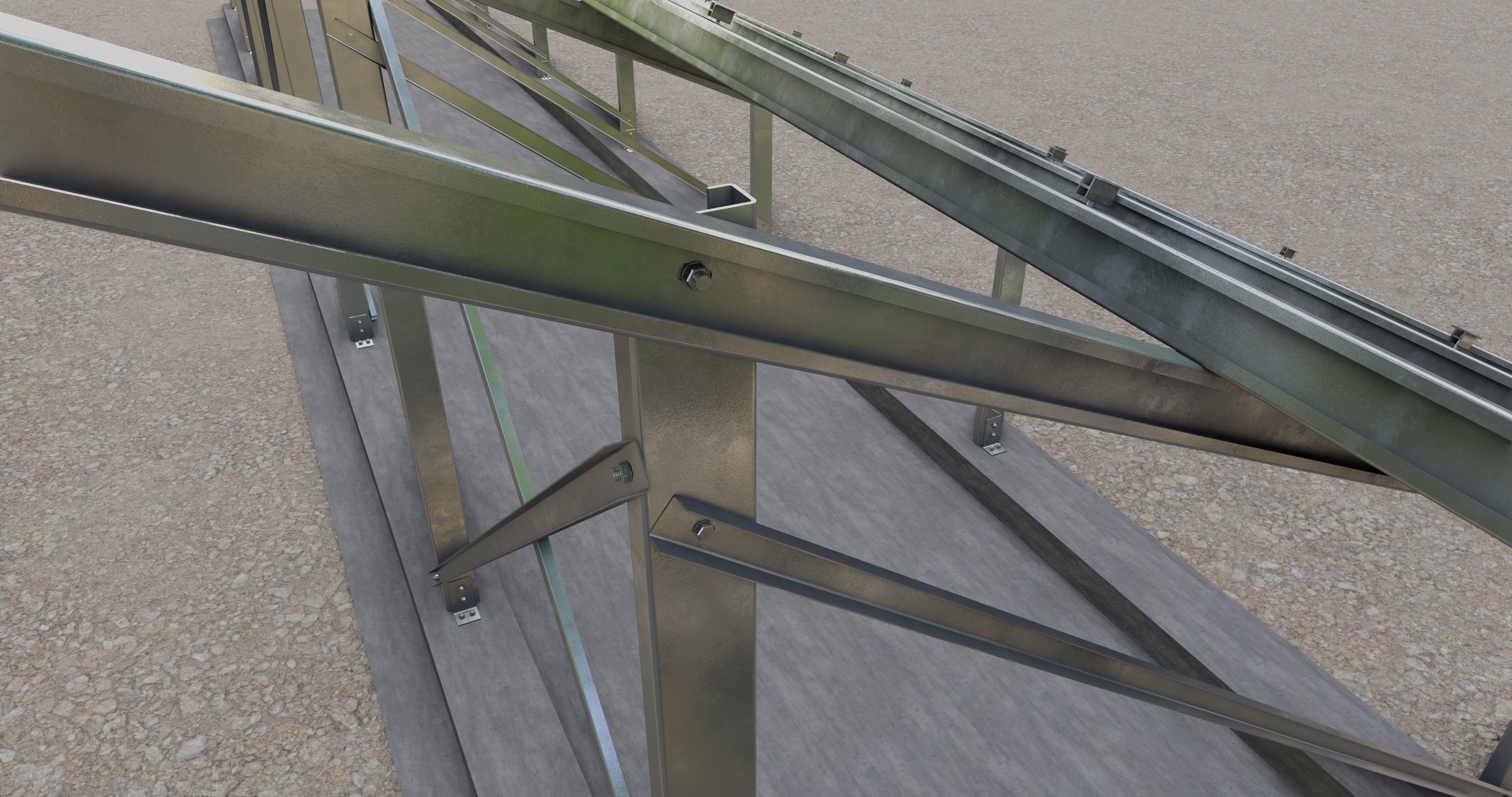

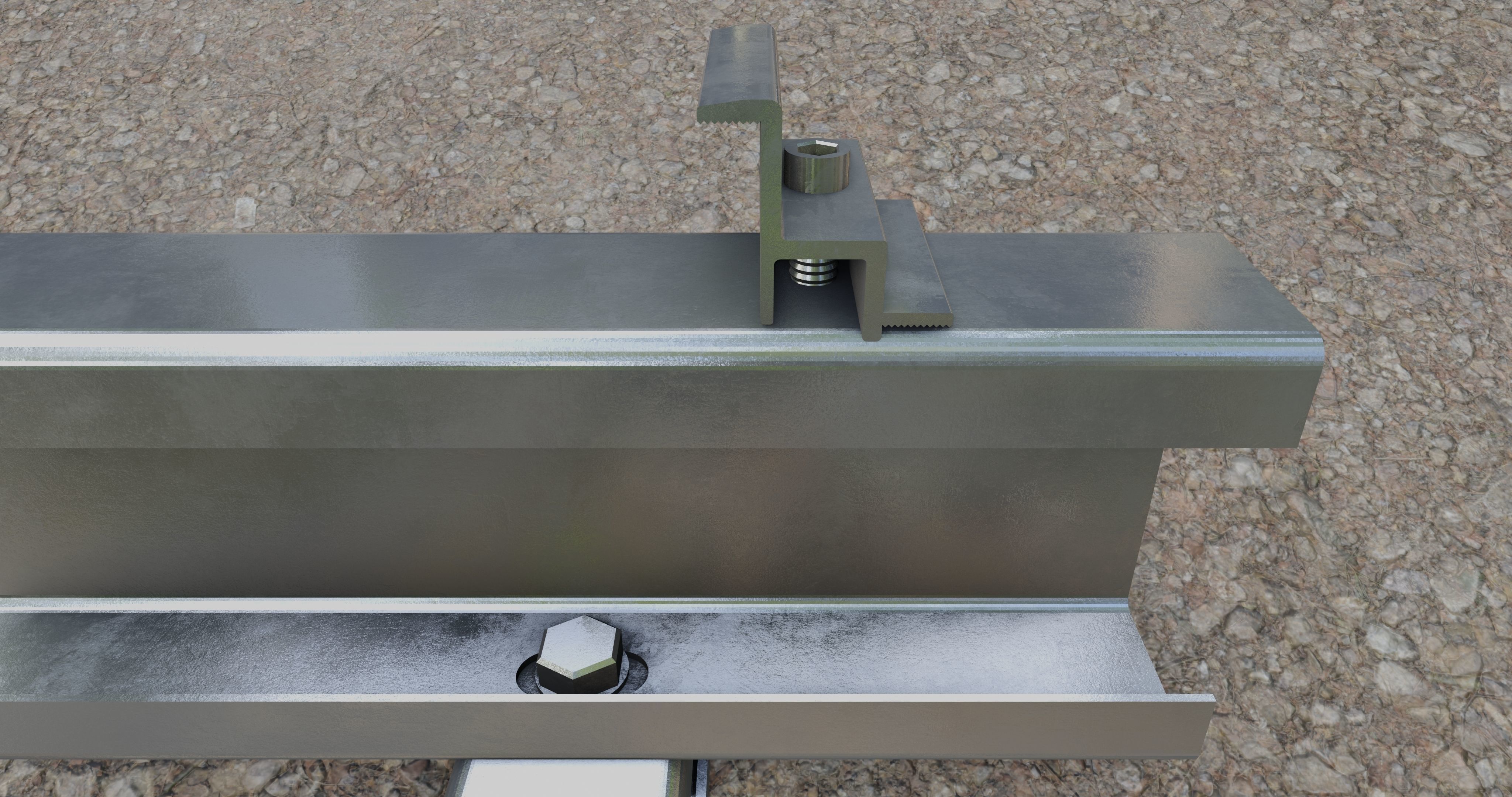

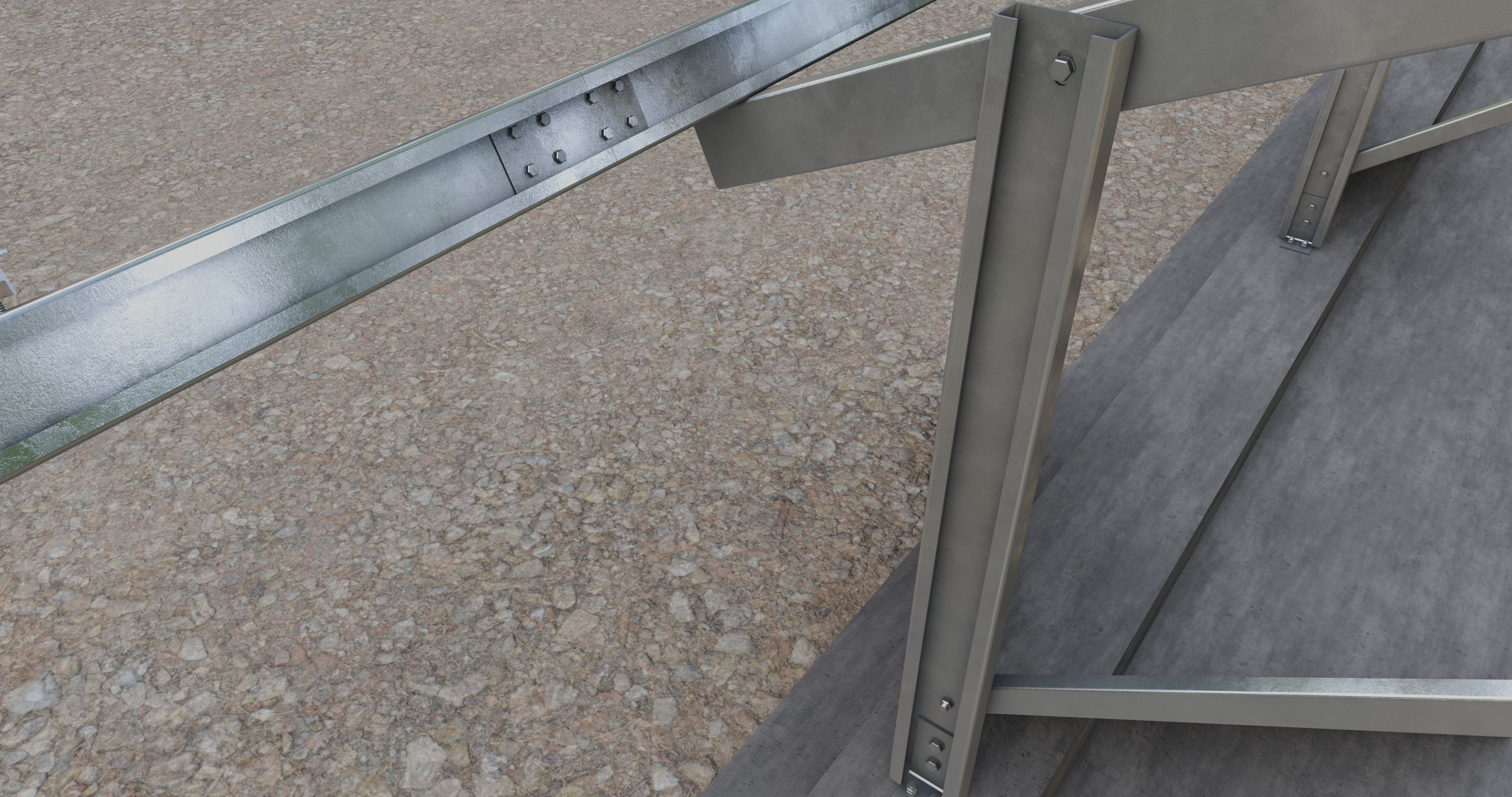

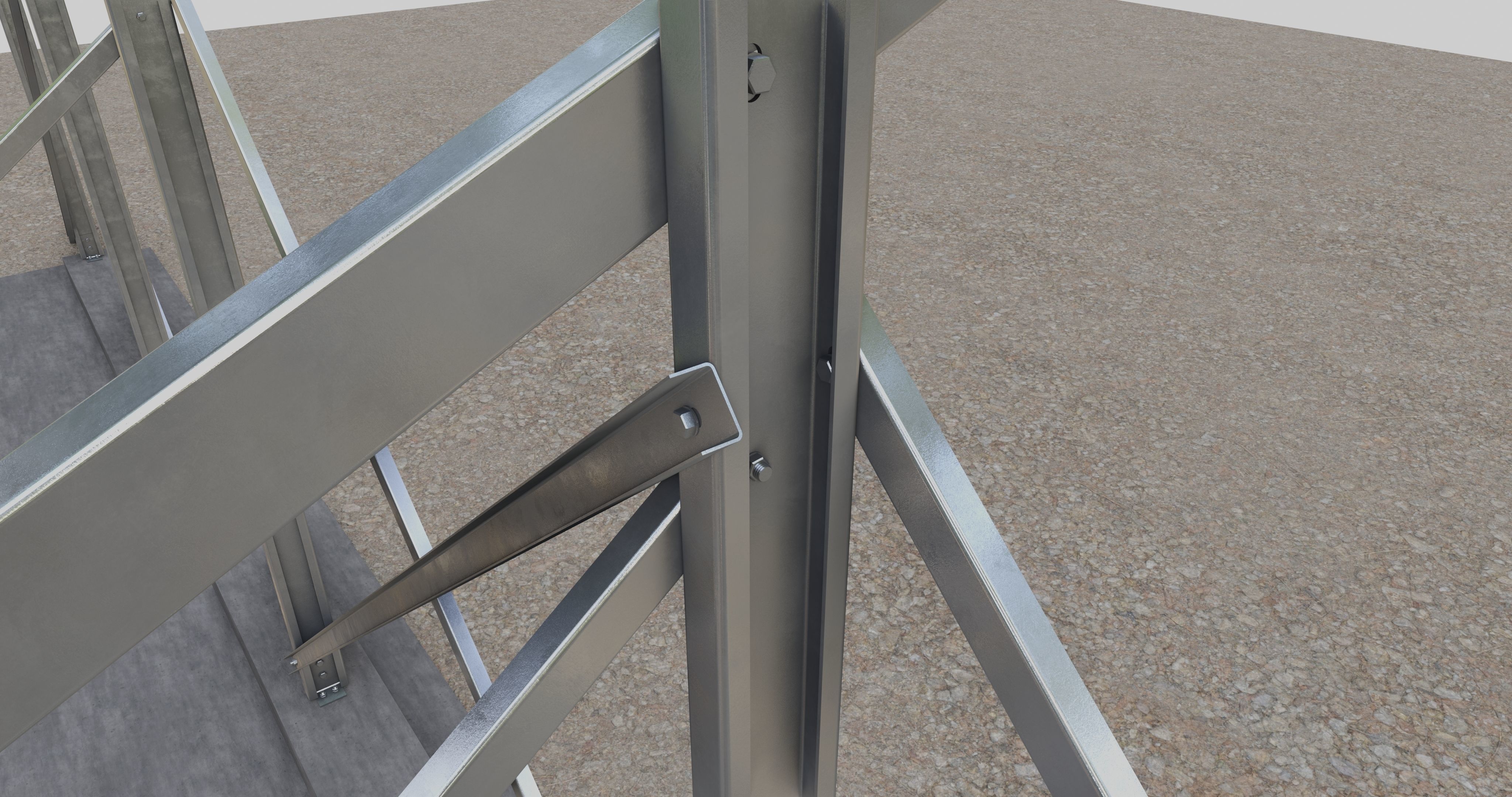

Column : C Profile C120x50x25-4mm Beam : C Profile C100x50x20-3mm Purlin : C Profile C90x50x20x-2mm Diagonal : U Profile U50x30-2mm Anchor Angle Profile : L150x60-6mm

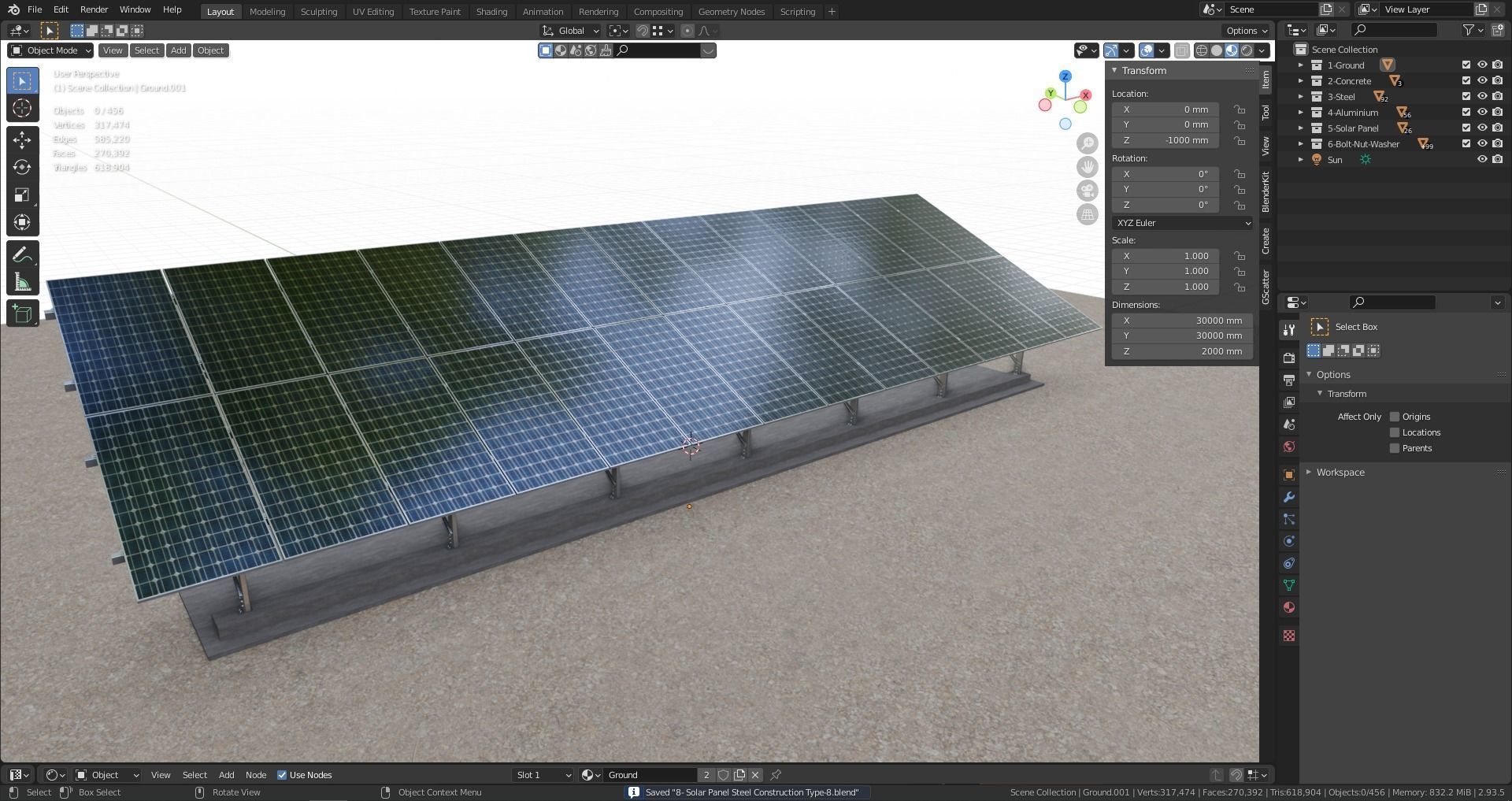

Prepared With BLENDER Version 2.93.5
Polygons : 270392
Vertices : 317474
Objects : 456
