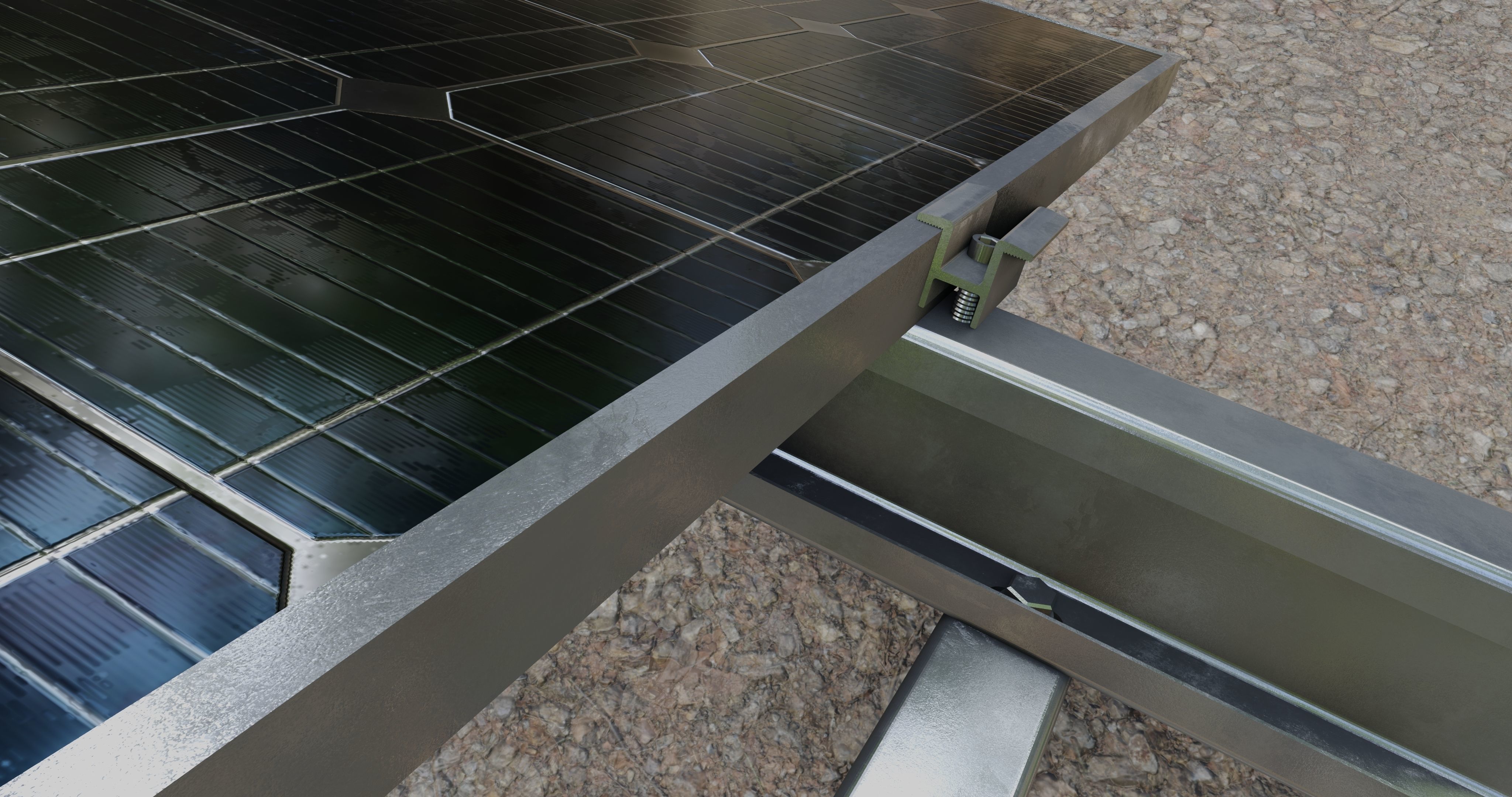

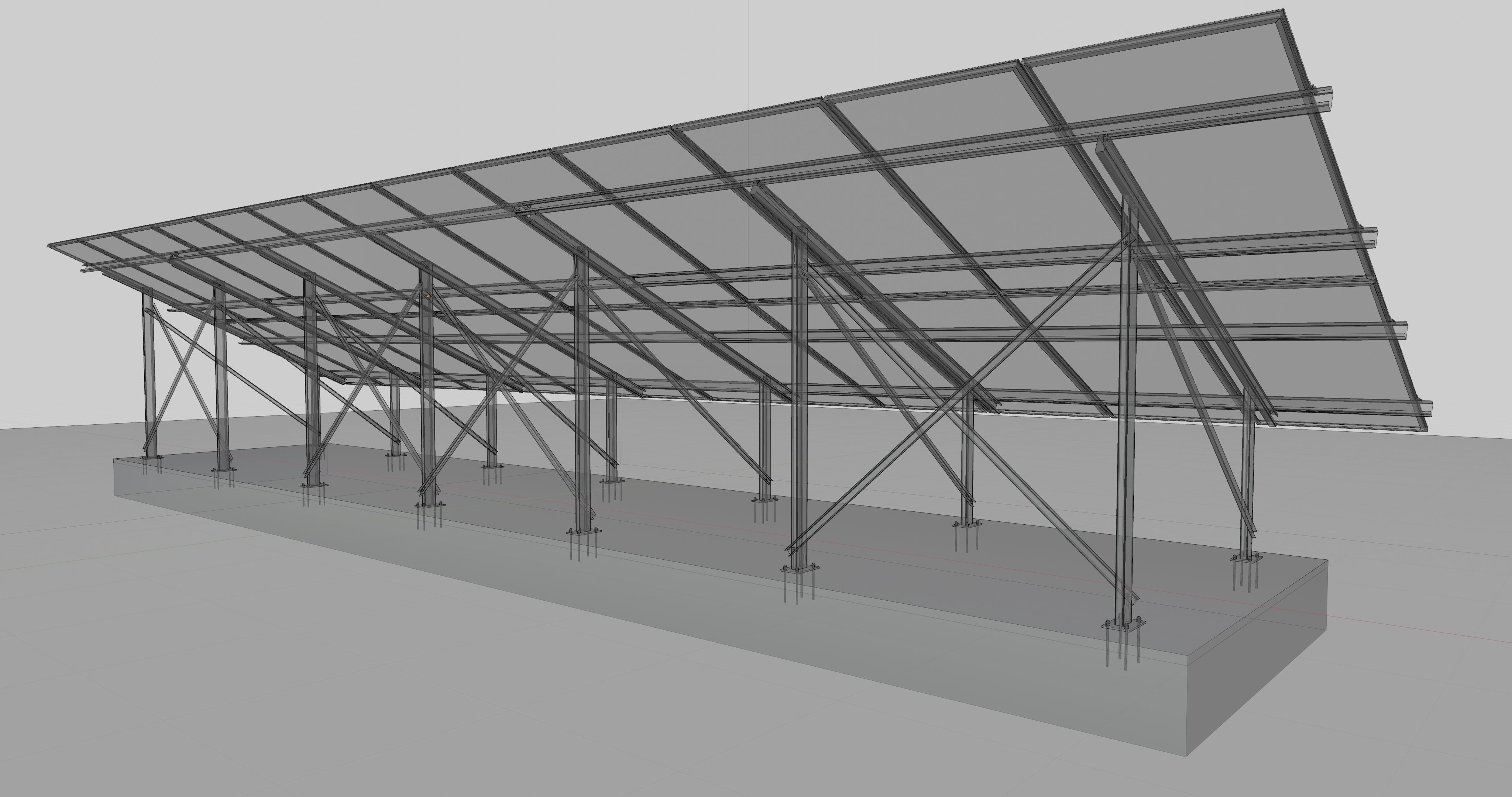

Solar Panel Steel Construction Type 7 3D model
Description

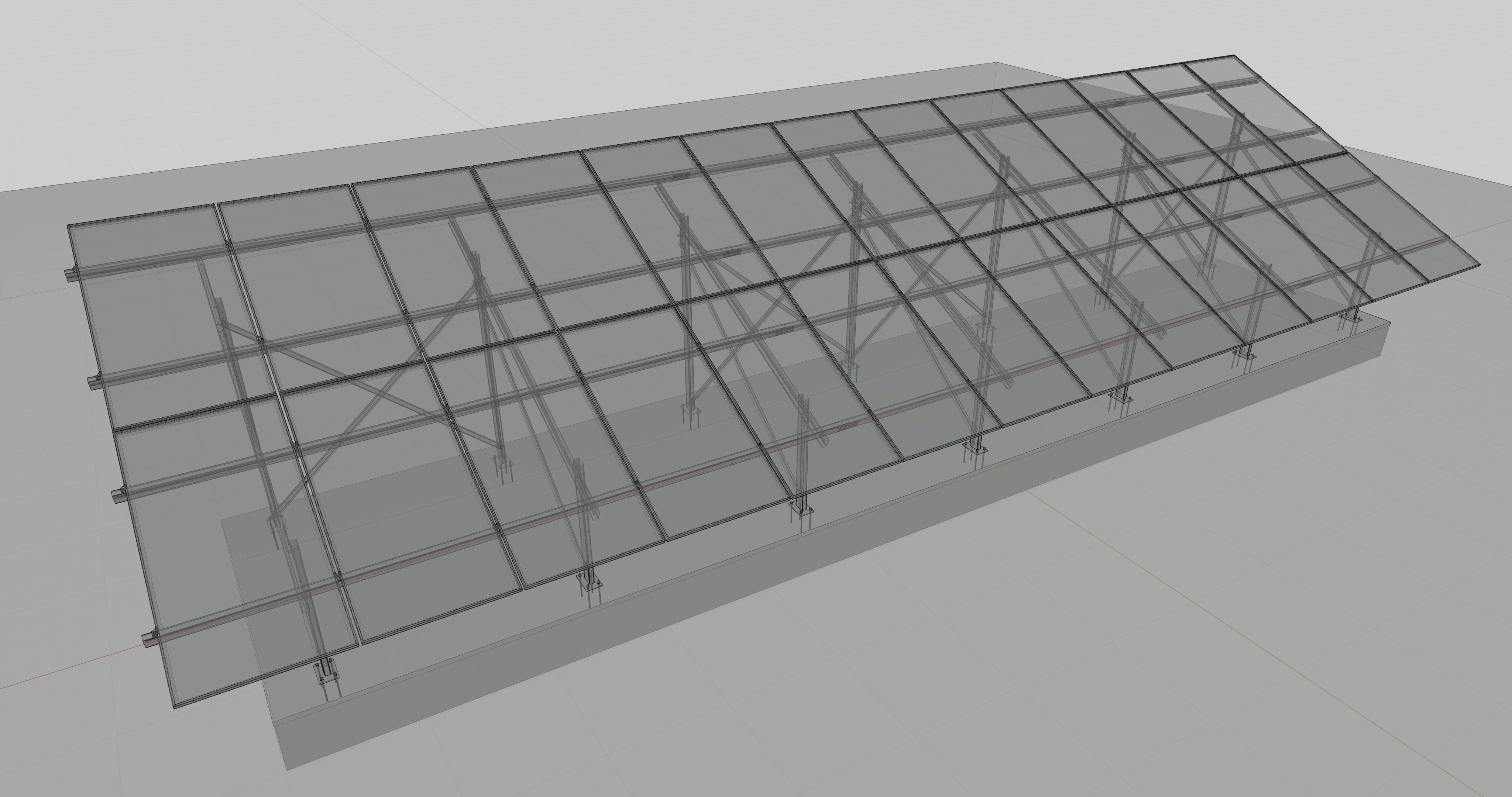

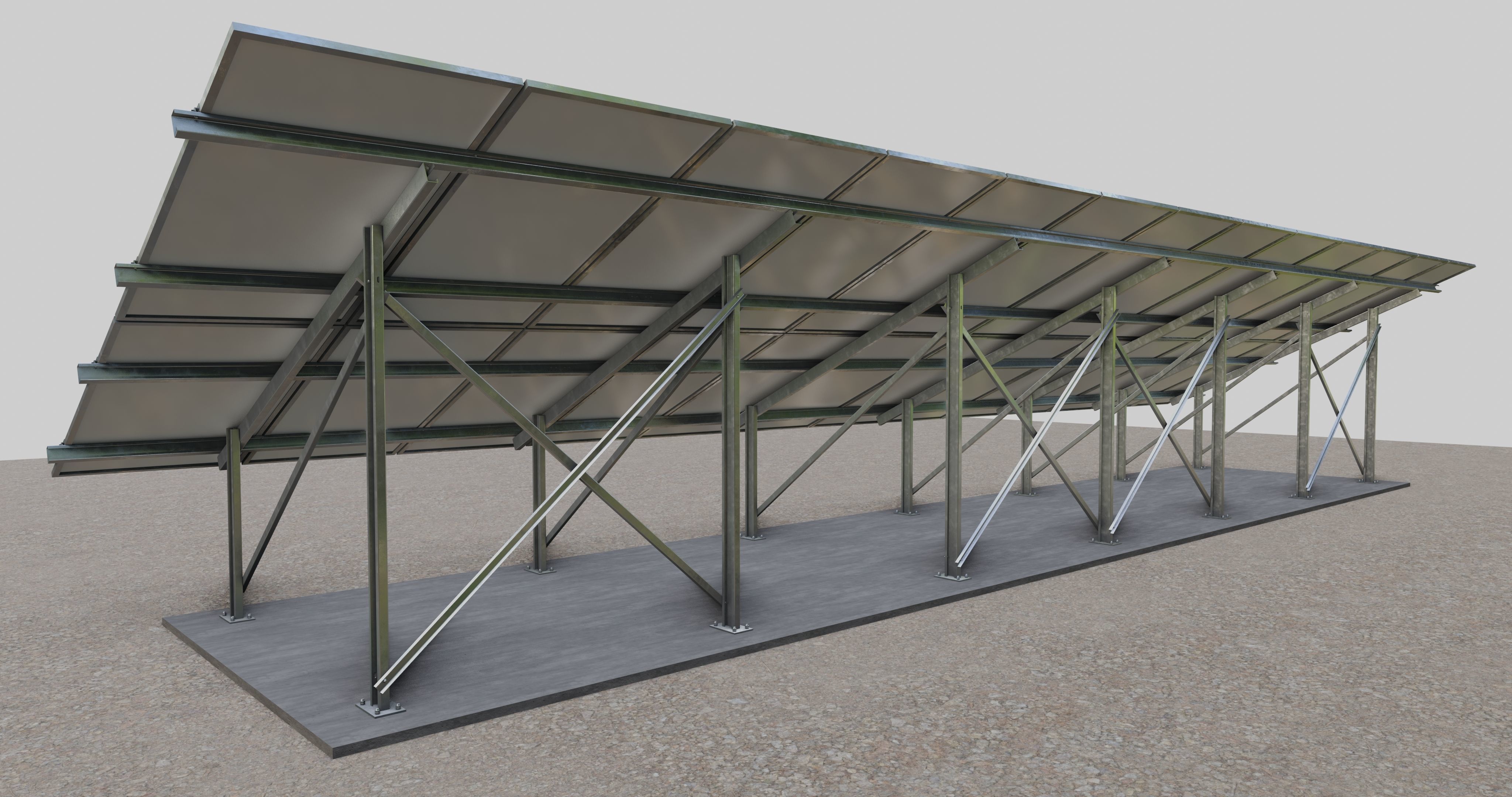

Solar Panel Steel Construction Type 7

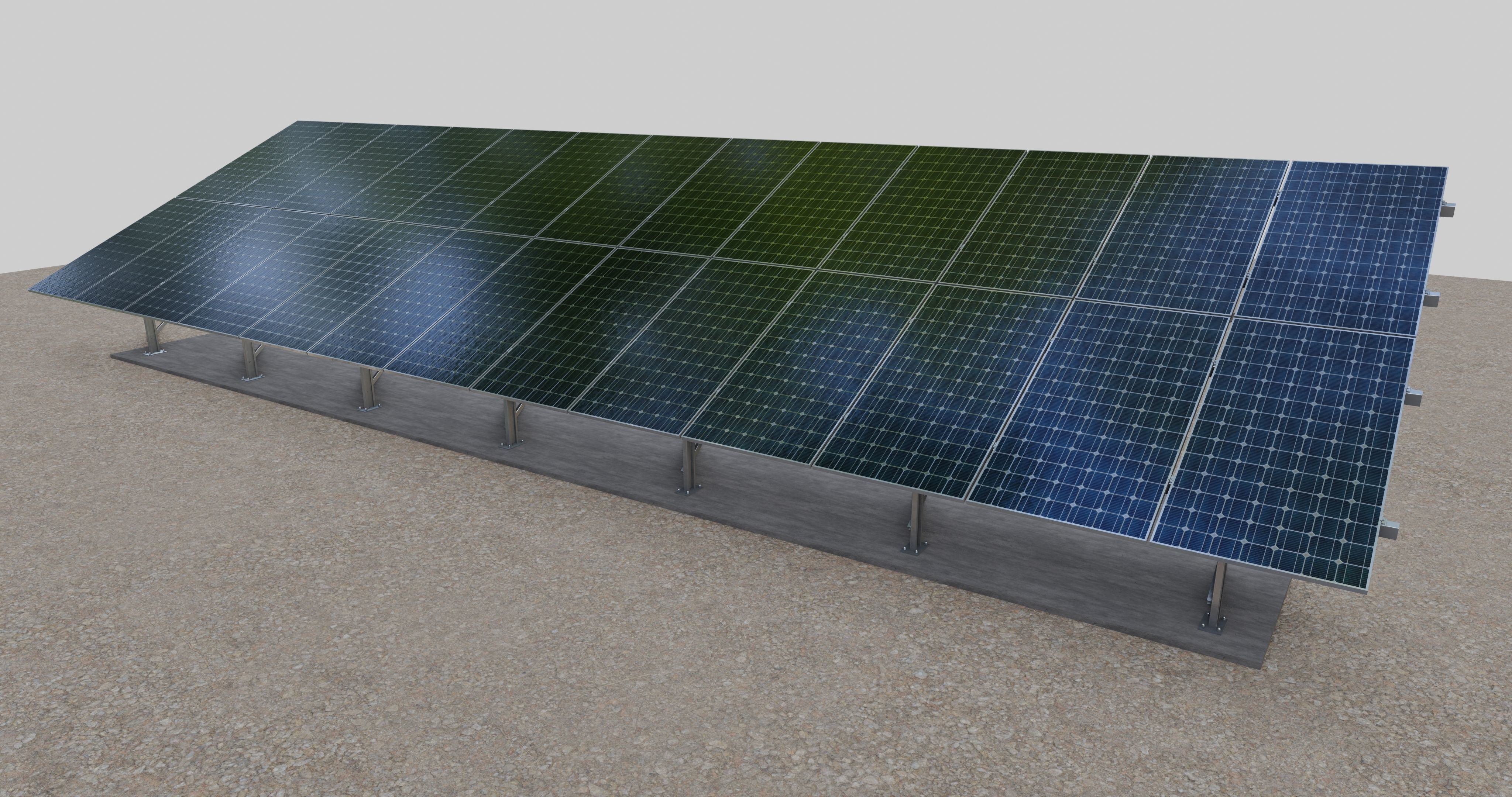

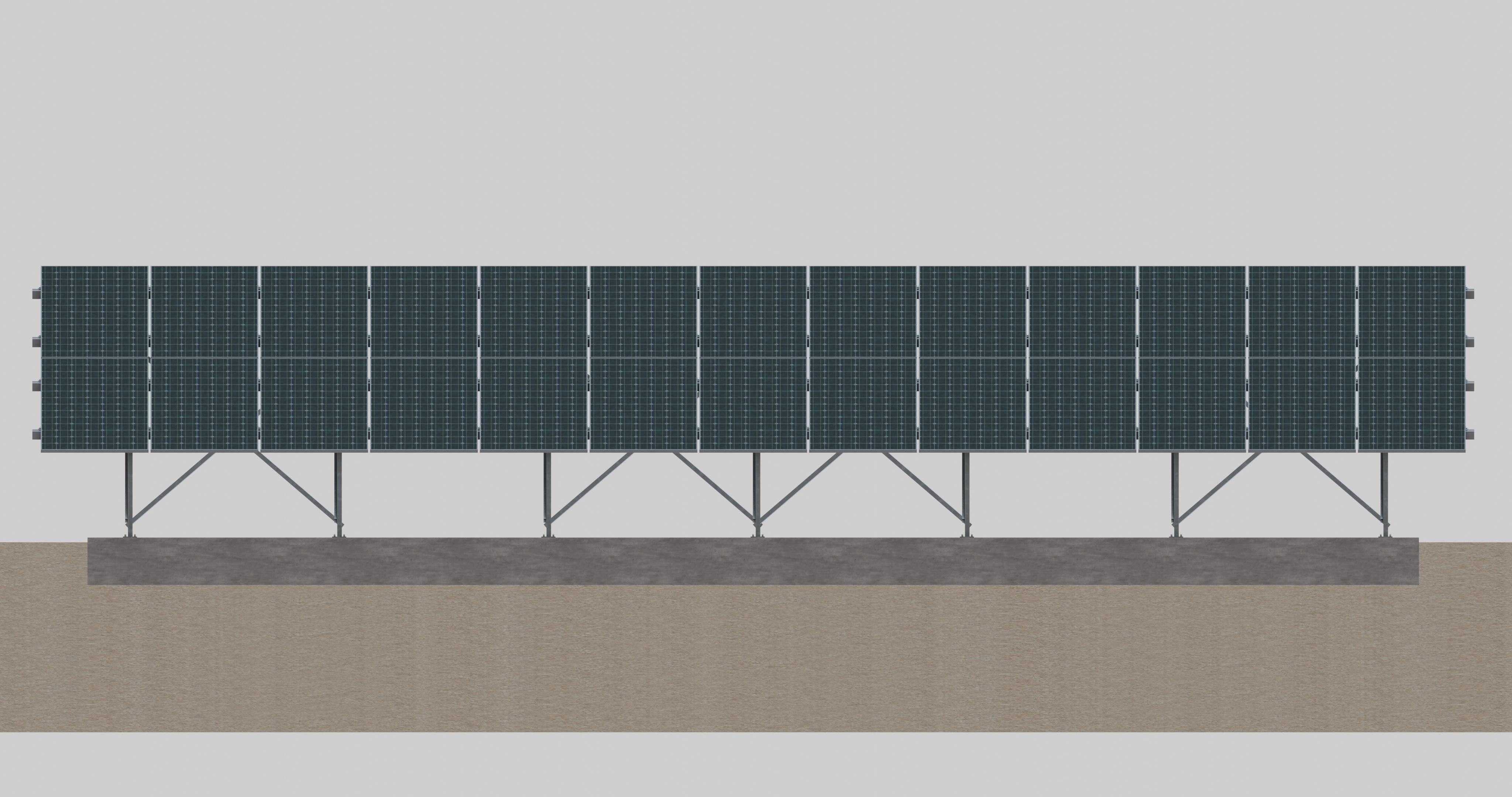

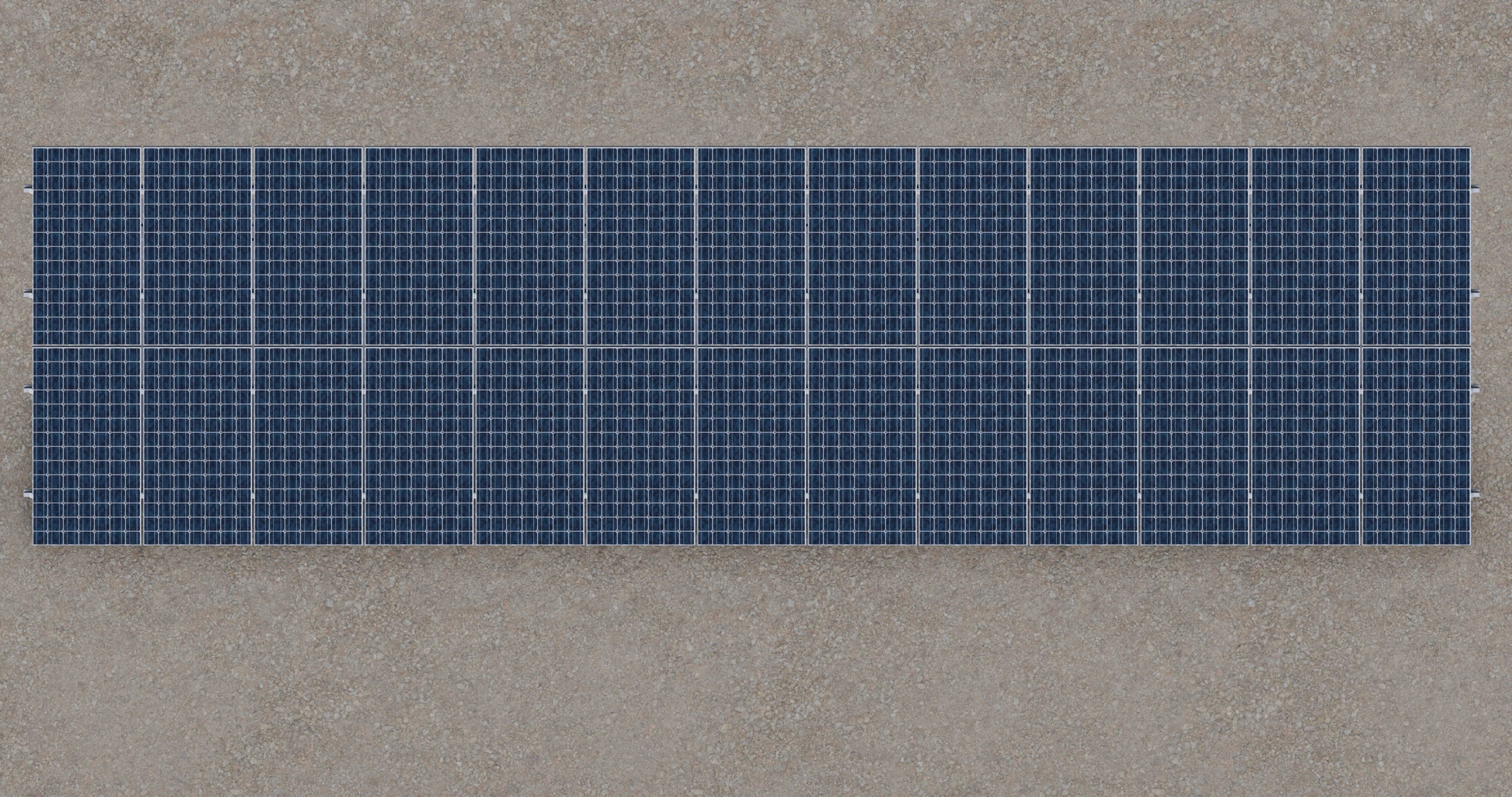

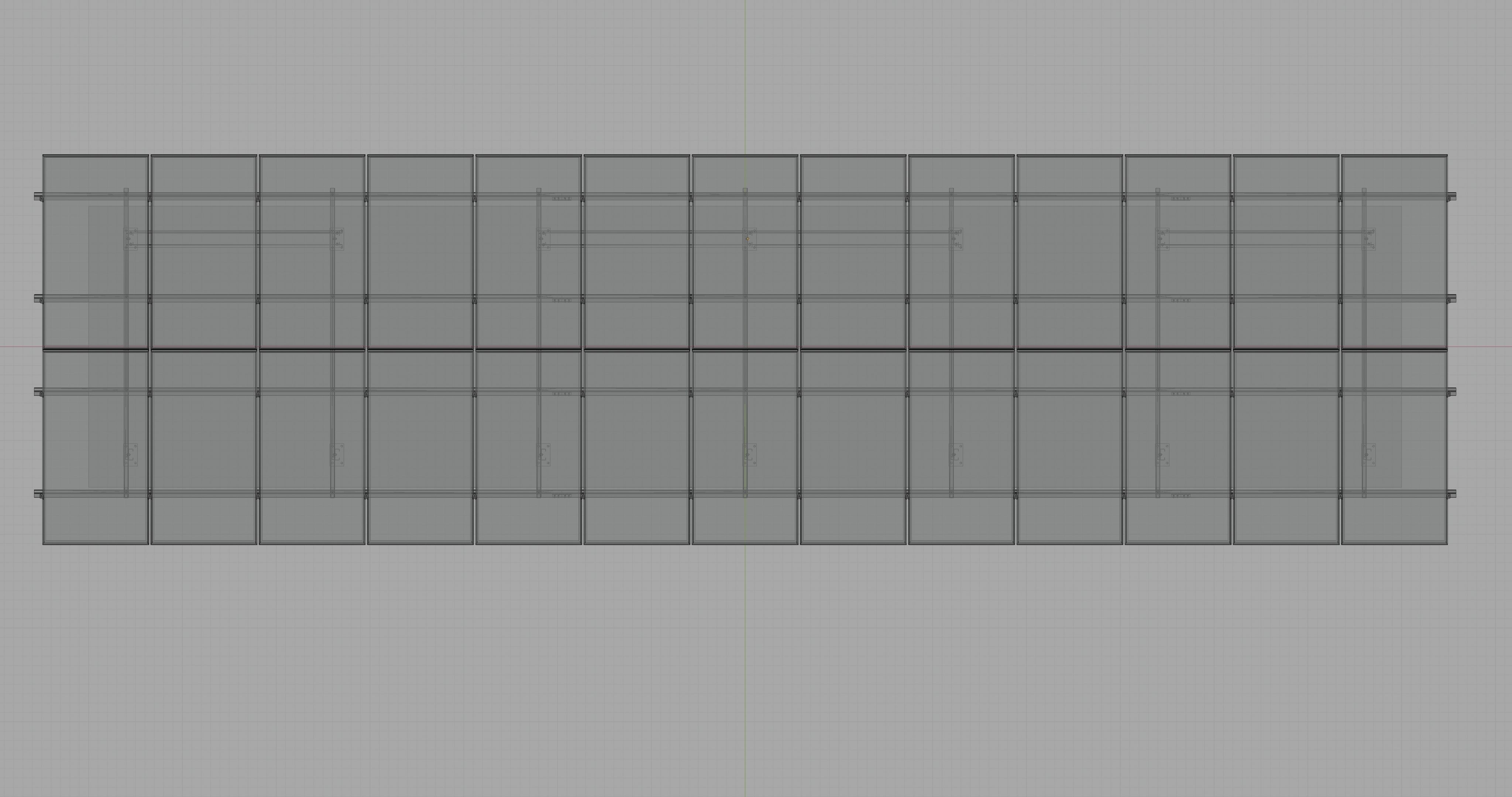

2x13 Vertical Panel Layout

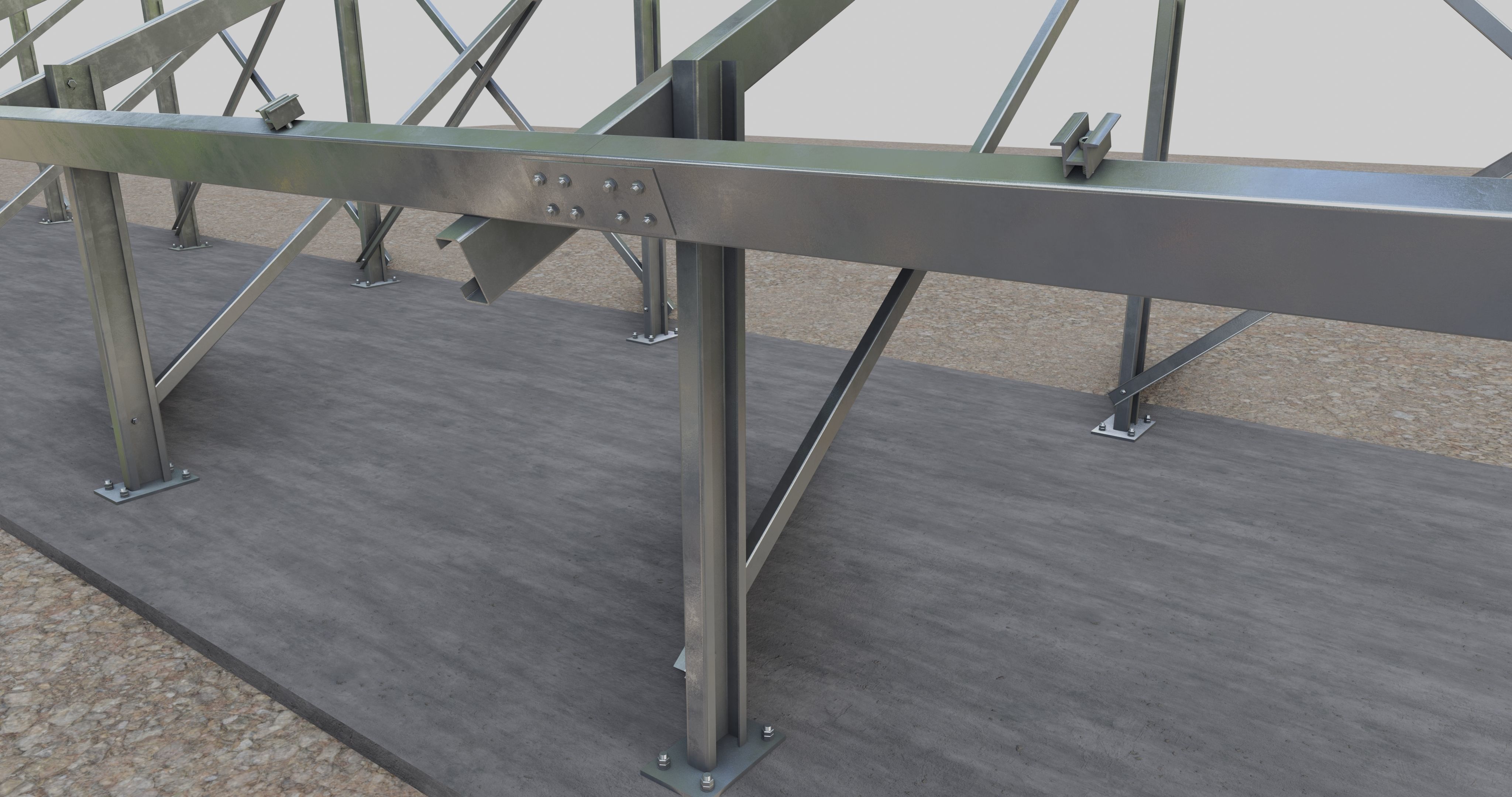

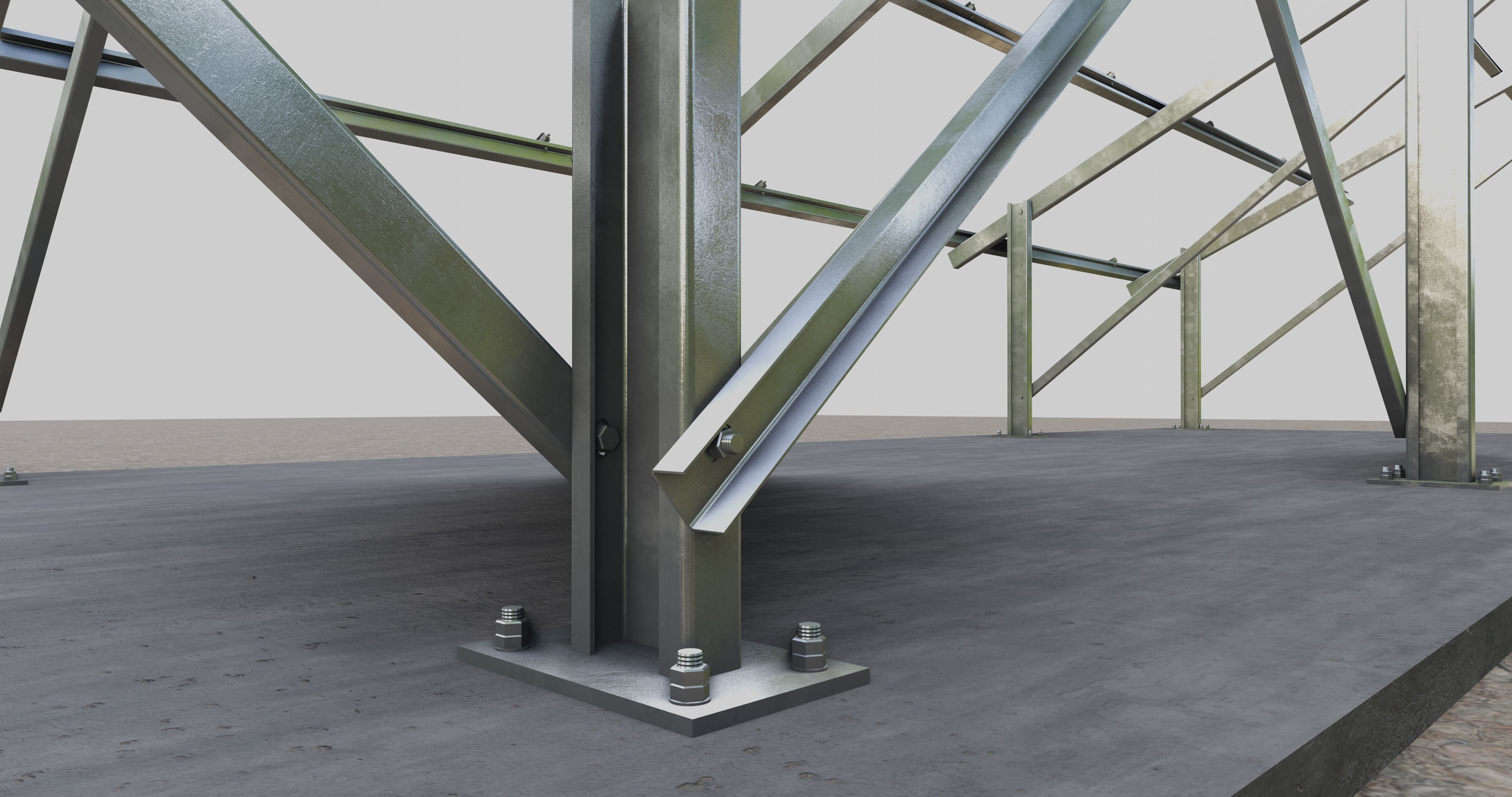

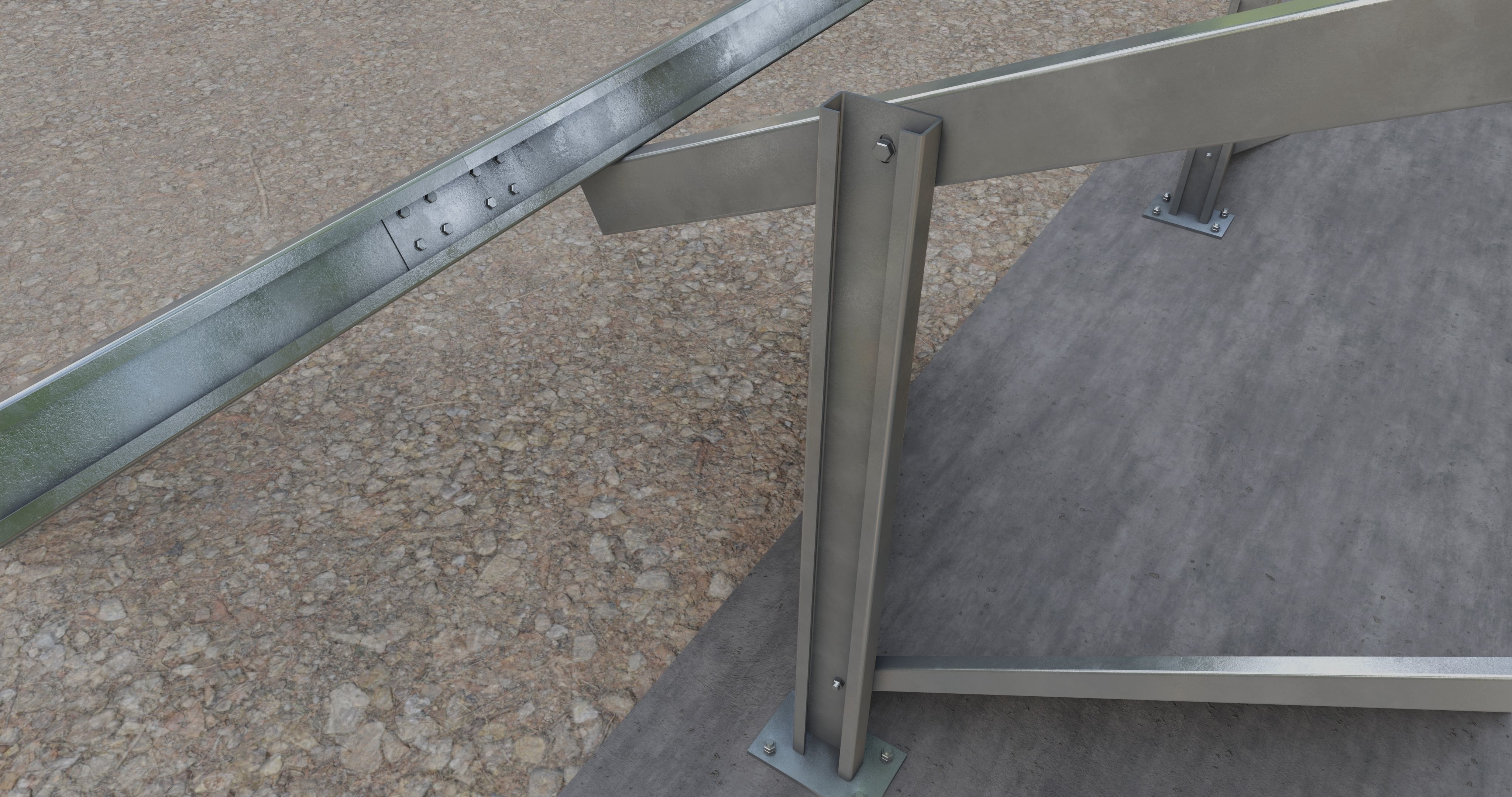

Ground Connection Type; With Anchor Plate
Foundation Dimensions : 3000mm x 14000mm x 500mm
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 14,3 kWp power in 1 hour

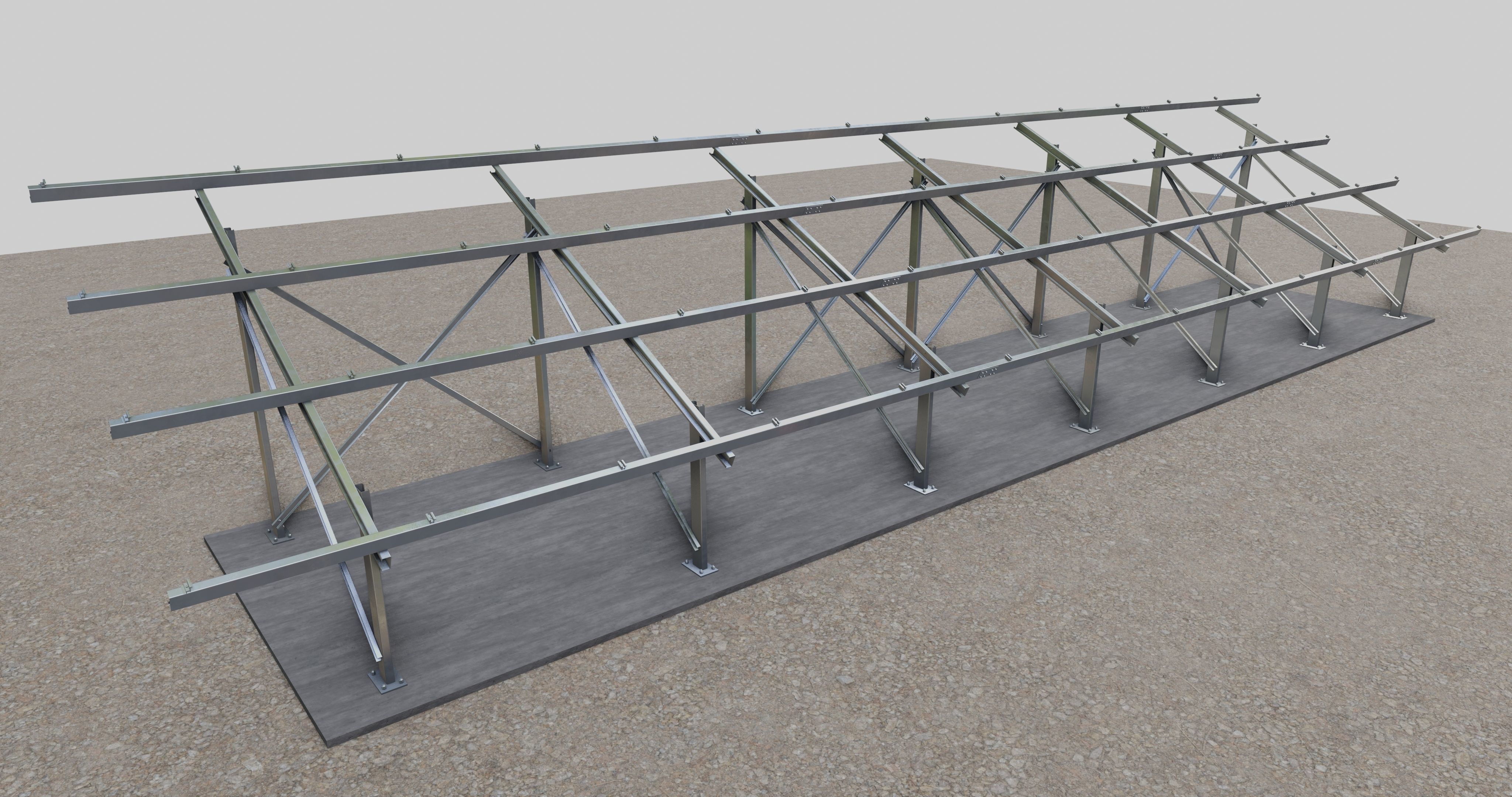

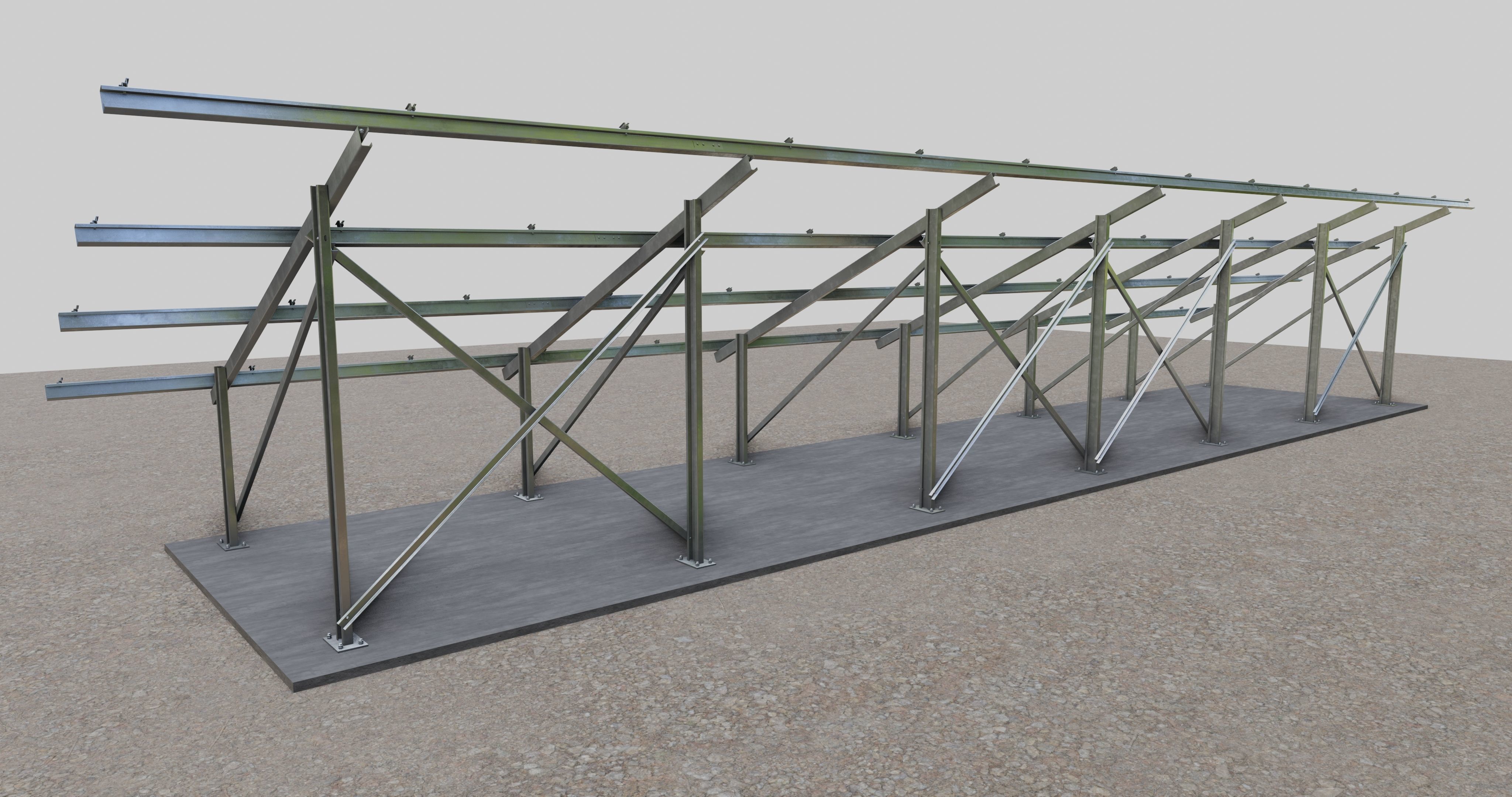

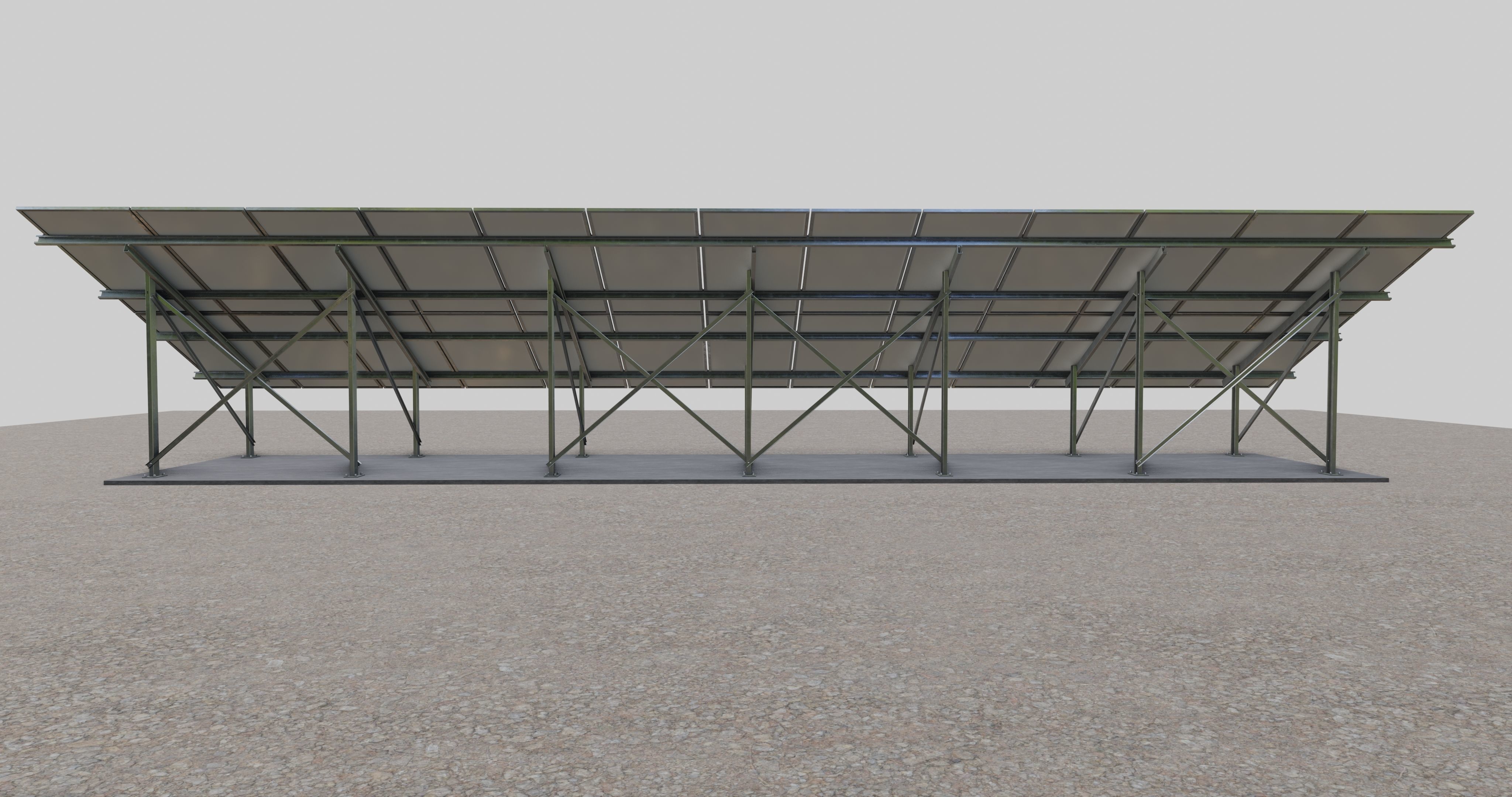

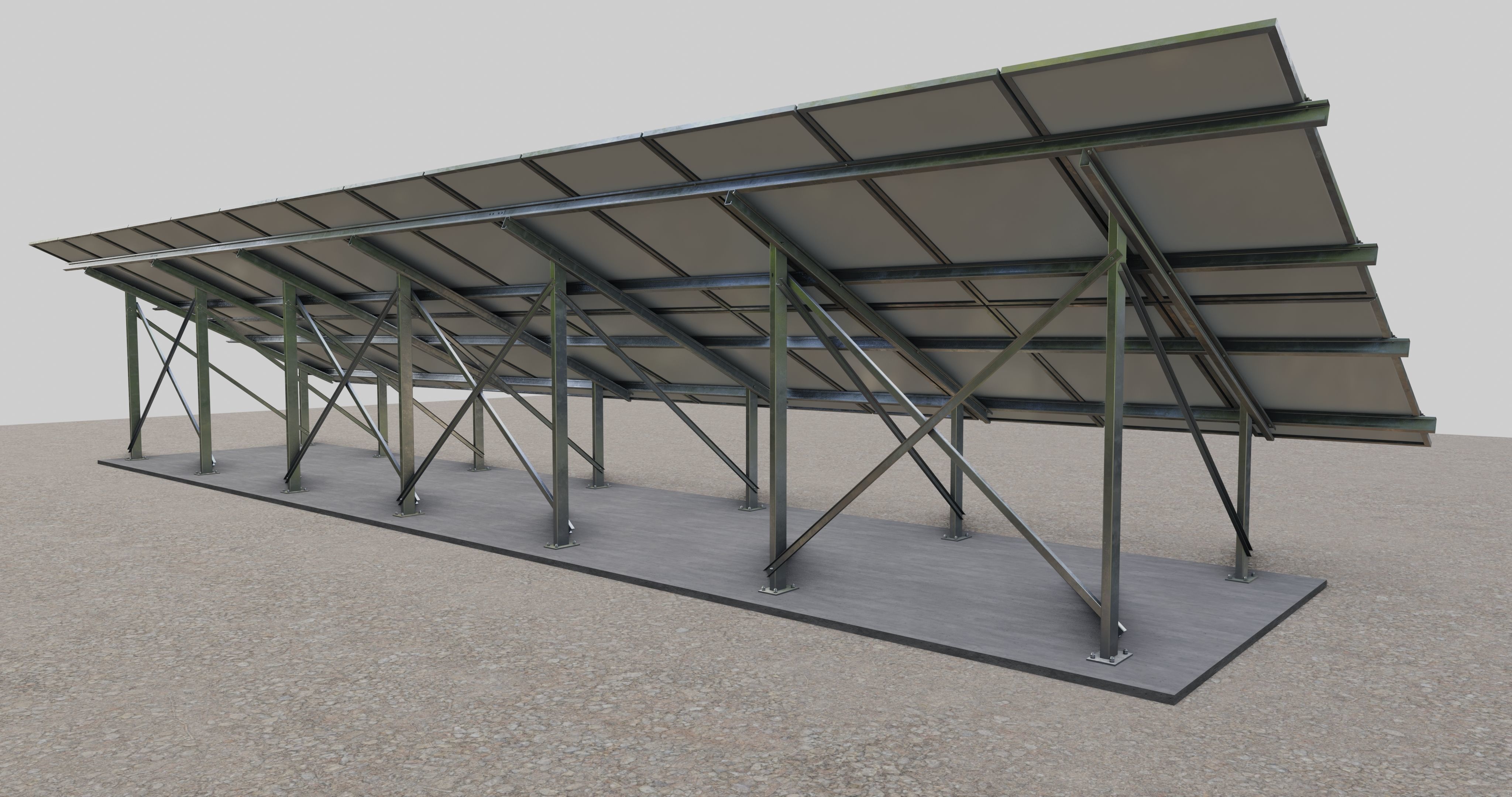

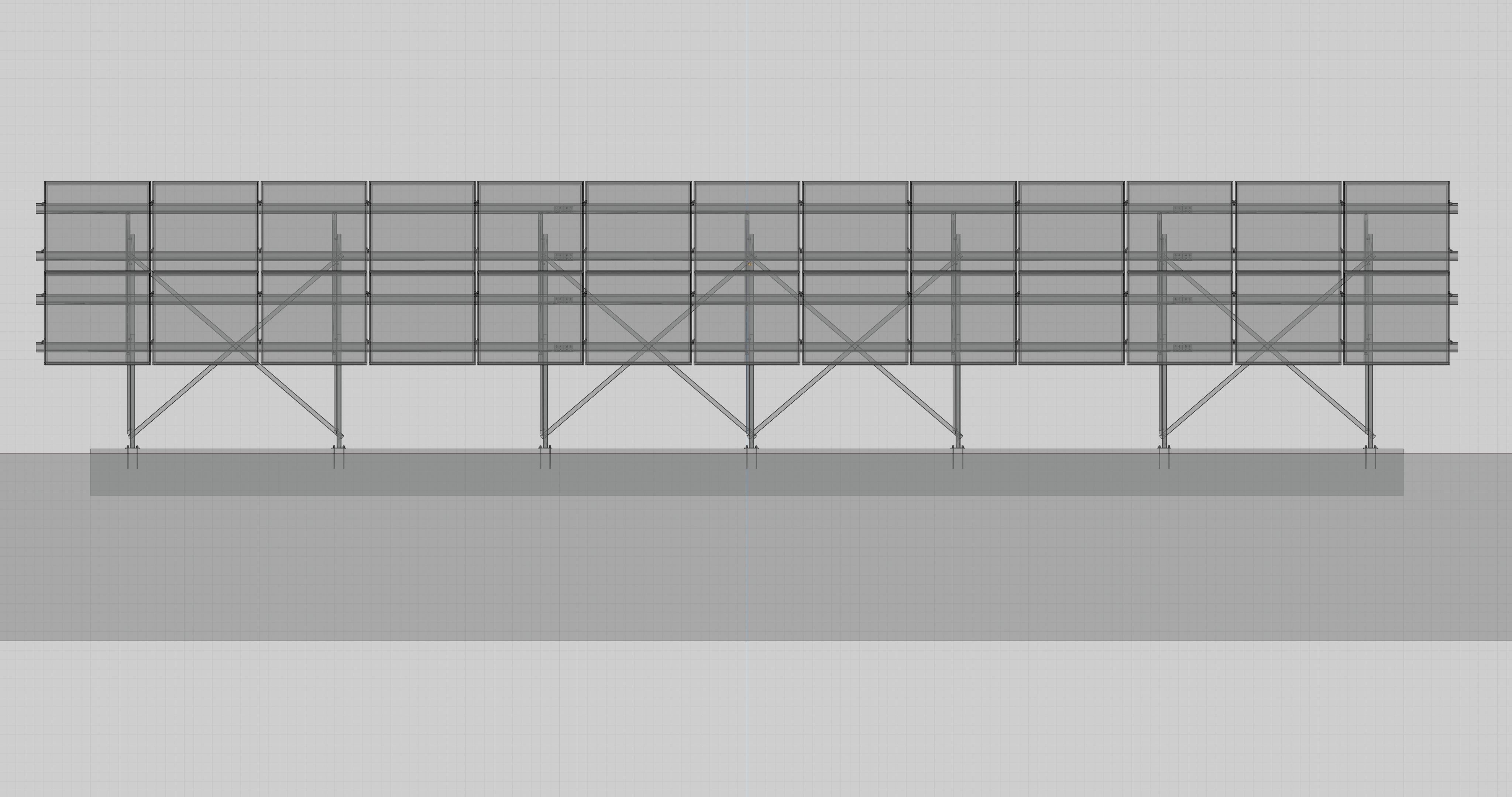

The system consists of 7 axles and the distance between each axle is 2200 mm.
Distance between two columns 2300 mm.

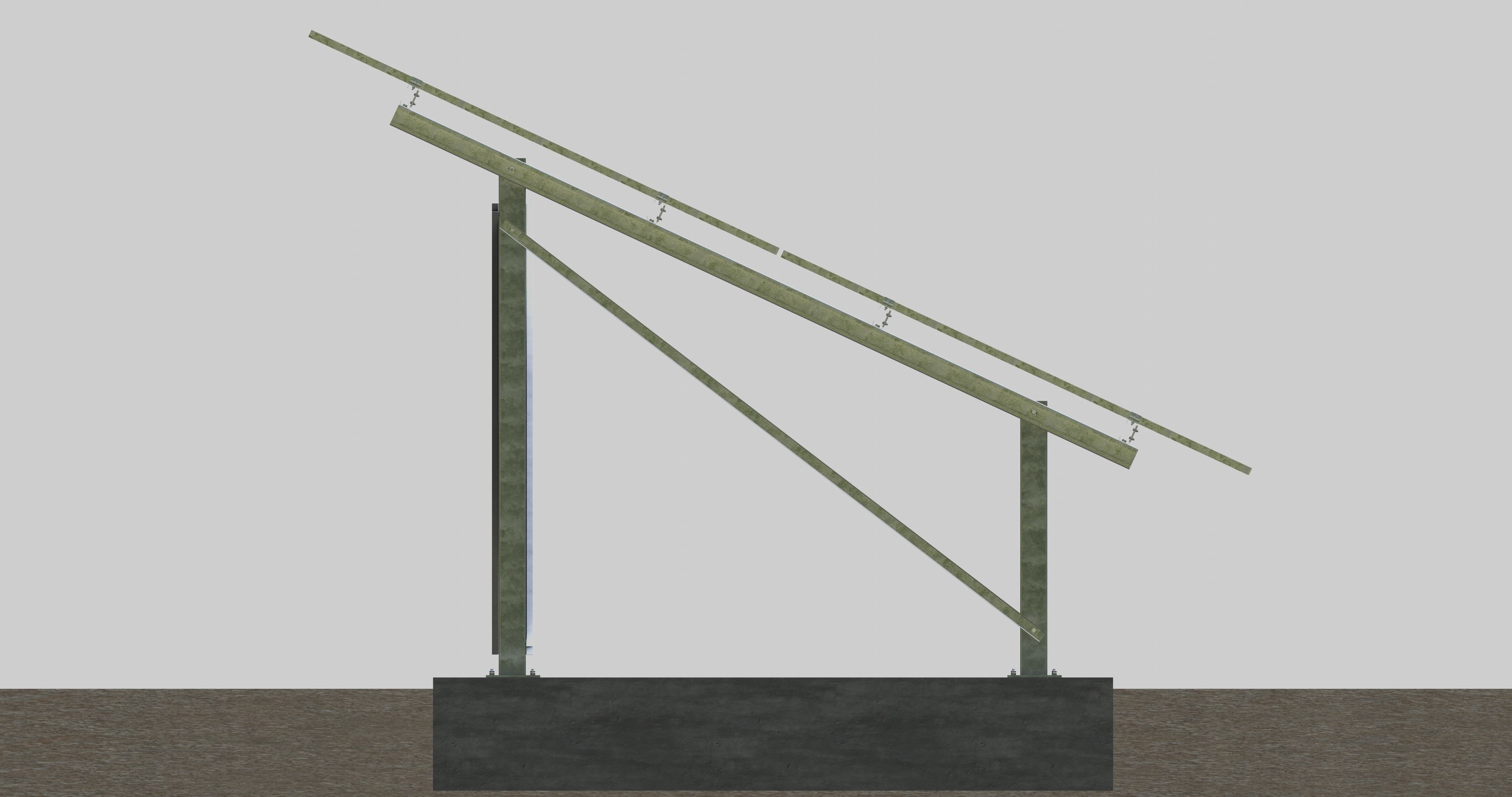

Horizantal angle of panel 25°
The closest distance of the panels to the floor 600 mm.

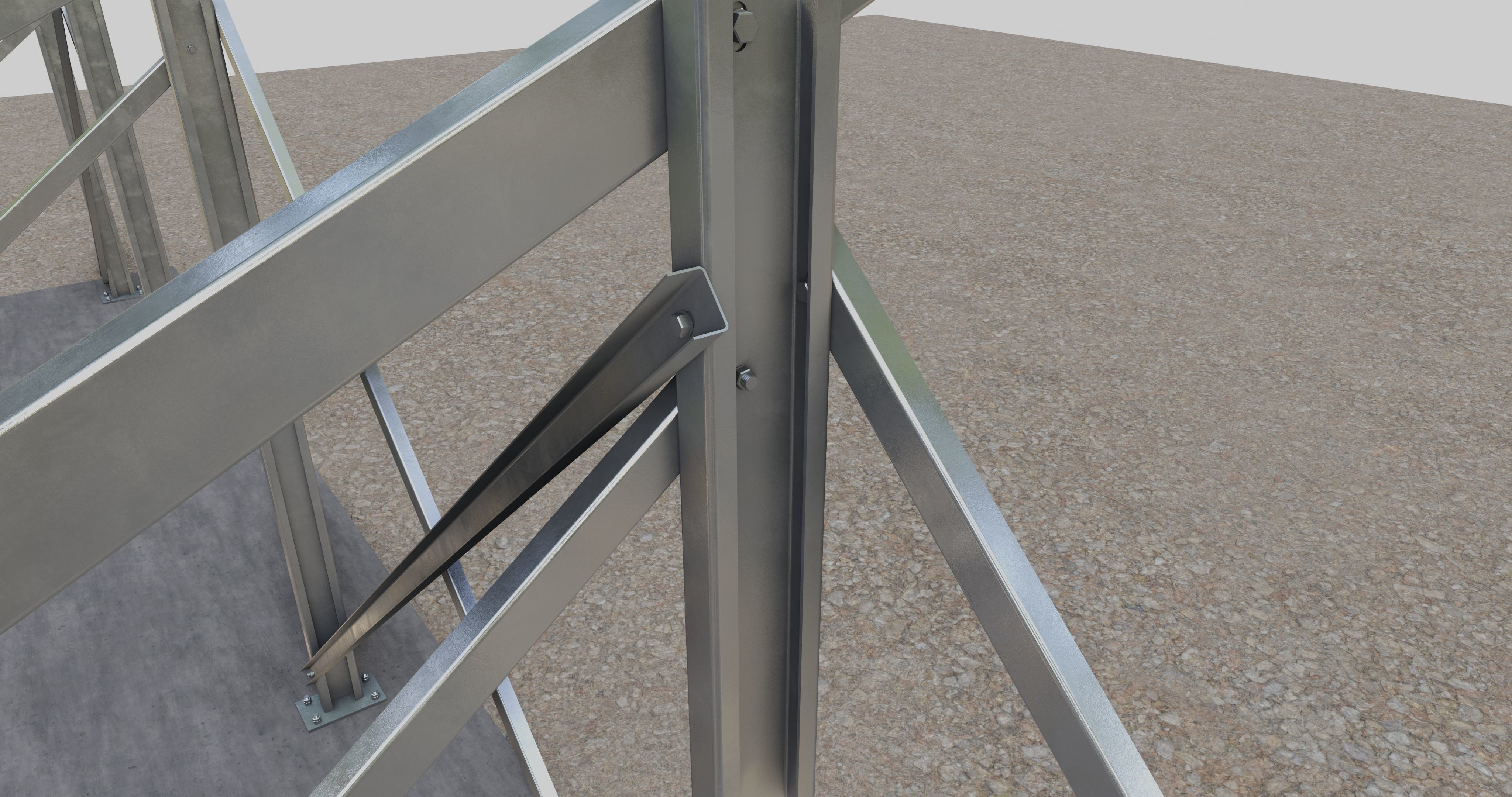

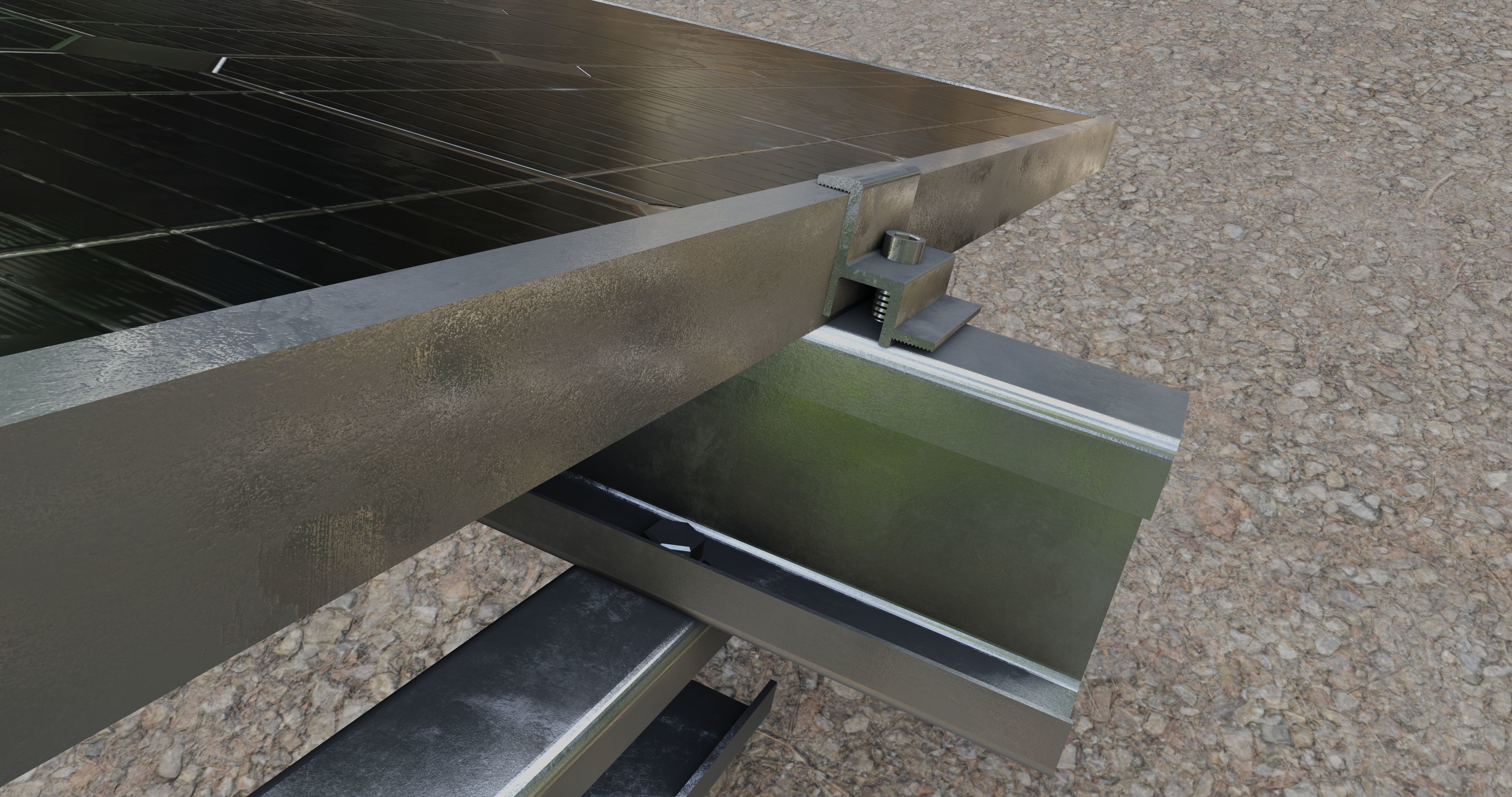

Profile Section;

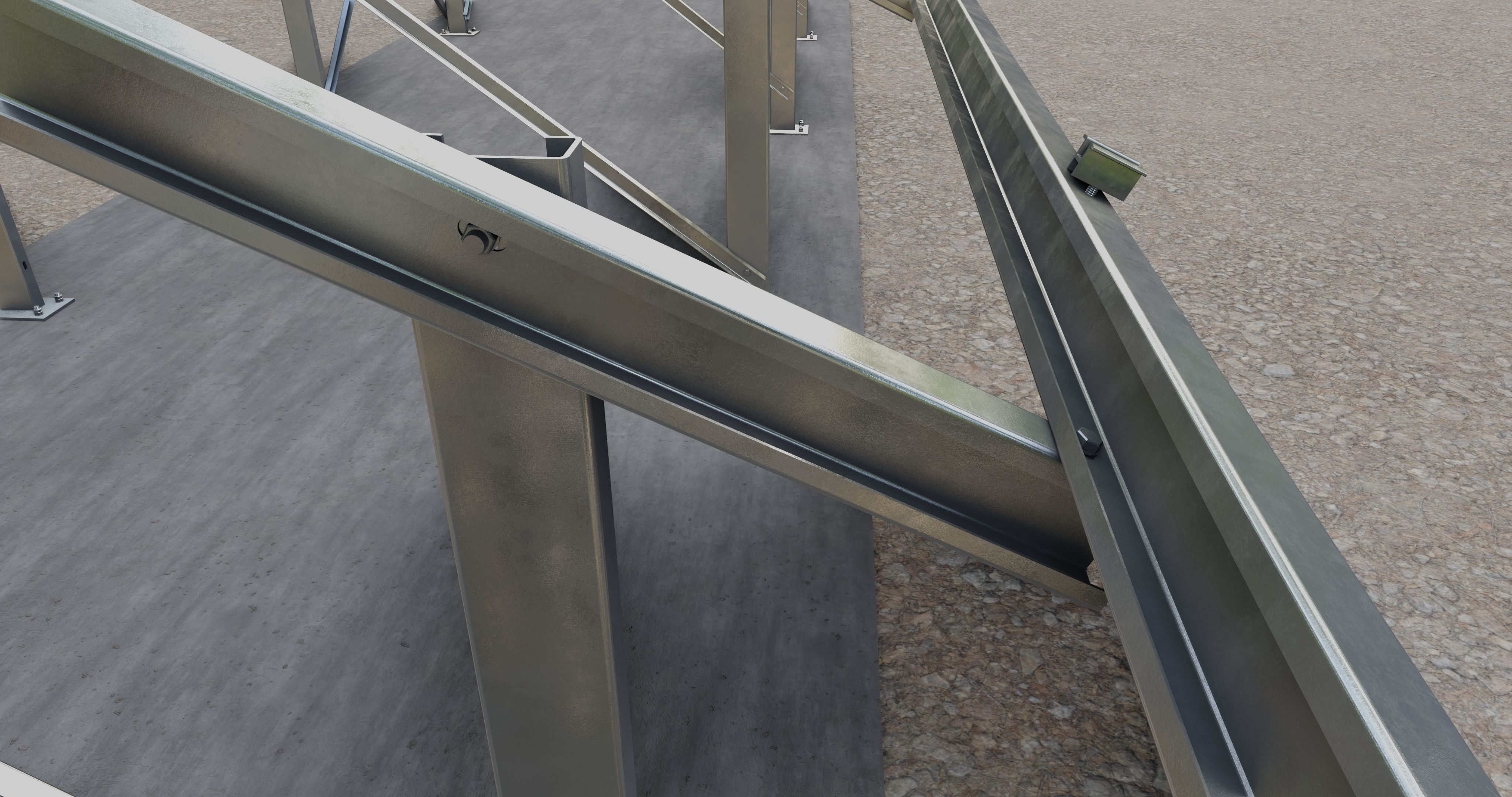

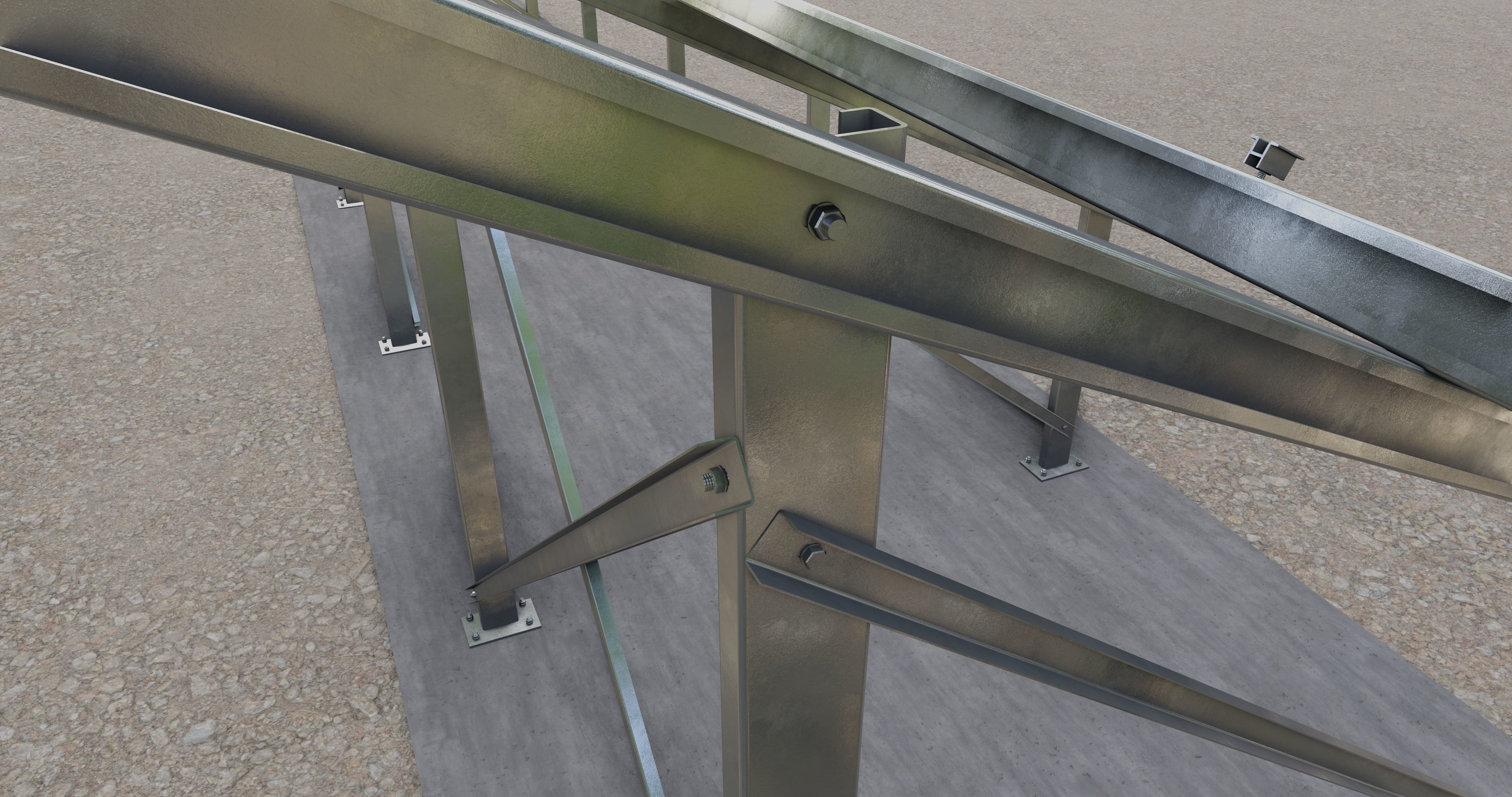

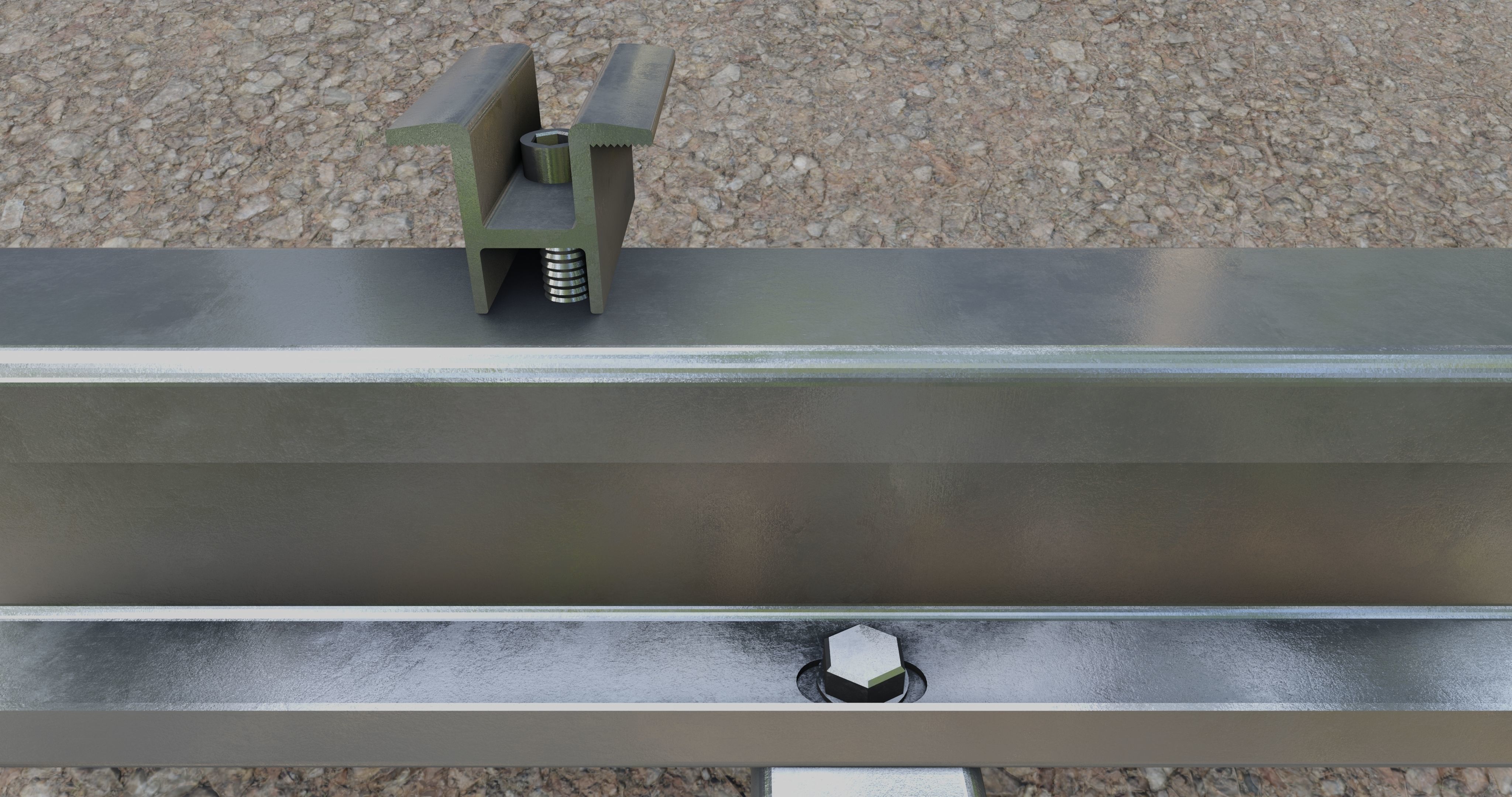

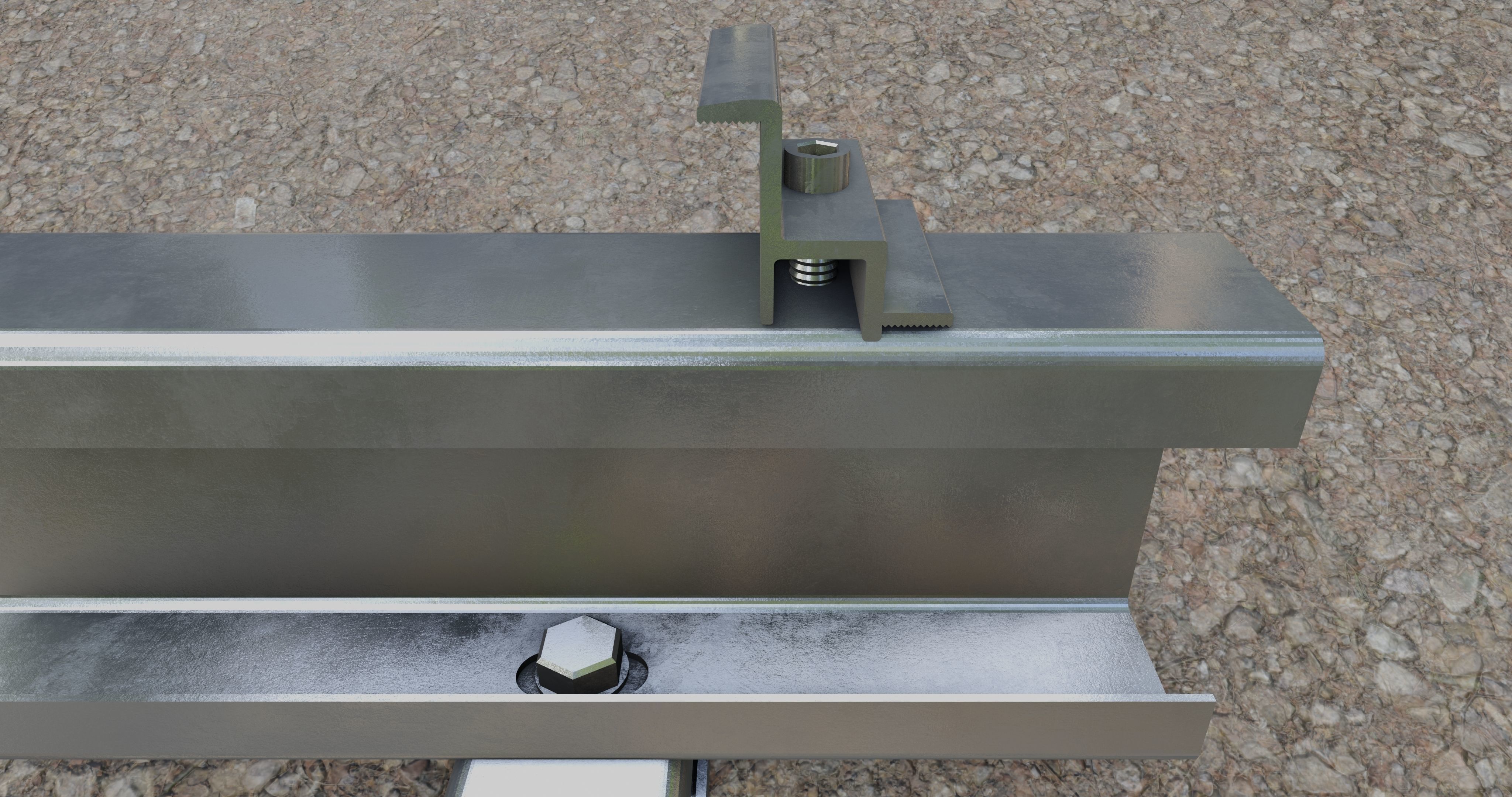

Column : C Profile C120x50x25-4mmBeam : C Profile C100x50x20-3mmPurlin : C Profile C90x50x20x-2mmDiagonal : U Profile U50x30-2mm

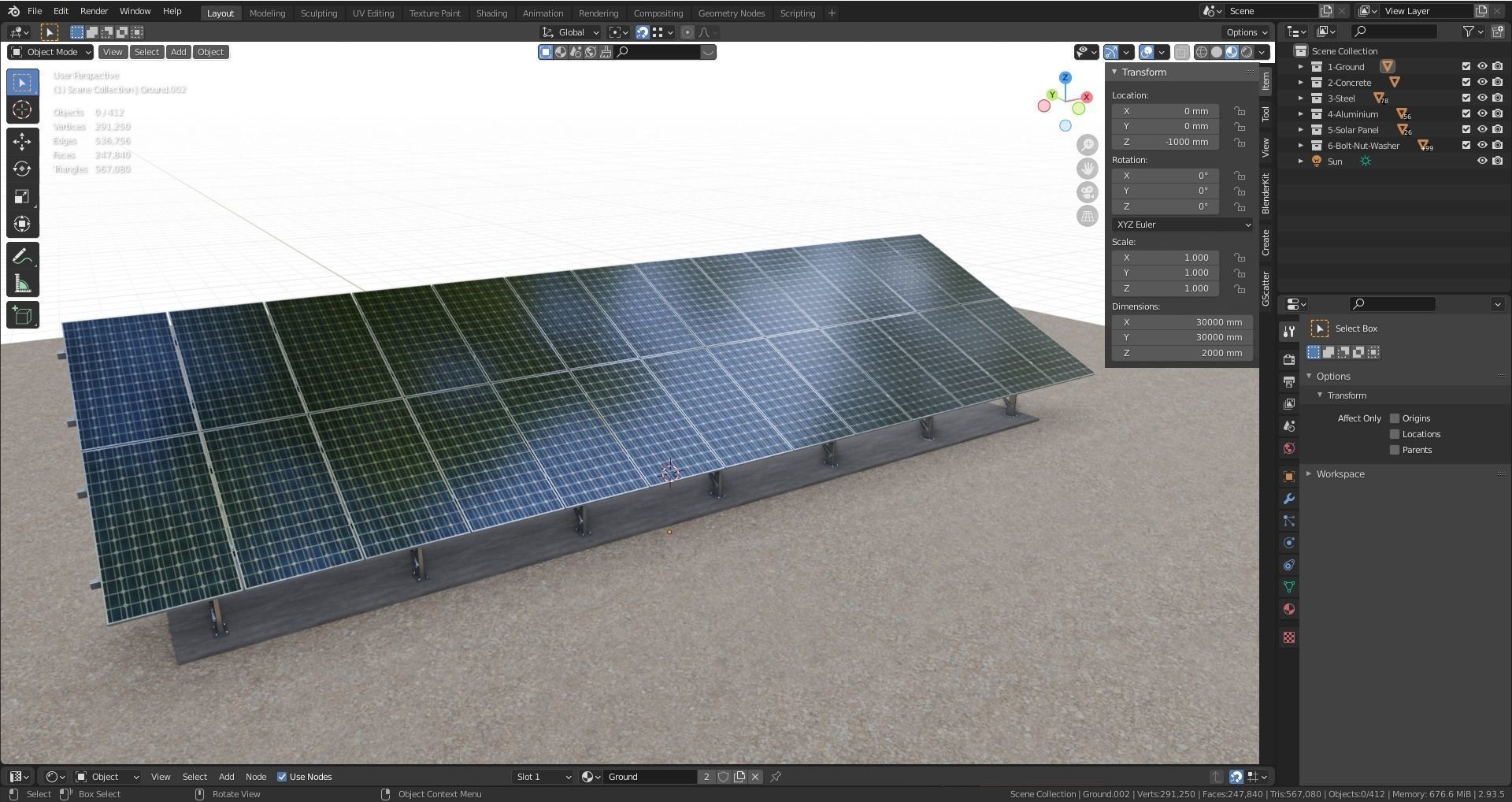

Prepared With BLENDER Version 2.93.5
Polygons : 247840
Vertices : 291250
Objects : 412
Solar Panel Steel Construction Type 7
Royalty Free License
Solar Panel Steel Construction Type 7
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- Blender 2.93.5 (.blend)38 MBVersion: 2.93.5Renderer: Eevee 2.93.5
Exchange
3D Model details
- Publish date2023-04-25
- Model ID#4460486
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 247,840
- Vertices 291,250
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
