Solar Panel Steel Construction Type 5 3D model
Description

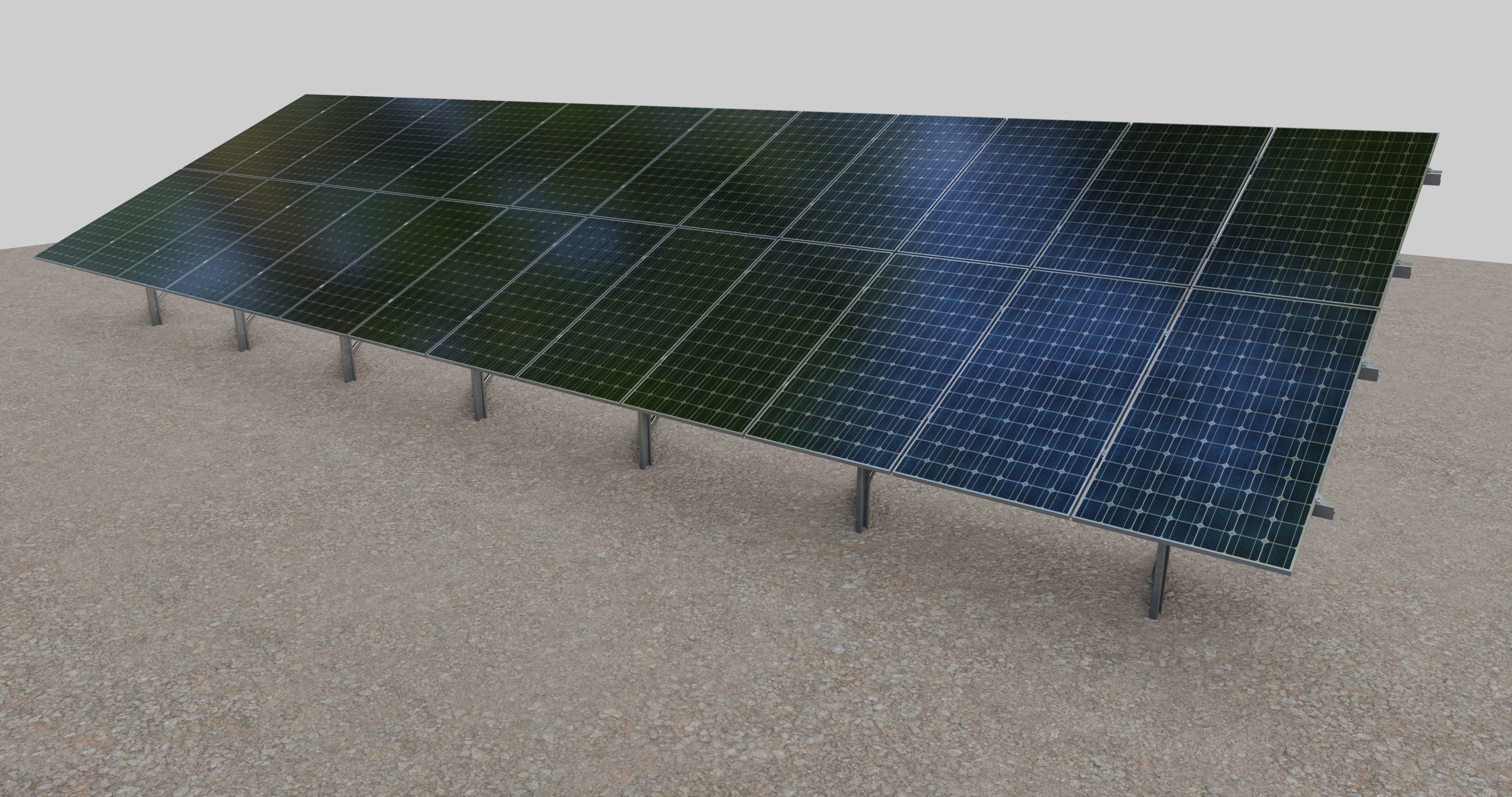

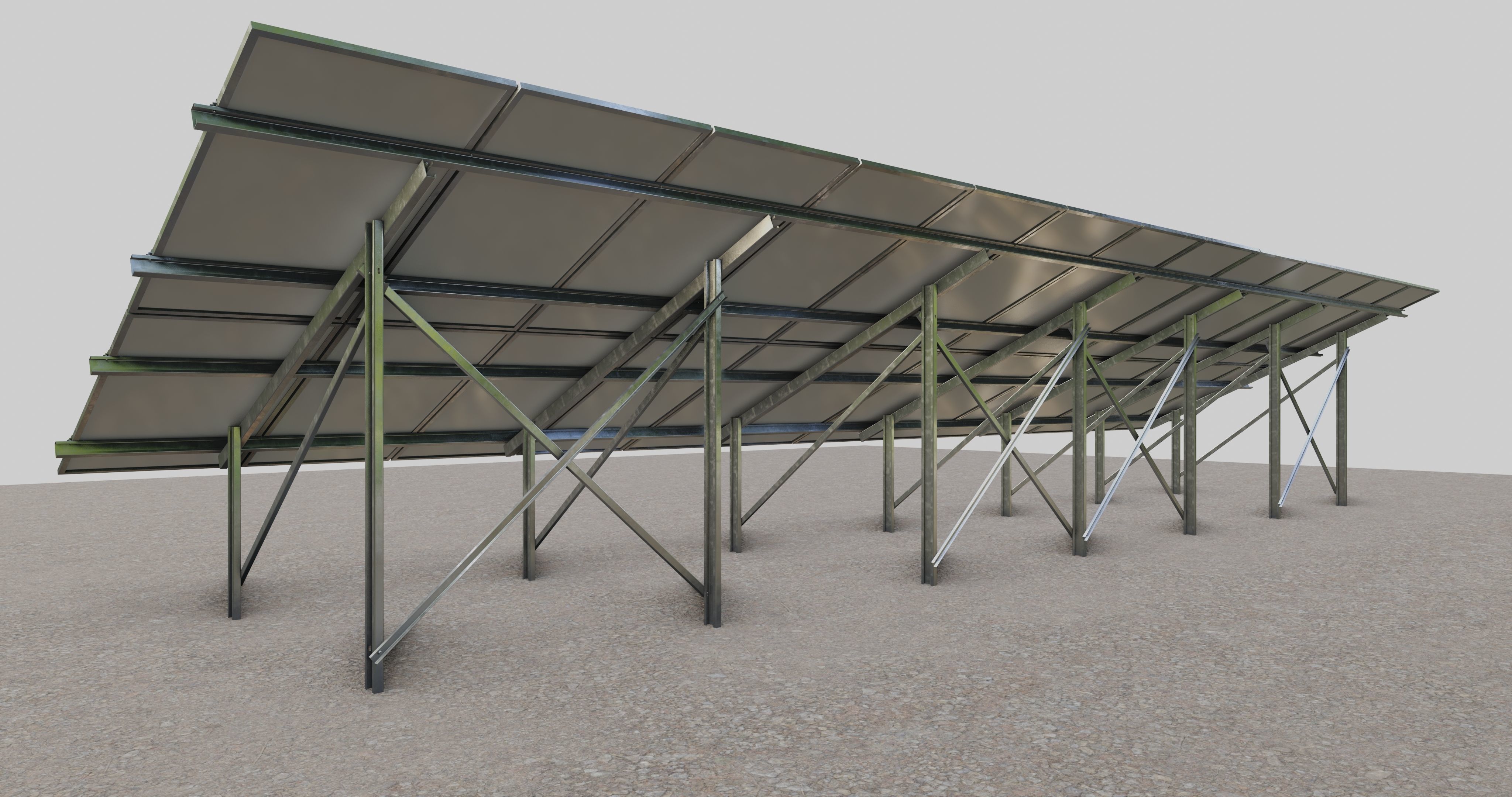

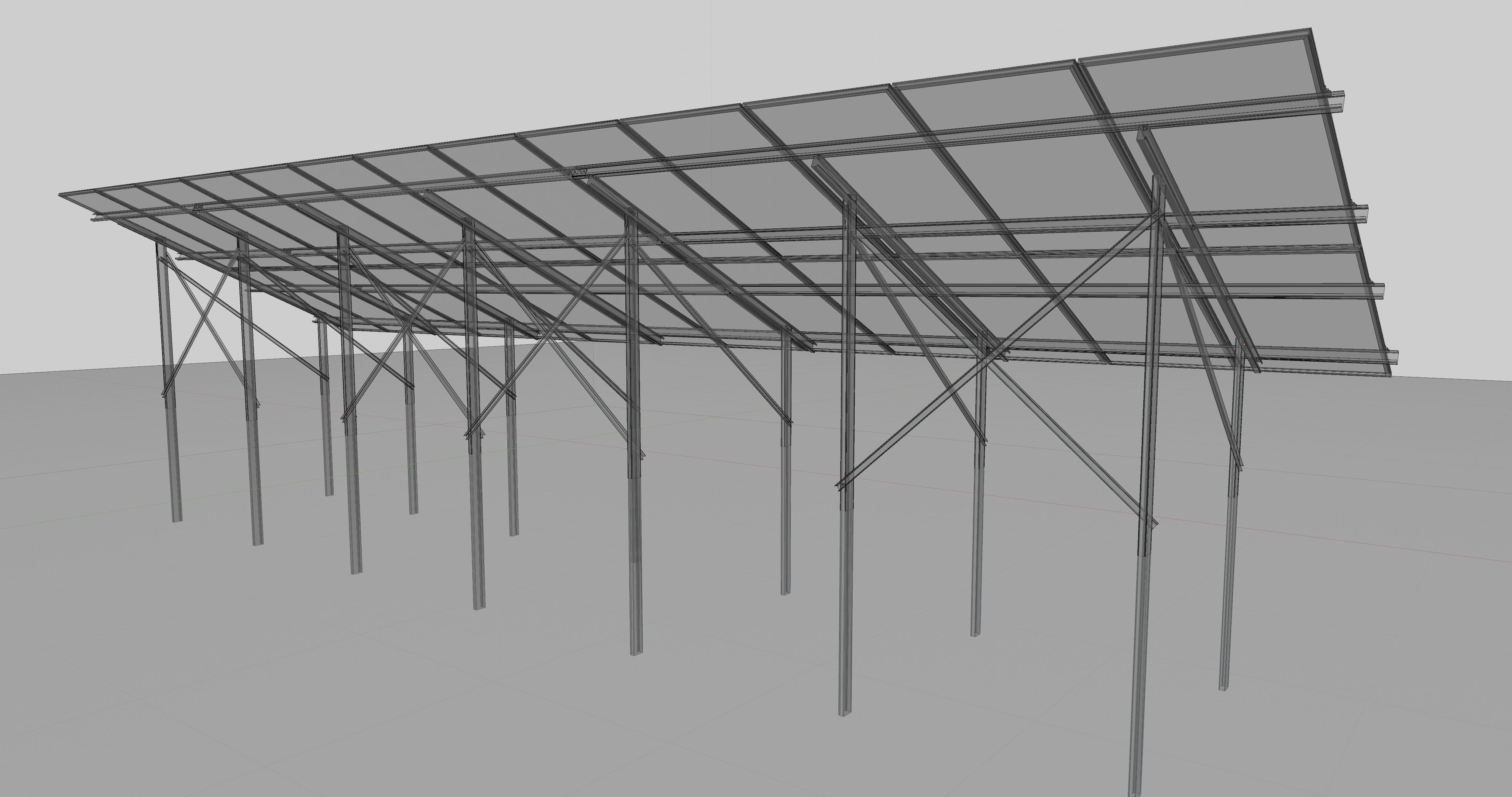

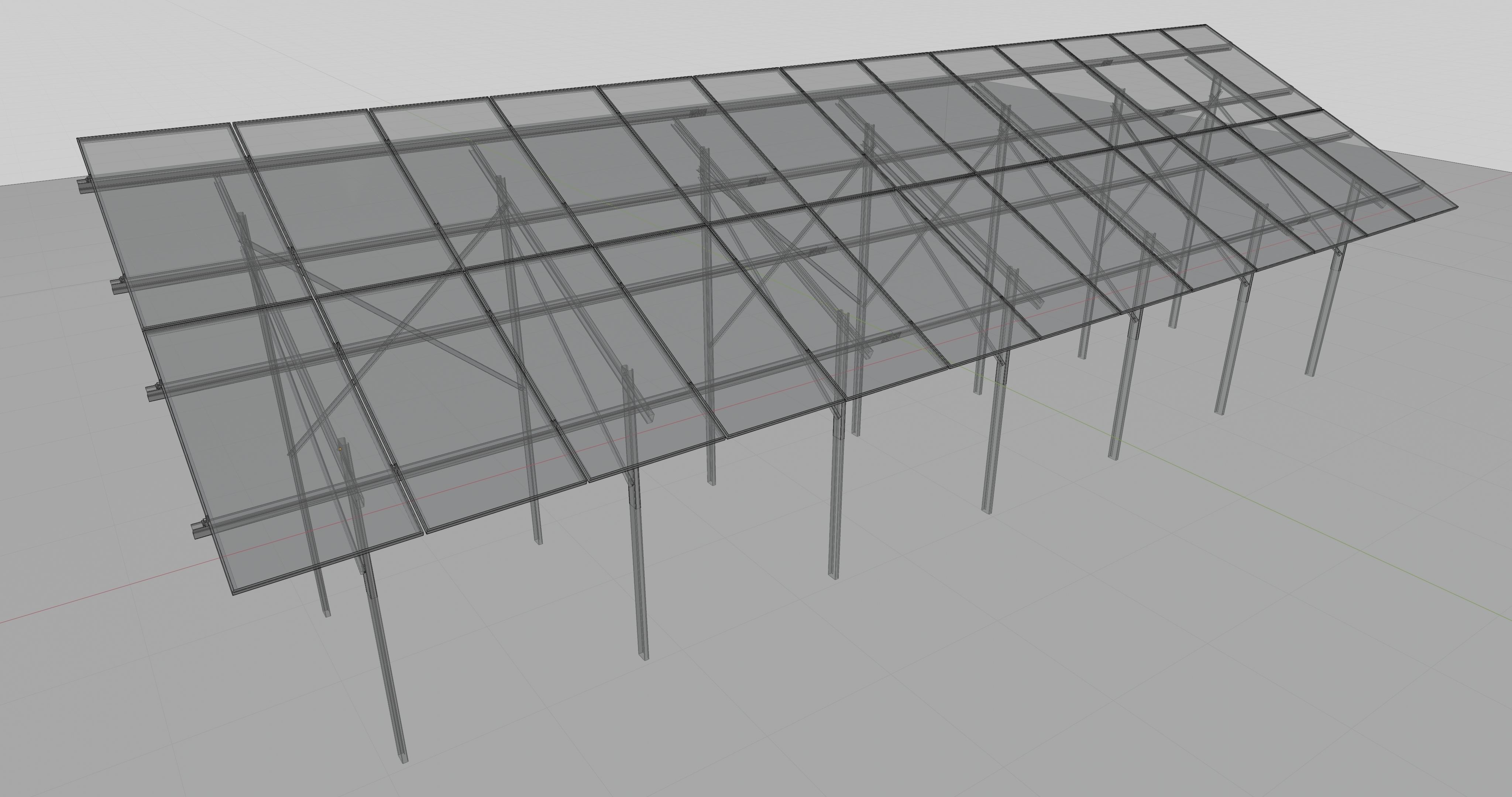

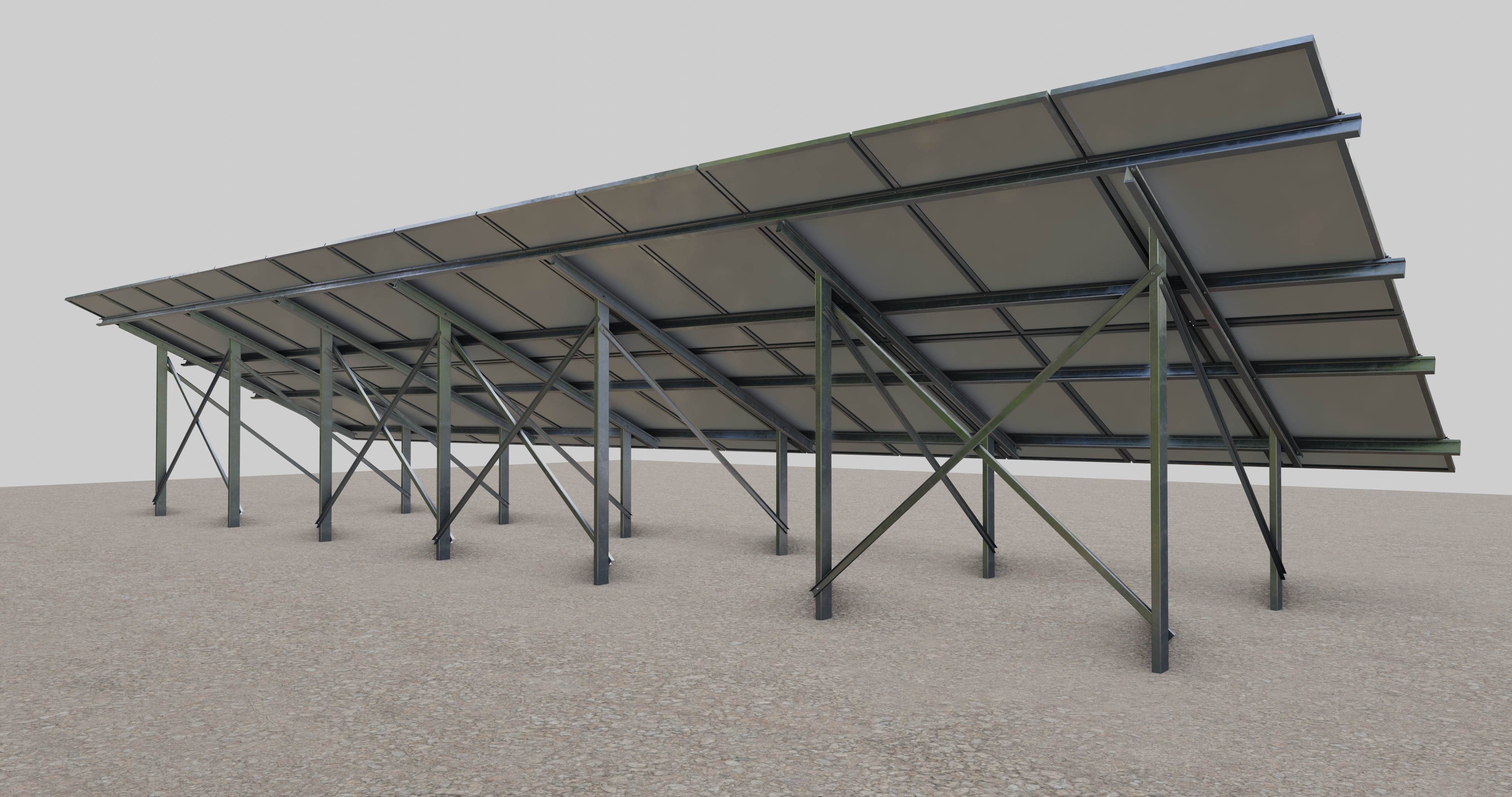

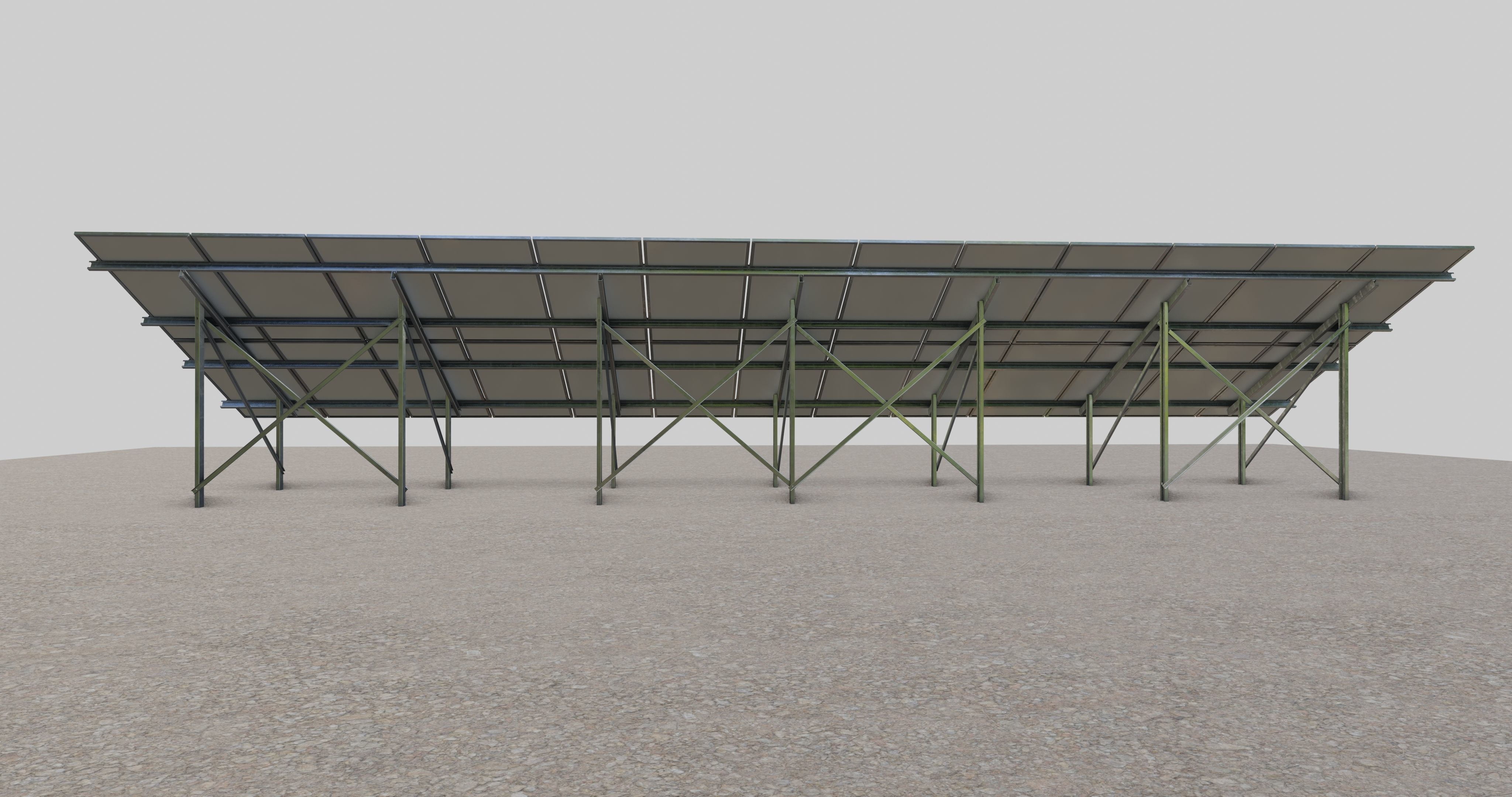

Solar Panel Steel Construction Type 5

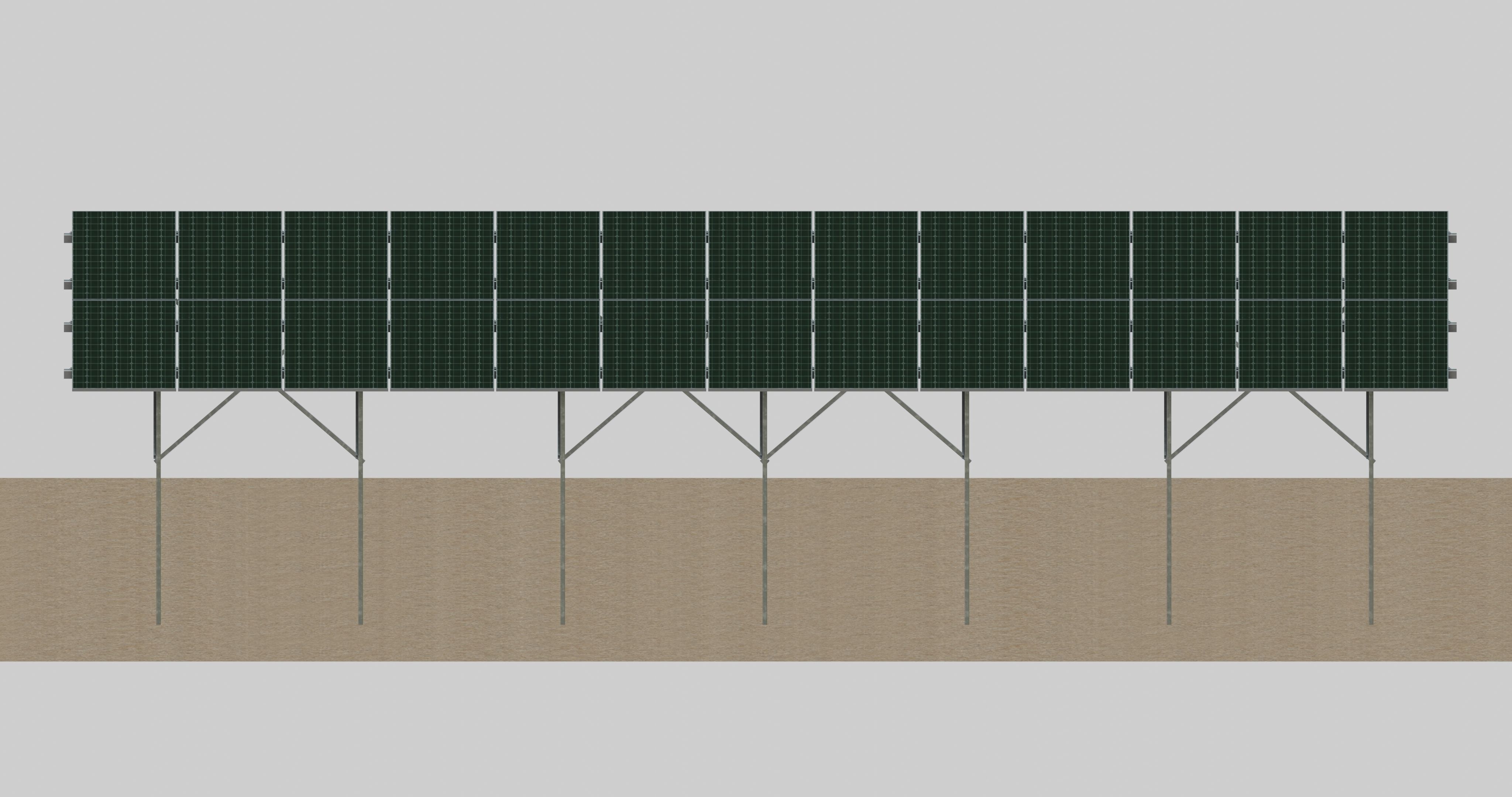

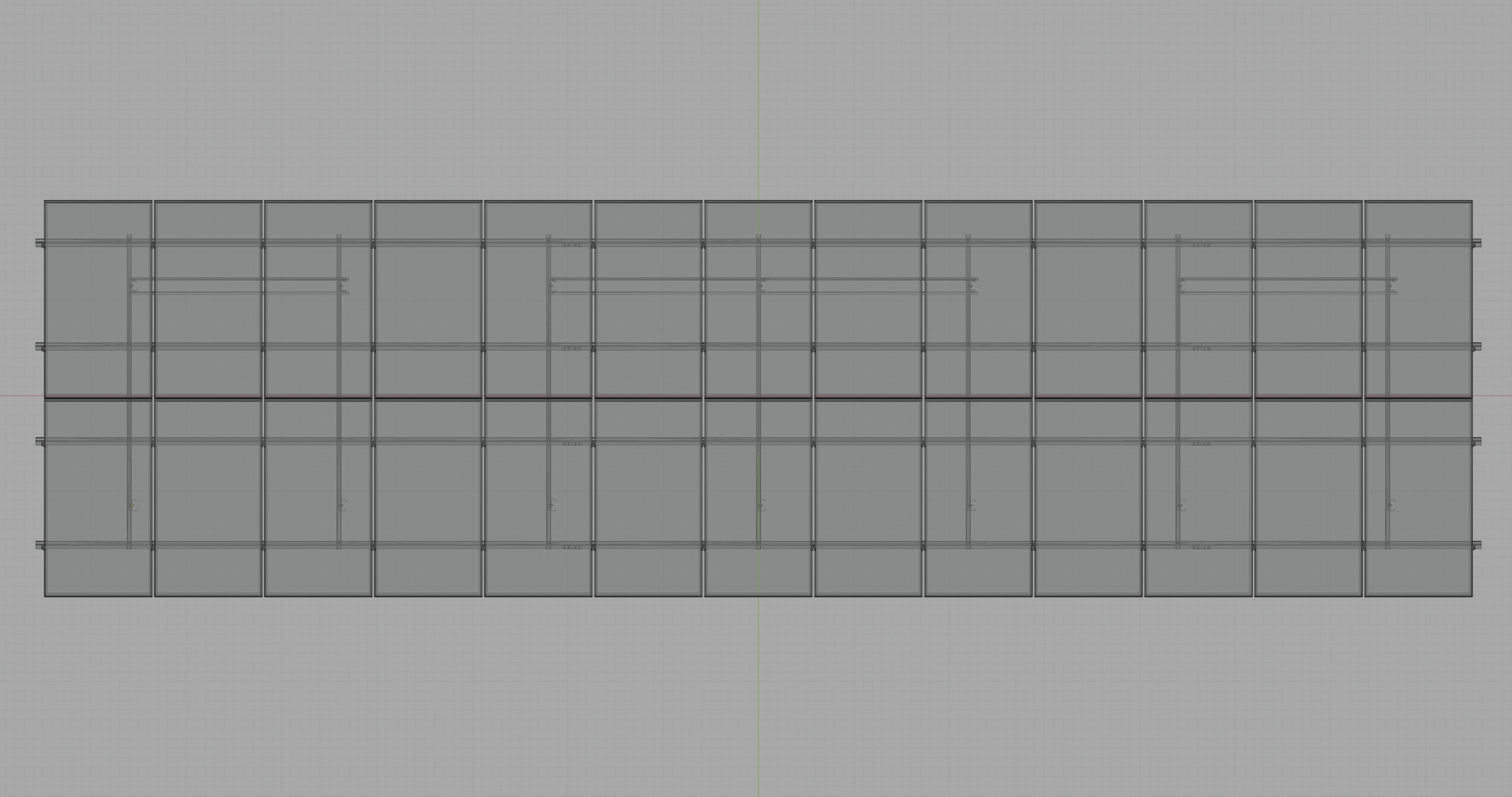

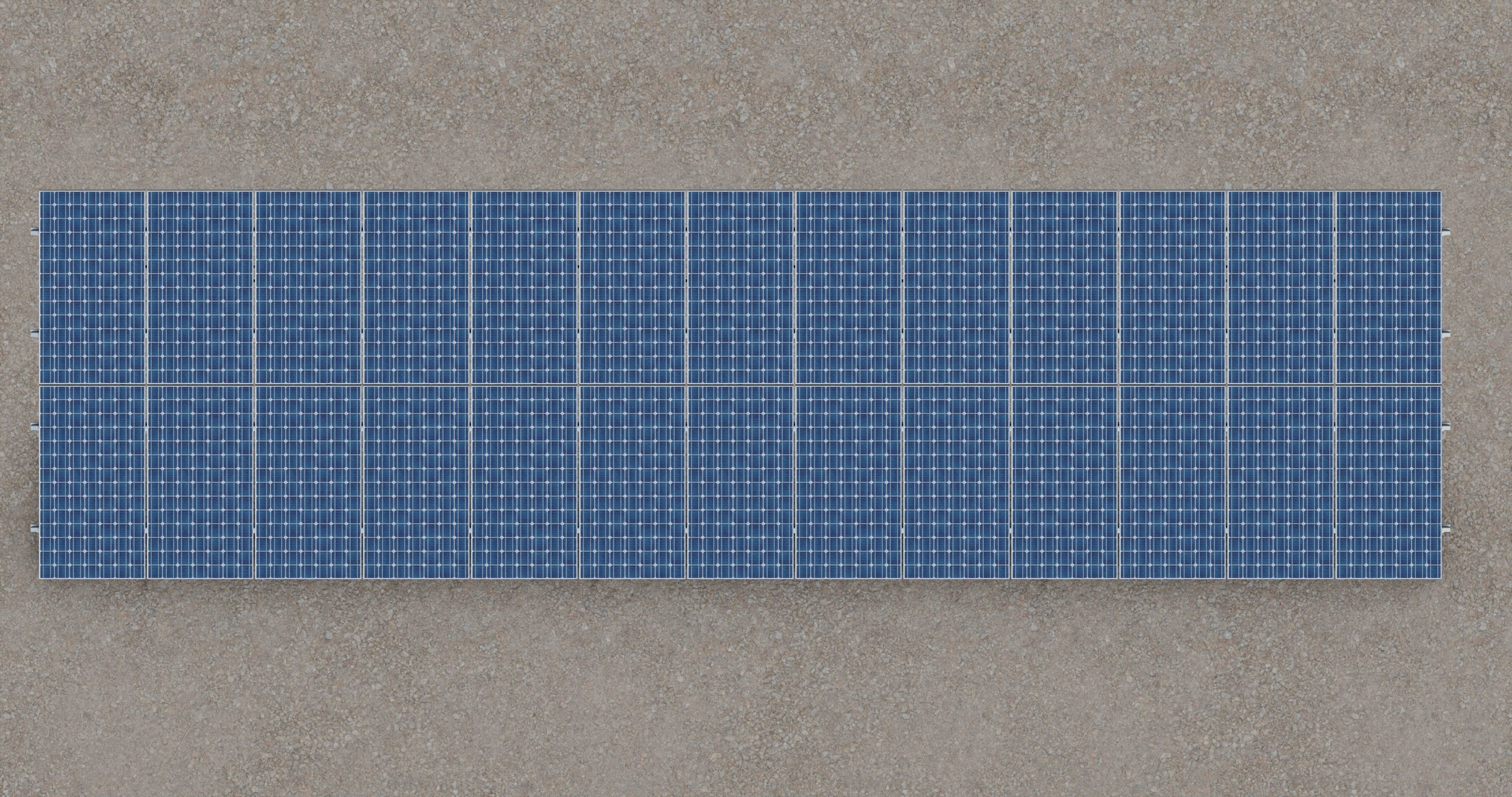

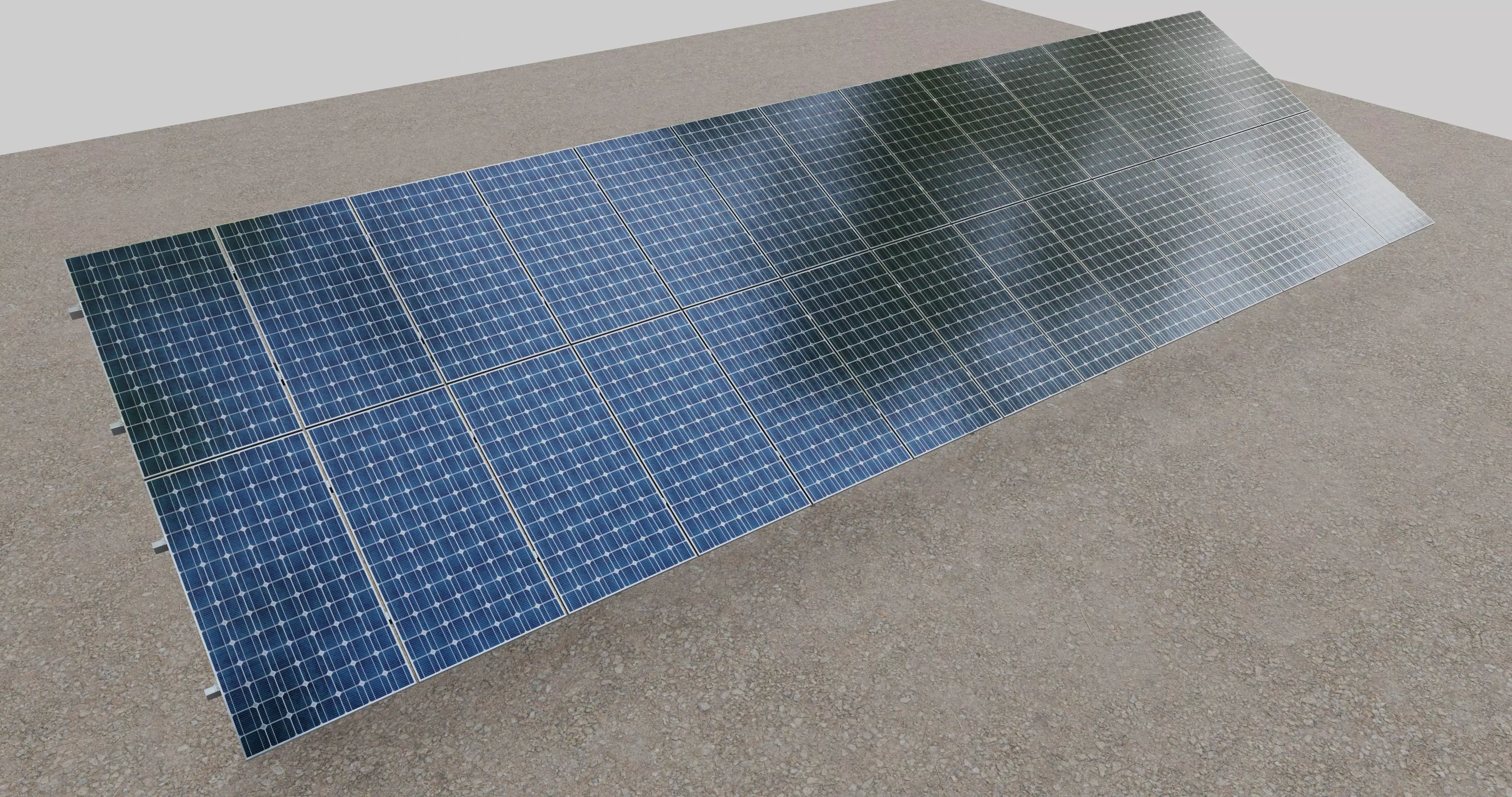

2x13 Vertical Panel Layout
Ground Connection Type; Steel Driven Column
Distance of Columns Below Ground 1600 mm.
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 14,3 kWp power in 1 hour

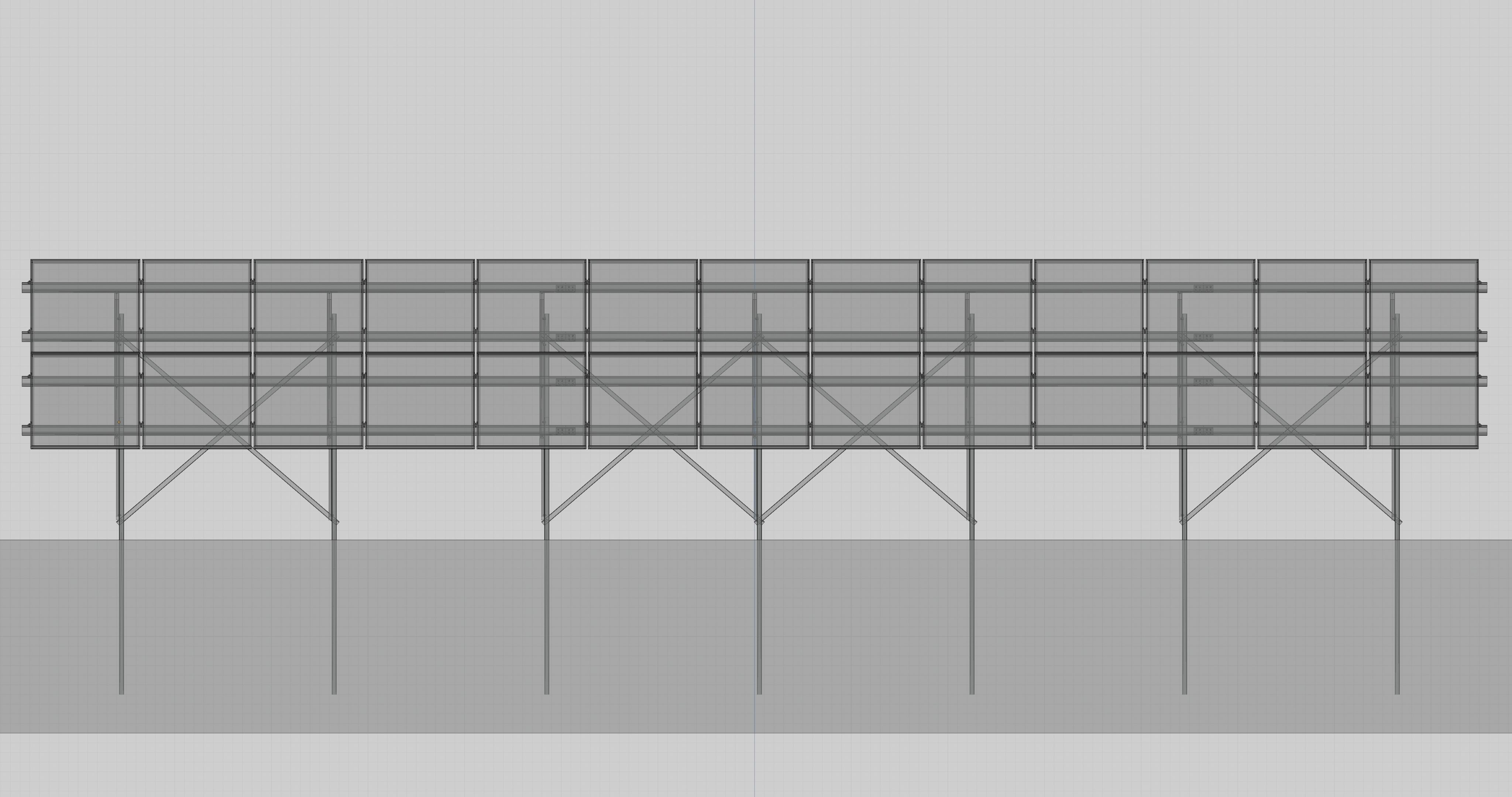

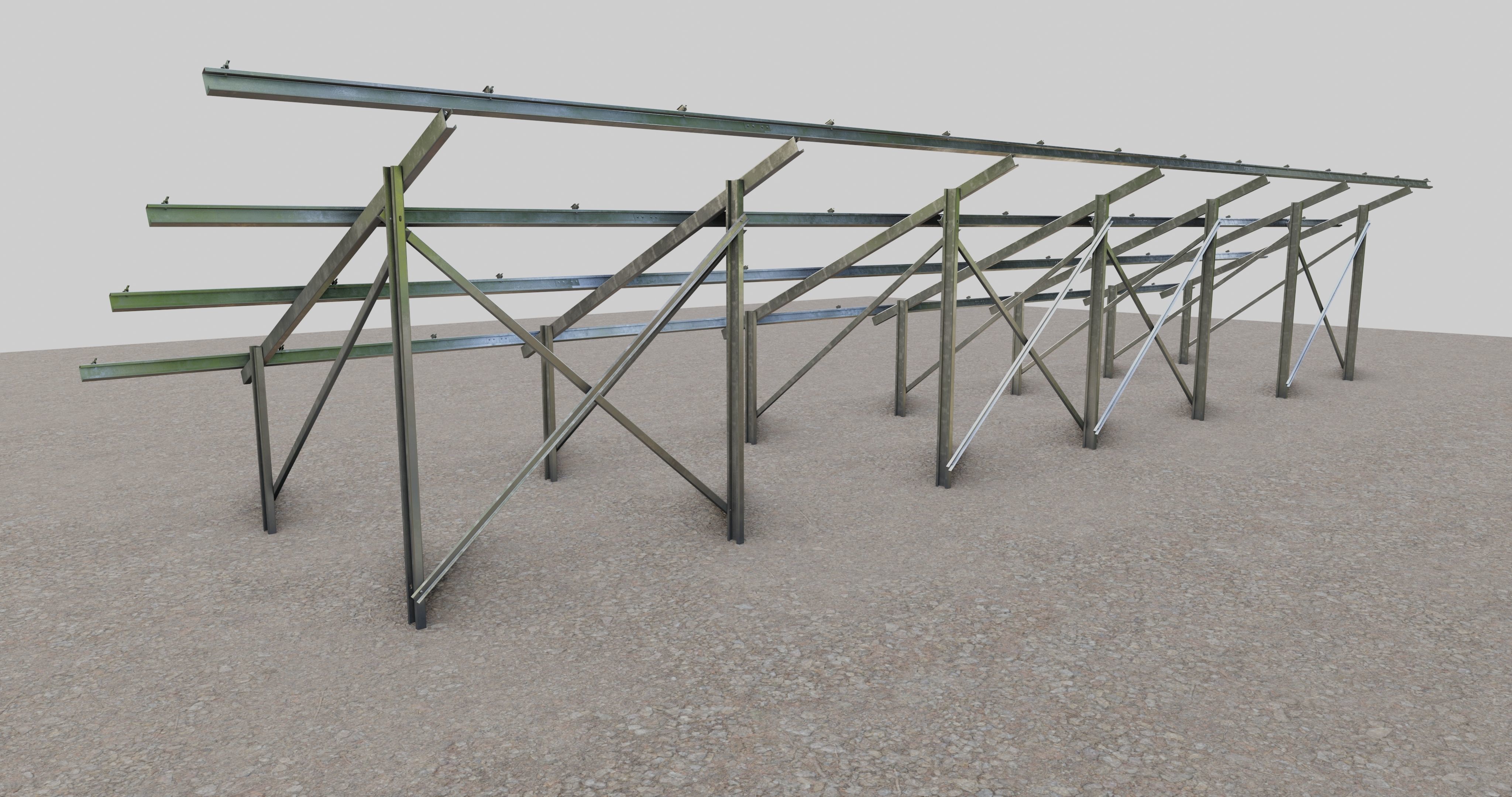

The system consists of 7 axles and the distance between each axle is 2200 mm.
Distance between two columns 2300 mm.

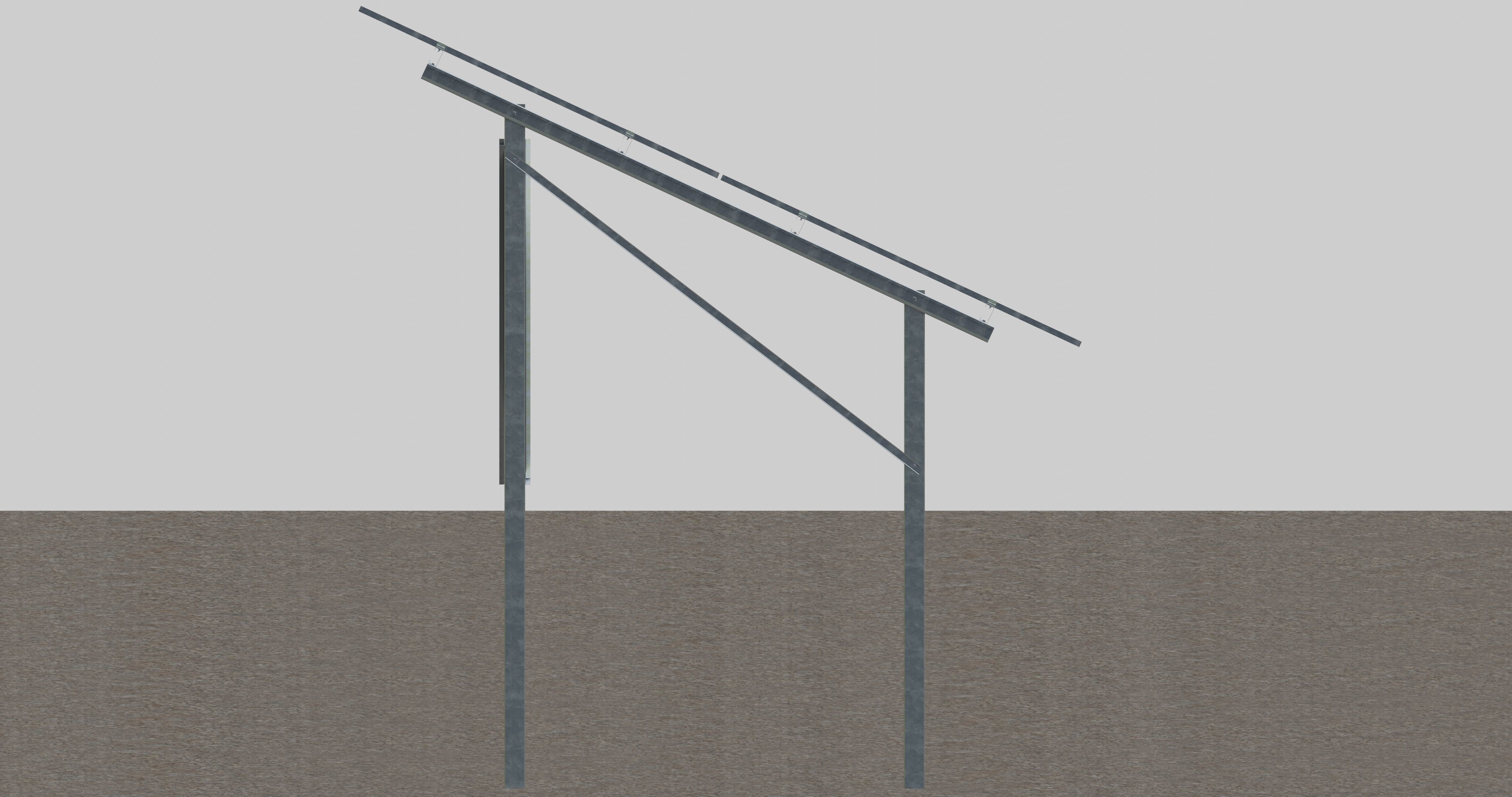

Horizantal angle of panel 25°
The closest distance of the panels to the floor 600 mm.

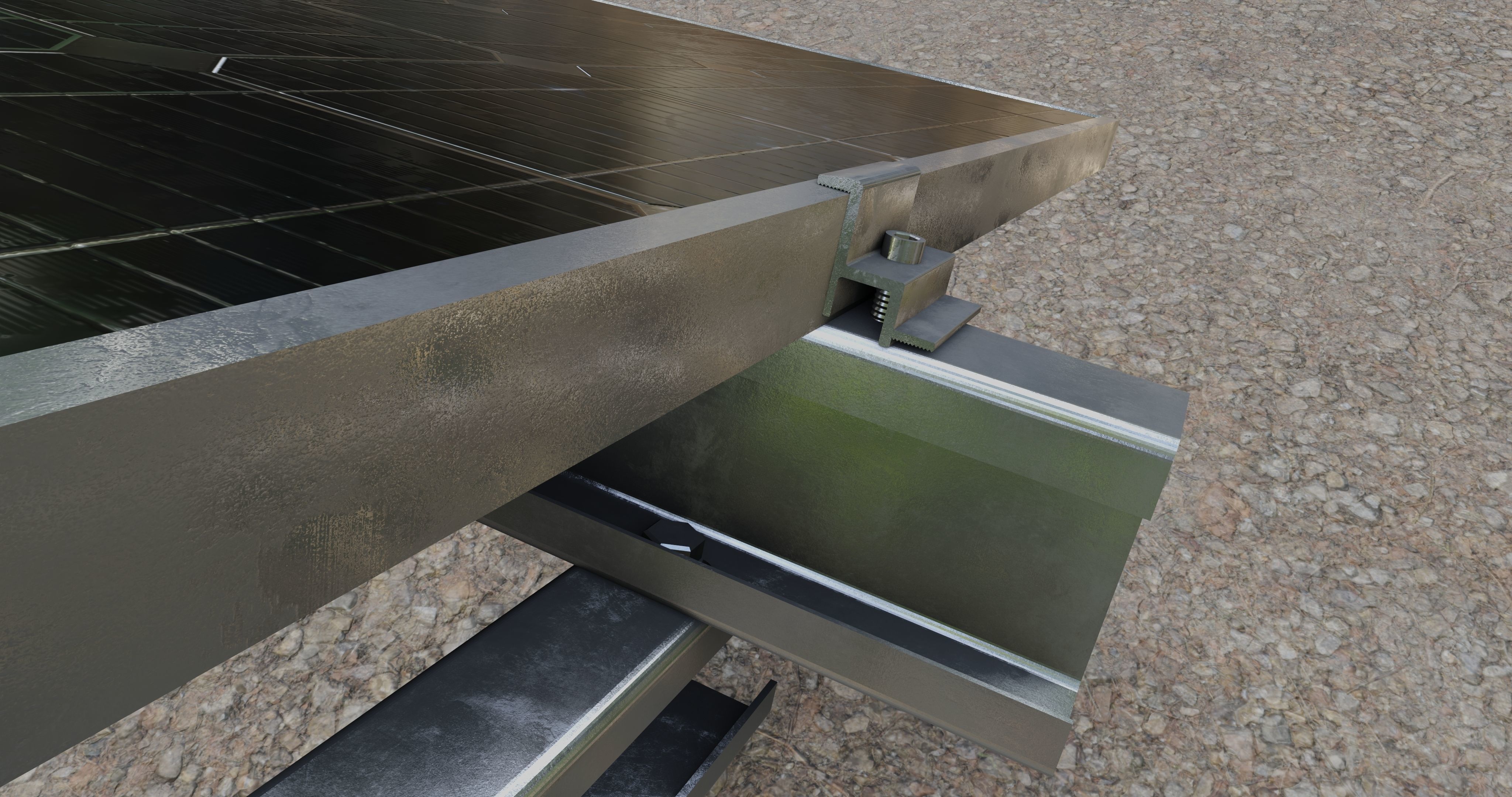

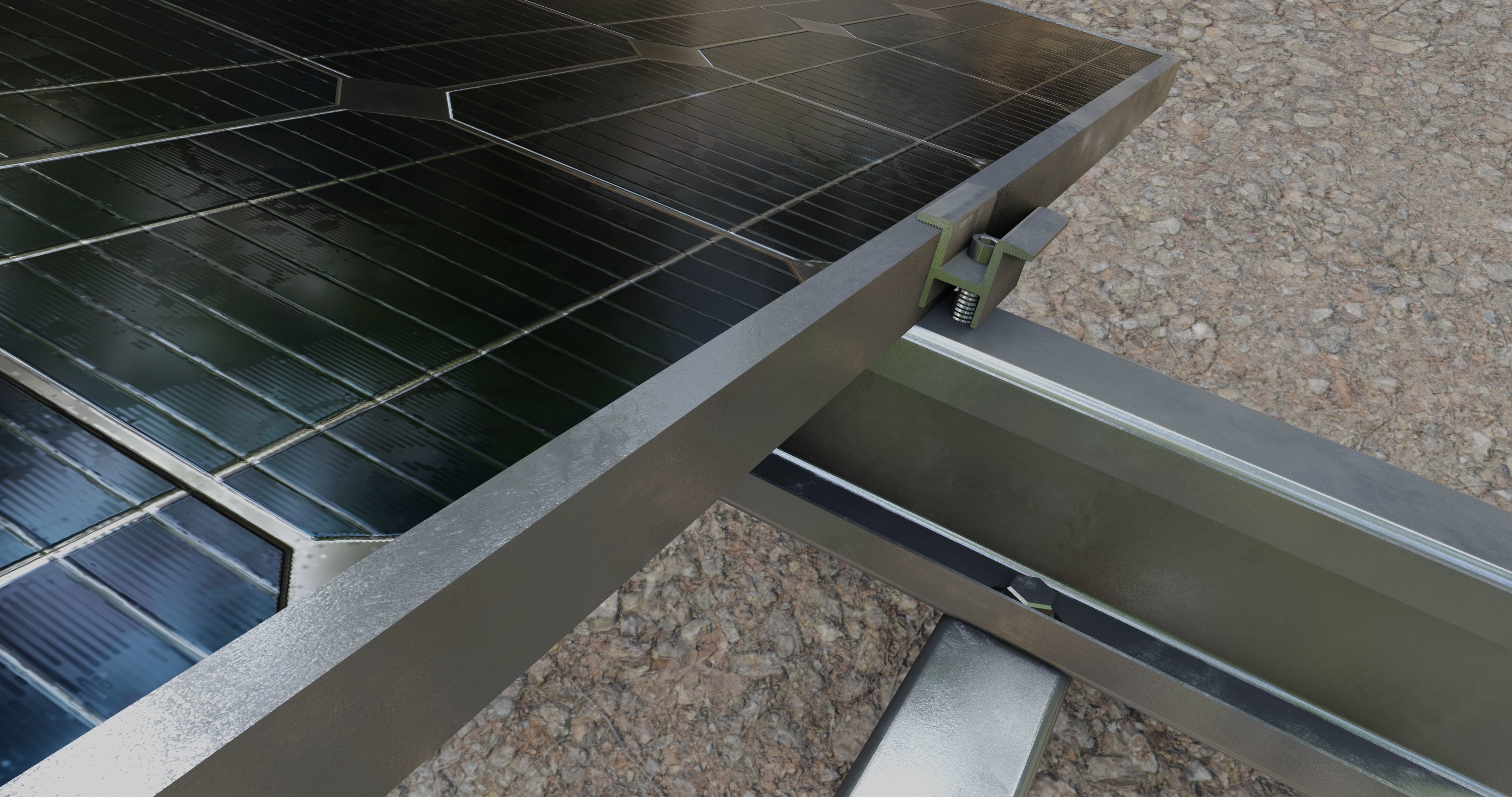

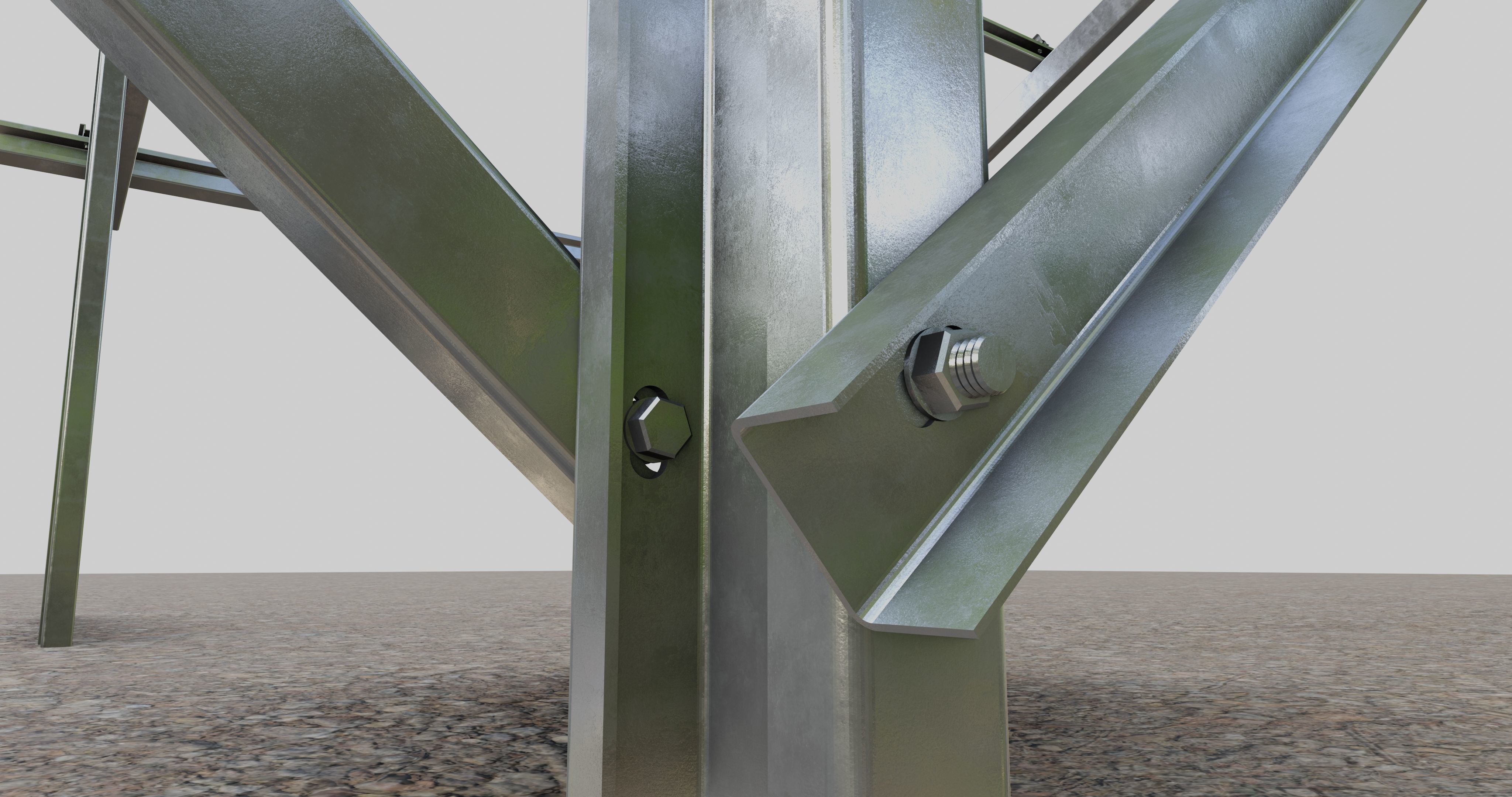

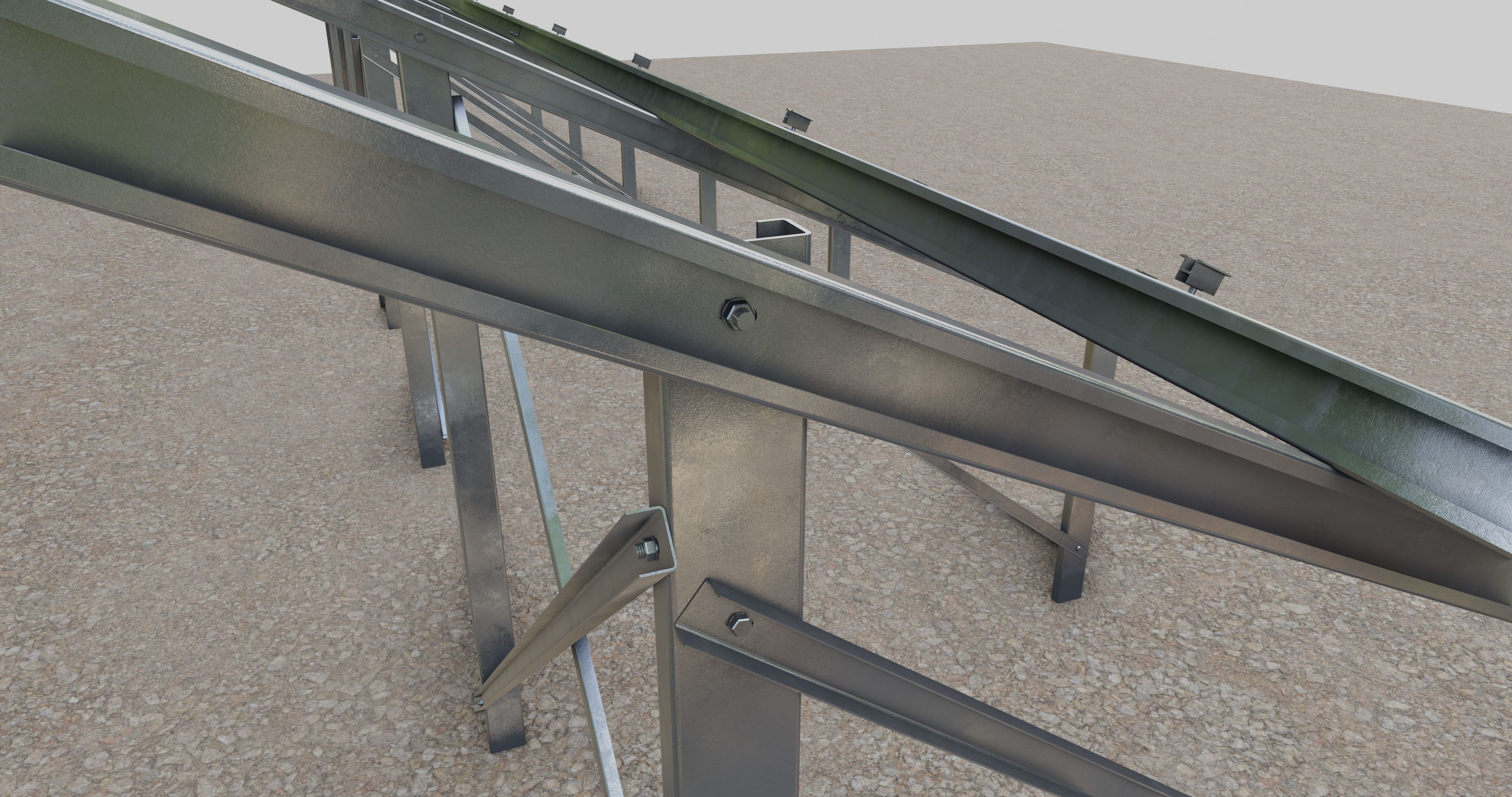

Profile Section;

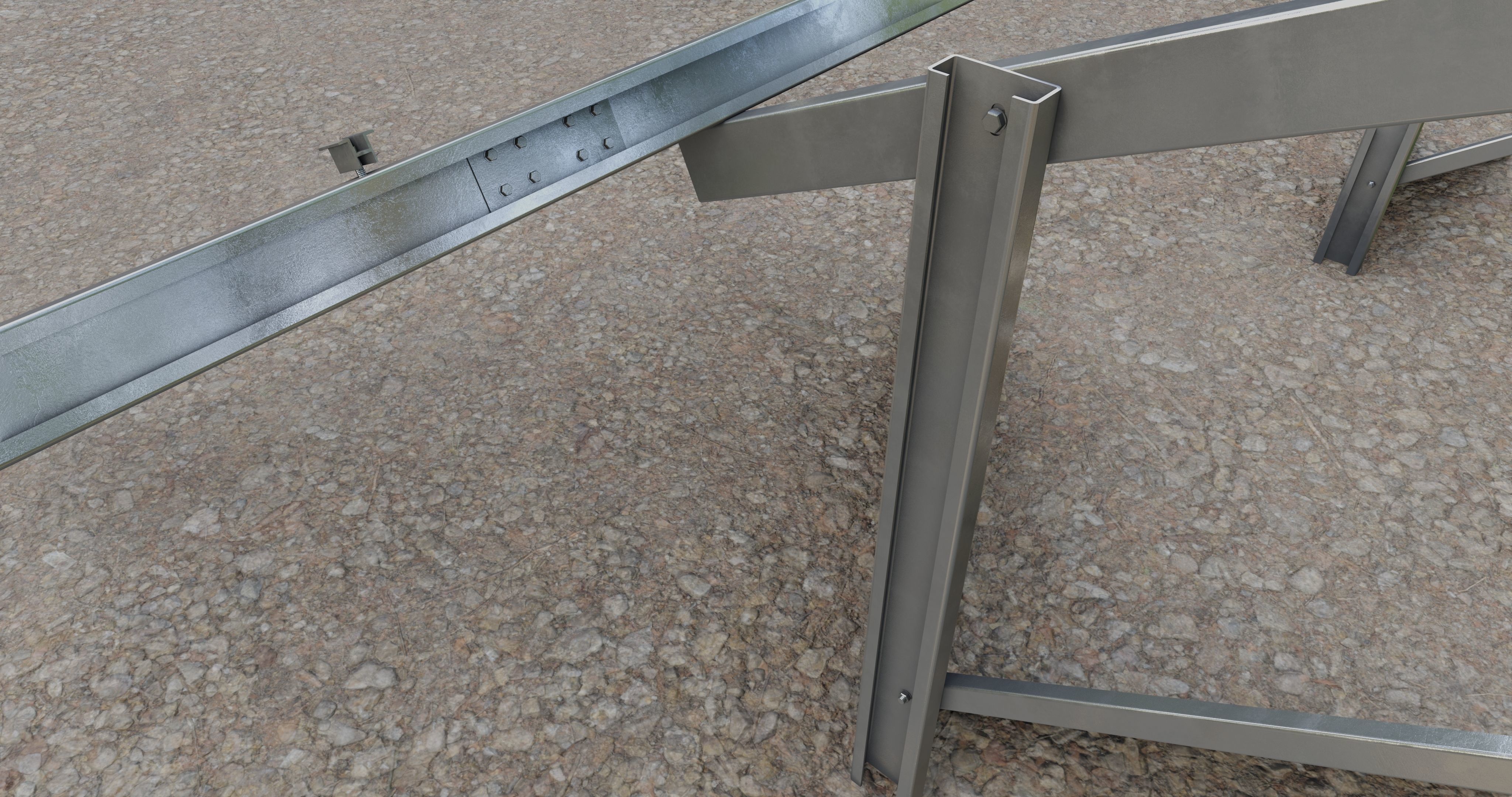

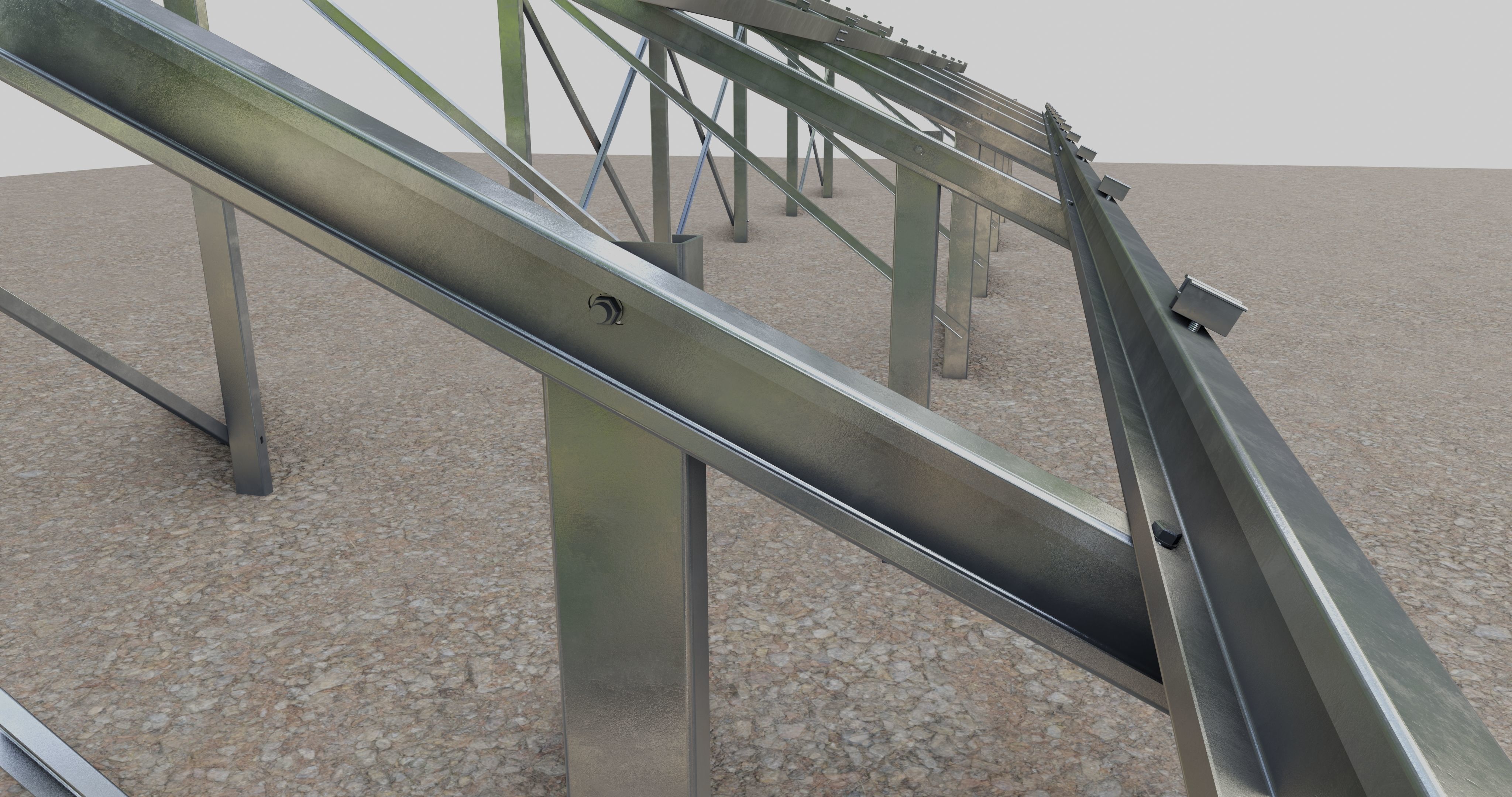

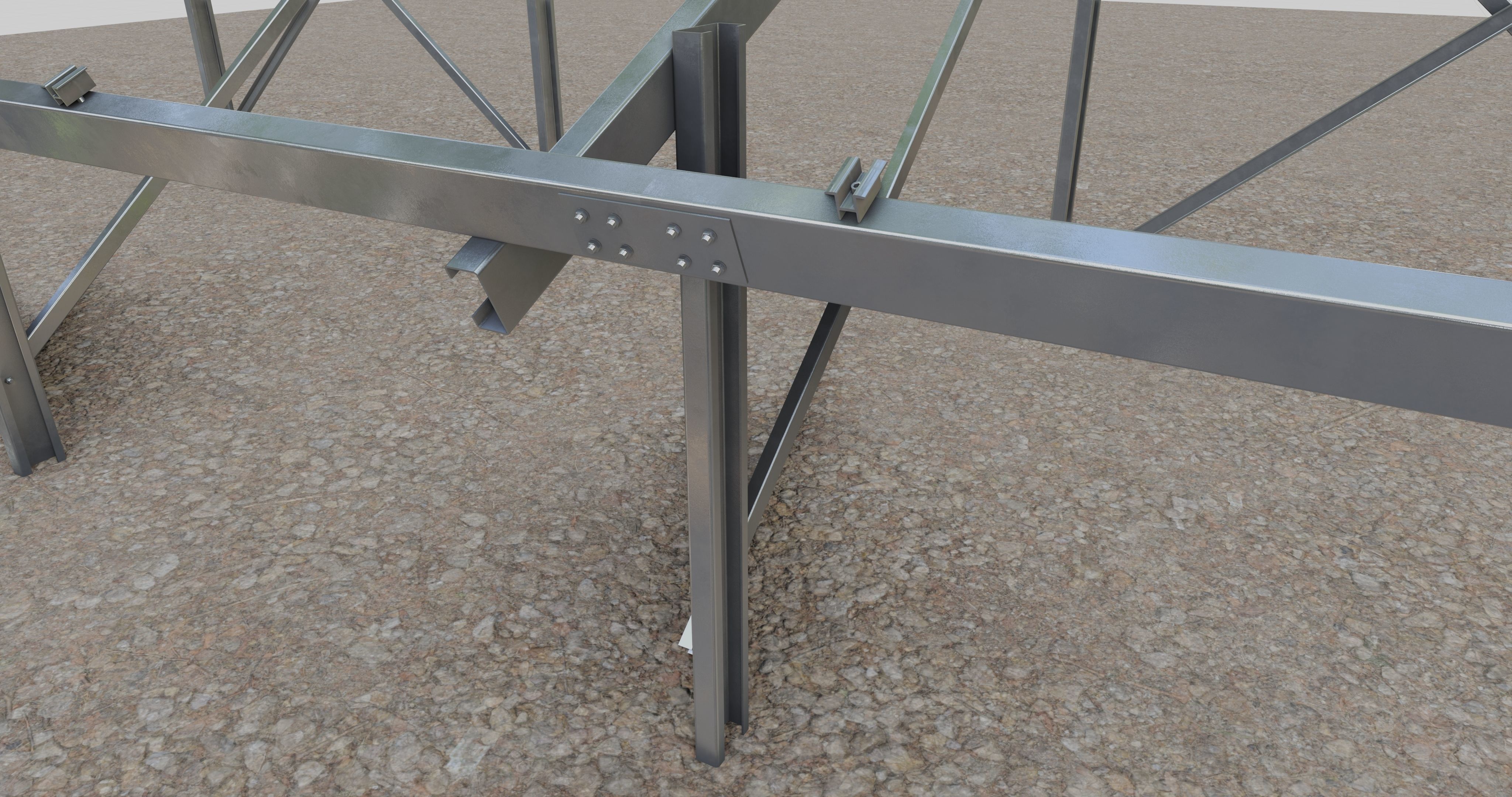

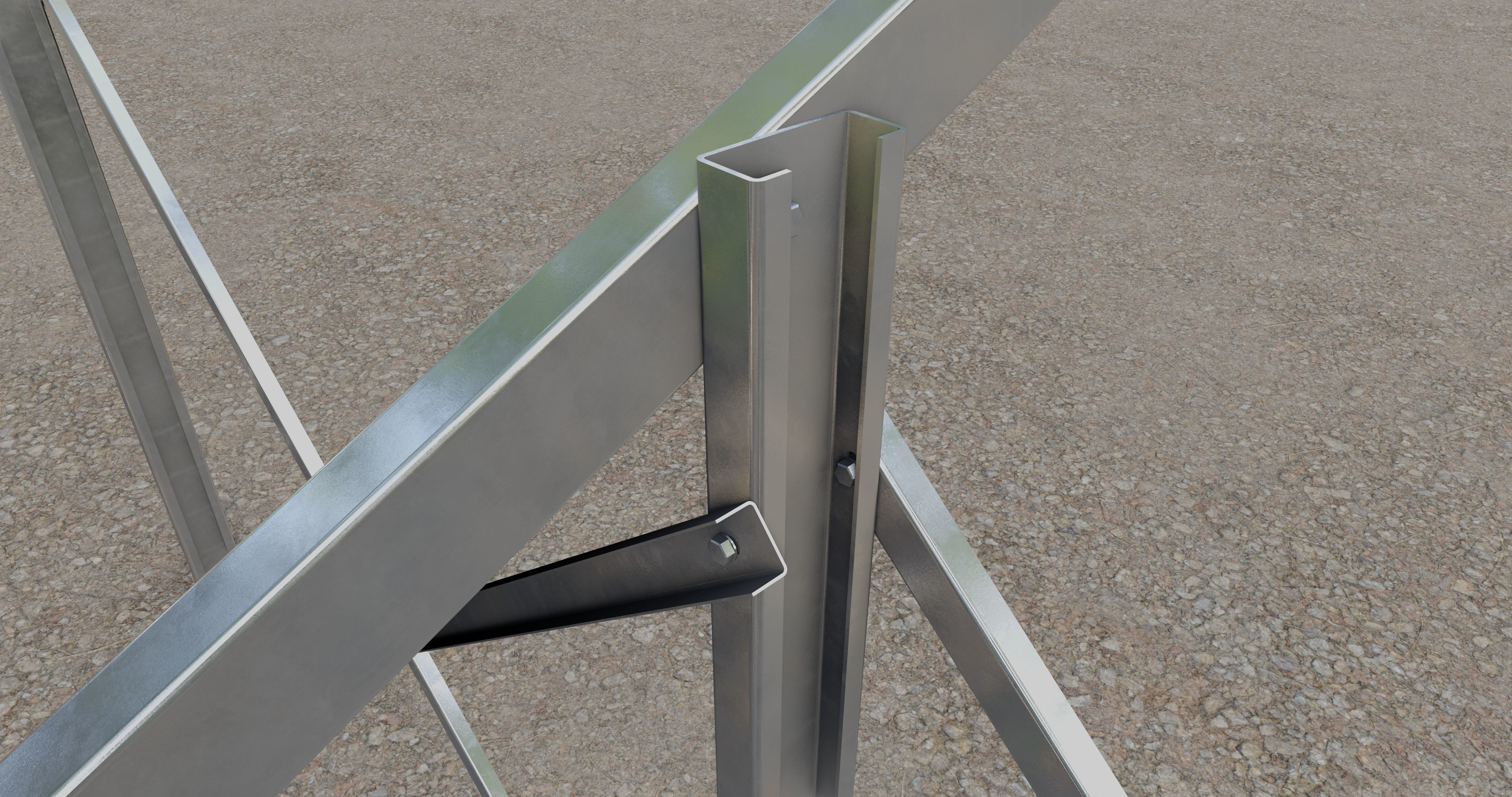

Column : C Profile C120x50x25-4mmBeam : C Profile C100x50x20-3mmPurlin : C Profile C90x50x20x-2mmDiagonal : U Profile U50x30-2mm

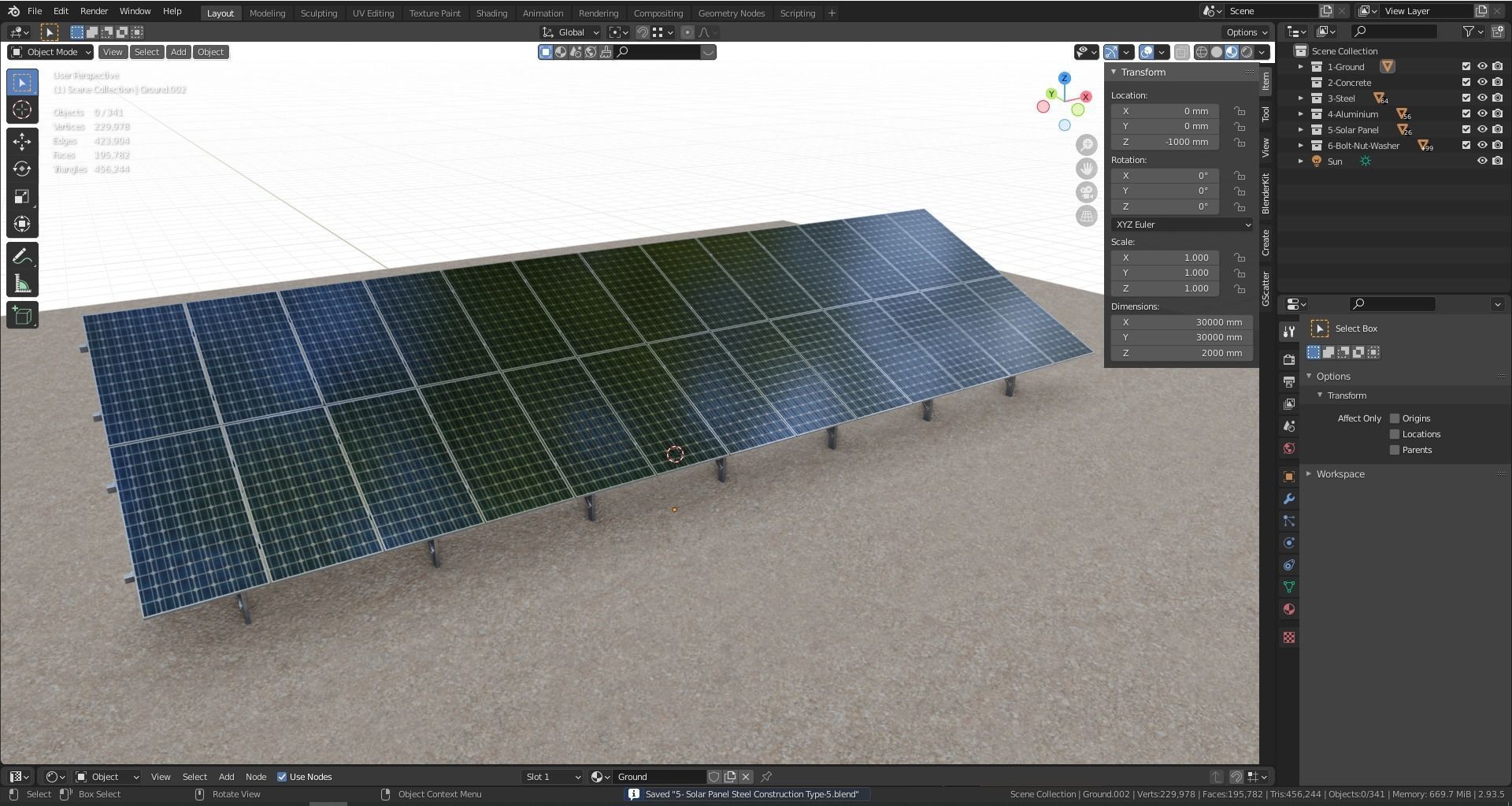

Prepared With BLENDER Version 2.93.5
Polygons : 195782
Vertices : 229978
Objects : 341
Solar Panel Steel Construction Type 5
Royalty Free License
Solar Panel Steel Construction Type 5
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- Blender 2.93.5 (.blend)30.4 MBVersion: 2.93.5Renderer: Eevee 2.93.5
Exchange
3D Model details
- Publish date2023-04-25
- Model ID#4460448
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 195,782
- Vertices 229,978
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
