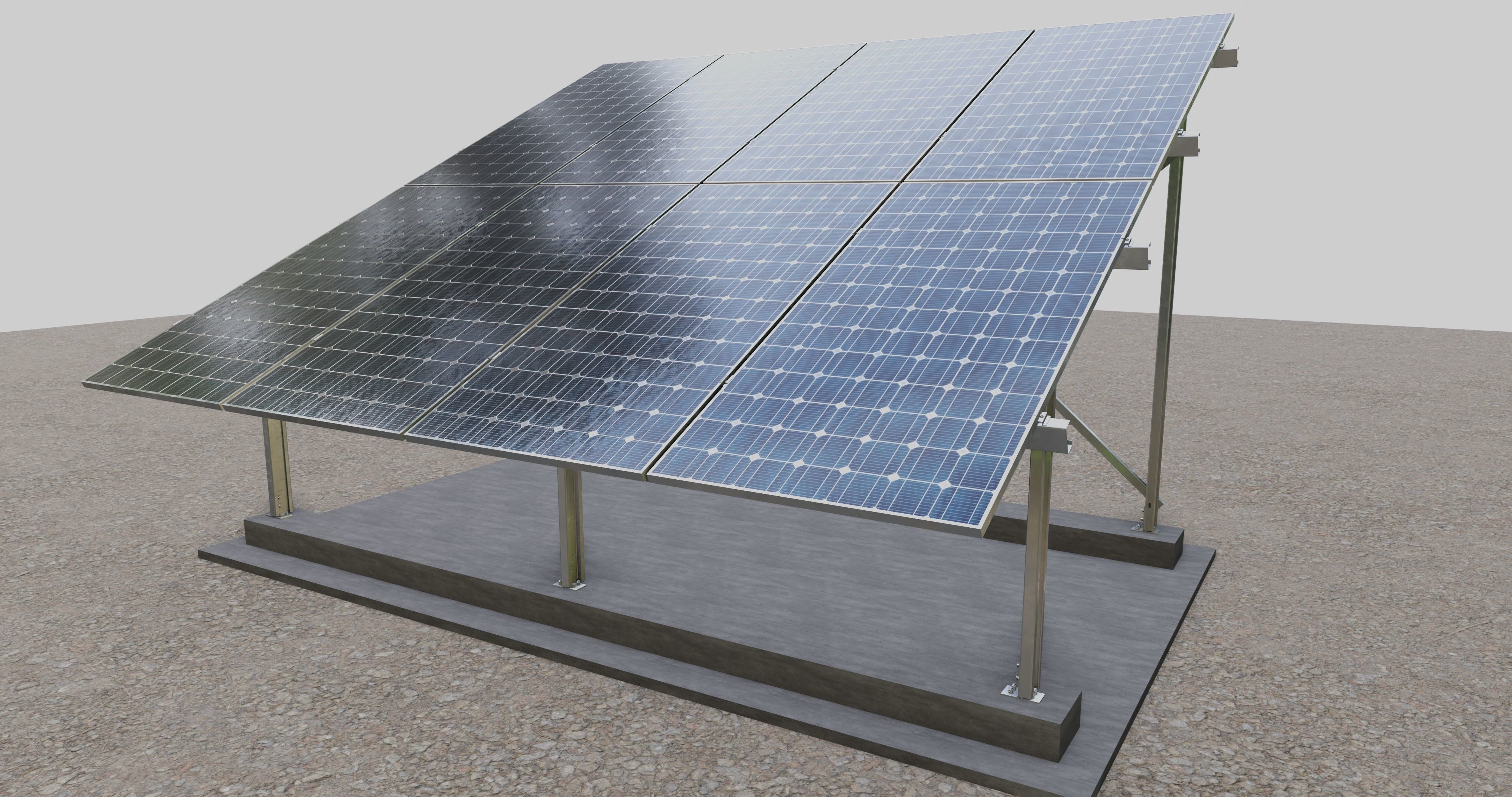

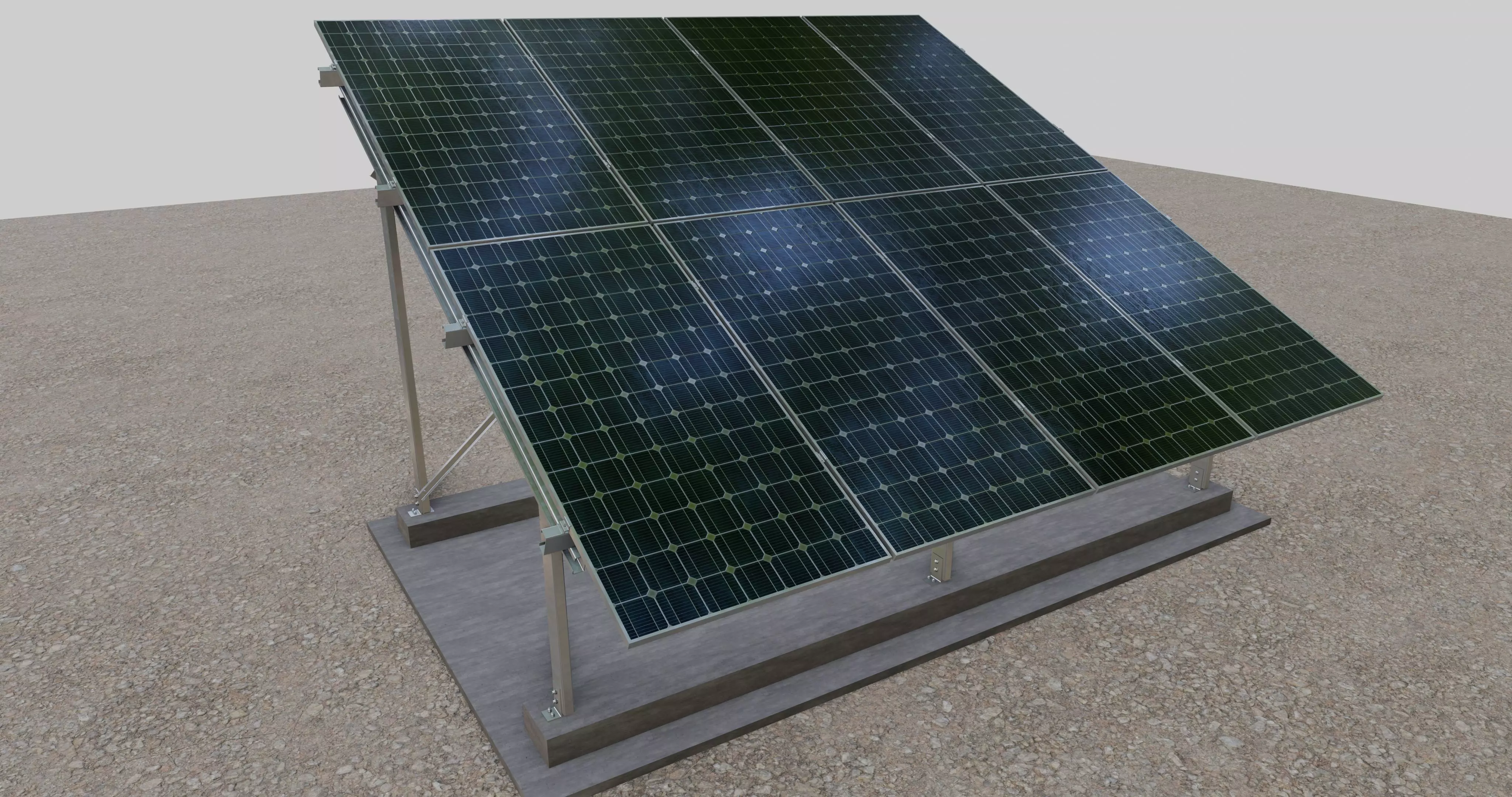

Solar Panel Steel Construction Type 4 3D model

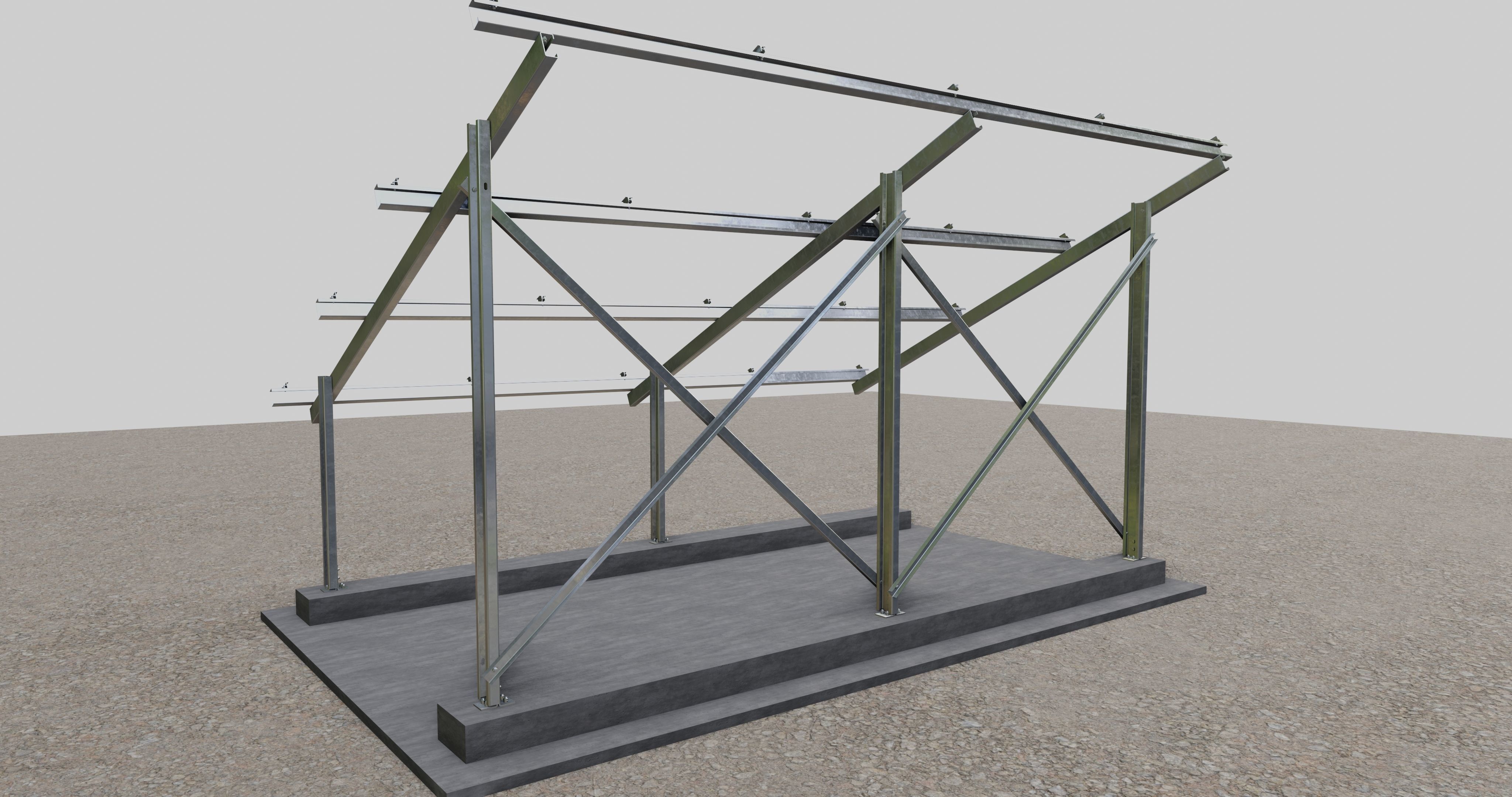

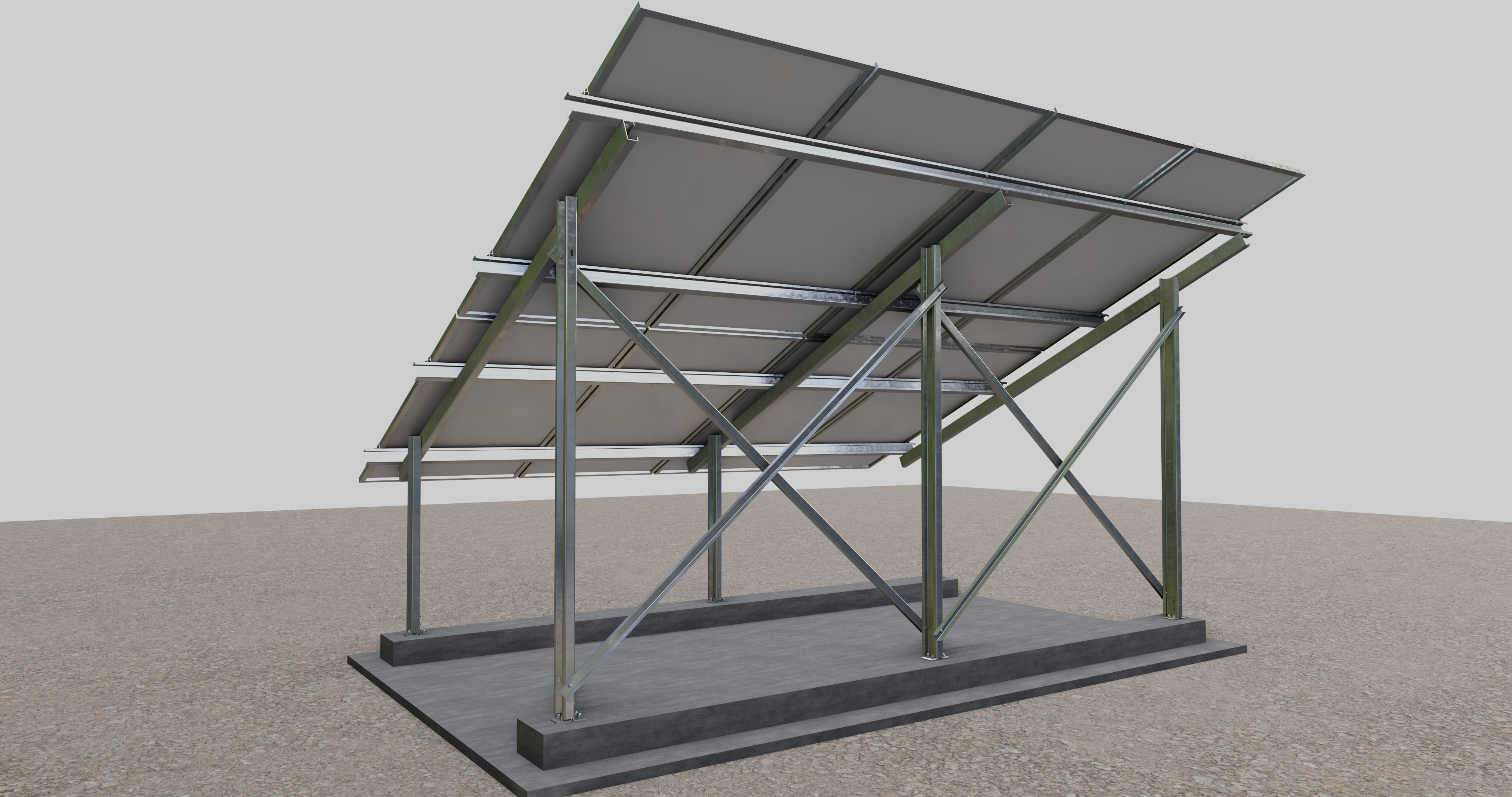

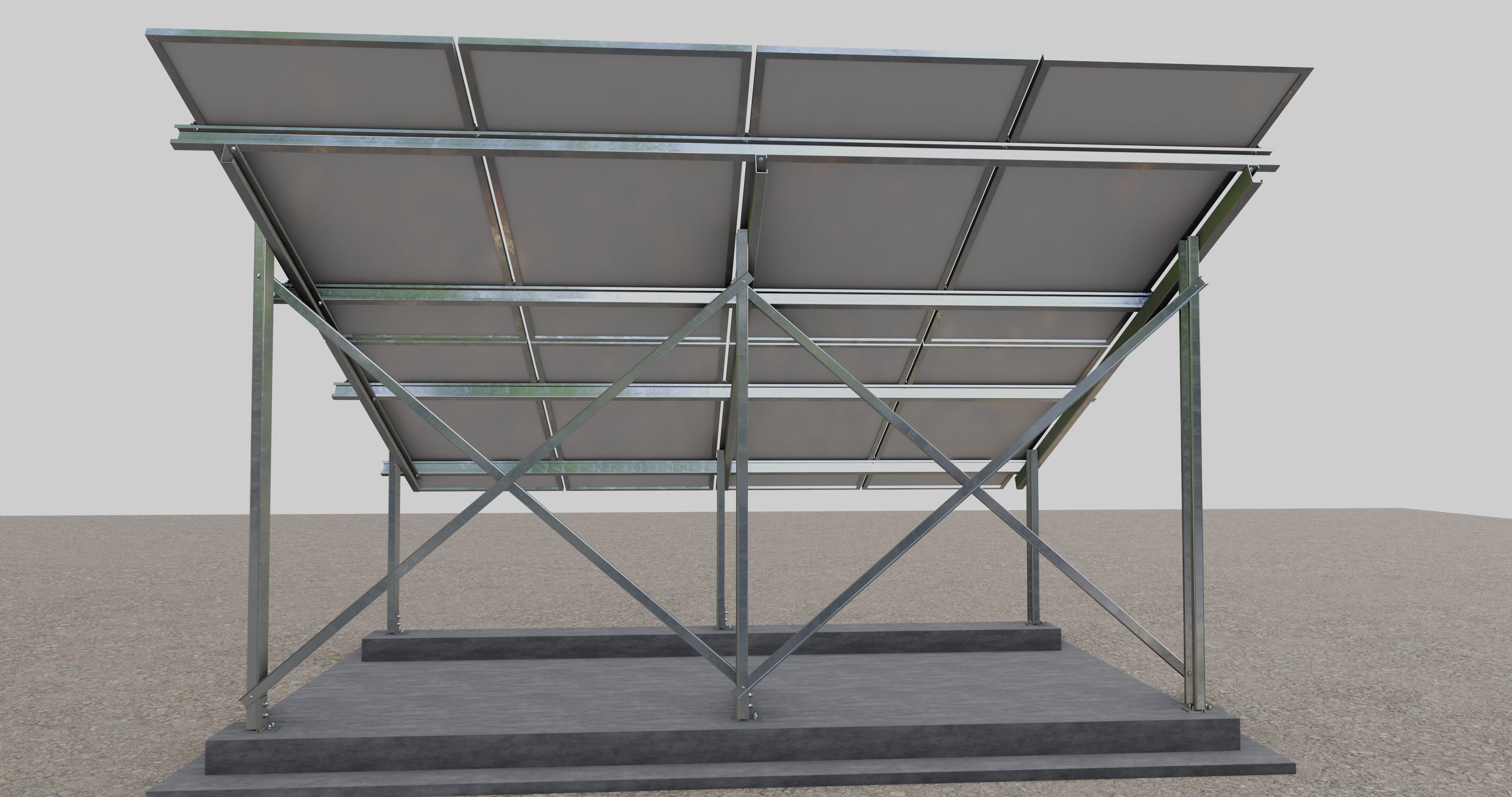

Solar Panel Steel Construction Type 4

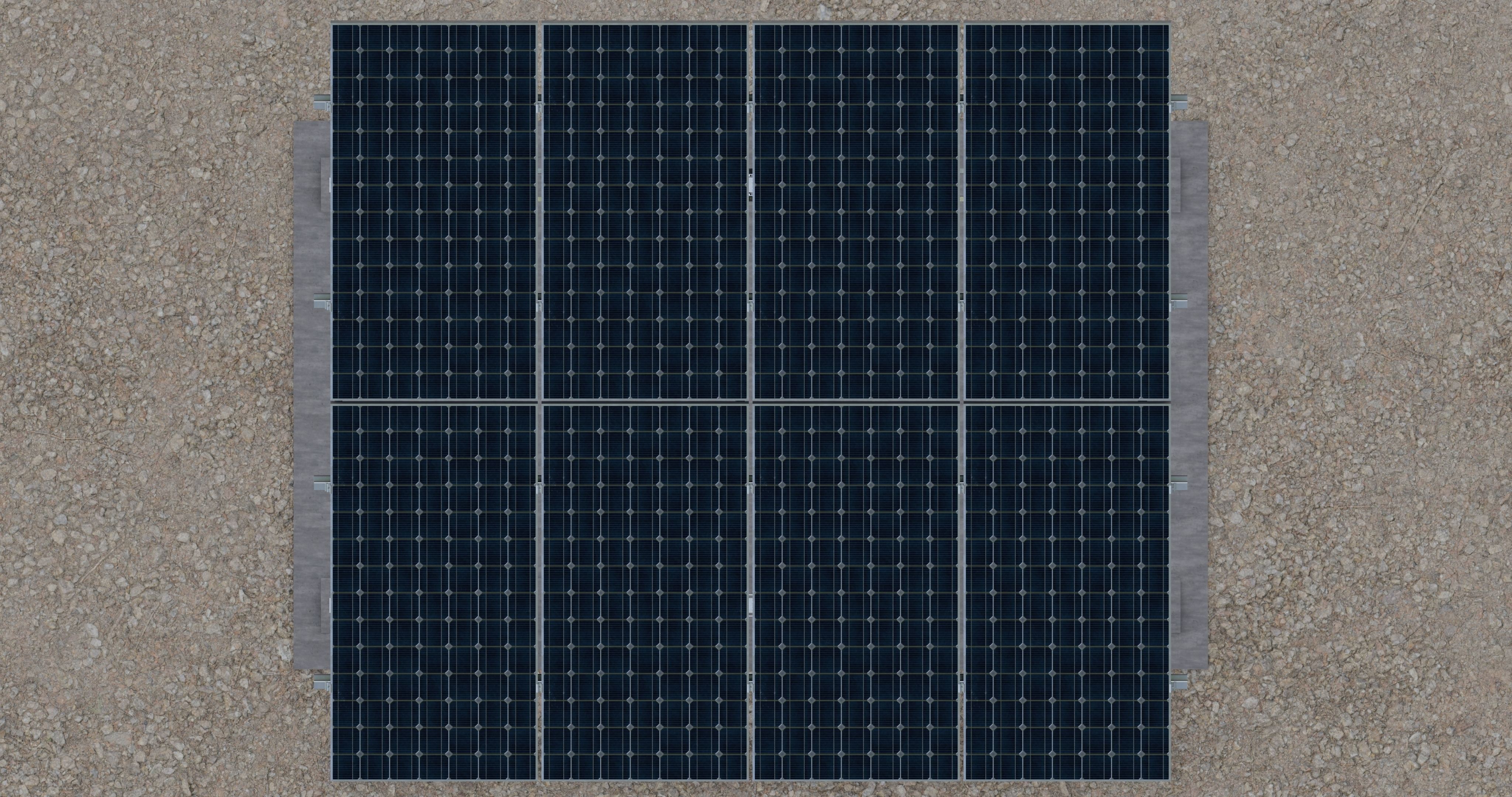

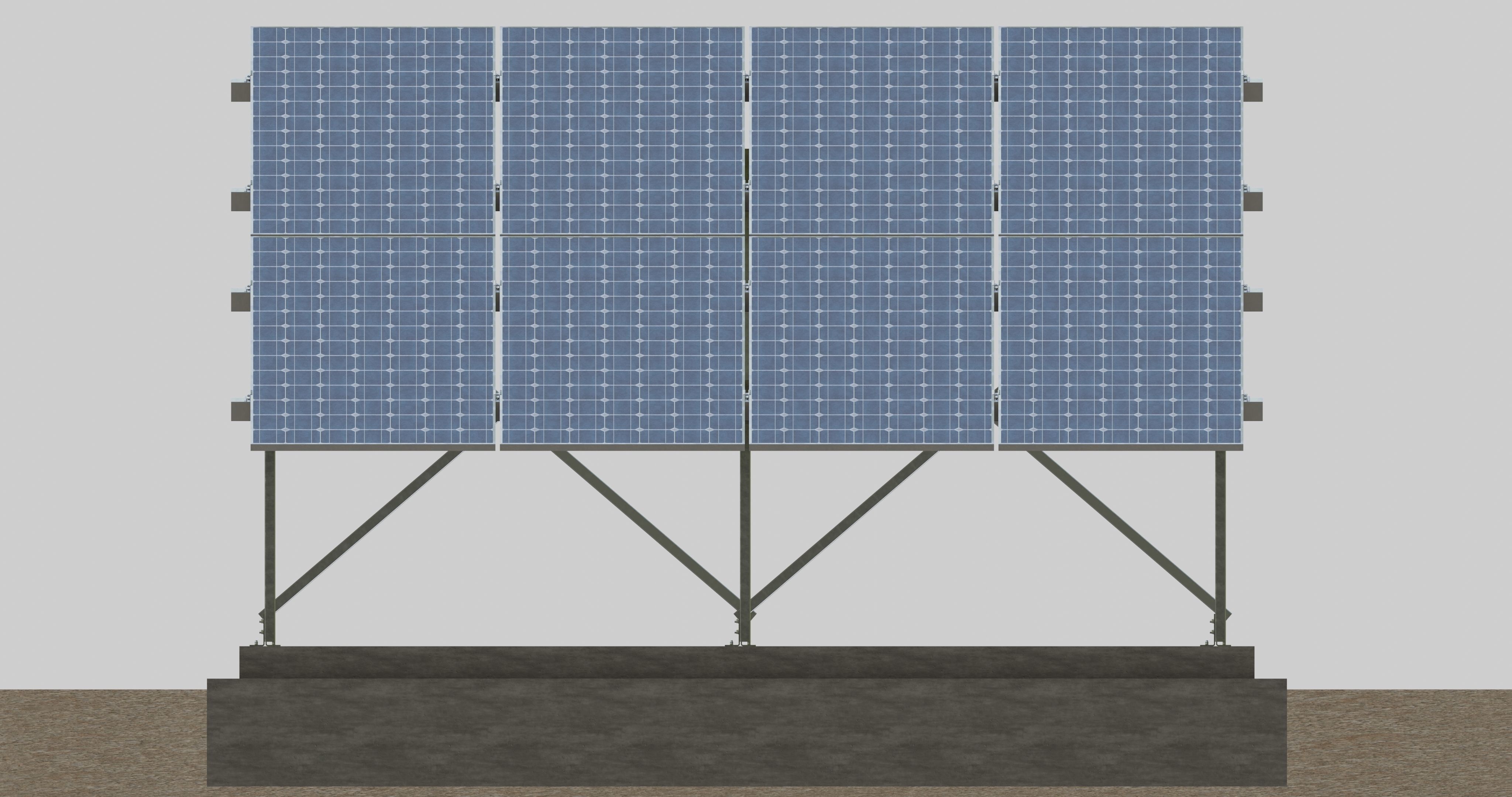

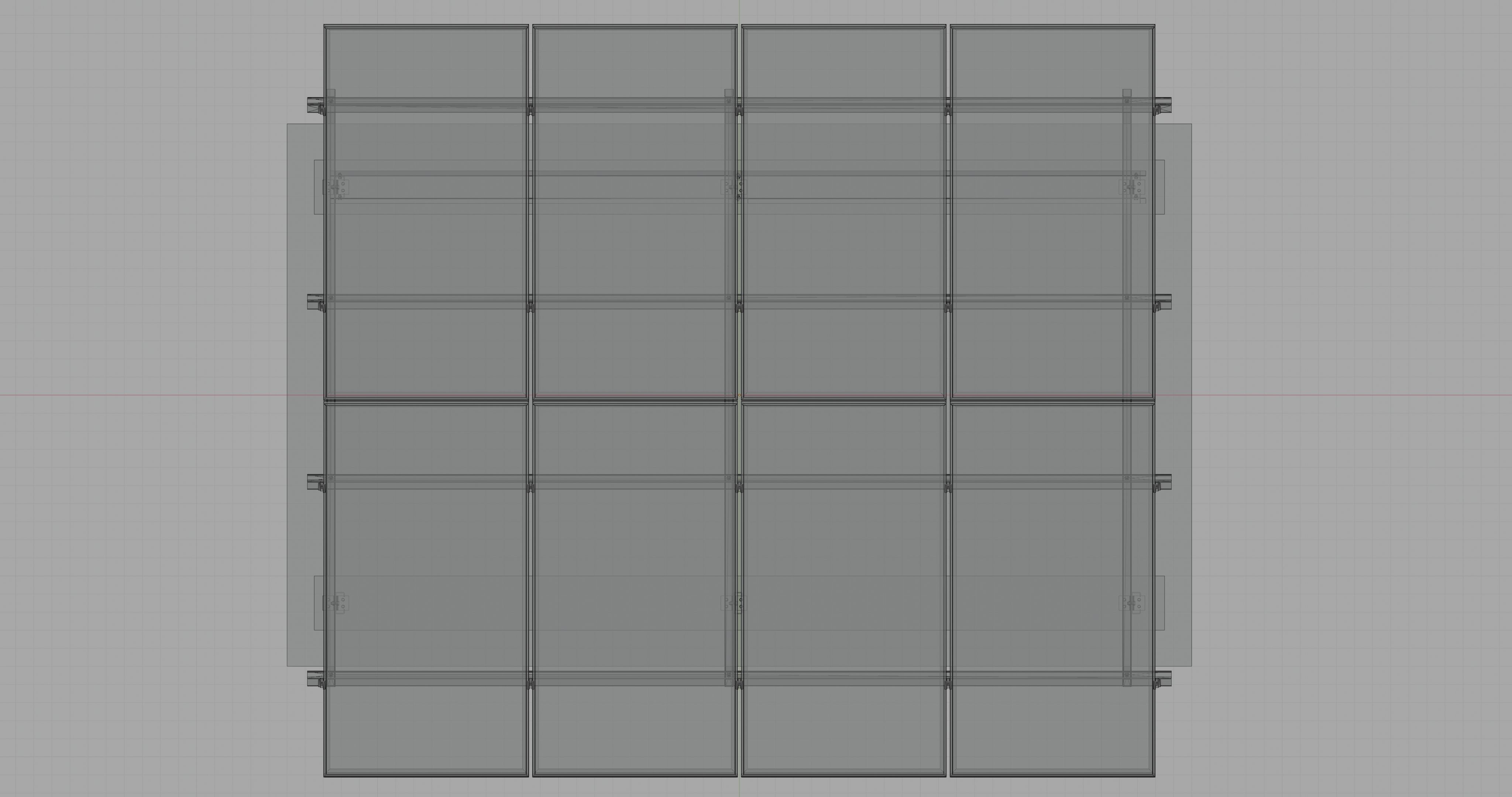

2x4 Vertical Panel Layout

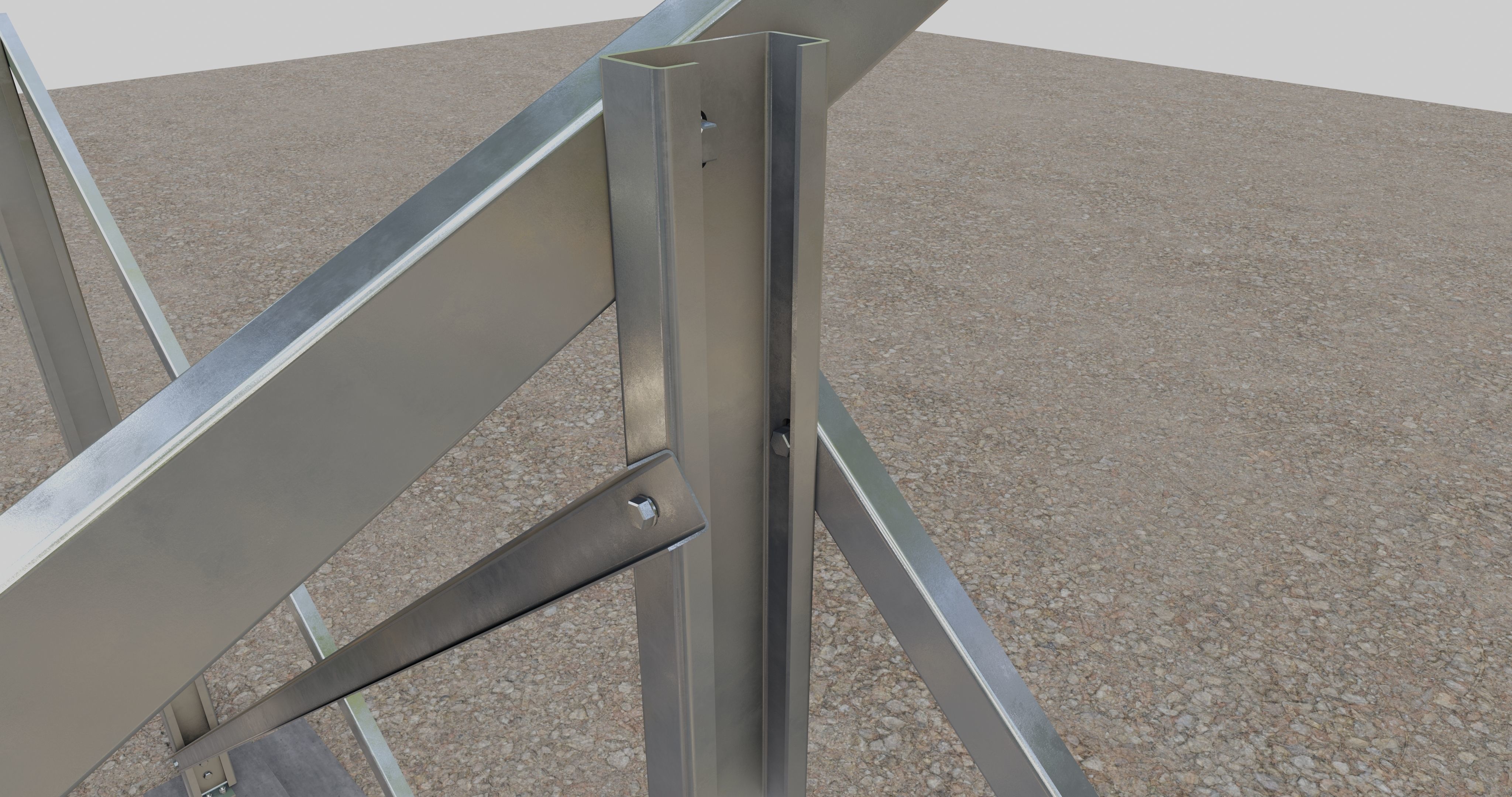

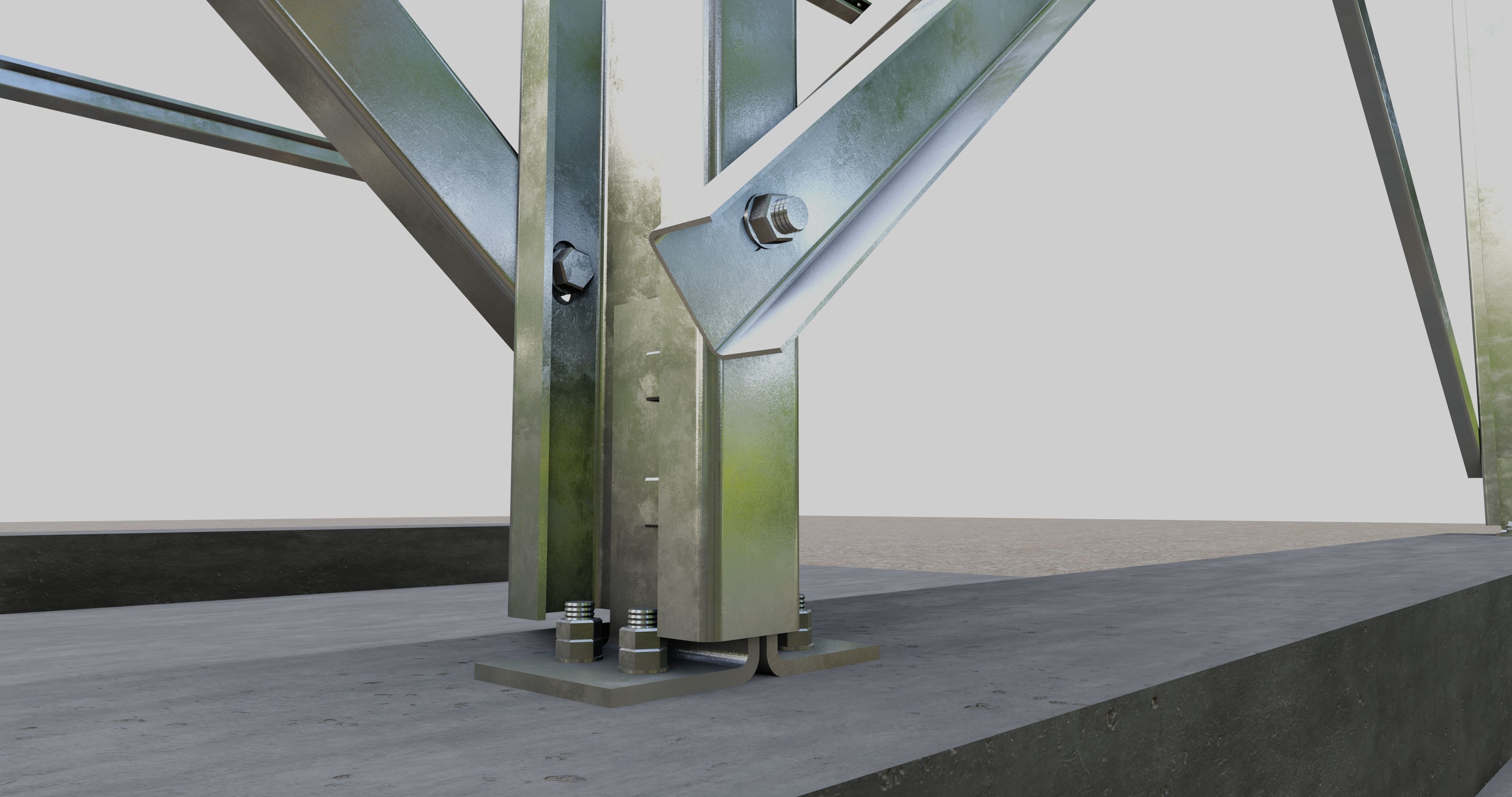

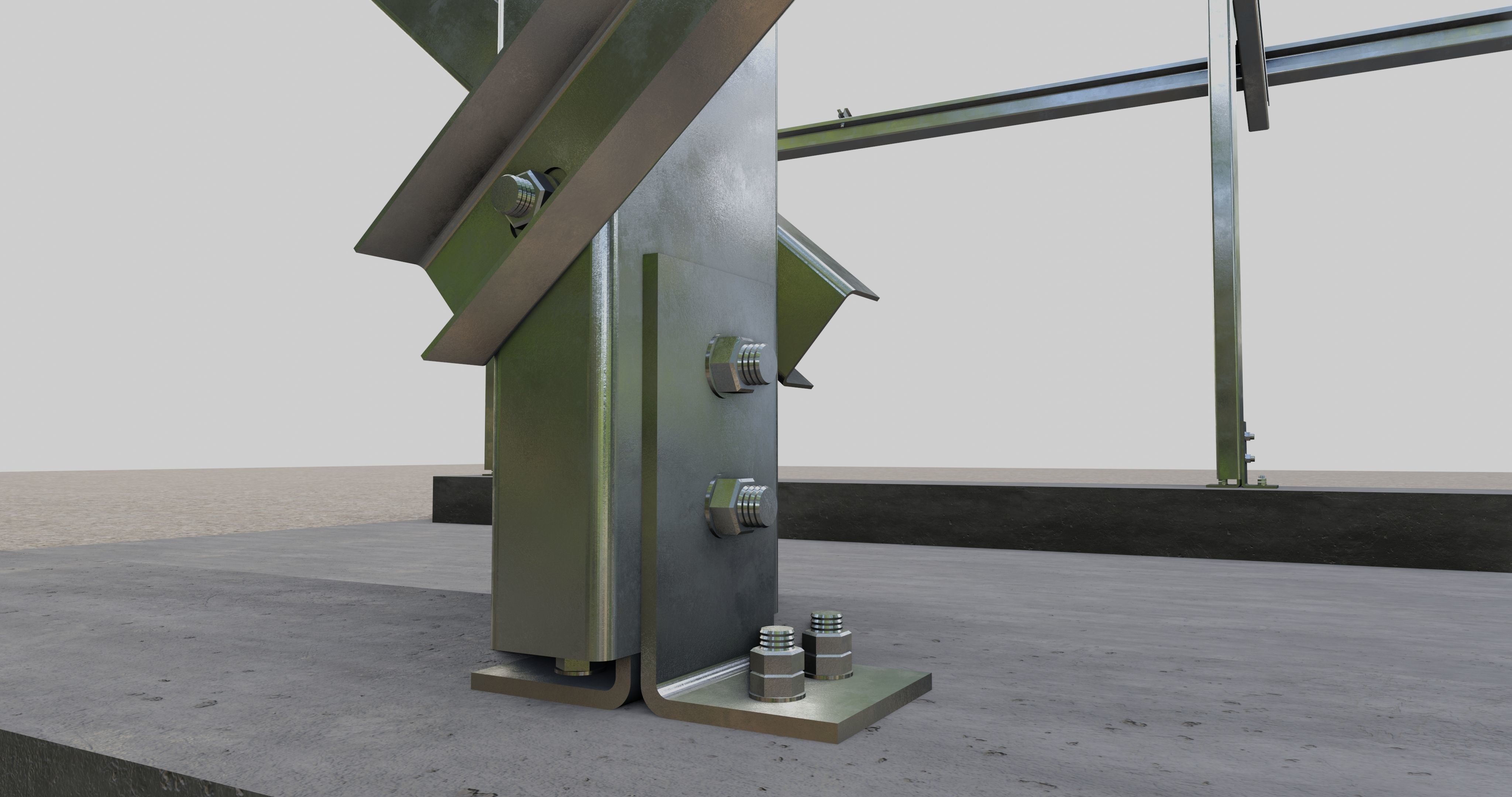

Ground Connection Type; With Double Angle Anchor Connection
Foundation Dimensions : 3000mm x 5000mm x 500mm

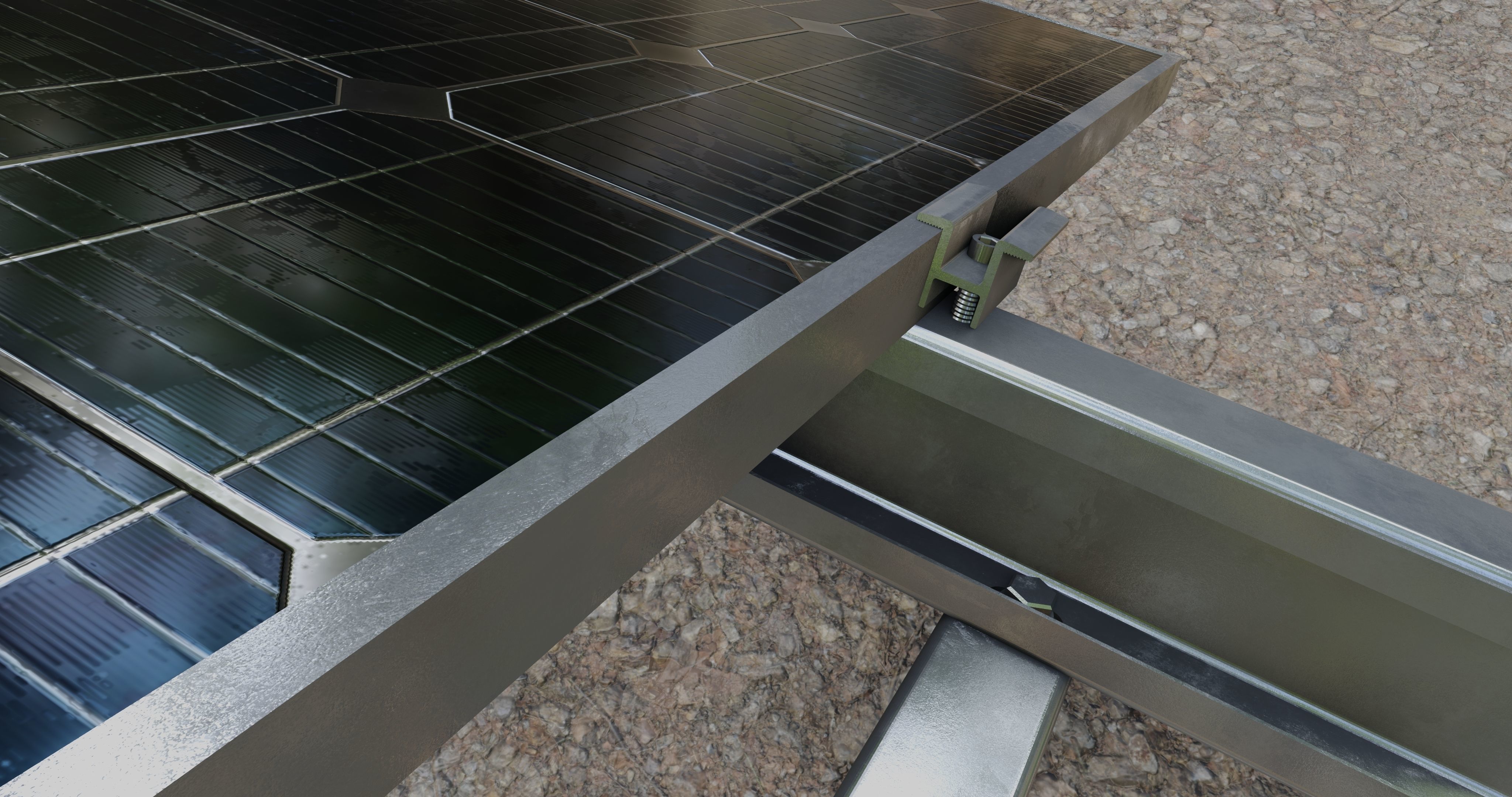

Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 4,4 kWp power in 1 hour

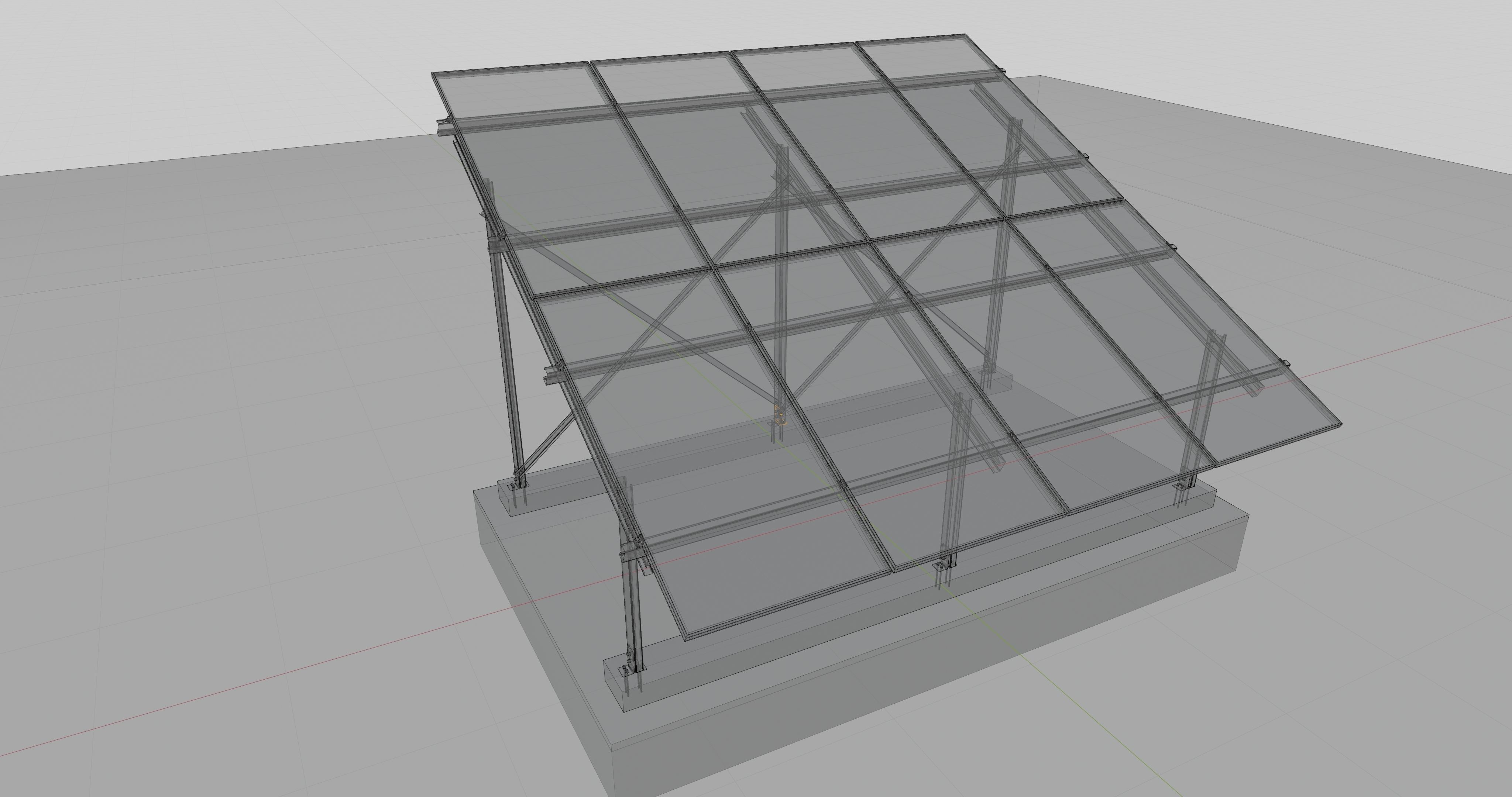

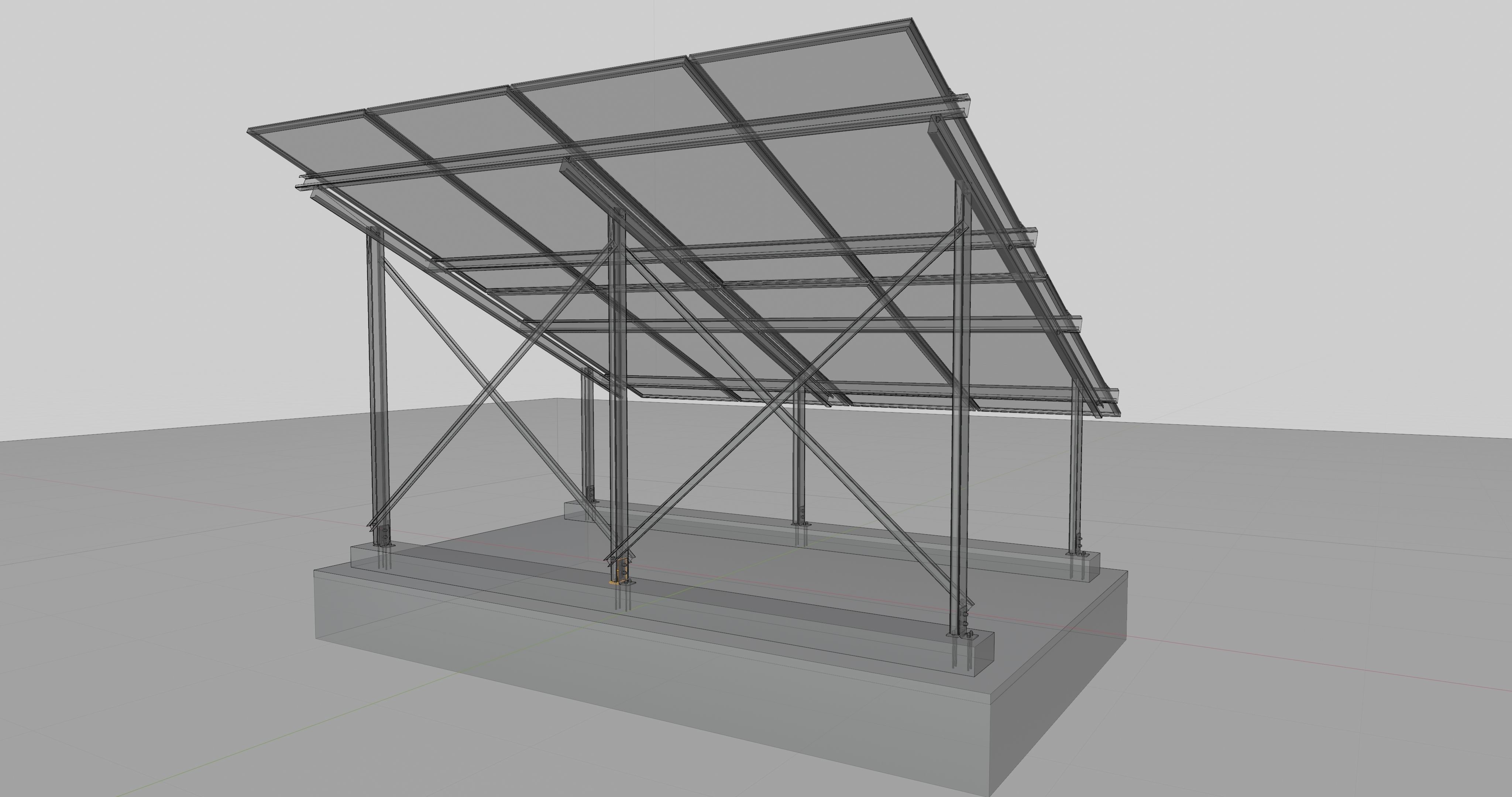

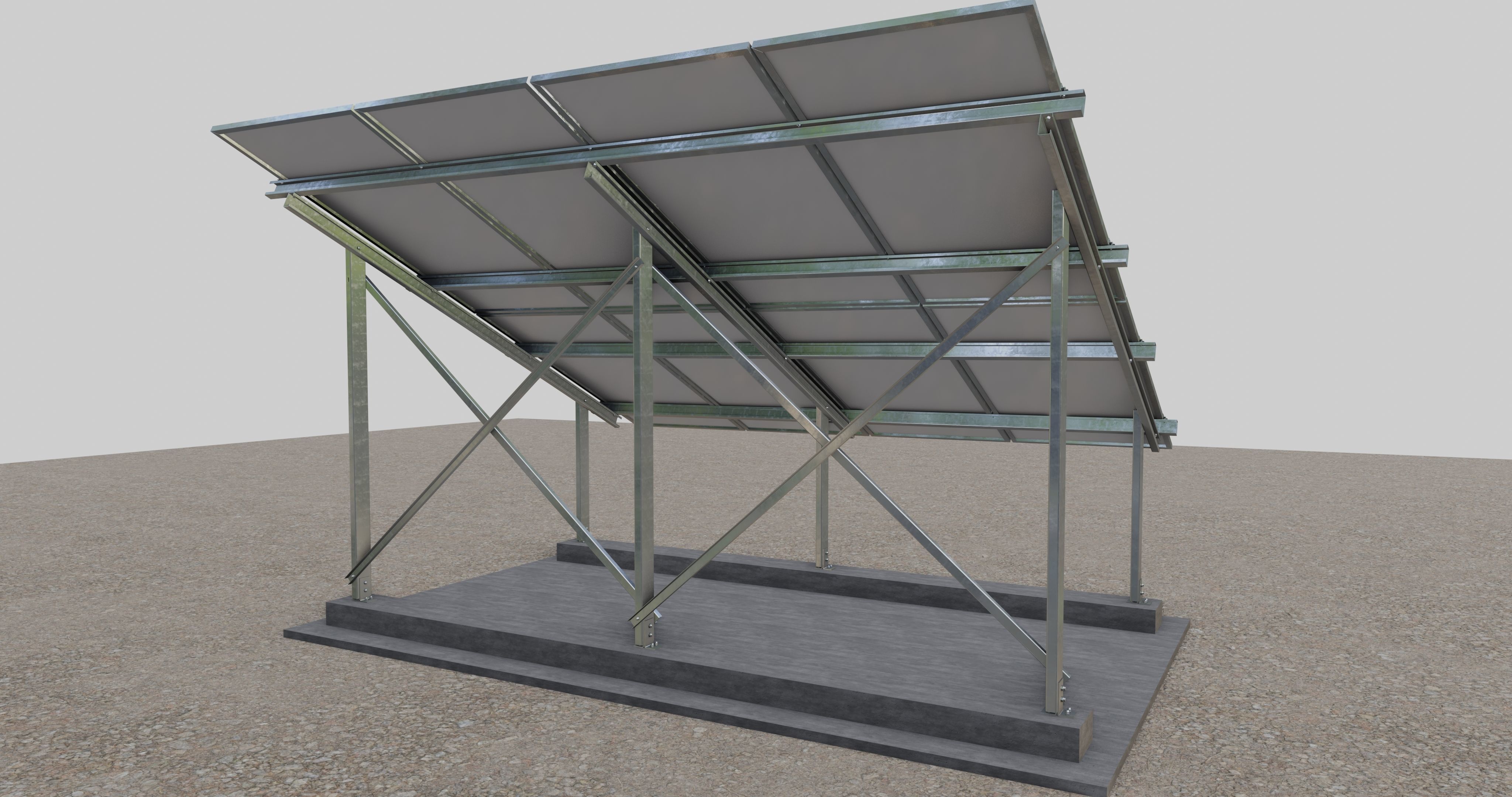

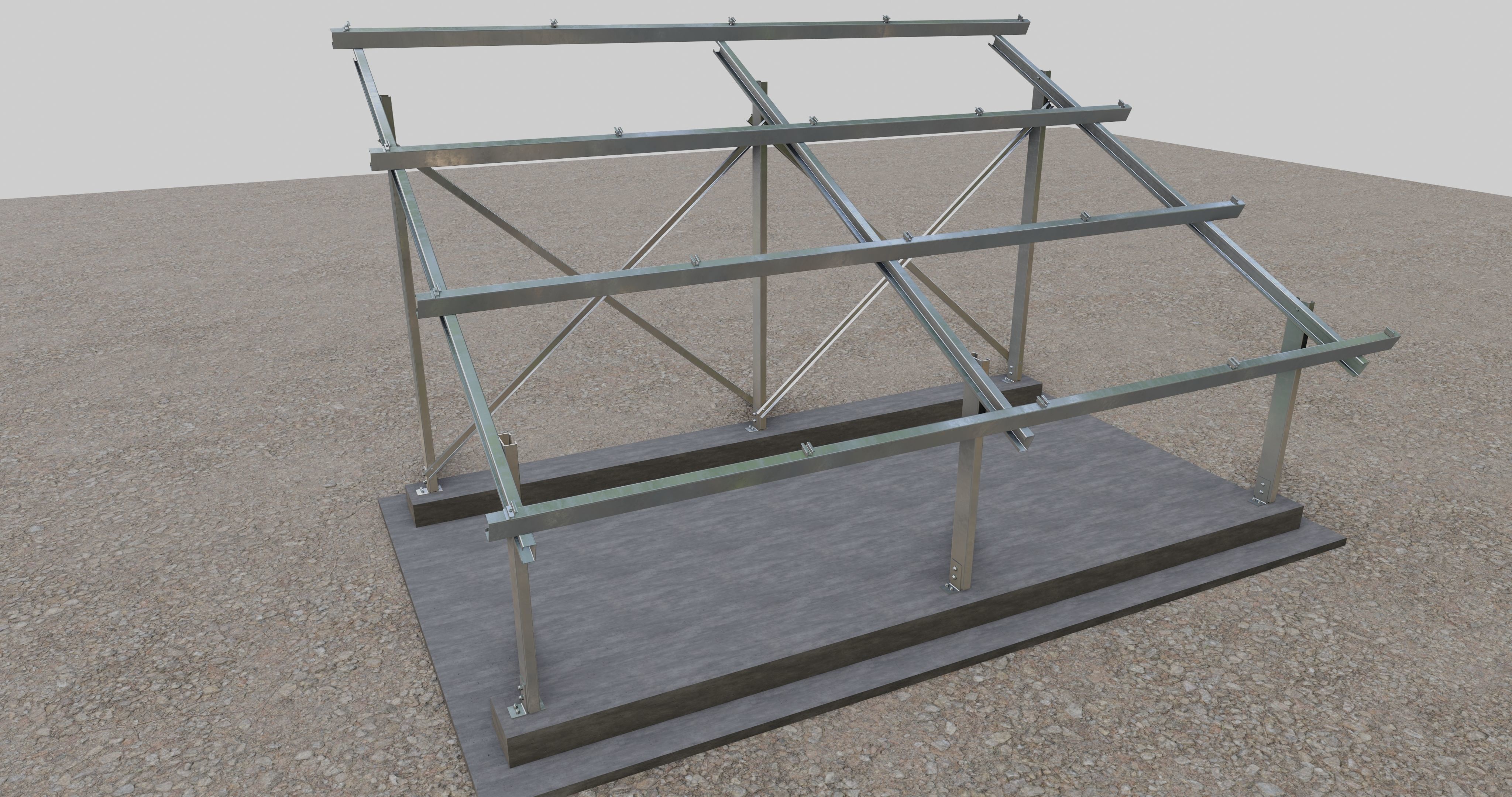

The system consists of 3 axles and the distance between each axle is 2200 mm.

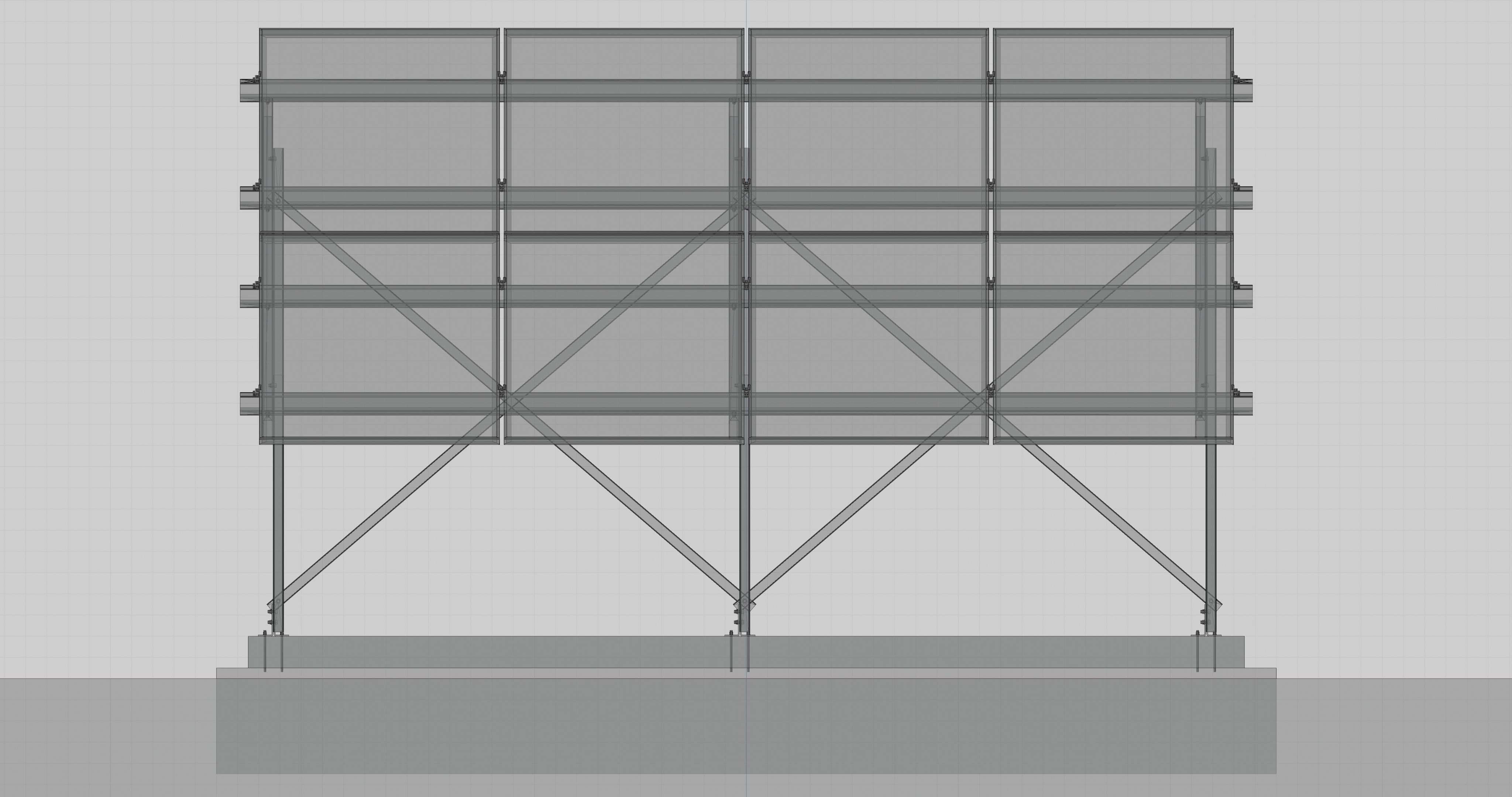

Distance between two columns 2300 mm.

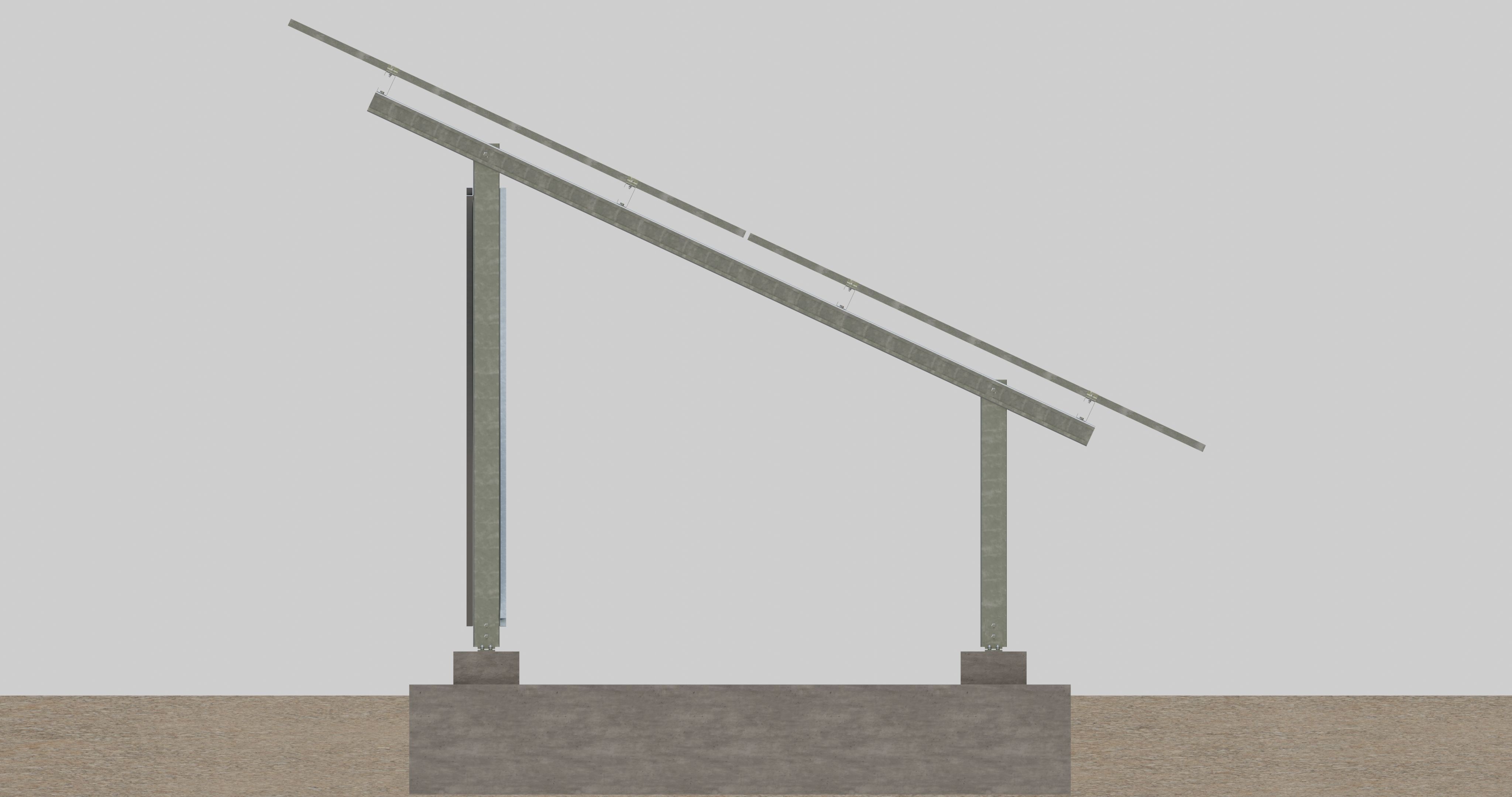

Horizantal angle of panel 25°
The closest distance of the panels to the floor 1000 mm.
Profile Section;

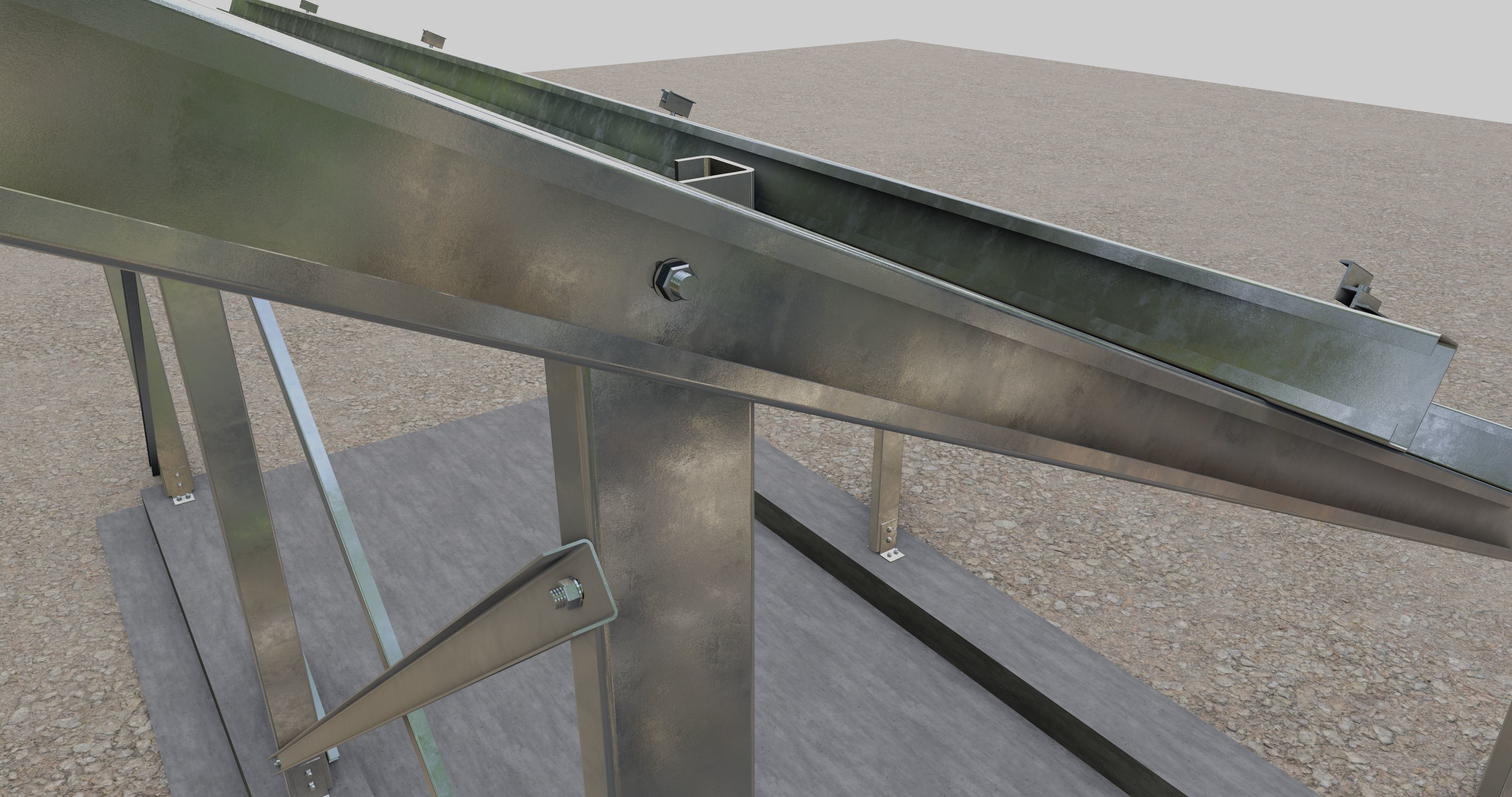

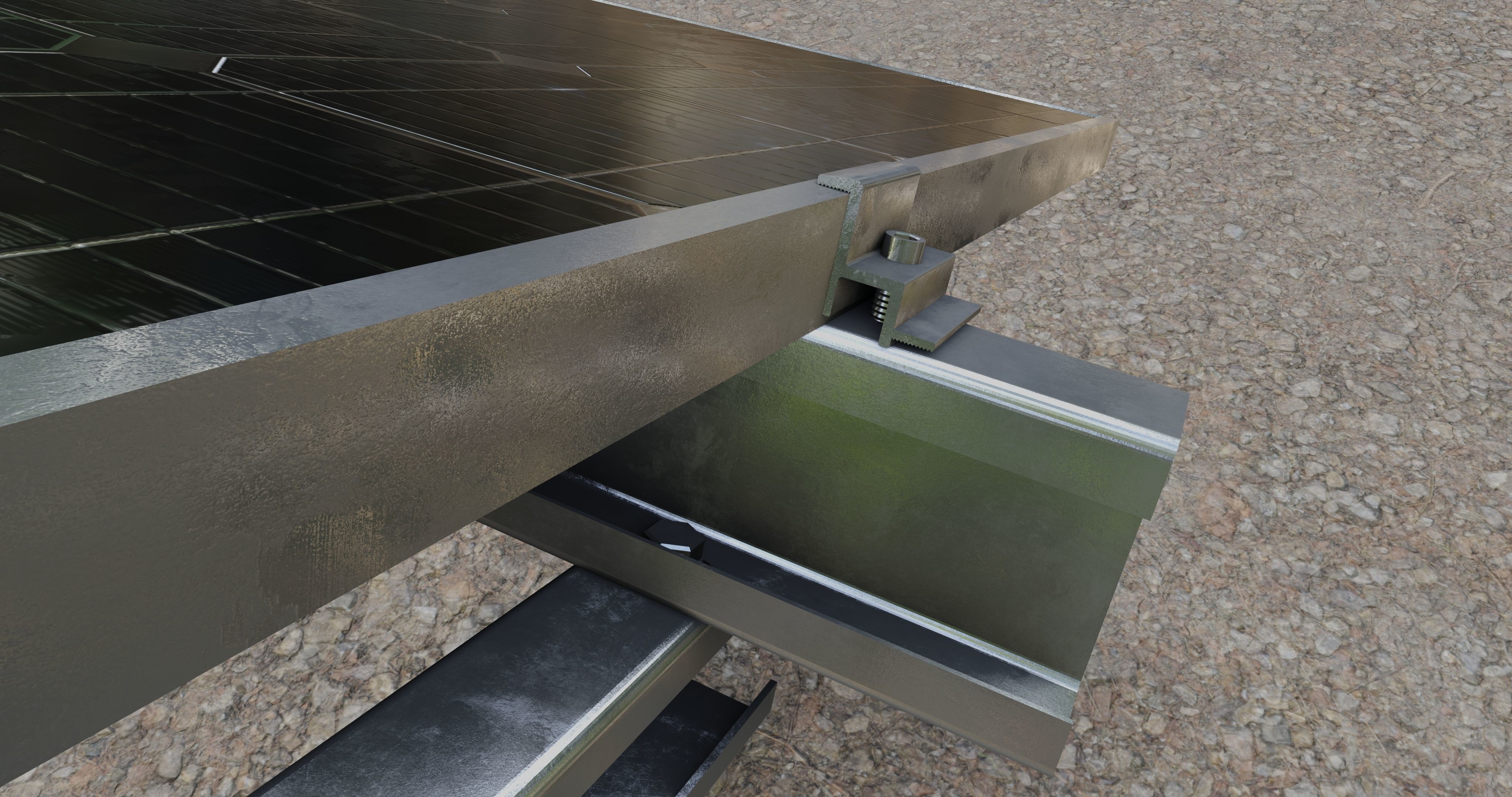

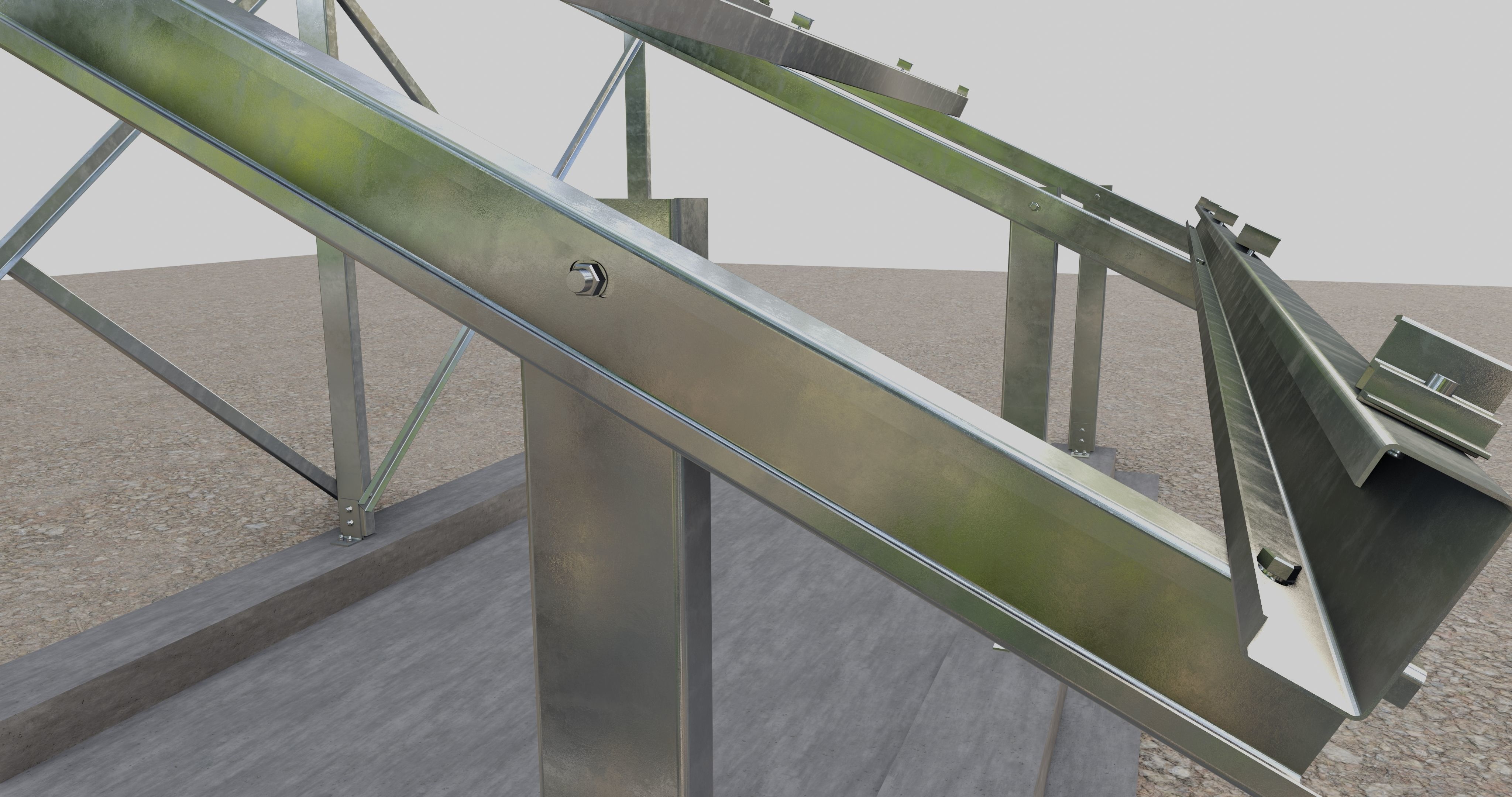

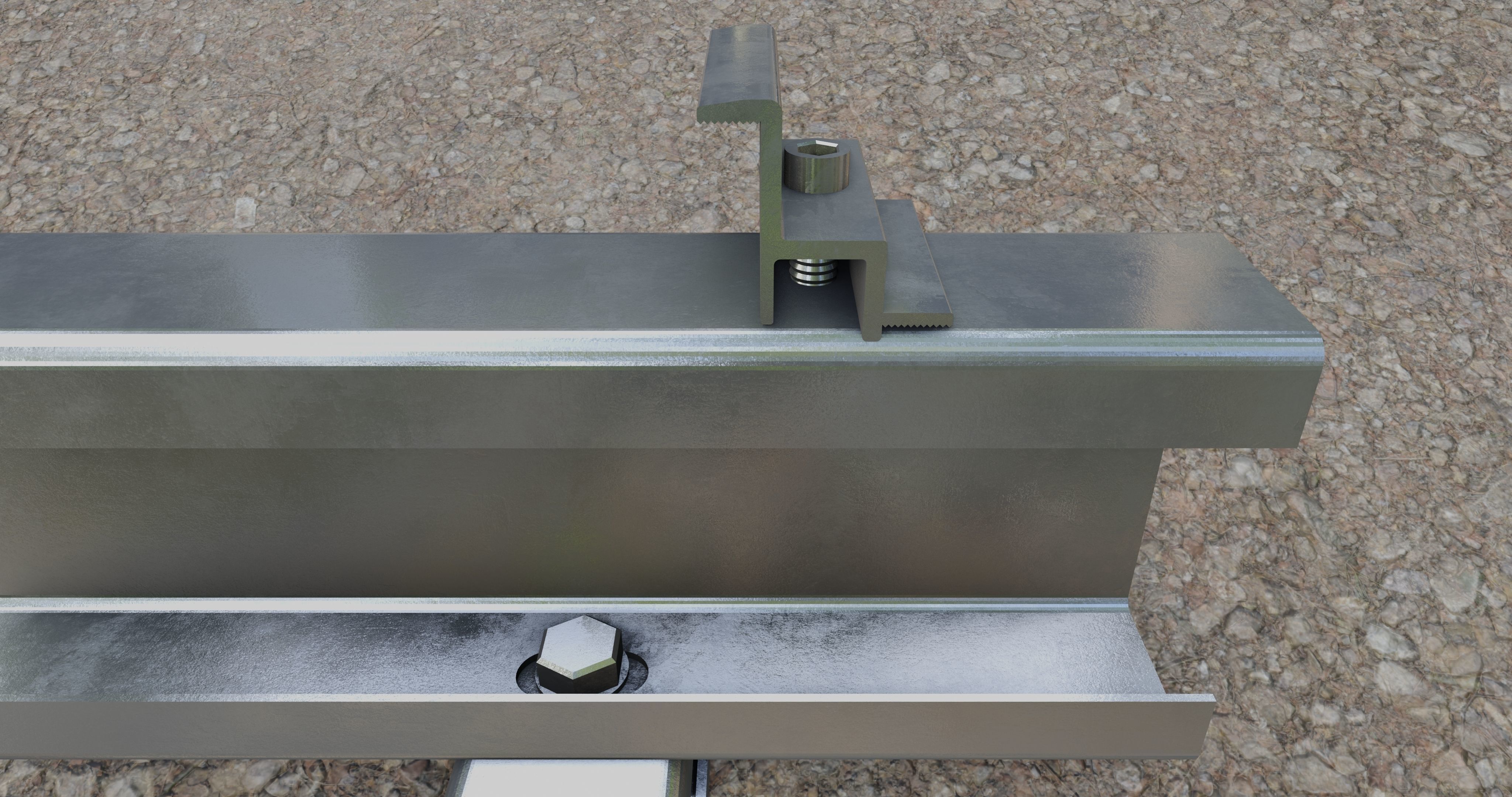

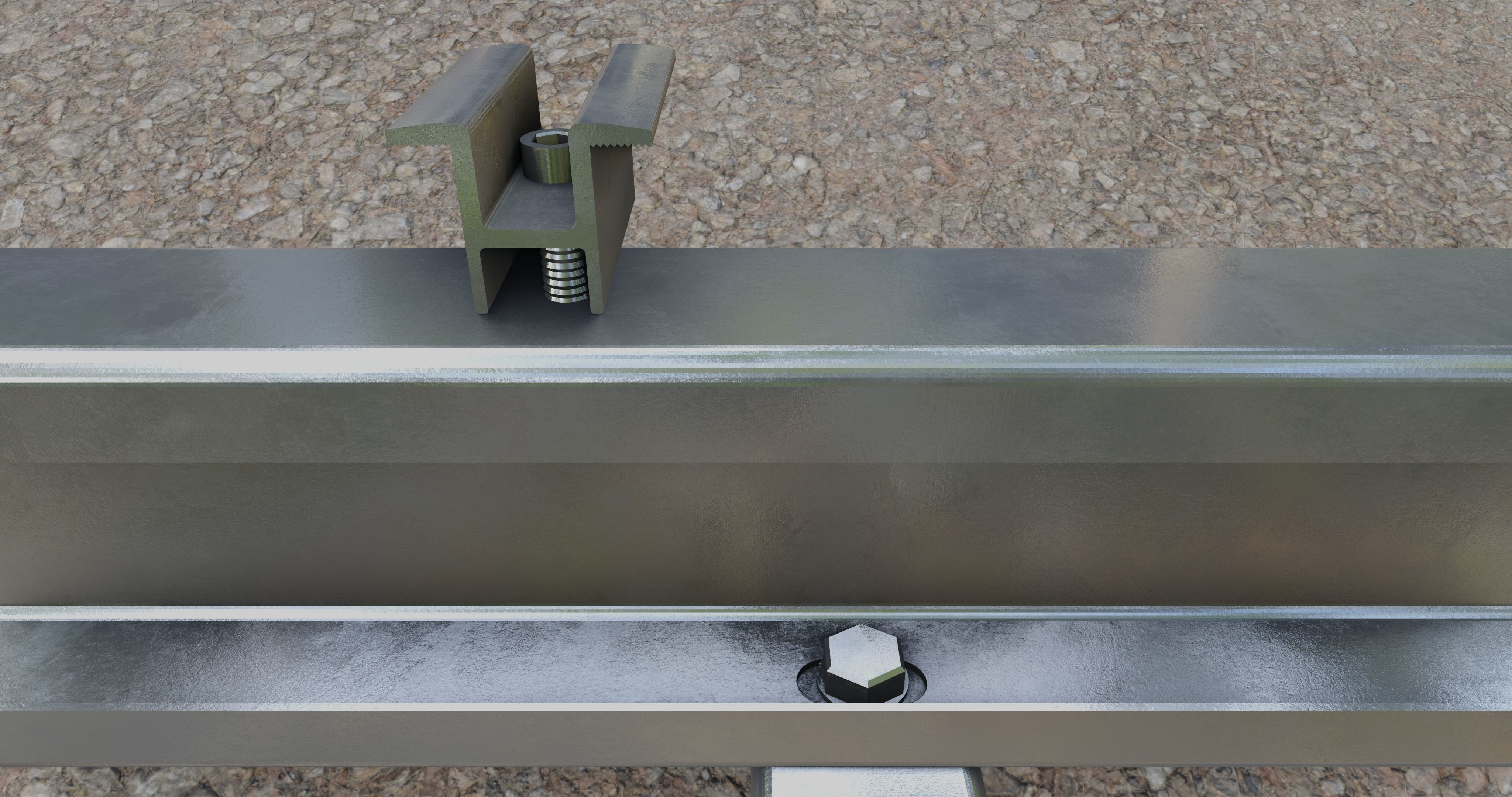

Column : C Profile C120x50x25-4mmBeam : C Profile C100x50x20-3mmPurlin : C Profile C90x50x20x-2mmDiagonal : U Profile U50x30-2mmAnchor Angle Profile : L150x60-6mm

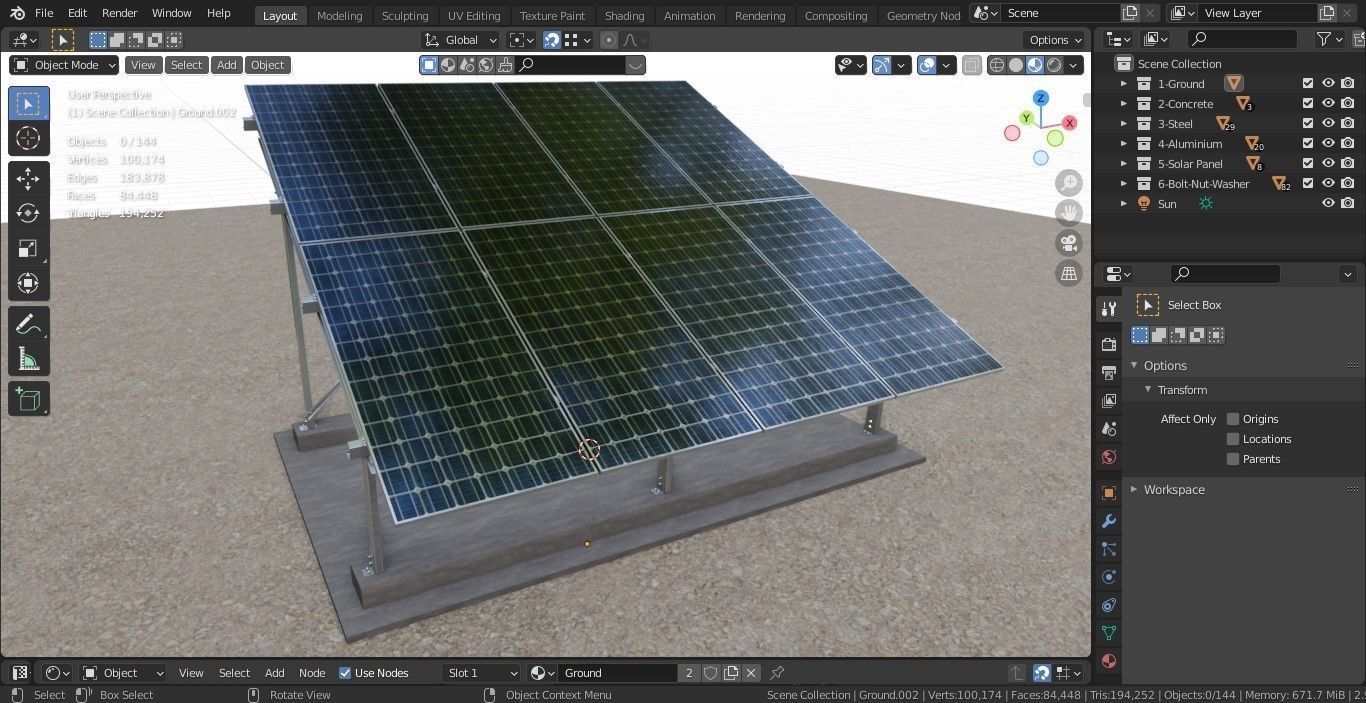

Prepared With BLENDER Version 2.93.5
Polygons : 84448
Vertices : 100174
Objects : 144
3D Model formats
Format limitations
- Blender 2.93.5 (.blend)14 MBVersion: 2.93.5Renderer: Eevee 2.93.5
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 84,448
- Vertices 100,174
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2023-04-23
- Model ID#4455505
