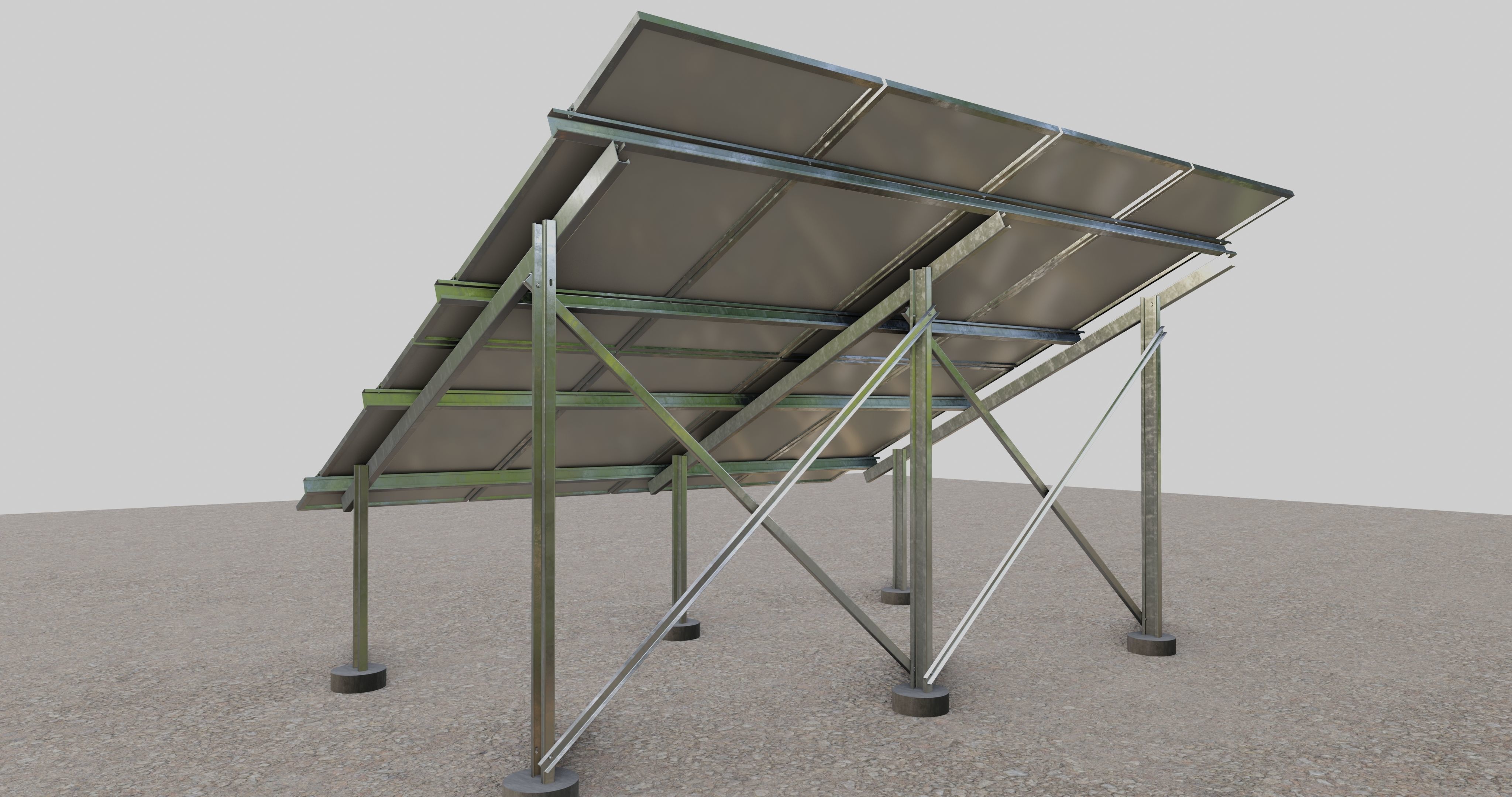

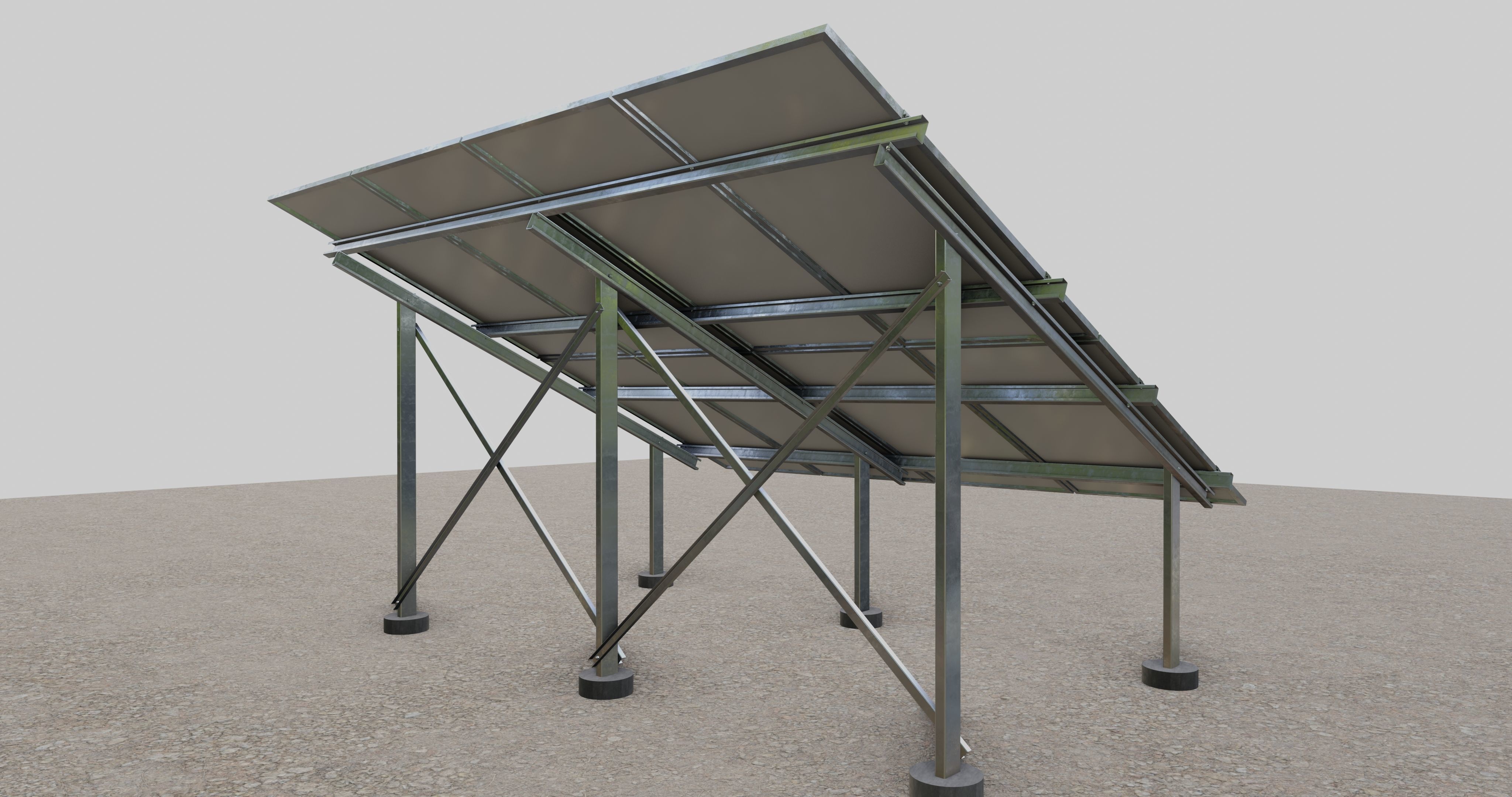

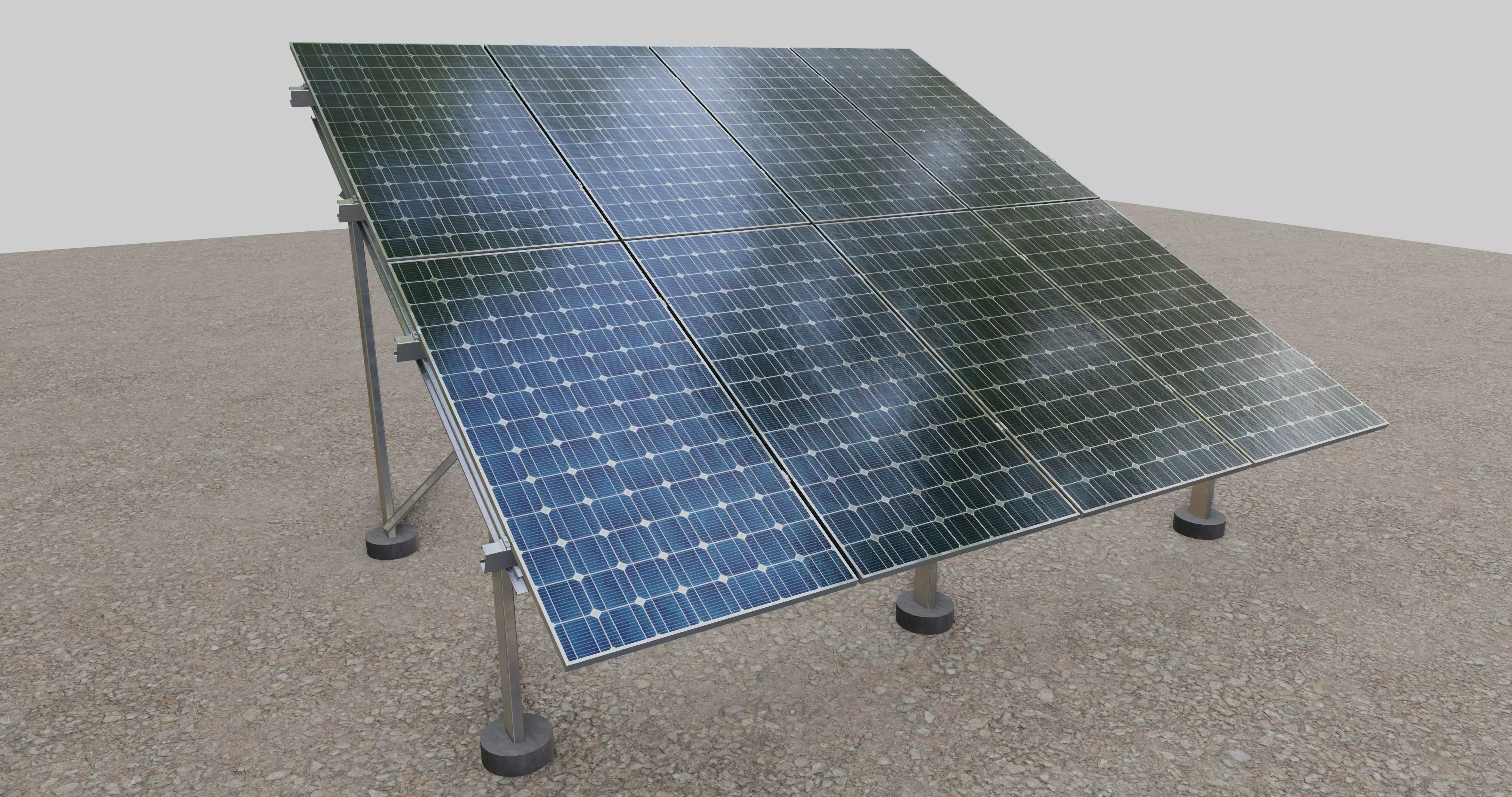

Solar Panel Steel Construction Type 2 3D model

Solar Panel Steel Construction Type 2

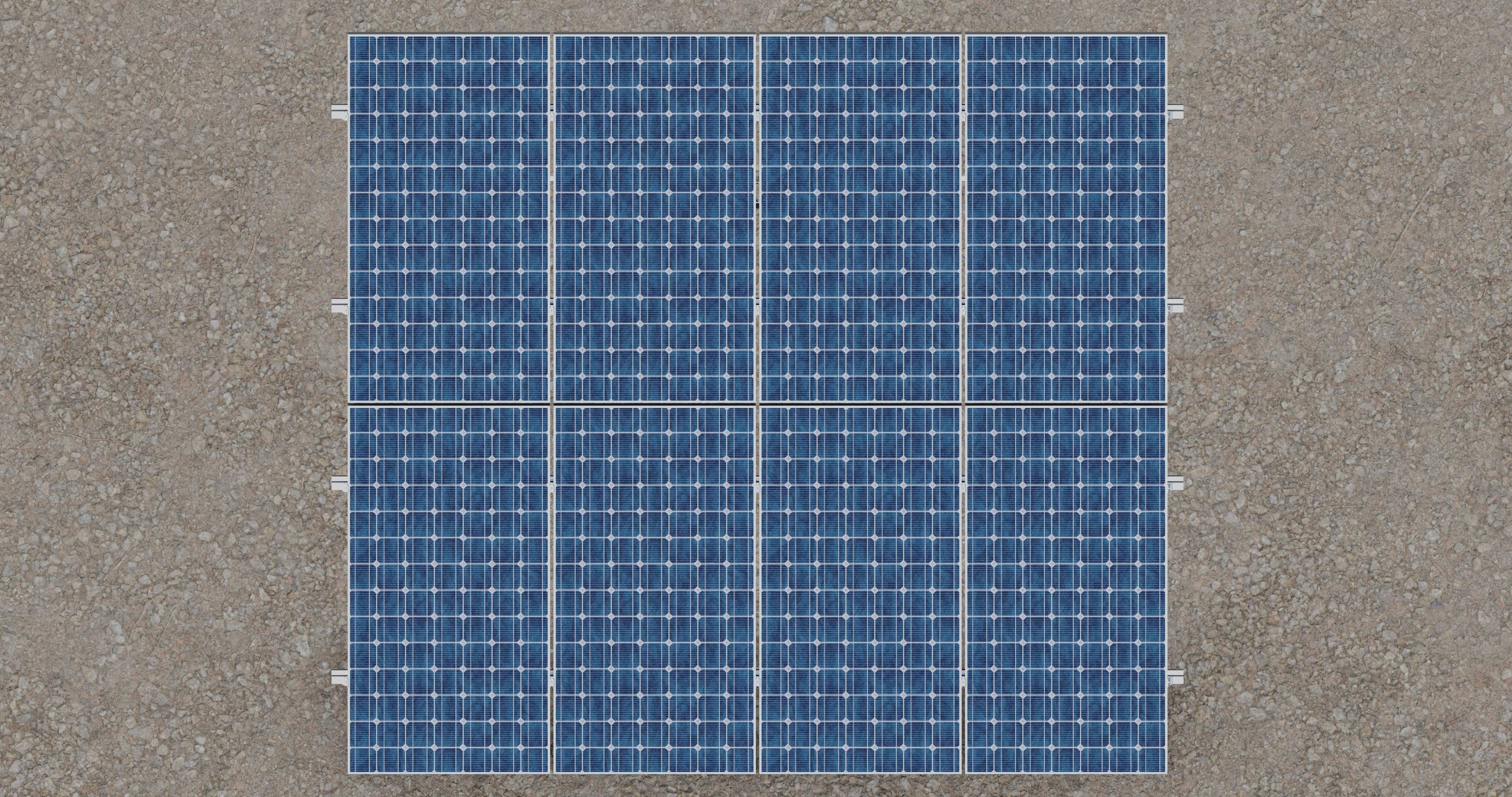

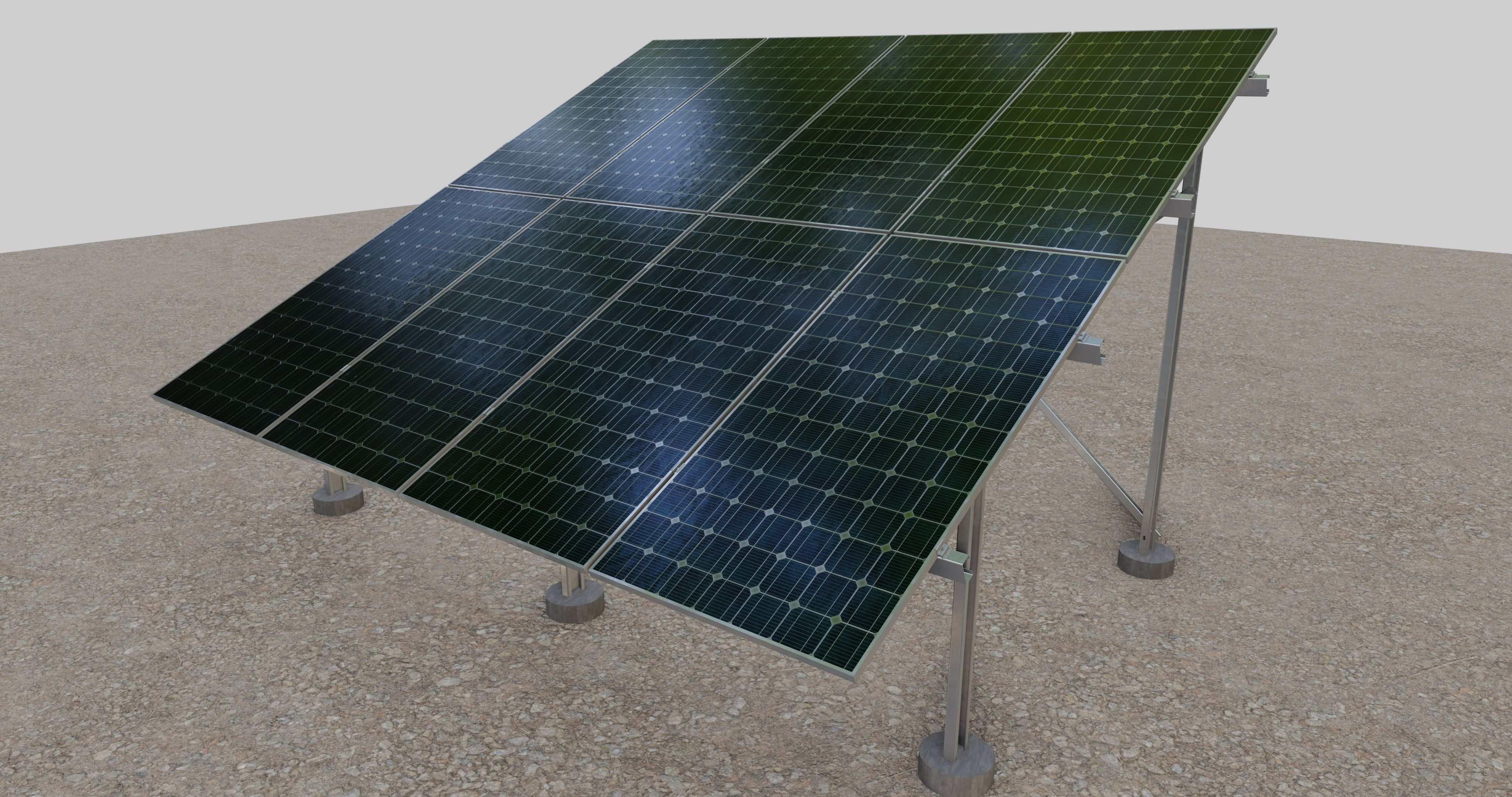

2x4 Vertical Panel Layout

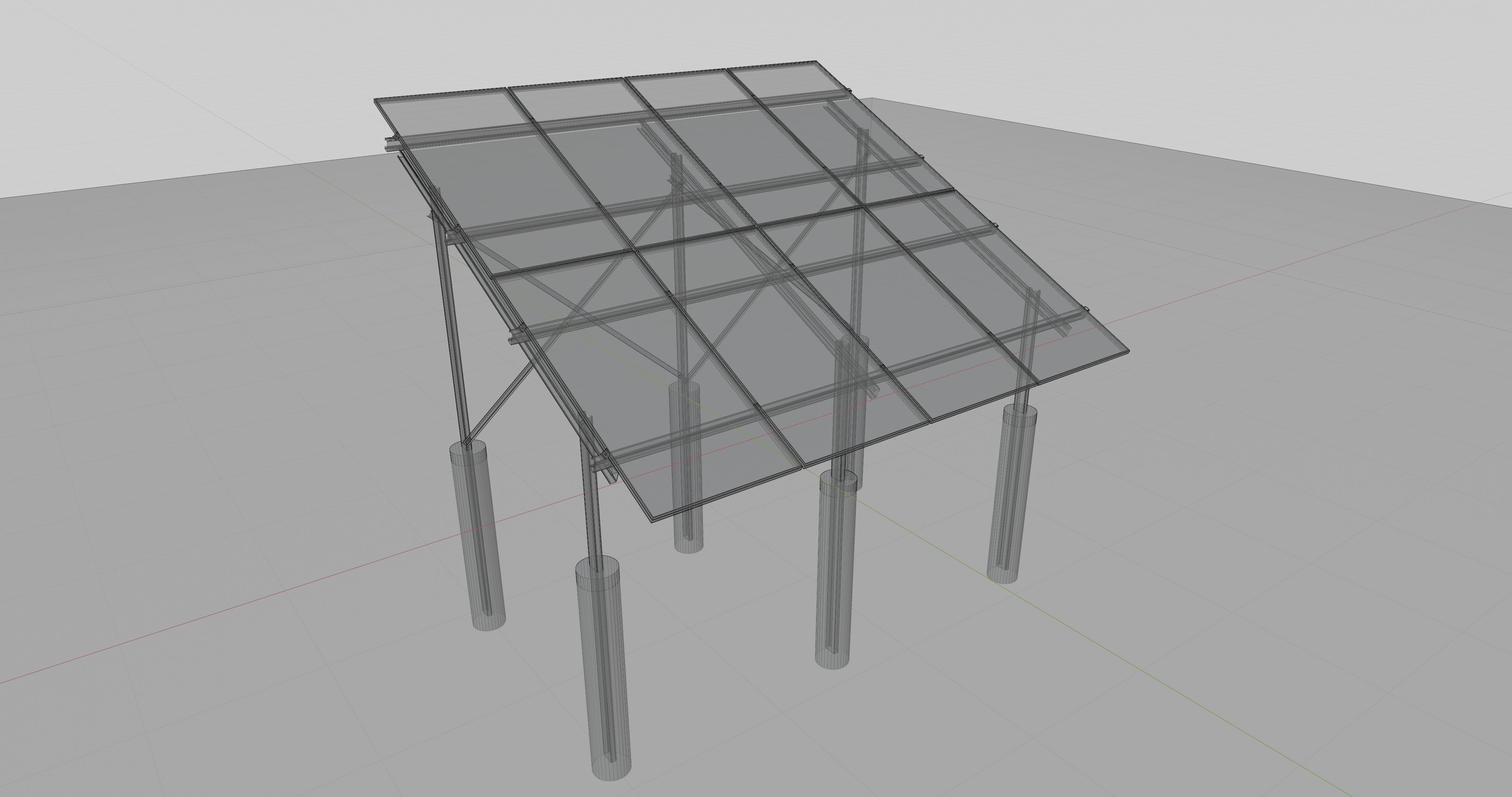

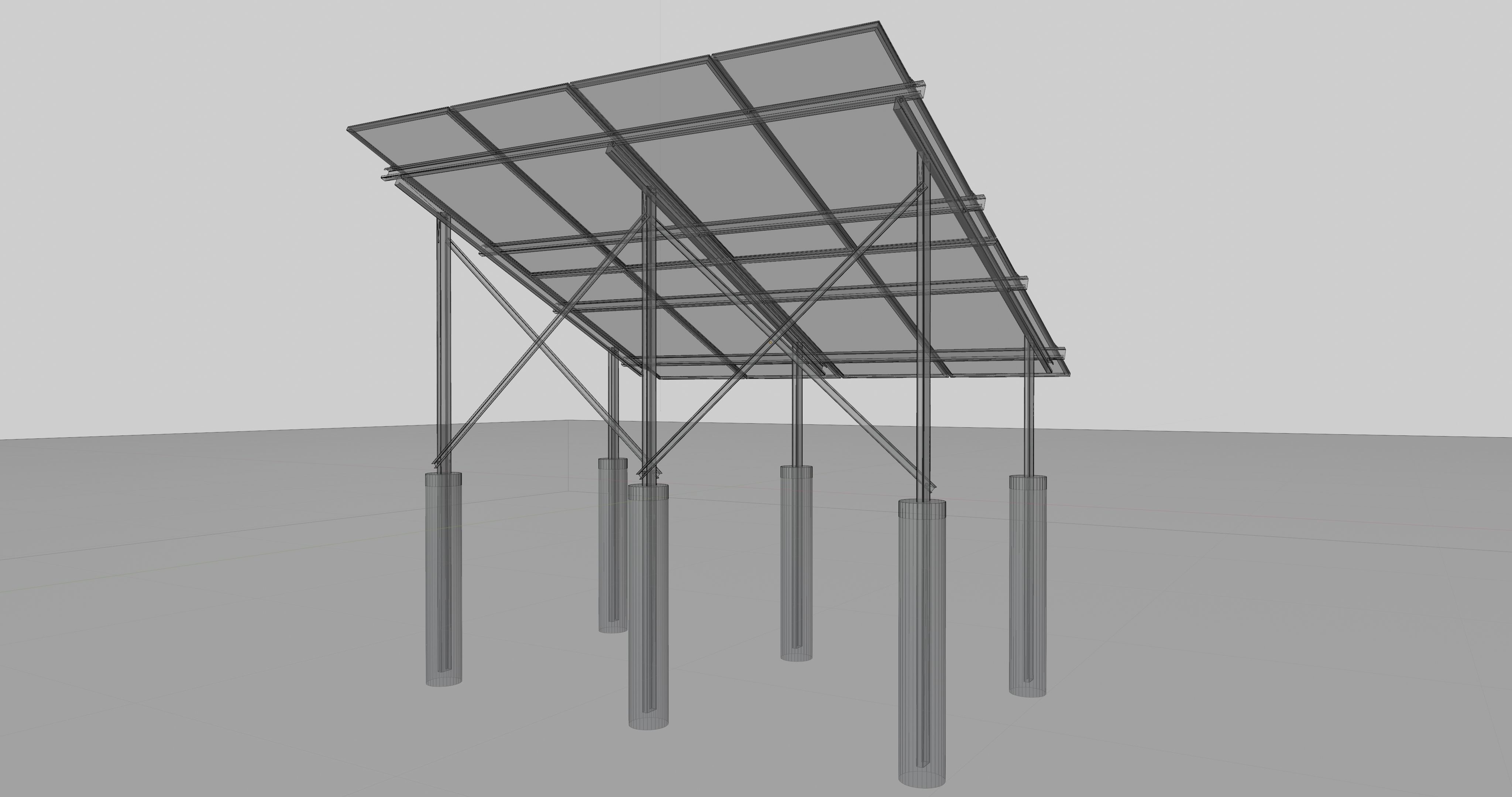

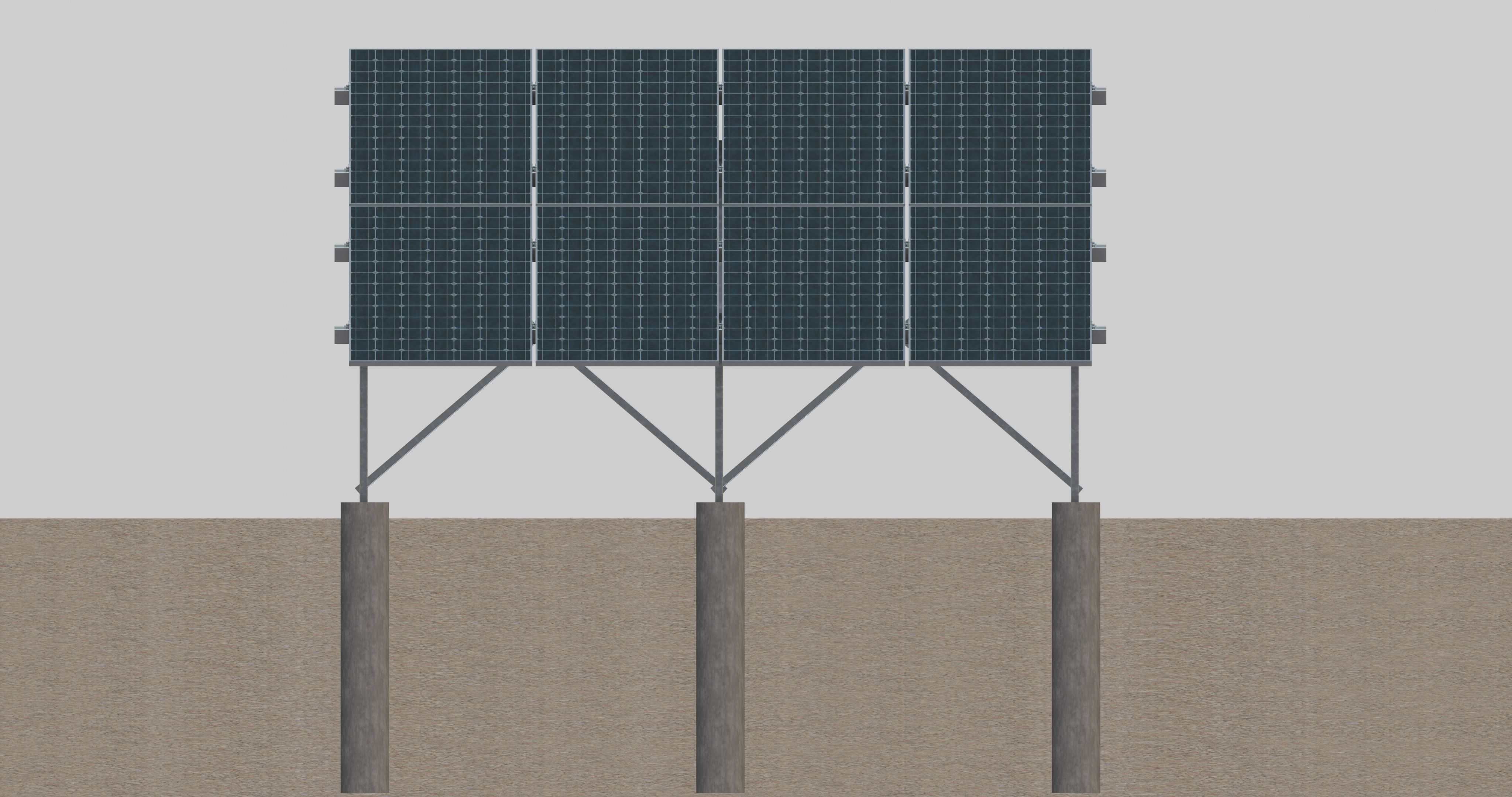

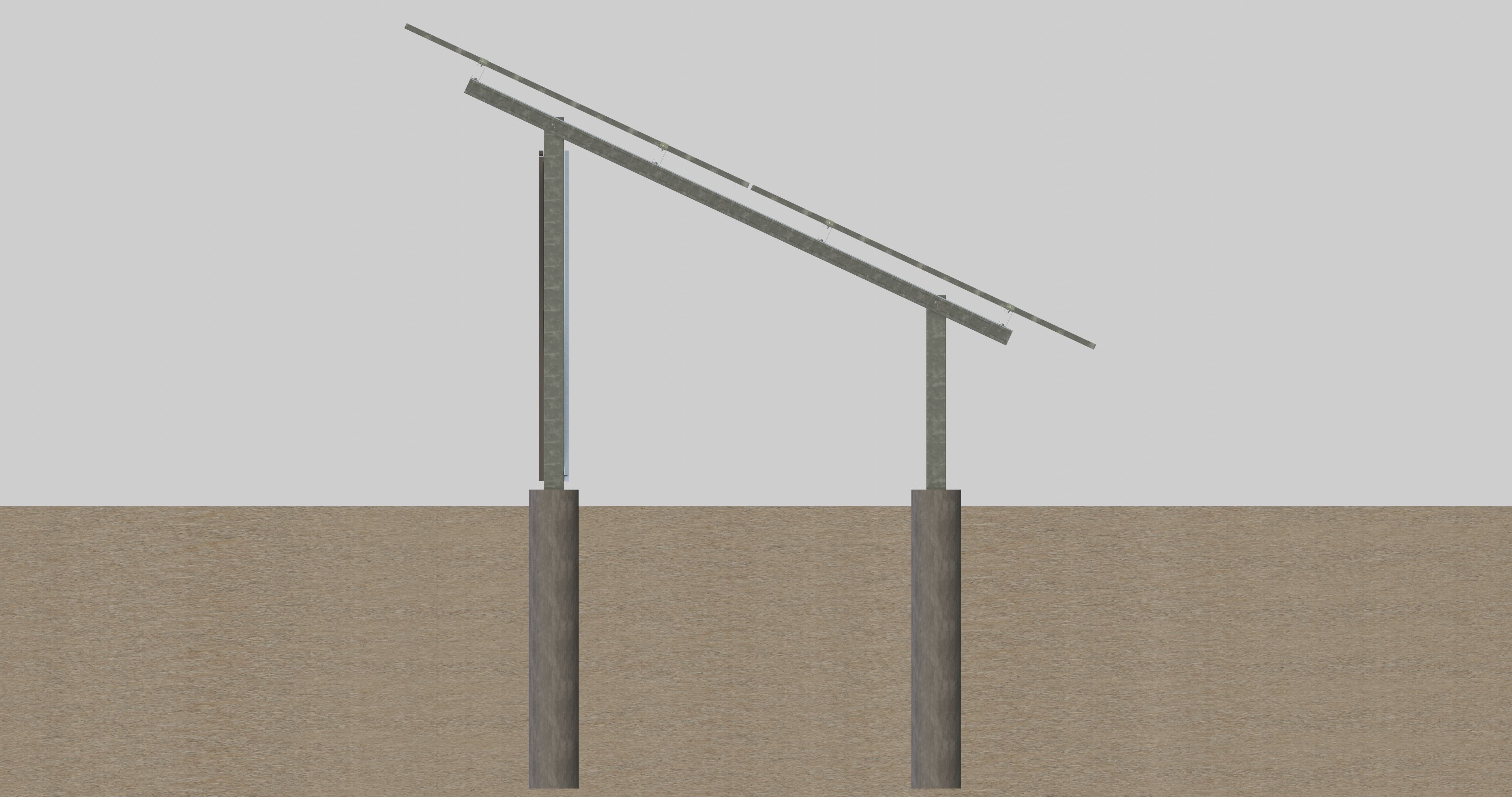

Ground Connection Type; With Concrete Friction Pile

Distance of Columns Below Ground 1600 mm.

Concrete Friction Pile Dimensions : Ø300 mm H= 1800 mm

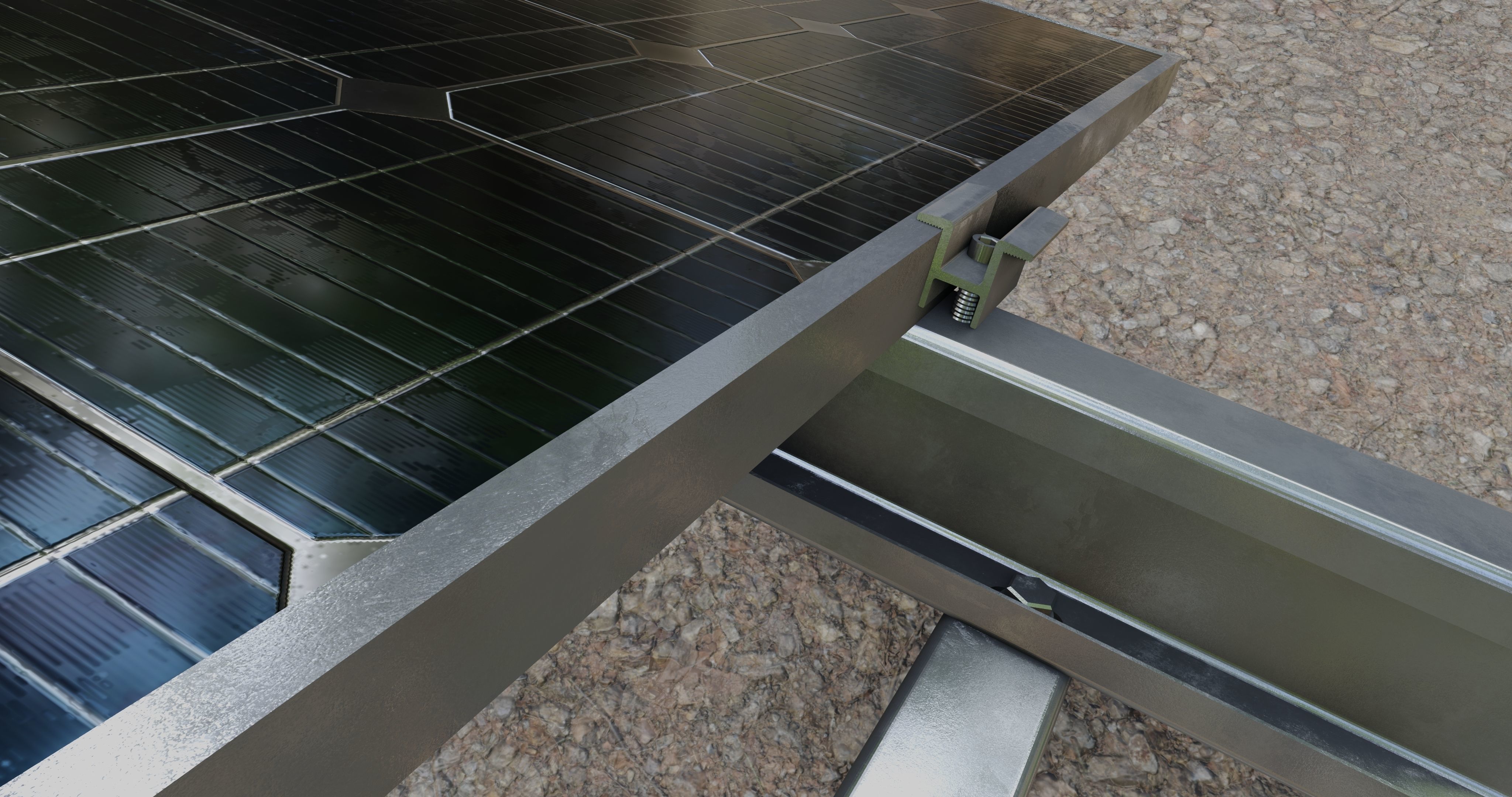

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 4,4 kWp power in 1 hour

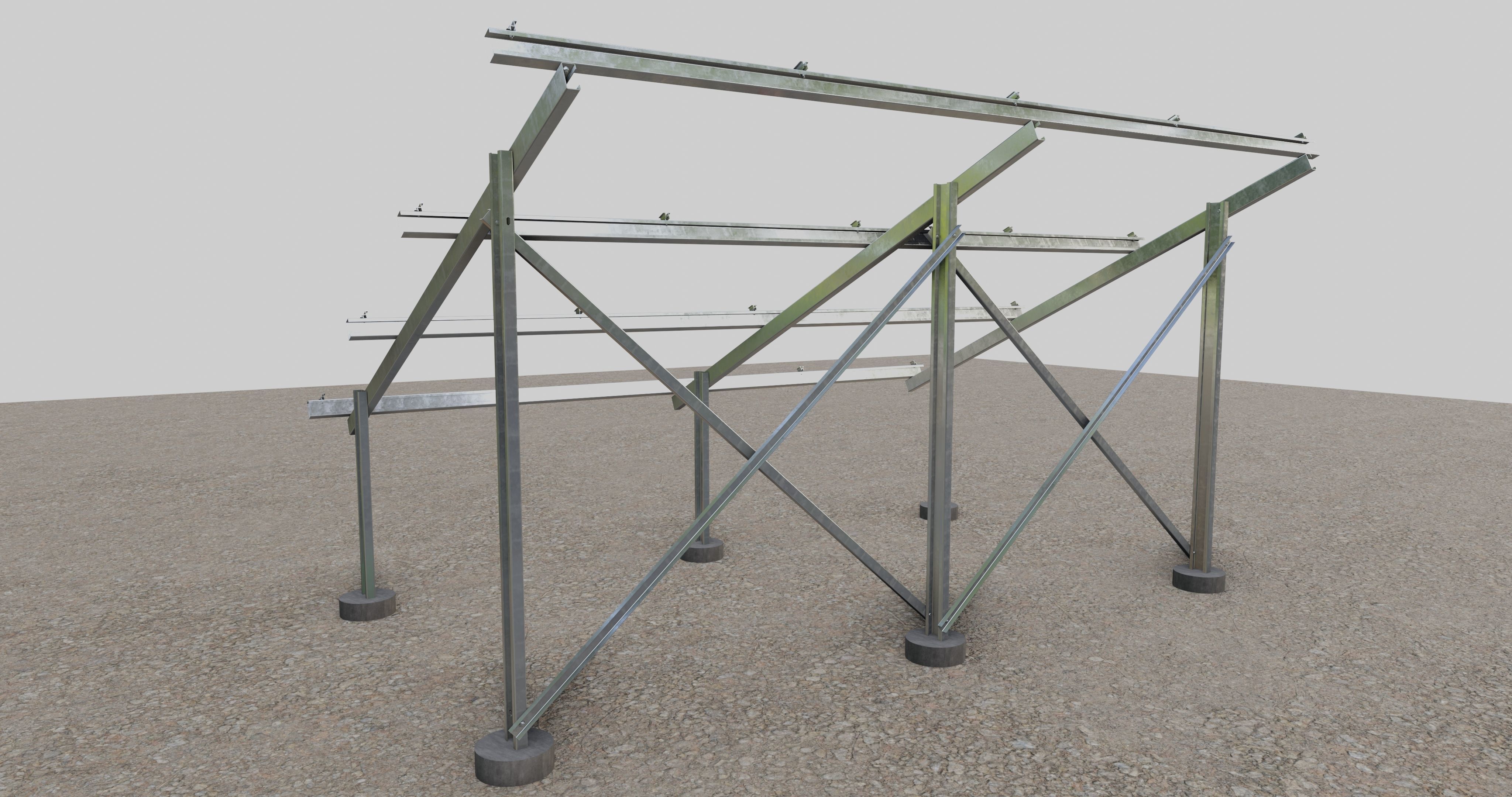

The system consists of 3 axles and the distance between each axle is 2200 mm.

Distance between two columns 2300 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 600 mm.

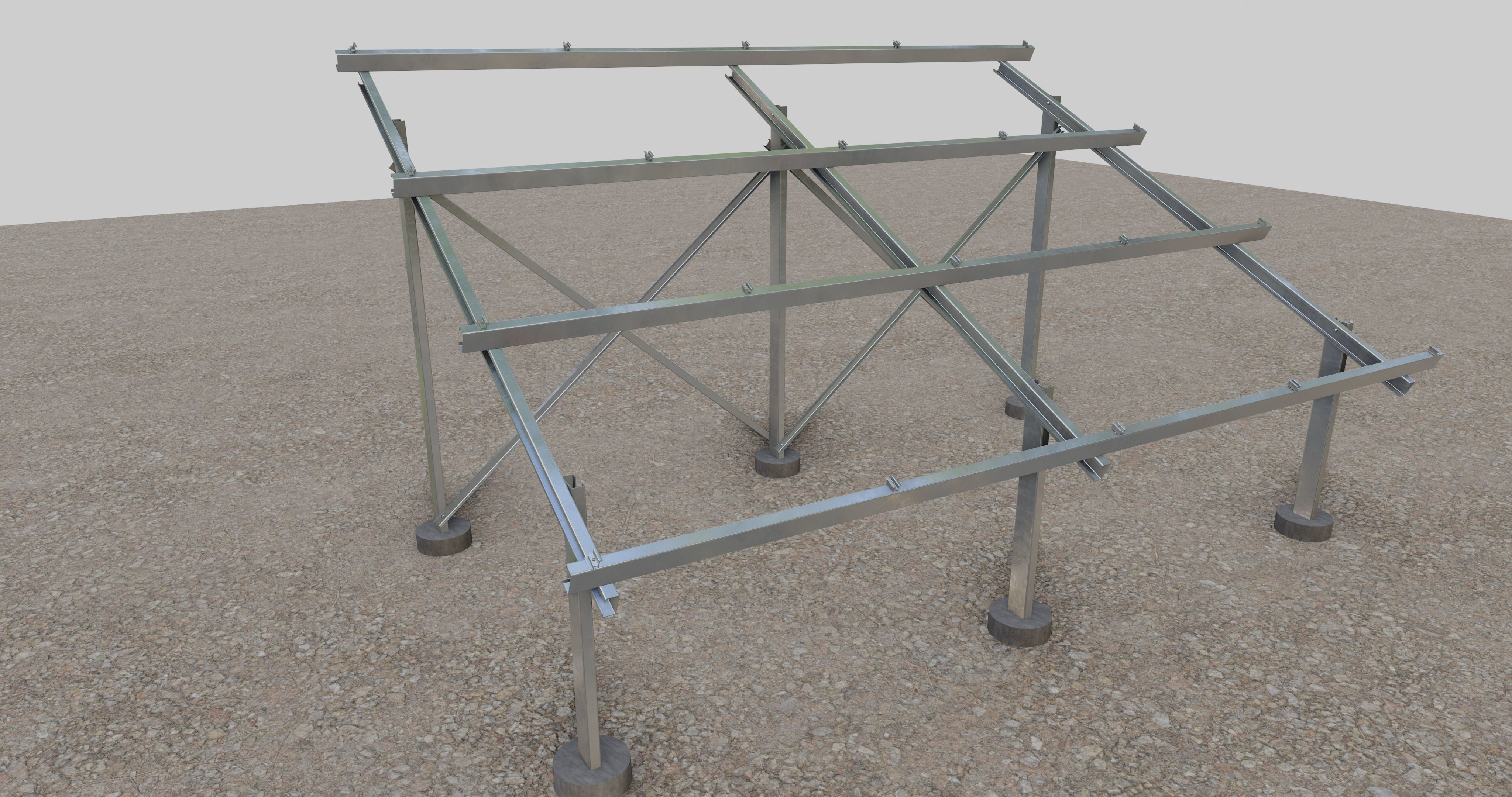

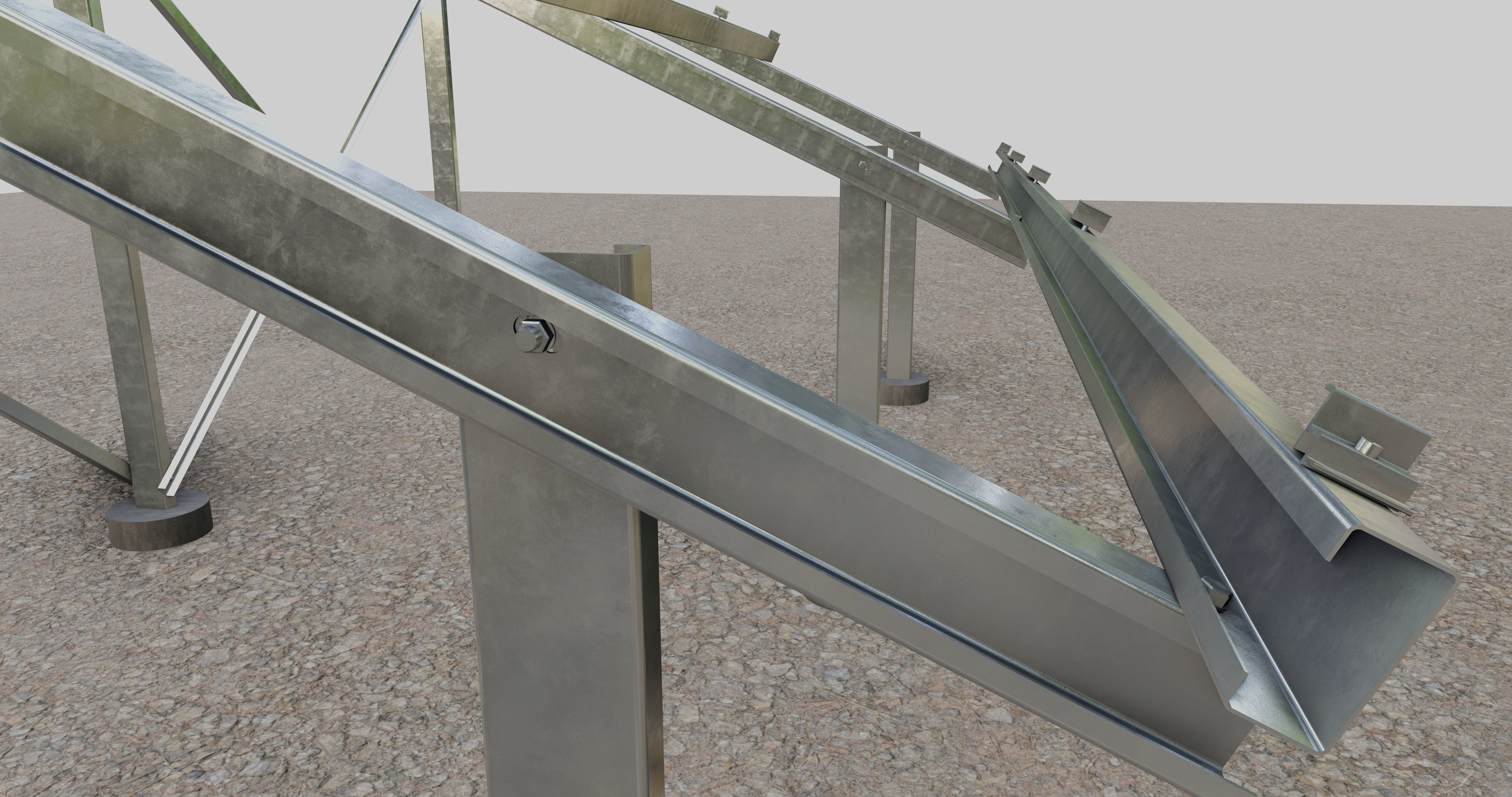

Profile Section;

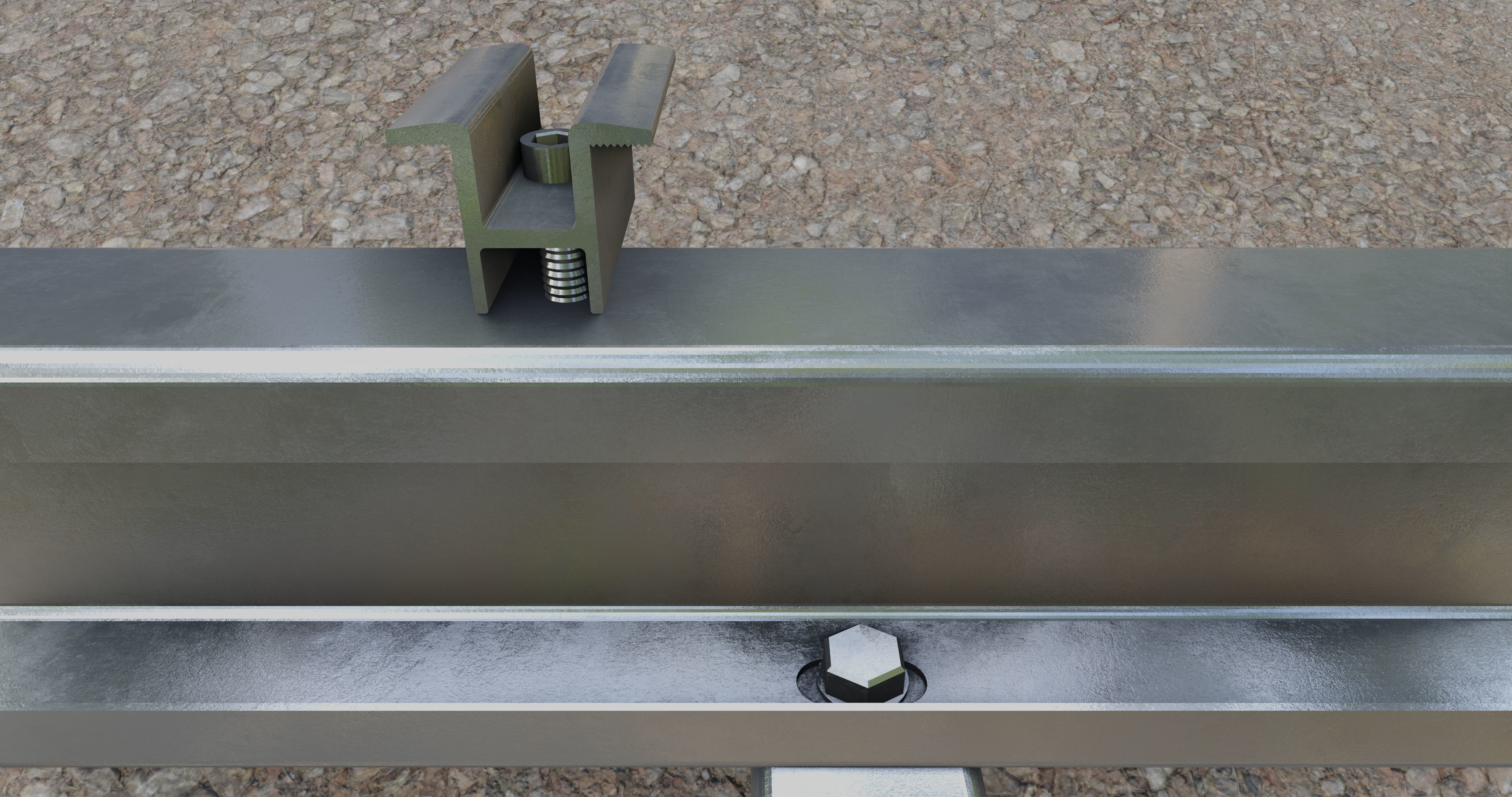

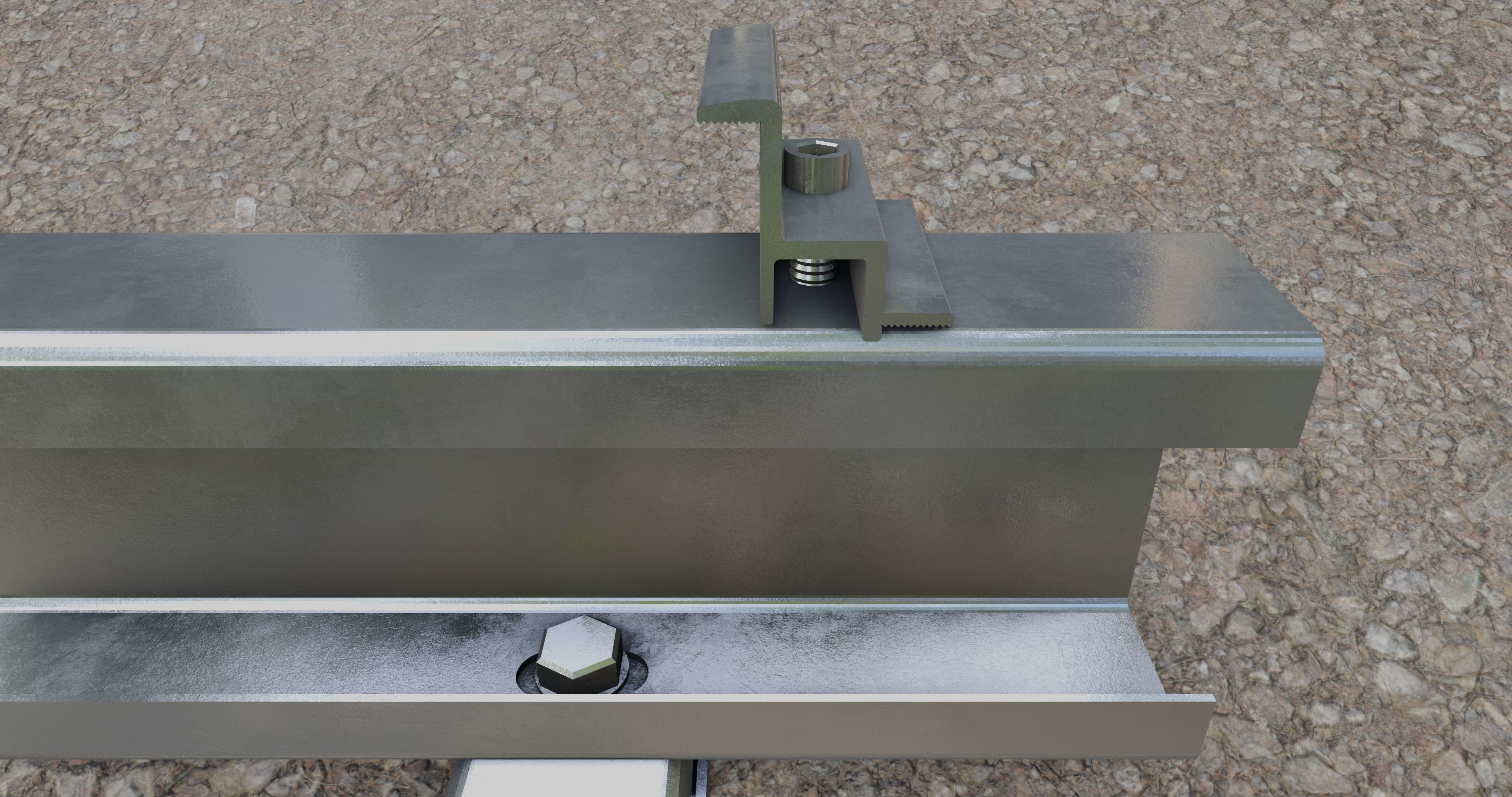

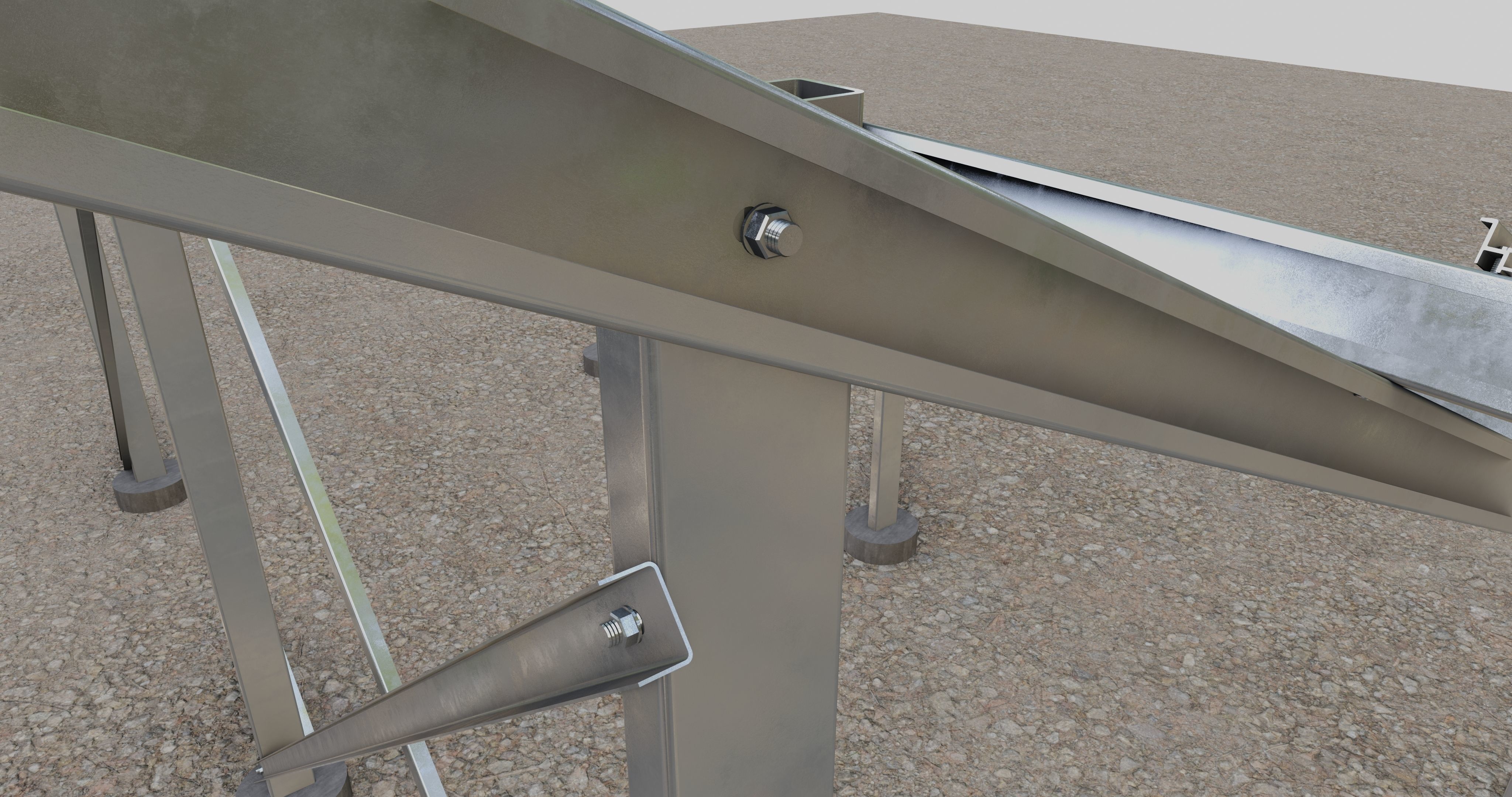

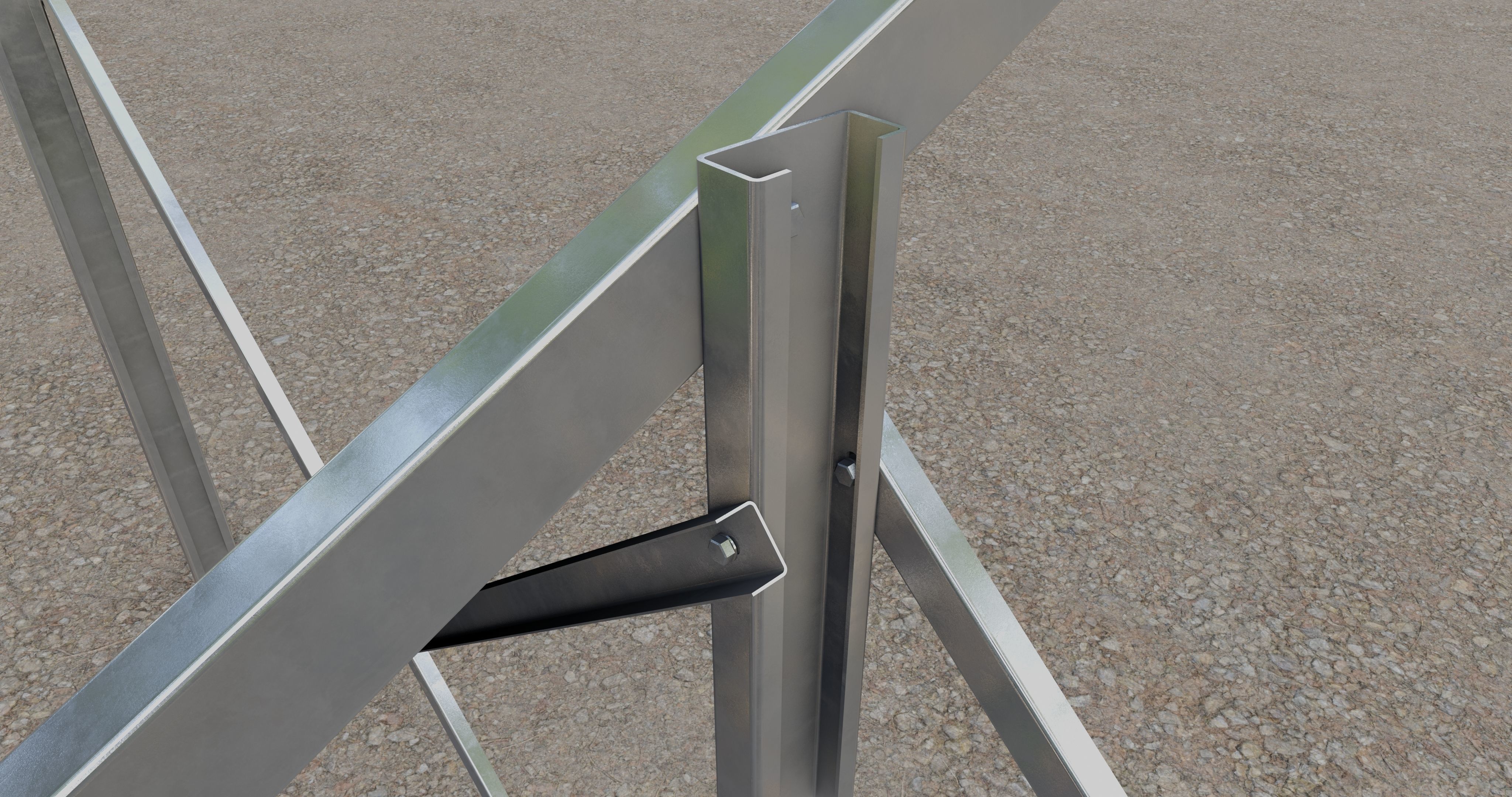

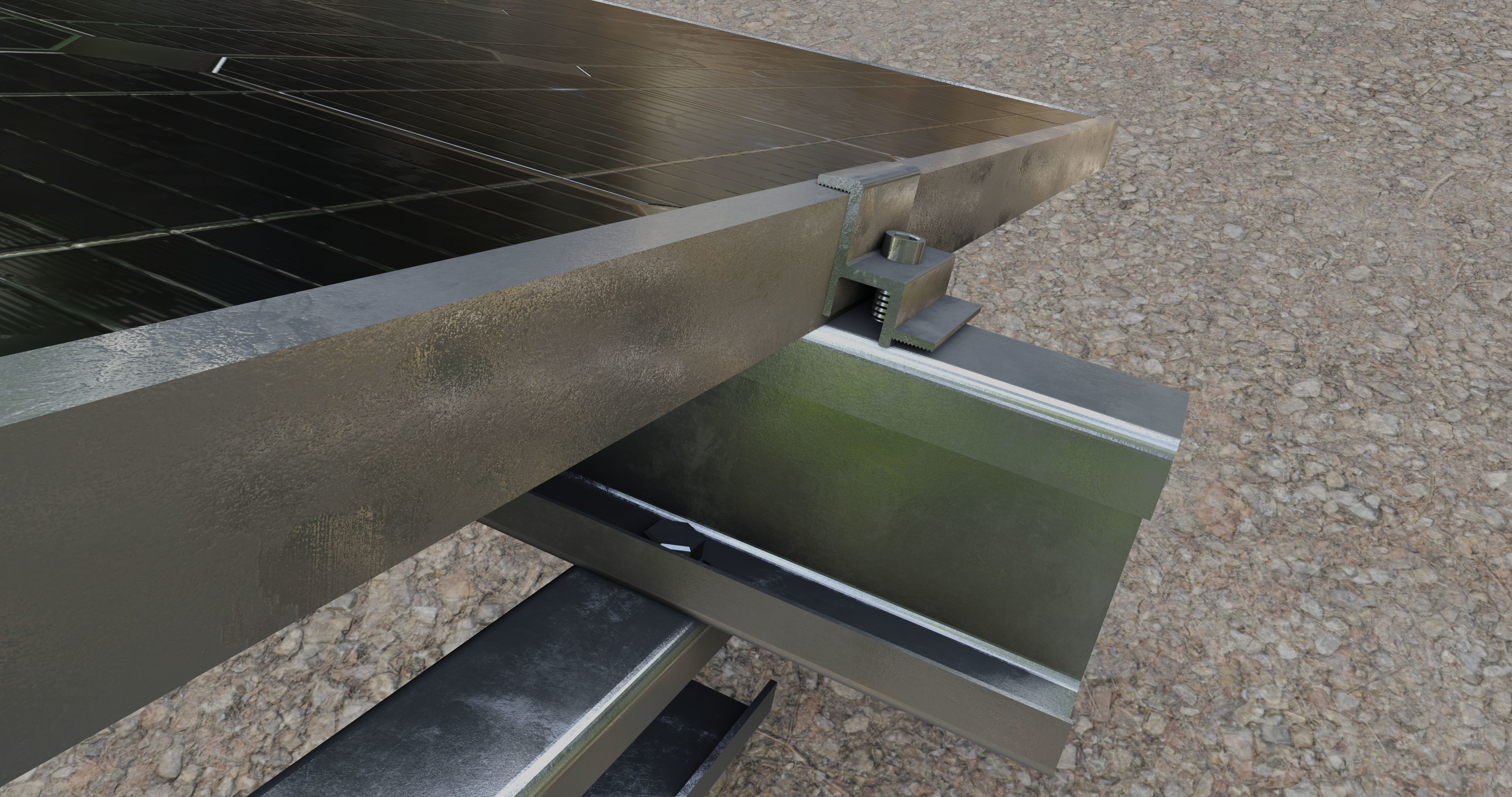

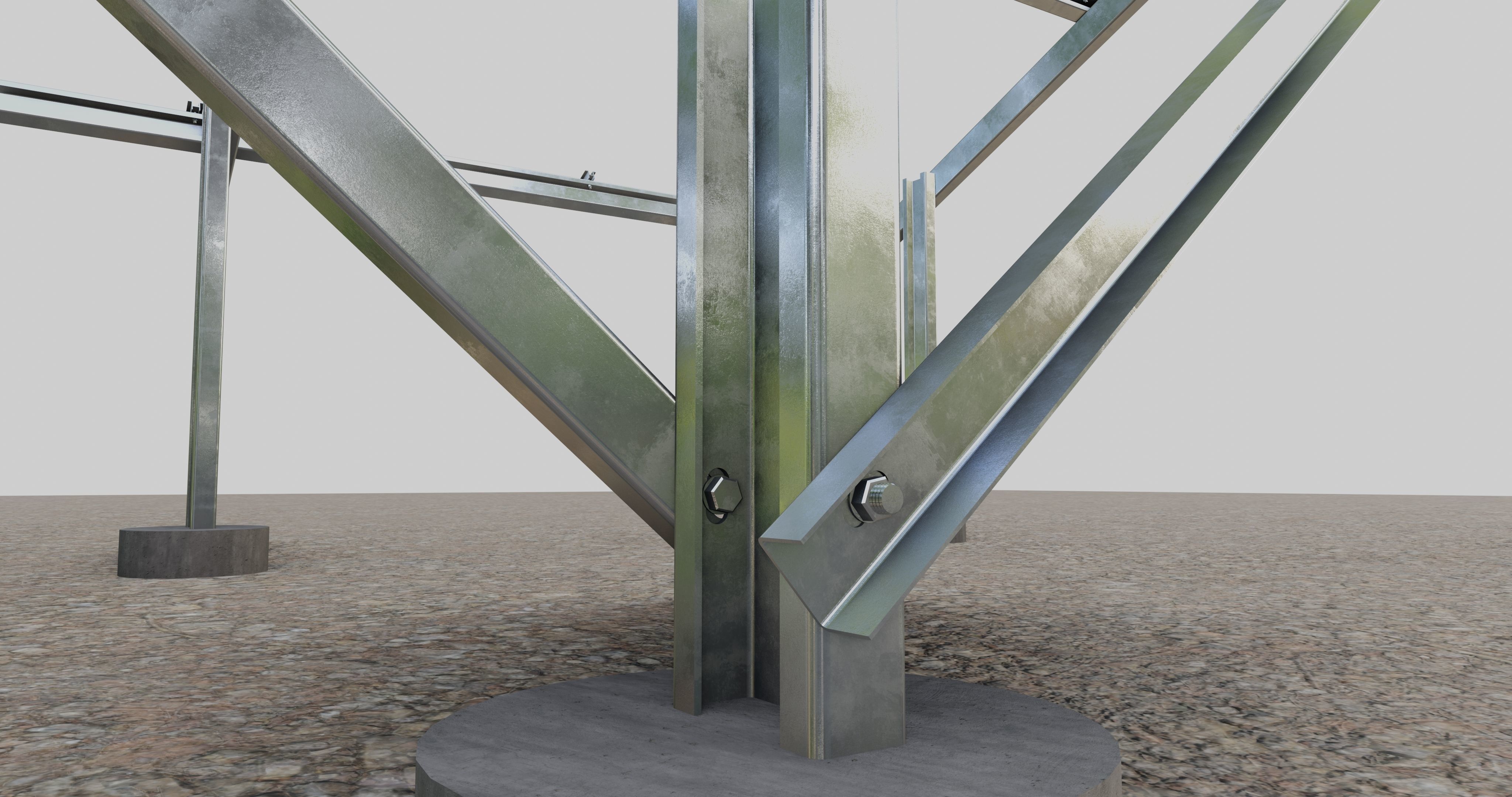

Column : C Profile C120x50x25-4mm Beam : C Profile C100x50x20-3mm Purlin : C Profile C90x50x20x-2mm Diagonal : U Profile U50x30-2mm

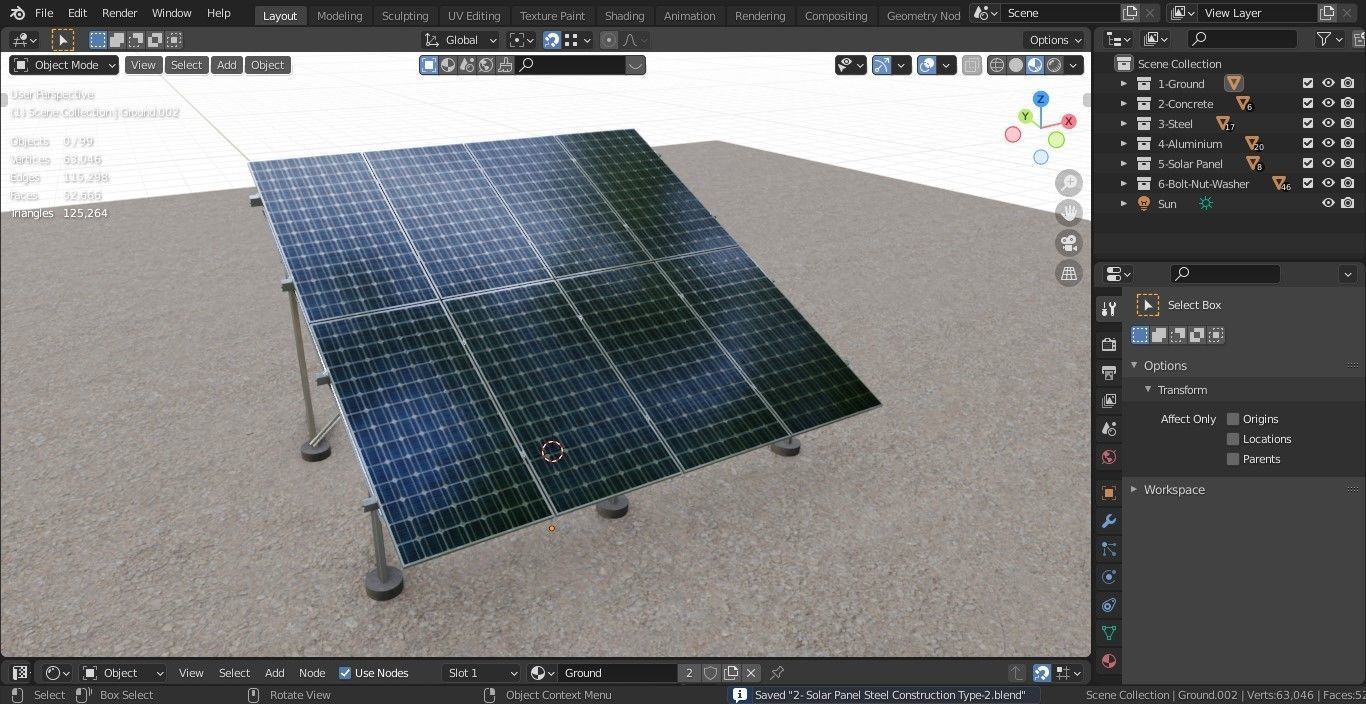

Prepared With BLENDER Version 2.93.5

Polygons : 52666

Vertices : 63046

Objects : 99
