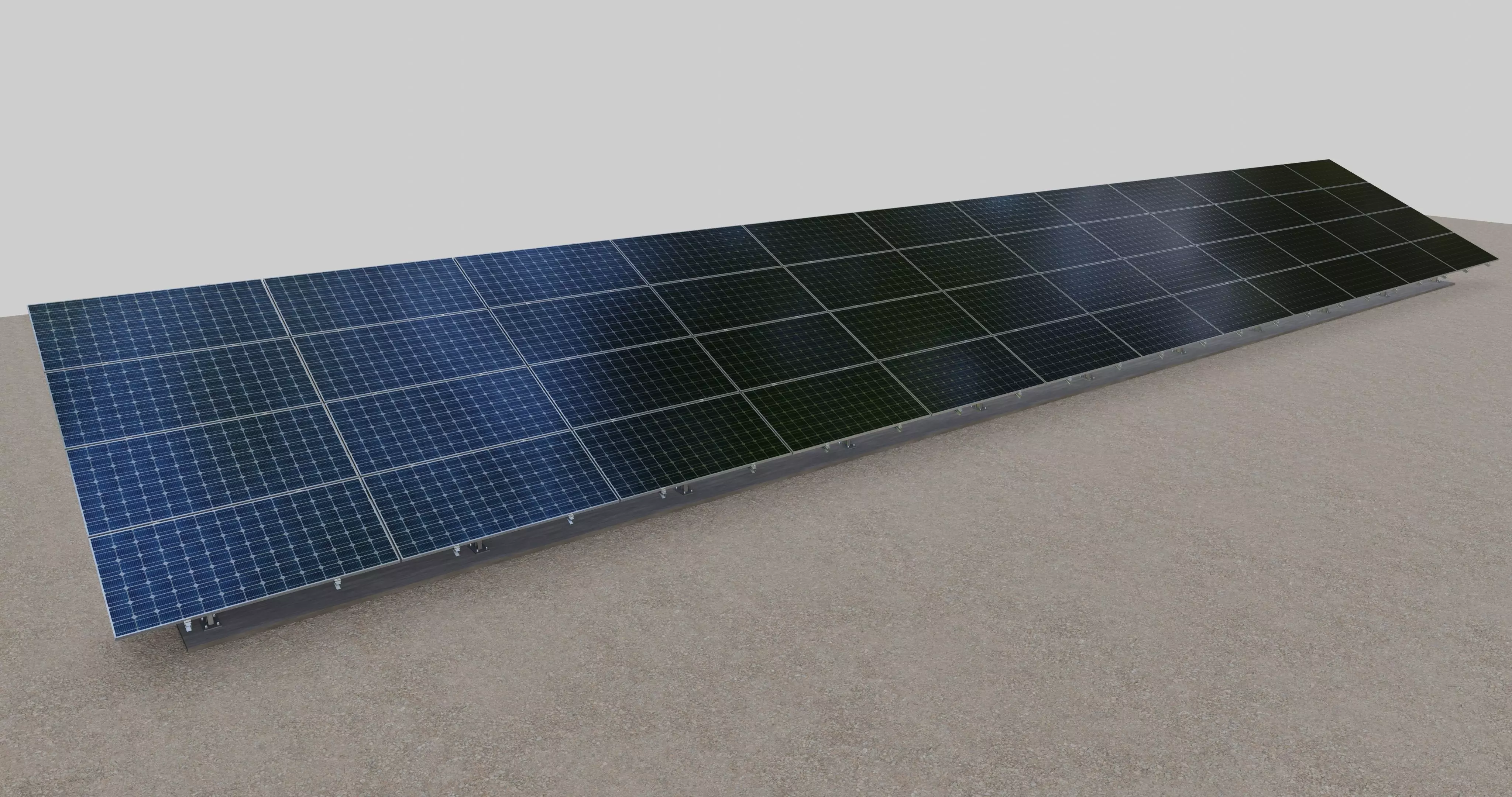

Solar Panel Steel Construction Type 15 3D model
Description
Solar Panel Steel Construction Type 15
4x12 Horizontal Panel Layout
Ground Connection Type; With Anchor Plate
Foundation Dimensions : 3000mm x 26500mm x 500mm
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 26,4 kWp power in 1 hour
The system consists of 11 axles and the distance between each axle is 2600 mm.
Distance between two columns 2300 mm.
Horizantal angle of panel 25°
The closest distance of the panels to the floor 600 mm.
Profile Section;
Column : C Profile C100x50x20-3mmBeam : C Profile CE120x50x20_25°-3mmPurlin : C Profile C70x40x15x-2mmDiagonal : U Profile U50x30-2mm
Prepared With BLENDER Version 2.93.5
Polygons : 445410
Vertices : 528278
Objects : 720
Solar Panel Steel Construction Type 15
Royalty Free License
Solar Panel Steel Construction Type 15
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- Blender 2.93.5 (.blend)67.7 MBVersion: 2.93.5Renderer: Eevee 2.93.5
Exchange
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 445,410
- Vertices 528,278
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2023-04-25
- Model ID#4460648
