Solar Panel Steel Construction Type 1 3D model
Description

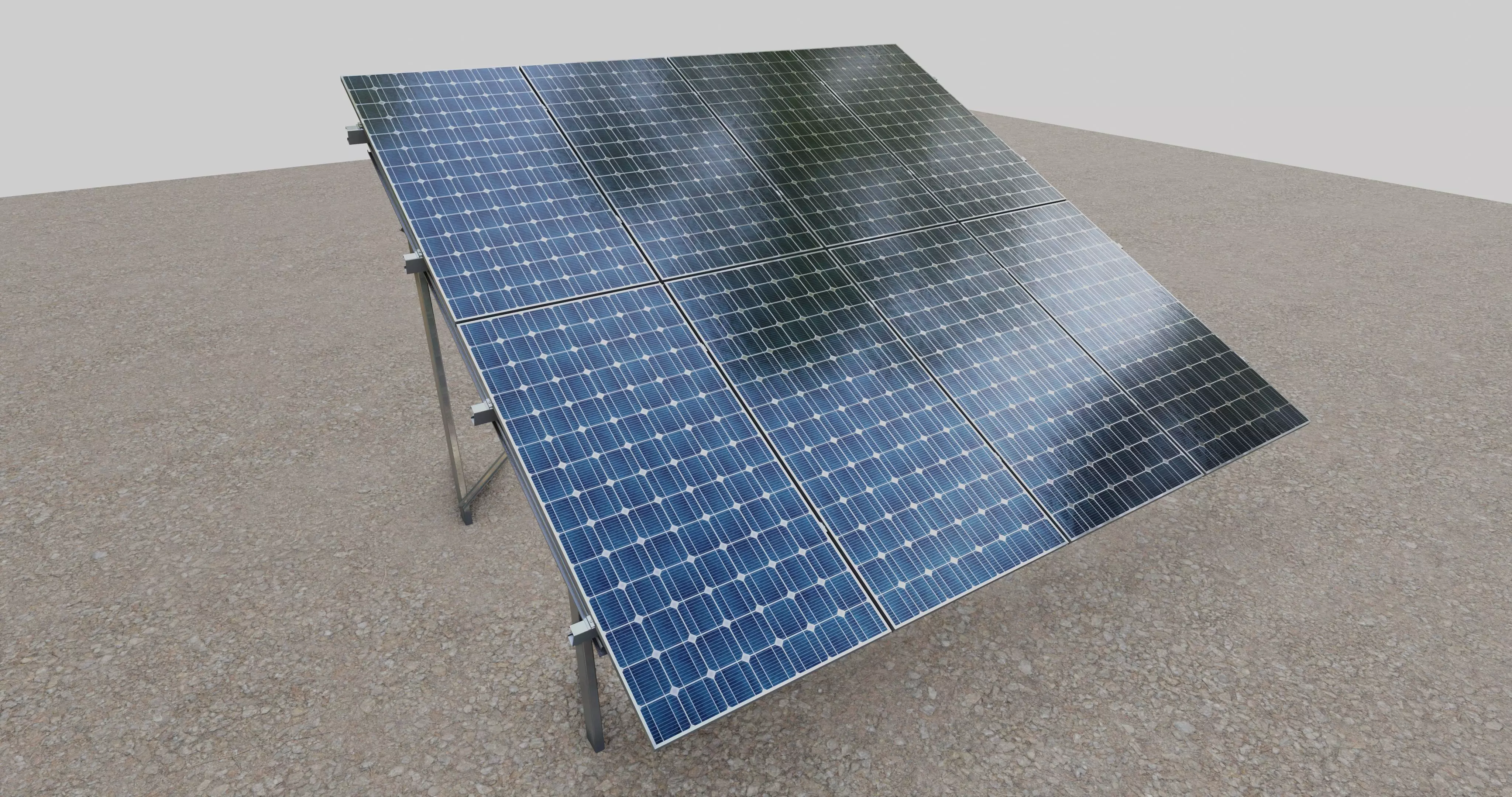

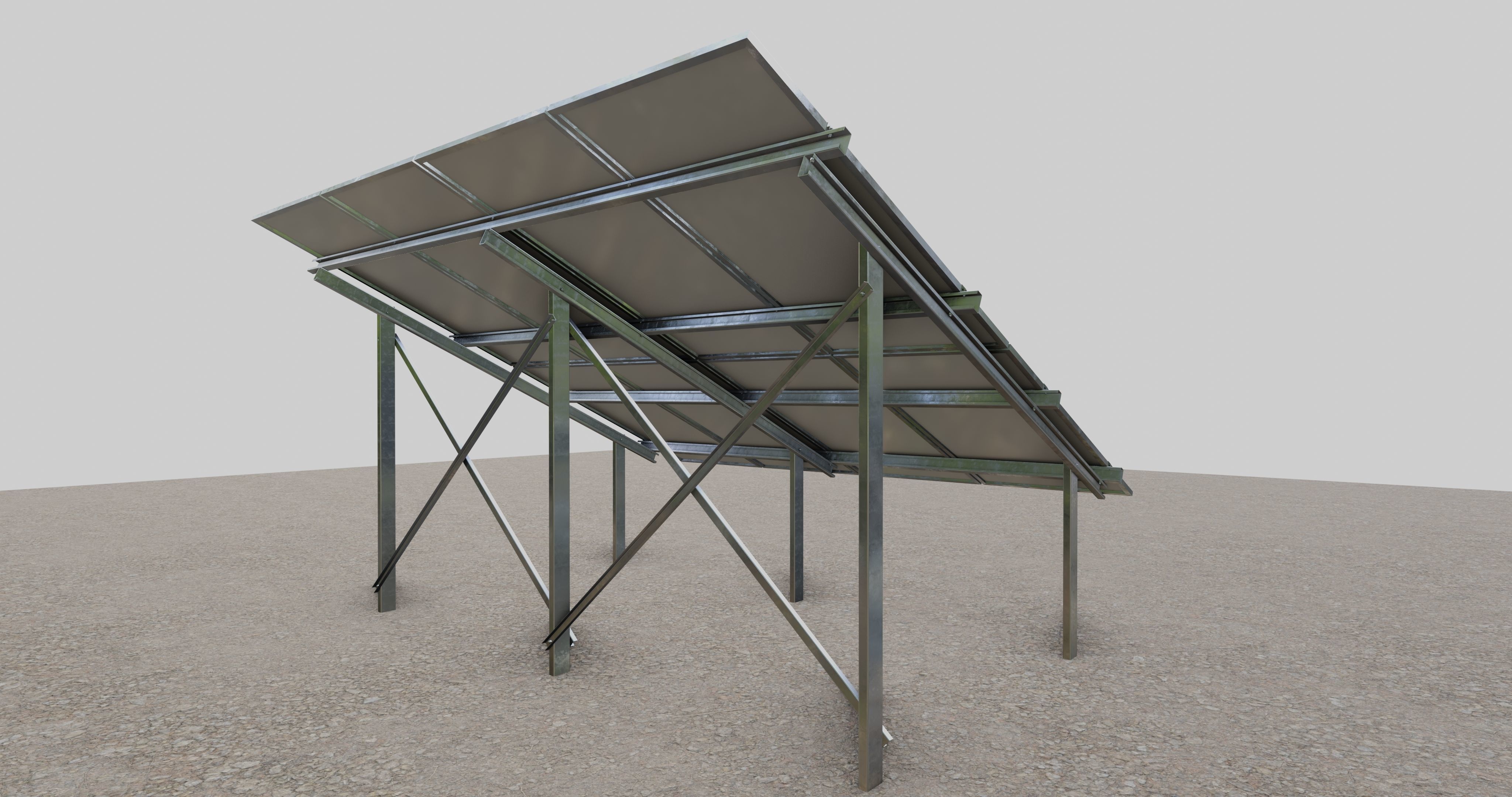

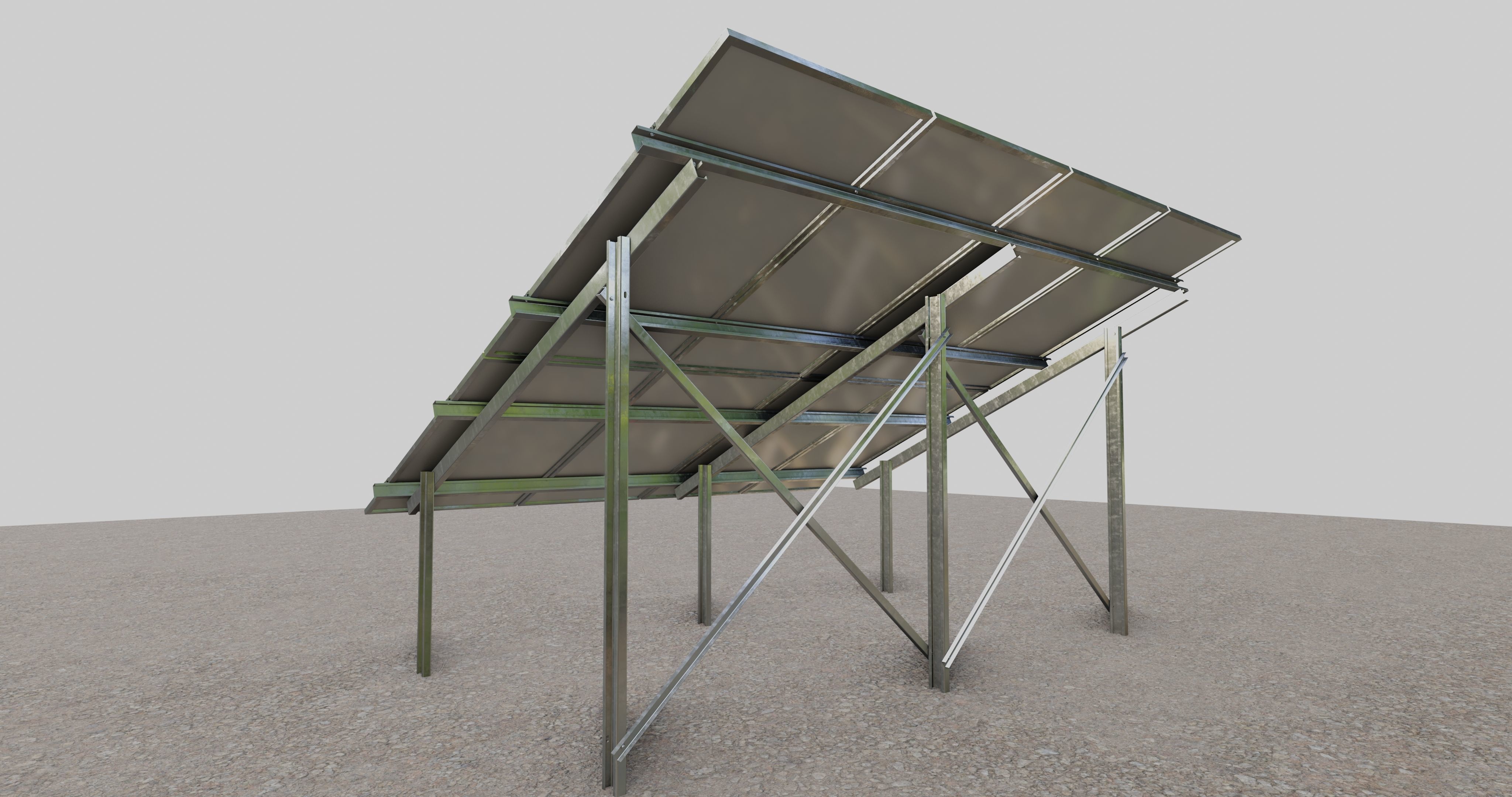

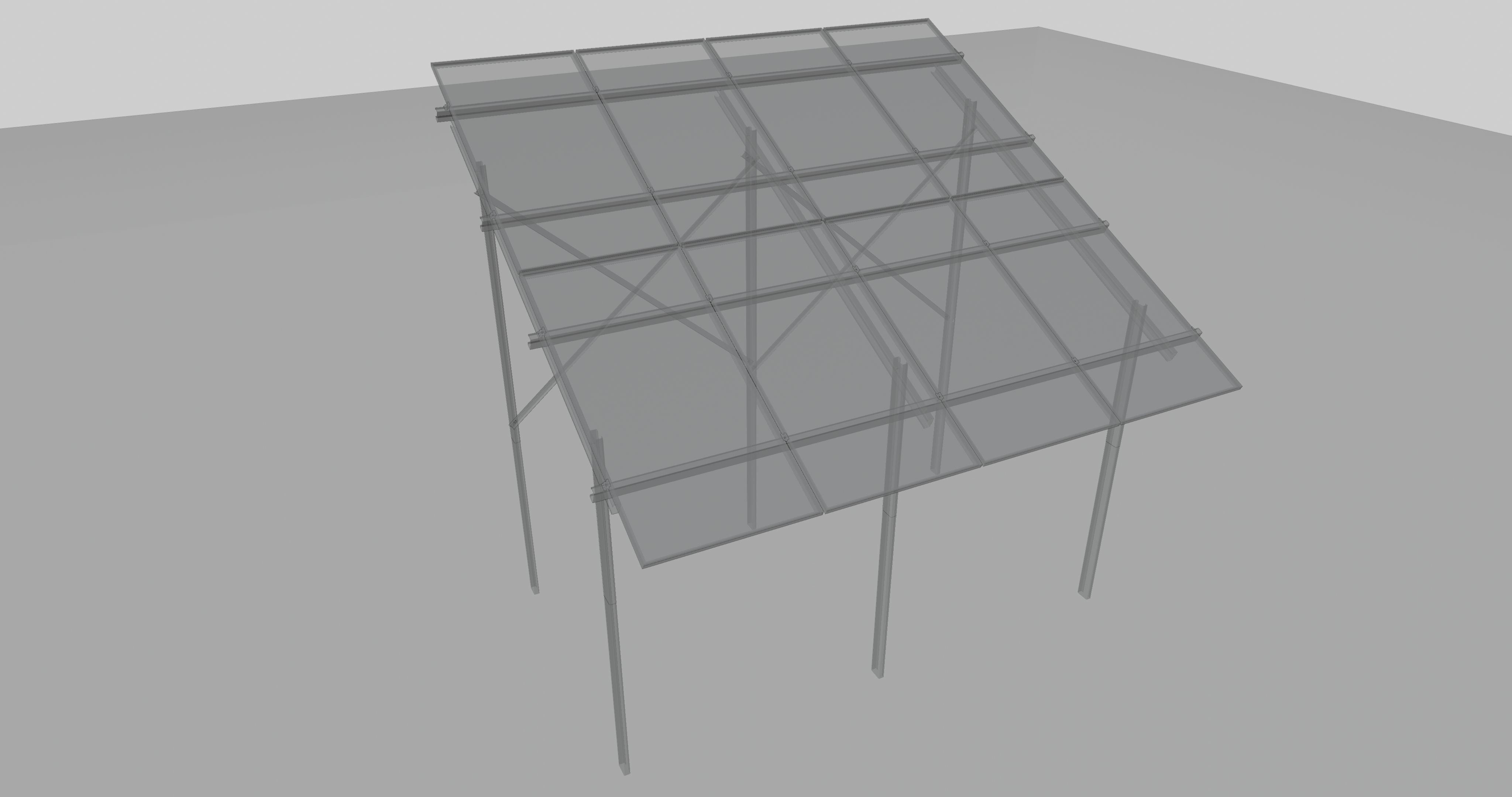

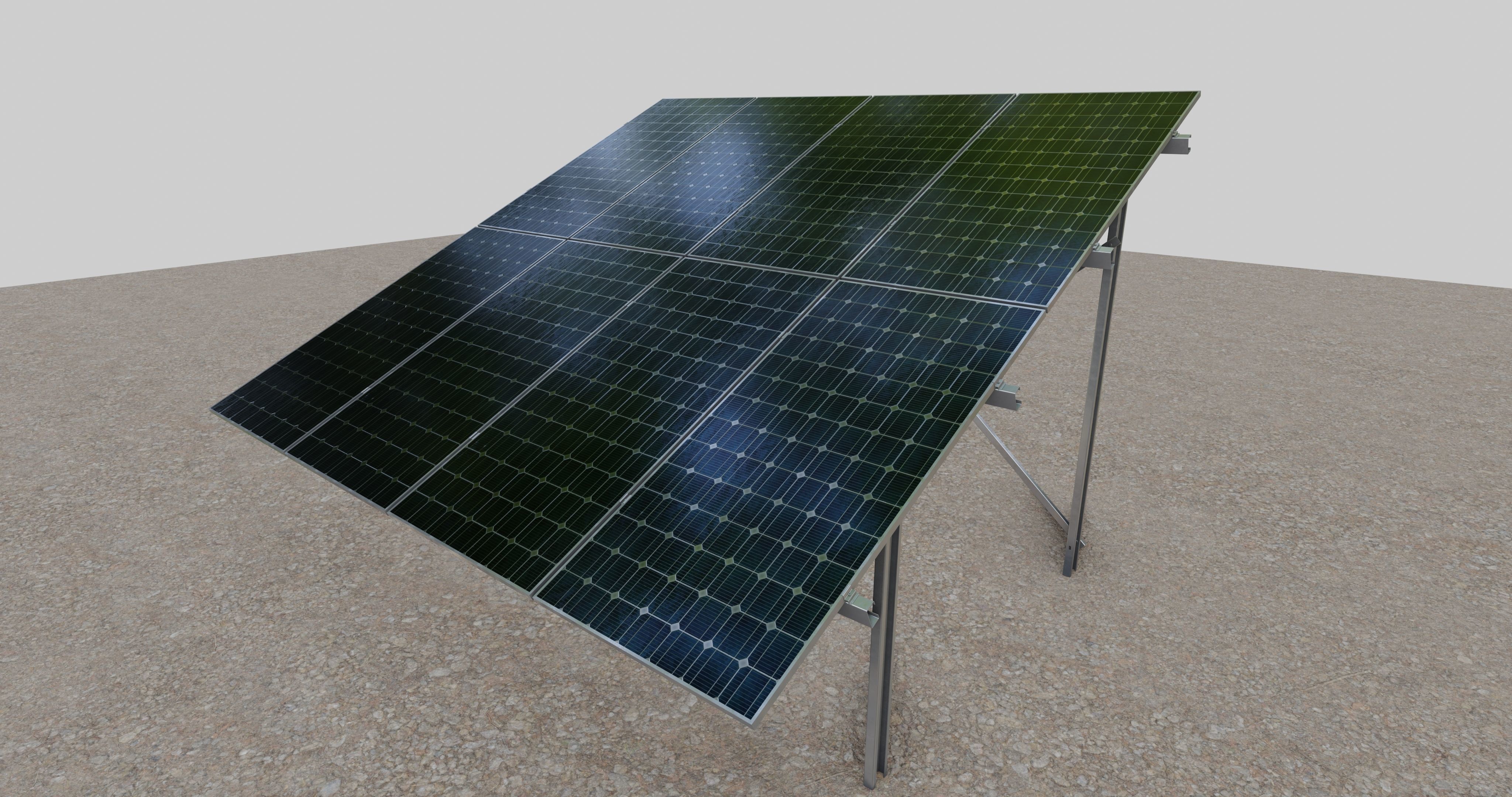

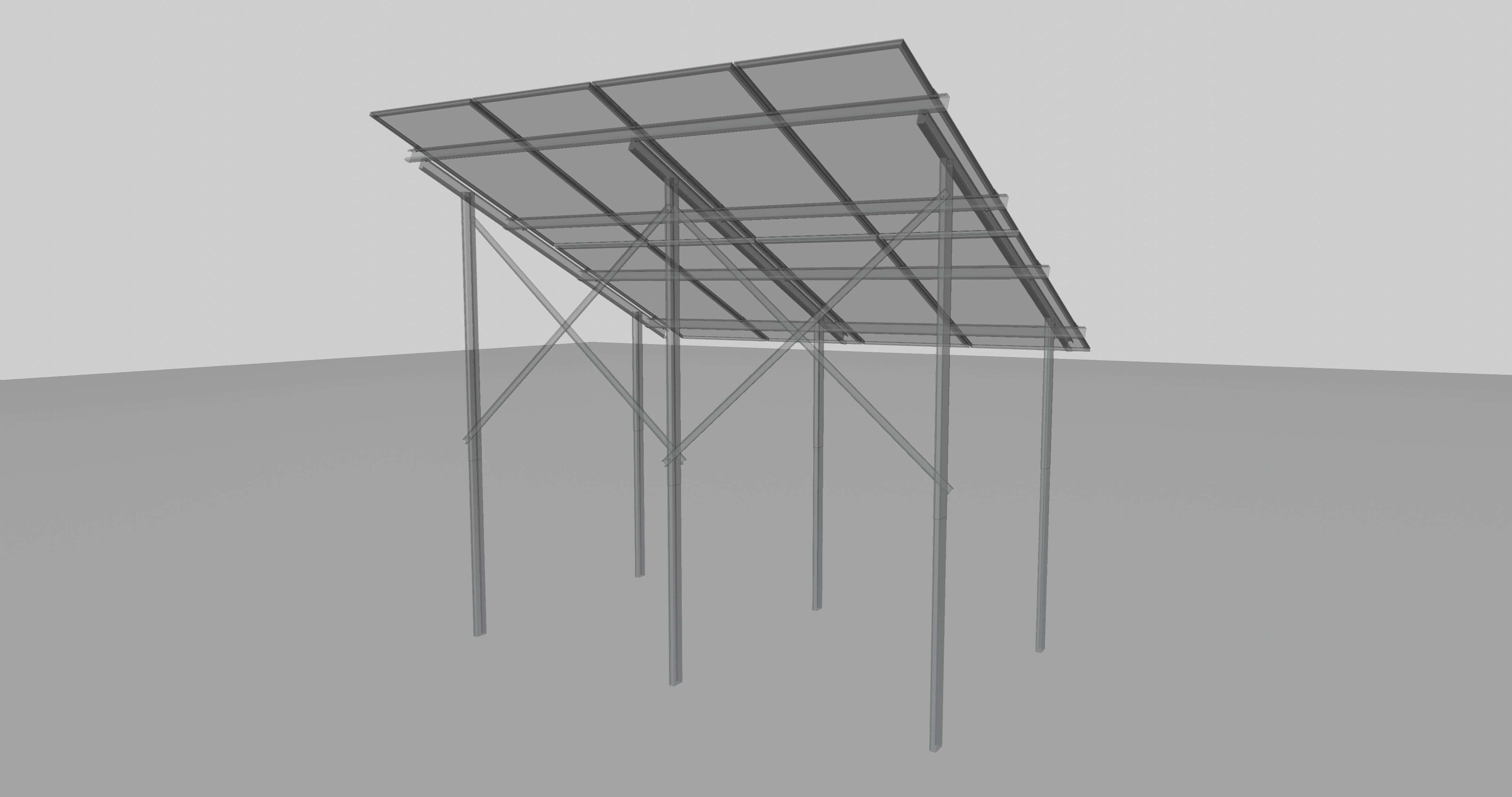

Solar Panel Steel Construction- Type.1

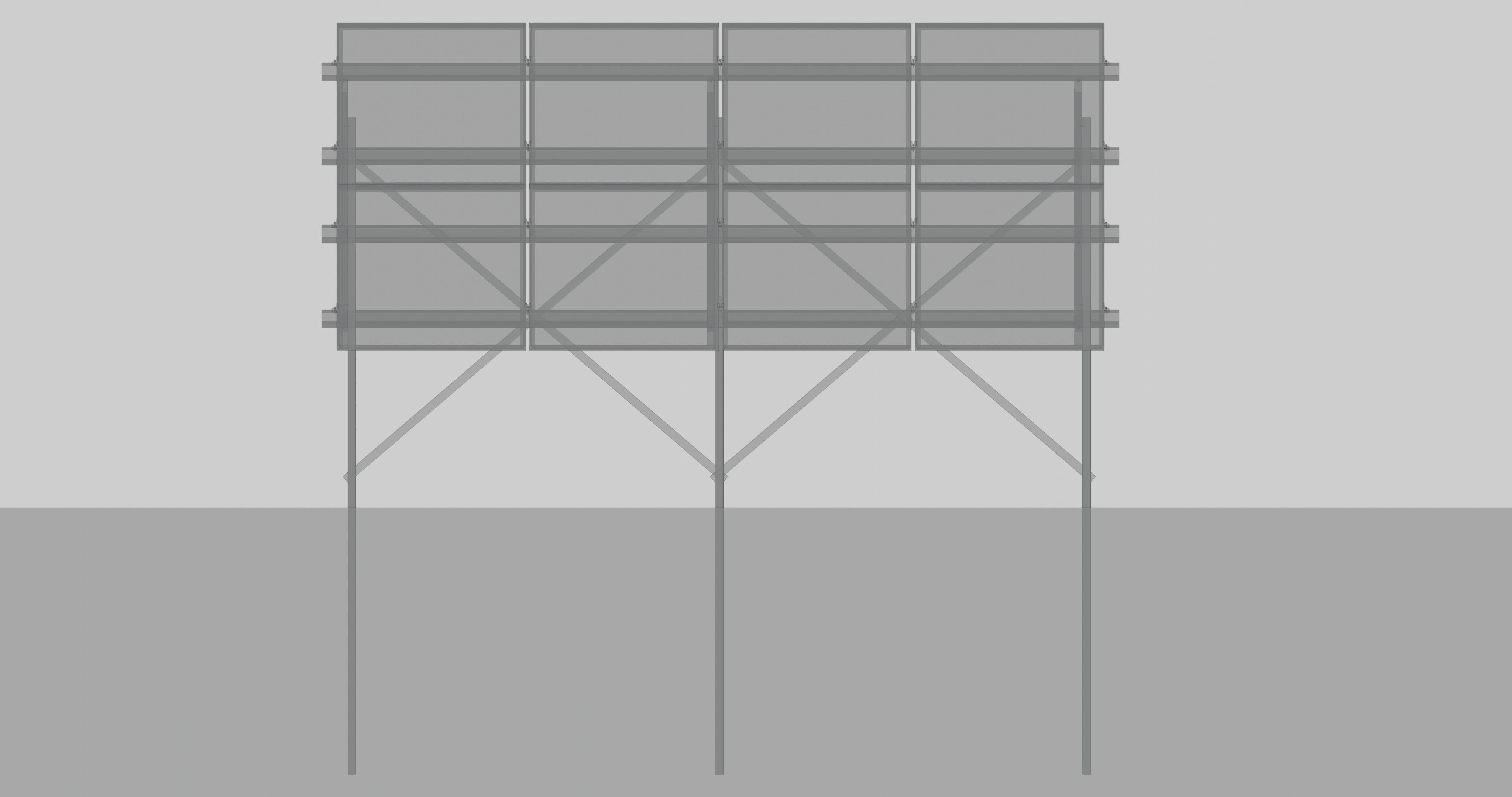

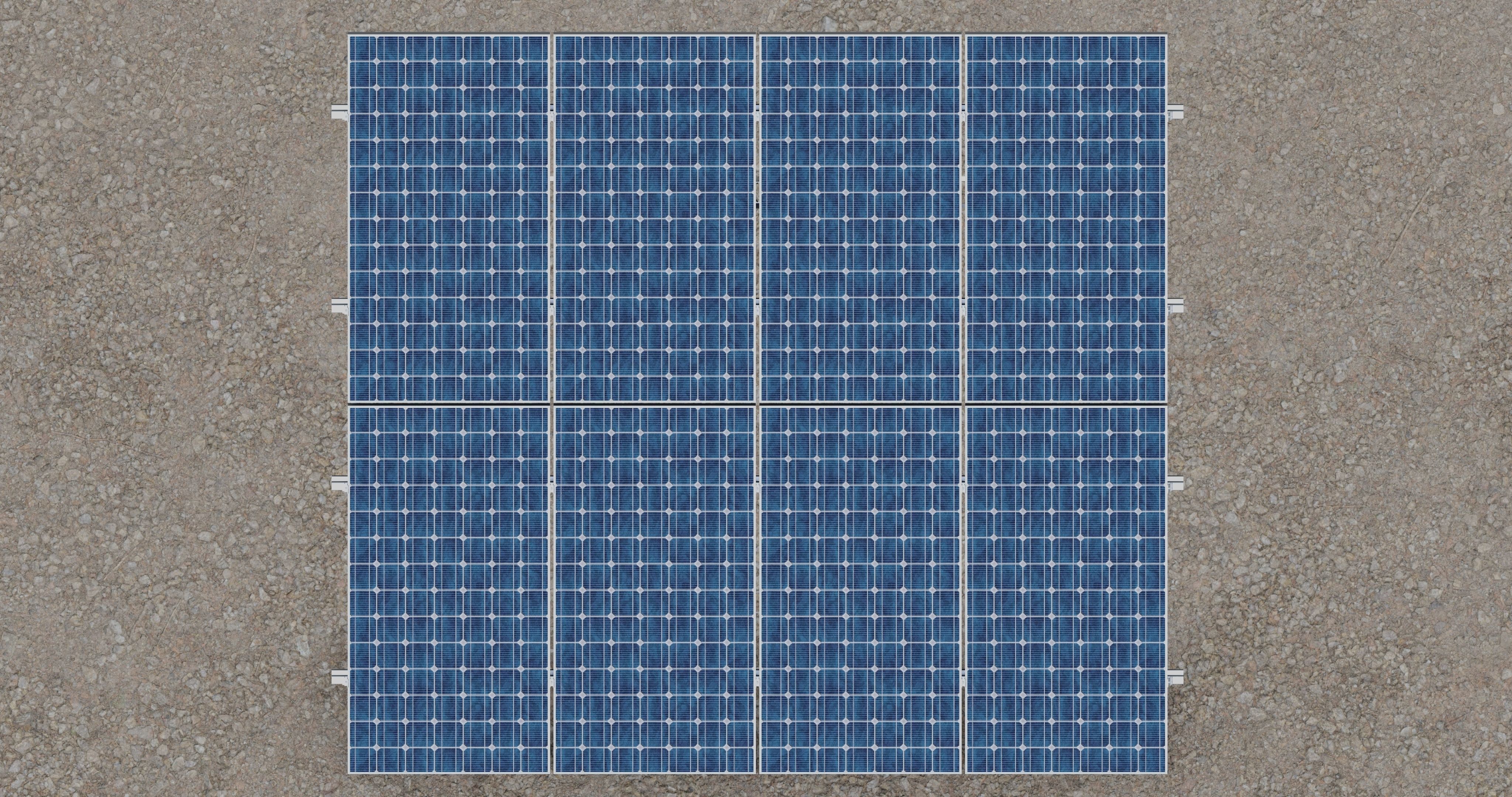

2x4 Vertical Panel Layout

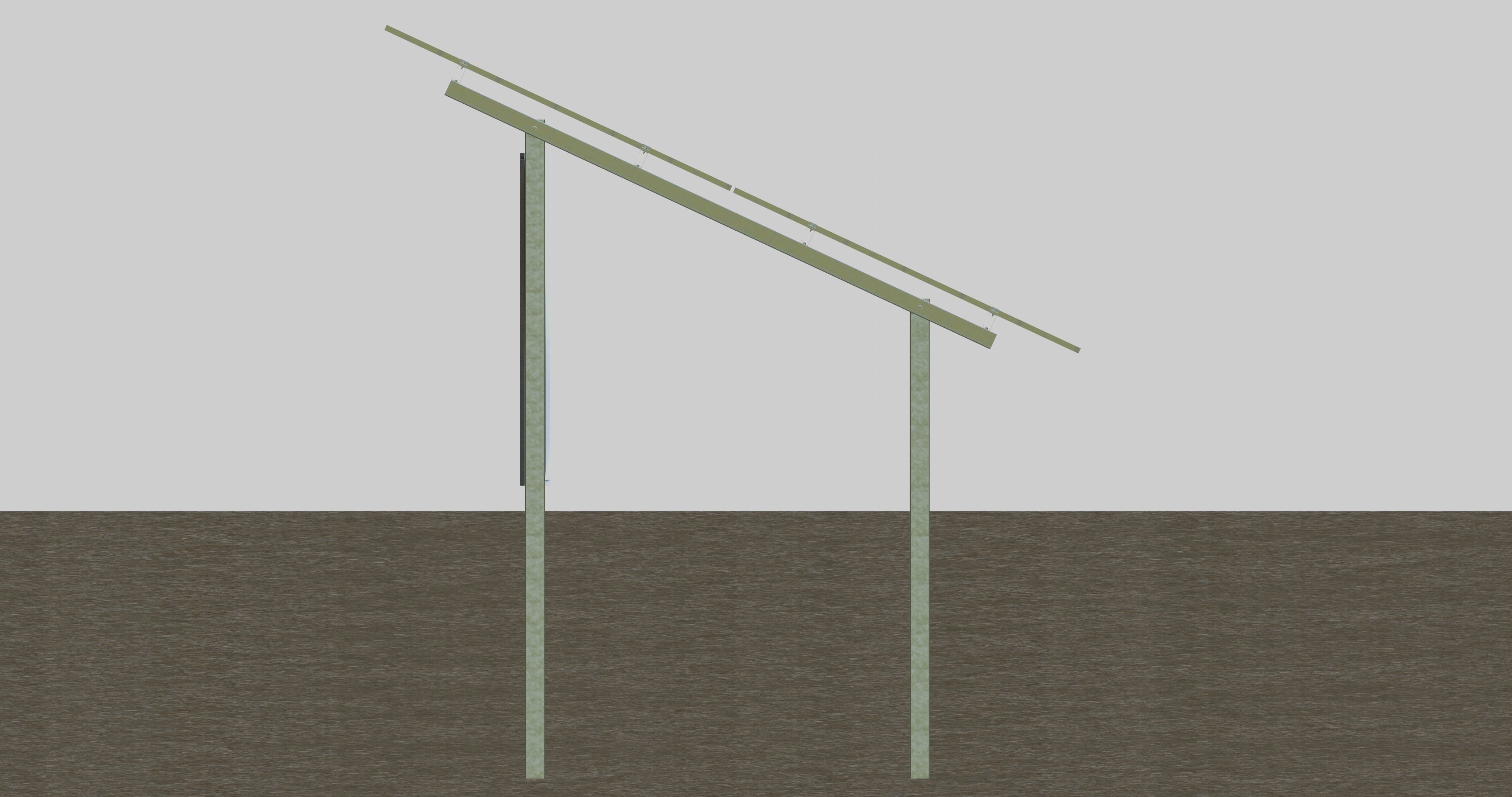

Ground Connection Type; Steel Driven Column
Distance of Columns Below Ground 1600 mm.
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 4,4 kWp power in 1 hour

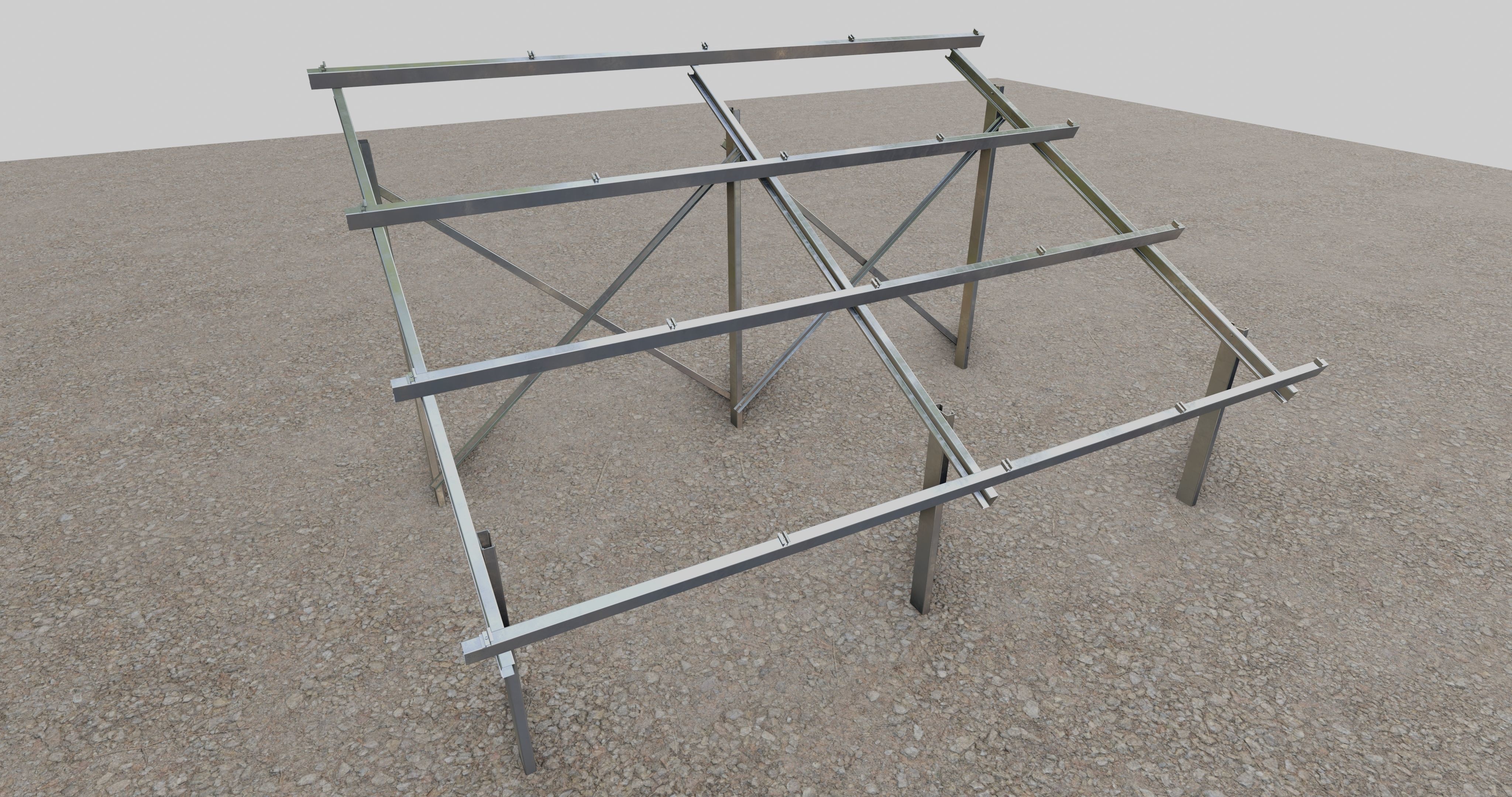

The system consists of 3 axles and the distance between each axle is 2200 mm.
Distance between two columns 2300 mm.
Horizantal angle of panel 25°
The closest distance of the panels to the floor 600 mm.

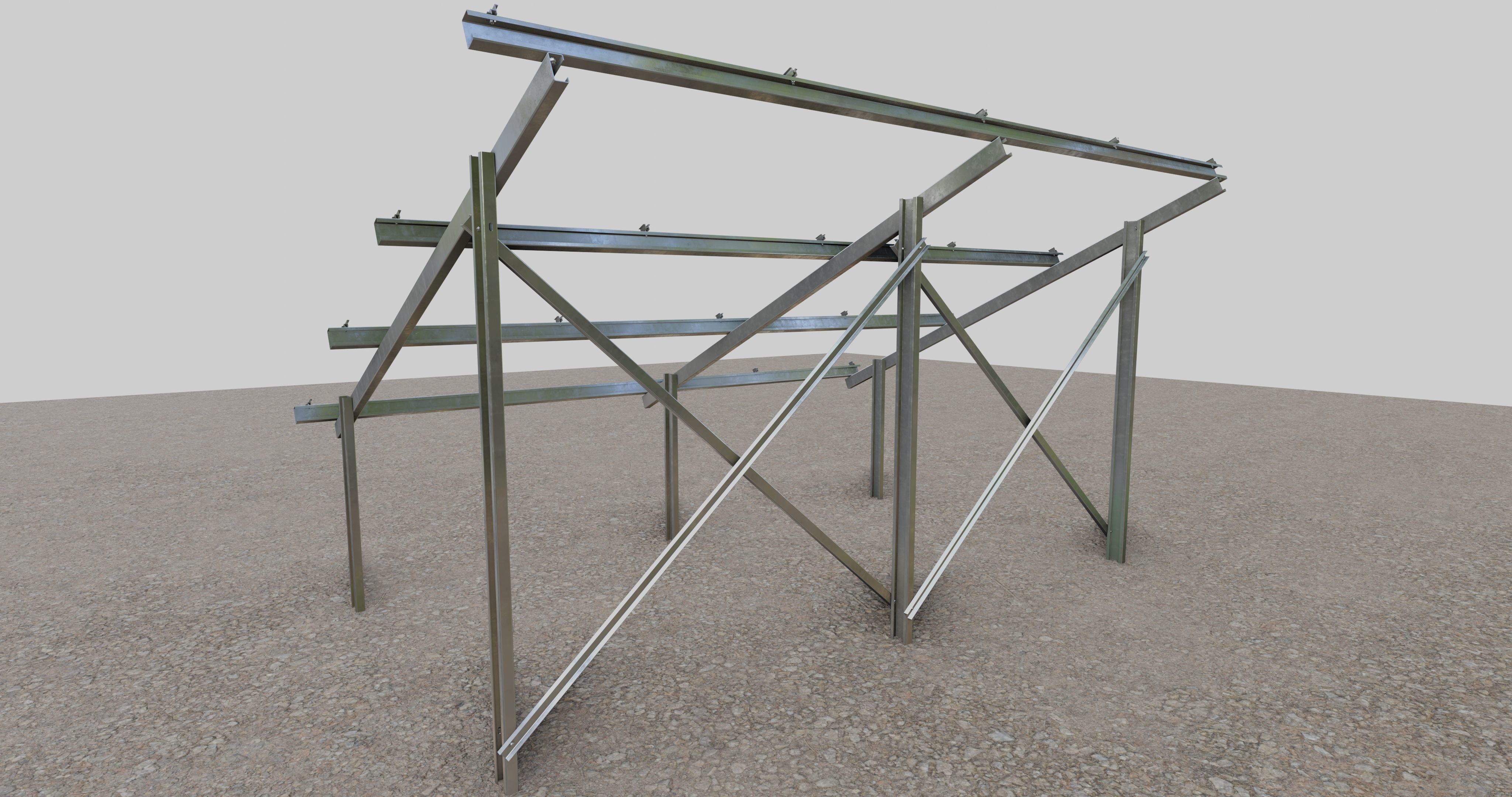

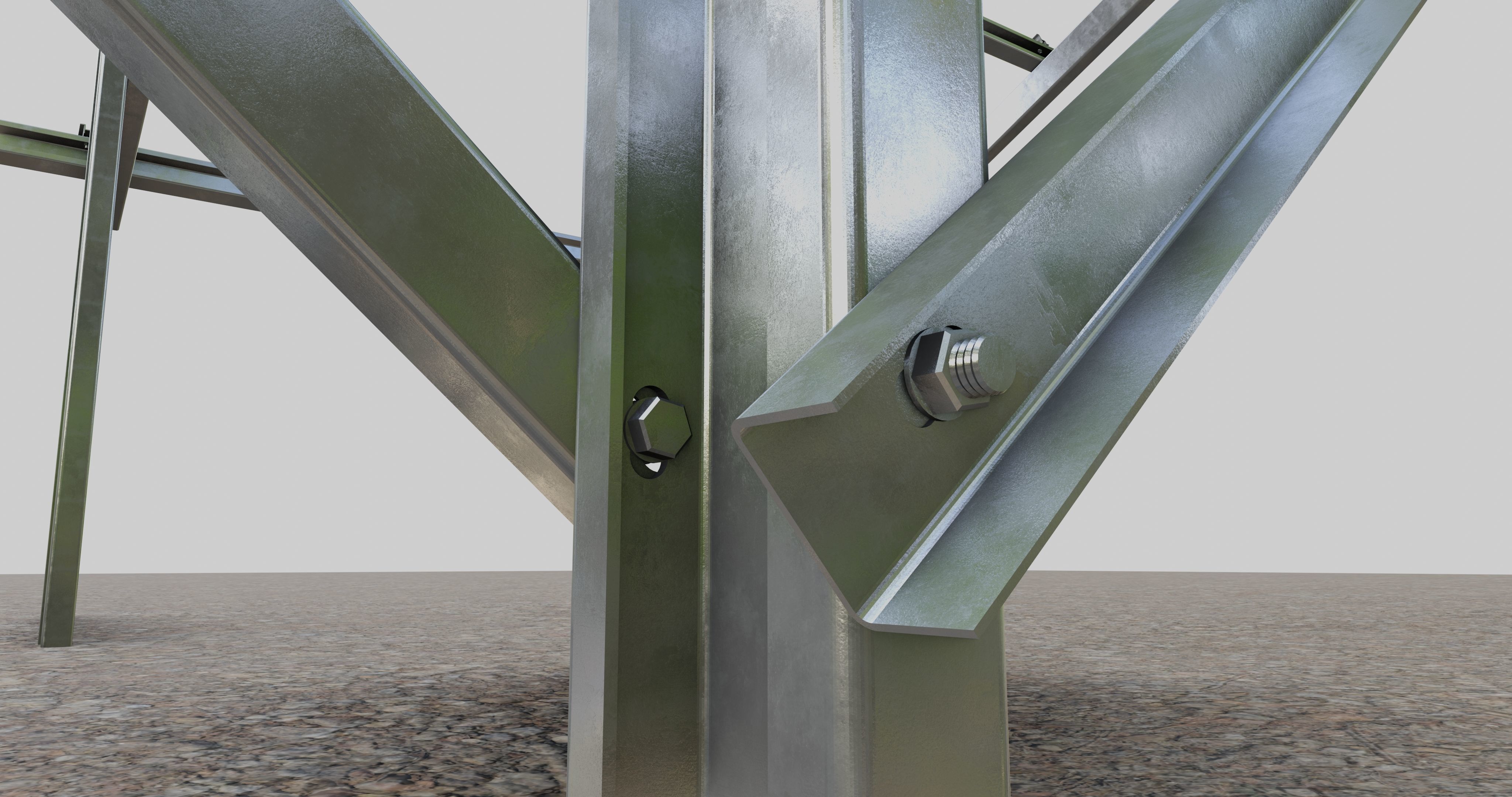

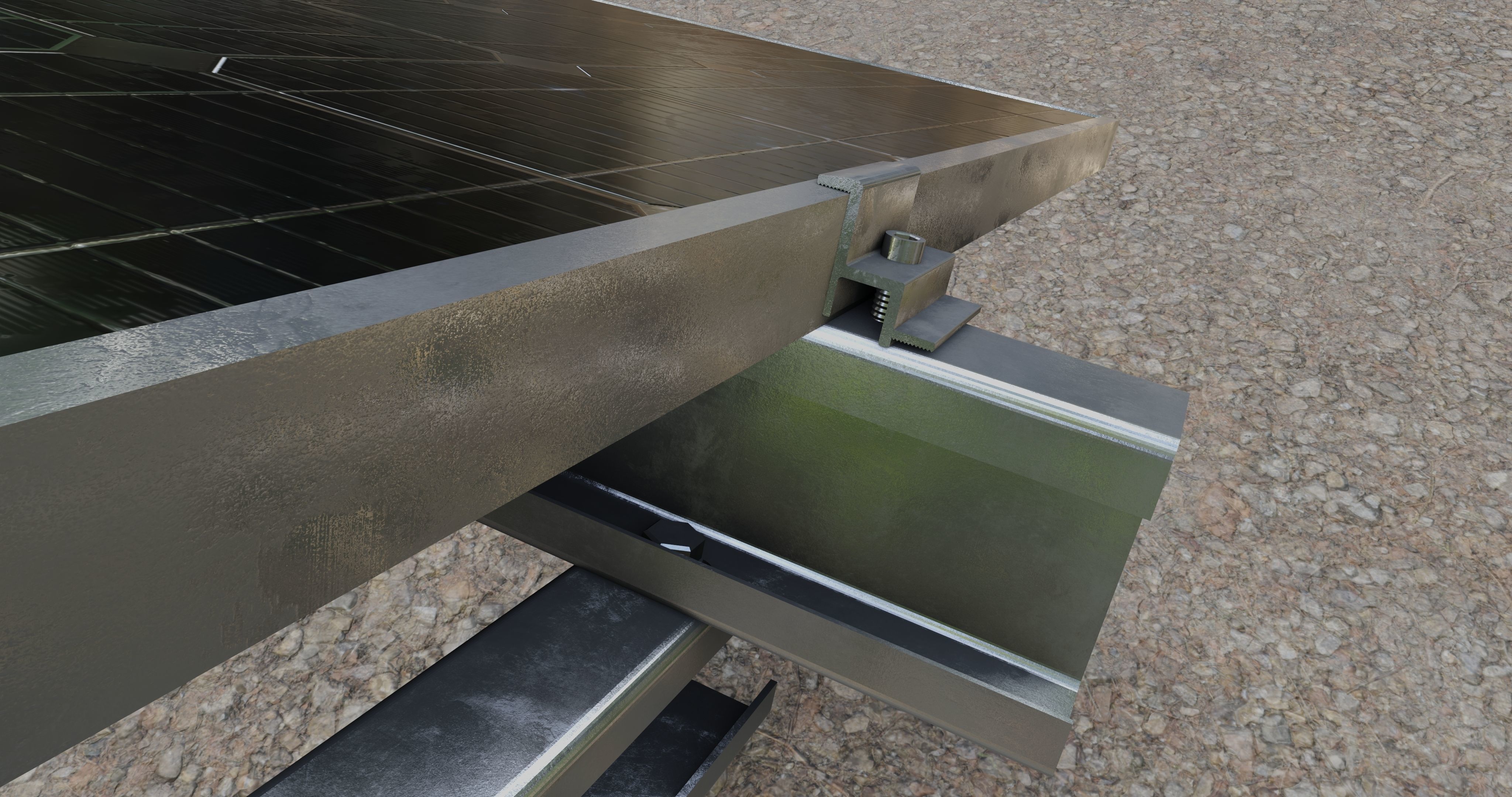

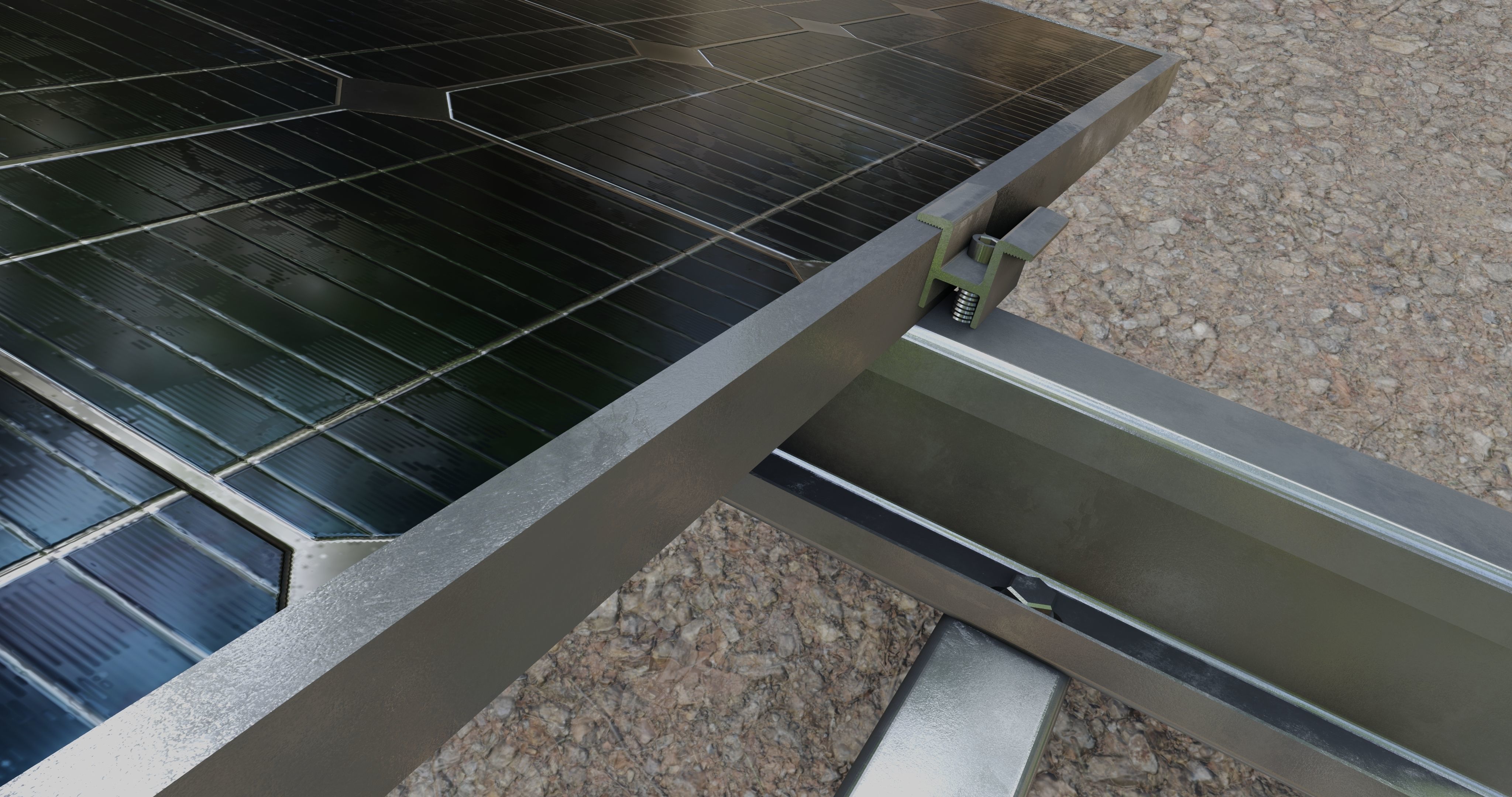

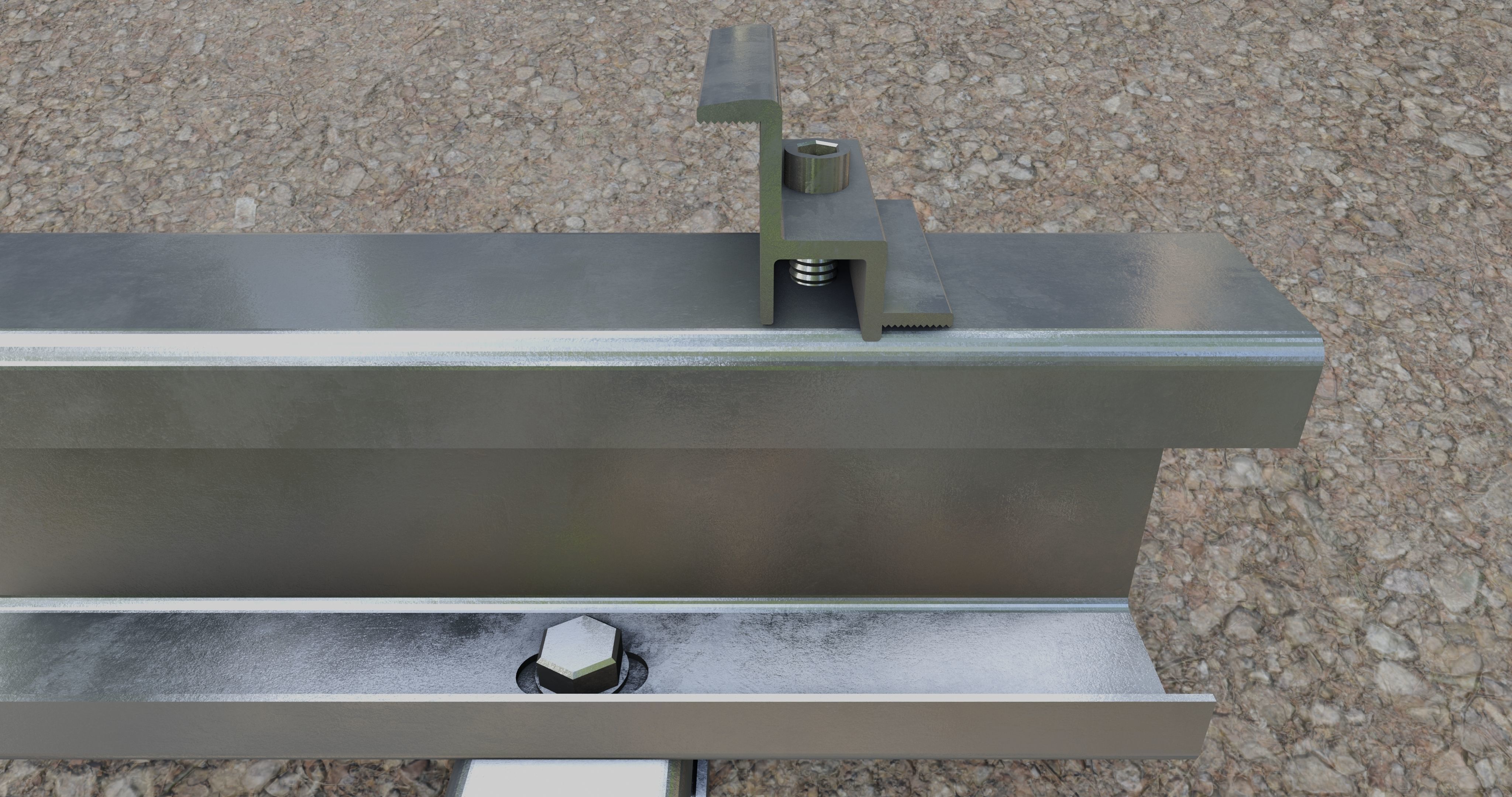

Profile Section;

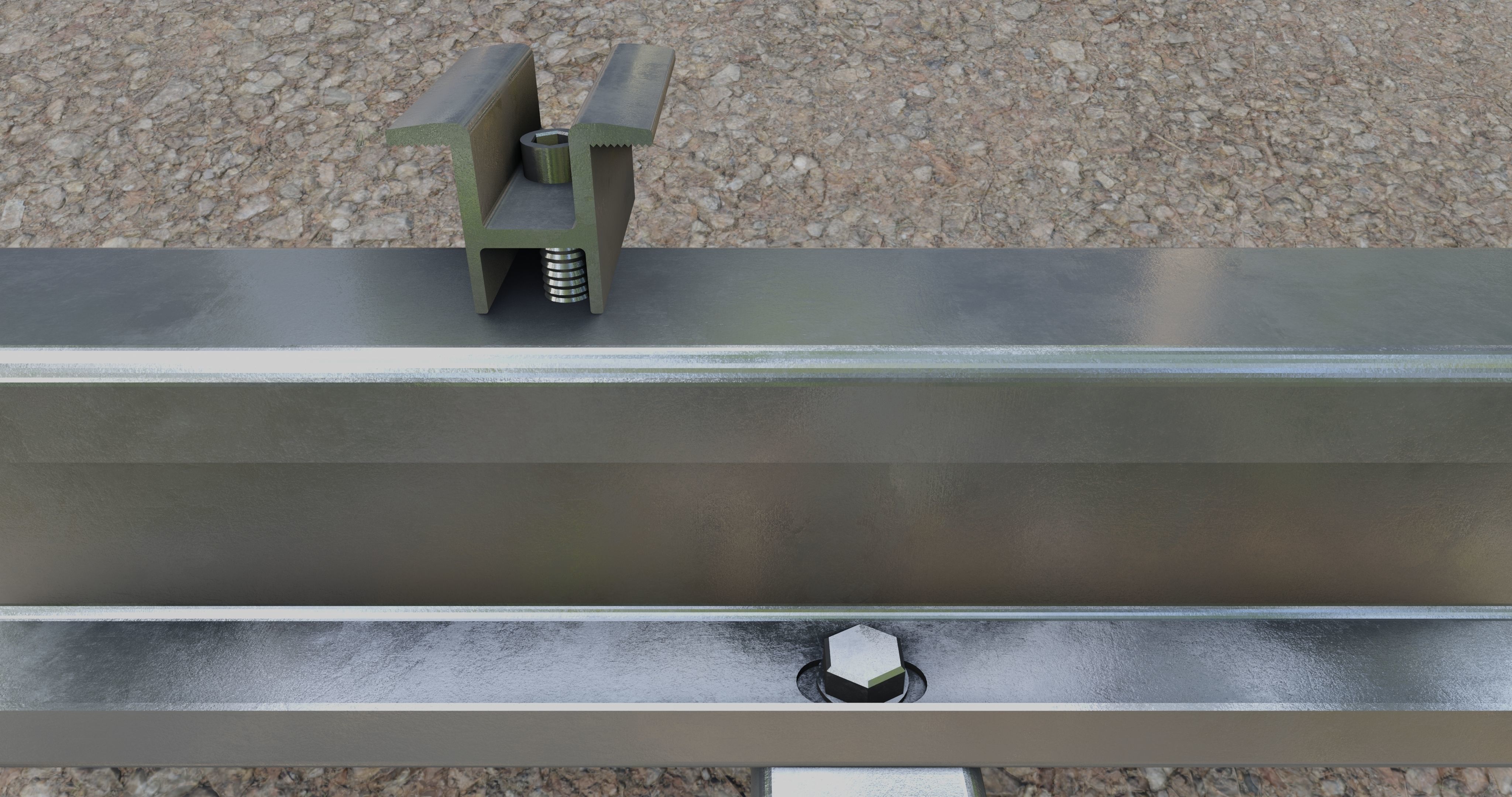

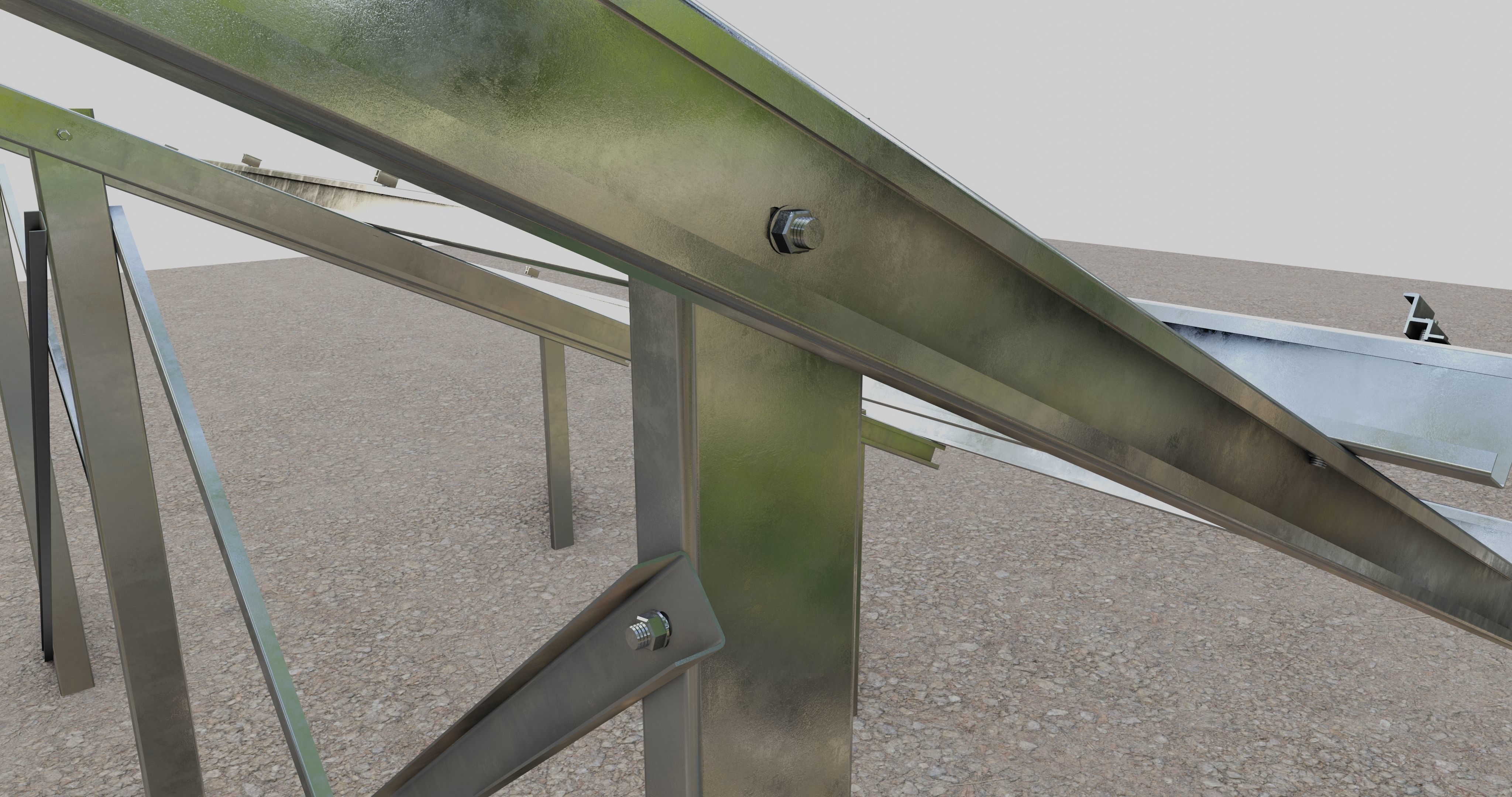

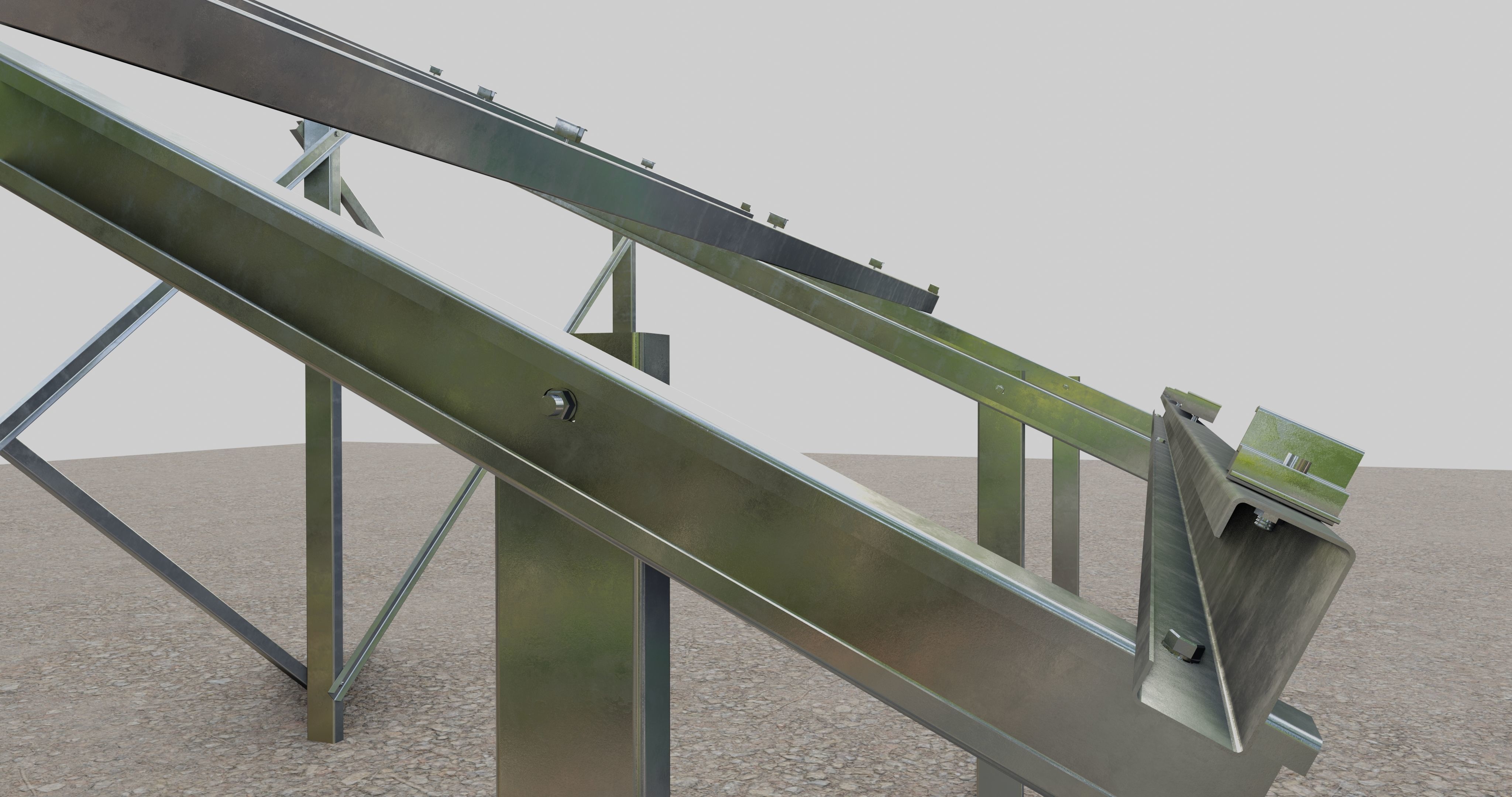

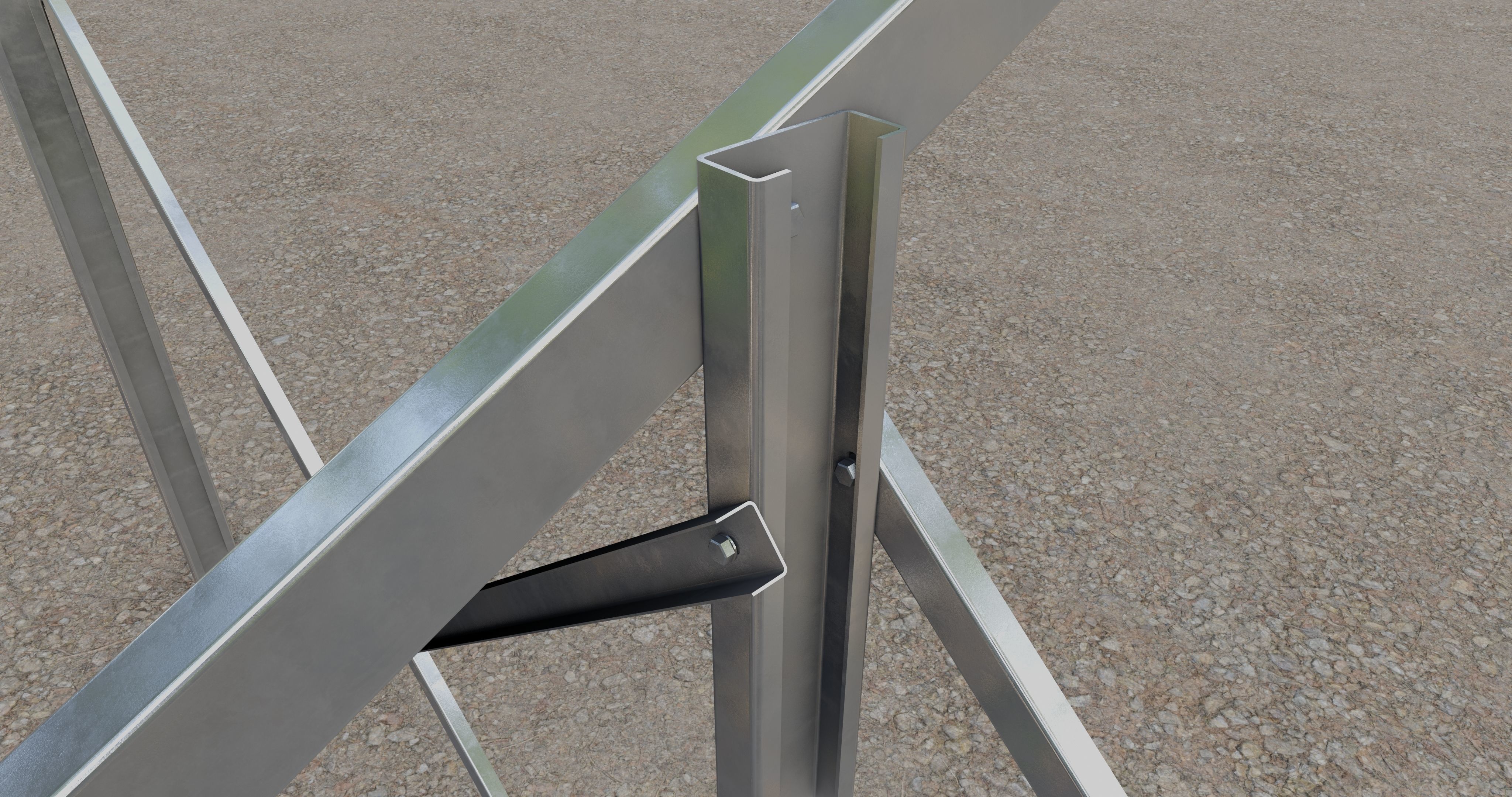

Column : C Profile C120x50x25-4mmBeam : C Profile C100x50x20-3mmPurlin : C Profile C90x50x20x-2mmDiagonal : U Profile U50x30-2mm

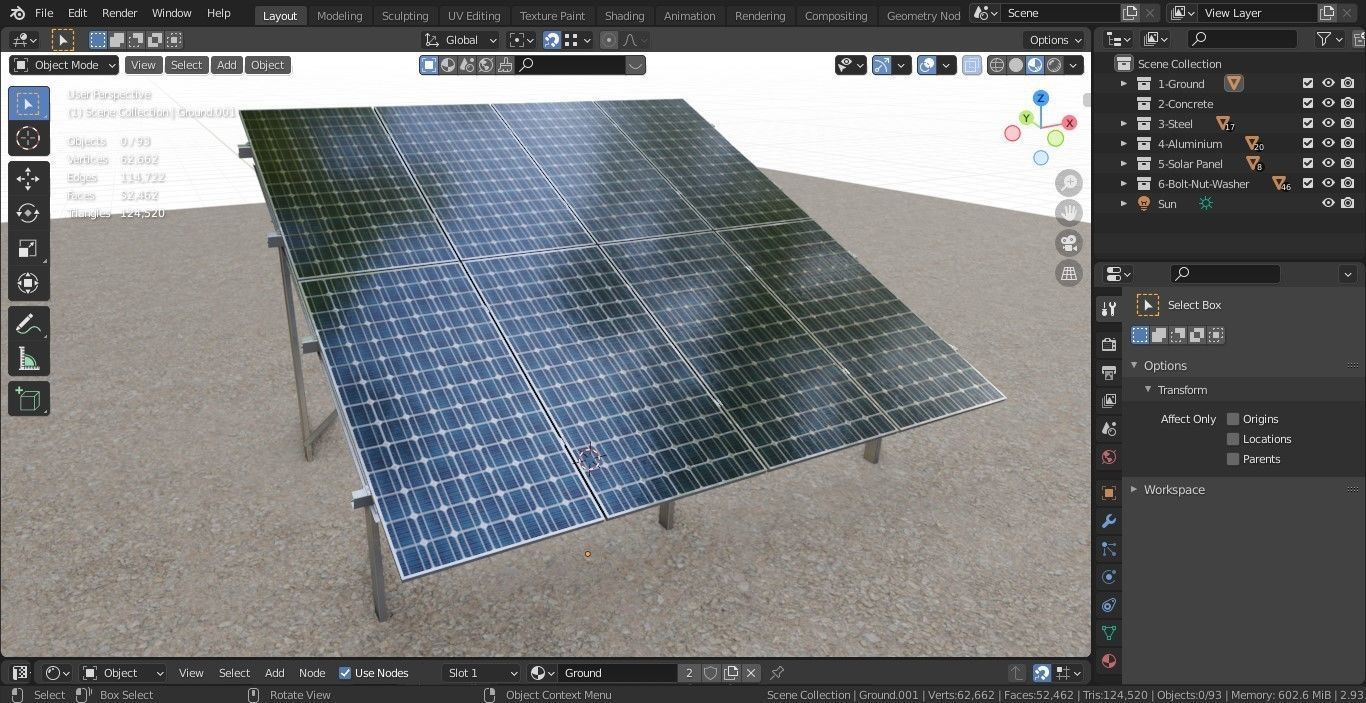

Prepared With BLENDER Version 2.93.5
Polygons : 52462
Vertices : 62662
Objects : 93
Solar Panel Steel Construction Type 1
Royalty Free License
Solar Panel Steel Construction Type 1
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- Blender 2.93.5 (.blend)9.21 MBVersion: 2.93.5Renderer: Eevee 2.93.5
Exchange
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 52,462
- Vertices 62,662
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2023-04-22
- Model ID#4454484
