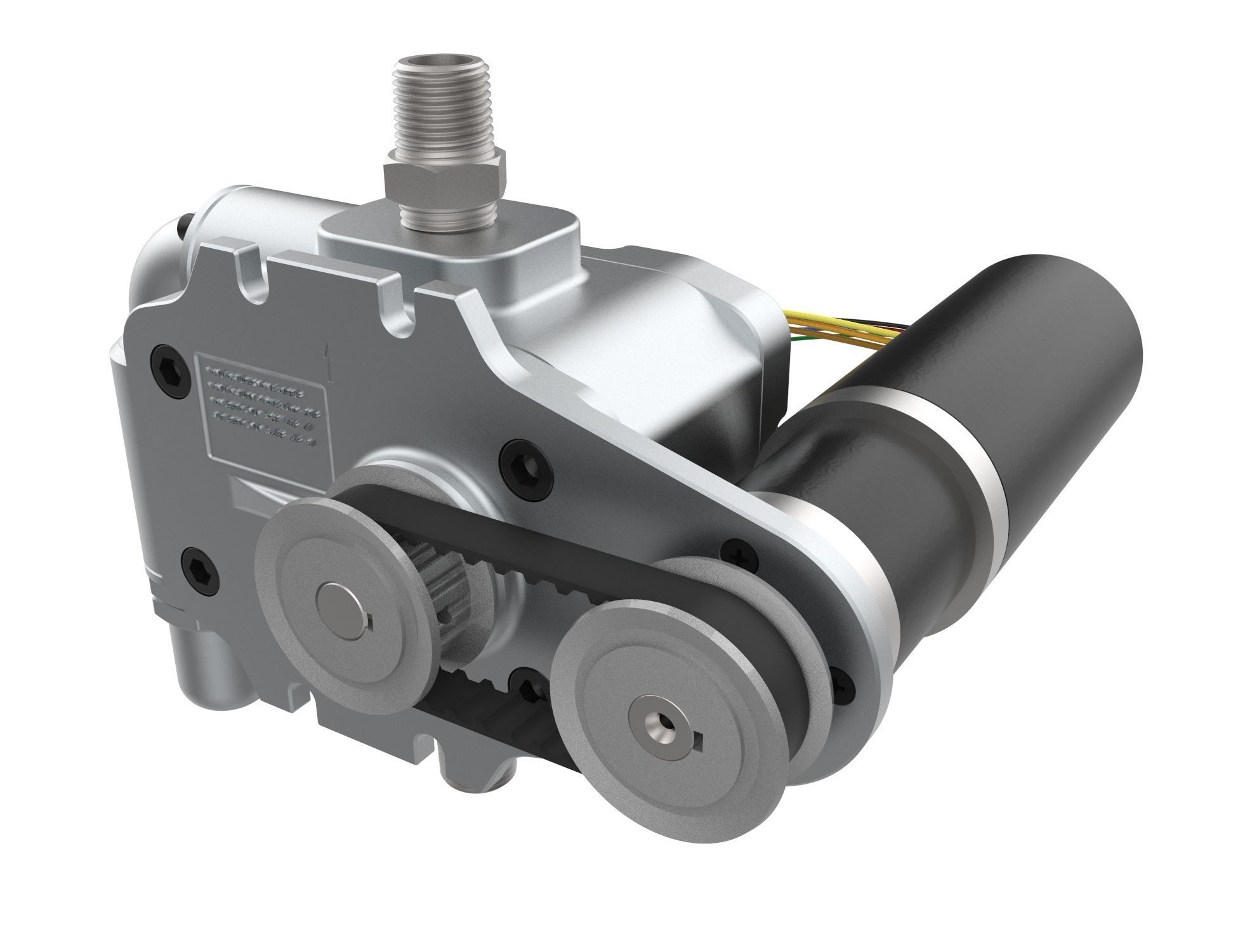

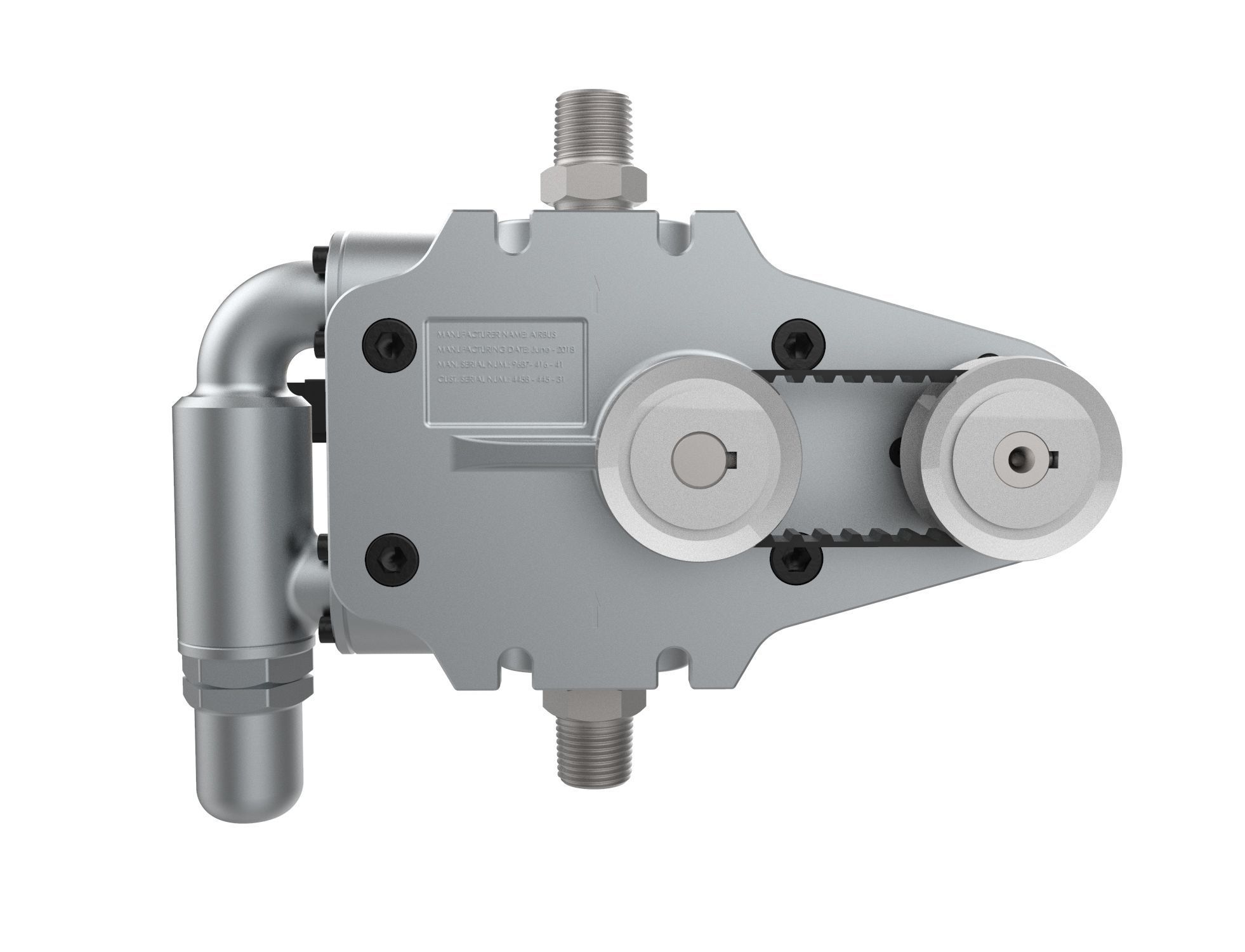

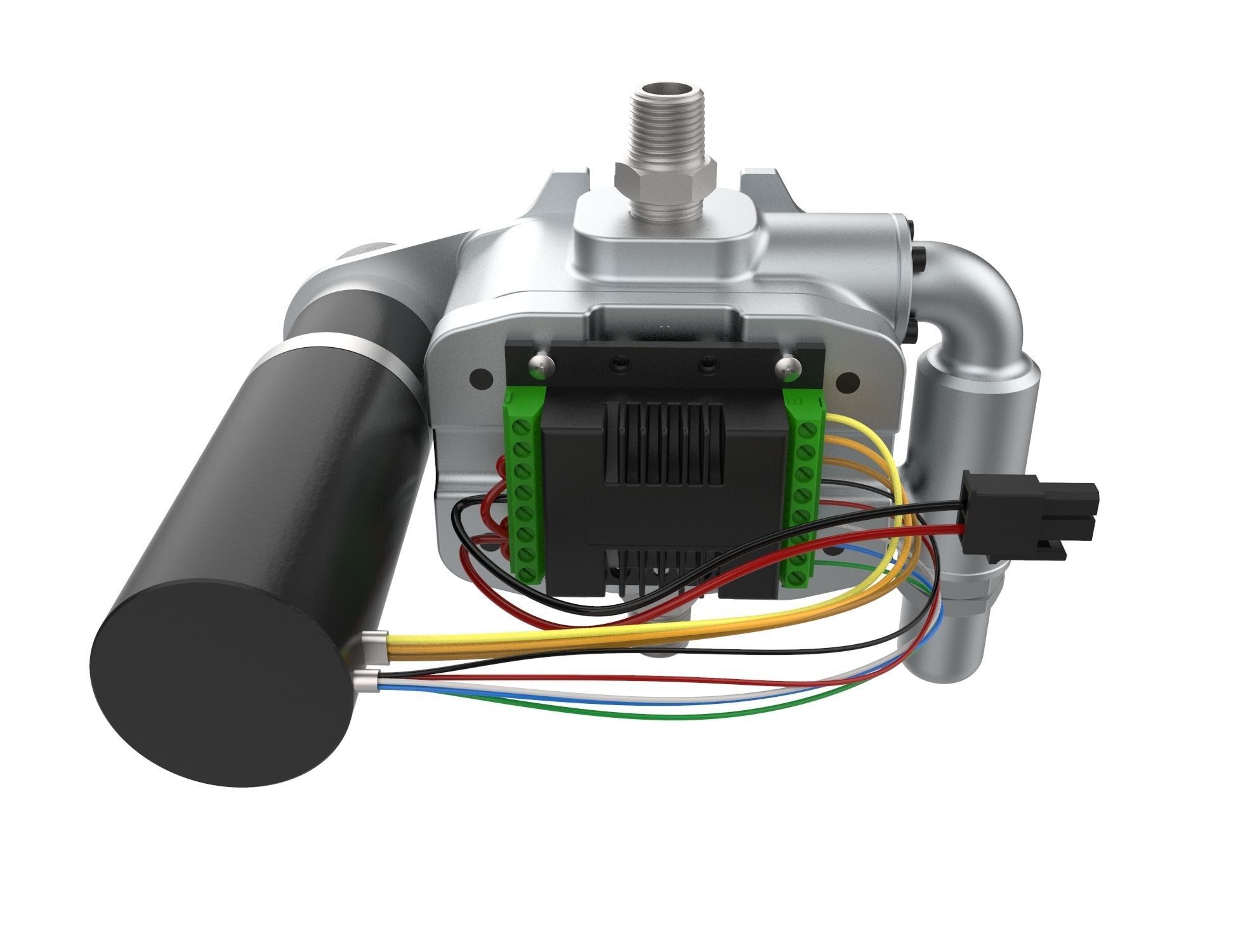

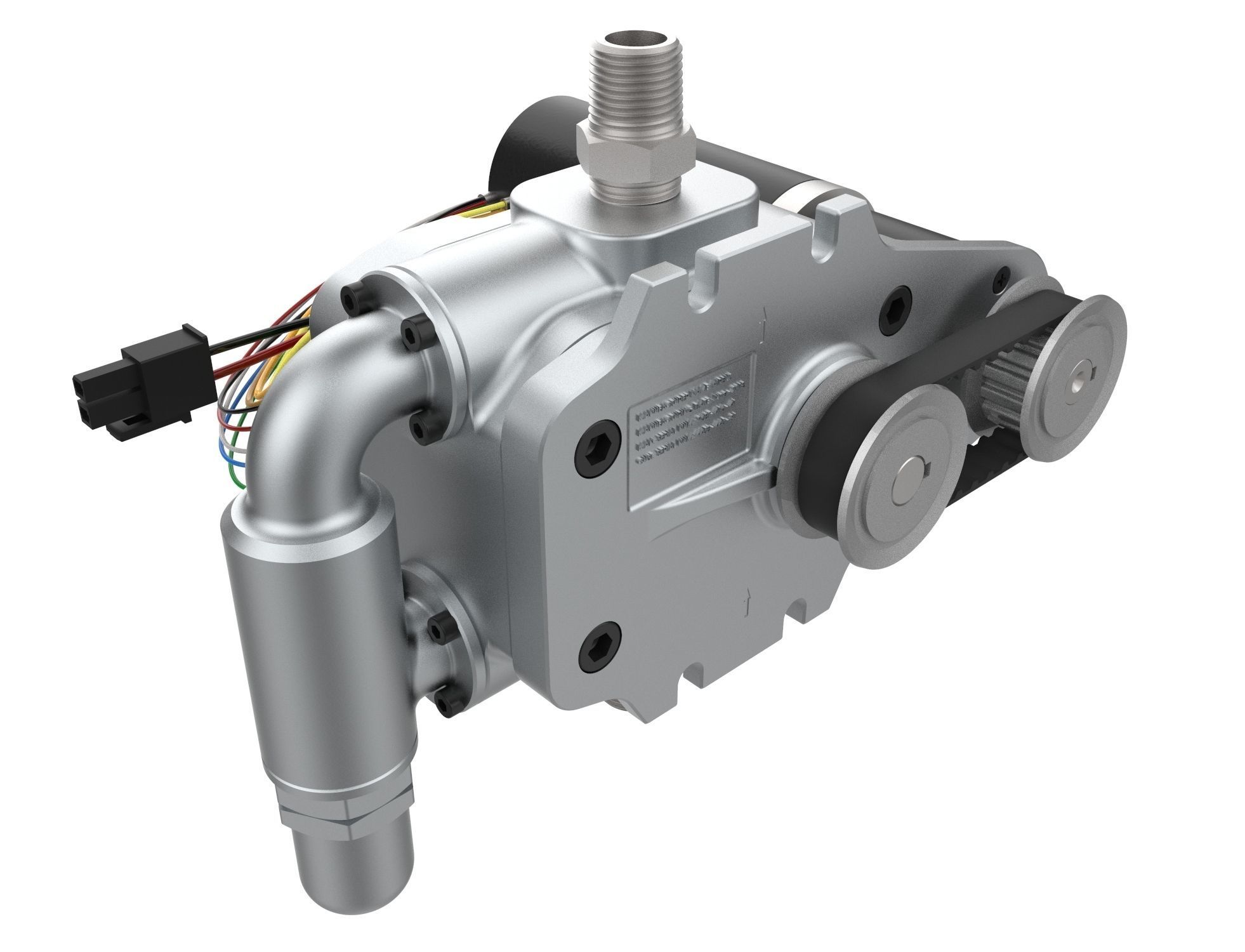

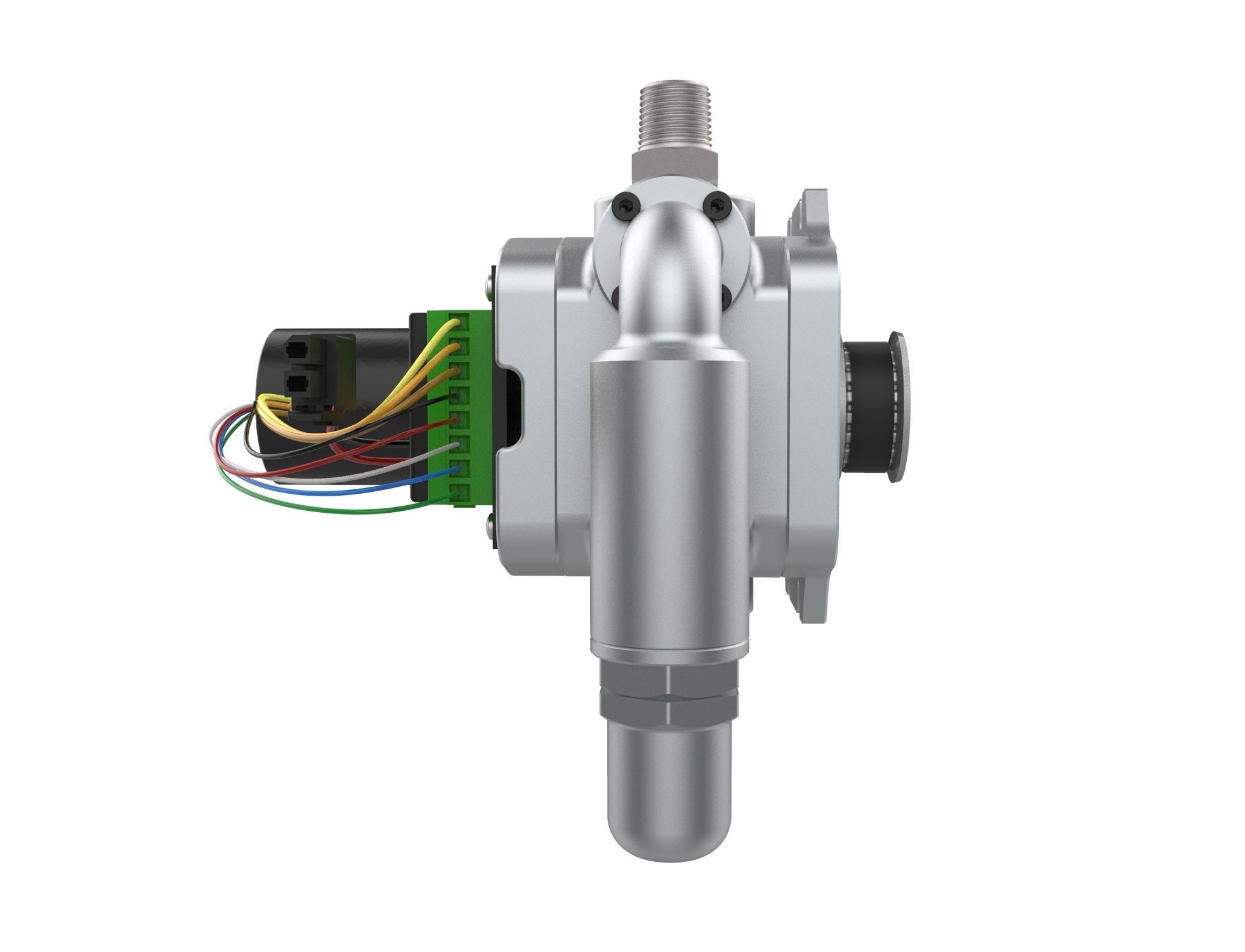

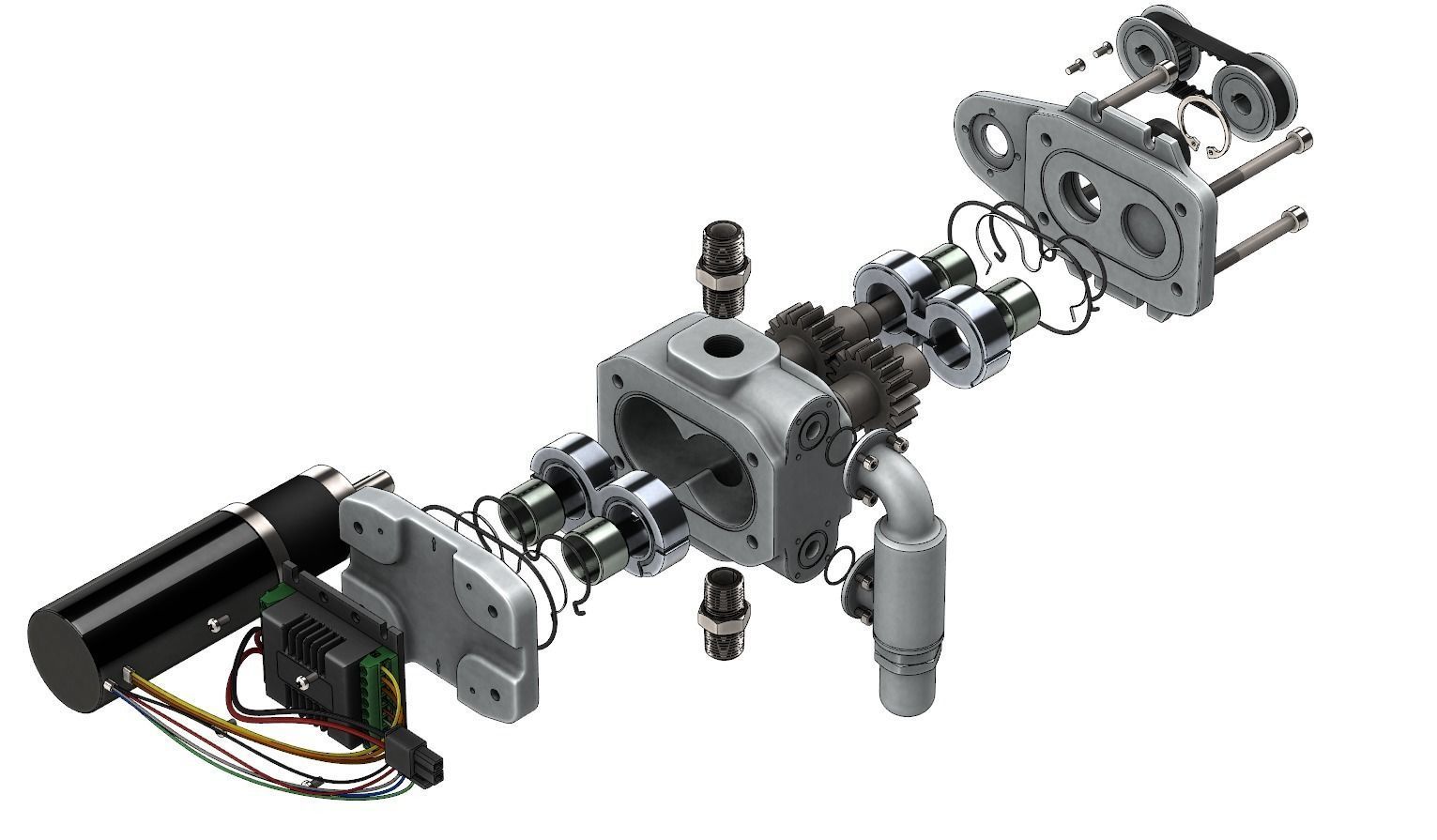

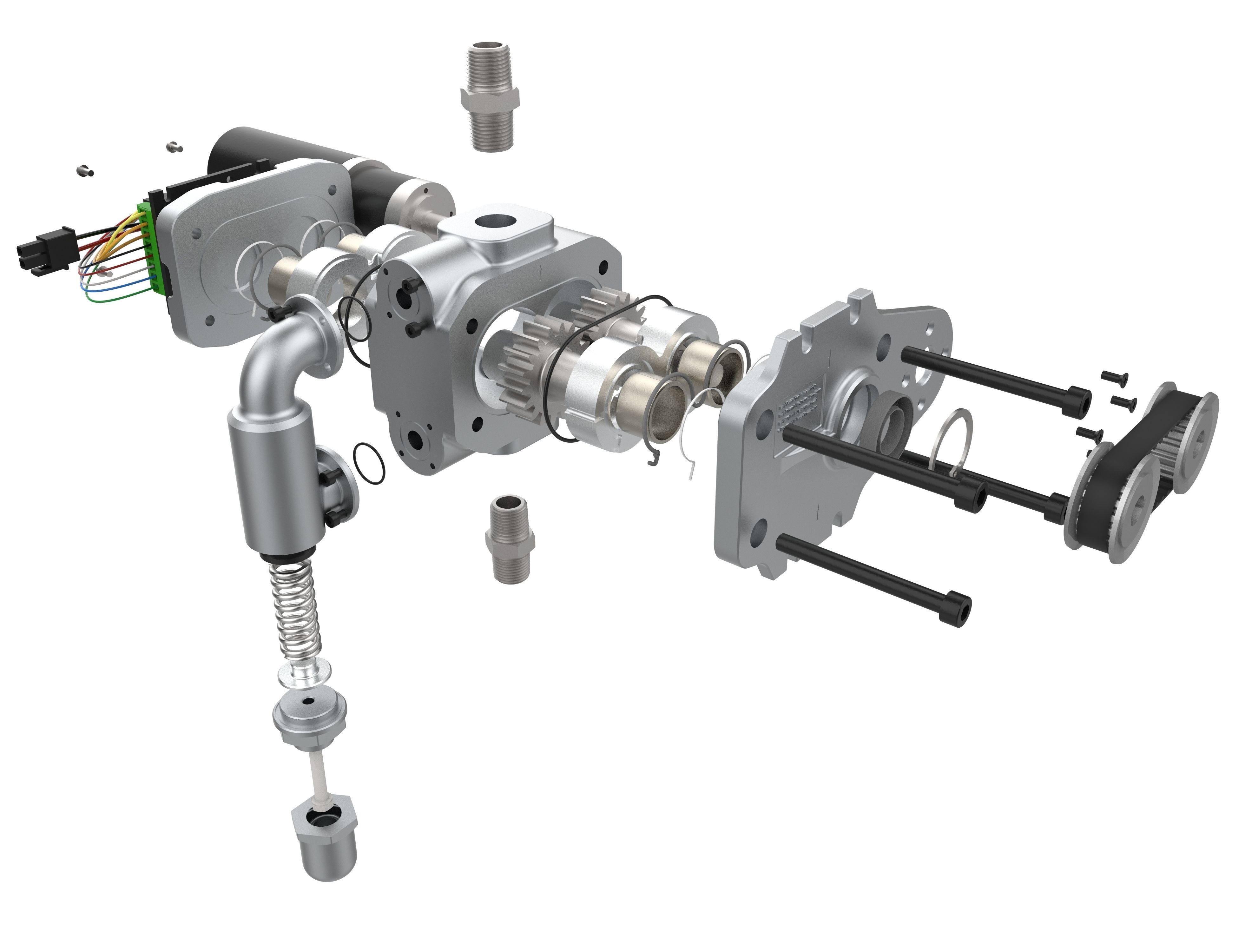

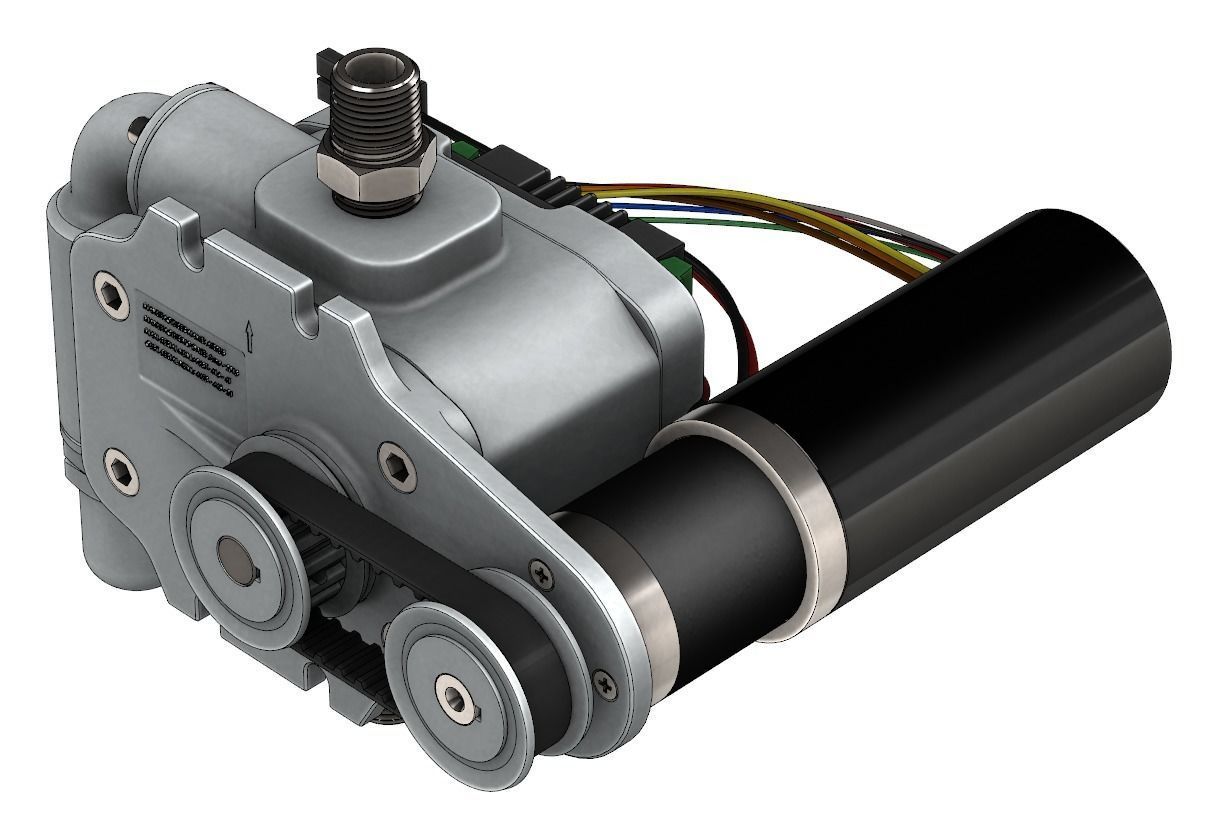

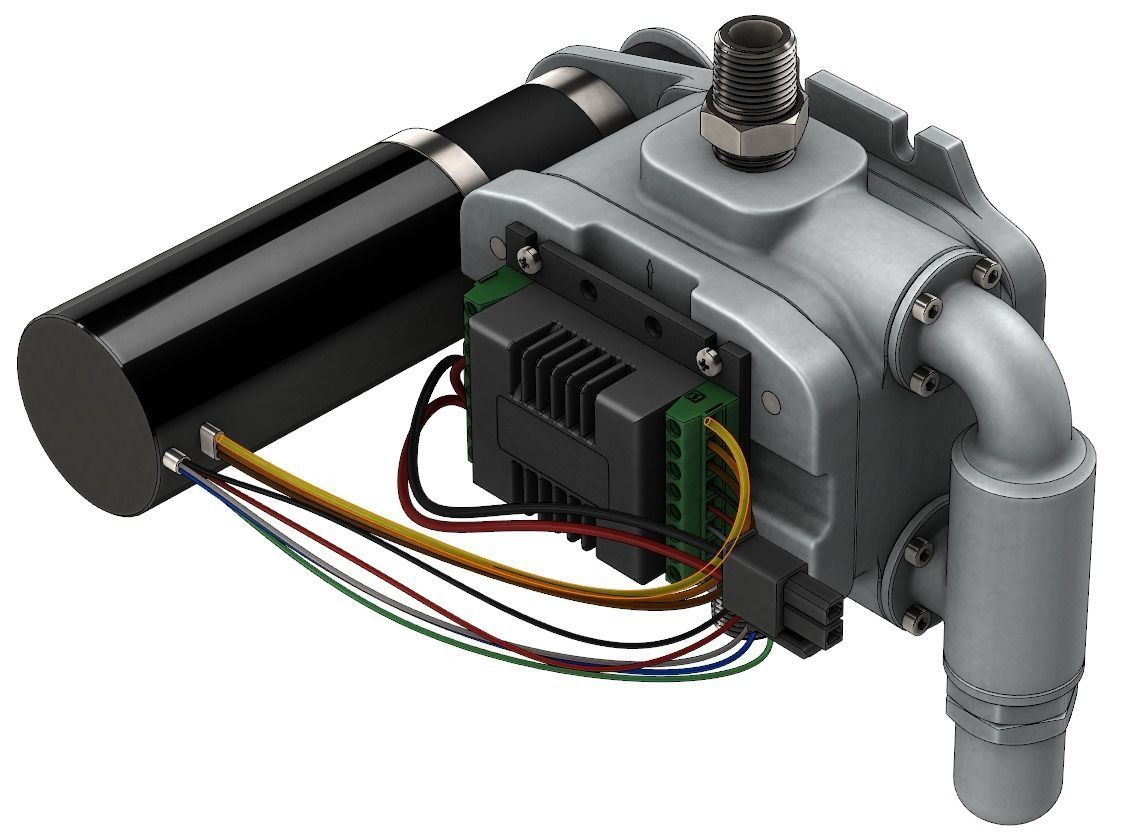

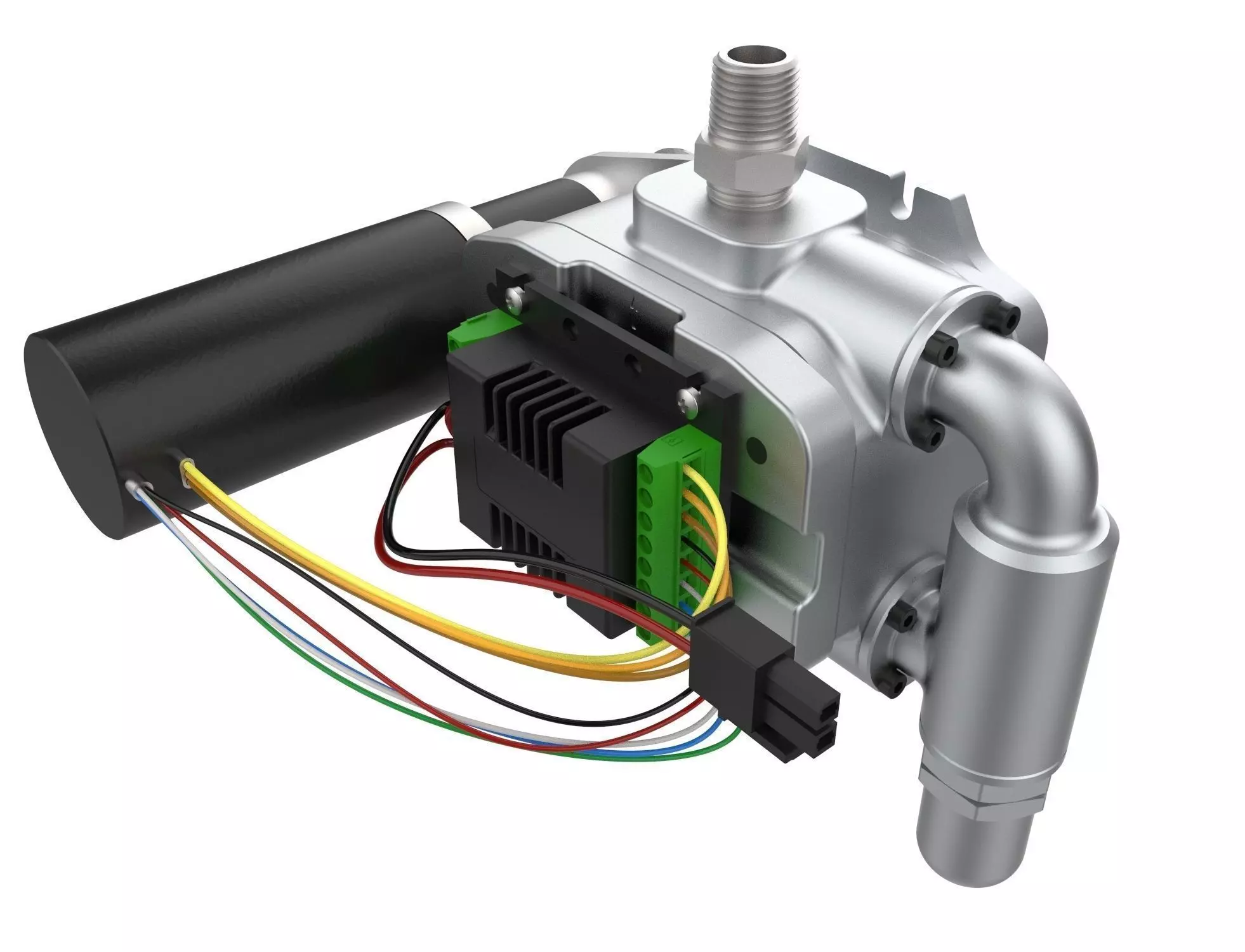

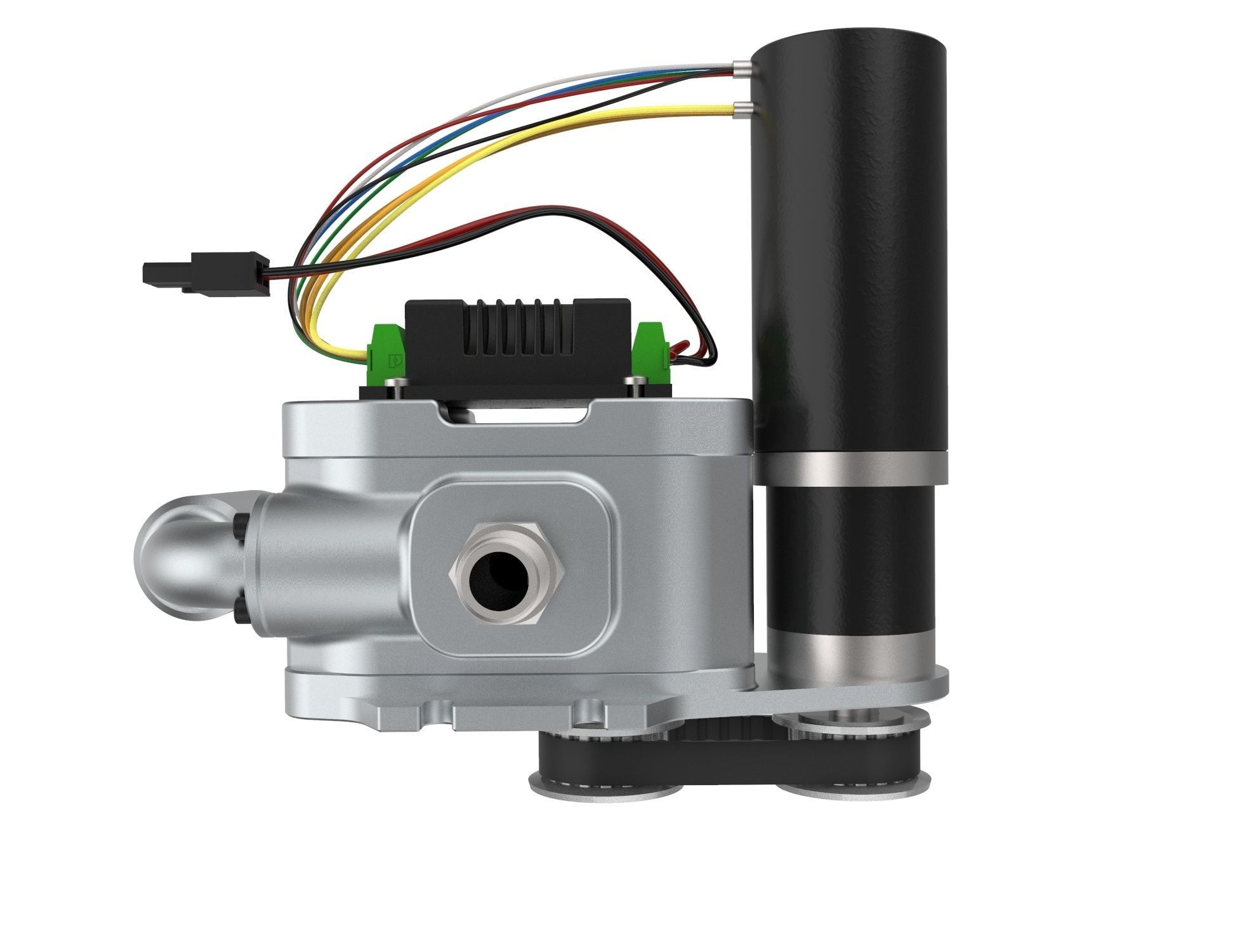

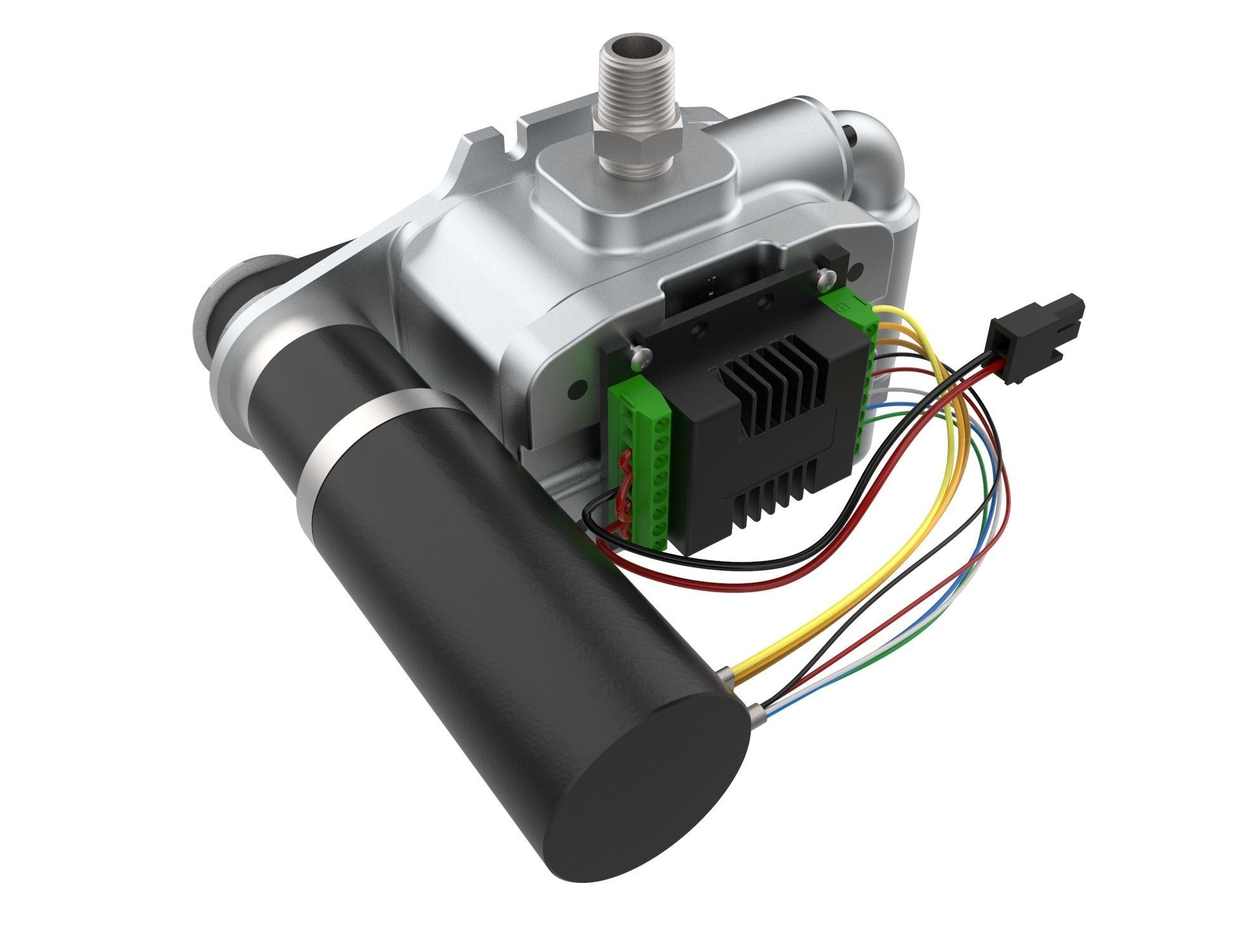

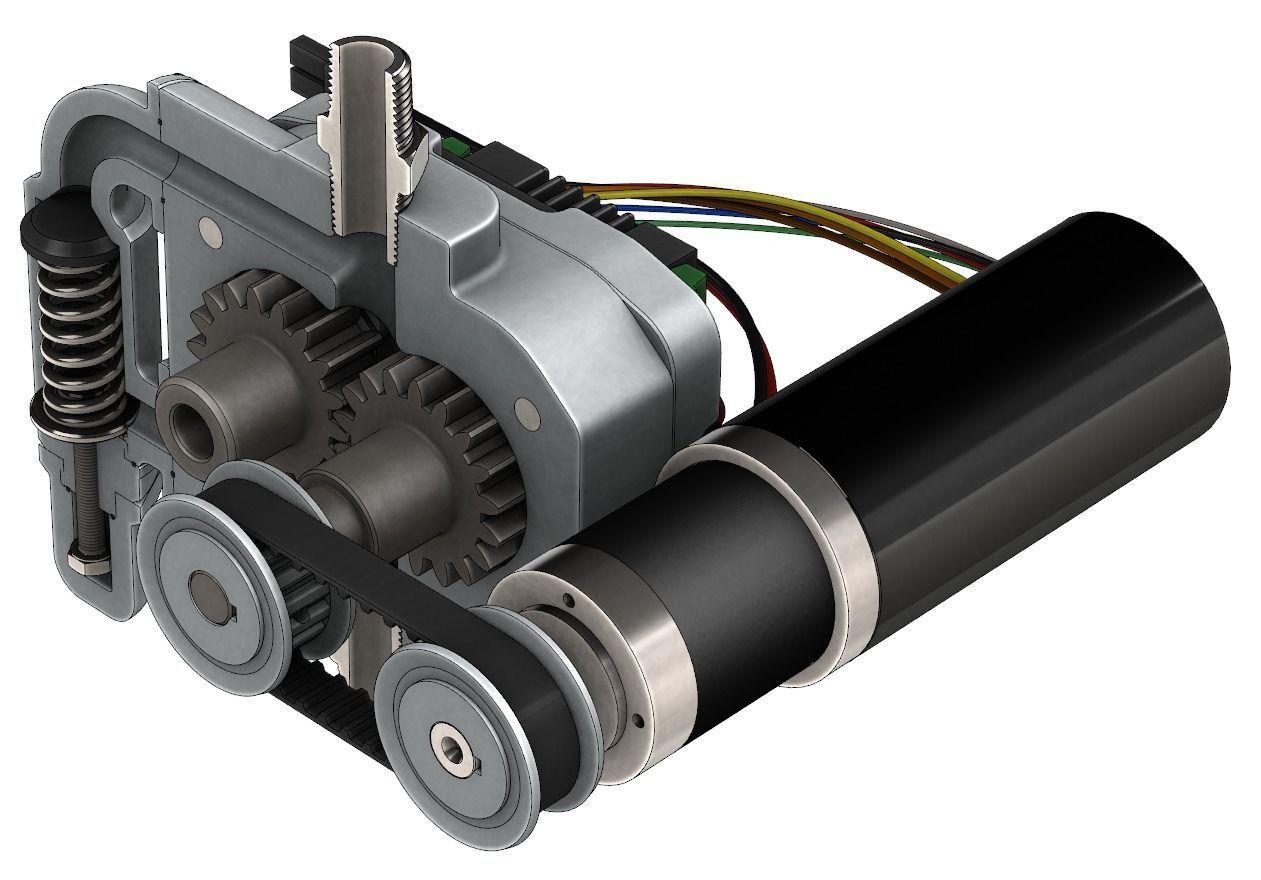

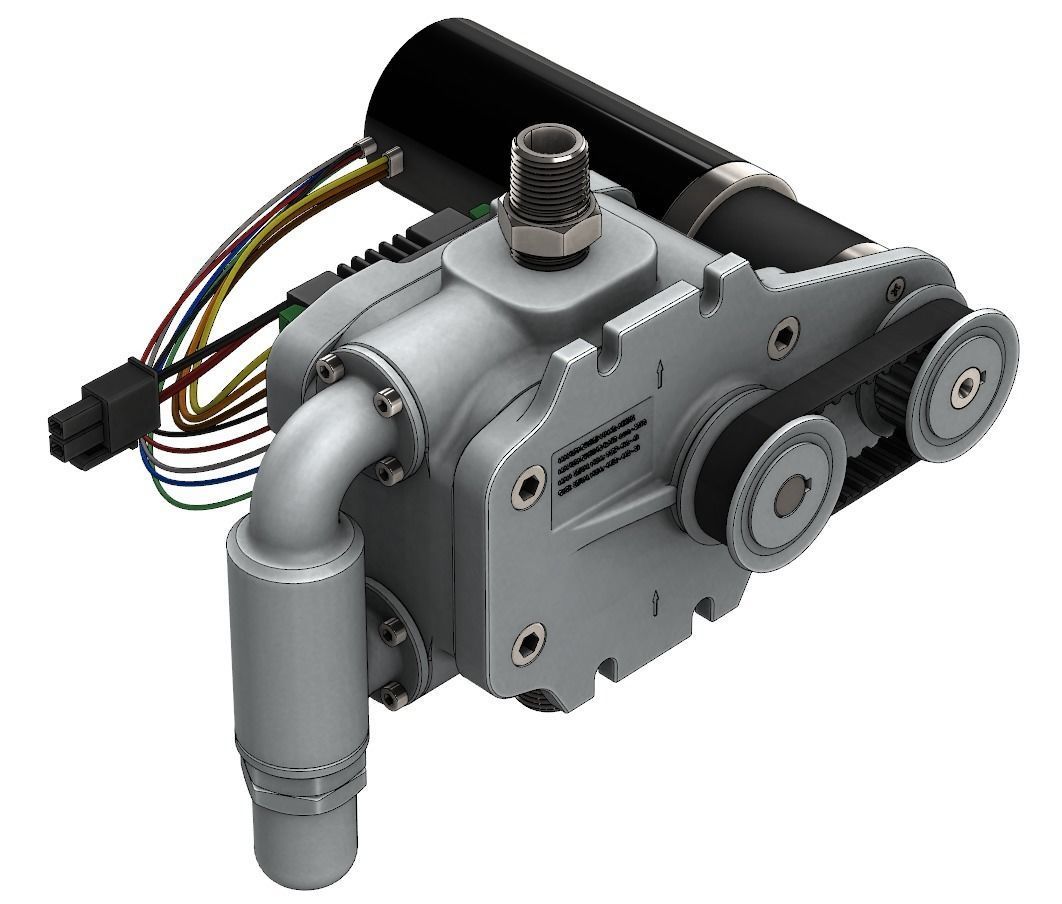

Positive Displacement Pump with Relief Valve 3D model
Description

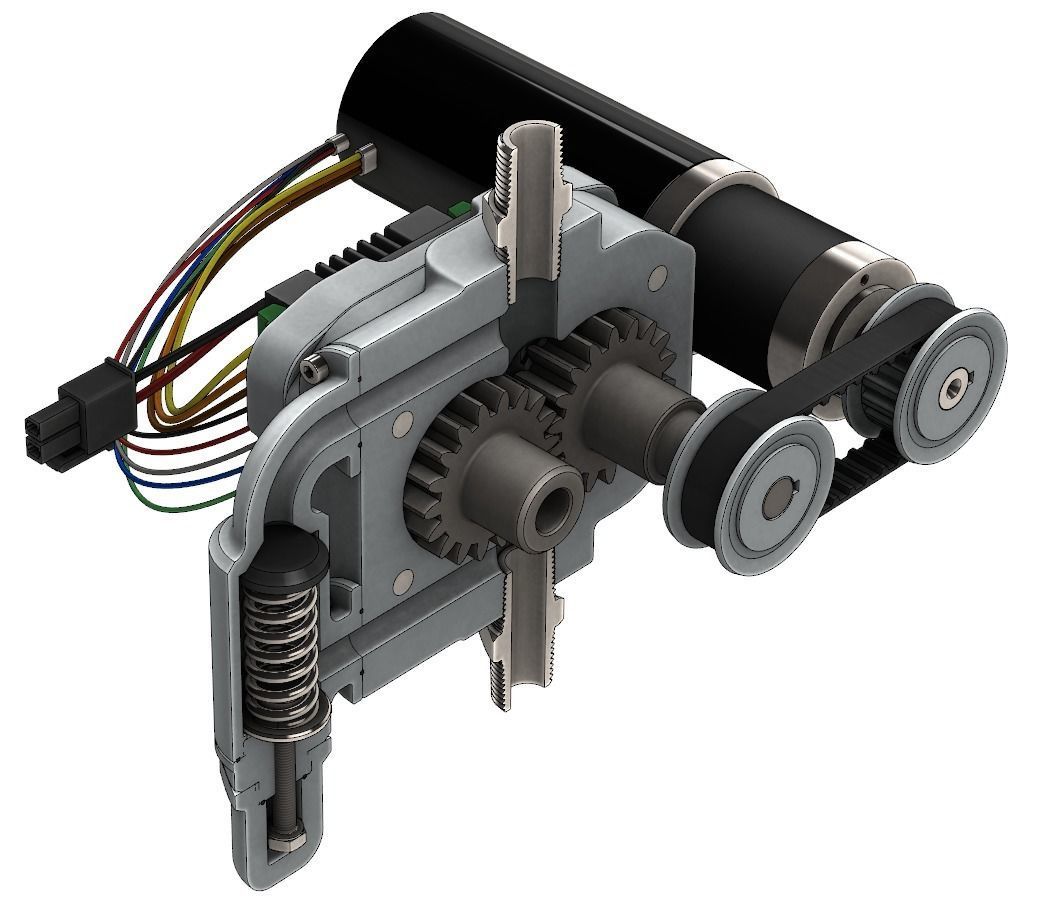

This External Gear Pump was designed using Solidworks 2018, and has the following calculated parameters:Theoretical Displacement volume: 6 cc/revEstimated volumetric Efficiency: 90%Operating speed at 11L/min: 2037 RPMMotor theoretical Max torque at 232W and 2037 RPM operating with 28V: 1.09 N.mEstimated mechanical efficiency of the motor/gearbox: 90%Actual torque delivered to the pump: 0.98 N.m

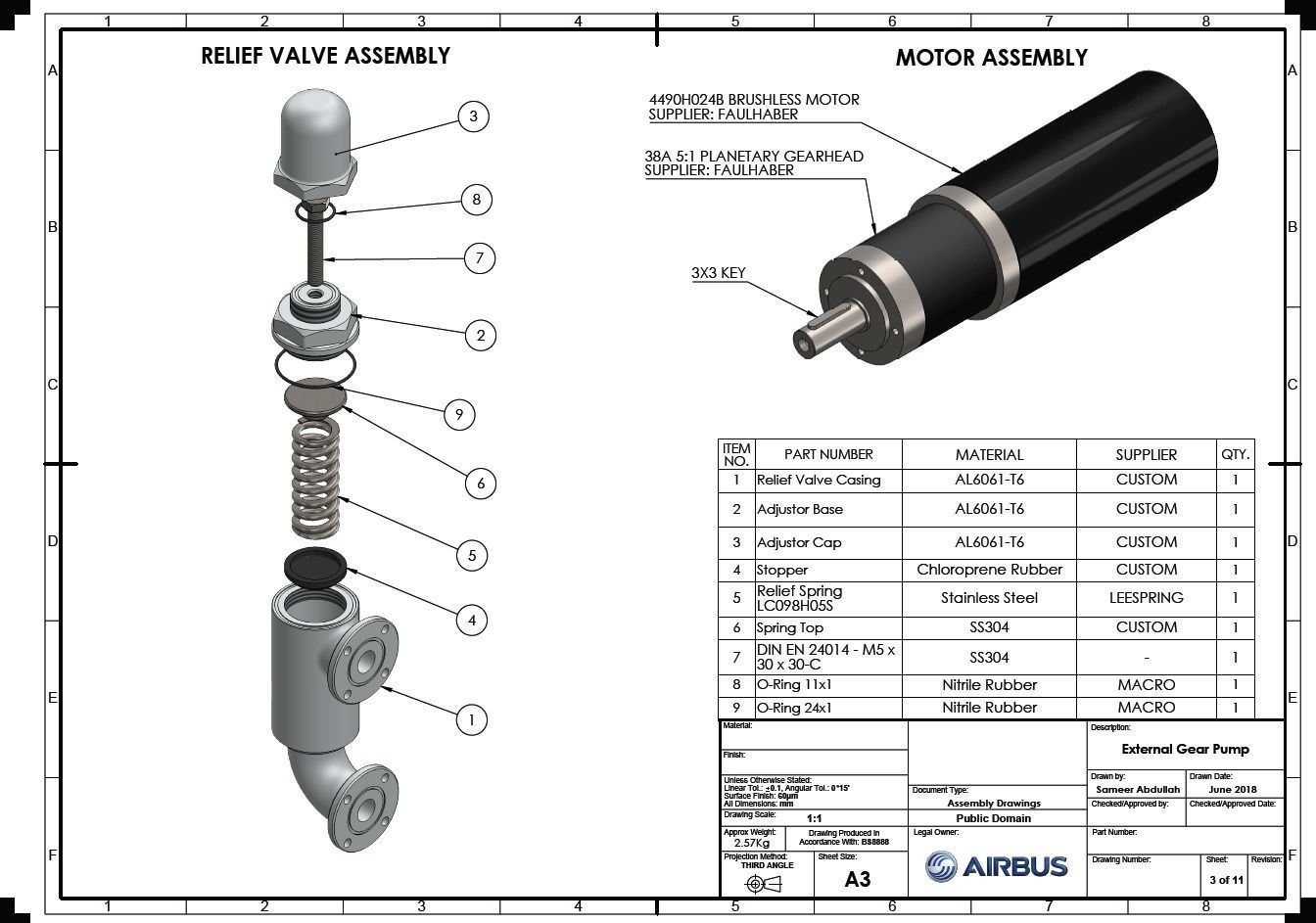

Theoretical maximum pressure difference for the pump at the receding conditions: 10.25 BarFull engineering drawings are included, this includes assembly drawings and BOM, as well as the shop drawings for key parts, first three pages of the drawings are shown in the previews.Keyshot scene is included with all materials applied.Model Formats:
- Native Solidworks 2018 (SLDASM) with all parts editable.
- STEP
- IGES
- OBJ
- FBX

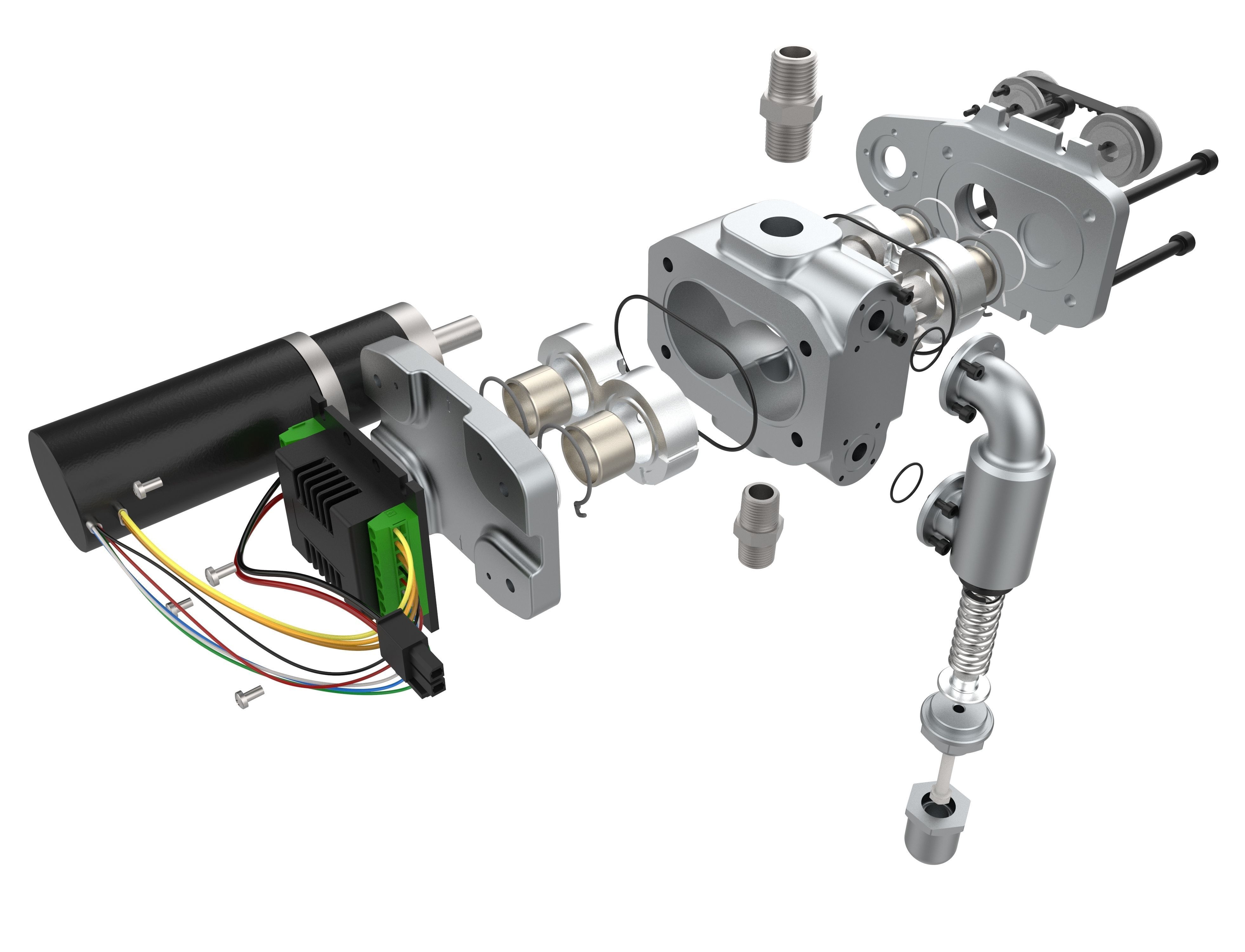

- X_TAll parts are separable from the assembly, and each can be rendered by itself or integrated in any animation or drawing software.
M
mrk970
Fantastic model and was a genuine pleasure working with the designer. Sameer is very responsive and gracious; very service-oriented. I would highly recommend him.
Positive Displacement Pump with Relief Valve
Royalty Free License
Positive Displacement Pump with Relief Valve
Royalty Free License
3D Modeling
3D Print Modeling
3D Model formats
Format limitations
- STEP (.stp)18.3 MB
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)28.5 MB
- Autodesk FBX (.fbx)22.5 MB
- OBJ (.obj, .mtl) (2 files)46.8 MB
- PDF (.pdf)3.82 MB
3D Model details
- Publish date2018-09-03
- Model ID#988506
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Ready for 3D Printing
