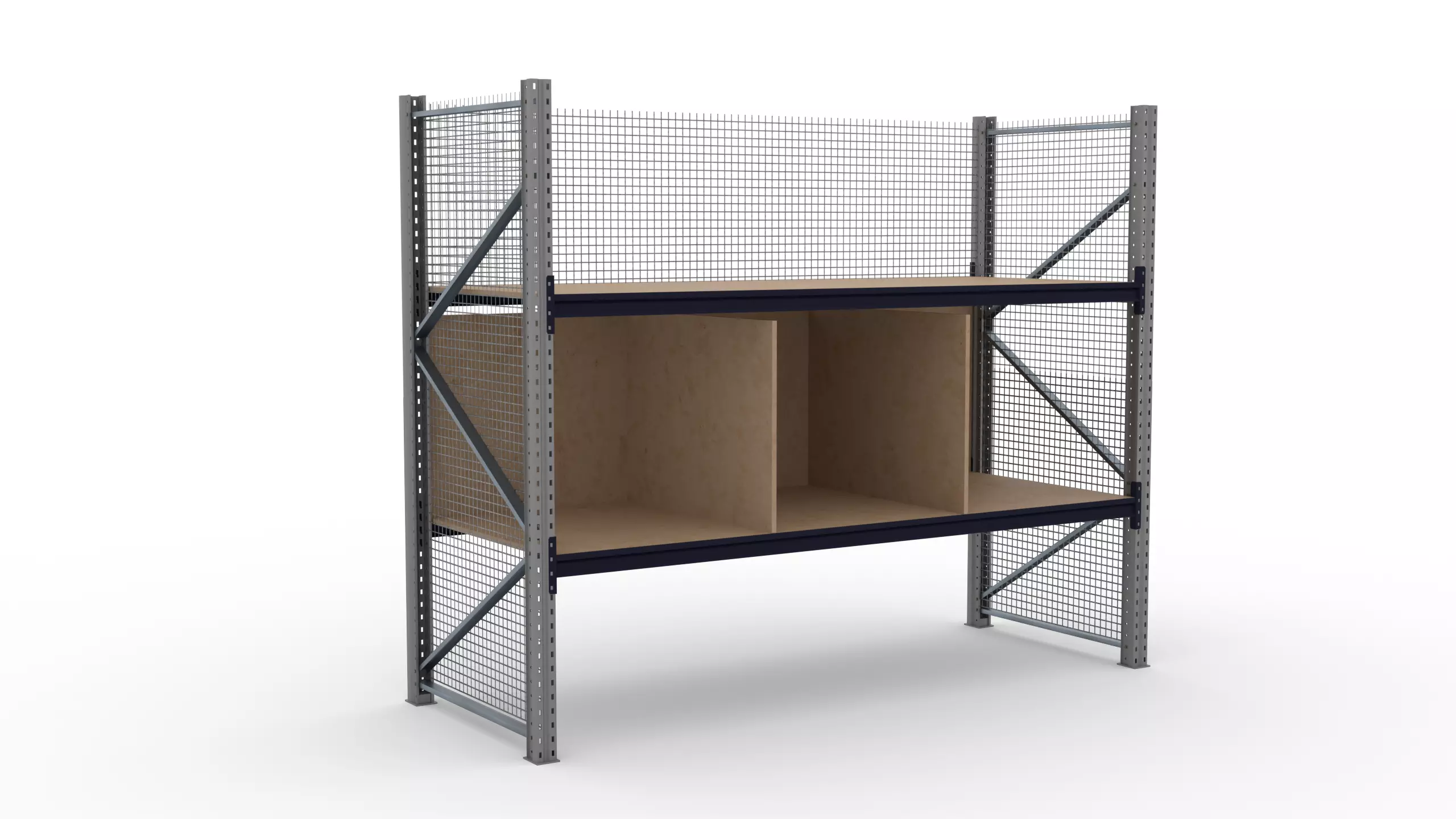

Picking rack system 3D model

Dimensions:

• General dimensions are 2900x1100x2355mm

• Picking shelves dimensions: 2730x1090mm

• Chipboard thickness: 20mm

About:

• On ground level there's space for 3 EUR-size pallets.

• First level - 3 picking sockets

• Second level - one big socket

Statistics (polygons/verts):

• Single pole: 192/190

• Single traverse belt: 440/408

• Support: 56/54

• Stiffener belt: 12/5 (+4 screw heads 72/56)

• Pole foot: 36/34

• Mesh fence - plane with transparency texture

Two .blend native files:

1. picking_rack _system.blend - like in pictures and youtube preview. Textures are packed into file. You don't have to do anything else.

2. not_applied.blend - file easier to edit. Most objects has mirror and array modifier. You can edit it according to your preferences. I have one tutorial to edits file like this, might be useful:

https://www.youtube.com/watch?v=BE27cIyEQzM&ab_channel=WareDream (one important difference - alpha channel divided by 5, not 4)

This file is much lighter, because textures aren't packed in. Defalt path to textures is /textures, so after unpacking to the same folder the textures should be attached

Textures are in 2K PNG, except Fence texture (4K PNG) and Alpha (JPG)

If you want to modify object, but you don't know how to do it - contact me before buying and I'll try to visualize the object for you according to your preferences.

Also, If you have any issues or need any specific logistics object for visualization, fell free to contact me.
