Industrial pipes-valves 3D model
Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

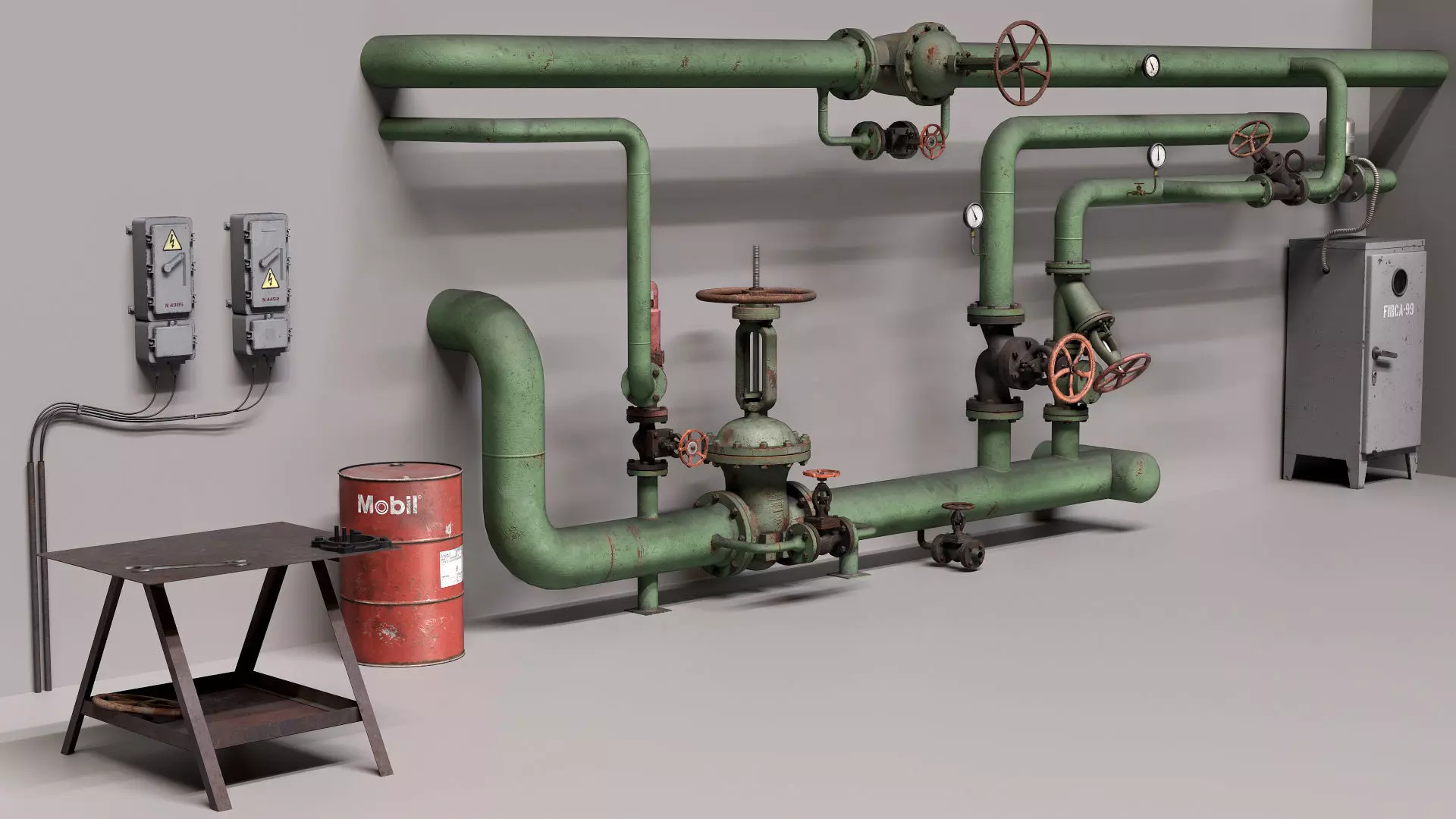

- This is the scene of technological unit consisting of water pipes and valves.
- Made on real base (like my other scenes)
- The main parts are:
- -different types of valves:gate valves,globe valves,check valve,safety valve.
- -measure devices(pressure gauge,thermometer,flowmeter)
- -electrical gauges
- The scene is detailed for using in industrial visualizations and games.
- These types of units are broadly used in different industrial chemical plants,steam plants,mills, heating stations and other enterprises.
- To understand geometric dimensions of the unit-see screenshot with a worker)
- The scene is textured in Substance Painter.
- It consists of four meshes and four sets of textures(4096x4096 pixels) respectively:
- BaseColor,Metallic,Normal,Roughness,AO,Opacity maps.
- You can easily reduce texture resolution to 2K if needed(it still will be detailed enough)
- Mesh has Corona material.
- Scale units are in millimeters.
- Polys:41266
- Verts:48138
- File Formats: max 2020.fbx, obj
- Renders are created with Corona and I-ray renderers.
- The lighting scene and environment are not included with the scene.
