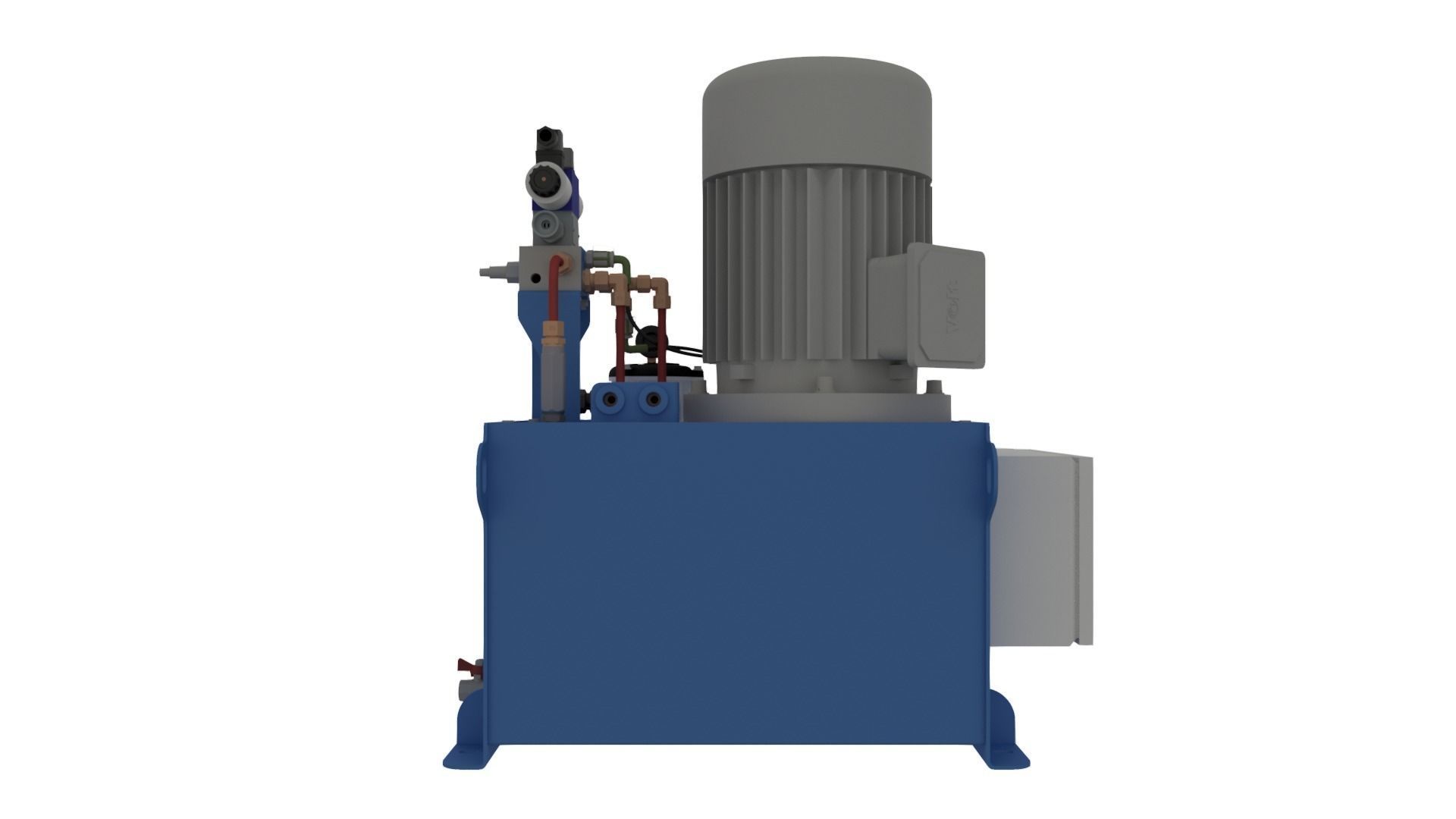

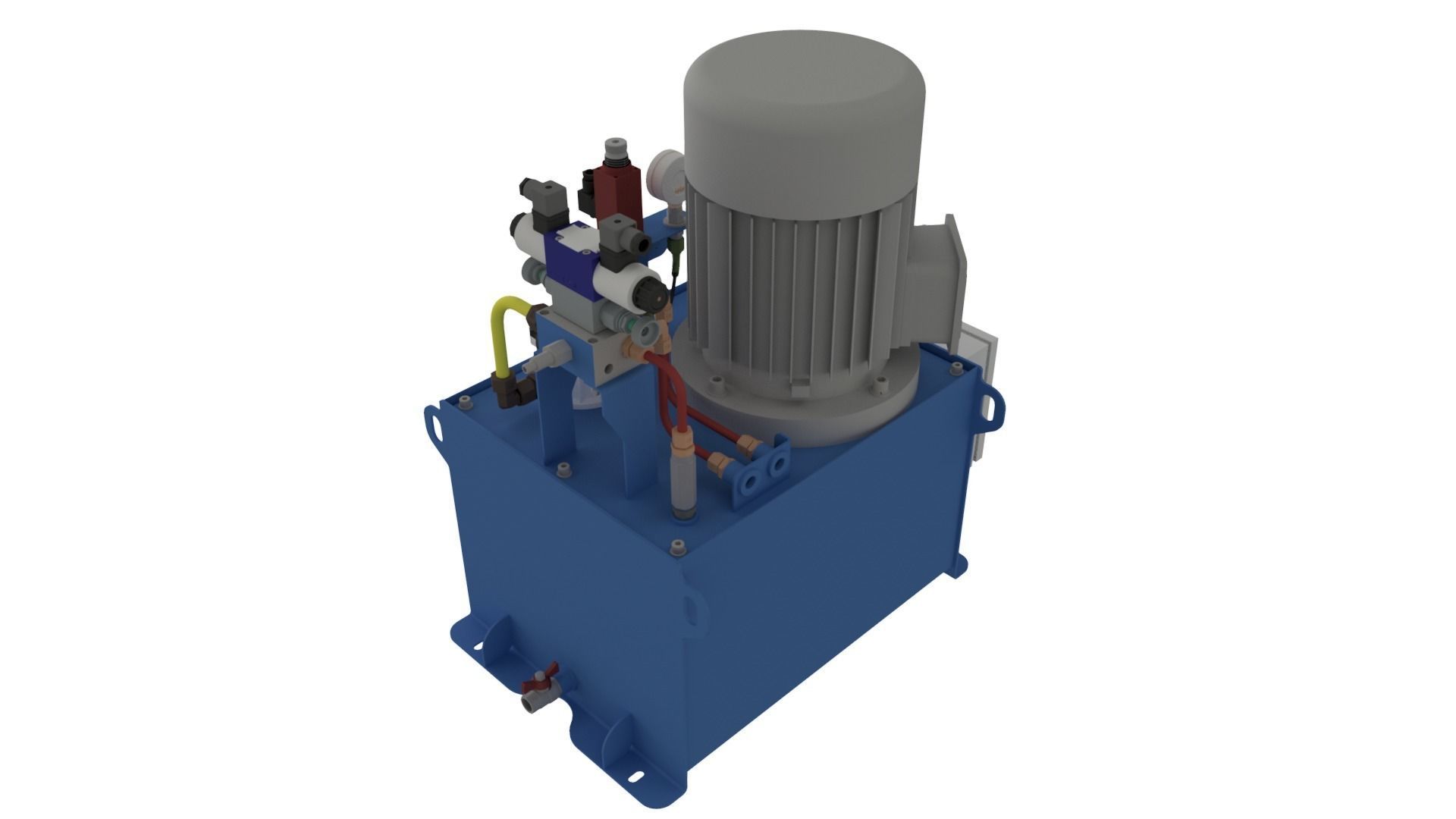

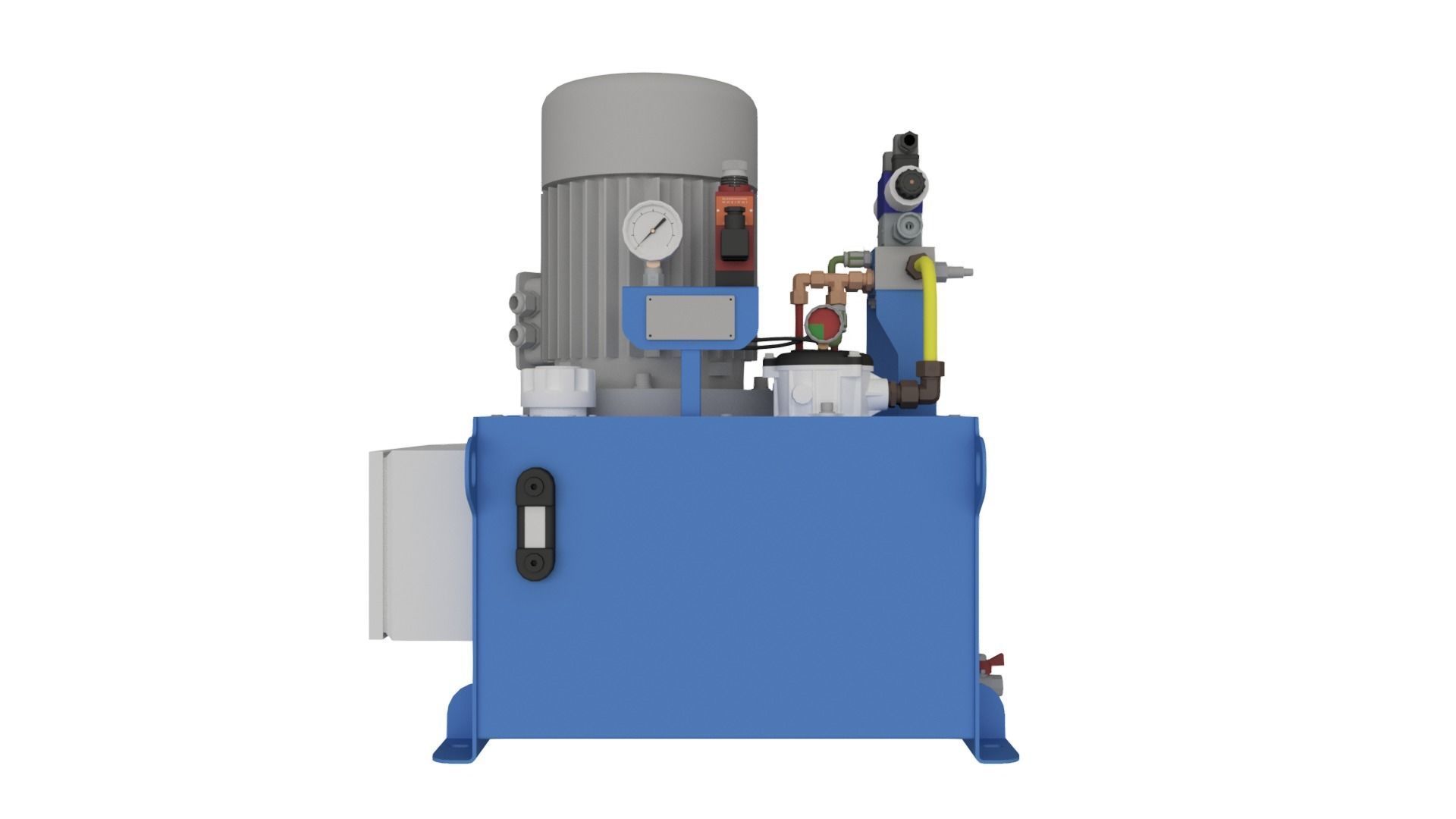

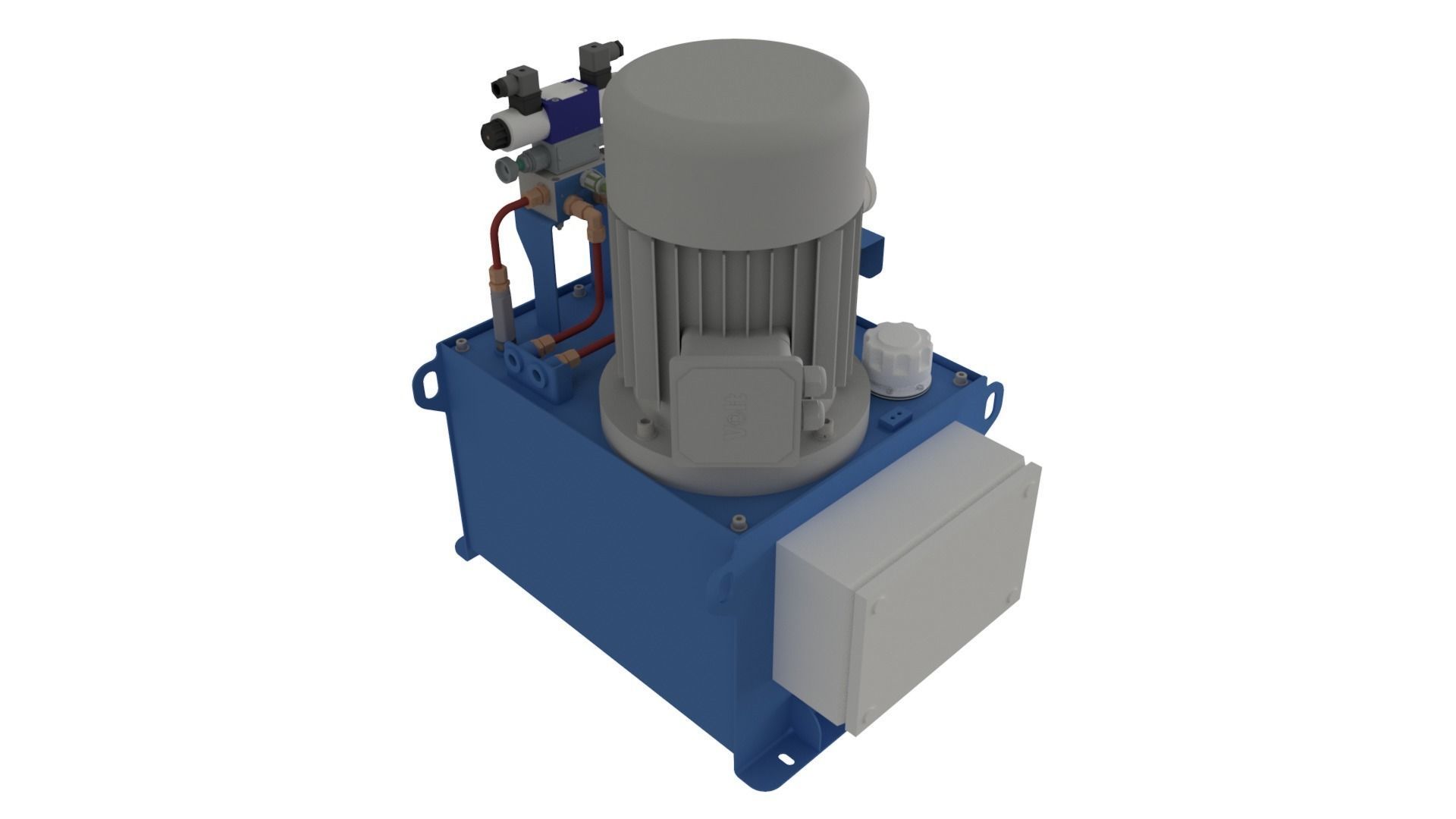

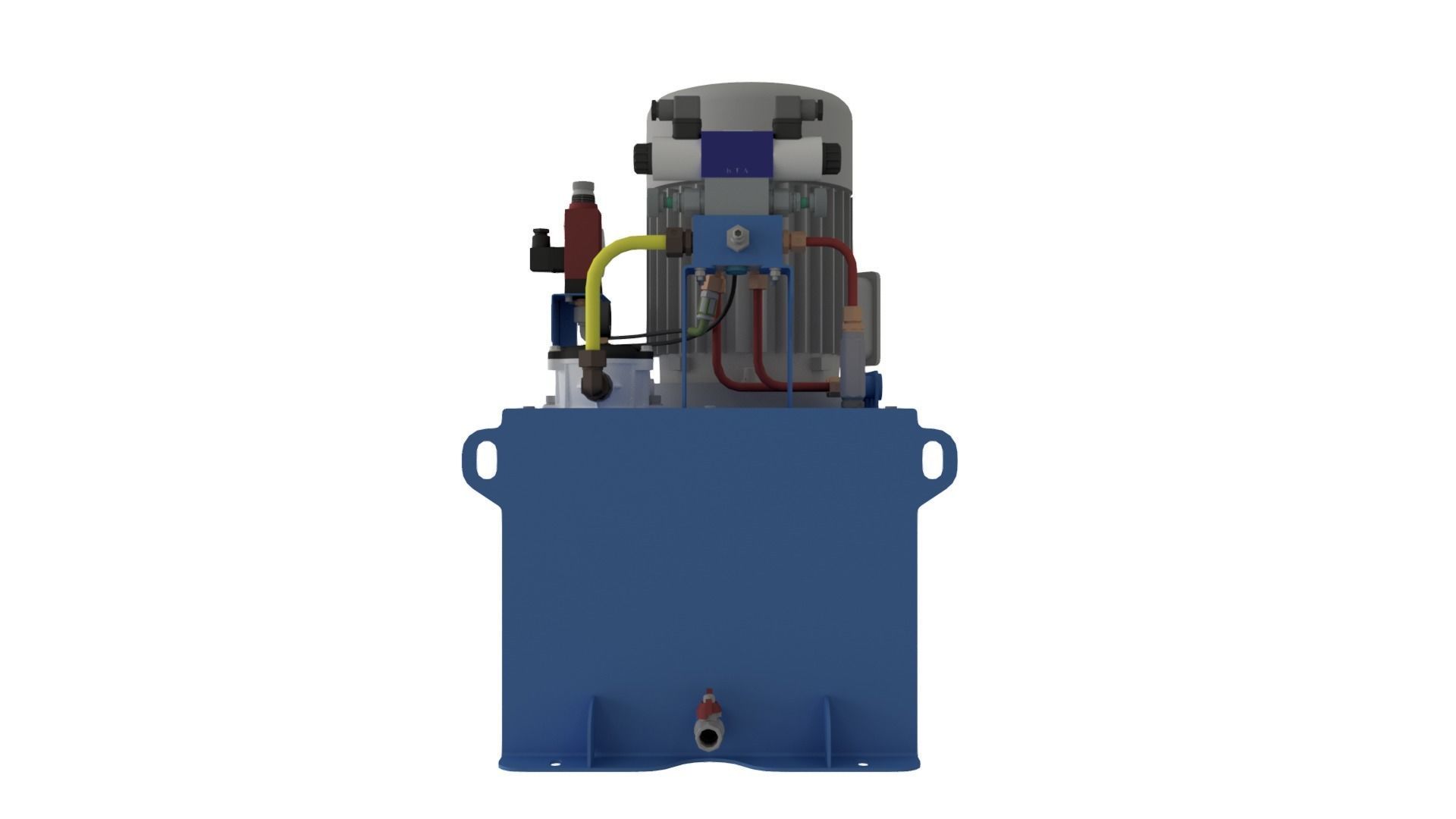

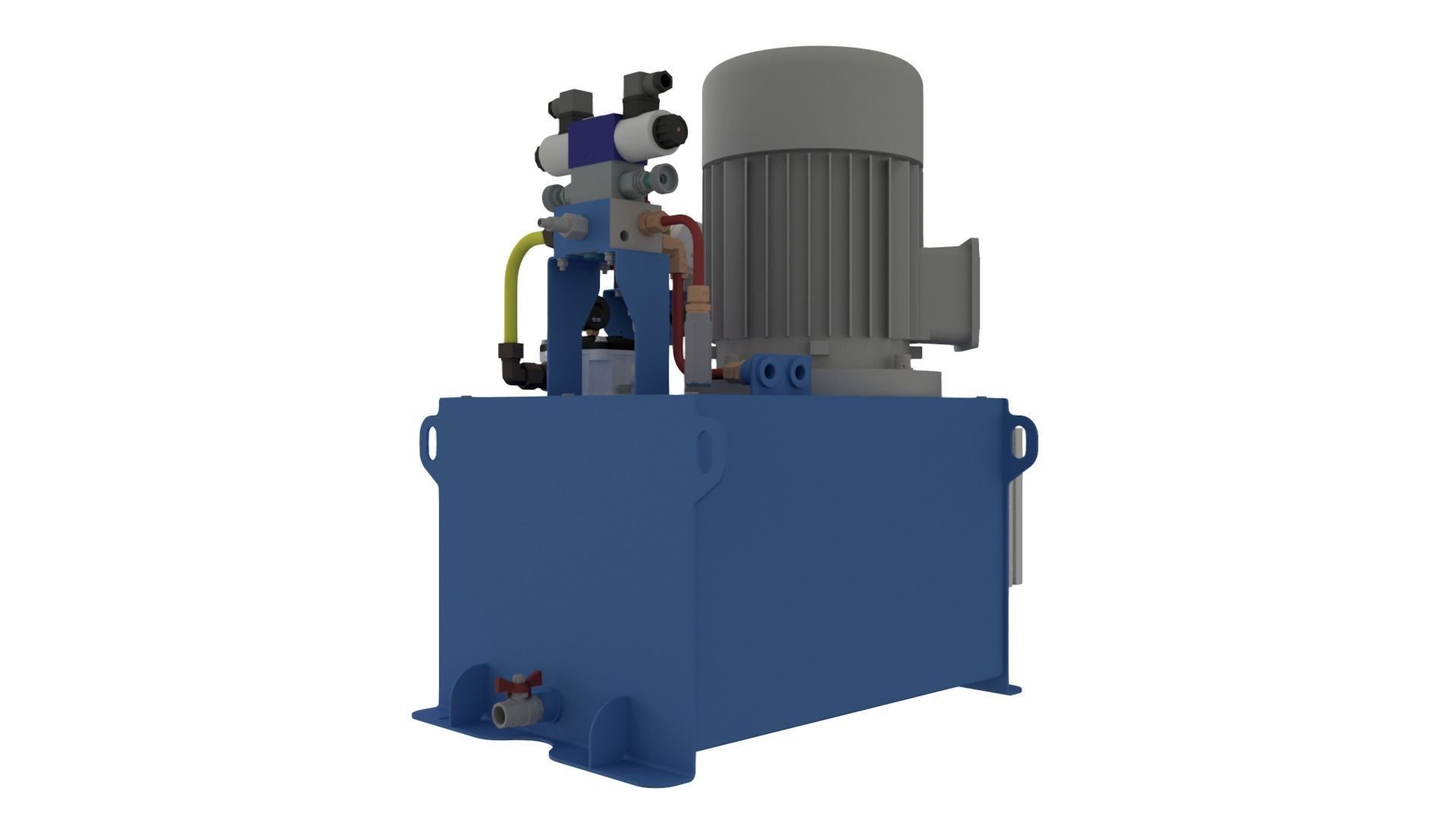

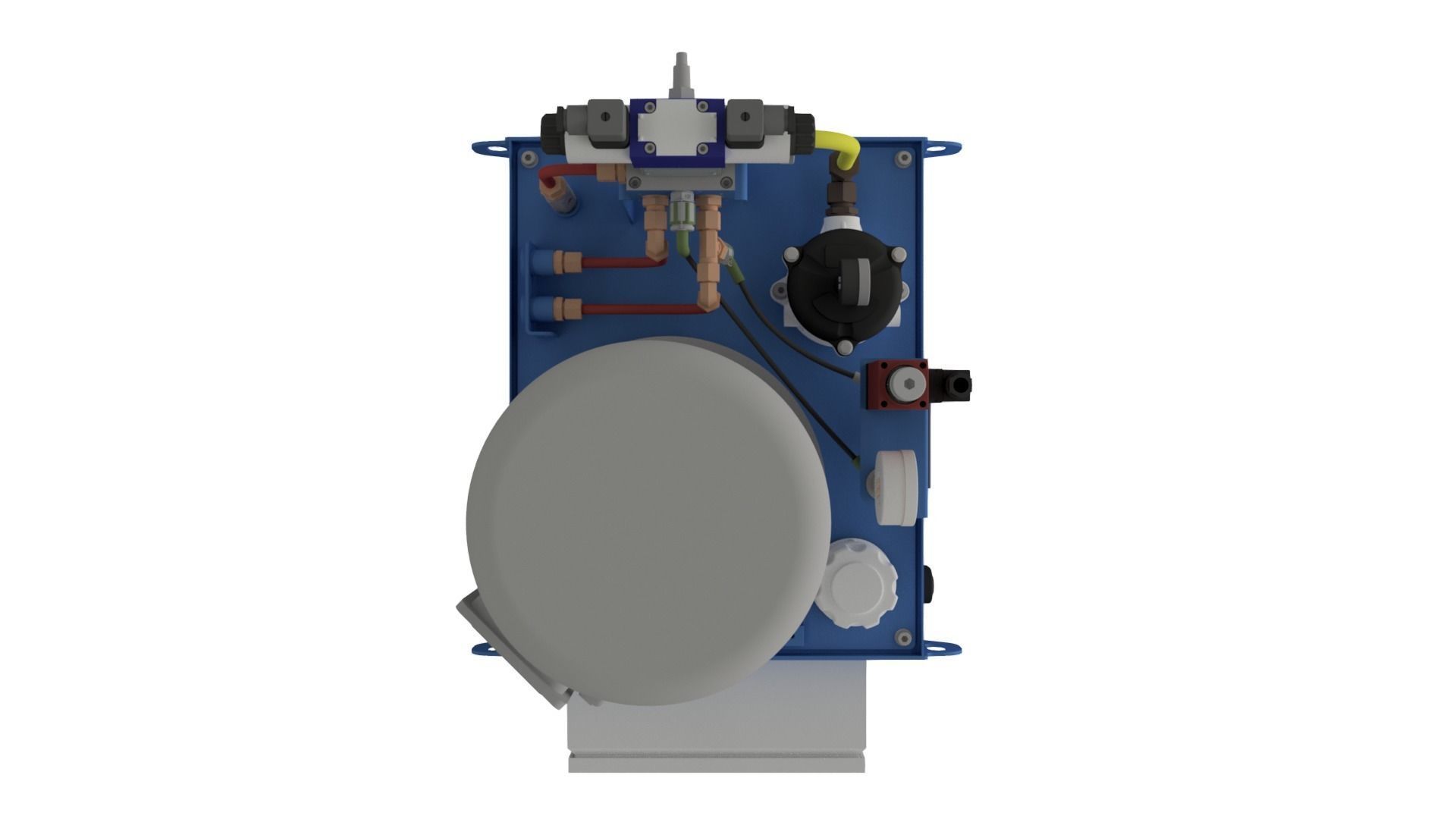

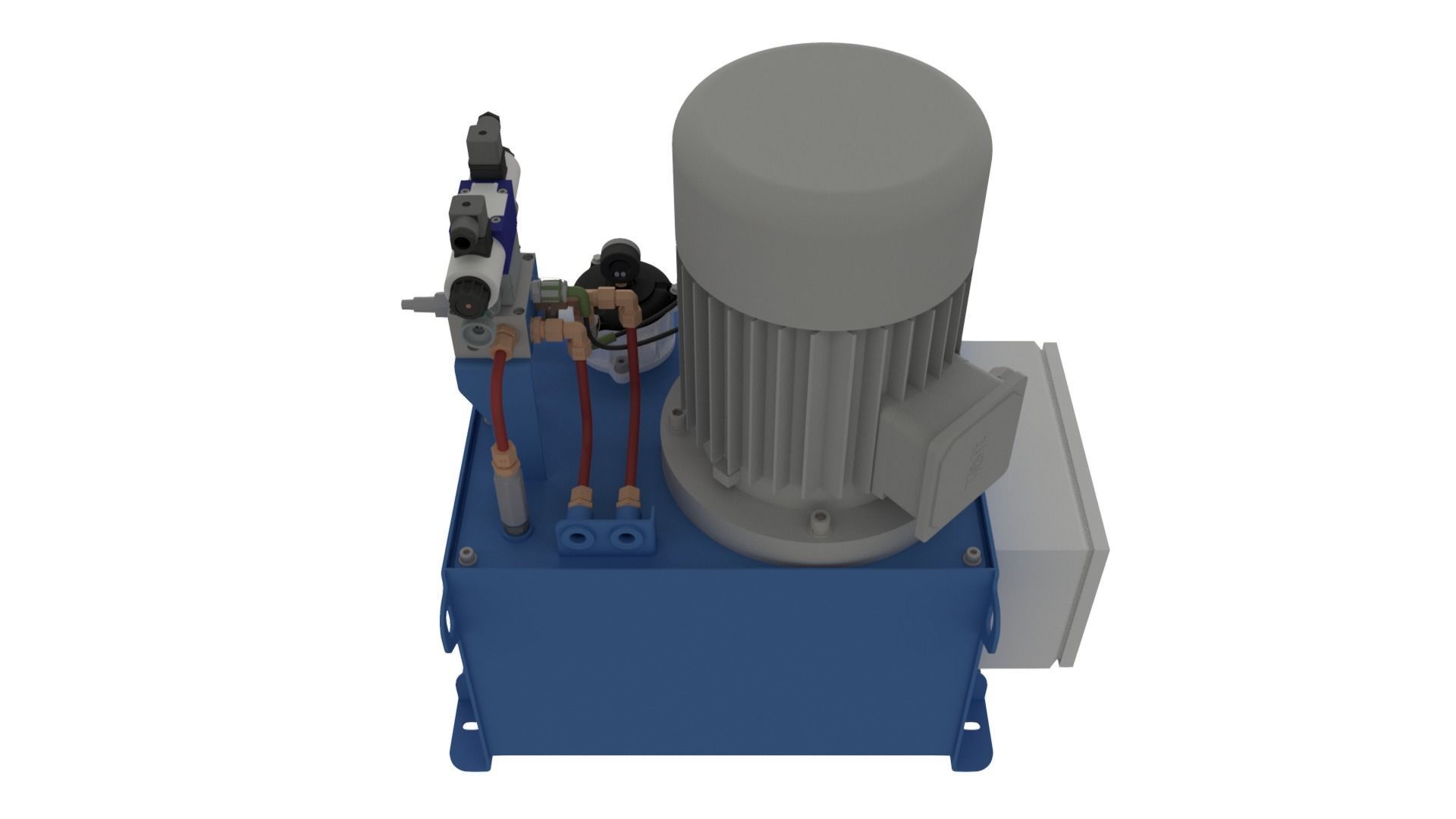

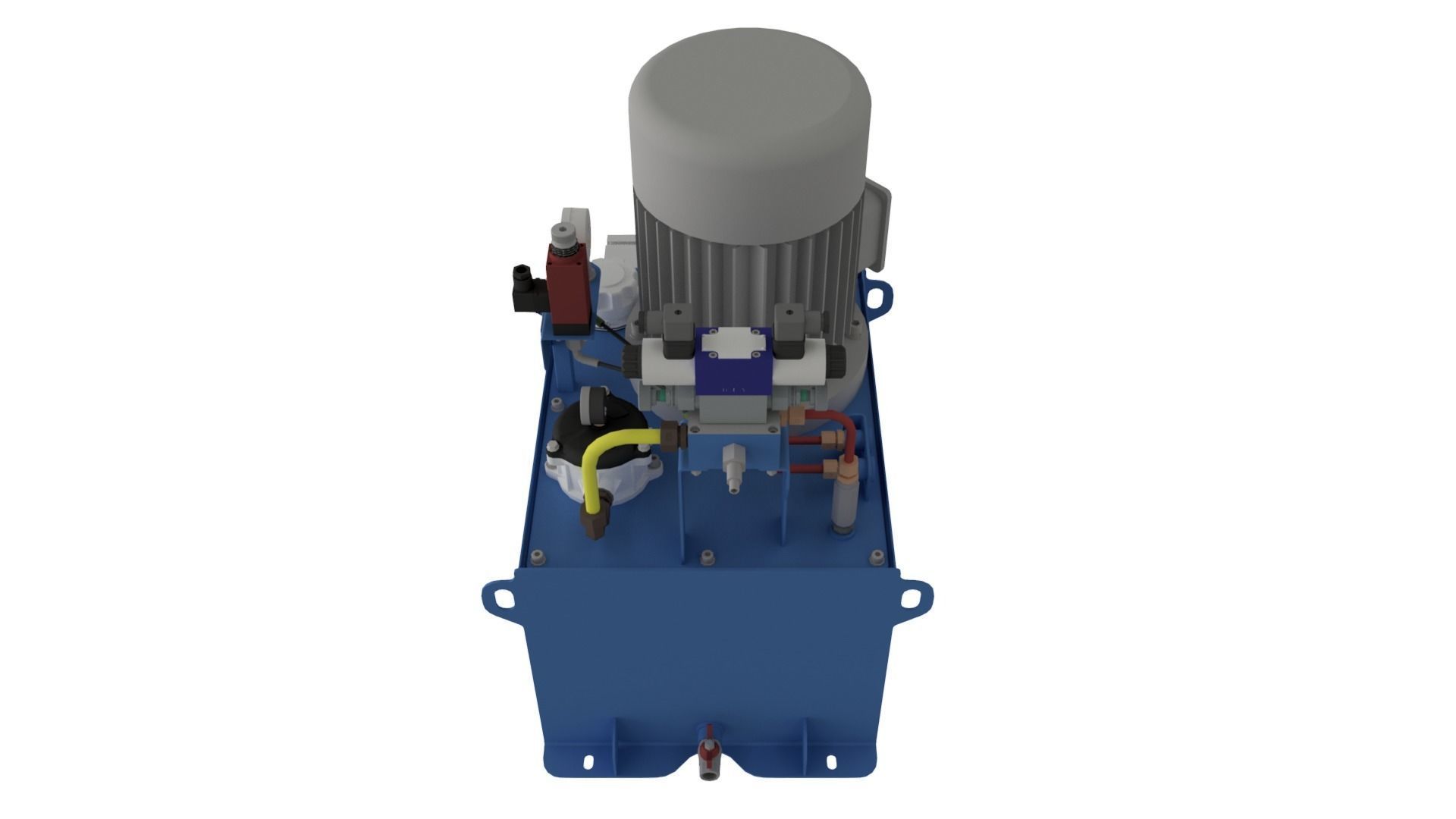

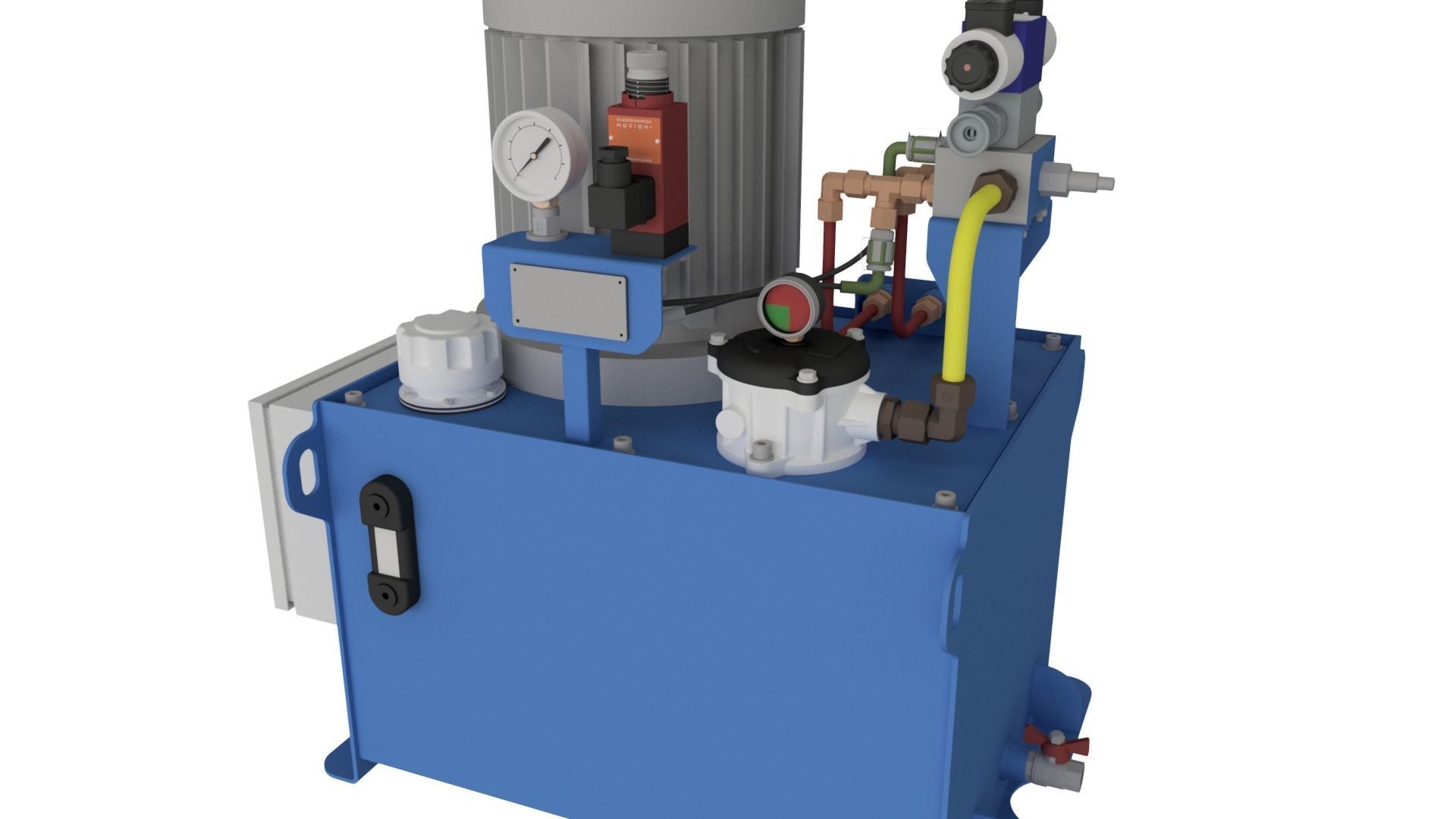

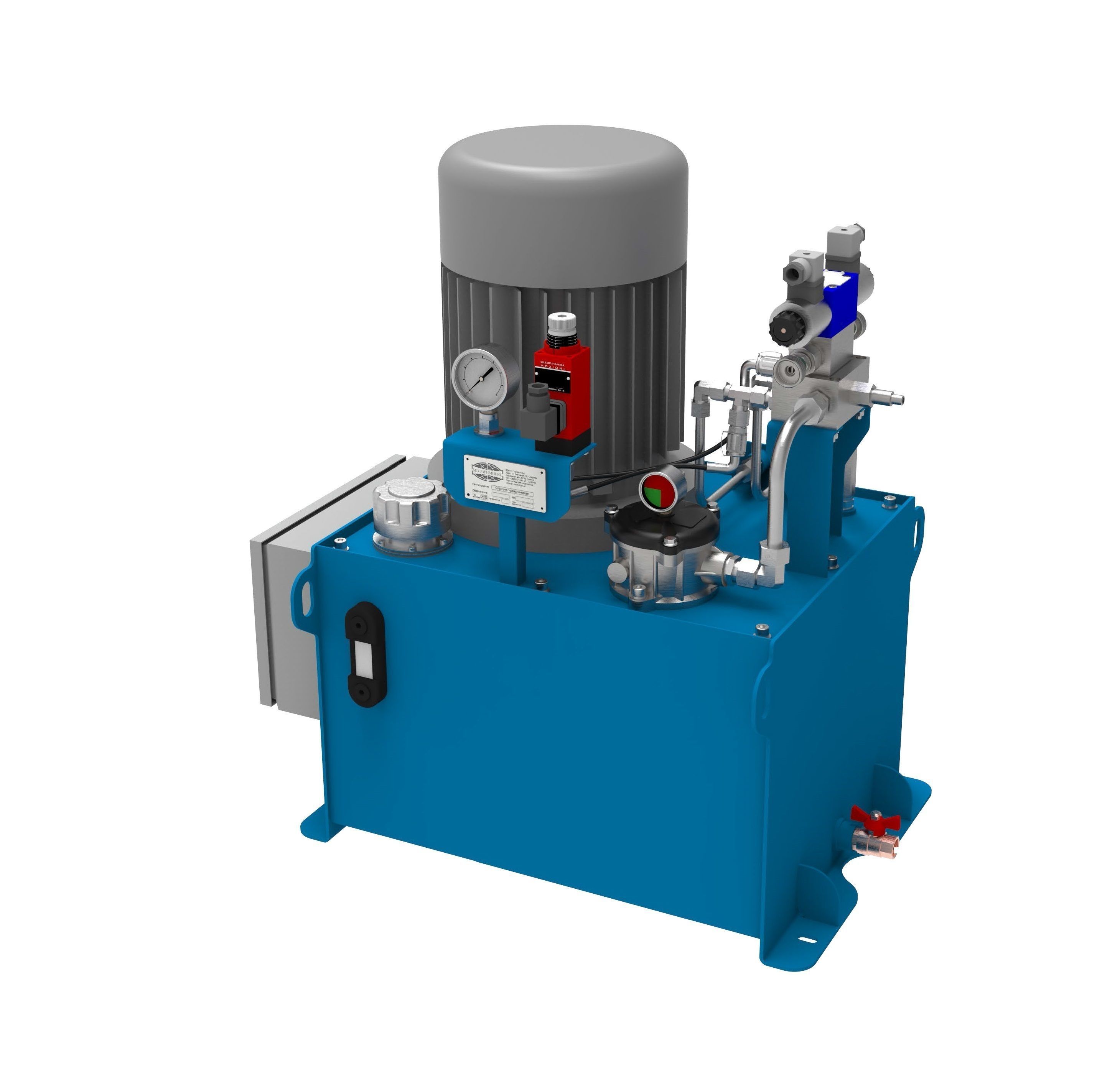

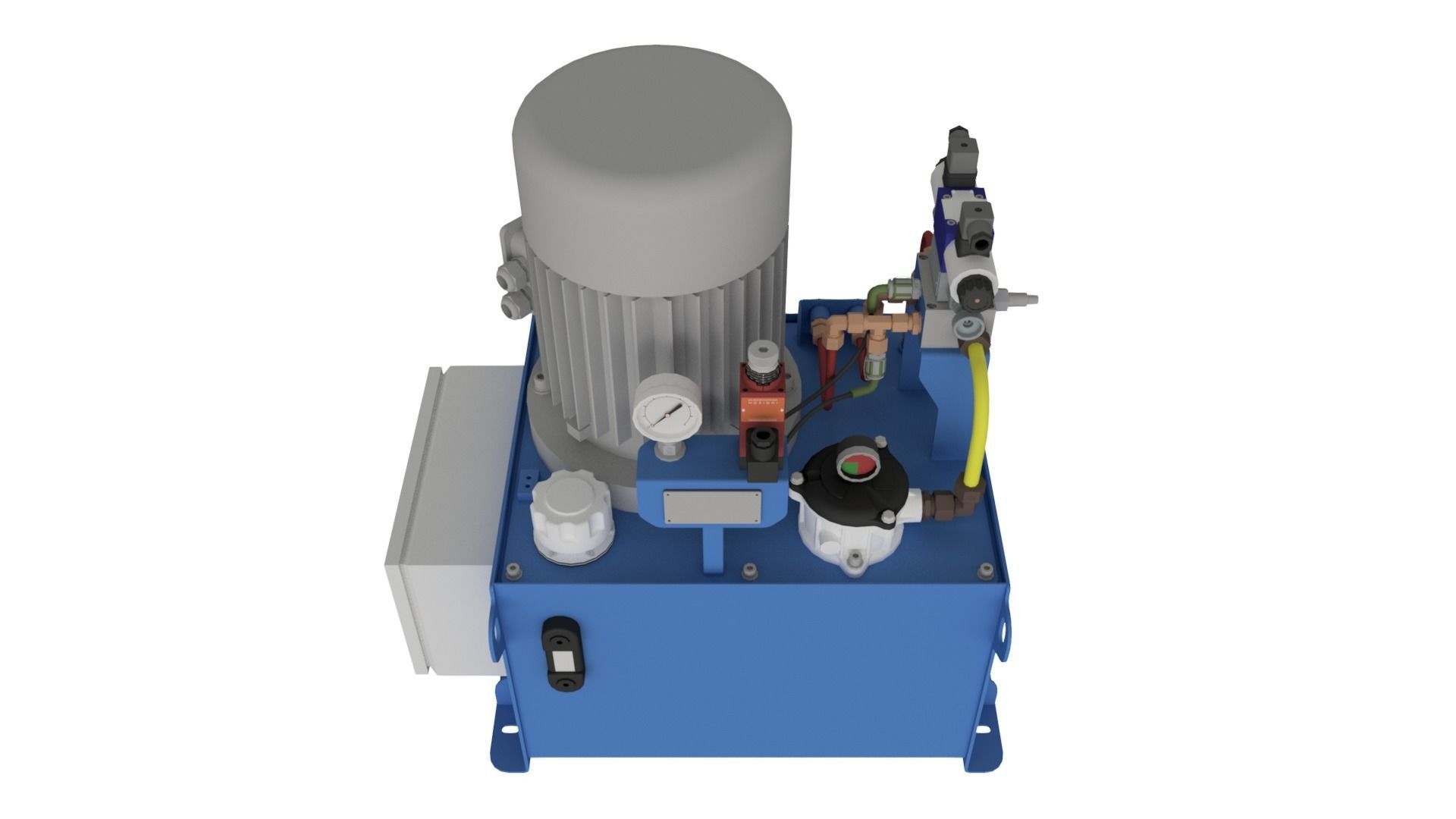

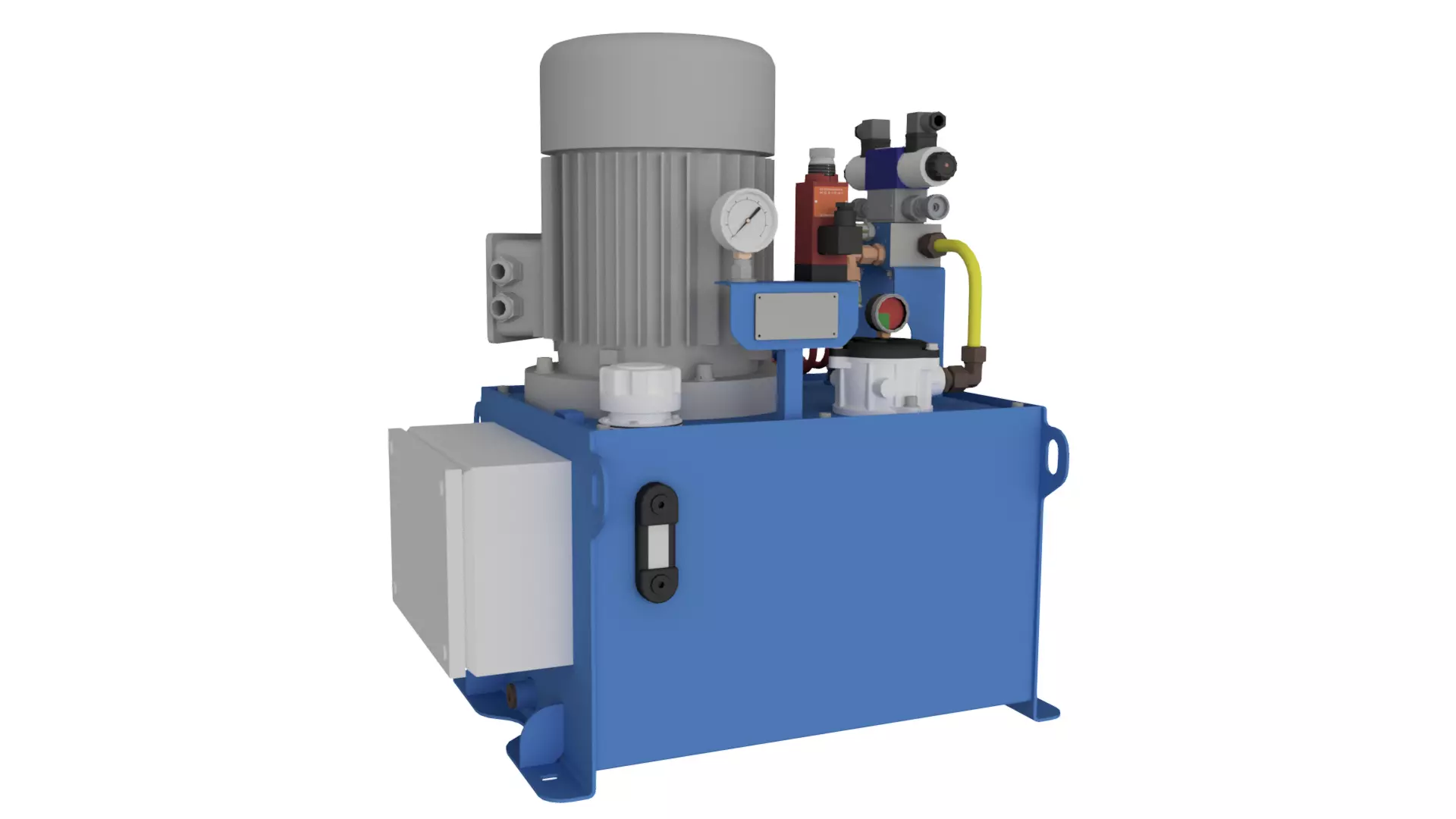

Hydraulic Power System Self-Contained 3D model

This model is a high quality real model that will enhance detail and realism to any of your rendering projects.

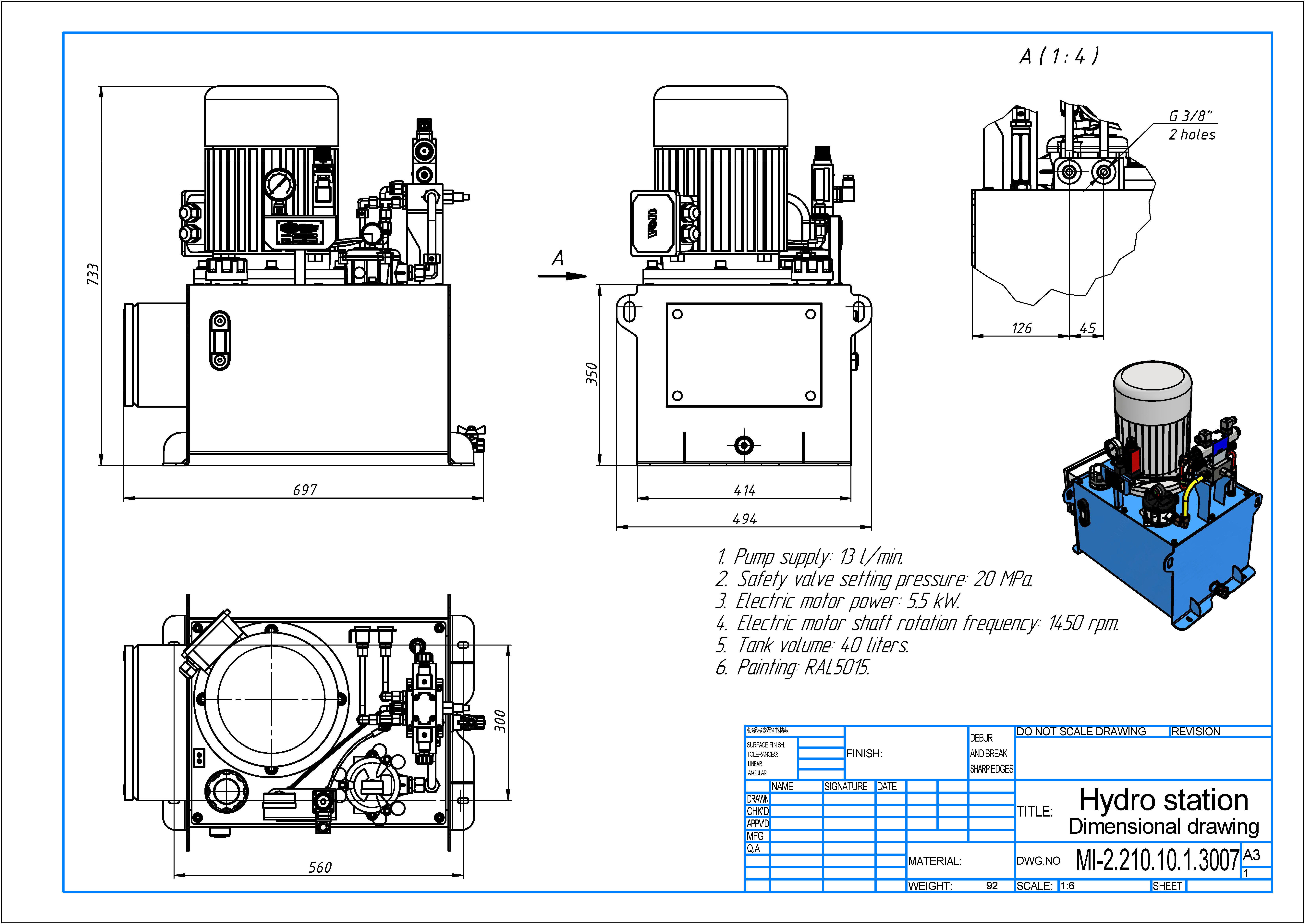

Technical data:

• Mass of hydraulic stations: 92 kg;
• Volume of hydraulic tank: 40 l;
• Working volume of the pump: 8.4 cm3/rev;
• Volume pump flow: 13 l/hv;
• Nominal displacement of the pump: 20 MPa;
• Motor power: 5.5 kW;
• Electric motor voltage: M 380 V (AC) 50 Hz;
• Class zakhistu electric motor: IP 55;
• Working environment: Mineral oil HLP according to DIN 51524;
• Viscosity class PP: VG 46;
• Nominal temperature PP: +40…+55 °C;
• Maximum allowable temperature PP: +70 °C;
• Viscosity range PP: 12 - 200 cSt
• Recommended viscosity PP: 30 - 50 cSt.

Also check out my other models, just click on my user name to see complete gallery.
