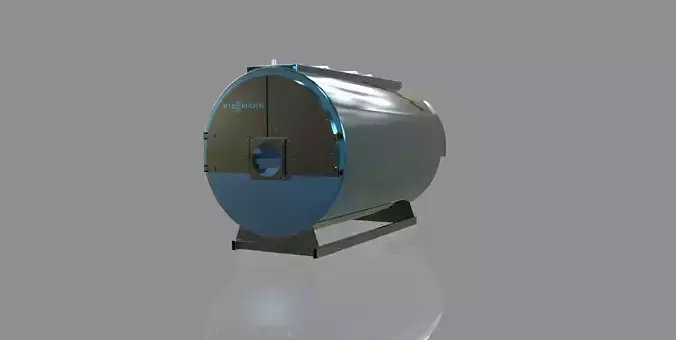

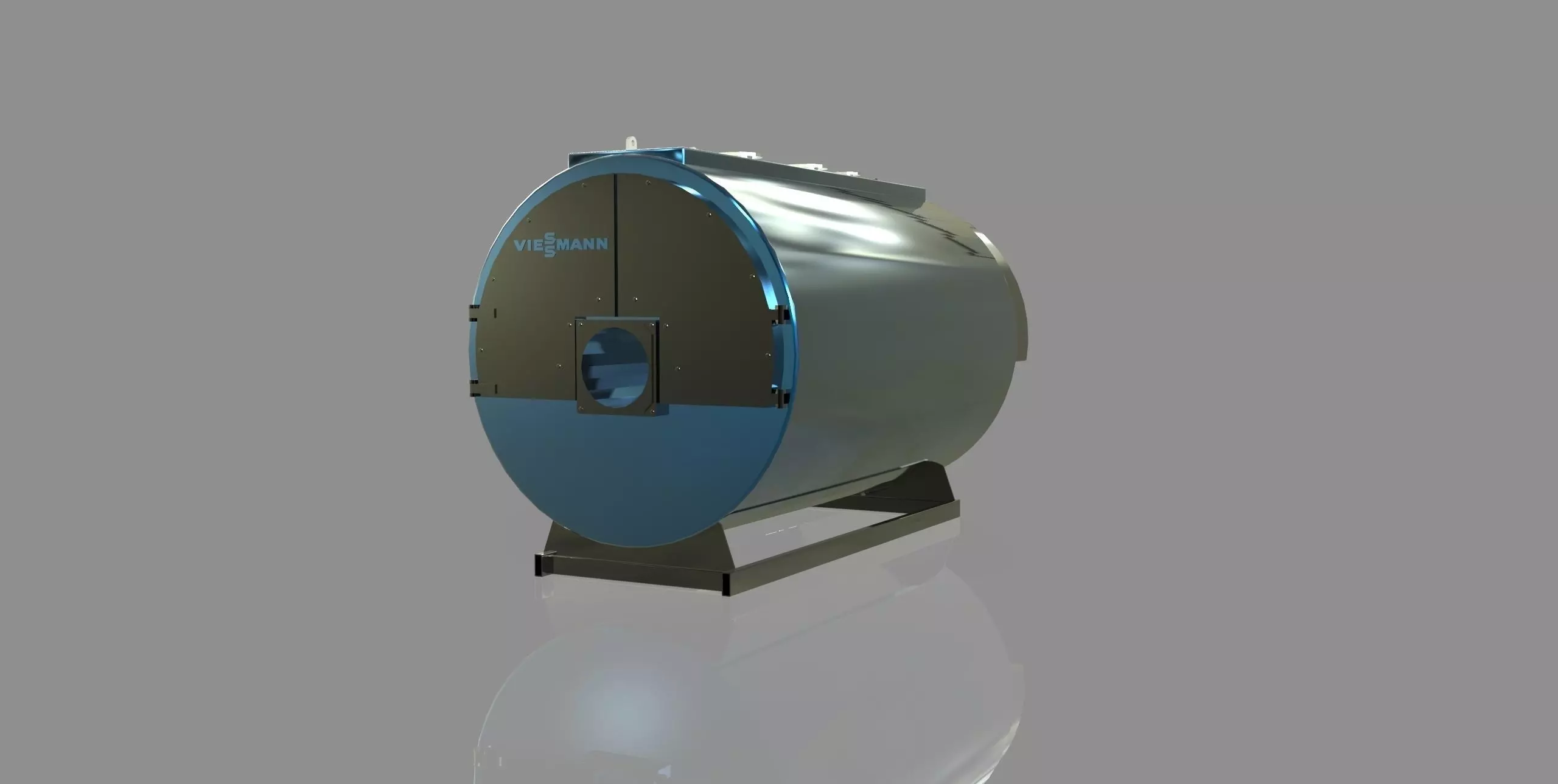

High-temperature water boiler Vitomax 200 3D model
Description
High-temperature water boiler Vitomax 200 Vitomax 200-HW - High pressure water boiler for liquid and gaseous fuels, for permitted feed temperatures up to 150 ° C. The maximum permissible pressure in the range from 6 to 16 bar, and the thermal power from 10 to 16.5 MW.
Vitomax boilers do not require a minimum flow of heat-carrier: wide walls and large volume of boiler water provide a good own circulation, which facilitates the hydraulic obvjazku.
Low aerodynamic resistance thanks to the optimal form of heating surfaces and chimneys.
Modelled in AutoCAD and exported in 3d Max 2014 and renders like shown in preview images with Keyshot. File formats:
- 3ds Max 2014(Contains also vray and standard materials scenes!)
- OBJ (Multi Format)
- 3DS (Multi Format)
- FBX (Multi Format)
- KSP
- DWG
F
fmsinwar
Good man
High-temperature water boiler Vitomax 200
Royalty Free License
High-temperature water boiler Vitomax 200
Royalty Free License
3D Modeling
3D Print Modeling
Low-poly Modeling
Rendering
UV mapping
3D Model formats
Format limitations
- AutoCAD (.dwg)254 KB
- 3D Studio (.3ds)487 KB
- Other 21 MB
- Autodesk 3ds Max 14 (.max)3.7 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 10,636
- Vertices 5,651
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Publish date2017-12-03
- Model ID#815128
