Hager 1-pole circuit breaker 3D model
Verification details of the FBX file
Files
Binary FBX
Scene
No Unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare TexturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

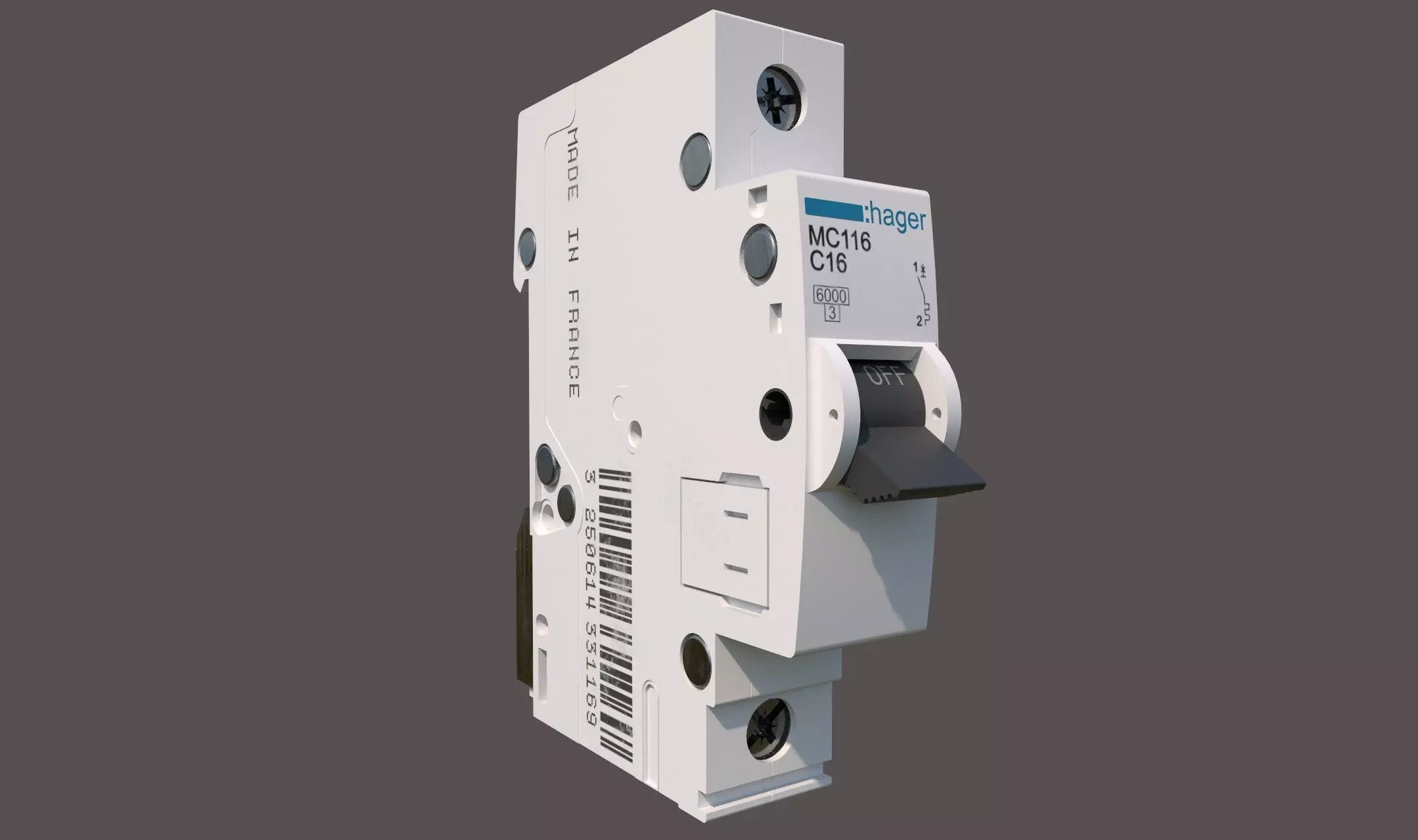

Hager 1-pole circuit breaker of MB/MC series. Made by German manufacturer it's very popular in Europe with fitters and engineers.
The device is used in 230/400 volt networks in the commercial, industrial and residential sectors. Current limiting range - from 6A to 63A
- hi-polygon
- exact dimensions
- sliding control lever (using *.iam)
- sliding screws (using *.iam)
- textures are included
- the best for electrical engineers working with AutoCAD Electrical+Inventor to make a real sized distribution board project.
The *.ipt files were archived and available for downloading as parts of the *.iam assembly.
The native soft is Autodesk Inventor v.2023.0.1, also Substance Painter, v. 7.1.1
Hager 1-pole circuit breaker
Royalty Free License
Hager 1-pole circuit breaker
Royalty Free License
3D Model formats
Format limitations
- Autodesk Inventor (.iam, .ipt) (2 files)6.22 MBVersion: 2023.0.1Version: 2023.0.1Renderer: Octane
- IGES (.ige, .igs, .iges)3.95 MB
- OBJ (.obj, .mtl) (2 files)18.9 MB
- 3D ACIS (.sat)3.16 MB
- Stereolithography (.stl)8.37 MB
- STEP (.stp)2.26 MB
- Autodesk FBX (.fbx)7.41 MB
- Collada (.dae)16.9 MB
3D Model details
- Publish date2022-12-28
- Model ID#4191835
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Nurbs
- Polygons 175,600
- Vertices 87,826
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
