Edge Guide assembly
Edge Guide assembly 3D model
  • Edge Guide assembly 3D model_0
  • Edge Guide assembly 3D model_1
  • Edge Guide assembly 3D model_2
  • Edge Guide assembly 3D model_3
  • Edge Guide assembly 3D model_4
  • Edge Guide assembly 3D model_5
  • Edge Guide assembly 3D model_6
  • Edge Guide assembly 3D model_7
1 / 8
Useto navigate. Pressescto quit

Edge Guide assembly 3D model

Description

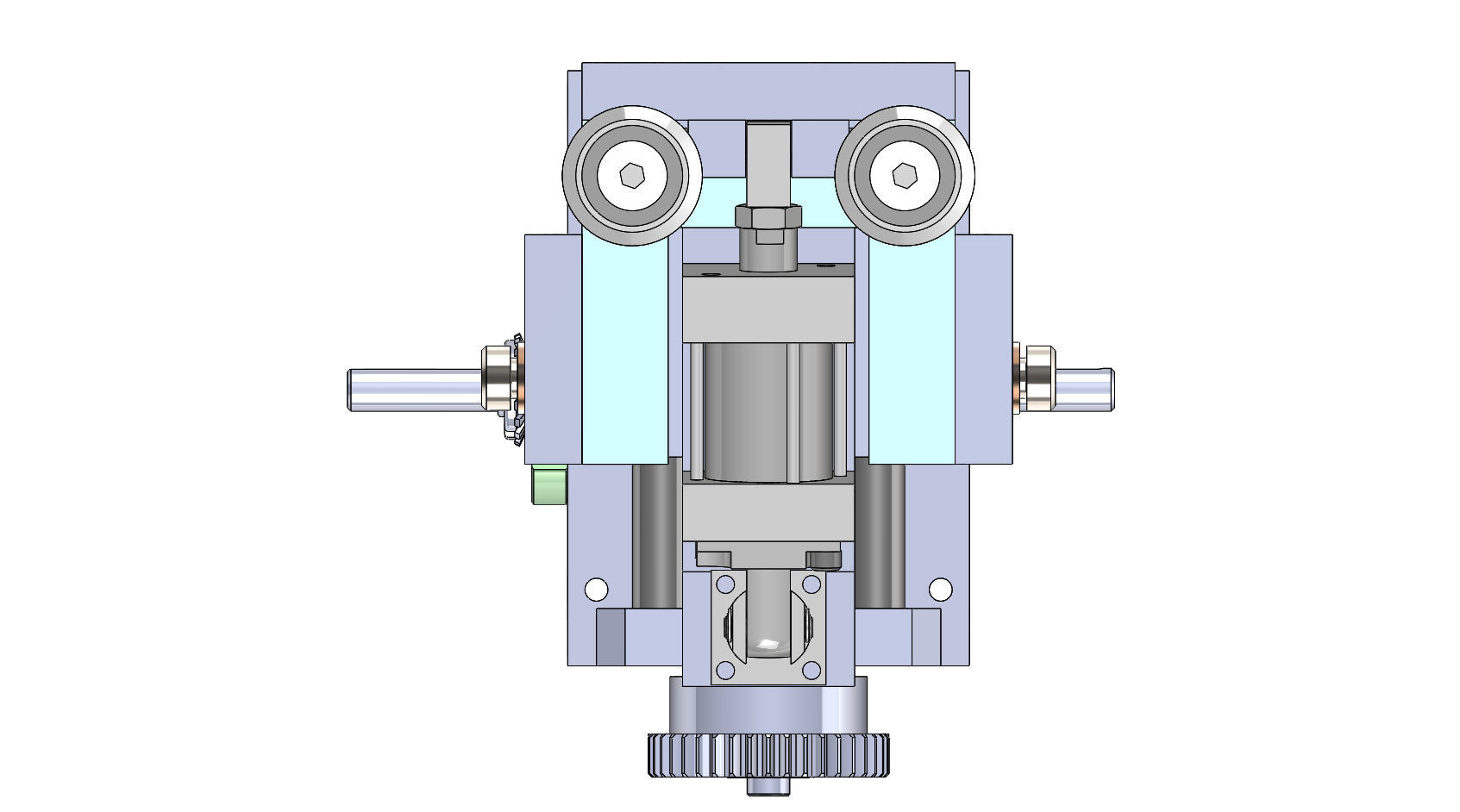

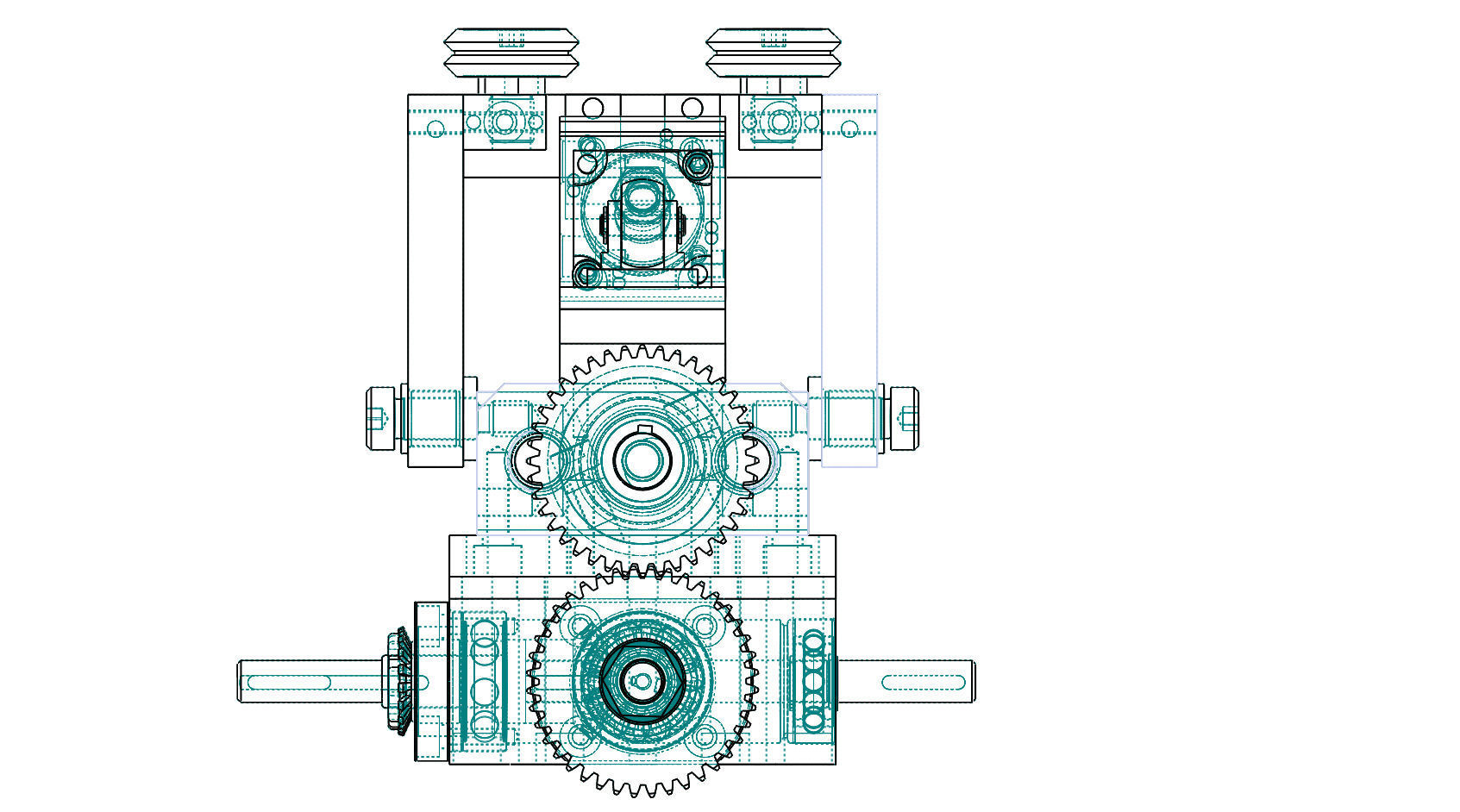

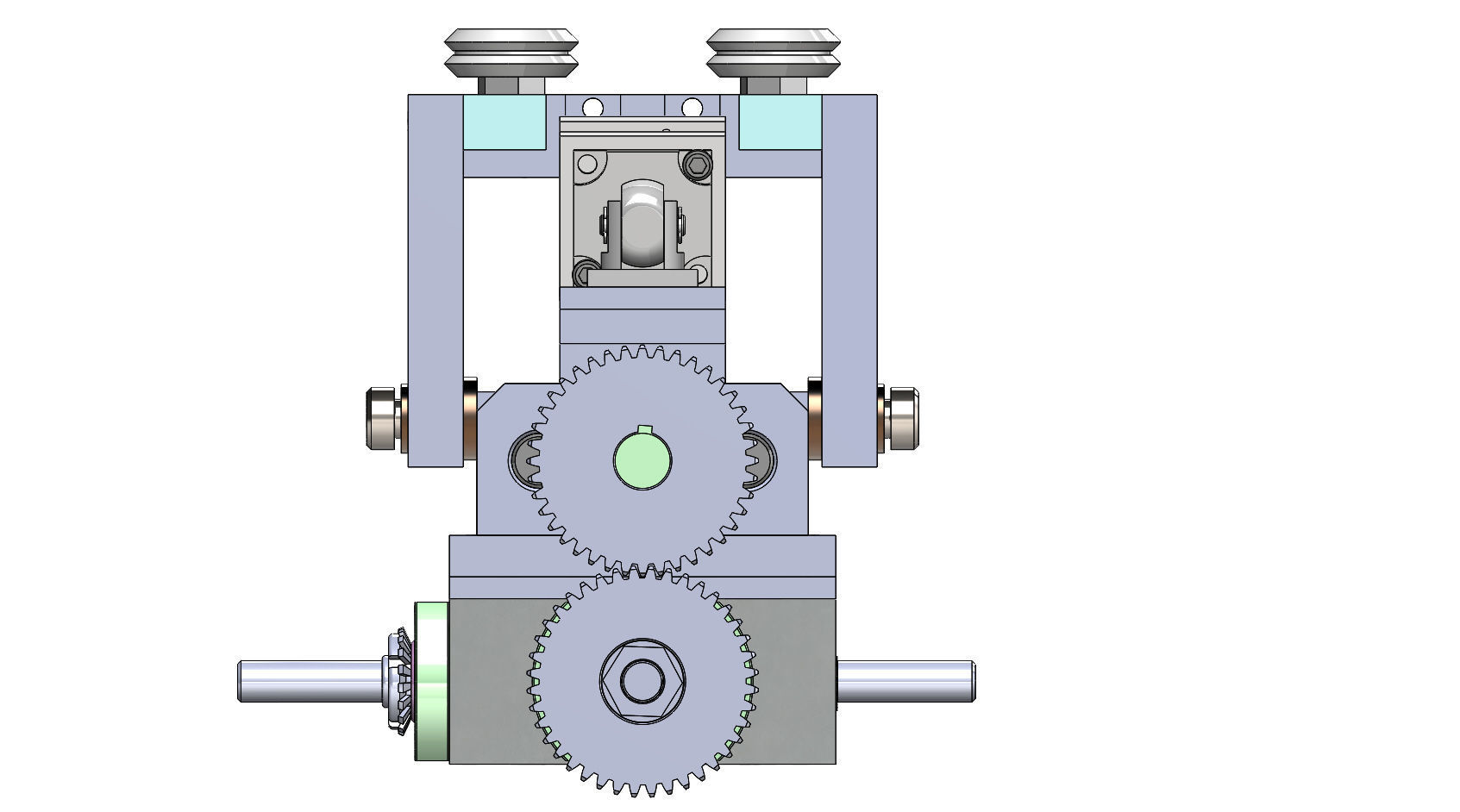

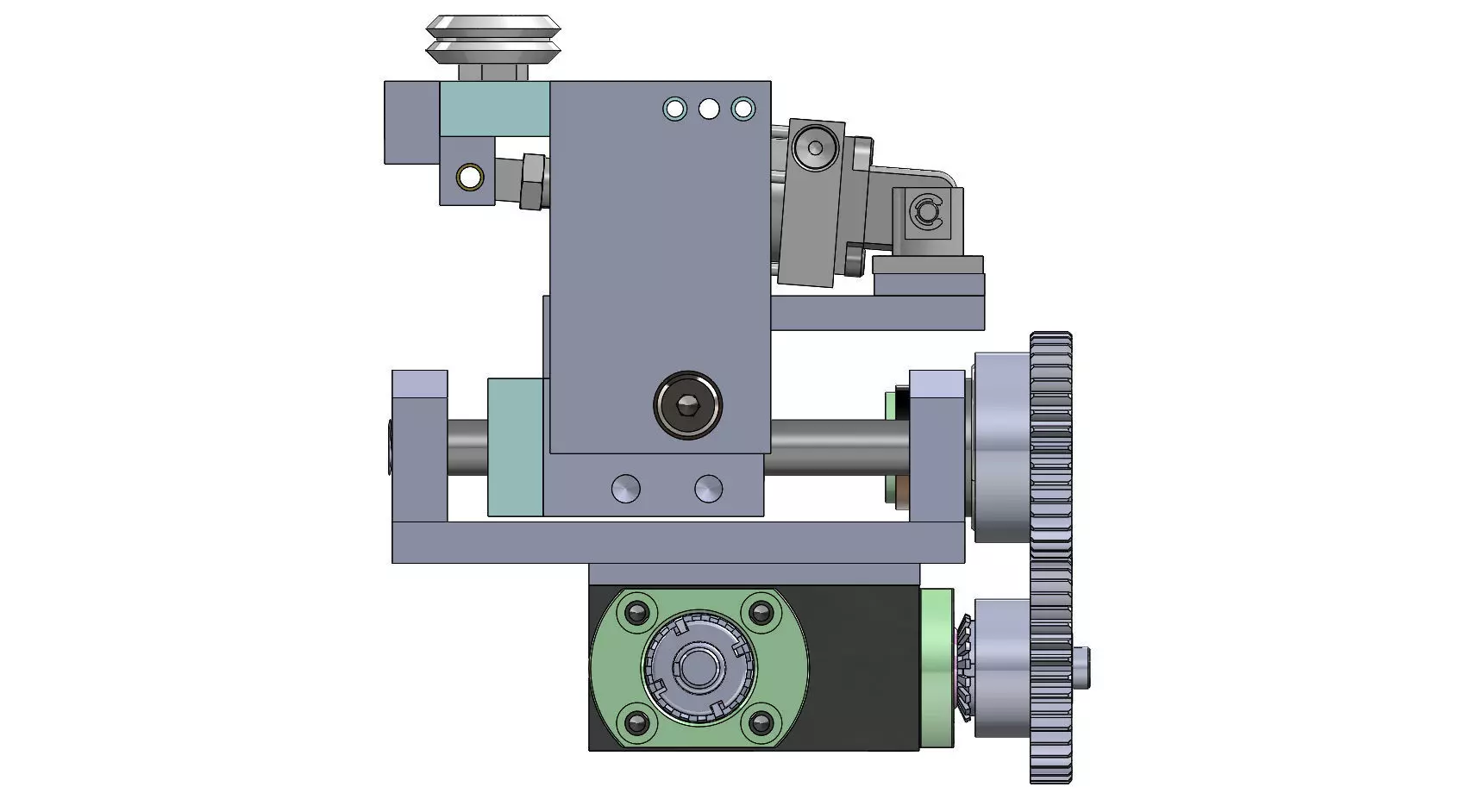

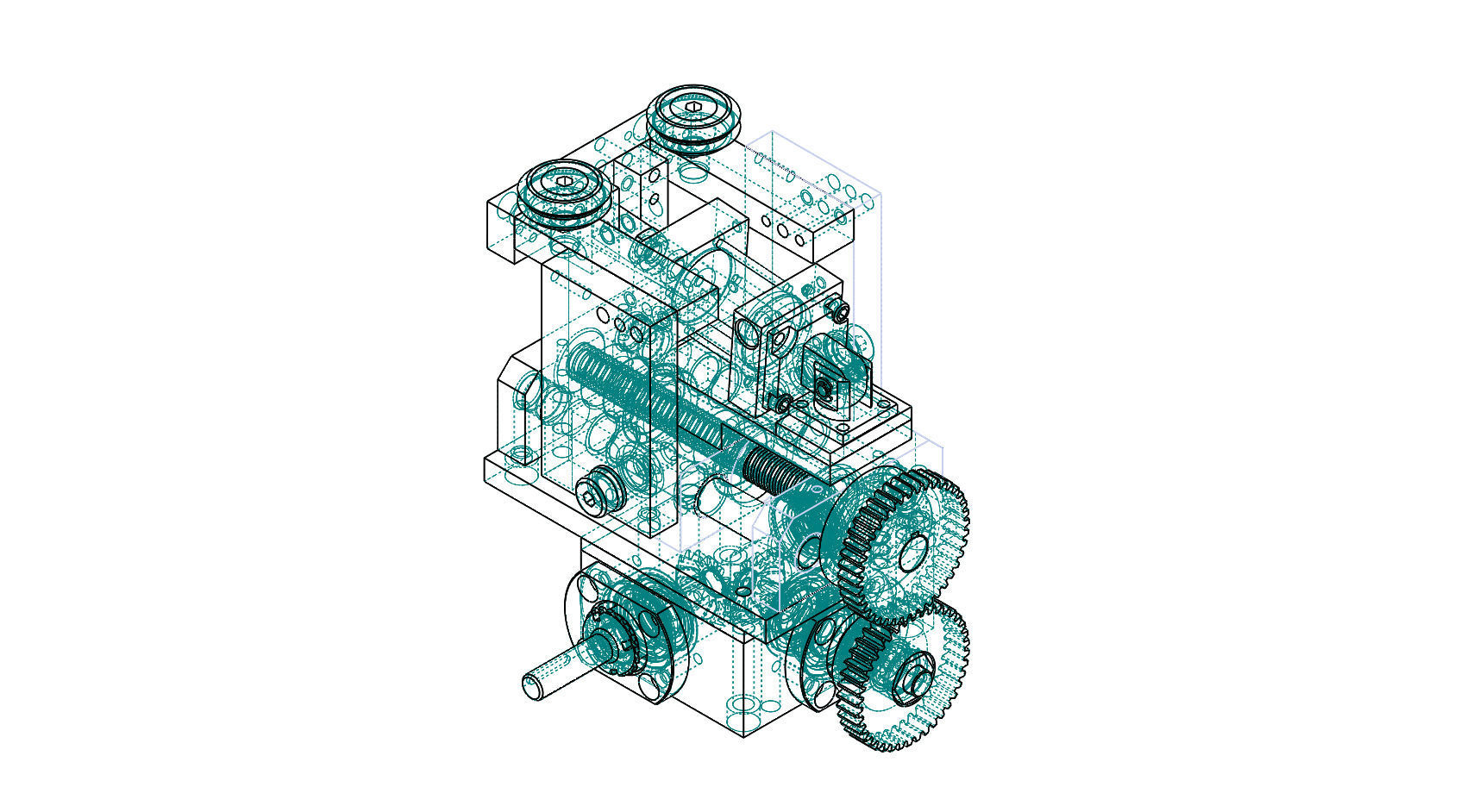

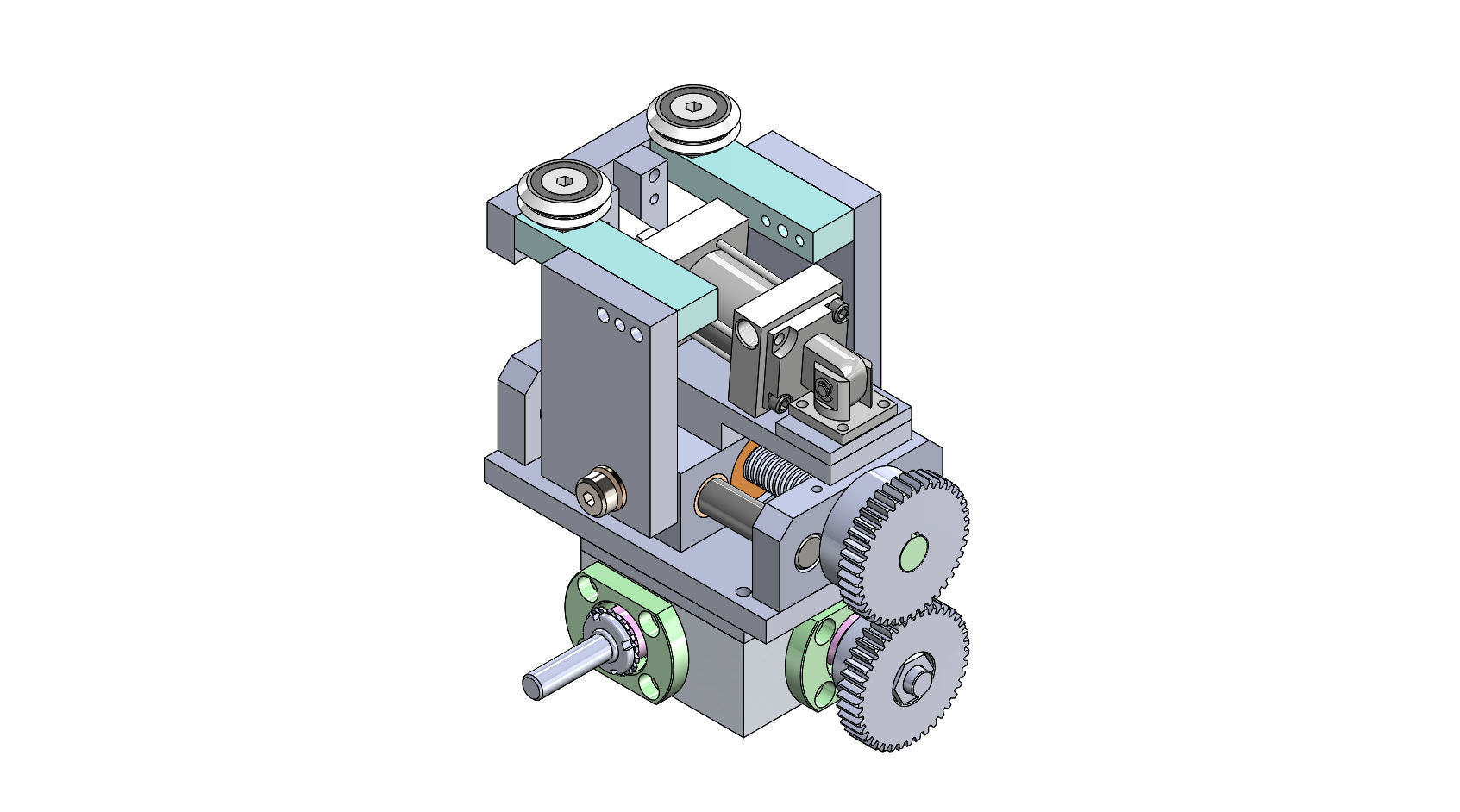

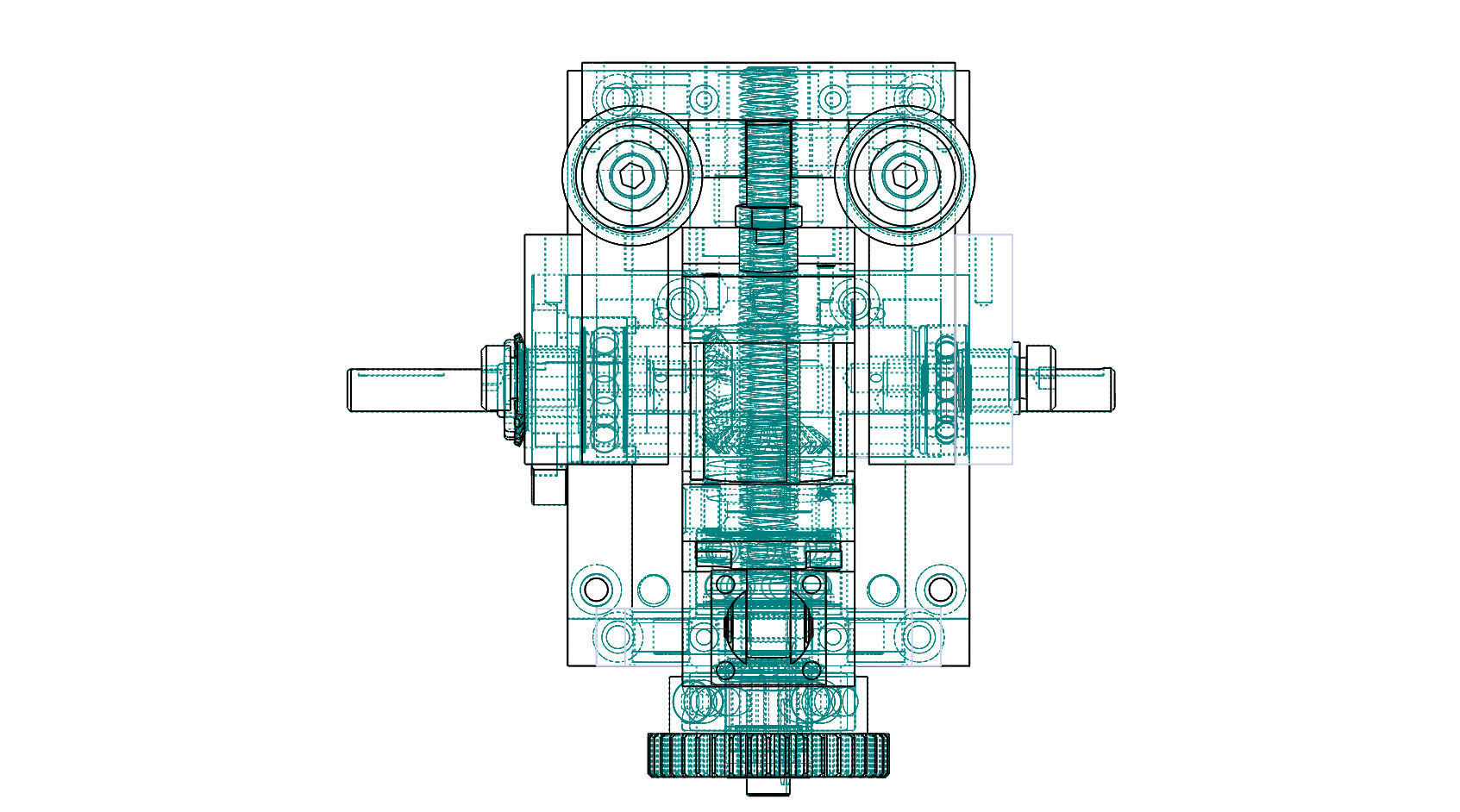

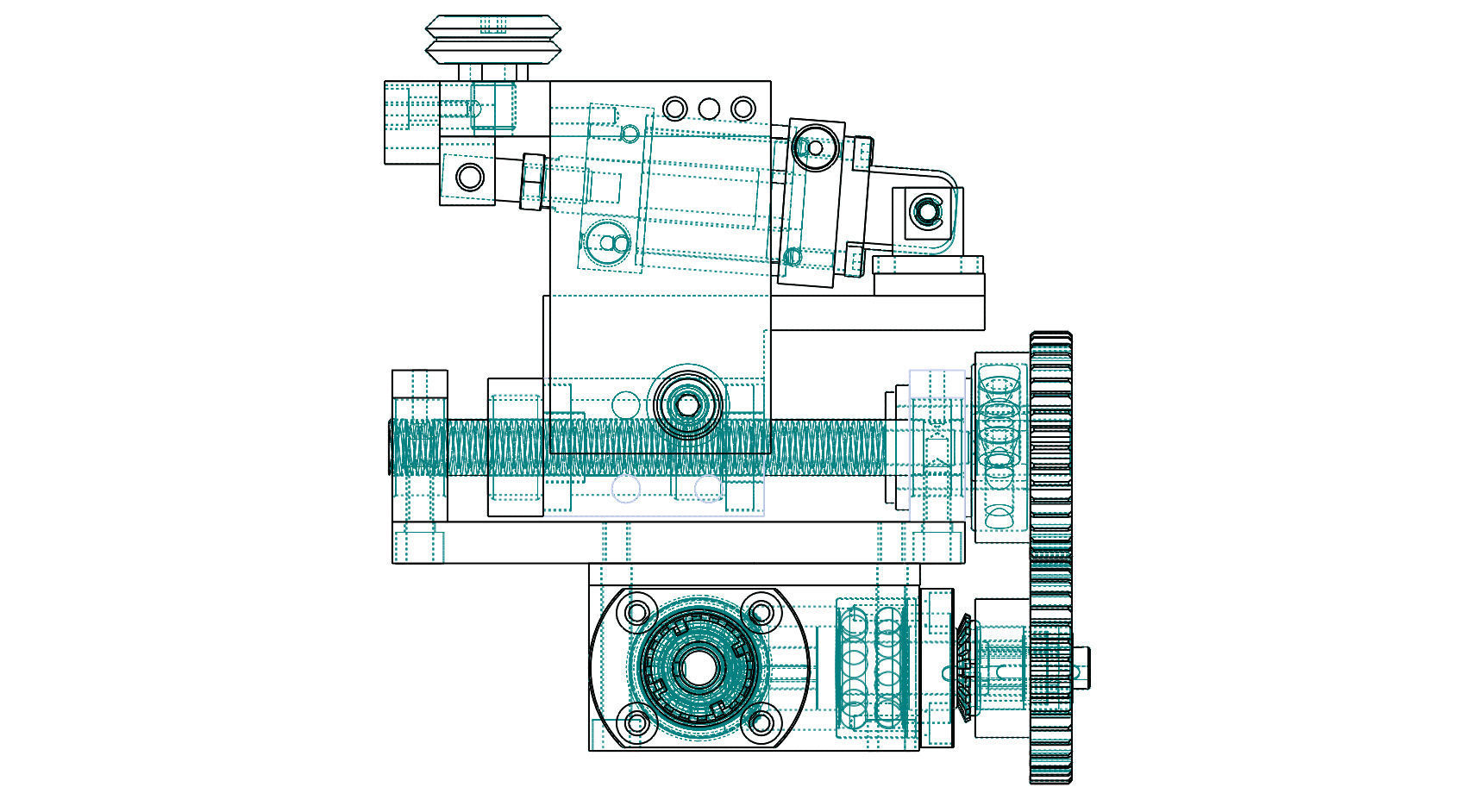

The Edge Guide Assembly (EGA) is a part of a roll-forming line. It is designed for directing and positioning thin sheet metal panel through the roll-former. The EGA has a pair of gear to make an appropriate position of the guide rolls depending on the sheet panel width. Also, it is equipped with an air cylinder to engage or disengage the guide rollers with the sheet metal panel.
