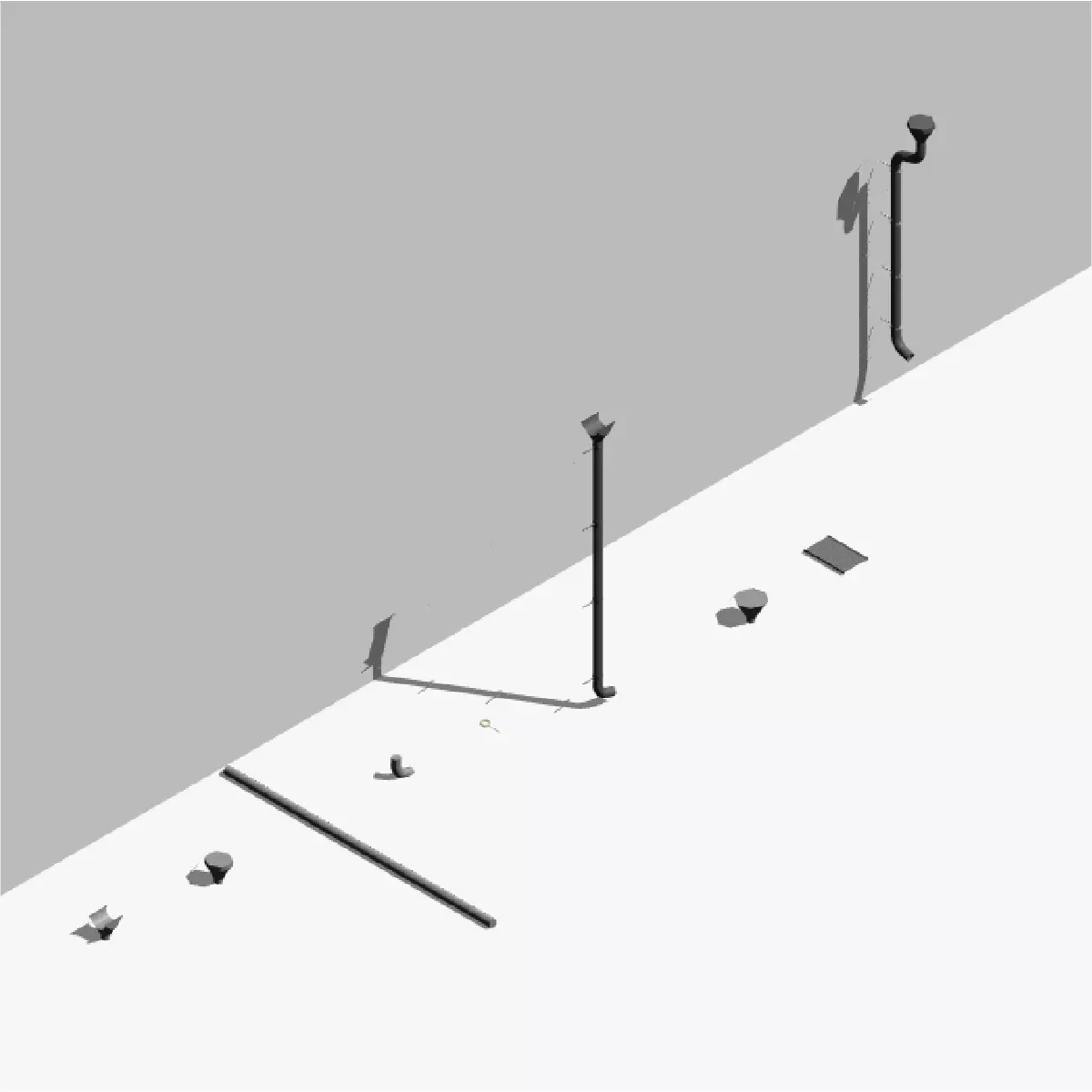

Drain - Pack of revit families 3D model

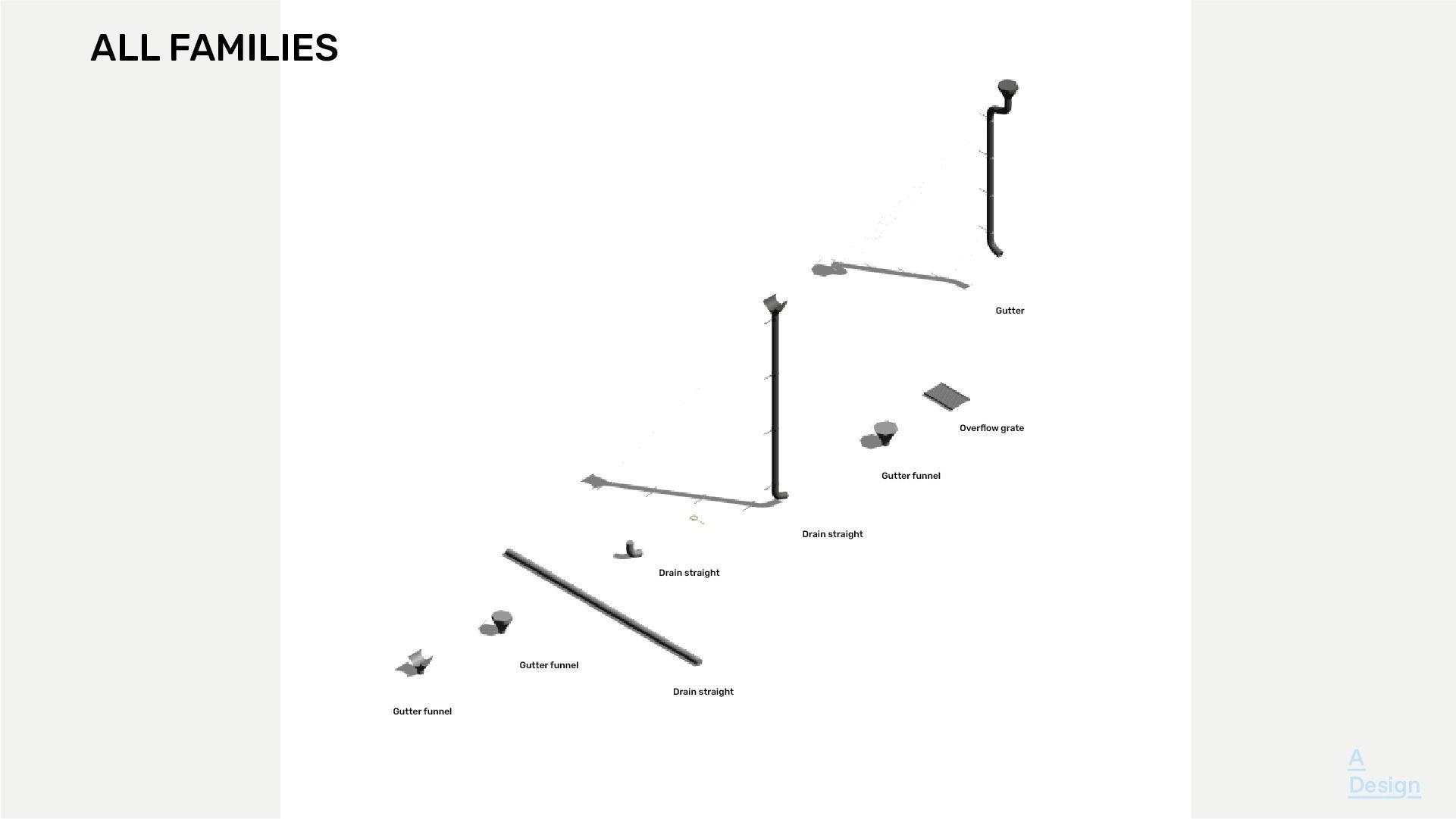

Drain - Pack of revit families

• Revit Family is full parametric with every parameter changeable

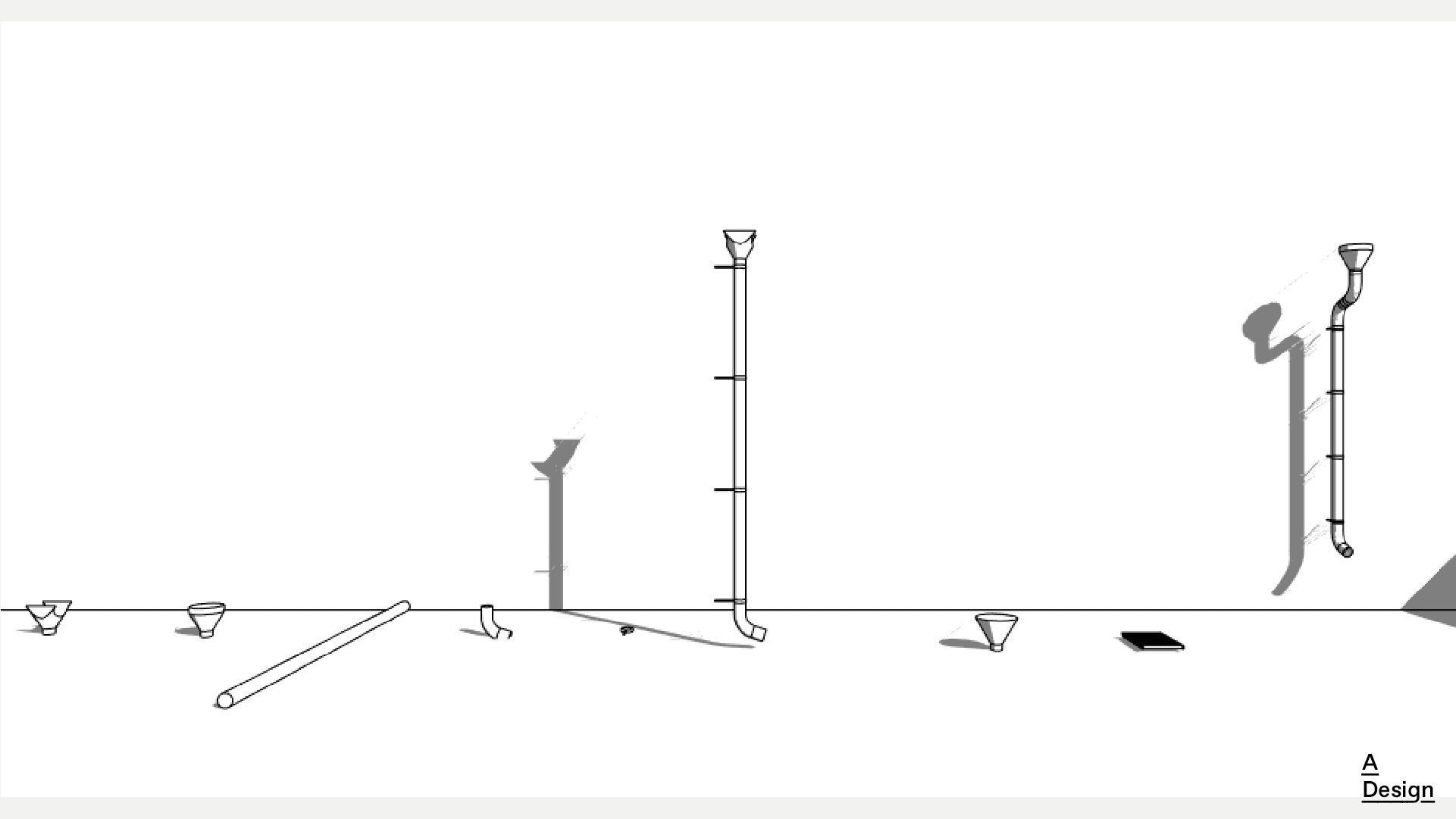

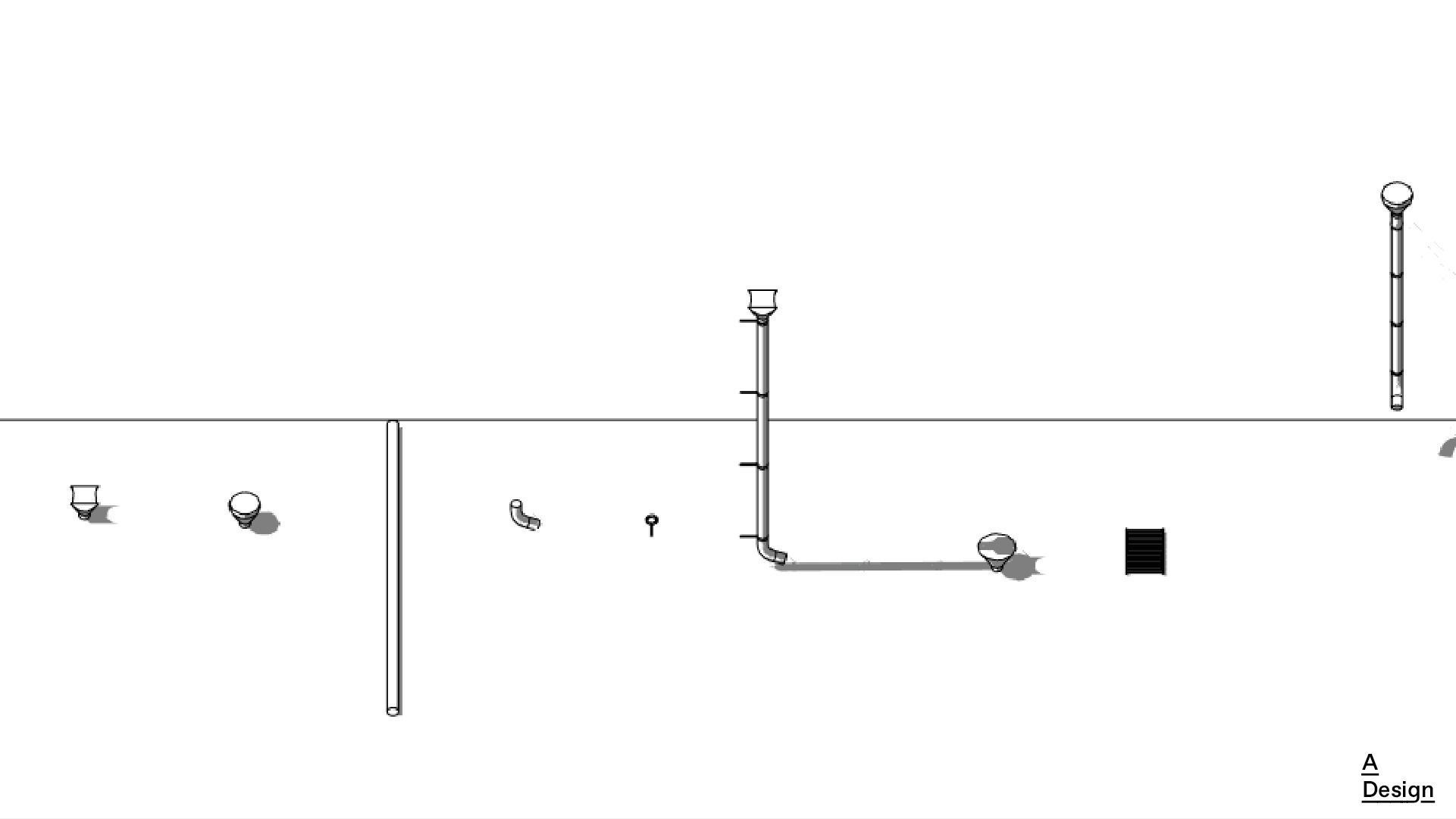

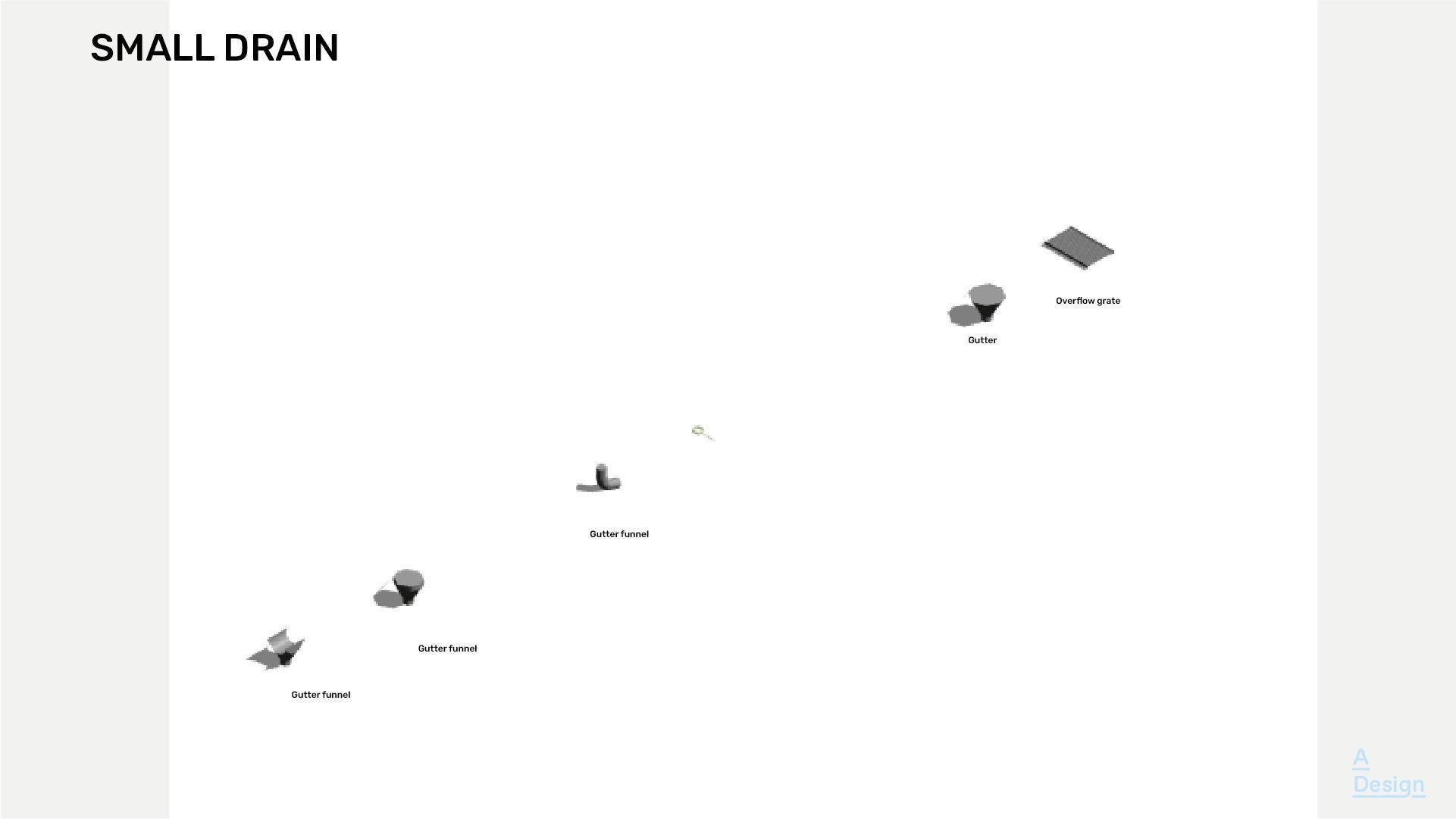

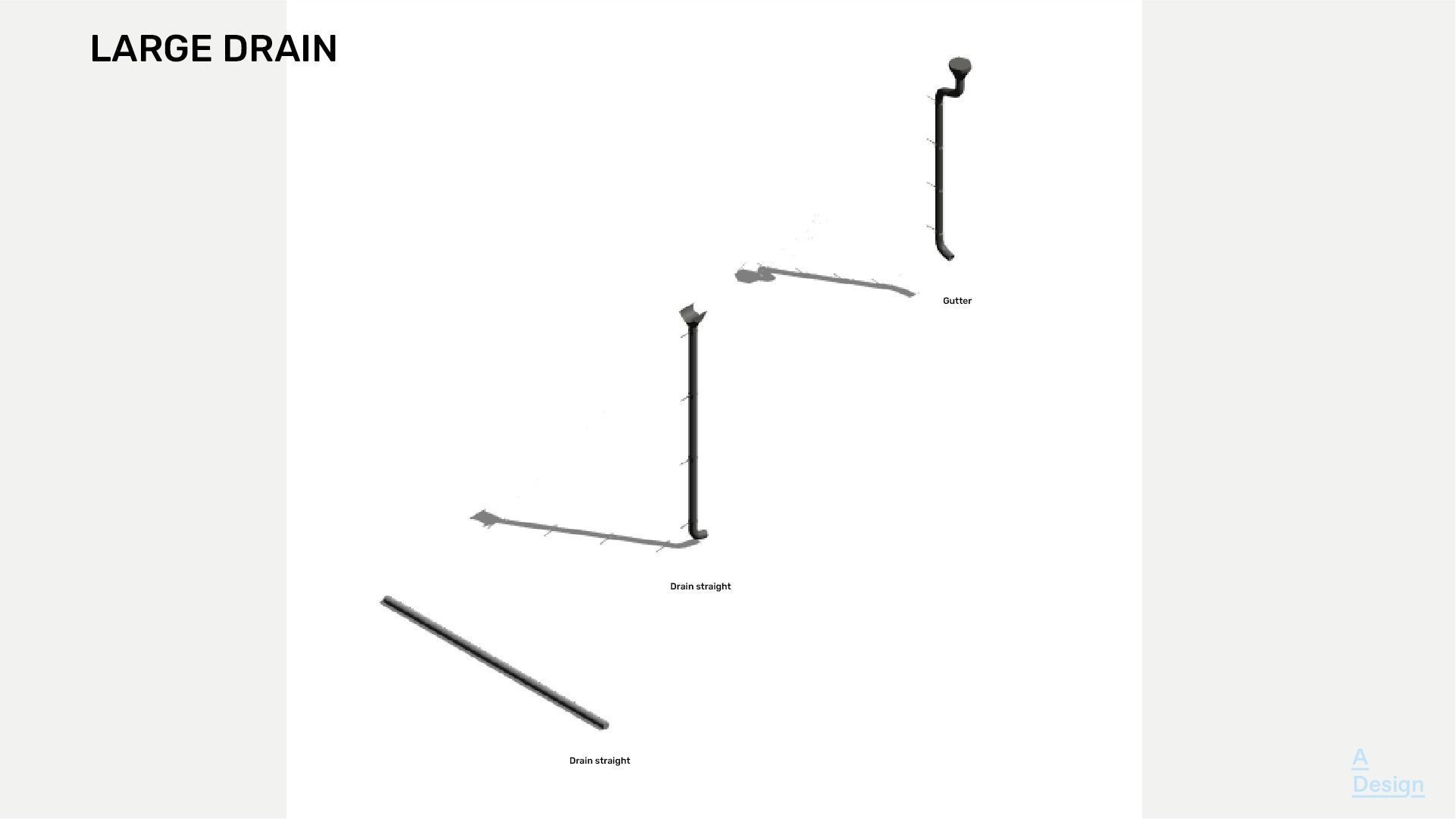

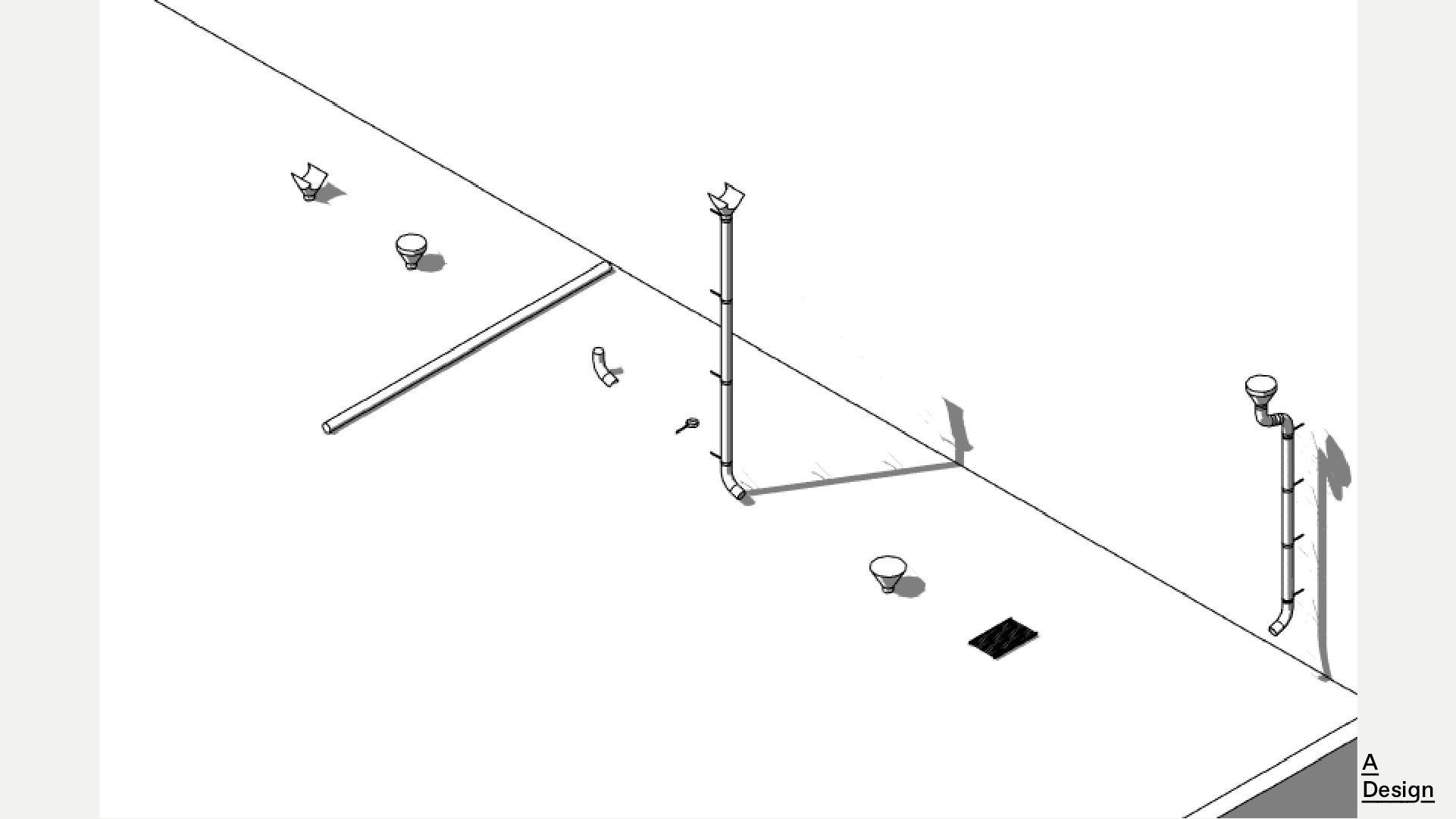

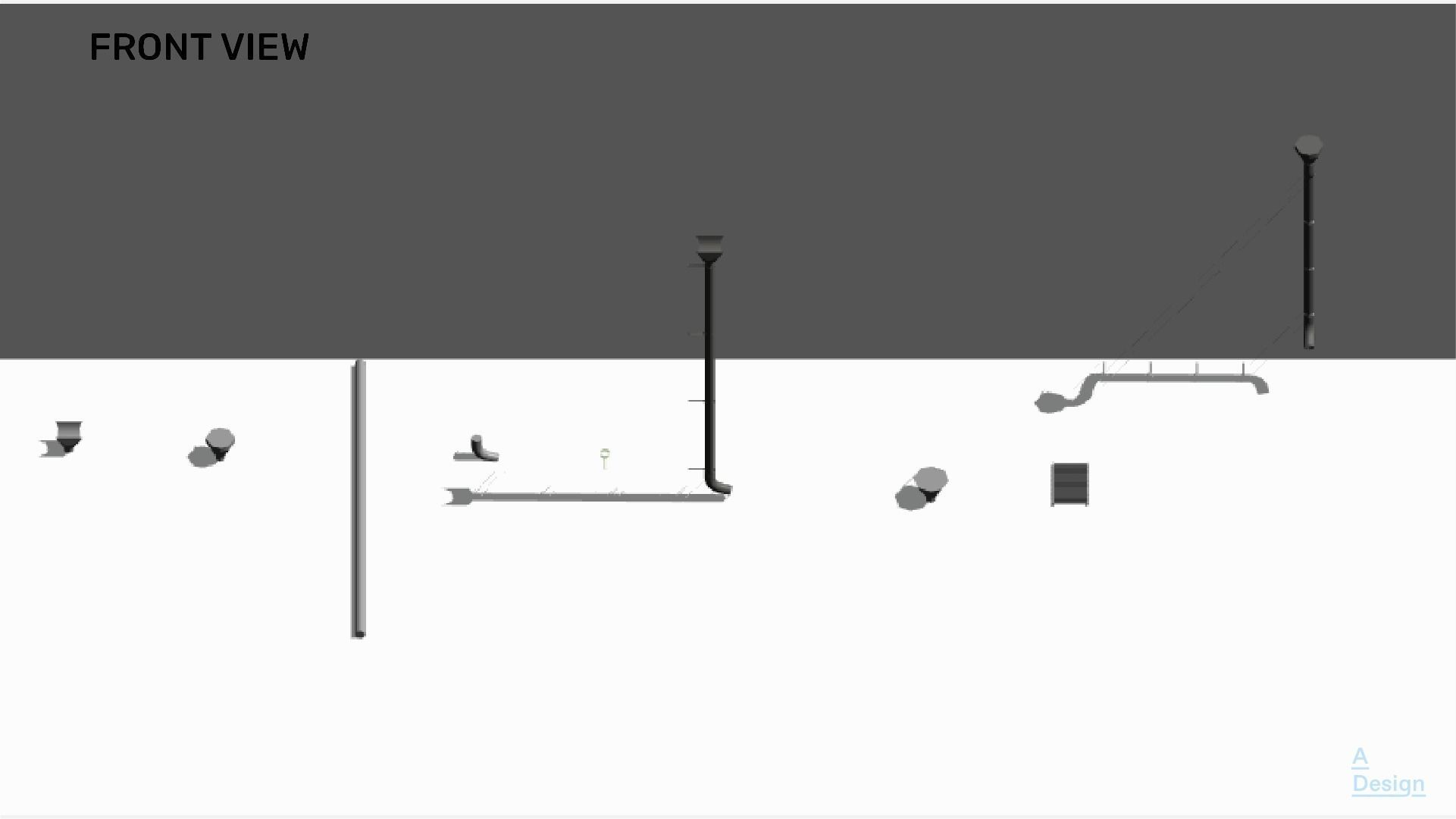

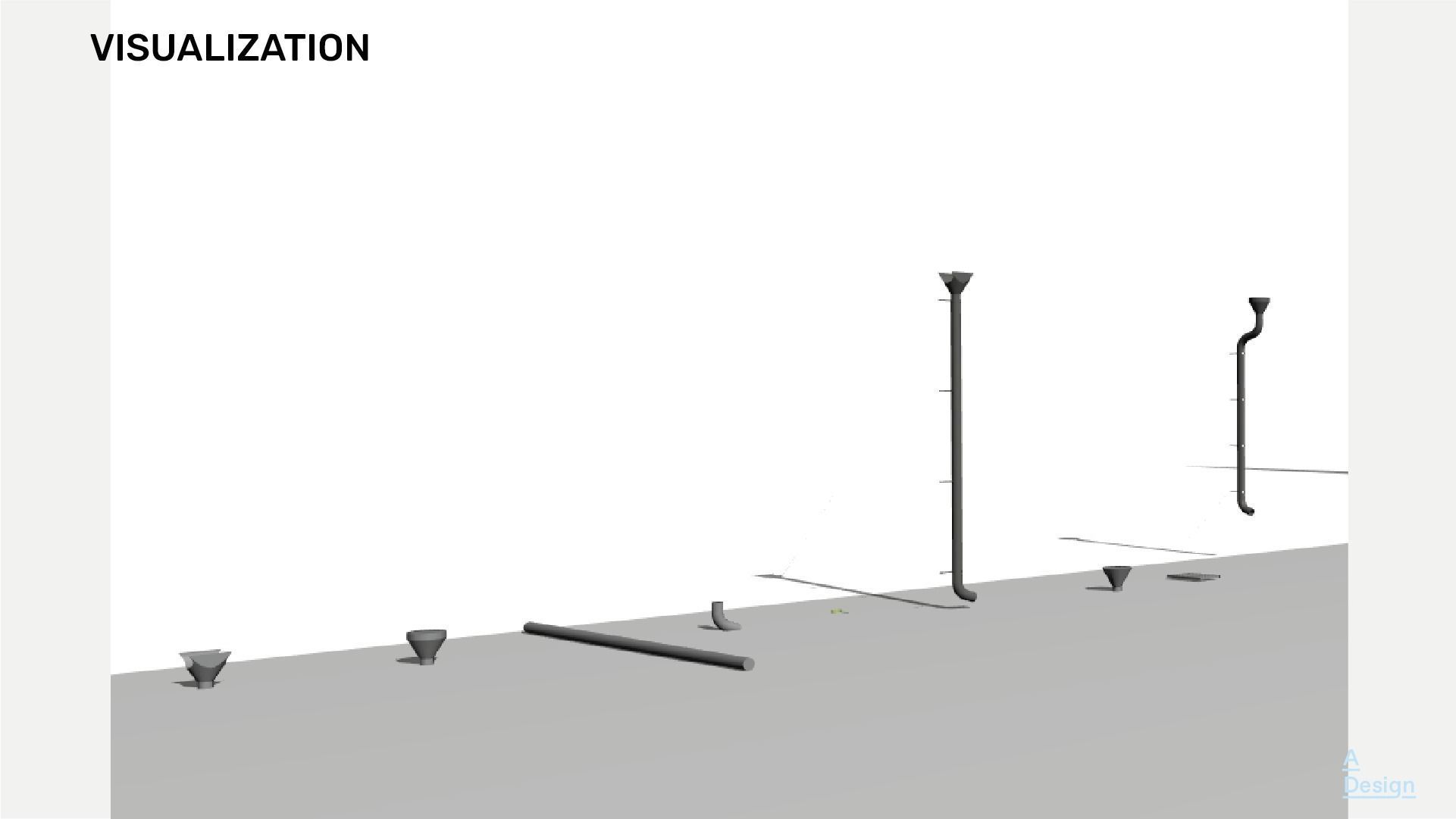

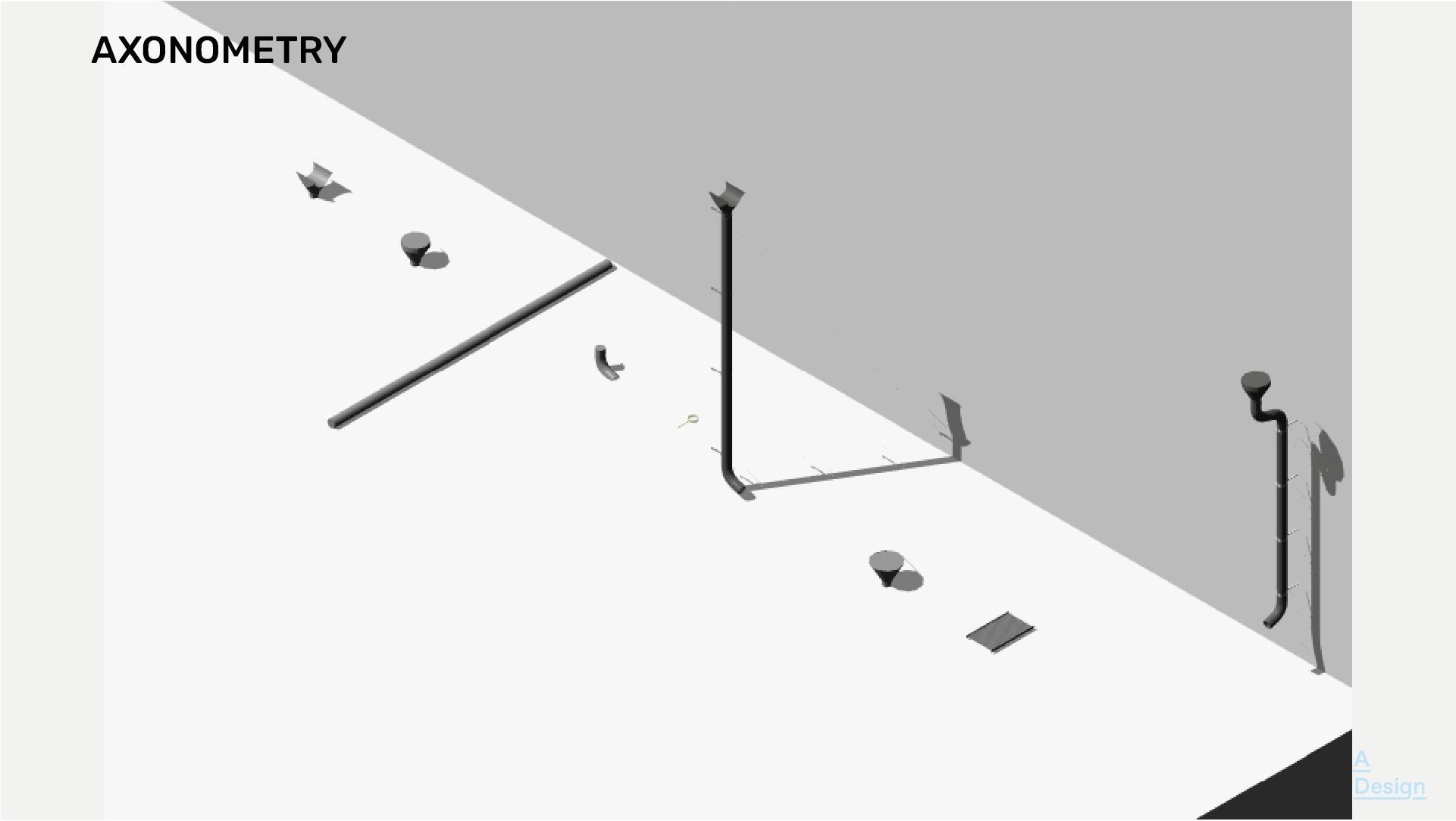

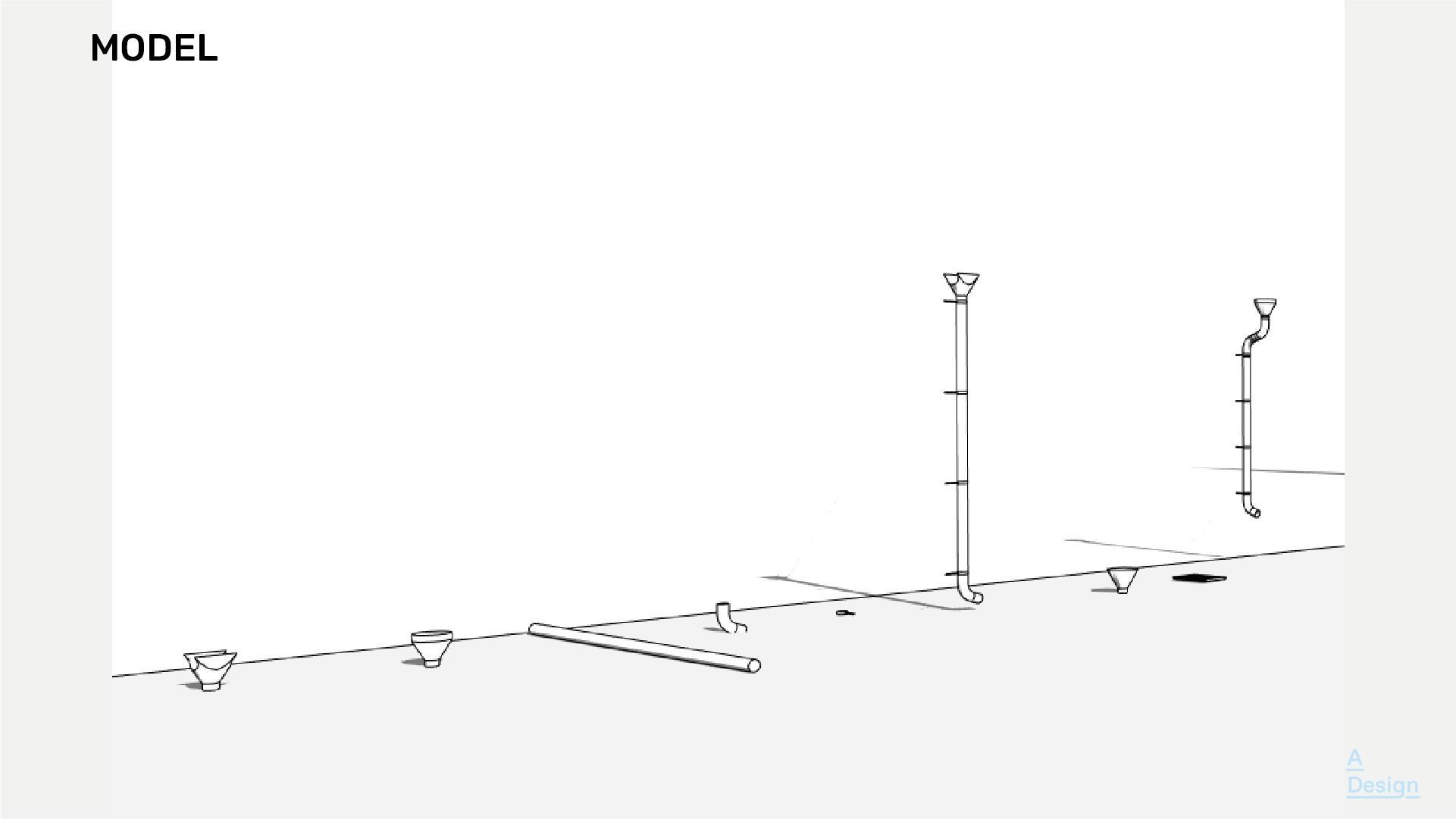

• You can change Width, Height, Depth, All materials and many more, just see attached images

• Family's was created in Revit 2015 (predominantly )

• Textures not included

A drain is the primary vessel or conduit for unwanted water or waste liquids to be flumed away, either to a more useful area, funnelled into a receptacle, or run into sewers or stormwater mains as waste discharge to be released or processed. Drain design and installation parameters are engineered to ensure drain functionality for its intended purpose, allowing for variances in volume, matter to be conveyed and maintenance requirements. Drain installation takes into account principles related to gravity, vacuum, grade, human exposure safety to biological agents and resistance to functional failure. Also incorporated in drain design are requirements for drain maintenance and repair of a blocked drain.

Thank you!
