A single cell and pipeline model of Redox Flow battery 3D model

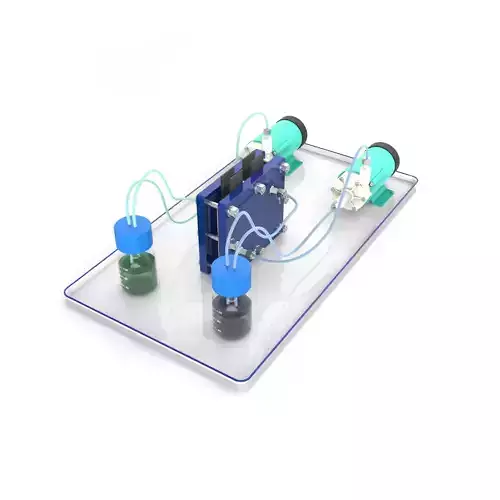

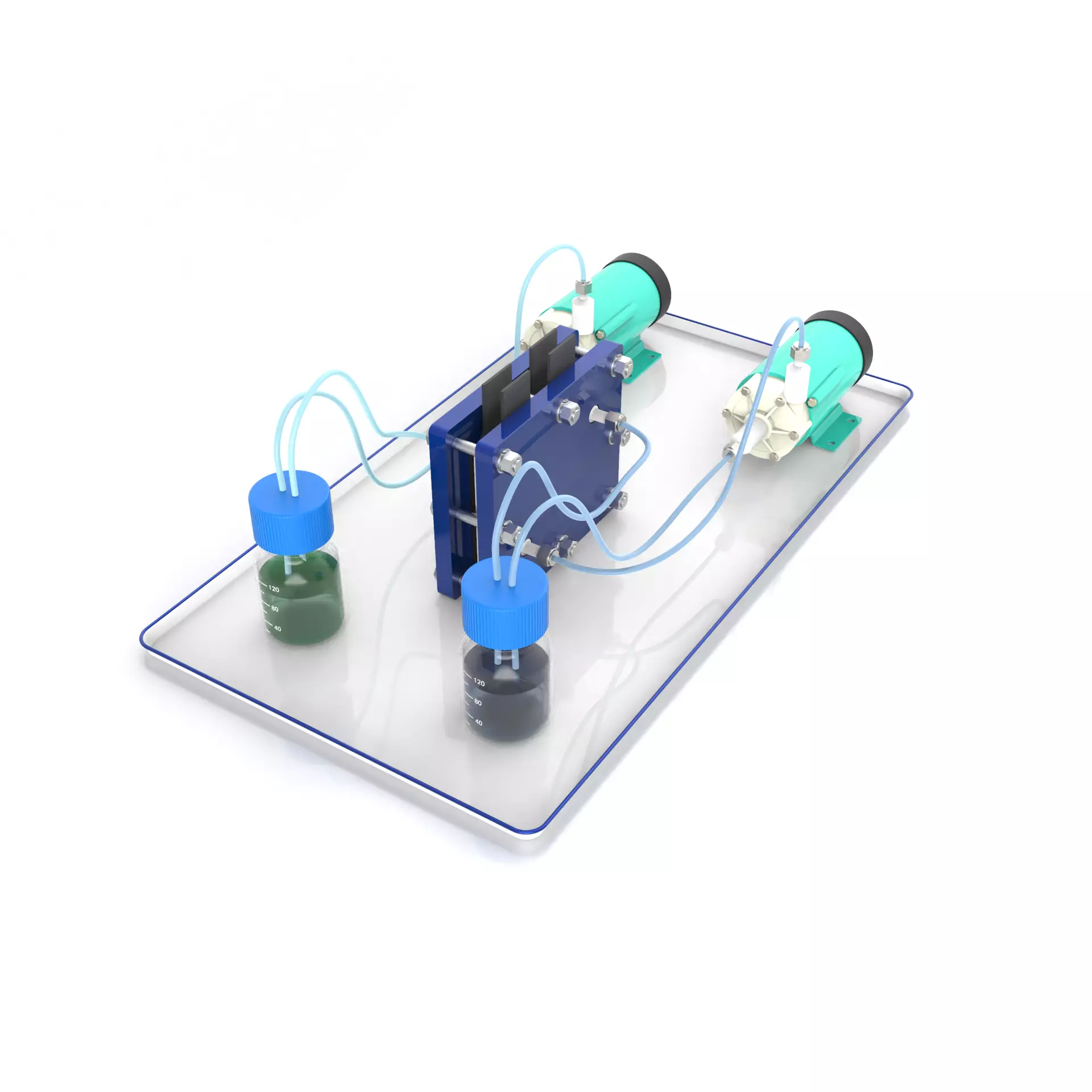

This is a single cell model for Flow battery. Its main function is to test and test as a basic unit of Flow battery. Here I mainly use it for all vanadium Flow battery. This model has been used in experiments for a long time. Its advantages are simple structure, convenient disassembly and assembly, and good sealing effect. The electrode area is 50 square centimeters, for your reference. Welcome friends in the liquid flow industry to download and use. To illustrate, by modifying the thickness of the electrode frame, this single cell can also be used for testing other single cells such as zinc bromide. Description: The attachment contains multiple file formats, including SolidWorks source files and formats such as stp, sat, and c4d, as well as PDF drawings of end plates and connectors.
3D Model formats
Format limitations
- SolidWorks 2020 (.sldprt, .sldasm, .slddrw)6.57 MB
- STEP (.stp)12.4 MB
- 3D Studio (.3ds)1.57 MB
- 3D ACIS (.sat)13.5 MB
- Parasolid (.x_t, .x_b)2.27 MB
- IGES (.ige, .igs, .iges)19.4 MB
- Cinema 4D R21 (.c4d)2.9 MB
- PDF (.pdf)51.9 KB
- OBJ (.obj, .mtl)3.92 MB
- Autodesk FBX (.fbx)890 KB
