Waterclock pendulum clock 3D model

Multiple formats: max 2010 c4d obj fbx dae. Native format max 2010 vray, also converted into standard material (mentalray renderer).

In the scene vray are present physical cameras and lighting, very same settings you can see in preview rendered images.

The model is fully unwrapped, non overlapping. This way if you need to render an animation quickly you can bake textures easily in minutes. Original lowpoly geometry + meshsmooth has been collapsed before exporting into obj, dae, fbx.

All formats have been checked on multiple software. Linear workflow gamma 2.2 textures.

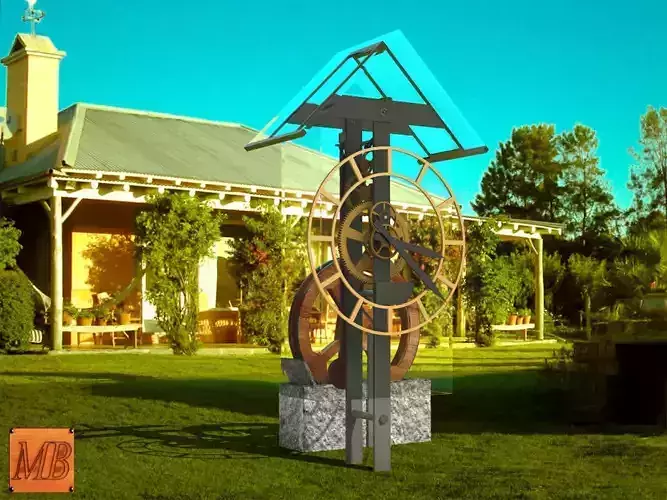

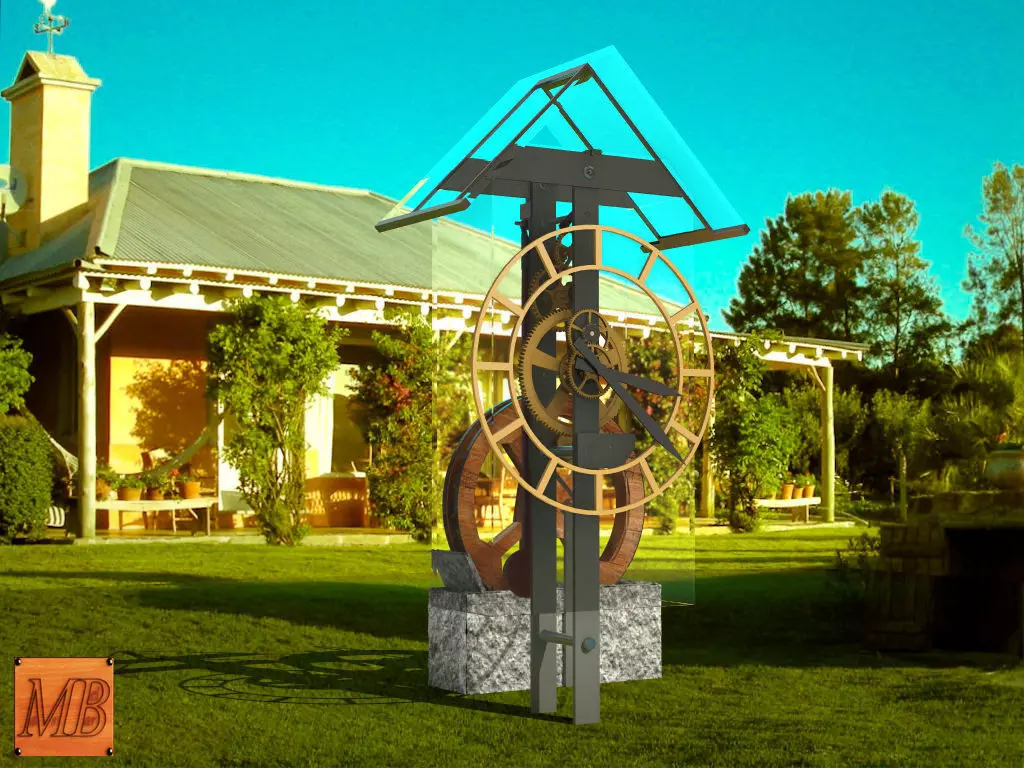

The clock strikes the hour and minute, the engine of the watch is made of a turbine consists of a mill wheel that transmits with a cardan shaft energy to the "train" of the mechanisms regulated by the pendulum and the escapement. The energy is formed by the falling water.

The whole mechanism is visible and is supported by a steel frame, the wheel is in wood - built on the model of the wheels of the water mills - the mechanism, formed by the toothed wheels brass, is protected above by a cover carried by the same structure that support the mechanism.
