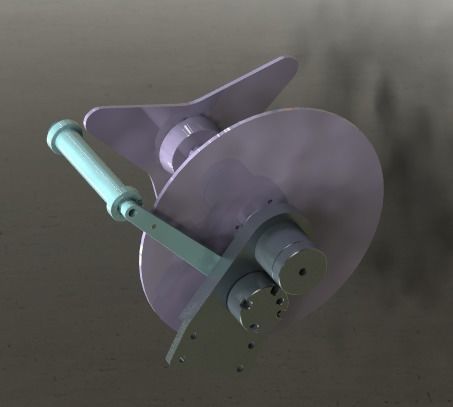

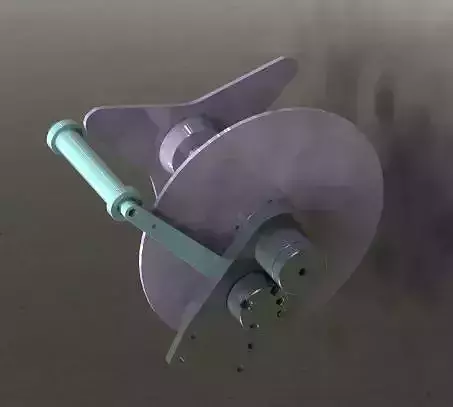

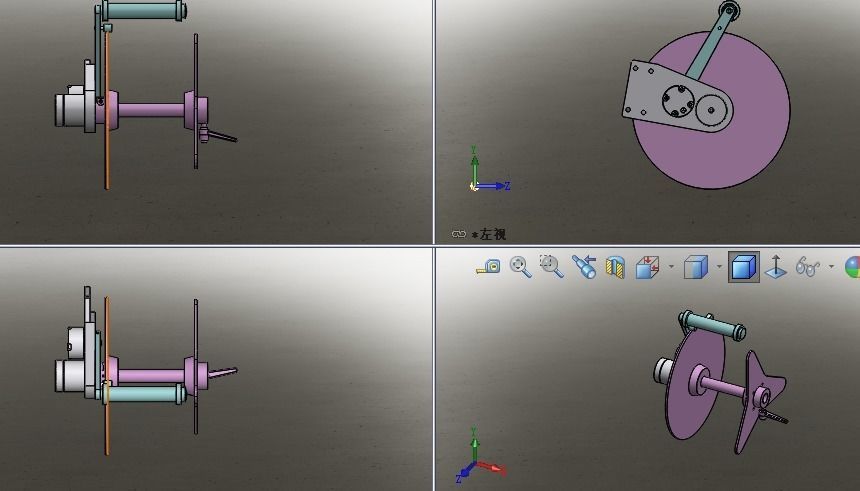

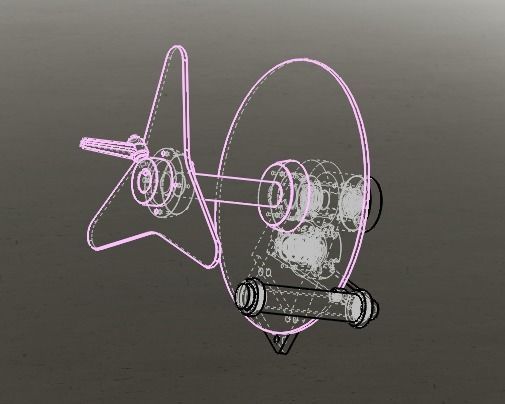

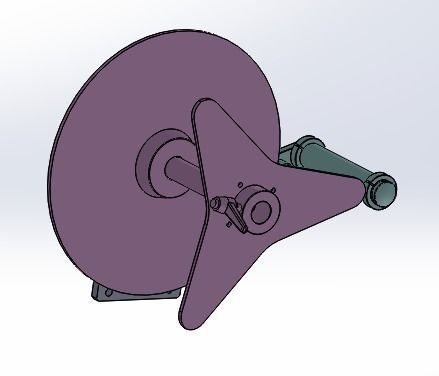

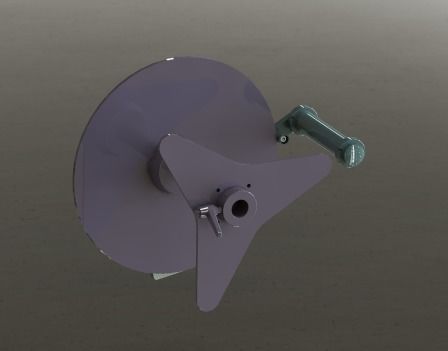

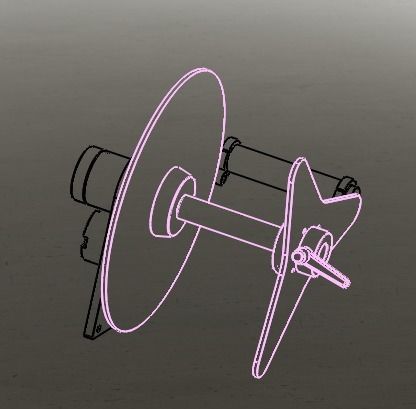

Spring tension system of laminated machine 3D model

Spring tension system of laminated machine, the mechanism by roll film spring tension system, designed by spring tension to tension mechanism, set up a brake mechanism at the same time, can not force under the condition of direct lock brakes, to prevent material rotating design is clever, the mechanism to provide a reference for the learning organization

1. Spring mechanism

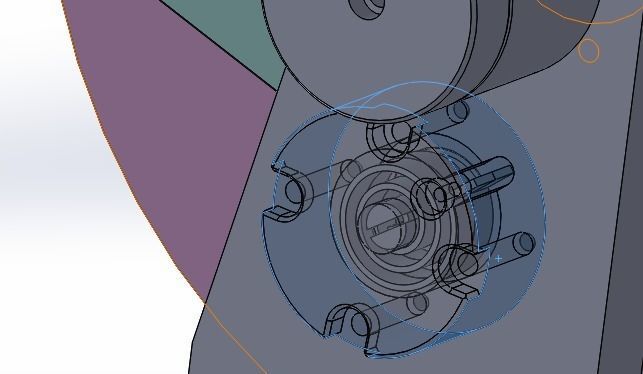

2. Brake mechanism
3. Disk mechanism************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds
4. and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.**************************************
