Precise rotational to linear converter angular to linear motion 3D model
Description
"Don't just download, press like as well"

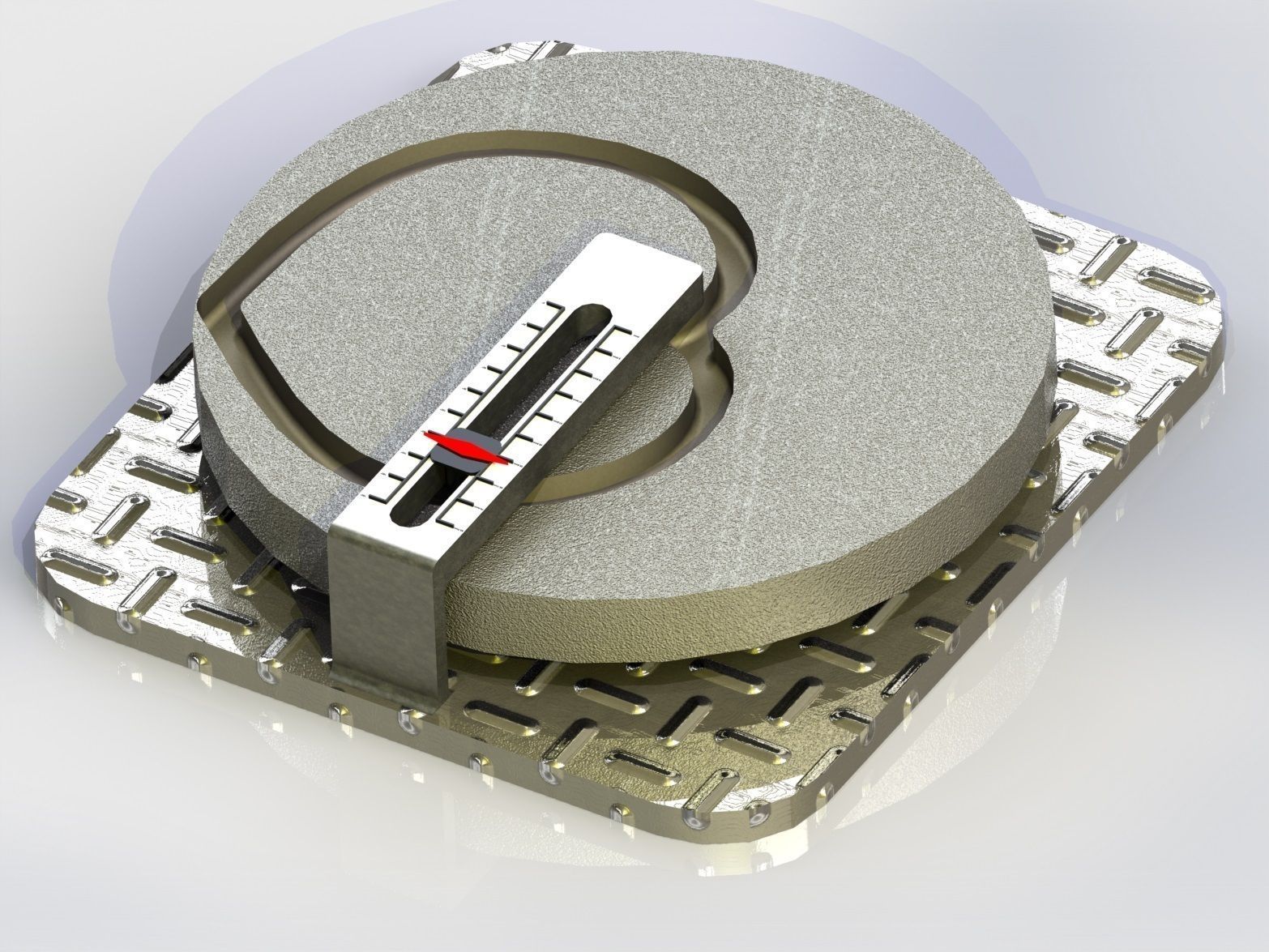

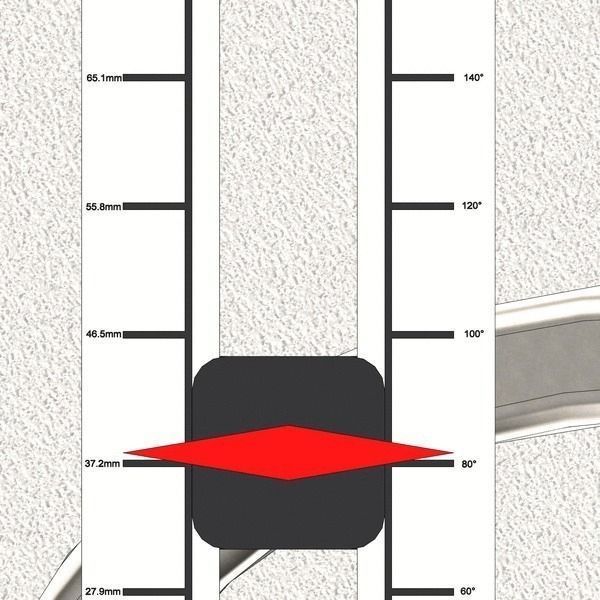

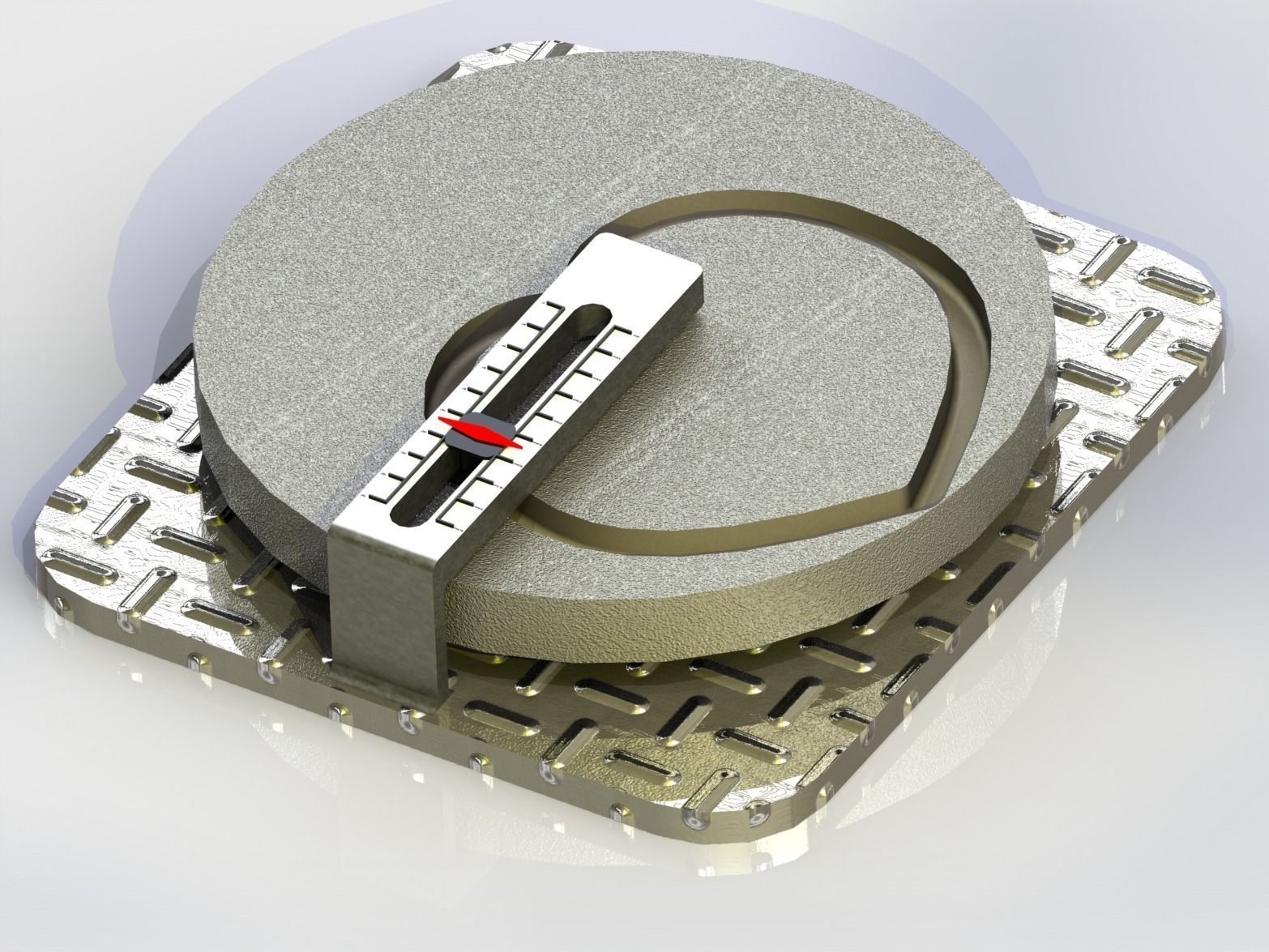

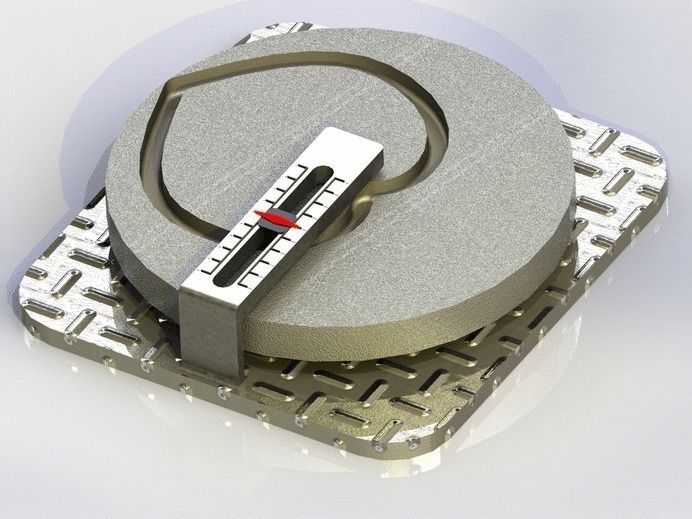

This mechanism is a converter that translates (or measures) rotational motion to linear motion with the below characteristic:1degree=0.47mm
For half of a rotation (180 degrees), the index moves 83.98mm.
I accidentally deleted the disk used in the animation, therefore I upload a not that precise disk that I used in my tests.
I will recreate the disk and upload it again.
Precise rotational to linear converter angular to linear motion
