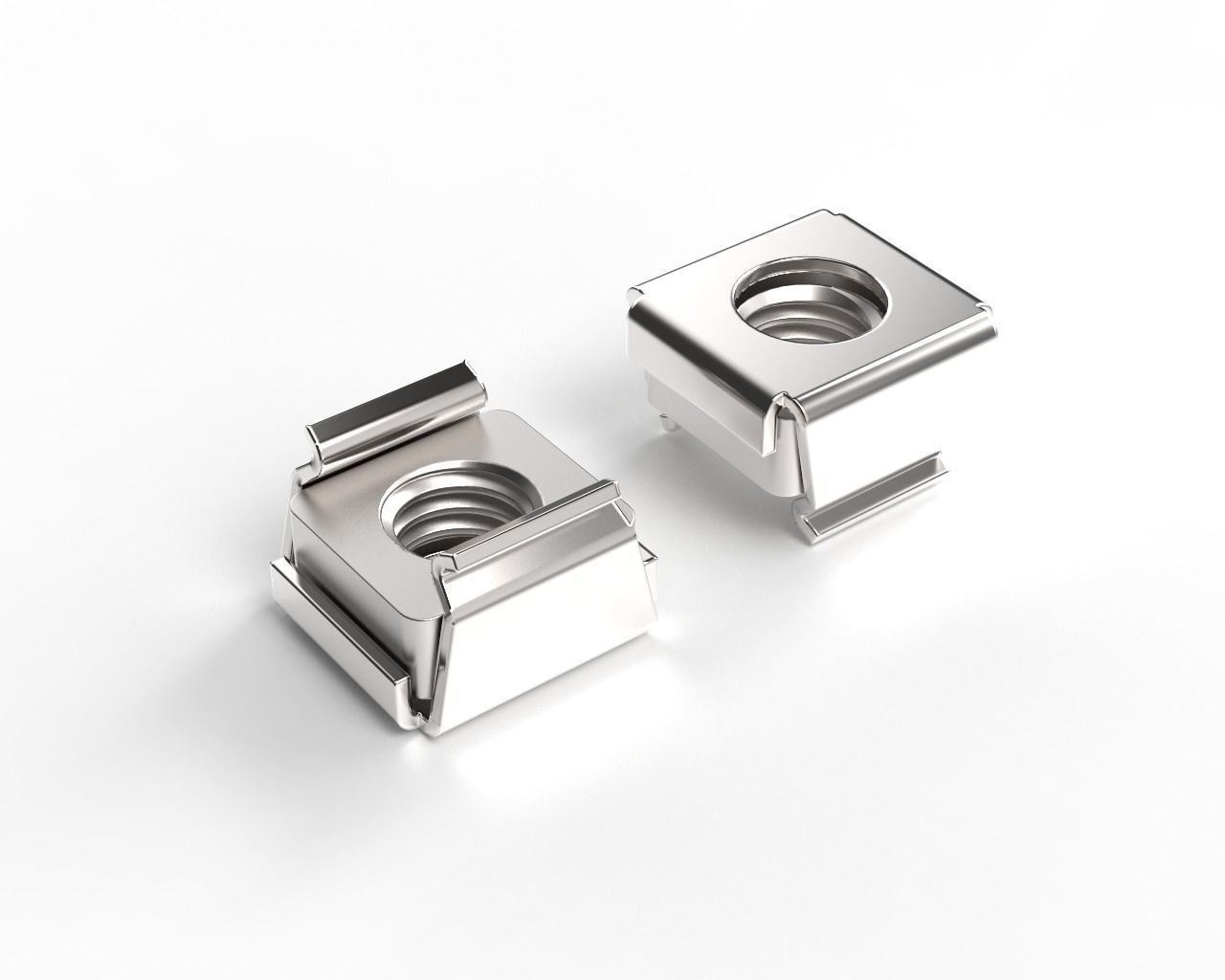

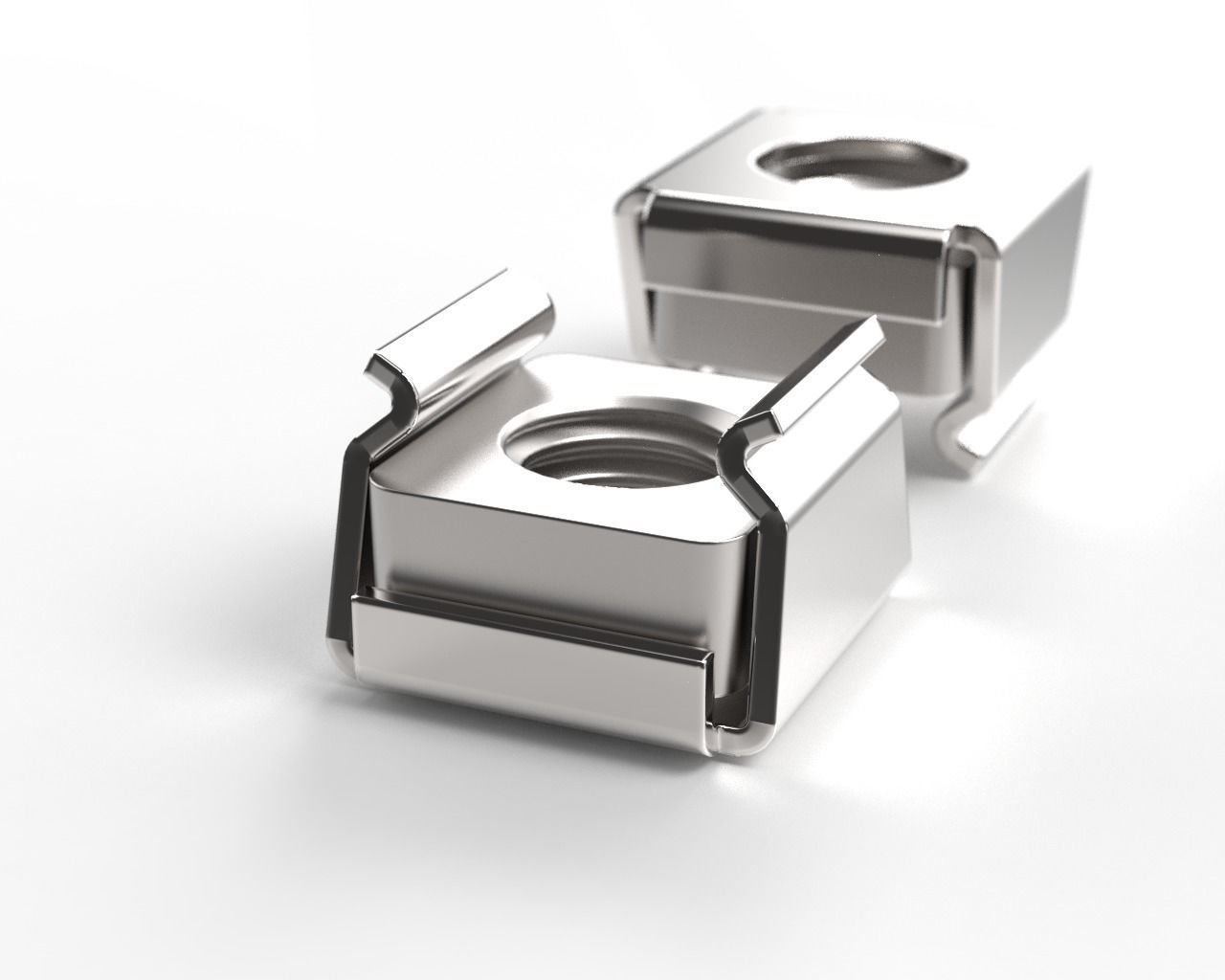

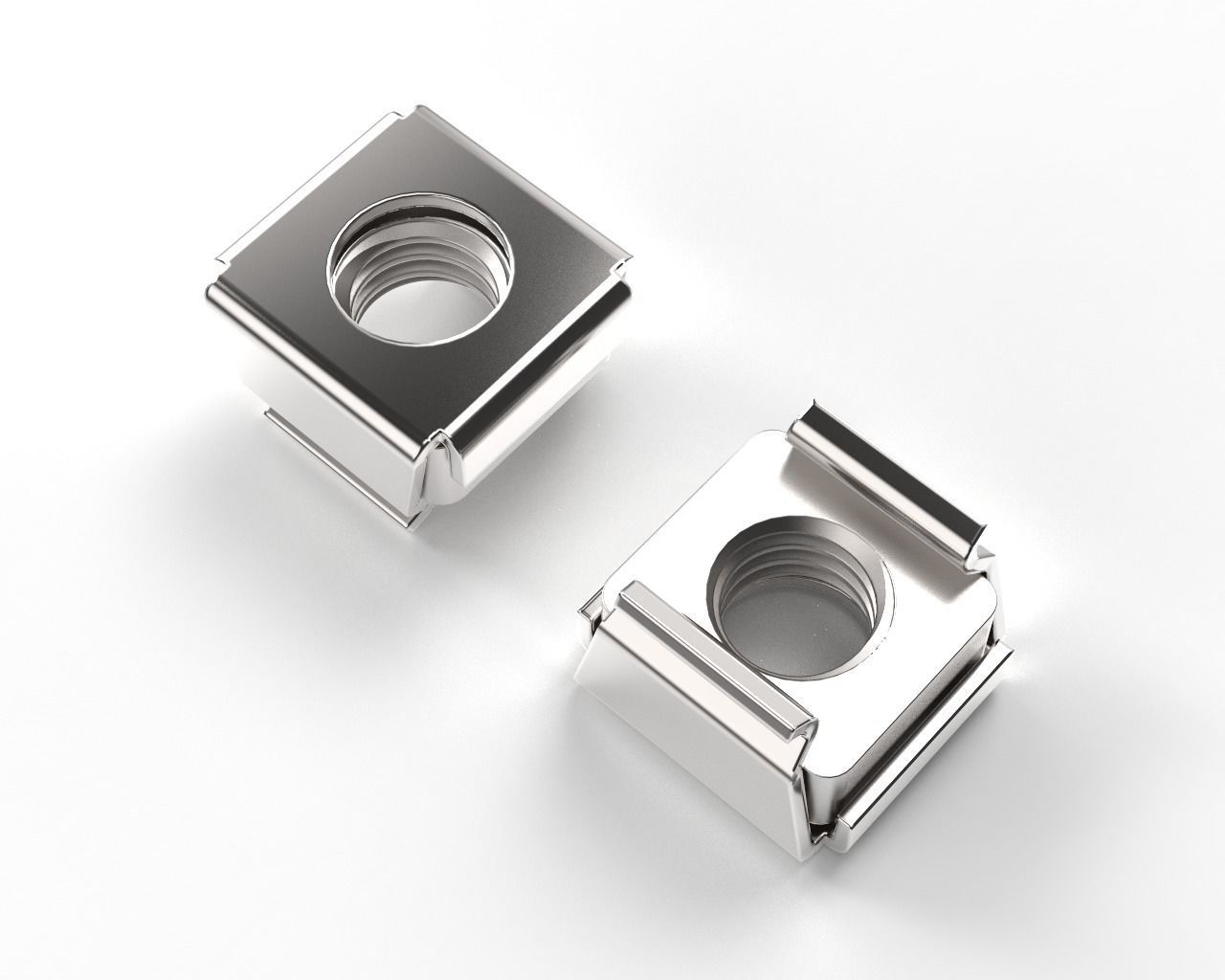

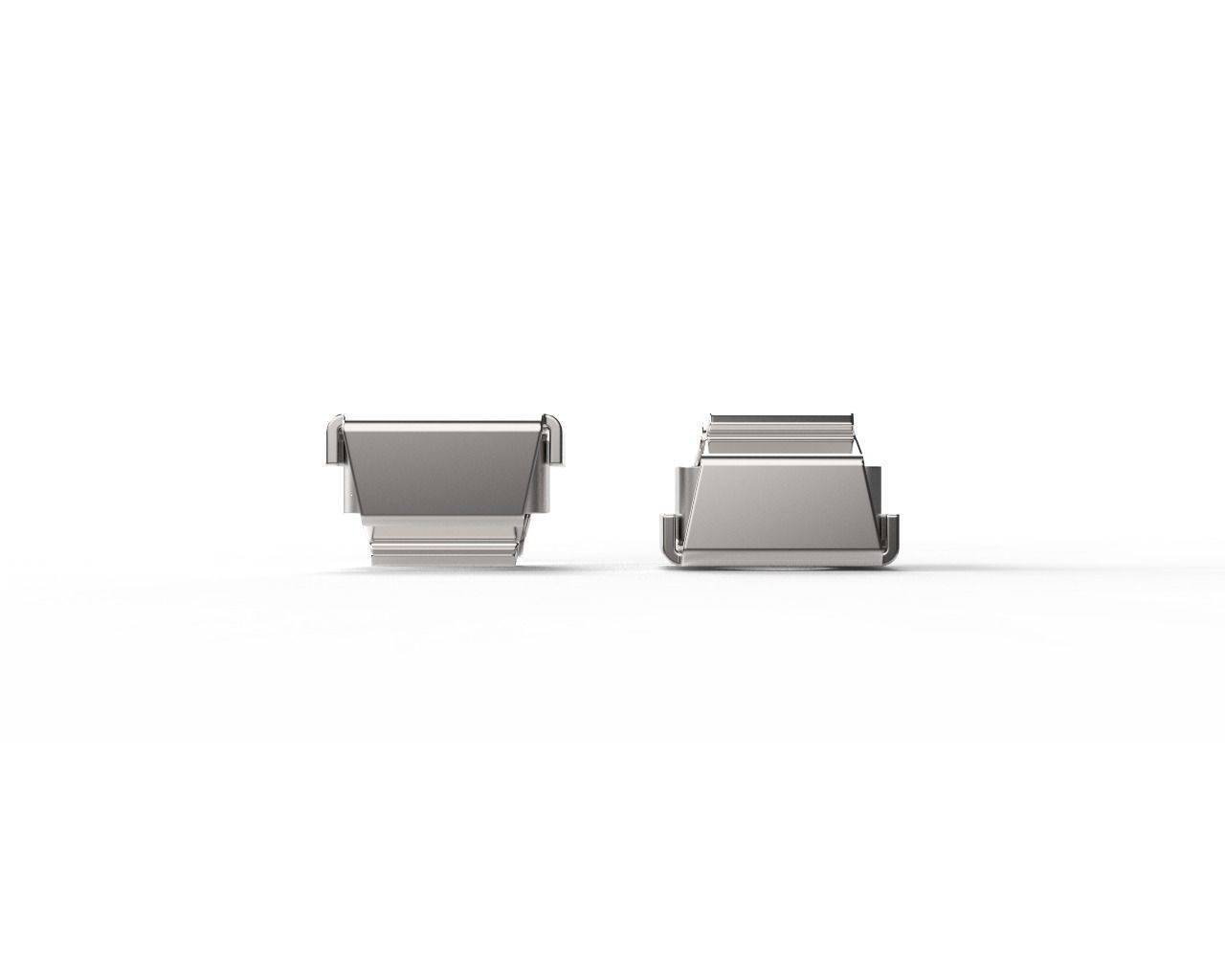

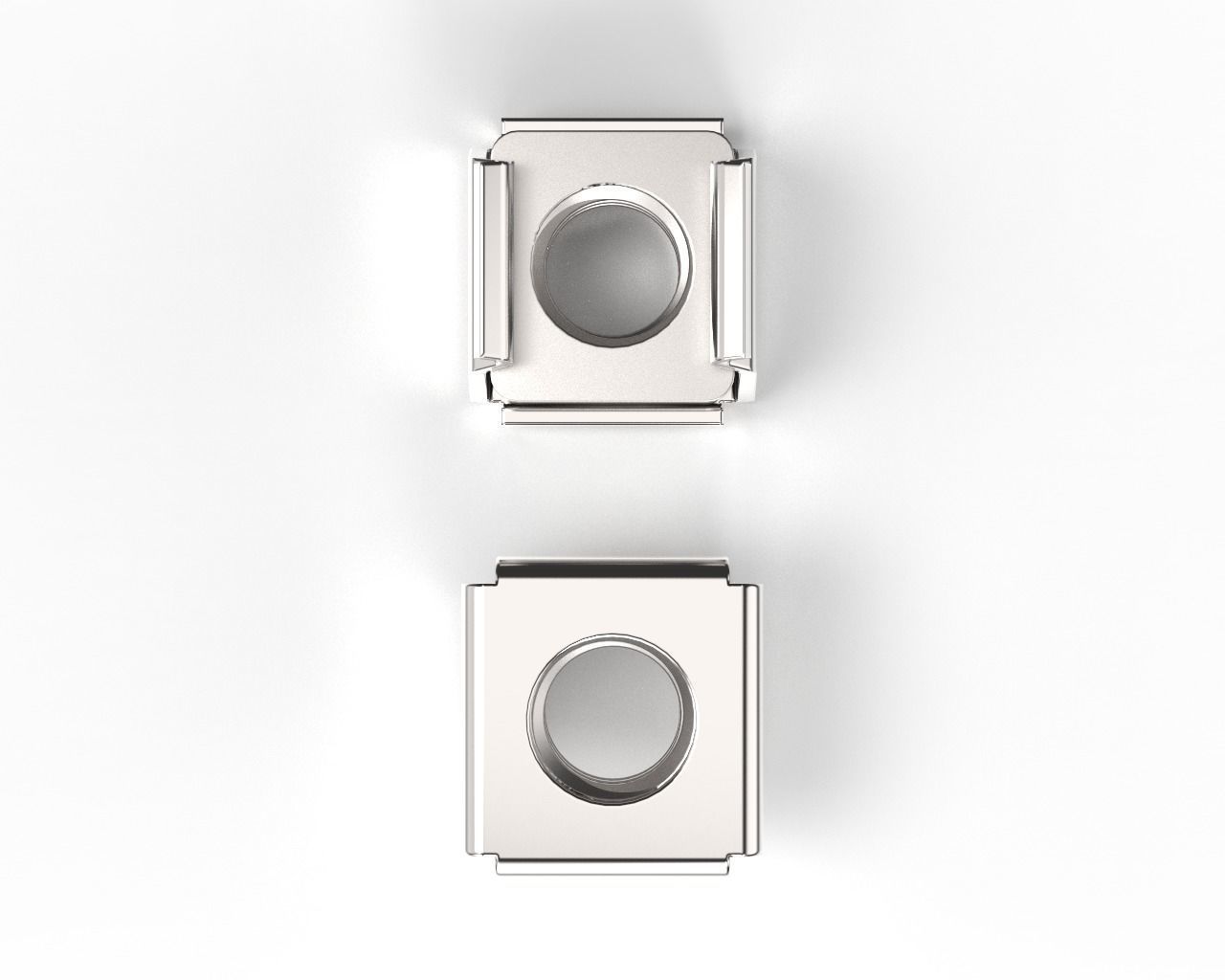

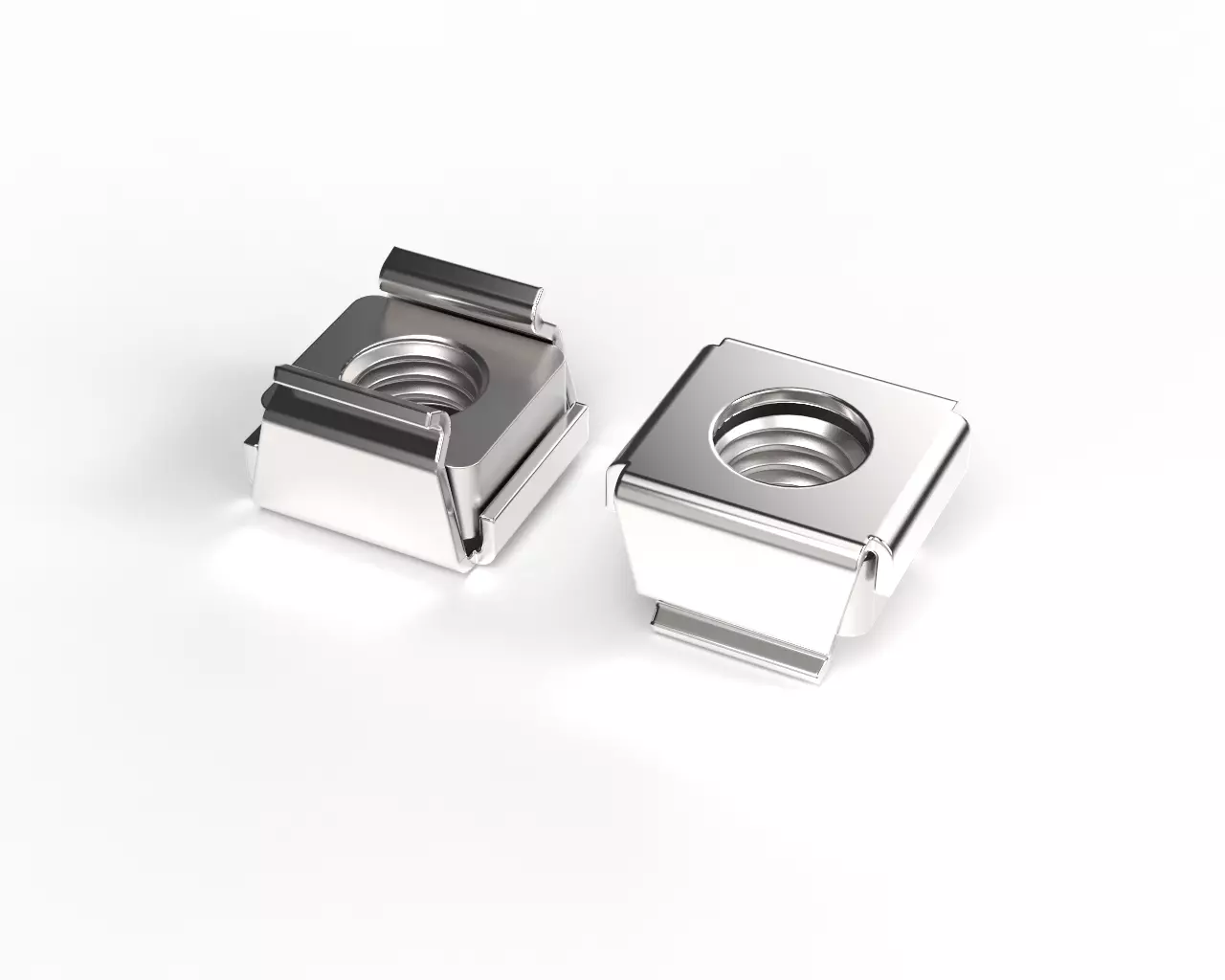

M6 Cage Nut 3D model
Description
This is a fully detailed model of an M6 cage nut, designed for use in 19-inch racks for servers and audio equipment. The model includes geometry modelled threads. Modelled in SolidWorks and rendered in KeyShot.
From the NP website:

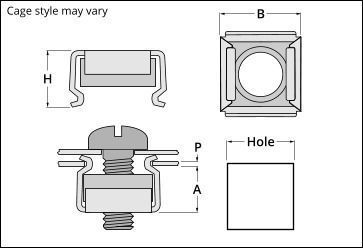

A cage nut consists of a square nut in a spring steel cage which wraps around the nut. The cage has two lugs that when compressed allow the cage to be inserted into a square hole. When the lugs are released, they hold the nut in position behind the hole.
M6 Cage Nut
Royalty Free License
M6 Cage Nut
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks 2020 (.sldprt, .sldasm, .slddrw)522 KB
Exchange
- IGES (.ige, .igs, .iges)683 KB
- Stereolithography (.stl)324 KB
- STEP (.stp)491 KB
- KeyShot (.bip, .ksp)1.28 MB
- OBJ (.obj, .mtl)539 KB
- Autodesk FBX (.fbx)1 MB
- 3D Studio (.3ds)279 KB
3D Model details
- Publish date2020-06-08
- Model ID#2459203
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
