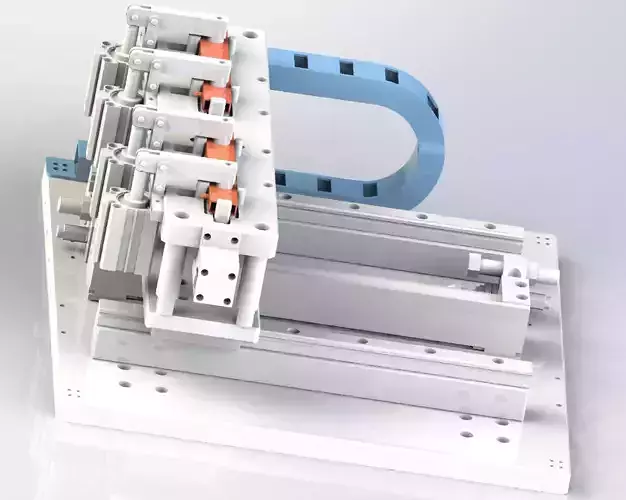

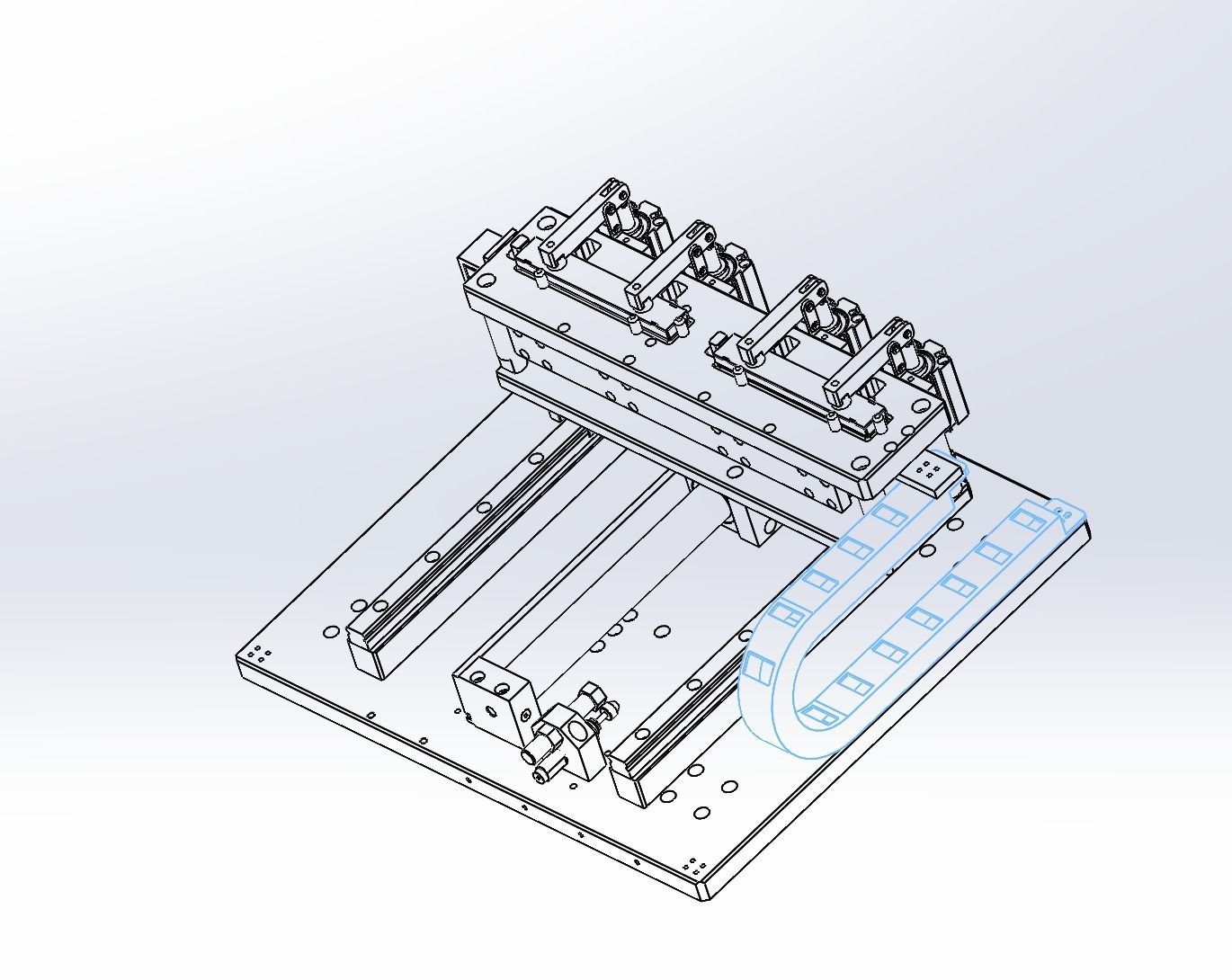

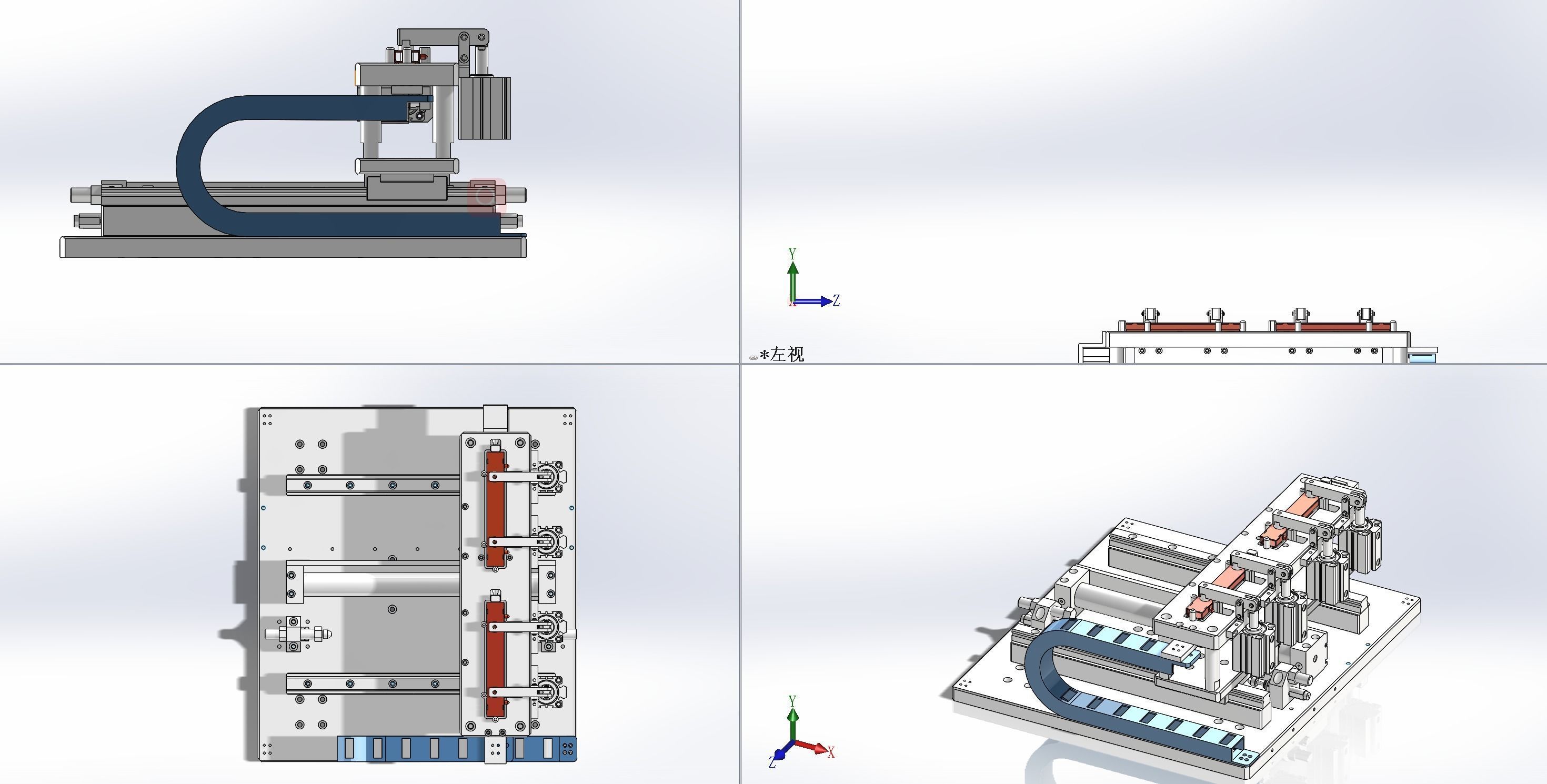

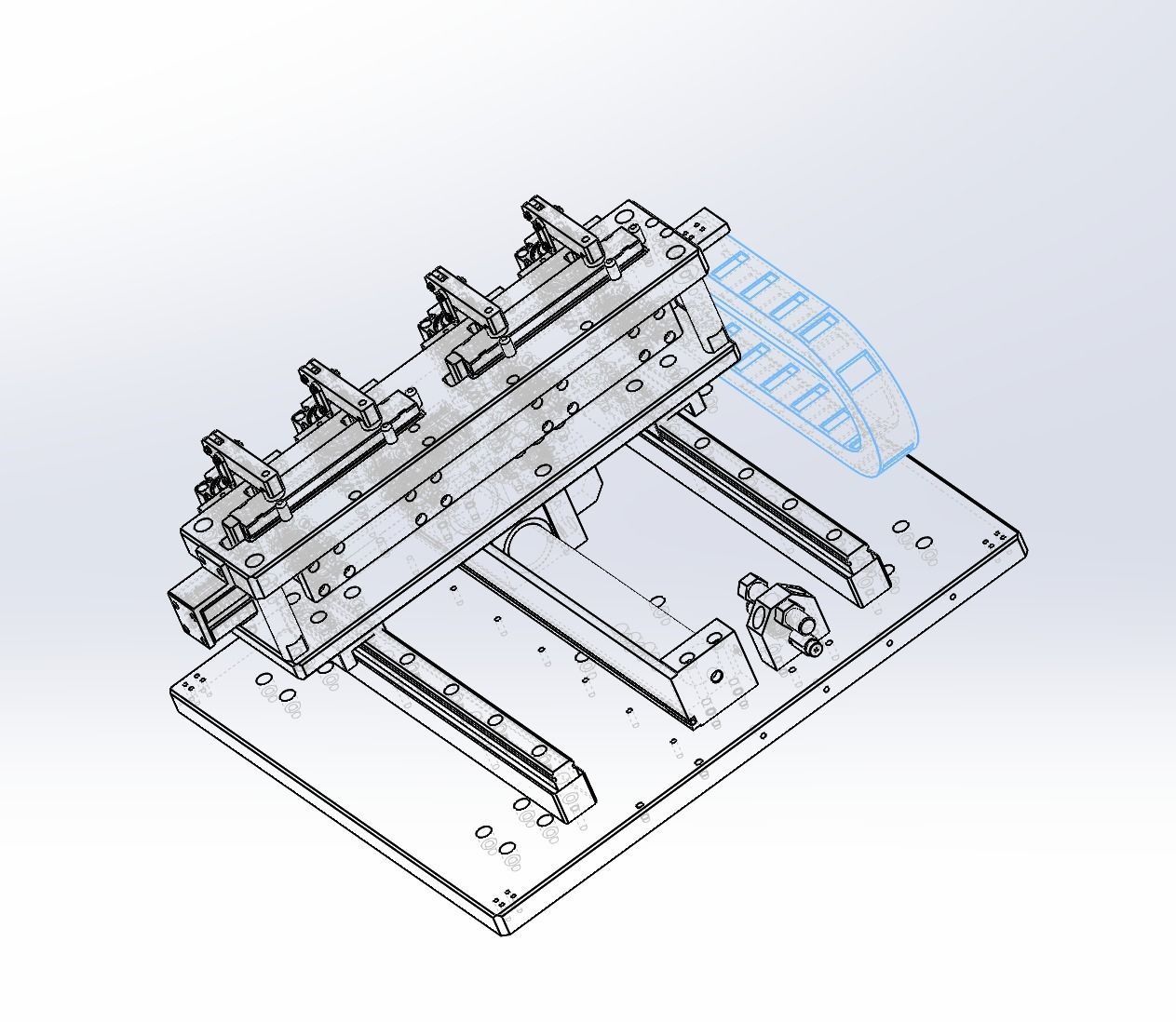

Hinge locating mechanism 3D model

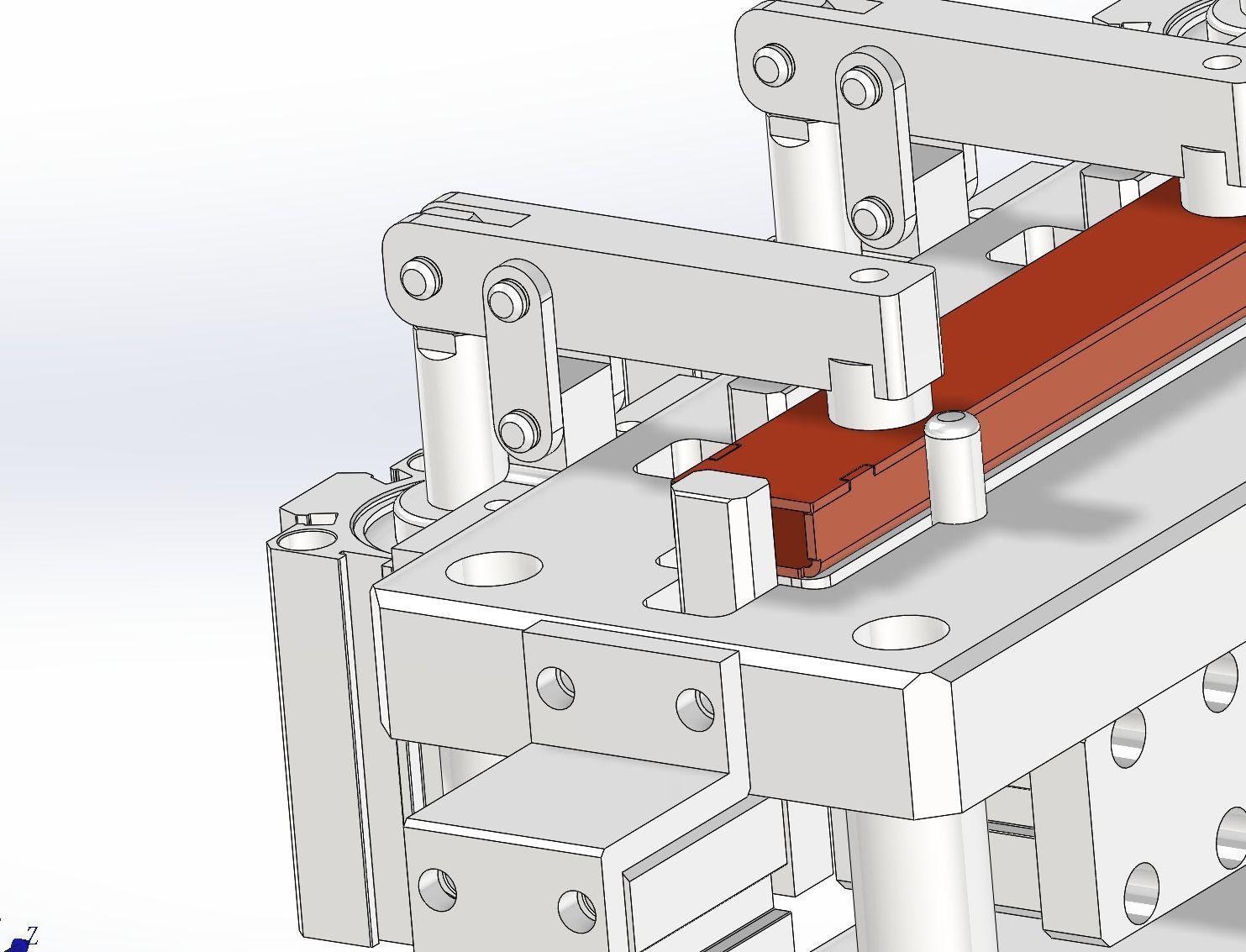

Hinge locating mechanism, the mechanism through a set of pneumatic cylinders double slide form the slider mechanism, at the same time on the sliding table is group of hinge point, through the cylinder and rotating hinge connecting form, it can be used in loading module, the product into the positioning fixture, cylinder push hinge press and hold the productmechanism include

1. Hinge mechanism
2. Sliding table mechanism
3. Compression mechanism************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds-max-Fbx
4. and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************
