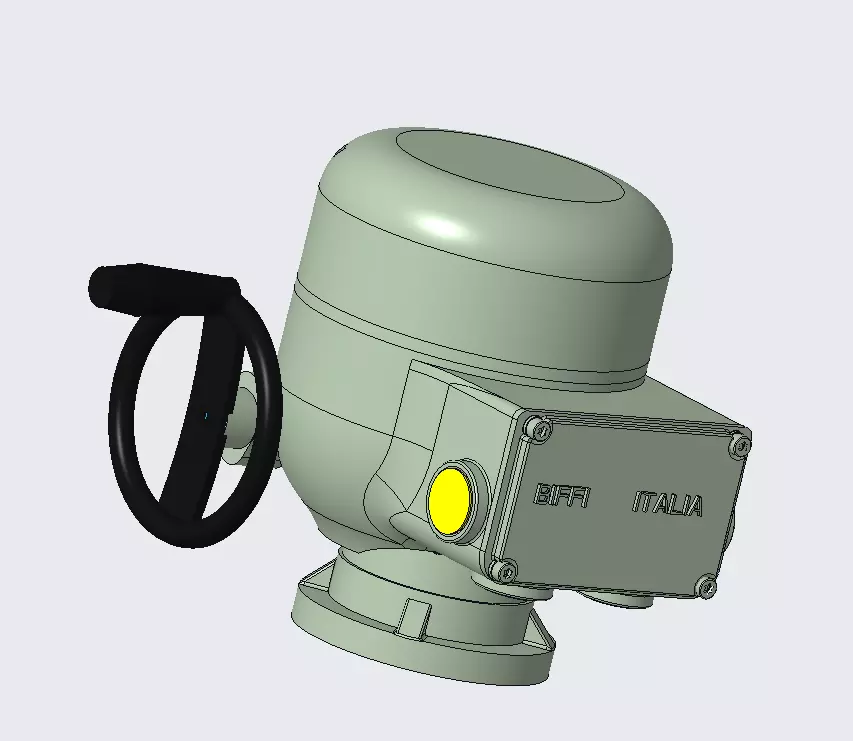

FO2 Quarter-Turn Electric Actuator 3D model

Features & BenefitsLow or high voltage single-phase DC or AC power supply with 3-phase optionMultiple adjustable stroking times to suit specific applicationsInterchangeable base plate and range of shaft inserts enable simple connection to any valve typeIntelligent control unit prevents overheatingEpicyclical gearing ensures reliable and smooth operationTop- mounted position indicatorConstantly-engaged, hand wheel-operatedmanual override in case of power failureBluetooth™ wireless connectivity for non-intrusive configuration, operation and diagnosticsOptional local control panel for manual valve operation with additional open/close indicatorSimple upgrade options for modulating control and network communication via DeviceNet or Profibus DP protocolsLatched-type output contacts for fully open/ fully close remote indication. Output contacts for monitor and blinker/local selector indication are also available.

** Specifications**

General applicationThe F02 is available in six sizes and is designed for on/off or modulating control of butterfly, ball, rotary plug valves or dampers in a wide range of heavy industrial, chemical and petrochemical plants on and offshore.

*Technical data *

Power supply: Single phase from 24 to 48 V DC or AC at 50/60 Hz. Single phase from 100 to 240 V DC or AC at 50/60 Hz 3-phase from 208‑240 V AC, 380-480 V AC and 500‑575 V AC .Voltage fluctuations: +/-10% .Frequency: +/- 5% .Torque output: From 35 to 2000 Nm / 308 to 17.700 lb.in. Ambient temperature .Standard range: -25°C to +70°C / -13°F to 158°F .Low temp range: -40°C to +70°C / -40°F to 158°F .Conduit entry: M25/1” NPT .
