EN10253-4 Butt weld Fittings - 850 Files CAD Collection 3D model

Items in this collection:

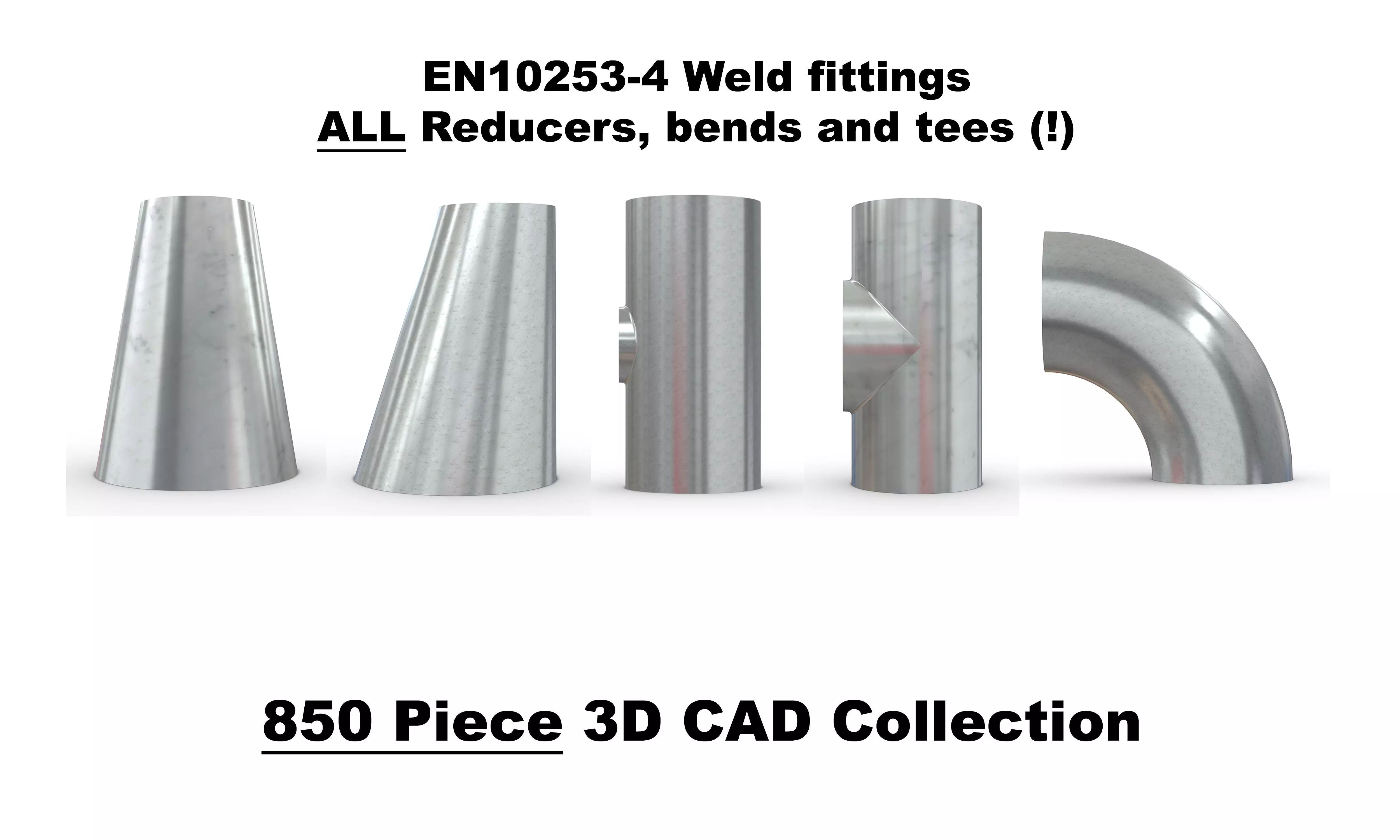

• Concentric reducers: ø17,2 - ø609,6 mm
• Eccentric reducers: ø17,2 - ø609,6 mm
• Short reducing tees: ø17,2 - ø273 mm
• Short branch welding tees: ø13,5 - ø406 mm
• Short bends 90° Type 3S: ø13,5 - ø1016mm

Two Premium File Formats

1. F3D (Fusion 360)
2. STEP (Inventor, Solidworks and more)

To cater to your specific software requirements, our library offers files in both .f3d and .step formats. Whether you're using Fusion 360, SolidWorks, AutoCAD, Autodesk Inventor or any other 3D modeling software, you'll find a seamless and hassle-free integration.

Unlock a World of 3D Piping Excellence with Our Comprehensive LibraryAre you ready to take your 3D modeling projects to the next level? Introducing our unparalleled 3D Models Library, a treasure trove of 850 meticulously crafted files, all dedicated to EN10253-4 standard pipe fittings. This comprehensive collection empowers engineers, designers, and drafters to supercharge their work and streamline their projects with unmatched precision.

Unrivaled VarietyOur library boasts an impressive range of pipe fittings, including bends, tees, concentric reducers, eccentric reducers, and more. What sets us apart is our commitment to detail; these fittings are available in every conceivable diameter and wall thickness, ensuring that you have access to the perfect fit for your unique needs. From small-scale projects to industrial masterpieces, we have you covered.

FIND ALL TYPES AND SIZES IN THIS FLIPBOOK

(copy and paste the link below in your webbrowser bar)

https://designrr.page/?id=321403&token=3228324363&type=FP&h=3746

EN10253-4 Standard ComplianceEach of our 850 3D models adheres meticulously to the EN10253-4 standard. This means you can trust that your designs meet the highest industry standards, saving you valuable time on compliance checks and revisions.

Limitless ApplicationsThe potential applications of our library are boundless. Whether you're designing complex piping systems for an industrial plant, a sustainable plumbing solution for a residential project, or even crafting a 3D presentation for educational purposes, our library will be your invaluable ally.

Unmatched EfficiencyWith 850 ready-to-use models at your fingertips, you'll experience unprecedented efficiency in your 3D projects. Say goodbye to tedious hours spent manually creating pipe fittings. Our library empowers you to focus on what truly matters – your innovative design concepts and engineering solutions.

Elevated VisualizationOur 3D models aren't just files; they're your gateway to enhanced project presentations. Communicate your ideas with clarity, precision, and professionalism. Your designs will come to life in ways that 2D drawings simply can't replicate.In today's competitive landscape, staying ahead requires superior tools and resources. Our 3D Models Library is more than just a collection; it's a gateway to enhanced productivity, elevated project quality, and professional recognition.Don't miss the opportunity to streamline your 3D modeling workflow, elevate your project presentations, and revolutionize the way you work. Unlock the potential of 850 meticulously crafted 3D pipe fitting models today. Your success is just a click away!

About the European standard EN10253-4The EN10253-4 standard is a European standard that defines the technical requirements for welded pipe fittings made from stainless steel. This standard is part of a series of standards developed by the European Committee for Standardization (CEN) under the broader EN10253 series, which covers various types of steel pipe fittings.

Here are some key points regarding the EN10253-4 standard:

• Material: EN10253-4 specifically pertains to stainless steel pipe fittings. Stainless steel is a corrosion-resistant and durable material widely used in various industries, including chemical processing, food and beverage, pharmaceuticals, and more.
• Fitting Types: The standard addresses a range of pipe fittings, including but not limited to elbows, tees, reducers, and caps. These fittings play a crucial role in connecting and directing the flow of fluids in piping systems.
• Dimensions and Tolerances: EN10253-4 specifies the dimensions and tolerances for these fittings, ensuring they are manufactured to precise measurements. This is vital to guarantee proper fit and functionality within piping systems.
• Pressure Ratings: The standard also provides information on pressure ratings for stainless steel pipe fittings. These ratings help ensure that the fittings can withstand the pressures associated with their intended applications.
• Welding and Fabrication: EN10253-4 includes details about the welding and fabrication of stainless steel pipe fittings. This ensures that the fittings are constructed in a manner that maintains the integrity of the stainless steel material, including its corrosion resistance properties.
• Material Grades: Stainless steel comes in various grades, and the standard addresses which material grades are suitable for specific applications. Different grades have varying levels of corrosion resistance, strength, and other properties.
• Compliance: EN10253-4 sets out the requirements for compliance, allowing users to ensure that the pipe fittings they use adhere to recognized industry standards.

In essence, the EN10253-4 standard serves as a guide for the design, manufacture, and use of stainless steel pipe fittings in a wide range of industrial applications. Compliance with this standard ensures that these fittings meet stringent quality and safety requirements and are suitable for use in critical systems where the integrity of the piping is essential.

When you work with 3D models designed to meet the EN10253-4 standard, you're using a valuable resource that aligns with industry best practices and ensures your designs and projects are in compliance with recognized European standards for stainless steel pipe fittings.
