DN50 - PVC Butterfly valve wafer NO - Autodesk Inventor 3D model
Description

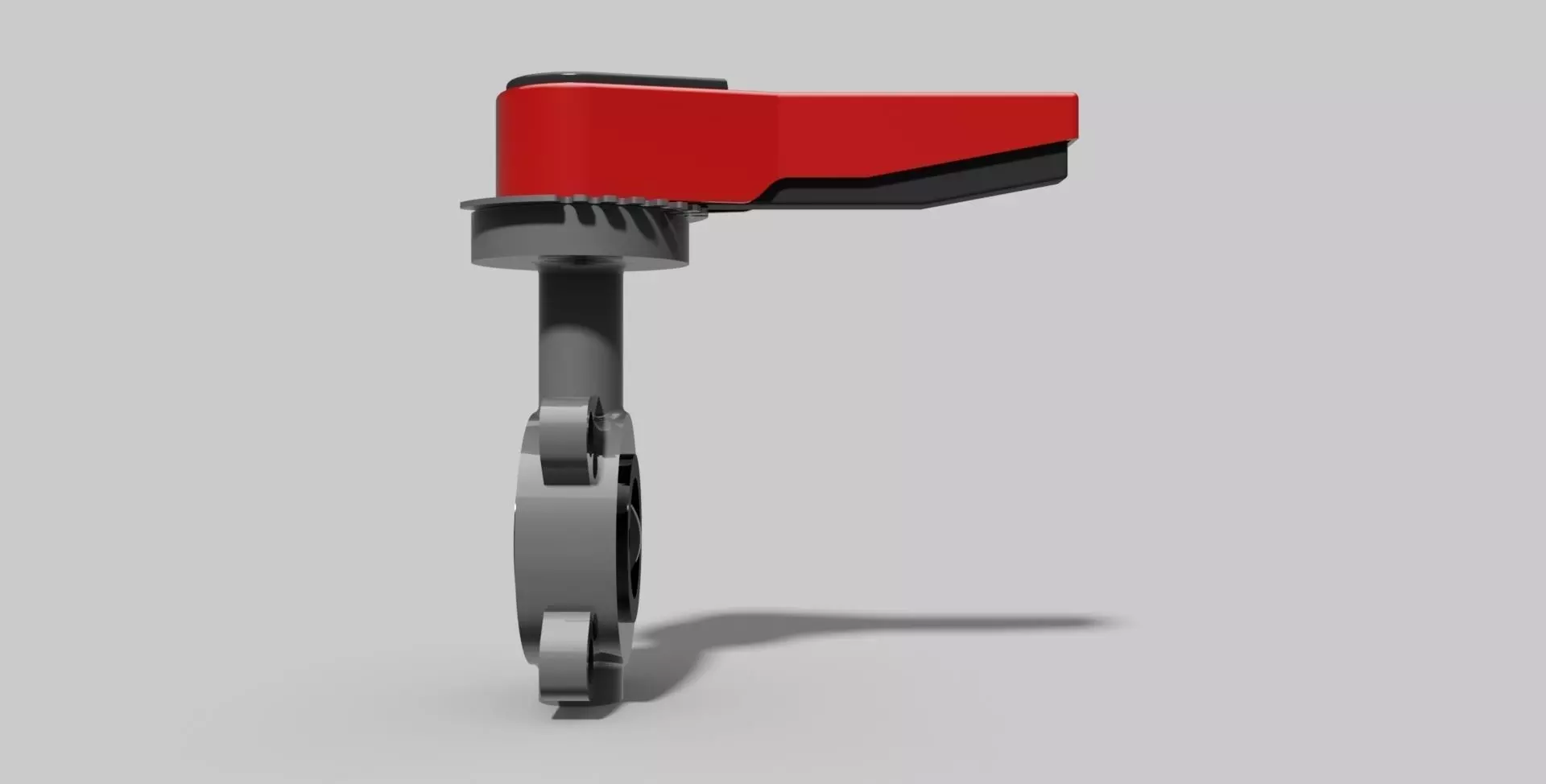

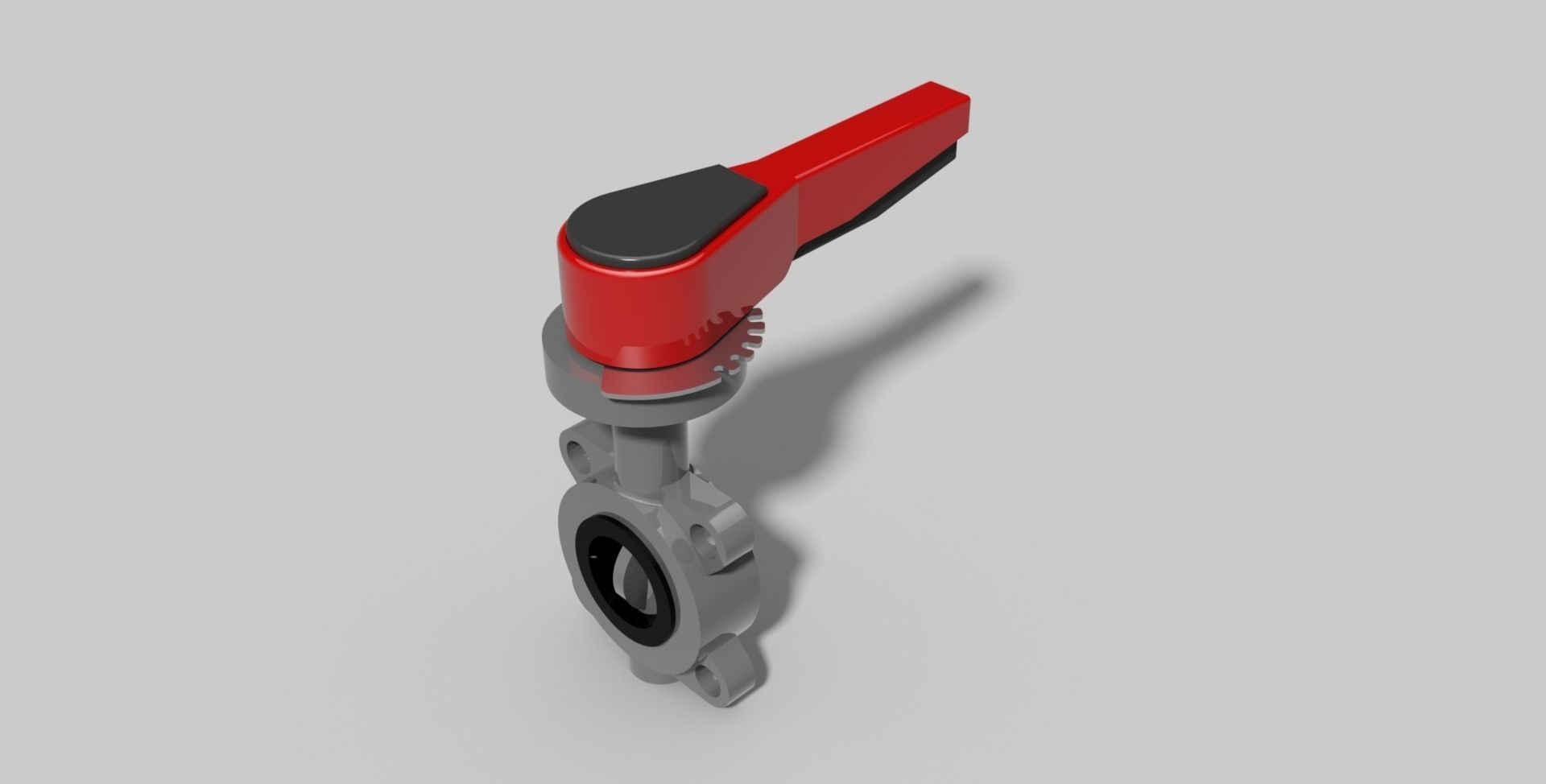

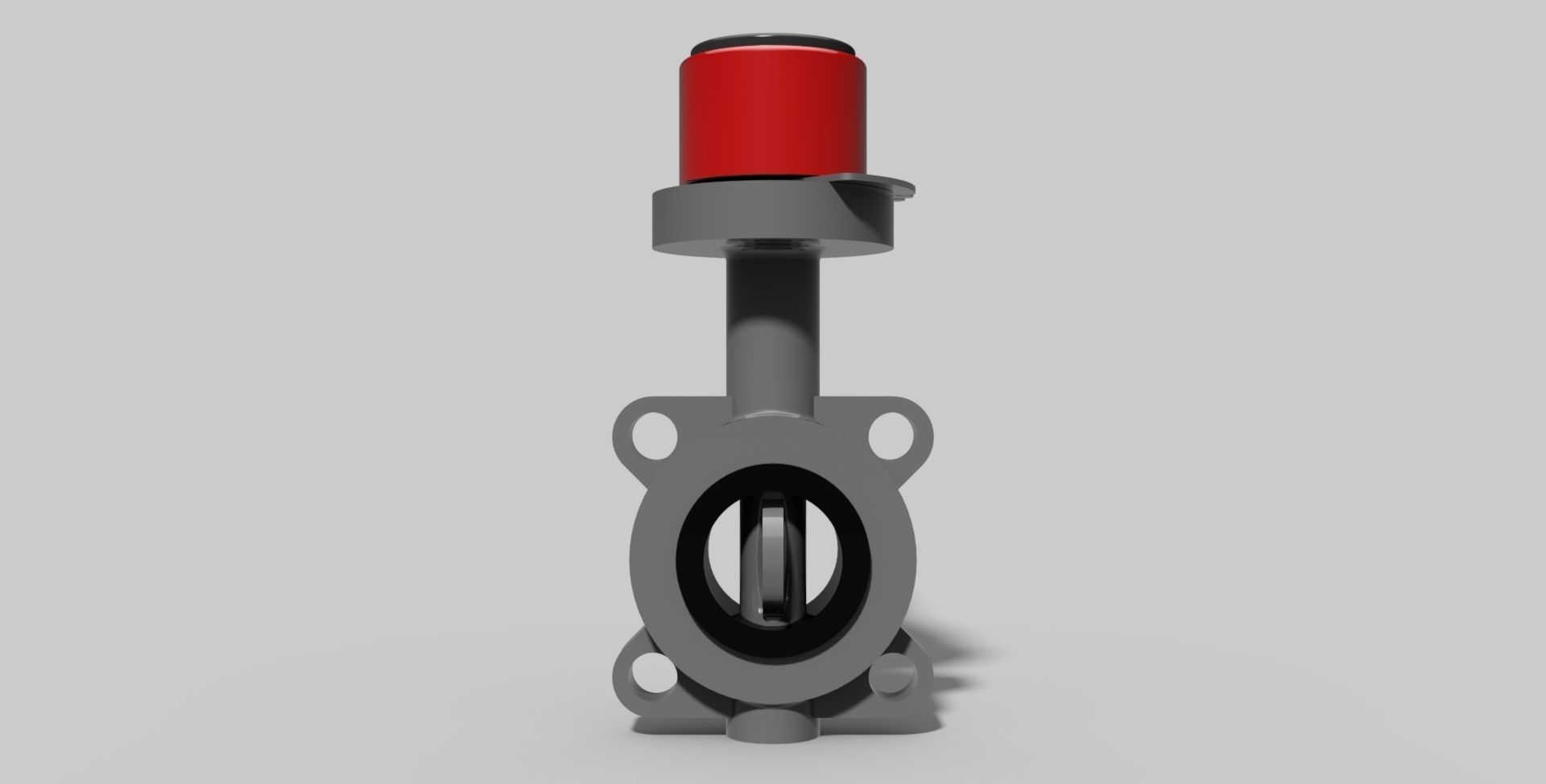

PVC Butterfly valve DN50 for Autodesk InventorFree 3D CAD model:
- Description: Butterfly valve DIN-ISO metric
- Diameter: DN50 PN16
- Material: PVC-U
- Operation: manual
- Handle position: open
- File format: Autodesk Inventor .ipt
You can use this CAD model directly in:■ Autodesk Inventor 2015■ Autodesk Inventor 2016■ Autodesk Inventor 2017
This is a sample CAD model from the full range library DIN metric PVC valves and fittings. This Content Center library for Autodesk Inventor contains 1000+ premium quality 3D PVC-U piping parts for mechanical engineers.Click here for all details about this library.
I hope you can use this CAD model in one of your engineering projects.Feel free to share, like or comment...
Freerk de With,Wyalo 3D CAD models
DN50 - PVC Butterfly valve wafer NO - Autodesk Inventor
Royalty Free License
DN50 - PVC Butterfly valve wafer NO - Autodesk Inventor
Royalty Free License
3D Modeling
3D Model formats
Format limitations
- Autodesk Inventor (.iam, .ipt)835 KB
- Other 683 KB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Publish date2016-04-05
- Model ID#310949
