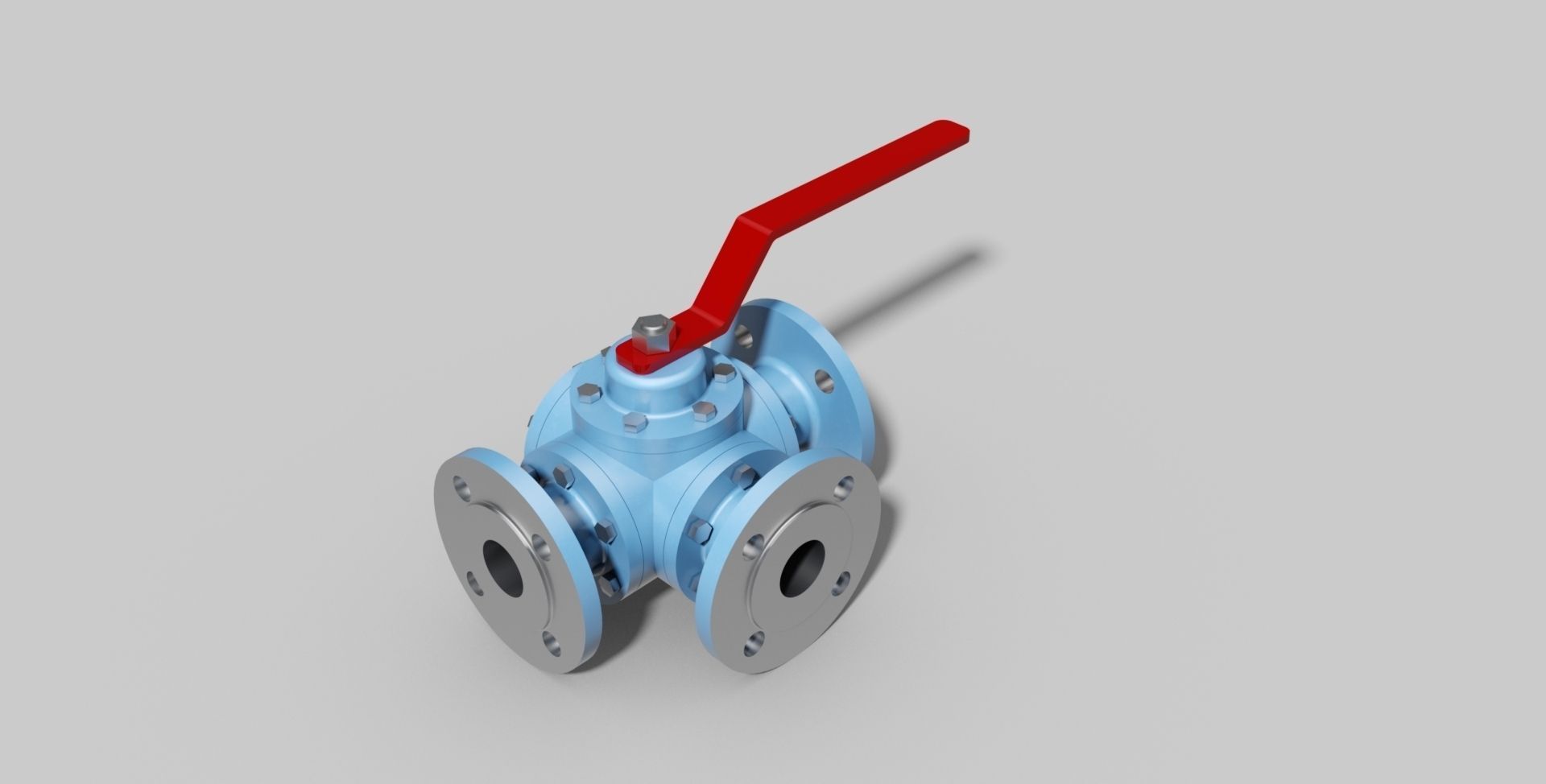

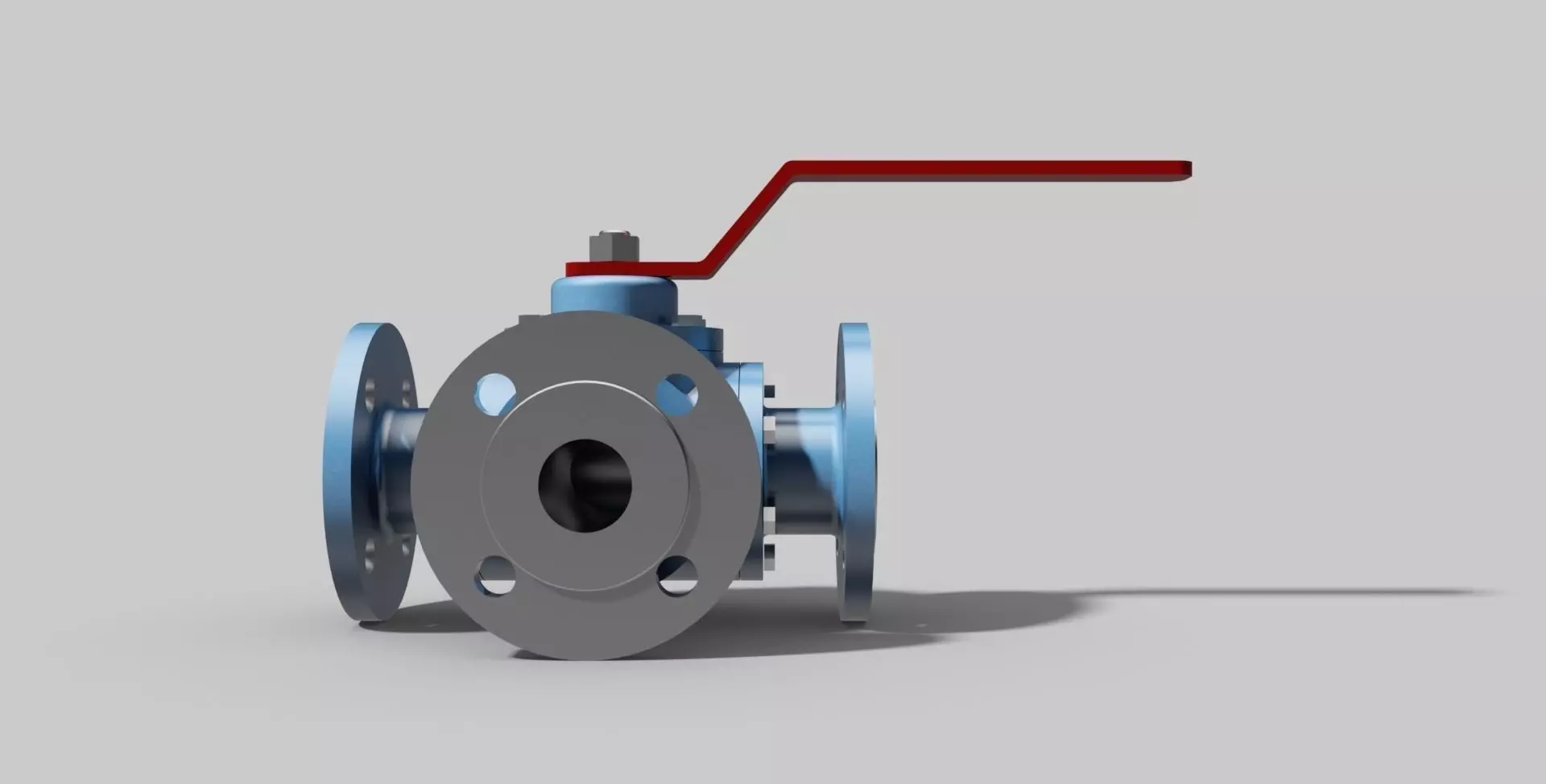

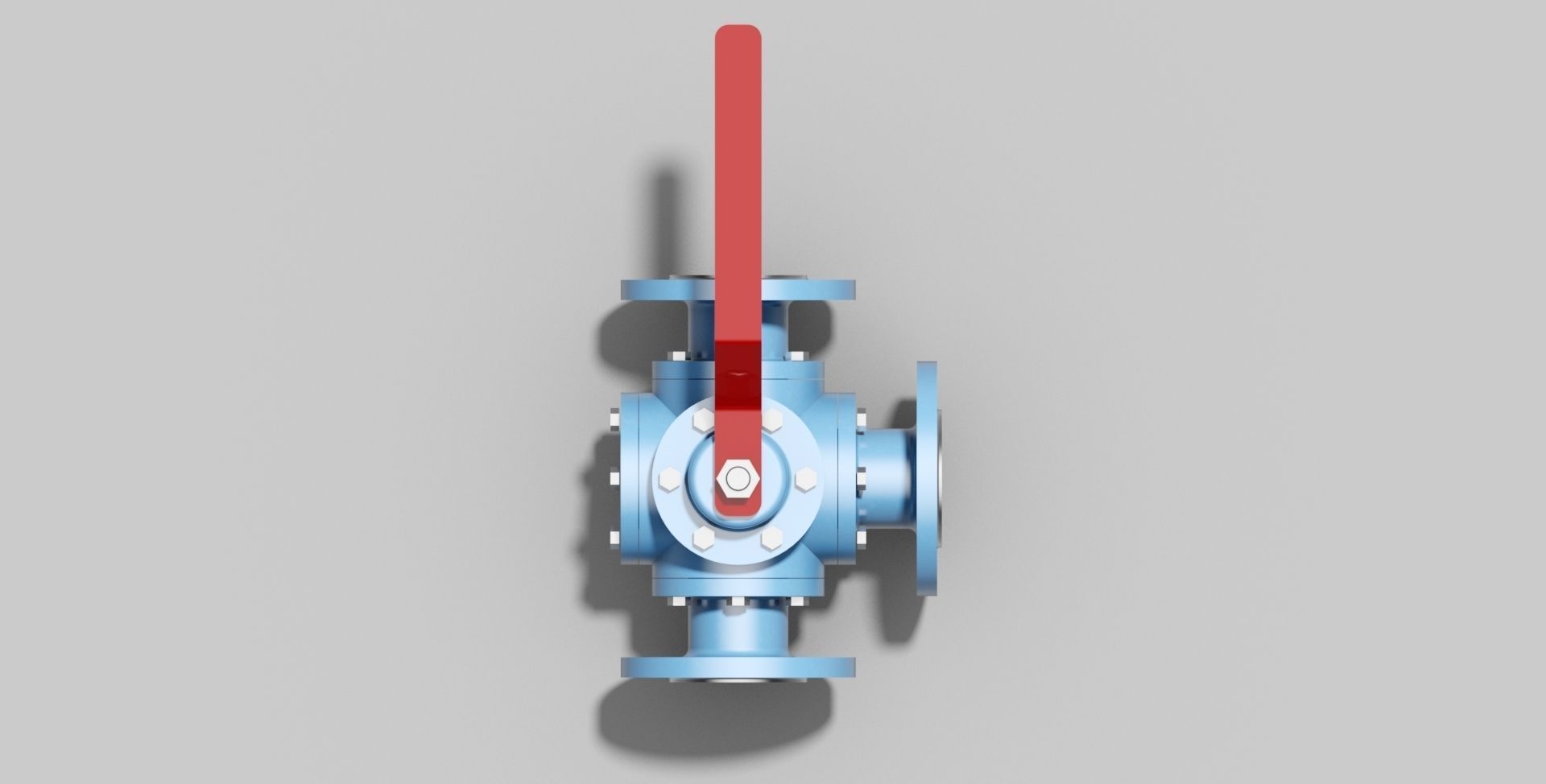

DN50 PN16 - Three-way ball valve NO - Autodesk Inventor 3D model
Description
Metal Three-way ball valve DN50 PN16 for Autodesk Inventor
Free 3D CAD model:
- Description: Three-way ball valve DIN-ISO metric
- Diameter: DN50 PN16
- Material: Metal
- Connection: Flanges
- Operation: manual
- Position: open
- File format: Autodesk Inventor .ipt
You can use this CAD model directly in: ■ Autodesk Inventor 2015 ■ Autodesk Inventor 2016 ■ Autodesk Inventor 2017
This is a sample CAD model from the full range library DIN metric metal fittings and valves. This Content Center library for Autodesk Inventor contains 1000+ premium quality 3D piping parts for mechanical engineers. Click here for all details about this library.
I hope you can use this CAD model in one of your engineering projects. Feel free to share, like or comment...
FReerk de With Wyalo 3D CAD models
DN50 PN16 - Three-way ball valve NO - Autodesk Inventor
Royalty Free License
DN50 PN16 - Three-way ball valve NO - Autodesk Inventor
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- Autodesk Inventor (.iam, .ipt)732 KB
Exchange
3D Model details
- Publish date2016-04-07
- Model ID#311318
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Ready for 3D Printing
