DN50 PN16 - 3-Piece ball valve NO - Autodesk Inventor 3D model

Description

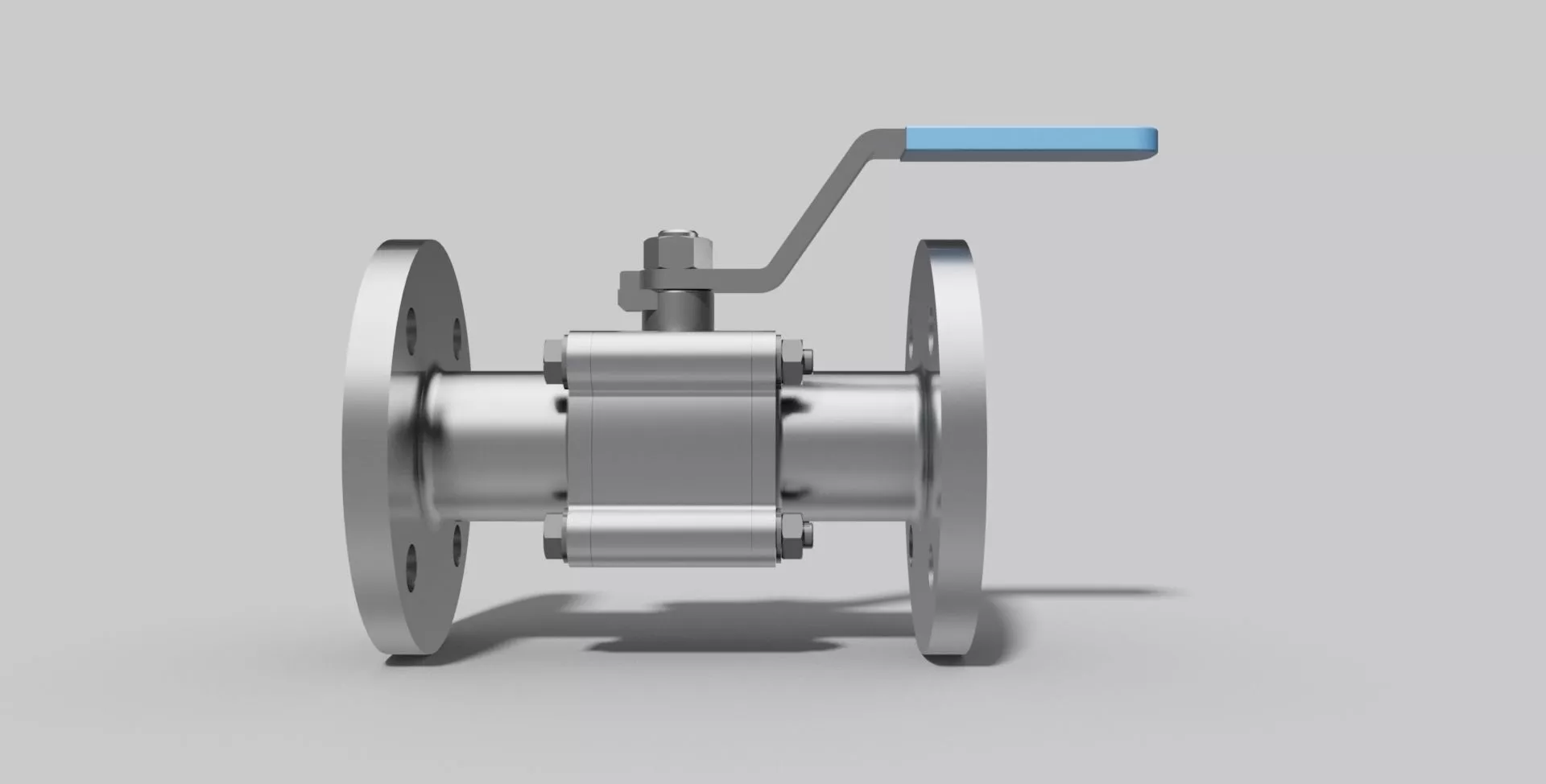

Metal 3-Piece ball valve DN50 PN16 for Autodesk Inventor

Free 3D CAD model:

  • Description: Ball valve DIN-ISO metric
  • Diameter: DN50 PN16
  • Material: Metal (stainless steel)
  • Connection: Flanges
  • Operation: manual
  • Position: open
  • File format: Autodesk Inventor .ipt

You can use this CAD model directly in:■ Autodesk Inventor 2015■ Autodesk Inventor 2016■ Autodesk Inventor 2017

This is a sample CAD model from the full range library DIN metric metal fittings and valves. This Content Center library for Autodesk Inventor contains 1000+ premium quality 3D piping parts for mechanical engineers.Click here for all details about this library.

I hope you can use this CAD model in one of your engineering projects. Feel free to share, like or comment...

Freerk de With, Wyalo 3D CAD models
