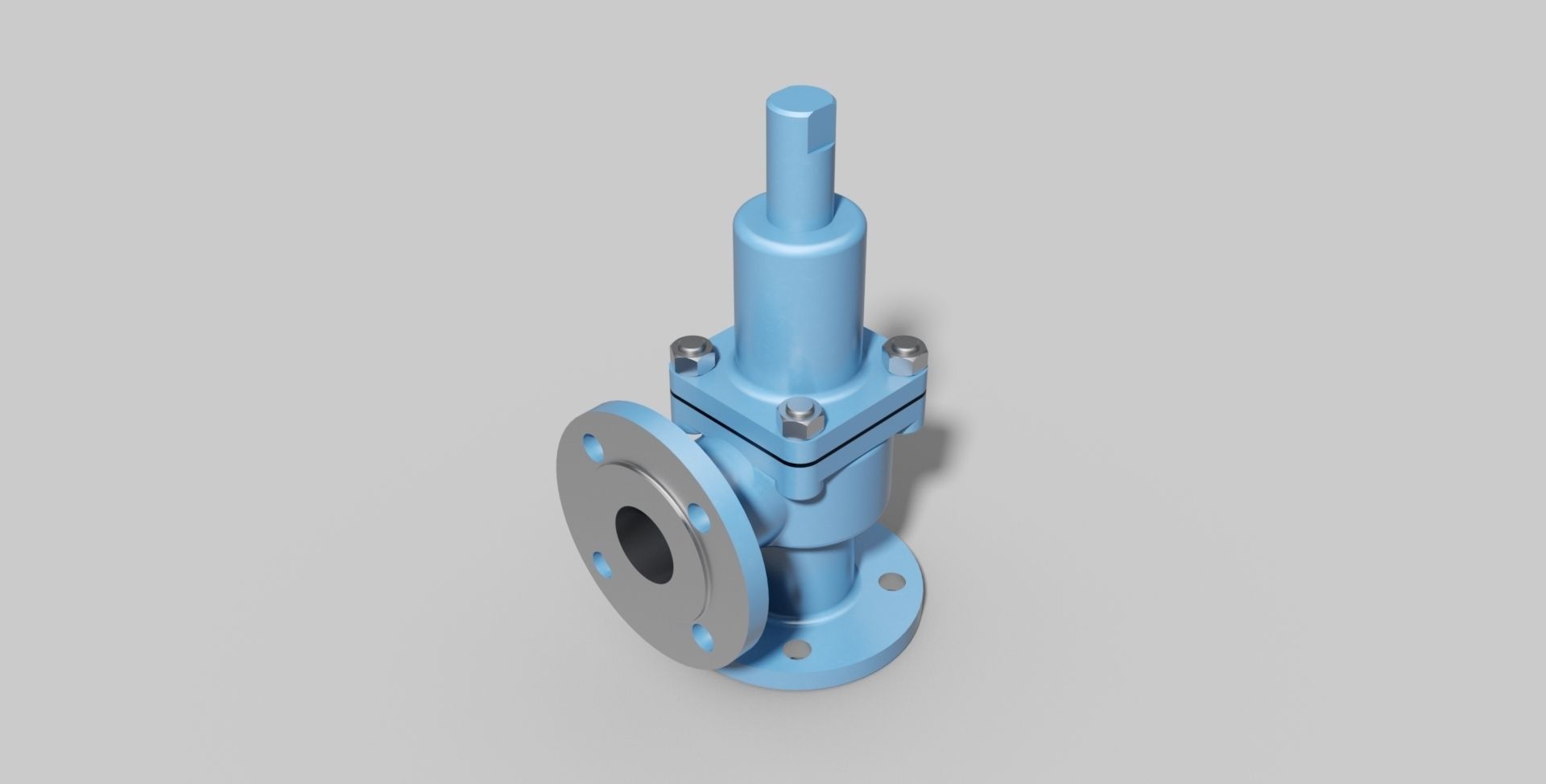

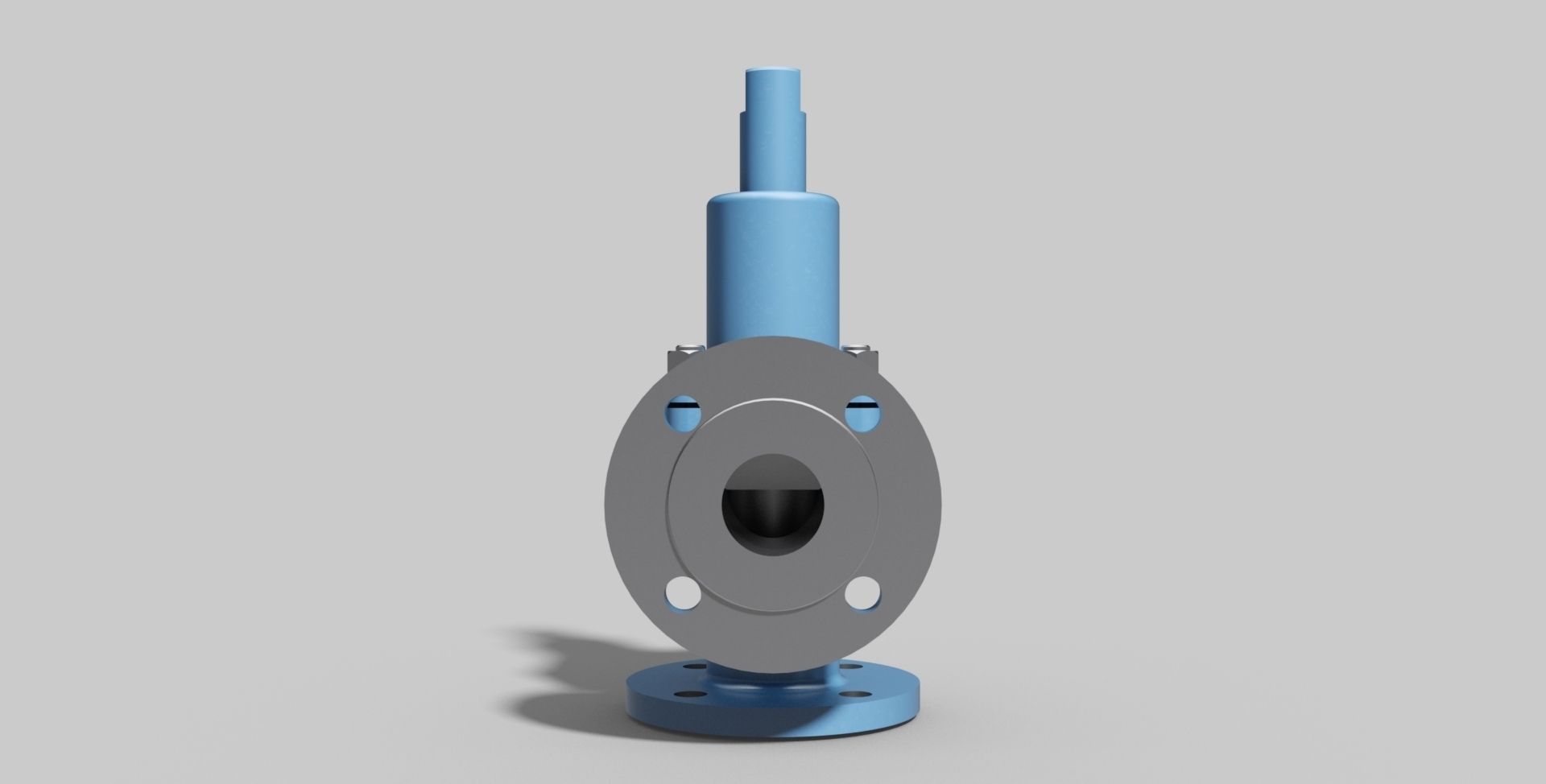

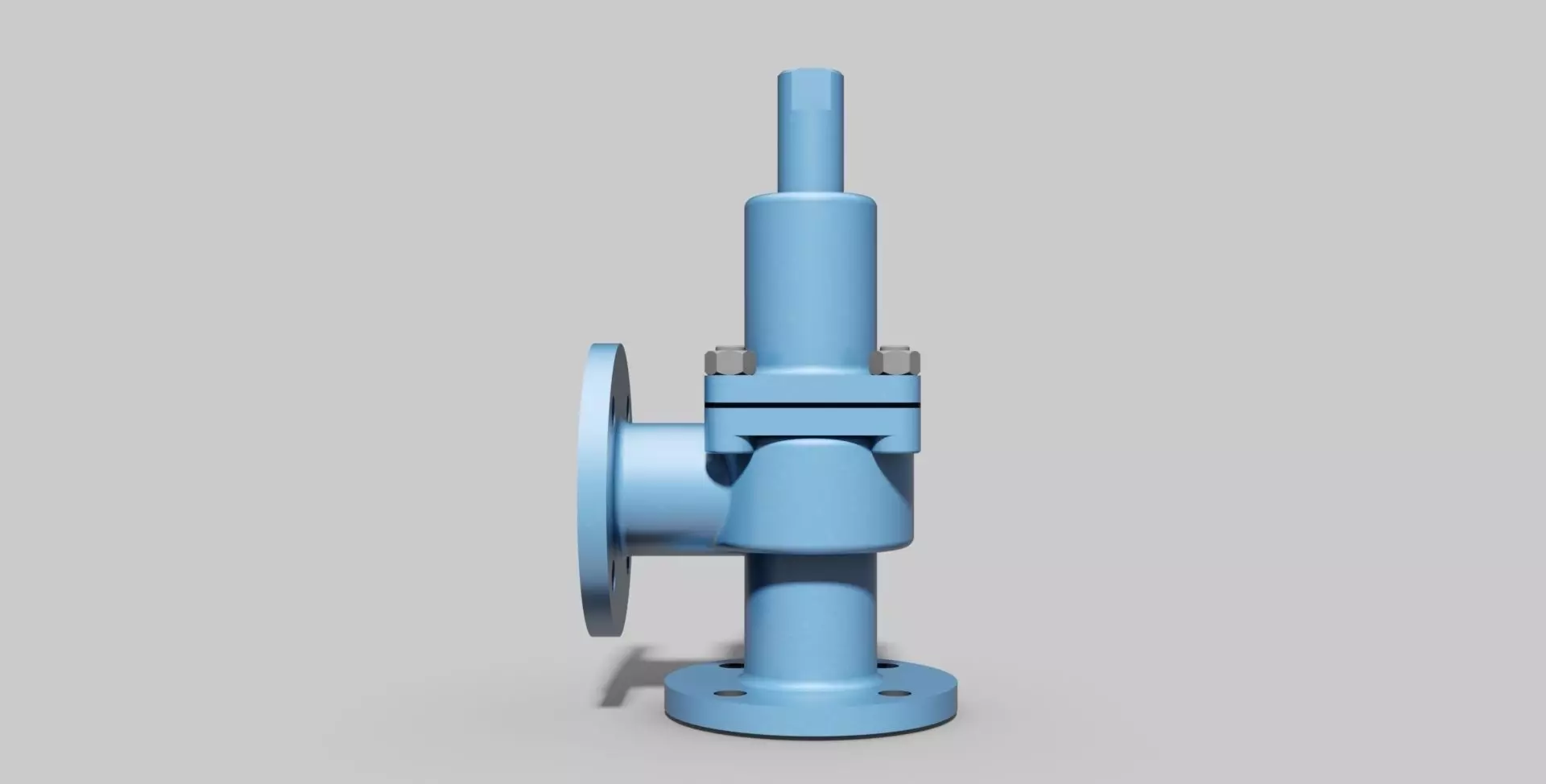

DN40 PN40 - Pressure safety valve vertical - Autodesk Inventor

DN40 PN40 - Pressure safety valve vertical - Autodesk Inventor 3D model

Description
Metal Pressure safety valve DN40 PN40 for Autodesk Inventor

Free 3D CAD model:

  • Description: Pressure safety valve DIN-ISO metric
  • Diameter: DN40 PN40
  • Material: Metal
  • Connection: Flanges
  • File format: Autodesk Inventor .ipt

You can use this CAD model directly in:■ Autodesk Inventor 2015■ Autodesk Inventor 2016■ Autodesk Inventor 2017

This is a sample CAD model from the full range library DIN metric metal fittings and valves. This Content Center library for Autodesk Inventor contains 1000+ premium quality 3D piping parts for mechanical engineers.Click here for all details about this library.

I hope you can use this CAD model in one of your engineering projects. Feel free to share, like or comment...

Freerk de With, Wyalo 3D CAD models

Item rating
0 0
DN40 PN40 - Pressure safety valve vertical - Autodesk Inventor
$9.00

Royalty Free License
DN40 PN40 - Pressure safety valve vertical - Autodesk Inventor
$9.00

Royalty Free License
Response 80% in 0.9h
3D Modeling

3D Model formats

Format limitations
Native
  • Autodesk Inventor (.iam, .ipt)802 KB
Exchange

    3D Model details

    • Ready for 3D Printing
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR
    • Geometry Other
    • Polygons 0
    • Vertices 0
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs
    • Plugins used
    • Publish date2016-04-08
    • Model ID#311740
