DN40 PN16 - Check valve swing type - Autodesk Inventor 3D model

Description

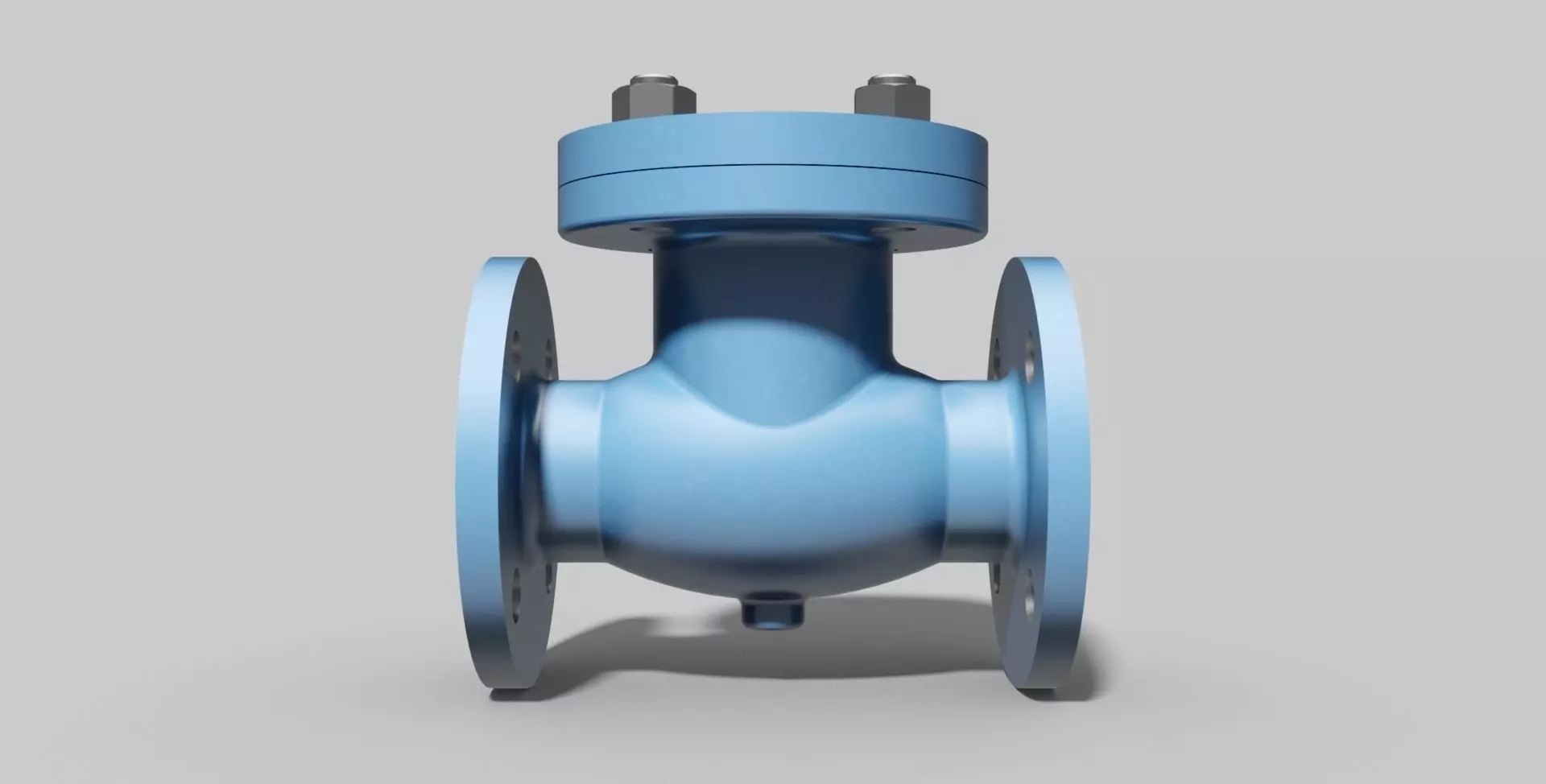

Metal Check valve "swing type" DN40 PN16 for Autodesk Inventor

Free 3D CAD model:

  • Description: Check valve DIN-ISO metric
  • Diameter: DN40 PN16
  • Material: Metal

  • Connection: flanges

  • File format: Autodesk Inventor .ipt

You can use this CAD model directly in: ■ Autodesk Inventor 2015 ■ Autodesk Inventor 2016 ■ Autodesk Inventor 2017

This is a sample CAD model from the full range library DIN metric metal fittings and valves. This Content Center library for Autodesk Inventor contains 1000+ premium quality 3D piping parts for mechanical engineers. Click here for all details about this library.

I hope you can use this CAD model in one of your engineering projects. Feel free to share, like or comment...

Freerk de With, Wyalo 3D CAD models
