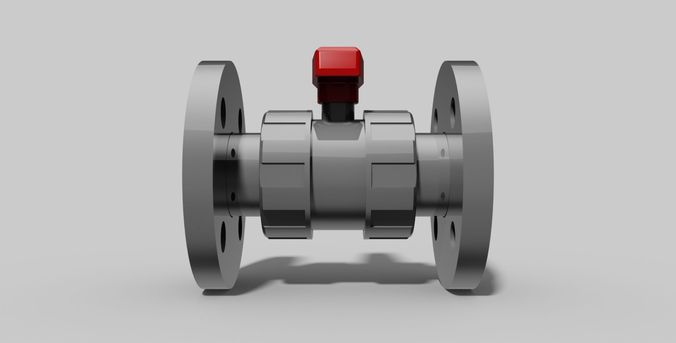

DN32 - PVC Ball valve with flanges NC - Autodesk Inventor 3D model
Description
PVC Ball valve DN32 for Autodesk Inventor
Free 3D CAD model:
- Description: Ball valve DIN-ISO metric
- Diameter: DN32 - d=40mm
- Material: PVC-U
- Connection: flanges
- Operation: manual
- Position: closed
- File format: Autodesk Inventor .ipt
You can use this CAD model directly in: ■ Autodesk Inventor 2015 ■ Autodesk Inventor 2016 ■ Autodesk Inventor 2017
This is a sample CAD model from the full range library DIN metric PVC valves and fittings. This Content Center library for Autodesk Inventor contains 1000+ premium quality 3D PVC-U piping parts for mechanical engineers. Click here for all details about this library.
I hope you can use this CAD model in one of your engineering projects. Feel free to share, like or comment...
Freerk de With, Wyalo 3D CAD models
DN32 - PVC Ball valve with flanges NC - Autodesk Inventor
Royalty Free License
DN32 - PVC Ball valve with flanges NC - Autodesk Inventor
Royalty Free License
3D Modeling
3D Model formats
Format limitations
- Autodesk Inventor (.iam, .ipt)564 KB
- Other 683 KB
3D Model details
- Publish date2016-04-06
- Model ID#311105
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Ready for 3D Printing
