DIN FOOD AND PHARMA - VALVES AND FITTINGS - STEP 3D model

ABOUT THE LIBRARY:

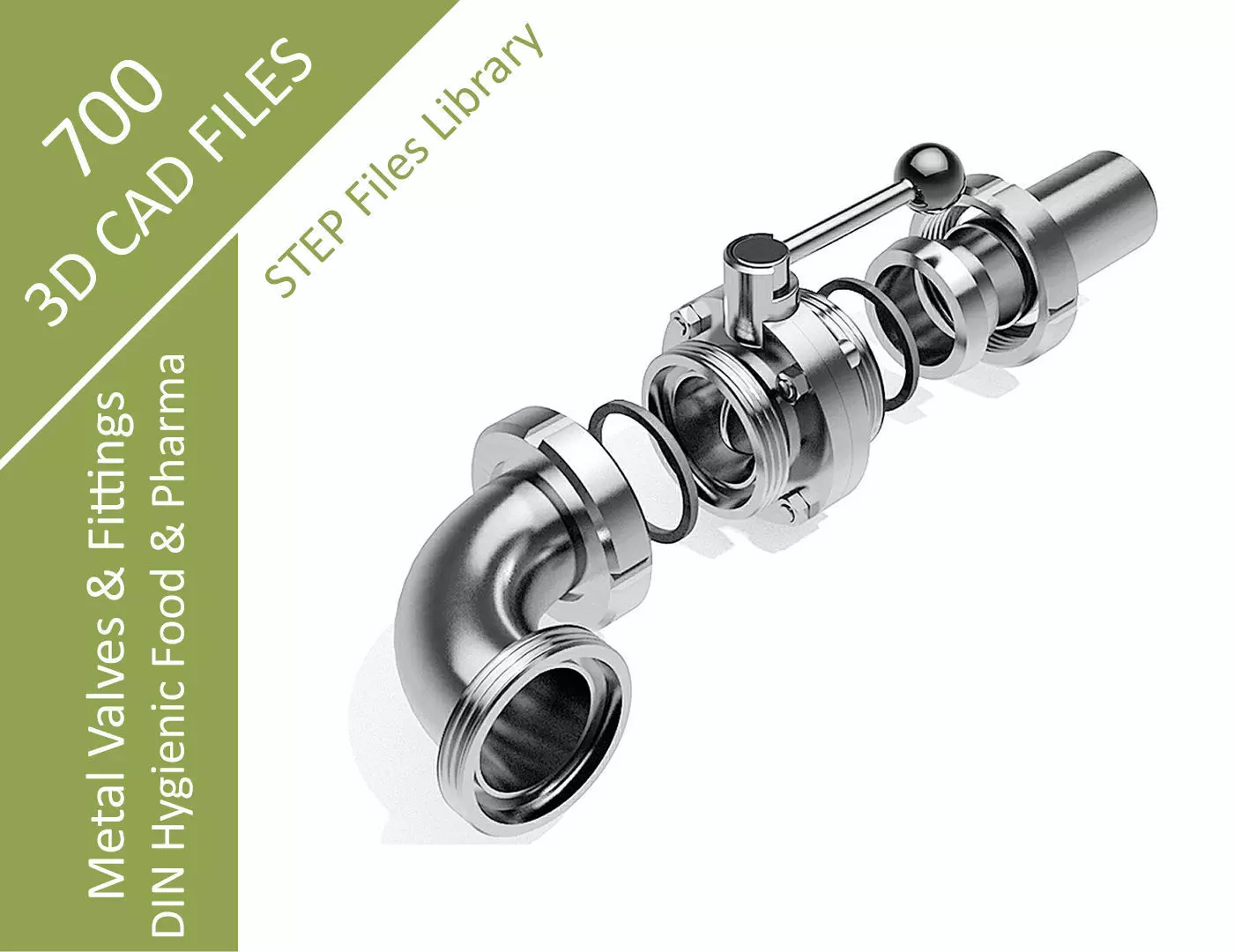

This collection of CAD files contains the most commonly used fittings and valves for the food and pharma industries in Europe, as well as beyond.

All component dimensions are standardized according to the applicable DIN - ISO standards.

As a result, you are not dependent on your valves and fittings supplier for your 3D CAD models, they are interchangeable. You now have an entire library in your own computer system (!).

With this warehouse full of tubing parts (in full diameter series), it is possible for every engineer with a CAD system to design complex food/pharma tubing systems according to the European standards.

• All in one zip file (39Mb)

• Valves and Fittings for food/pharma DIN standardized.

• 60 Types in full range diameters.

• 700+ Different CAD files.

• File format: Step(.stp), for use in Autodesk Inventor, Fusion 360, Solidworks, Catia, Solid Edge and more.

THE PARTS:

1. Bends 45° – Welding ends
2. Bends 45° – DIN11851 Female x Female
3. Bends 45° – DIN11851 Liner x Welding end
4. Bends 45° – DIN11851 Male x Female
5. Bends 45° – DIN11851 Male x Male
6. Bends 45° – DIN11851 Male x Welding end
7. Bends 90° – Welding ends
8. Bends 90° – DIN11851 Male x Female
9. Bends 90° – DIN11851 Male x Male
10. Bends 90° – DIN11851 Male x Welding end
11. Bends 180° – Welding ends
12. Bends 180° – DIN11851 Female x Female
13. Bends 180° – DIN11851 Male x Female
14. Bends 180° – DIN11851 Male x Male
15. Equal Tees – Welding ends
16. Equal Tees – DIN11851 Male x Female x Female
17. Equal Tees – DIN11851 Male x Female x Male
18. Equal Tees – DIN11851 Male x Male x Male
19. Reducing Tees – Welding ends
20. Y-Pieces – Welding ends
21. Concentric Reducers – Welding ends
22. Concentric Reducers – DIN11851 Female x Female
23. Concentric Reducers – DIN11851 Female x Male
24. Concentric Reducers – DIN11851 Male x Female
25. Eccentric Reducers – Welding ends
26. Eccentric Reducers – DIN11851 Female x Female
27. Eccentric Reducers – DIN11851 Female x Male
28. Eccentric Reducers – DIN11851 Male x Female
29. Adaptors – DIN11851 Male x BSP Female
30. Adaptors – DIN11851 Male x BSP Male
31. Butterfly Valves – Welding ends
32. Butterfly Valves – DIN11851 Male x Welding end
33. Butterfly Valves – DIN11851 Male x Male
34. Butterfly Valves – DIN11851 Female x Male
35. Butterfly Valves – DIN11851 Female x Female
36. Butterfly Valves – Tri Clamp connections
37. Blanks – DIN11851
38. End Caps – DIN11851
39. Liners – DIN11851
40. Male Parts – DIN11851
41. Nuts – DIN11851
42. Seal Rings – DIN11851
43. Unions Complete – DIN11851
44. Tri Clamp Blind-ferrules-DIN32676
45. Tri Clamp Rings – DIN32676
46. Tri Clamp Ferrules – DIN32676
47. Tri Clamp Seal-rings – DIN32676
48. Flanges – DIN11853-2 with Groove
49. Flanges – DIN11853-2 with Notch
50. Seals for Flanges – DIN11853-2
51. Flanges – DIN11864-2 with Groove
52. Flanges – DIN11864-2 with Notch
53. Seals for Flanges – DIN11864-2
54. Sanitary Flange Sets
55. Sanitary Flanges – Flat Face
56. Sanitary Flanges – Groove
57. Seals for Sanitary Flanges
58. Half Sockets – BSP Female
59. Sockets – BSP Female
60. Welding Nipples – BSP Male
