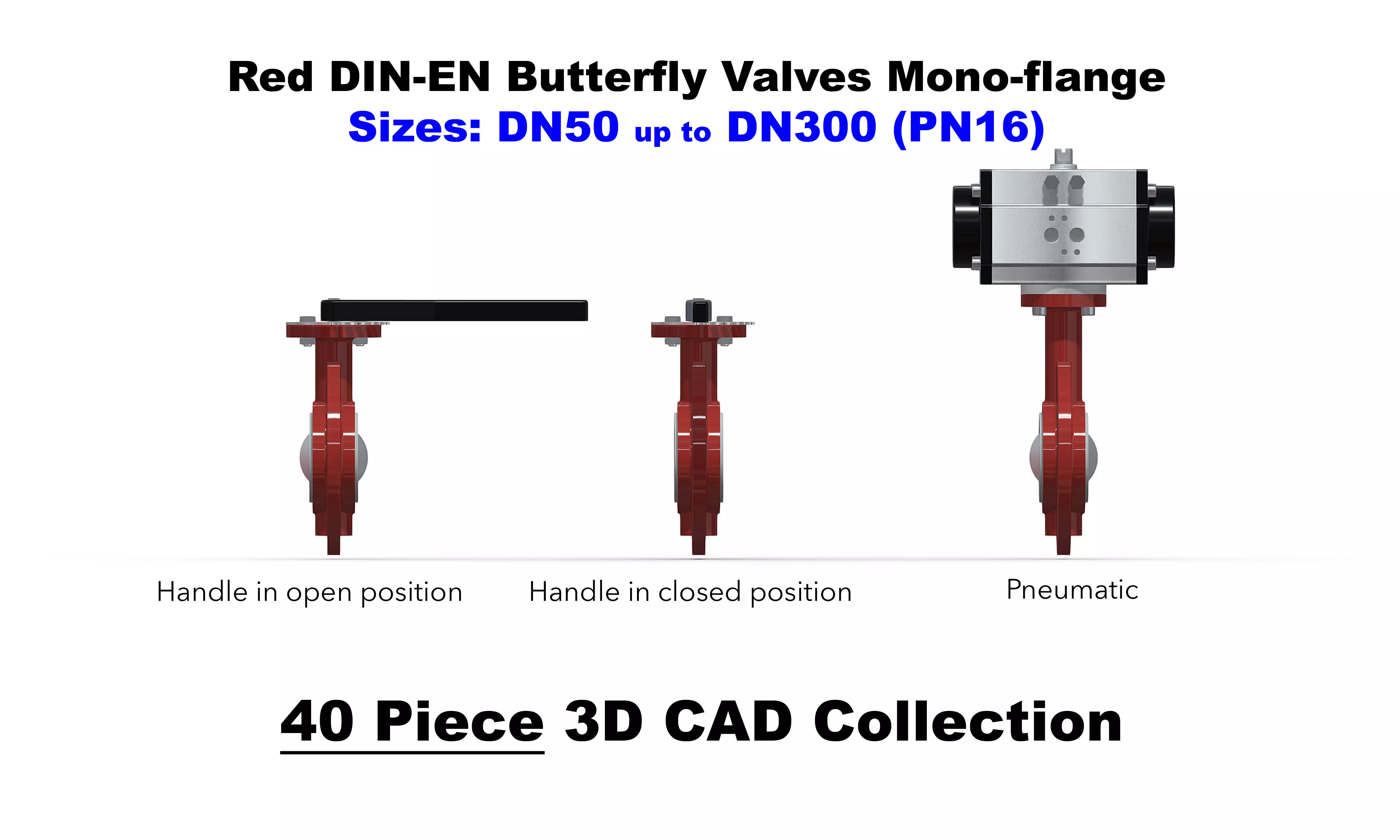

DIN-EN Butterfly Valves - Mono-flange - Red 3D model
Description
IN THIS 3D CAD COLLECTION:
- 40 Different 3D CAD files.
- F3D and STEP file types.
- Mono flange butterfly valves with connections for DIN-EN flanges (European Standard)
- Diameters DN50 up to DN300
- Pressure Rating PN16
- Manual and pneumatic operation
- Open- and closed situation
Valve body color RedTHE FILE TYPES:
.step (STP): This file type is often used for exchanging 3D models and is compatible with most CAD software, such as SolidWorks, Inventor, AutoCAD, and Fusion 360.
.f3d (Fusion 360): Suitable specifically for Autodesk Fusion 360 users, it allows you to import the models directly into this popular design application.
DIN-EN Butterfly Valves - Mono-flange - Red
Royalty Free No Ai License
DIN-EN Butterfly Valves - Mono-flange - Red
Royalty Free No Ai License
3D Modeling
3D Model formats
Format limitations
- Autodesk Fusion 360 (.f3d)14.6 MB
- STEP (.stp)3.38 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 14,000
- Vertices 7,000
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2023-12-12
- Model ID#4961361
