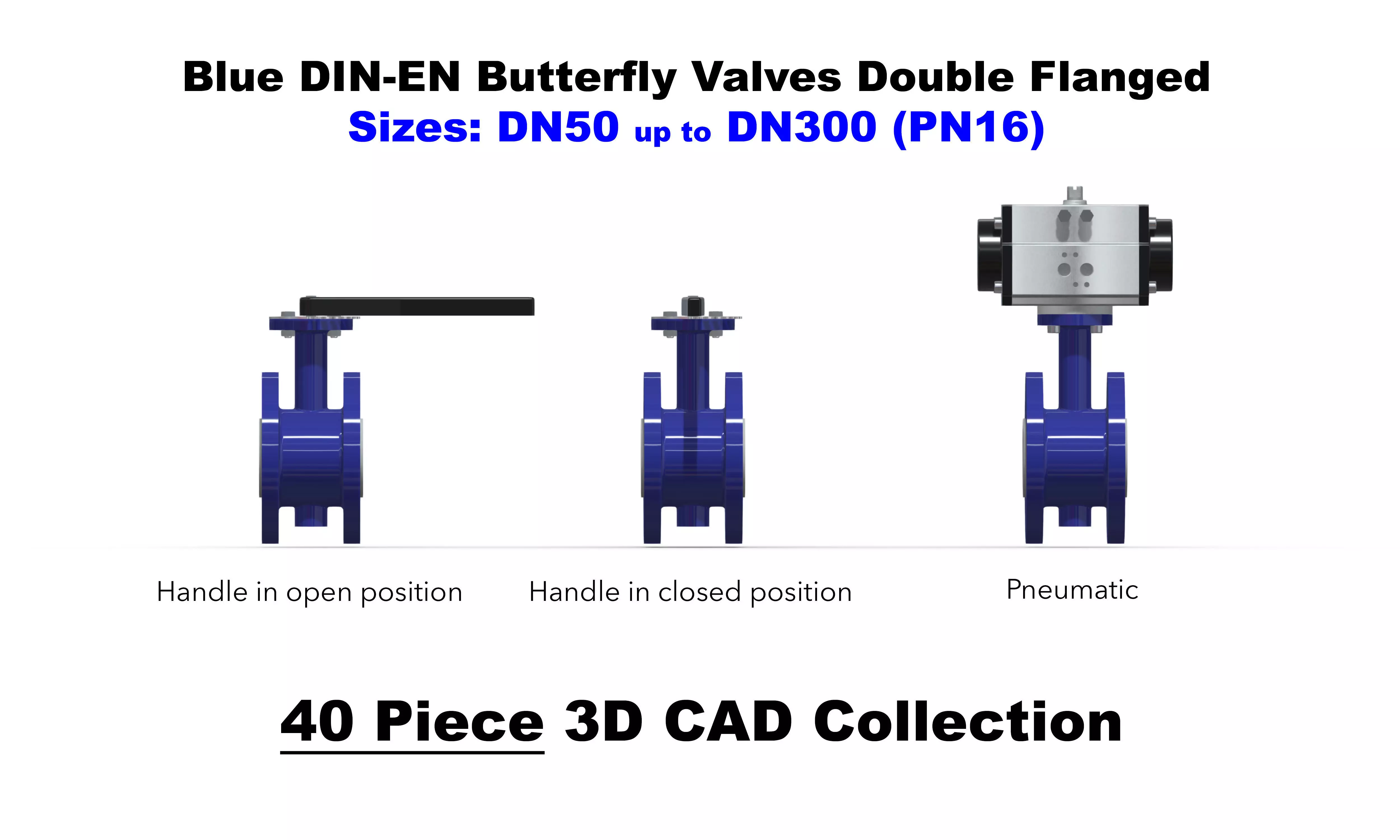

DIN-EN Butterfly Valves - Double Flanged - Blue 3D model

IN THIS 3D CAD COLLECTION:

• 40 Different 3D CAD files.
• F3D and STEP file types.
• Double flanged butterfly valves with connections for DIN-EN flanges (European Standard)
• Diameters DN50 up to DN300
• Pressure Rating PN16
• Manual and pneumatic operation
• Open- and closed situation
• Valve body color Blue

THE FILE TYPES:

• .step (STP): This file type is often used for exchanging 3D models and is compatible with most CAD software, such as SolidWorks, Inventor, AutoCAD, and Fusion 360.
• .f3d (Fusion 360): Suitable specifically for Autodesk Fusion 360 users, it allows you to import the models directly into this popular design application.

About DIN-EN double flanged butterfly valves:

Double-flange butterfly valves have several advantages and applications that make them suitable for various industrial applications. Here are some of the benefits and uses:

Advantages:

• Easy installation: Double-flange butterfly valves are designed with flanges on both sides, making them easy to install between flanges in a piping system. This makes installation simple and efficient.
• Maintenance-friendly: The flanged design makes these valves easily accessible for maintenance work. It is possible to quickly disassemble and inspect the valve without having to remove the entire valve from the piping system.
• Cost-efficient: Double-flange butterfly valves generally have a simple construction, making them cost-efficient compared to some other types of valves. This makes them attractive for applications where cost is an important consideration.
• Low resistance: These valves generally provide low resistance to the flow of the medium when fully opened. This minimizes pressure loss in the pipe system.
• Fast Operation: Double-flange butterfly valves can be opened or closed quickly, making them suitable for applications that require rapid response to changing conditions.

Applications:

• Water supply and treatment: Double-flange butterfly valves are widely used in water supply and water treatment systems for controlling the flow of water.
• Chemical industry: They are used in the chemical industry to regulate the flow of various chemicals.
• Power generation: Double-flange butterfly valves are used in power plants, both for cooling water circuits and for other applications within the process.
• HVAC systems: Heating, ventilation, and air conditioning (HVAC) systems also use these valves to control the flow of air or water.
• Wastewater treatment: In wastewater treatment plants, double-flange butterfly valves are used to regulate the flow of wastewater.
