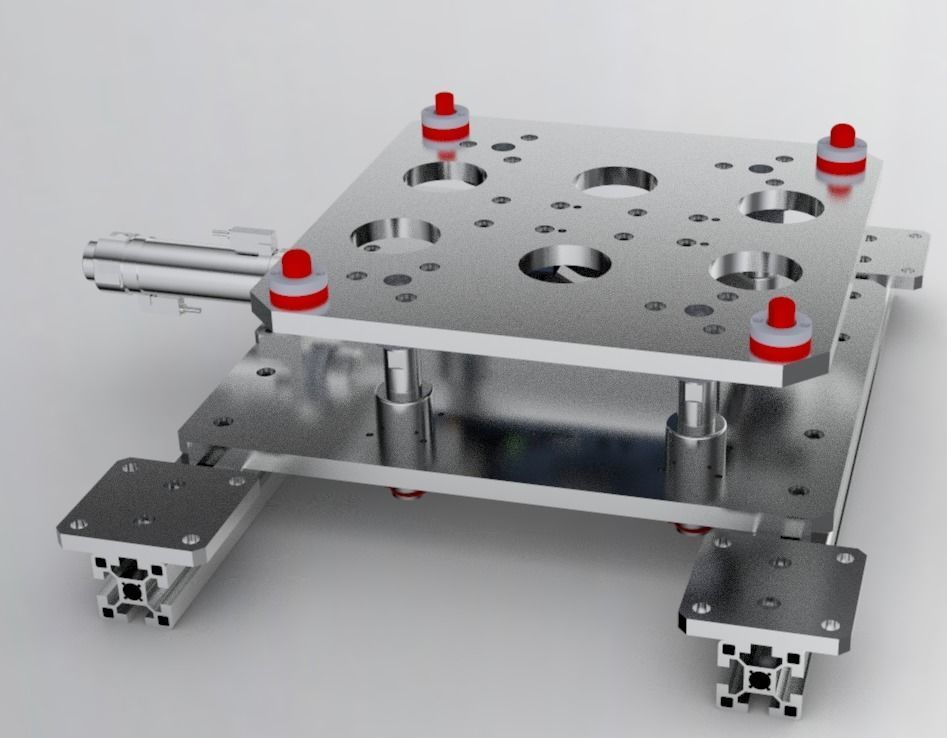

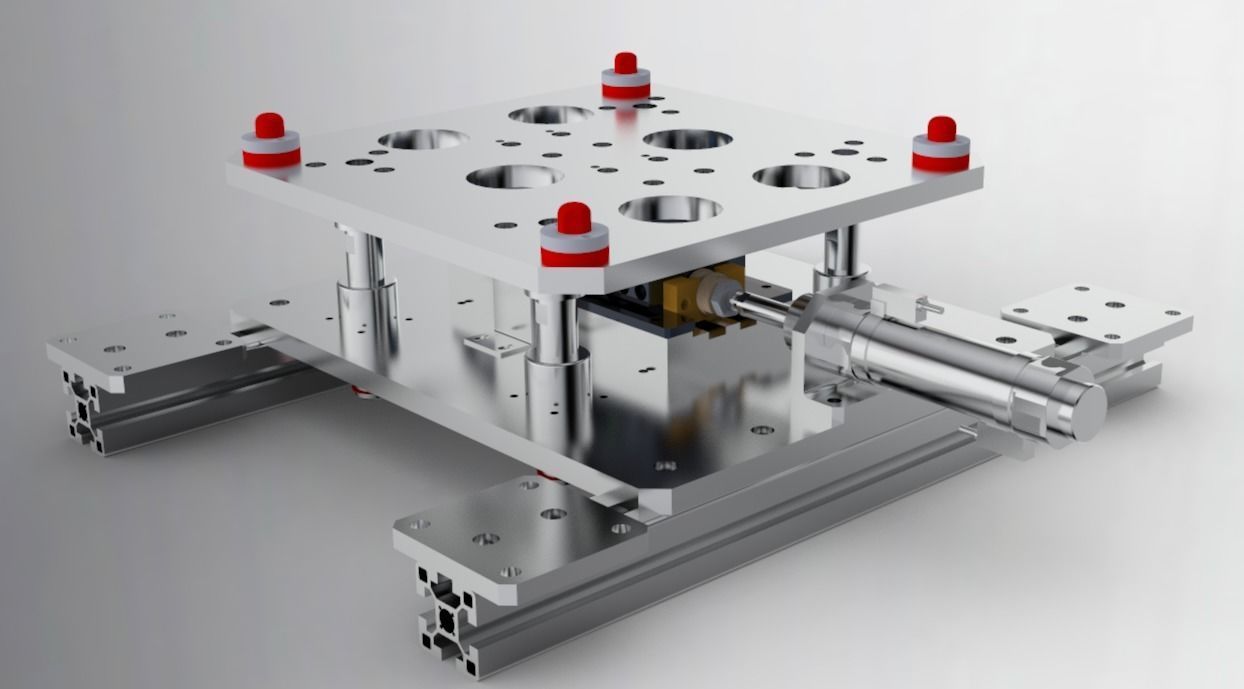

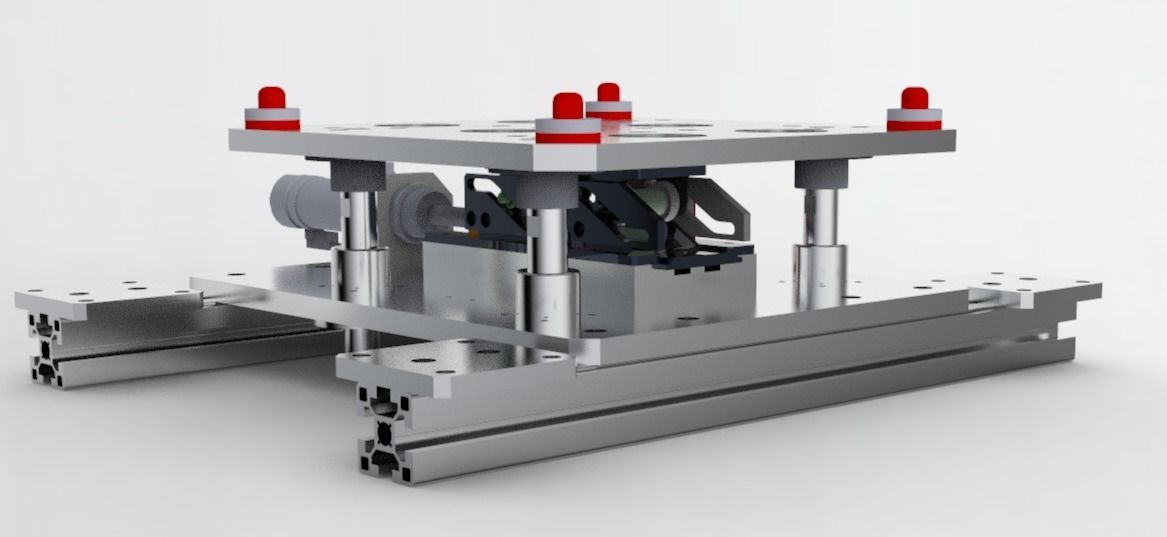

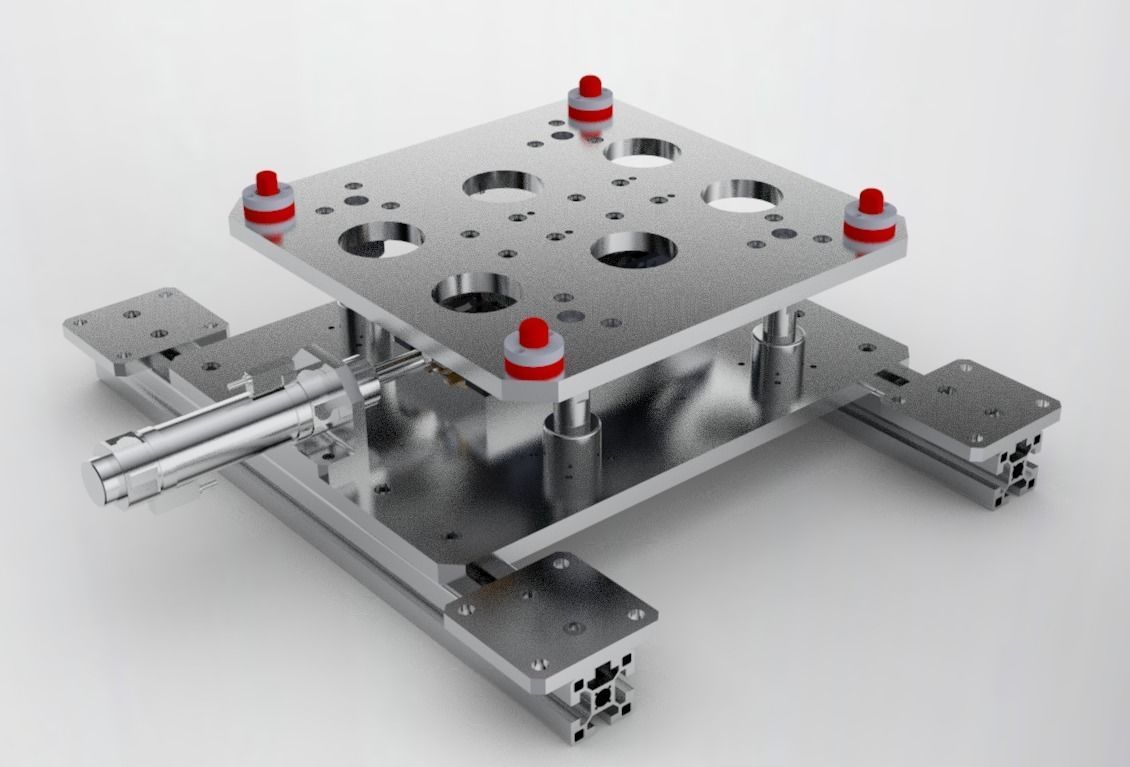

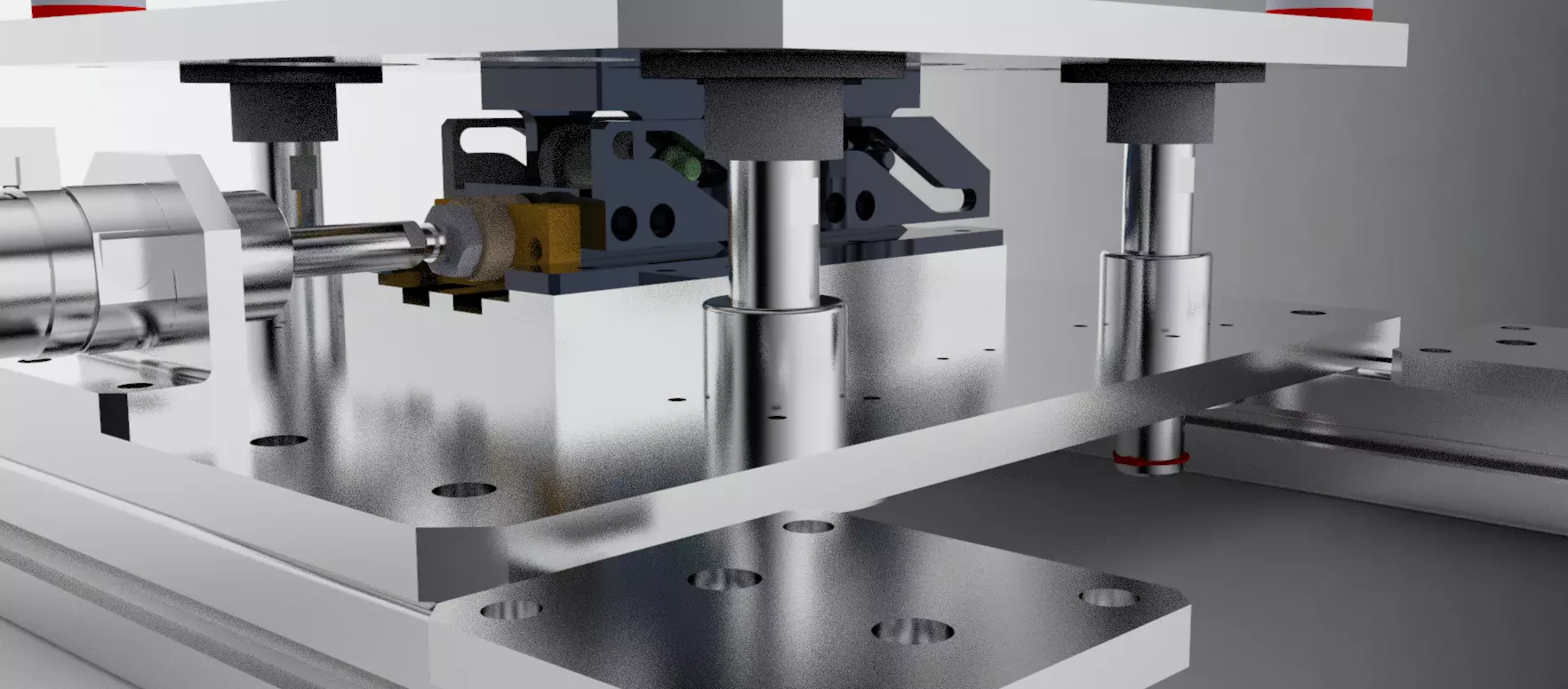

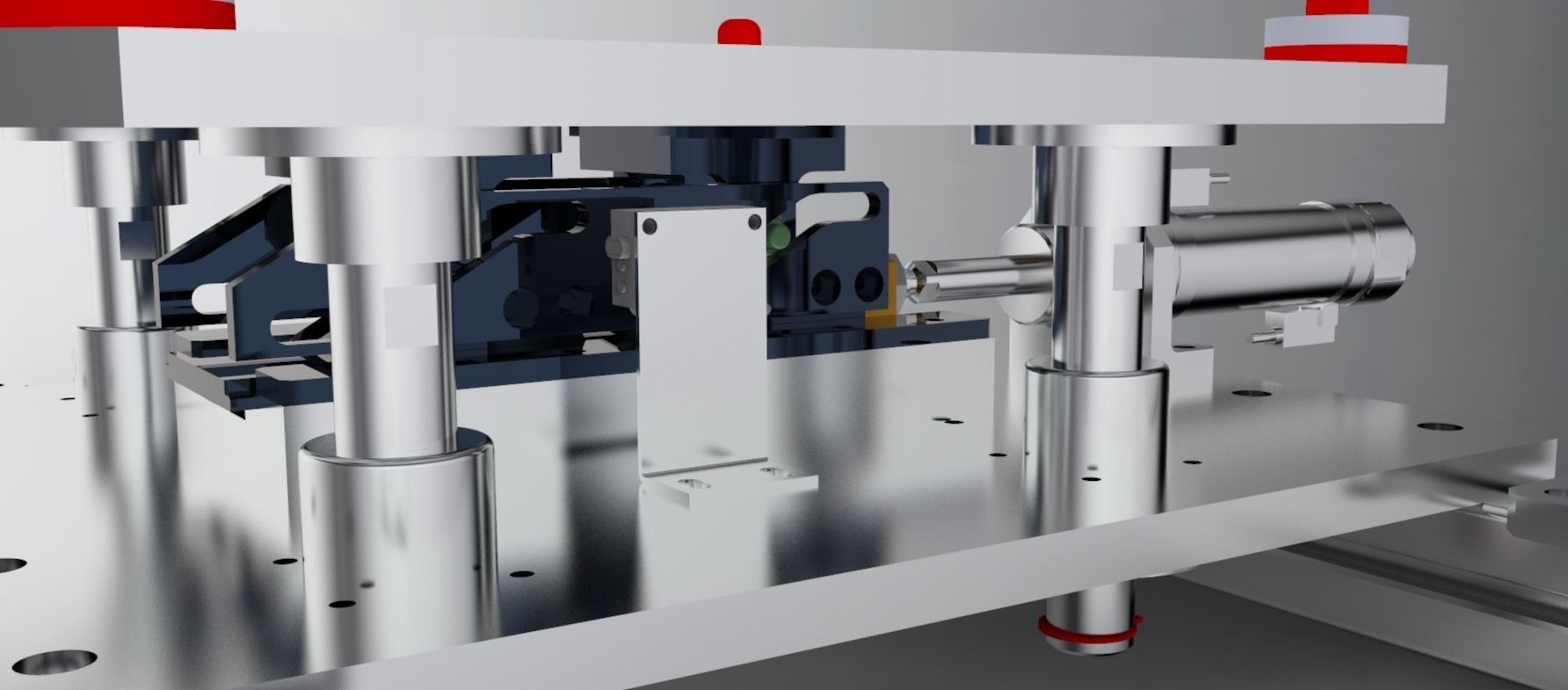

Cylinder pushing mechanism 3D model
Description
Cylinder pushing mechanism, the mechanism through the passage of the horizontal cylinder, the use of chute guide bar mechanism will be transverse movement into longitudinal movement module, the mechanism includes rail transverse movement, transverse and longitudinal conversion mechanism, the mechanism is ingenious, is a good design model drawingsThe mechanism includes:
1. Cylinder shifting mechanism 2. Chute guide bar mechanismFiles format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax
- and other formatsIf you like,you can buy for you to get this models or if you have any questions also you can email to me.If you have any questions about the details and design of the model, you can email me at any time, and I will give you all the answers as soon as possible.This is especially true after the purchase.
Designed with SolidWorks 2017；vray with keyshotCylinder pushing mechanism
Royalty Free License
Cylinder pushing mechanism
Royalty Free License
3D Model formats
Format limitations
- Autodesk FBX (.fbx)2.97 MB
- 3D Studio (.3ds)2.84 MB
- IGES (.ige, .igs, .iges)9.99 MB
- OBJ (.obj, .mtl) (2 files)8.19 MB
- Autodesk 3ds Max 2017 (.max)25.1 MBVersion: 2017Renderer: Default (Scanline)
- KeyShot (.bip, .ksp)3.05 MB
- SolidWorks 2017 (.sldprt, .sldasm, .slddrw)3.73 MBVersion: 2017Renderer: Mental Ray
- STEP (.stp)4.03 MB
3D Model details
- Publish date2019-11-13
- Model ID#2159488
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 91,391
- Vertices 94,297
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
