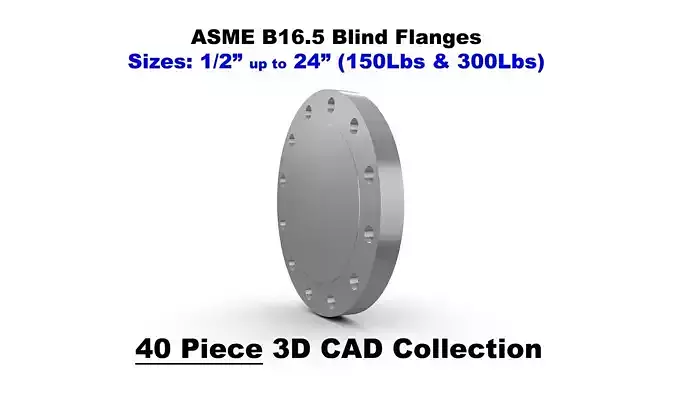

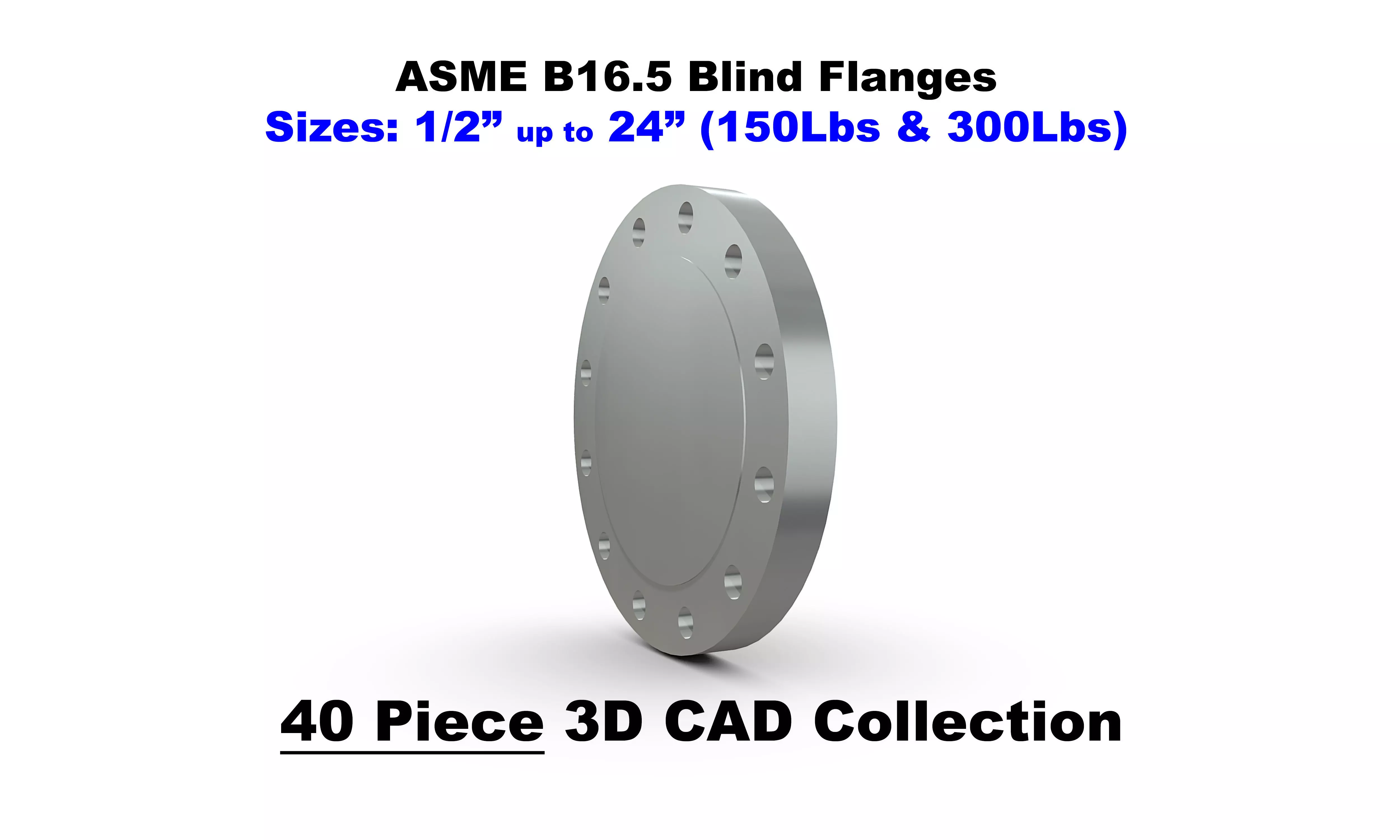

ASME B16-5 Blind Flanges - 150Lbs and 300Lbs - CAD Files

ASME B16-5 Blind Flanges - 150Lbs and 300Lbs - CAD Files 3D model

Description

IN THIS 3D CAD COLLECTION:

  • 40 Different 3D CAD files.
  • F3D and STEP file types.
  • Blind flanges according to the ASME B16.5 Standard
  • Diameters 1/2 Inch up to 24 Inch
  • Pressure classes: 150Lbs and 300Lbs

THE FILE TYPES:

  • .step (STP): This file type is often used for exchanging 3D models and is compatible with most CAD software, such as SolidWorks, Inventor, AutoCAD, and Fusion 360.
  • .f3d (Fusion 360): Suitable specifically for Autodesk Fusion 360 users, it allows you to import the models directly into this popular design application.

ABOUT ASME B16.5 BLIND FLANGES:

Within the realm of piping systems, flanges play a crucial role, and among the various types, the ASME B16.5 Blind Flange stands out for its specific design and associated benefits. Adhering to the standards set by the American Society of Mechanical Engineers (ASME) B16.5, this type of flange is widely utilized for specific applications.

What is an ASME B16.5 Blind Flange?

The ASME B16.5 Blind Flange is a solid disk with no bore, typically used to seal the end of a piping system or to block off a section of a pipeline. It is designed with bolt holes around the perimeter for easy attachment and removal. Blind flanges are employed when the end of the pipe needs to be closed off, and future expansion or maintenance may be anticipated.

Applications of ASME B16.5 Blind Flanges:

This type of flange finds applications in various industries, including chemical processing, oil and gas, and water treatment. ASME B16.5 Blind Flanges are particularly useful in situations where the end of a pipeline needs to be closed temporarily or permanently, providing a reliable and secure seal.

Advantages of ASME B16.5 Blind Flanges:

  • Closure and Sealing: Blind flanges effectively seal the end of a pipeline, preventing the escape of fluids and contaminants.
  • Versatility: ASME B16.5 Blind Flanges are versatile and compatible with different materials and pipe sizes, enhancing their adaptability across various industrial settings.
  • Facilitates Inspection and Maintenance: These flanges simplify inspection and maintenance procedures by providing a solid barrier that can be easily removed when necessary.
  • Prevents Contamination: The sealed design prevents the ingress of dirt, debris, and other contaminants into the pipeline, maintaining the integrity of the system.
  • Safe and Secure: The bolted attachment ensures a secure and reliable closure, essential for applications where safety is paramount.
