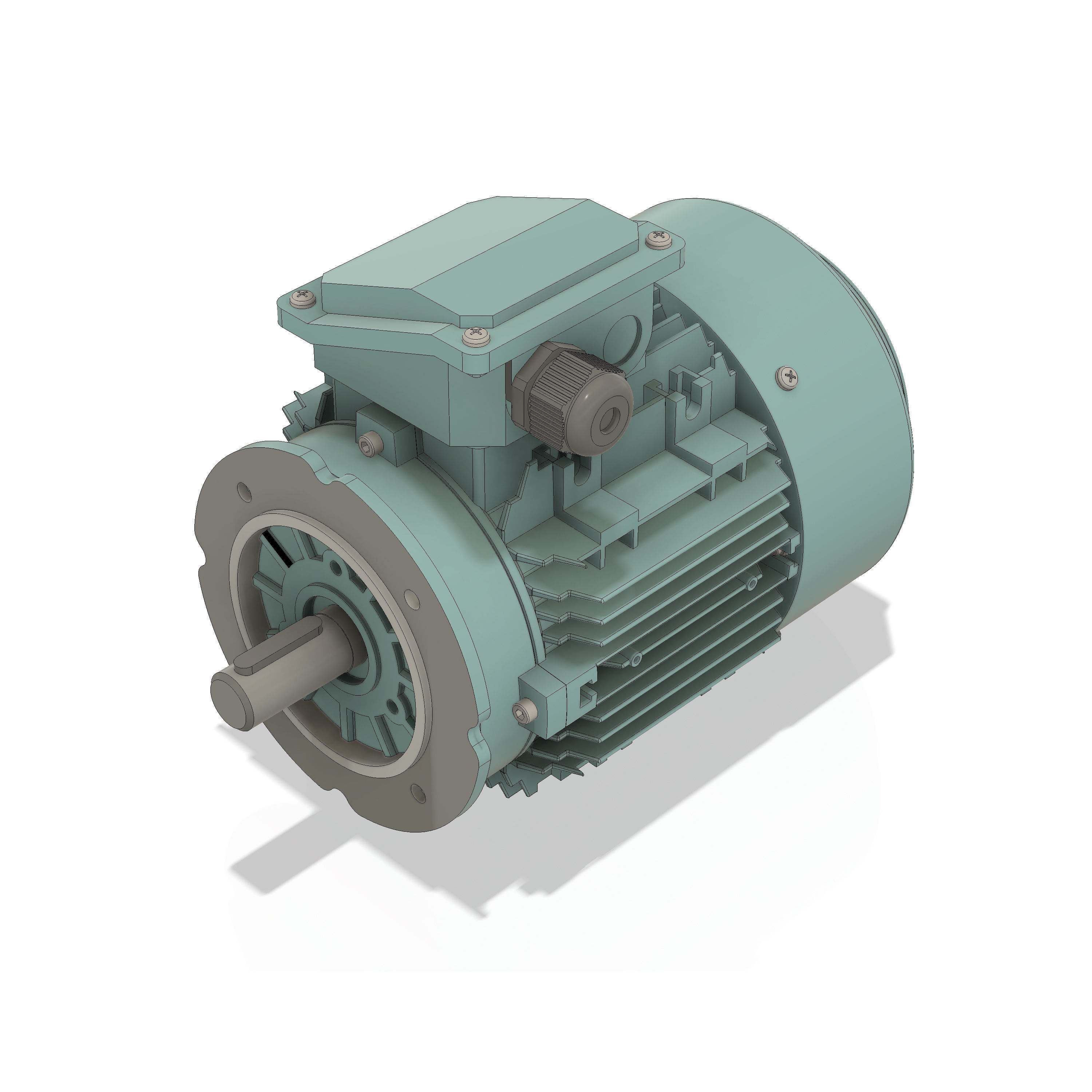

3 Phase AC induction motors - Frame size 90S 3D model

Are you tired of spending countless hours searching for accurate and detailed 3D CAD models of three-phase AC induction electromotors for your engineering projects? Look no further! Introducing our cutting-edge 3D CAD Models Collections, meticulously crafted to meet the diverse needs of engineers and designers.

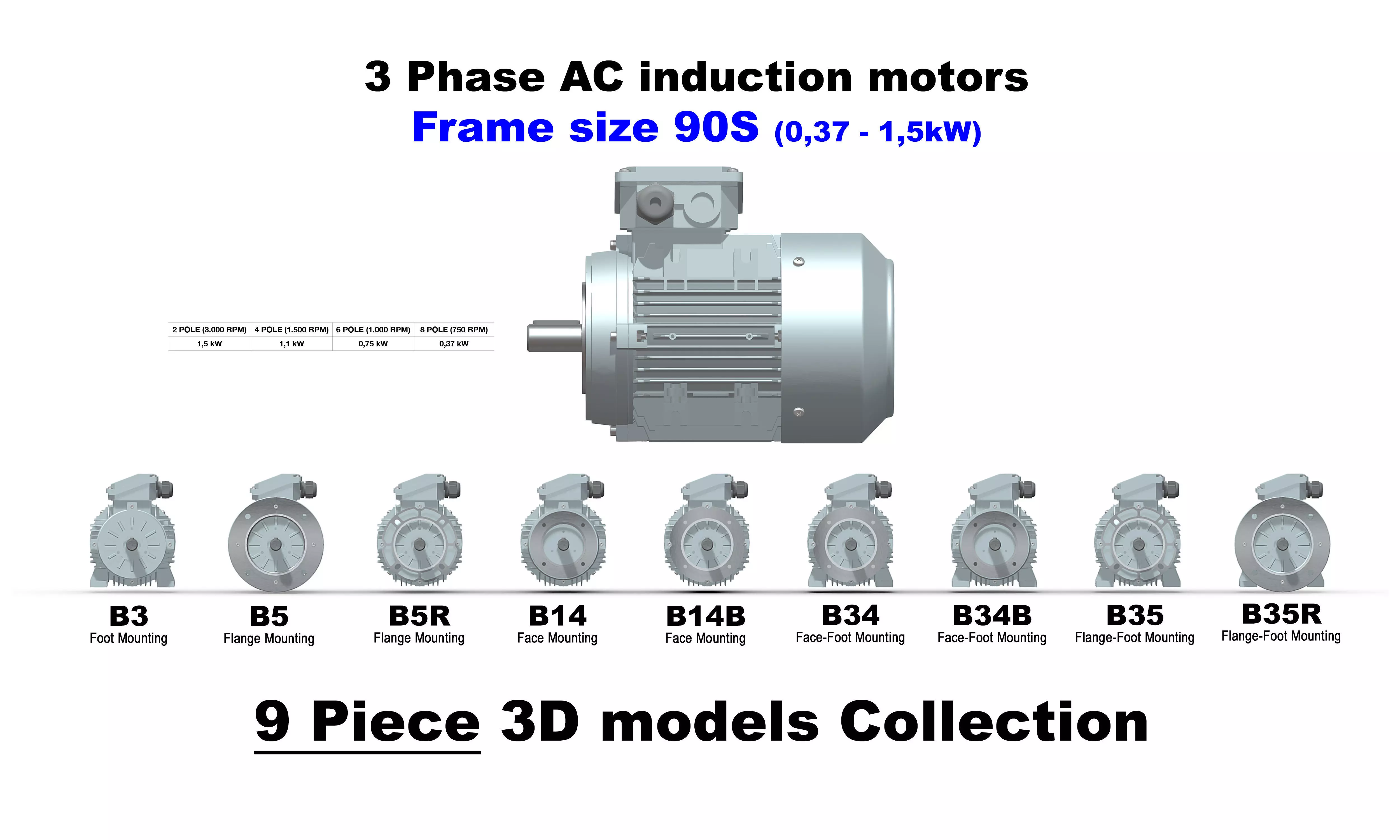

The Power of Variety: 9 IEC Frame Types

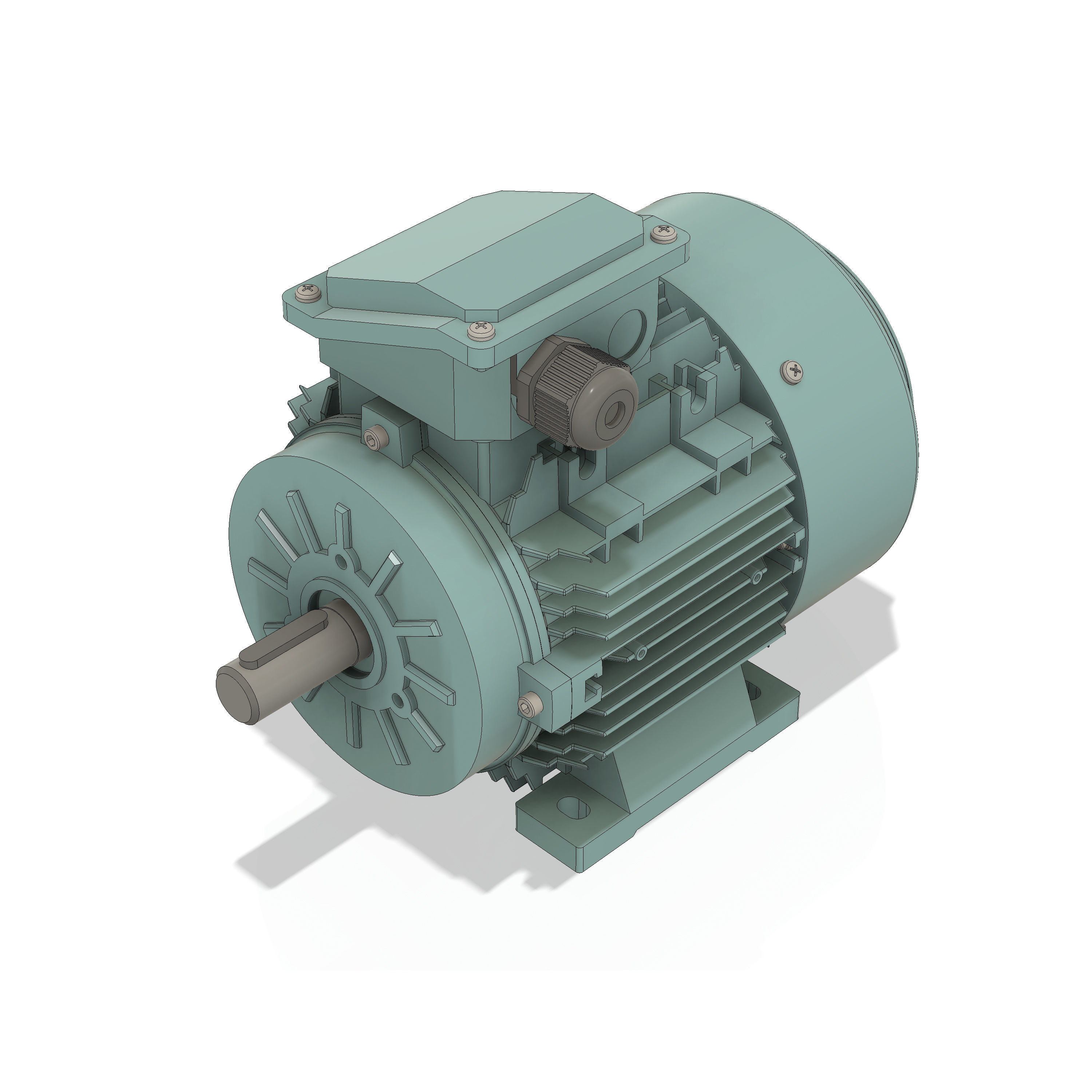

• B3 Foot mounting: With B3 electric motors, the foot of the motor is mounted directly on a solid surface. This means that the motor shaft is oriented horizontally.

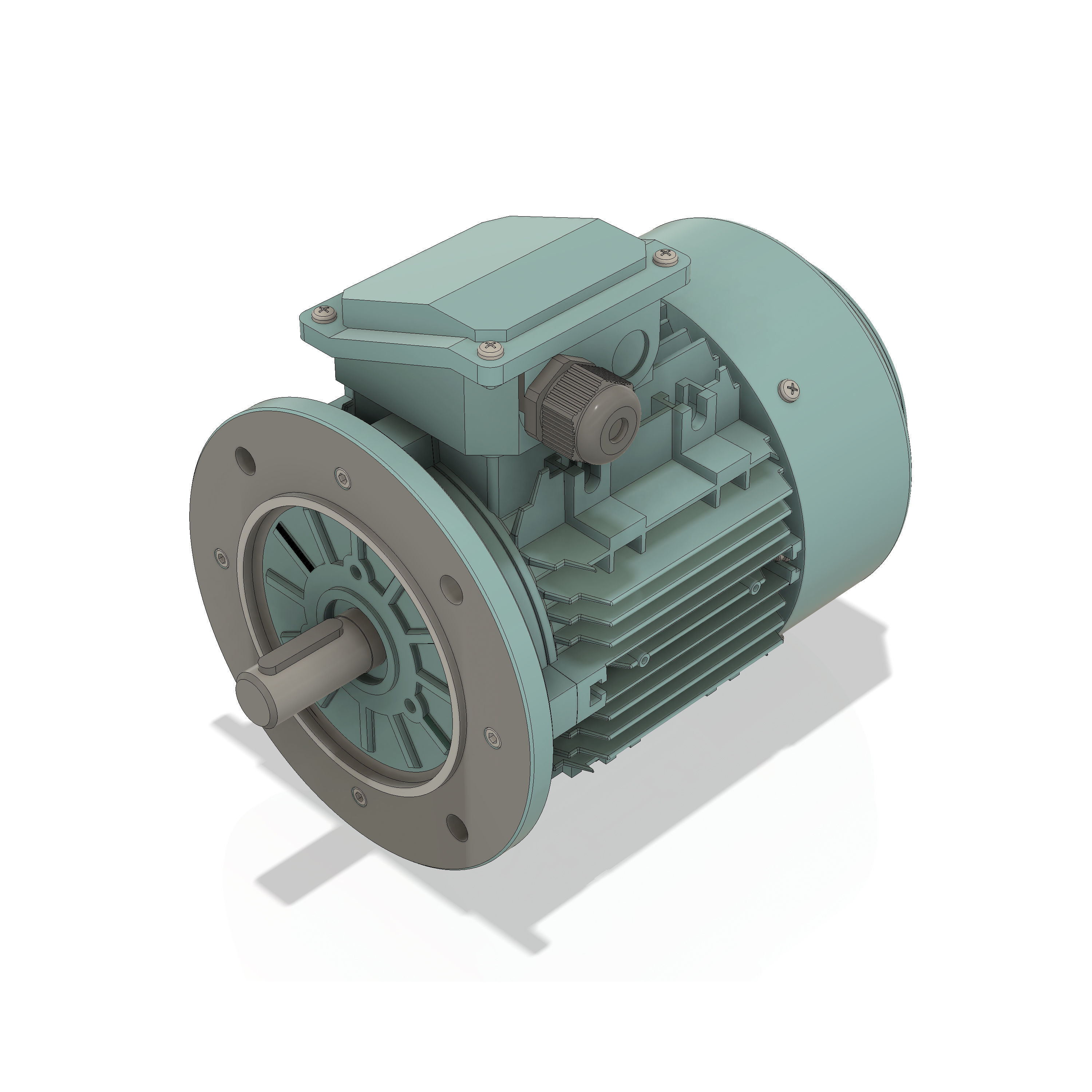

• B5 + B5R Flange mounting: On B5 electric motors there is a flange on the front of the motor to which other equipment can be mounted. This flange provides a sturdy mounting option for, for example, gearboxes, pumps or other devices that work together with the electric motor.

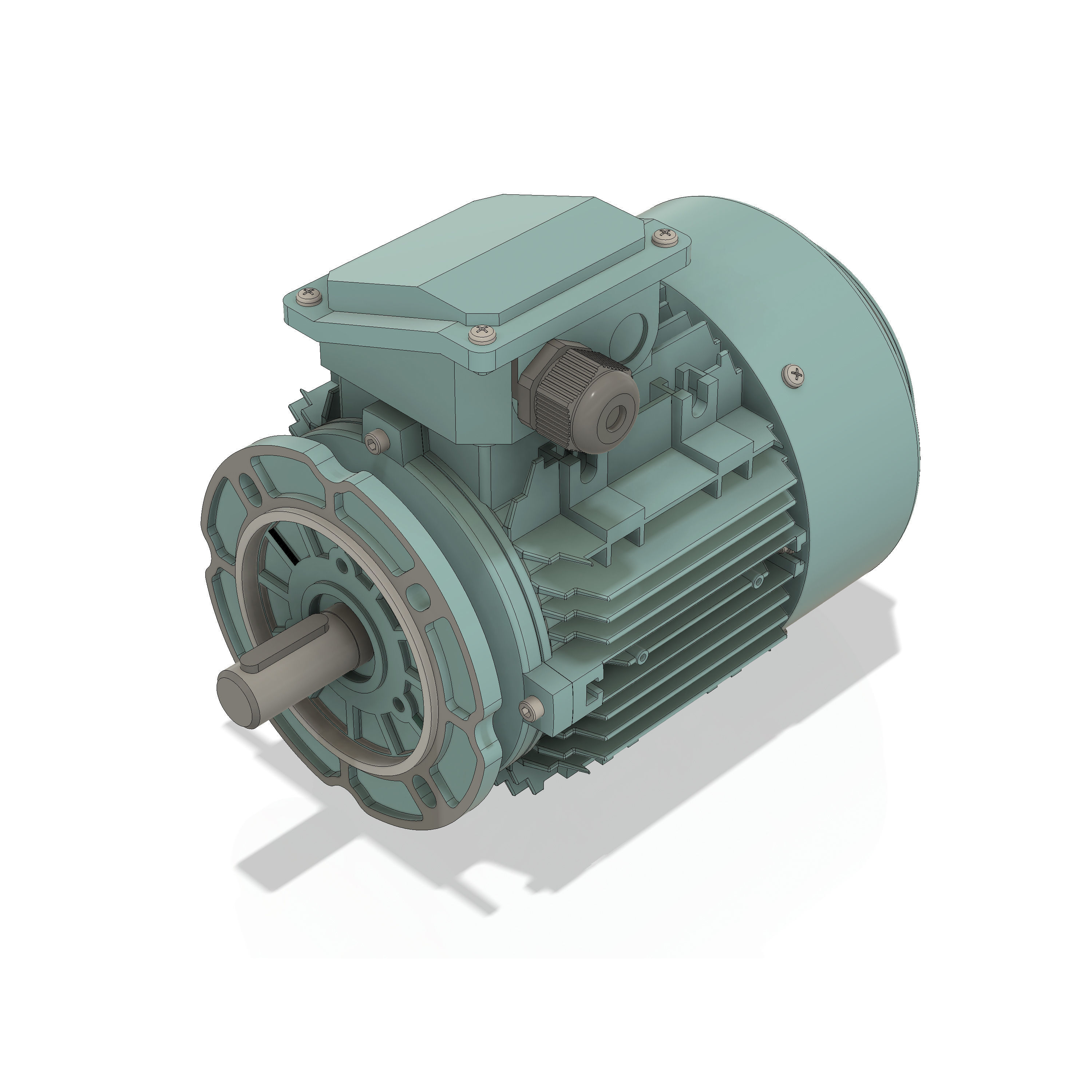

• B14 + B14B Flange mounting: B14 motors have a flange on the front of the motor, making them suitable for direct mounting of external equipment such as gearboxes, pumps or other machines.

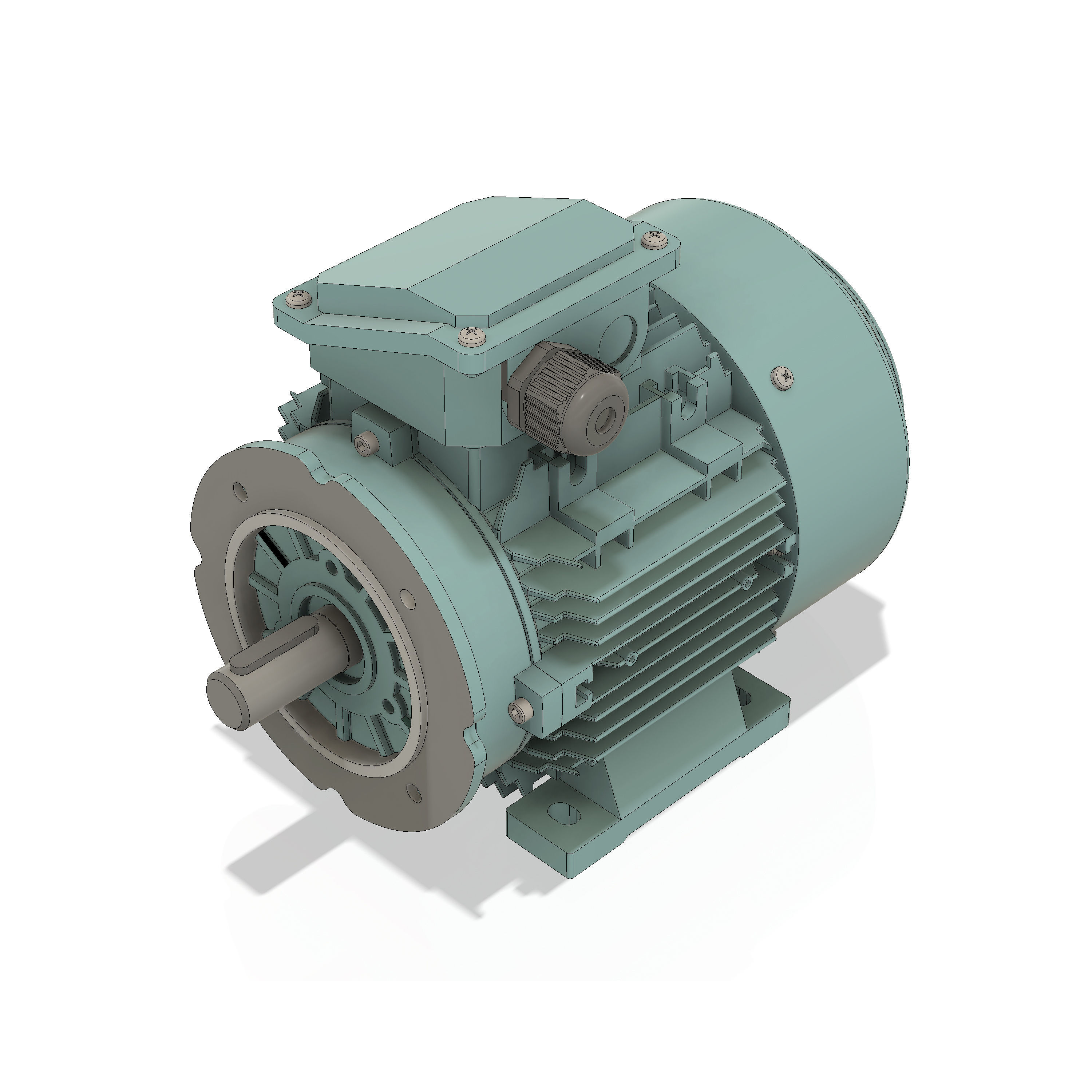

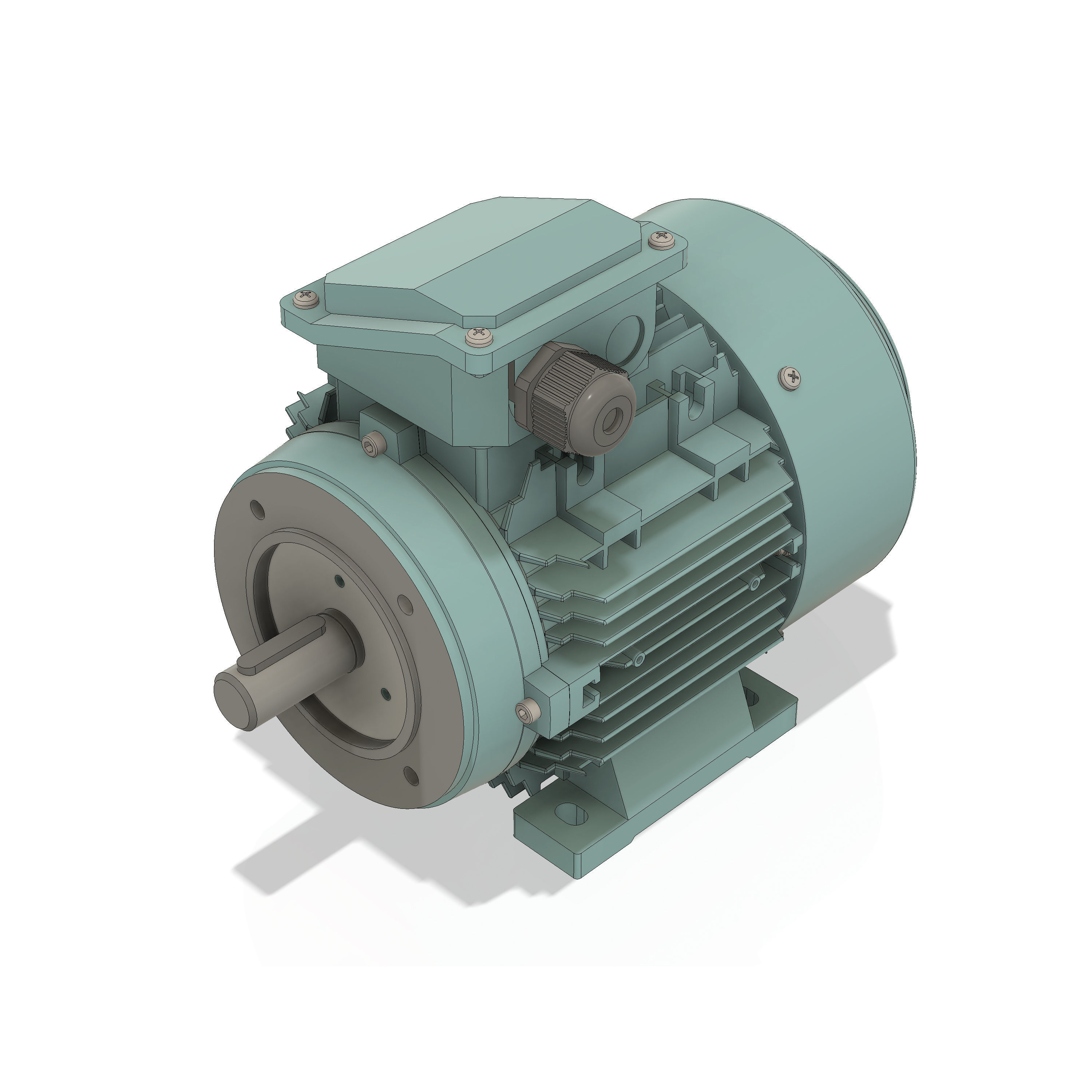

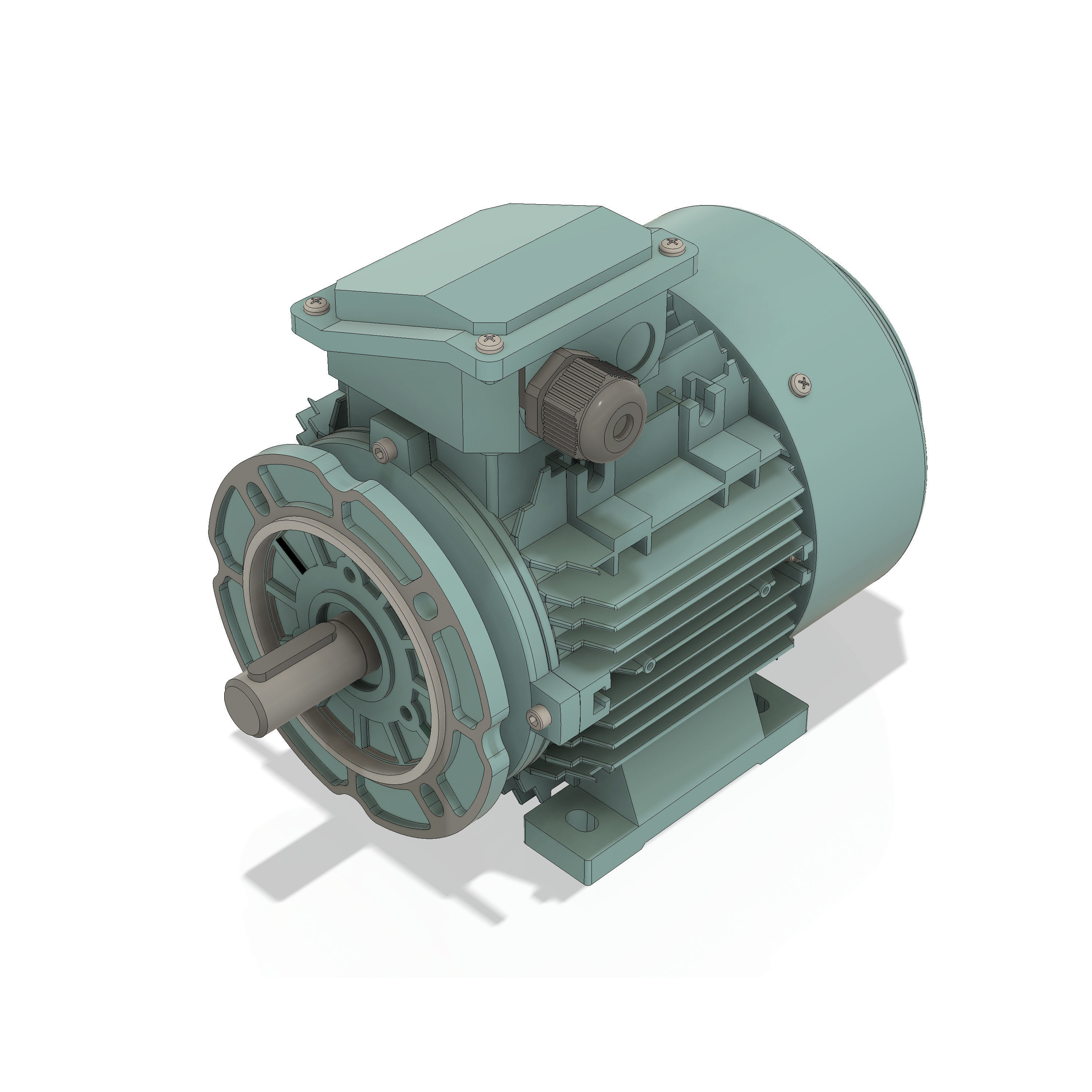

• B34 + B34B Foot and flange mounting: B34 electric motors have both a foot and a flange. The base is designed to be mounted on a solid surface, while the flange on the front of the motor is suitable for the direct mounting of external equipment such as gearboxes, pumps or other machines.

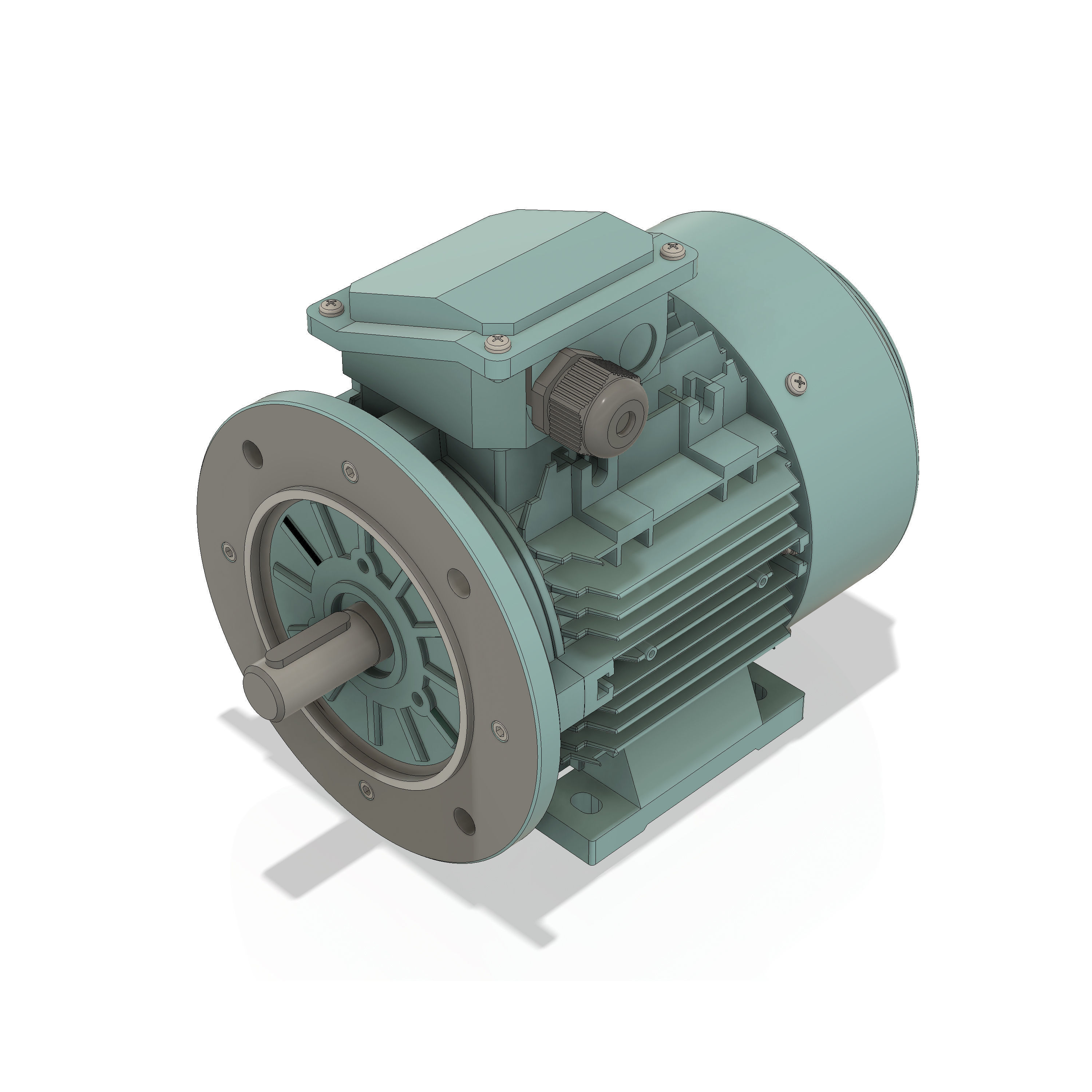

• B35 + B35R Foot and flange mounting: B35 electric motors have both a foot and a flange. The base is designed to be mounted on a solid surface, similar to the B3 mounting. At the same time, it has a flange on which other equipment can be attached, similar to the B5 mounting.

Each frame type is expertly designed, ensuring seamless integration into your projects regardless of their complexity or specifications.

Versatility at Your Fingertips: 4 File Formats

We understand the importance of flexibility in your design process. Our 3D CAD Models Collection is available in four widely-used file formats:

• .step (STP): This file type is often used for exchanging 3D models and is compatible with most CAD software, such as SolidWorks, Inventor, AutoCAD, and Fusion 360.
• .f3d (Fusion 360): Suitable specifically for Autodesk Fusion 360 users, it allows you to import the models directly into this popular design application.
• .fbx (Filmbox): Ideal for 3D animations and visualizations. This file type is compatible with software such as Autodesk Maya, 3ds Max and Blender.
• .obj (Wavefront OBJ): A common file type for 3D models that is supported by many 3D software applications, including Blender, 3ds Max, and Unity.

This versatility allows you to effortlessly integrate our models into various CAD platforms, ensuring compatibility with your preferred design software.

About 3 Phase AC Induction motors:

A three-phase AC induction motor is a type of electric motor that operates based on electromagnetic induction to produce mechanical energy. This type of motor is widespread and is commonly used in industrial applications, pumps, fans, compressors, and many other machines.

Here are the main features and operation of a 3-phase AC induction motor:

• Three-phase power supply: The motor is powered by a three-phase AC source. A three-phase power supply generates three separate alternating current waves, each shifted in phase relative to the others. These phase shifts are essential for the proper operation of the motor.
• Stator: The stator is the stationary part of the motor and consists of a set of coils or windings distributed at 120 degrees from each other. Each coil is connected to one of the three phases of the power supply.
• Rotor: The rotor is the rotating part of the motor and is located inside the stator. It is usually a shorted cylinder made of conductive material. The rotor is positioned close to, but not in direct contact with, the stator coils.
• Operating principle: When the three-phase alternating current is applied to the stator coils, a rotating magnetic field is created. This magnetic field induces voltages in the rotor, causing current to flow in the rotor. According to Lenz's law, a counter-current is generated in the rotor, exerting a force that sets the rotor in motion.
• Rotor speed: The speed at which the rotor turns is influenced by the frequency of the applied alternating current and the number of poles in the motor.
• Self-starting: A three-phase induction motor is self-starting, meaning it can typically begin to rotate as soon as the power is switched on, without the need for external assistance to set the rotor in motion.

These motors are popular due to their simple design, reliability, and robust performance. They are efficient and have a wide range of applications in various industries.
