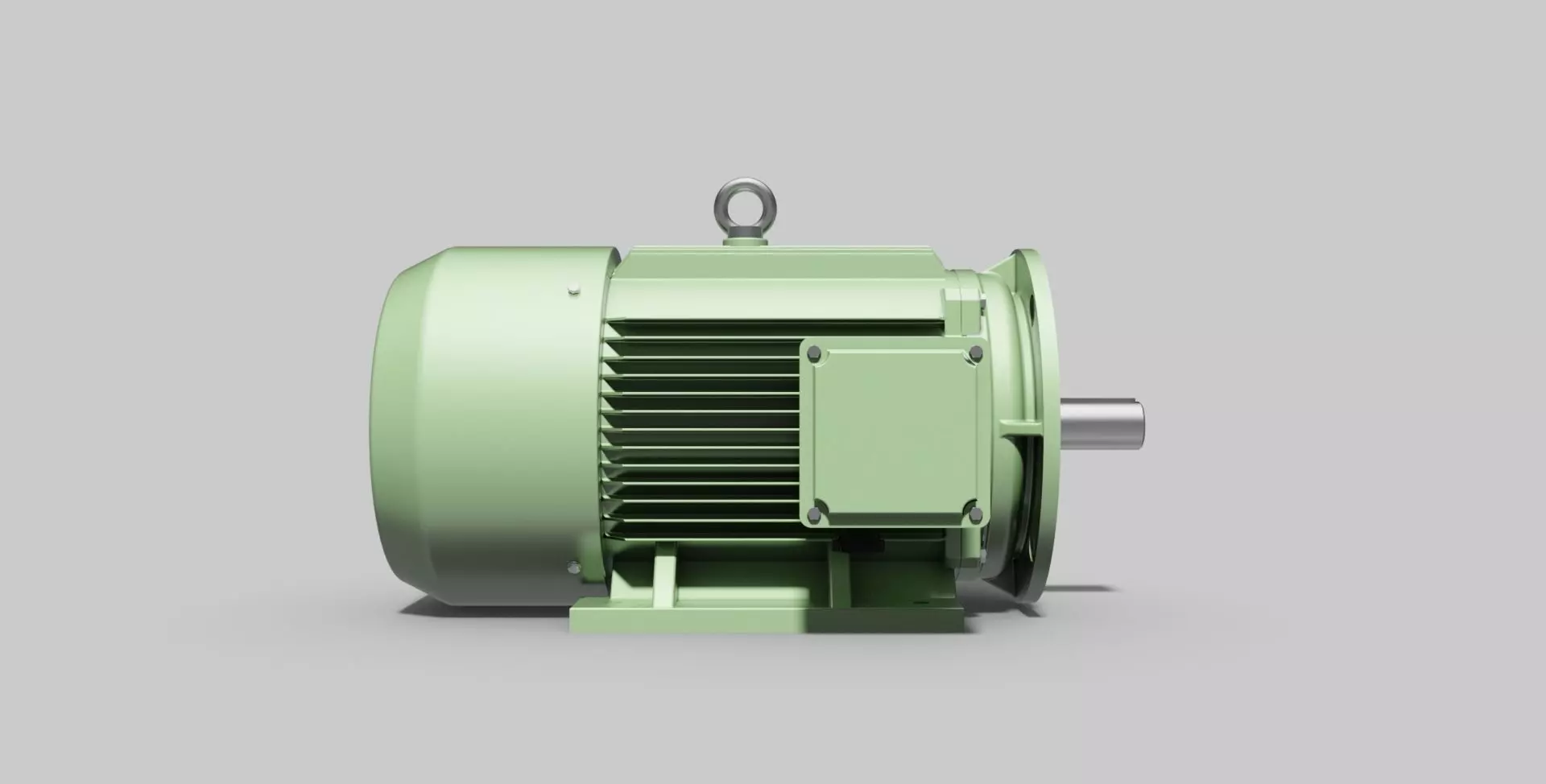

Electric motor IEC 180L-B35 Left - Autocad, Inventor and step

Free 3D CAD model:

  • Description: IEC standarized electric motor
  • Frame size: 180L
  • 22kW (at 1500 r.p.m.)
  • Mounting type: B35 - flange-foot
  • Terminal box position: left
  • File formats:
  • Autodesk Inventor .ipt (2012)
  • Autocad .dwg (2012)
  • Step .stp

This is a sample CAD model from the full range library 72 CAD Models - Electric motors IEC B35. Premium quality 3D piping parts for mechanical engineers.Click here for all details about this library.

I hope you can use this CAD model in one of your engineering projects. Feel free to share, like or comment...

Freerk de With, Wyalo 3D CAD models
