1 Inch BSP - Ball valve NO - Autodesk Inventor 3D model

Description

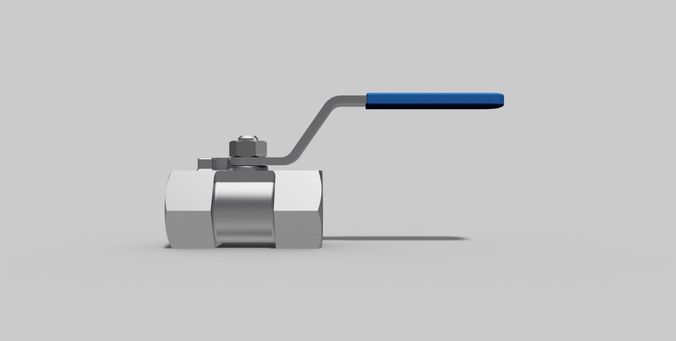

Metal single piece ball valve 1 Inch BSP for Autodesk Inventor

Free 3D CAD model:

  • Description: Ball valve BSP threaded
  • Diameter: 1"
  • Material: Metal (stainless steel)
  • Connection: BSP female ends
  • Operation: manual
  • Position: open
  • File format: Autodesk Inventor .ipt

You can use this CAD model directly in:■ Autodesk Inventor 2015■ Autodesk Inventor 2016■ Autodesk Inventor 2017

This is a sample CAD model from the full range library BSP threaded metal fittings and valves. This Content Center library for Autodesk Inventor contains many hundreds premium quality 3D piping parts for mechanical engineers.Click here for all details about this library.

I hope you can use this CAD model in one of your engineering projects. Feel free to share, like or comment...

Freerk de With, Wyalo 3D CAD models
