DESCRIPTION

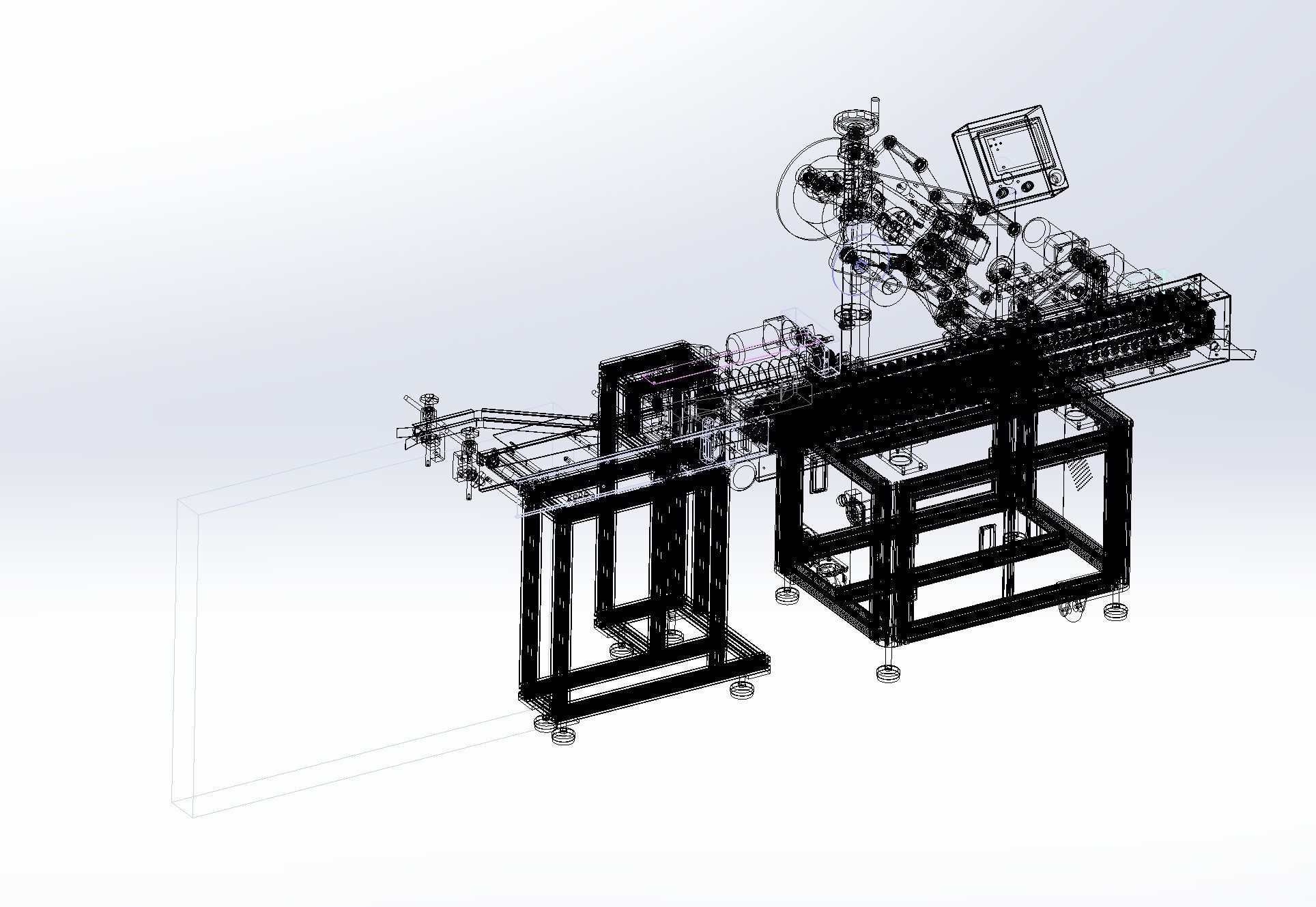

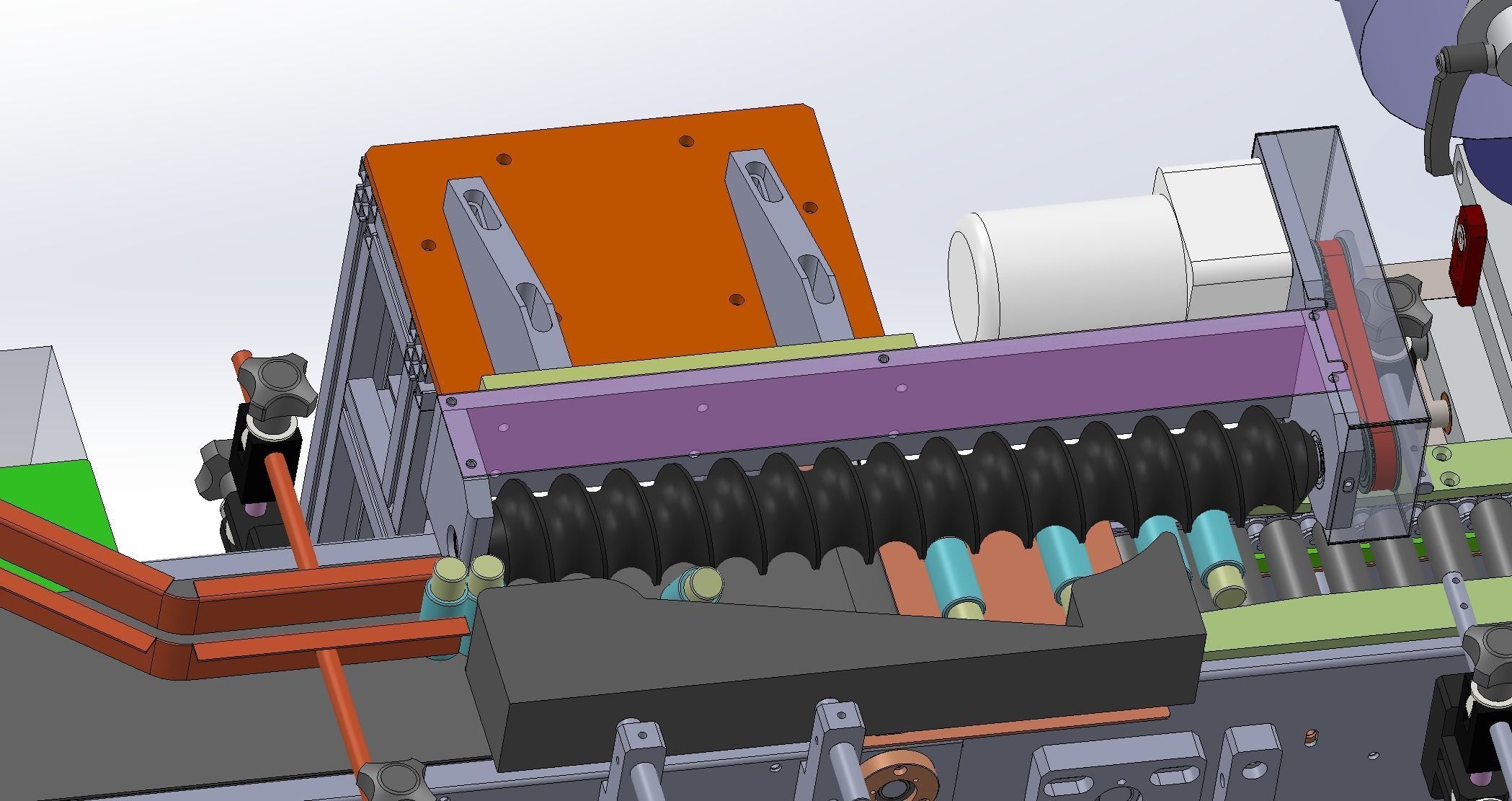

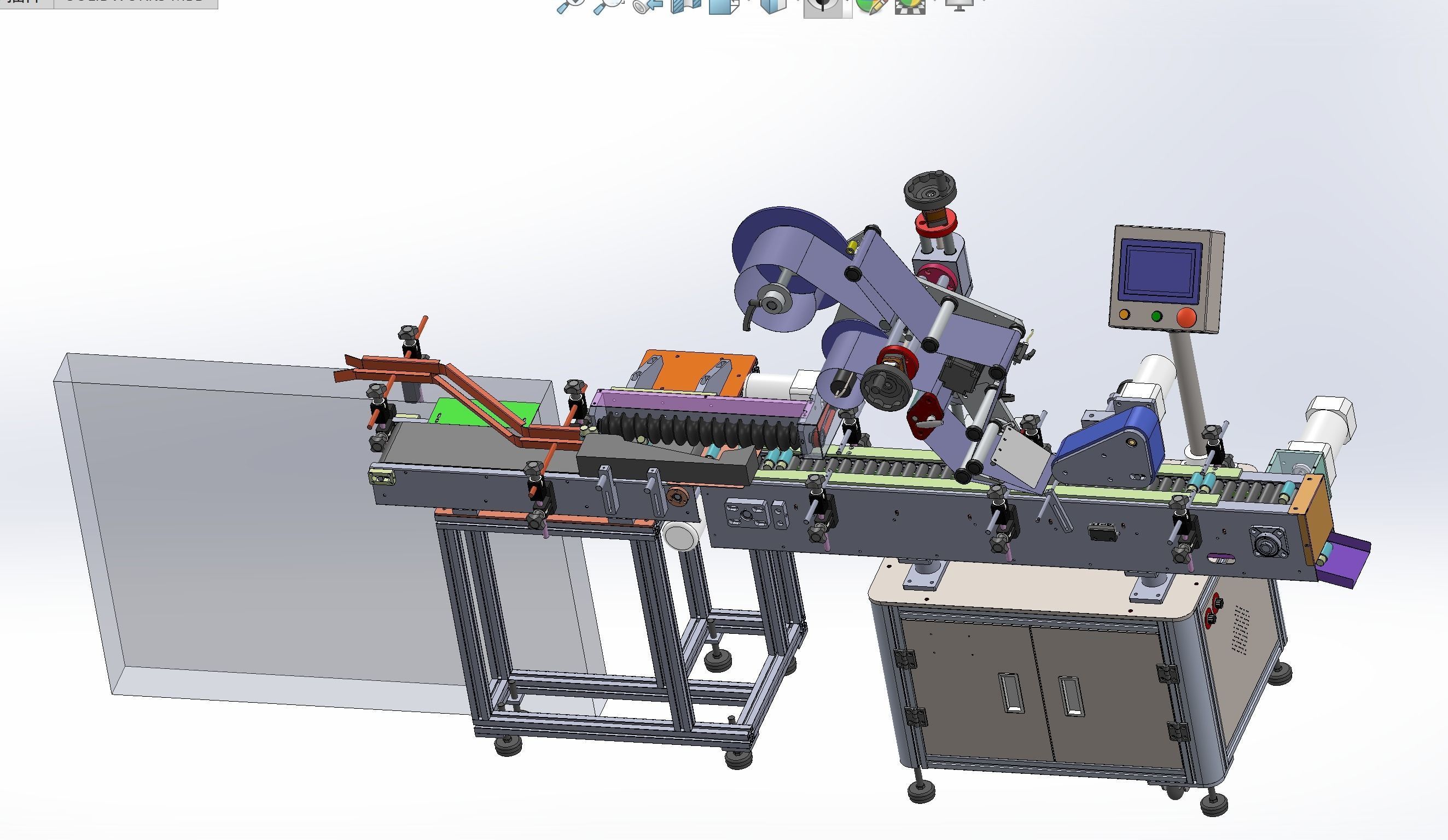

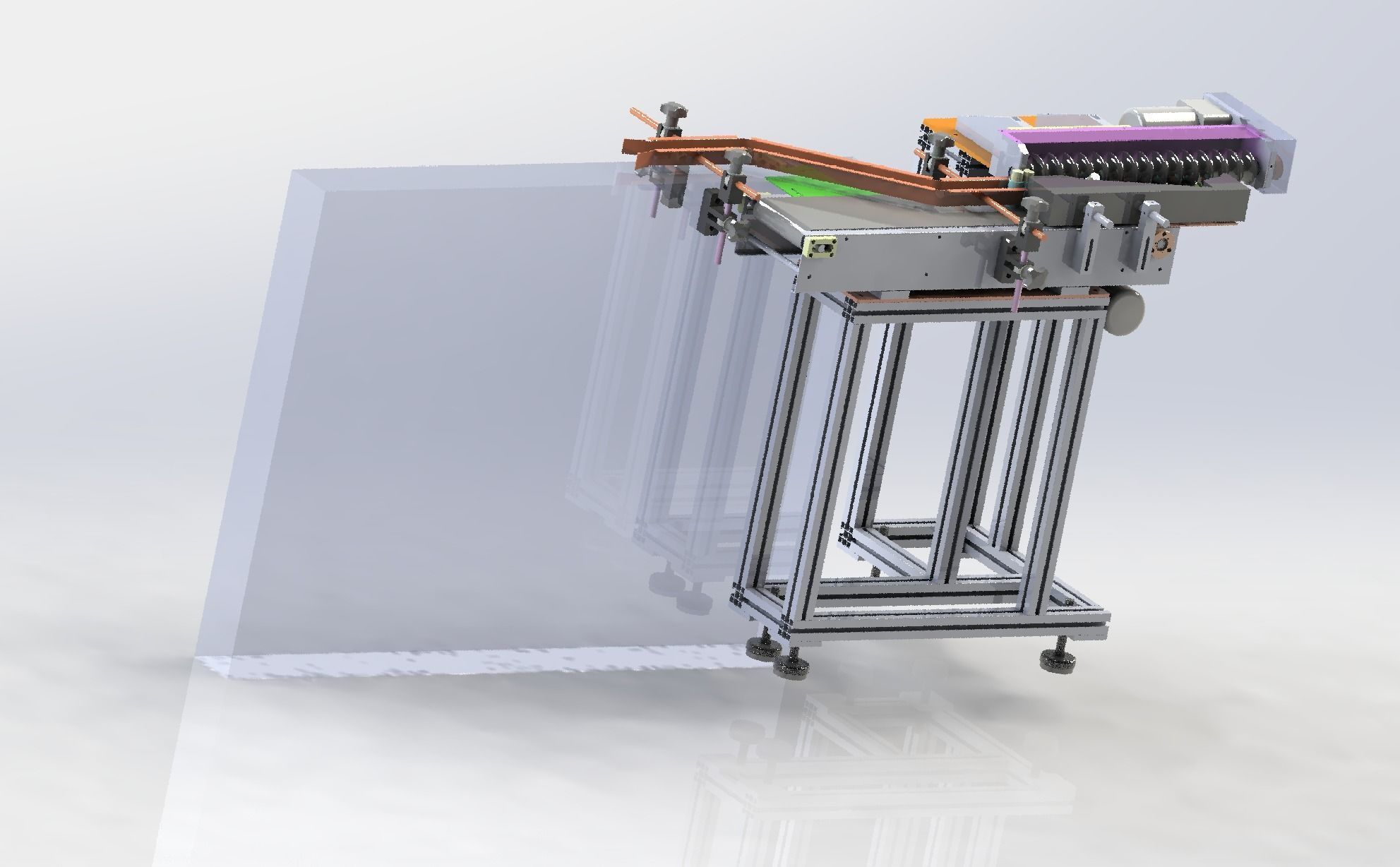

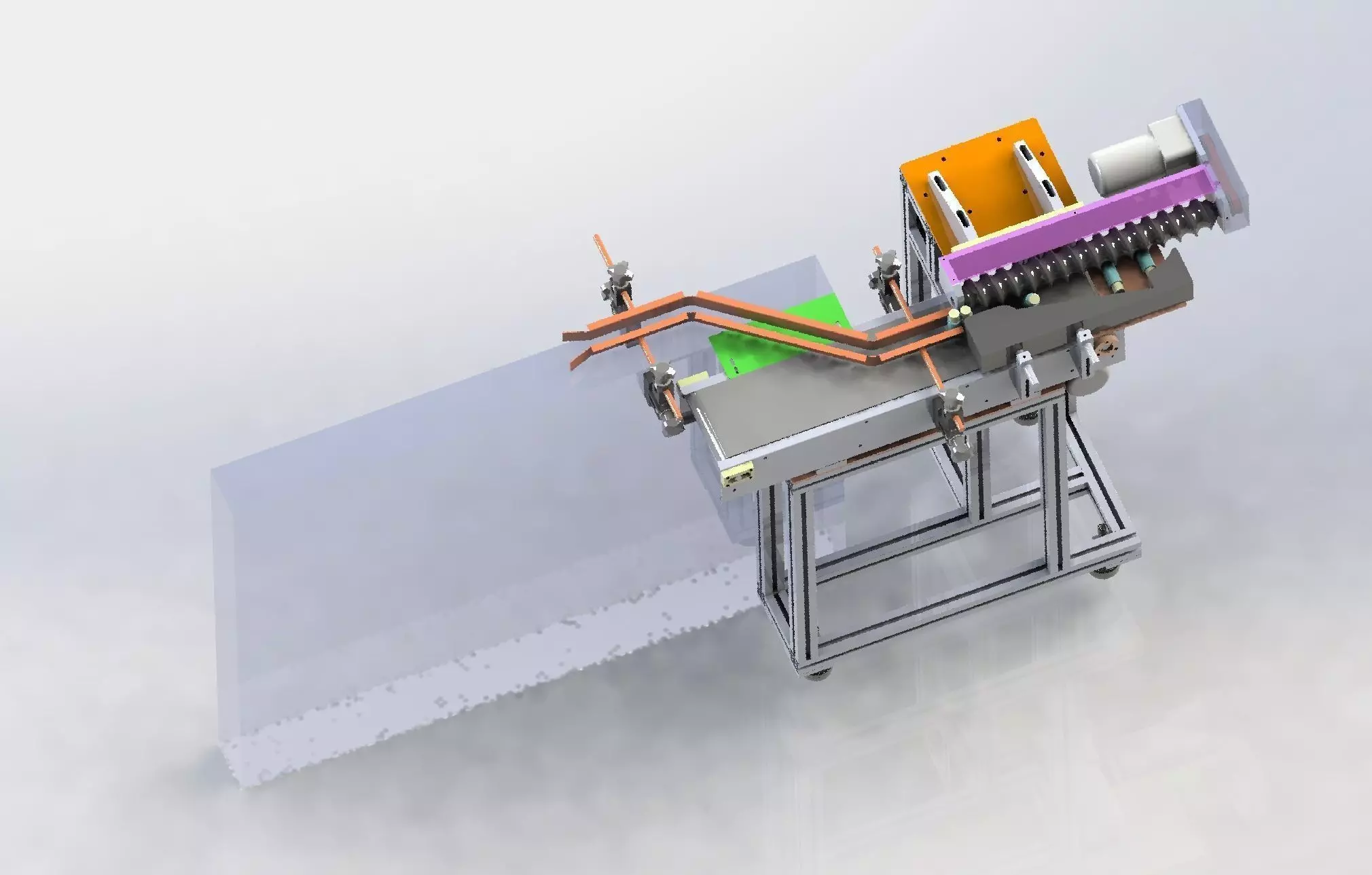

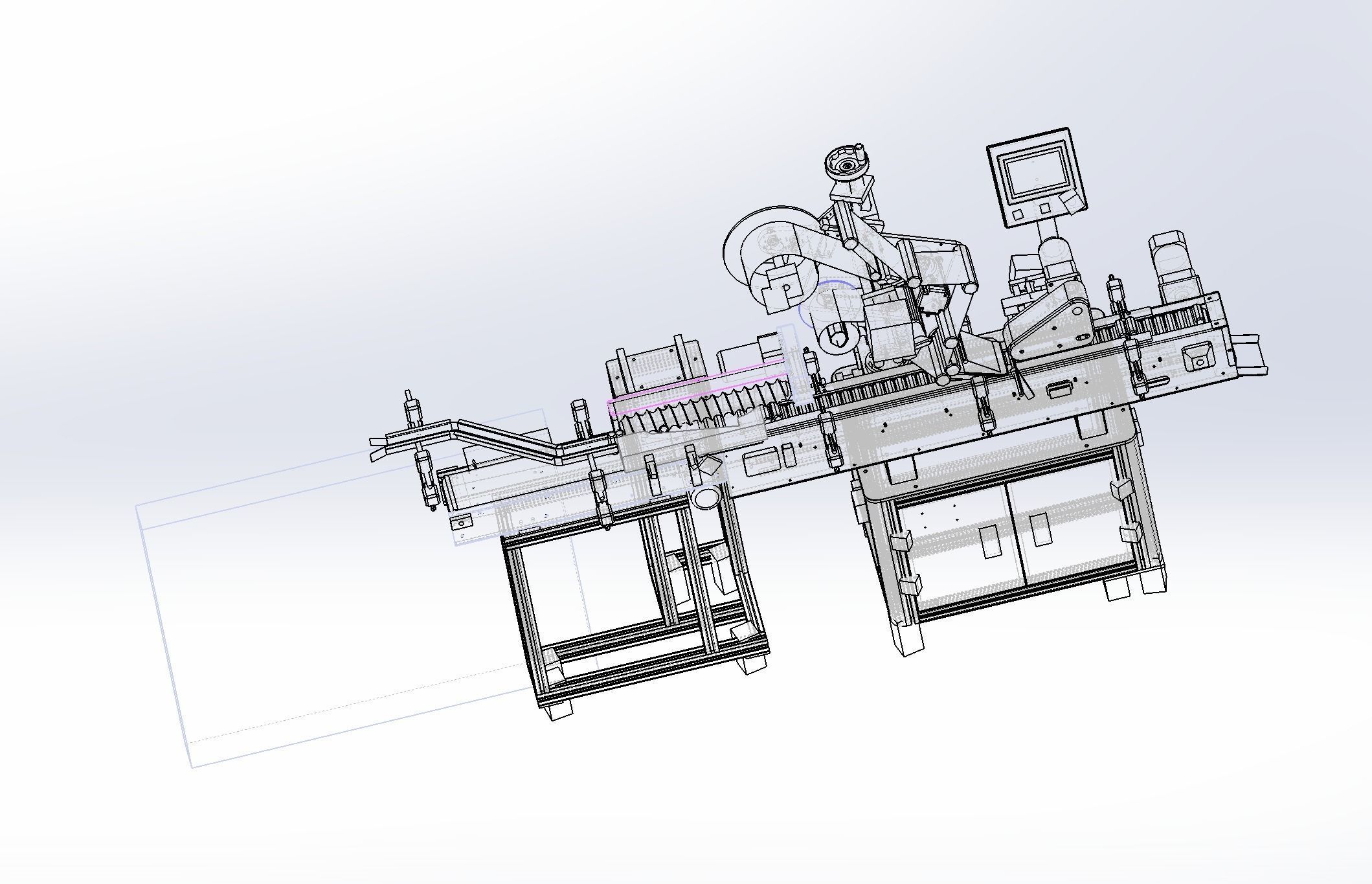

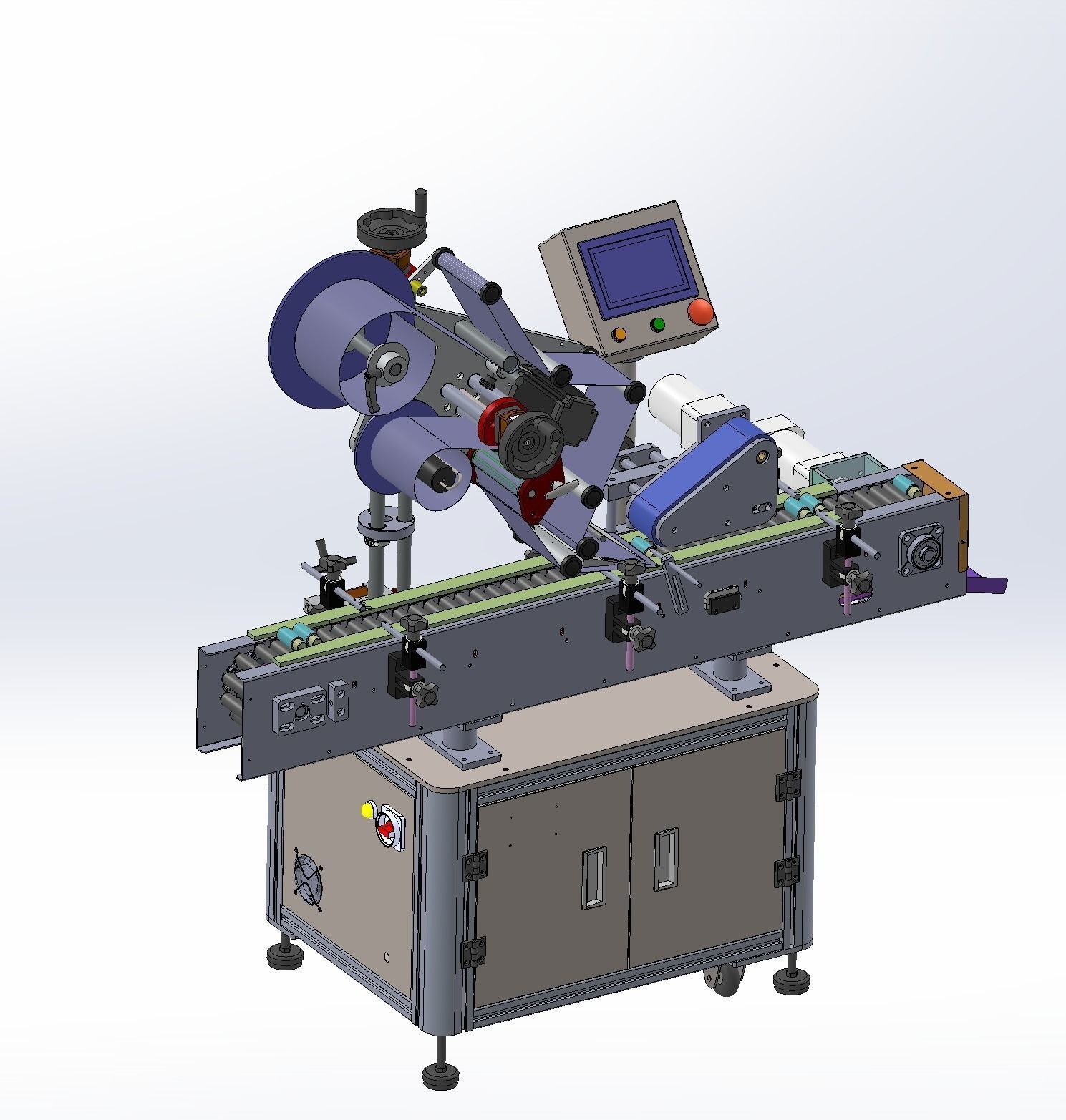

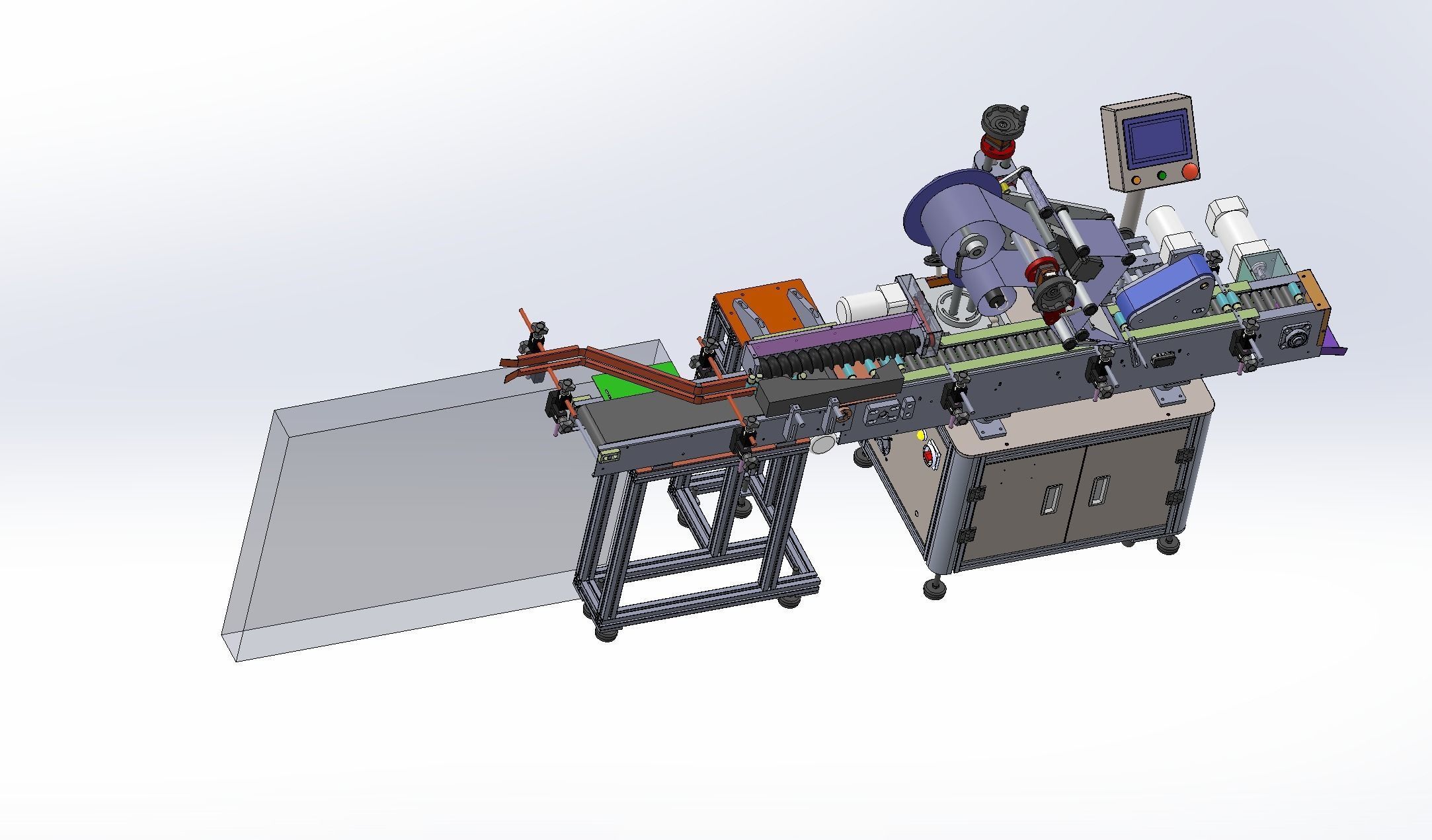

Vertical change horizontal labeling machine, this machine is used as the product of the code label, under the rapid movement of assembly line, through the turbine to convert vertical to horizontal screw role labeling machine, the machine table is used as the product of the code label, under the rapid movement of assembly line, through the turbine screw function to convert the vertical product to horizontal, transformation point of view, labeling mechanism for labeling.The mechanism includes:

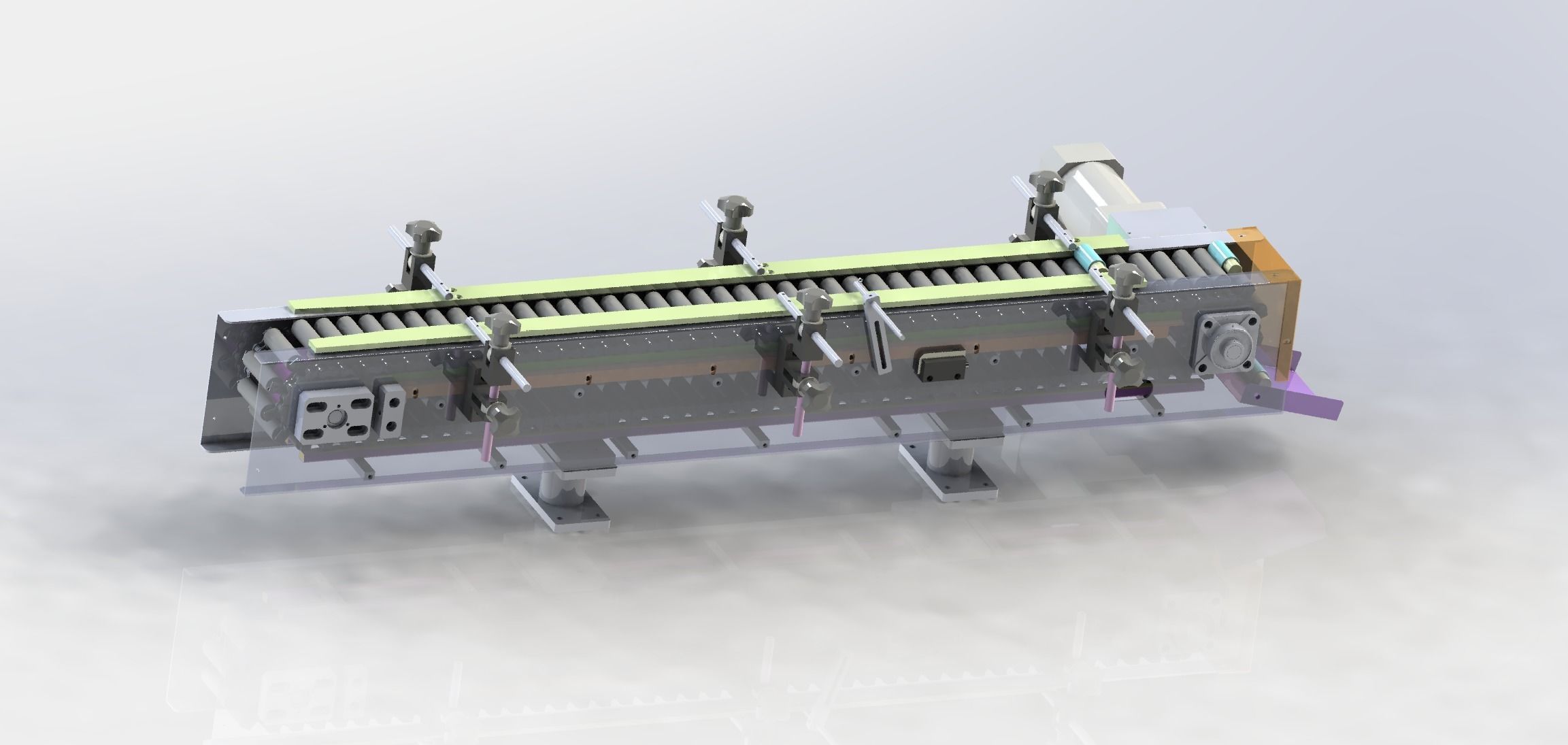

  1. Assembly line mechanism

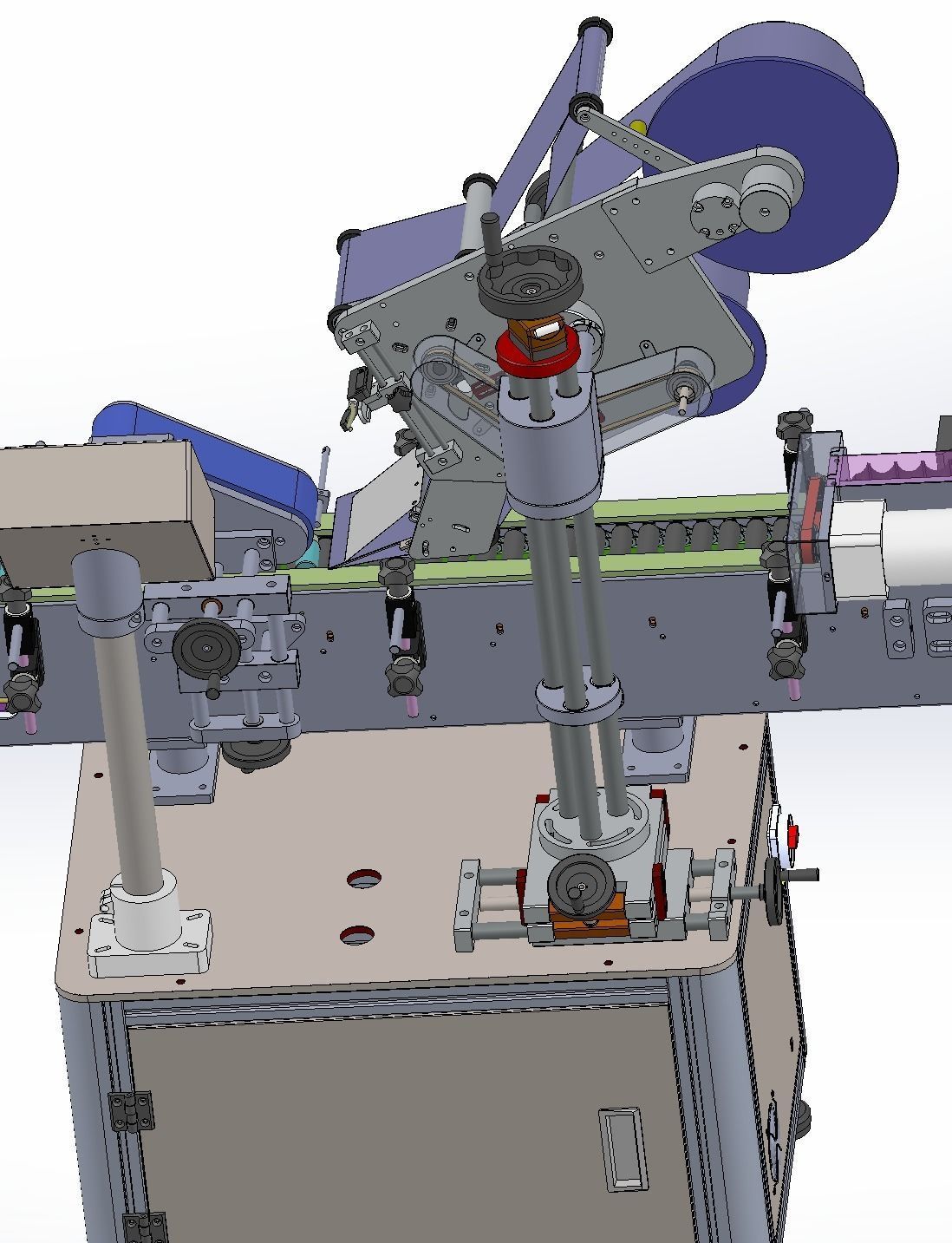

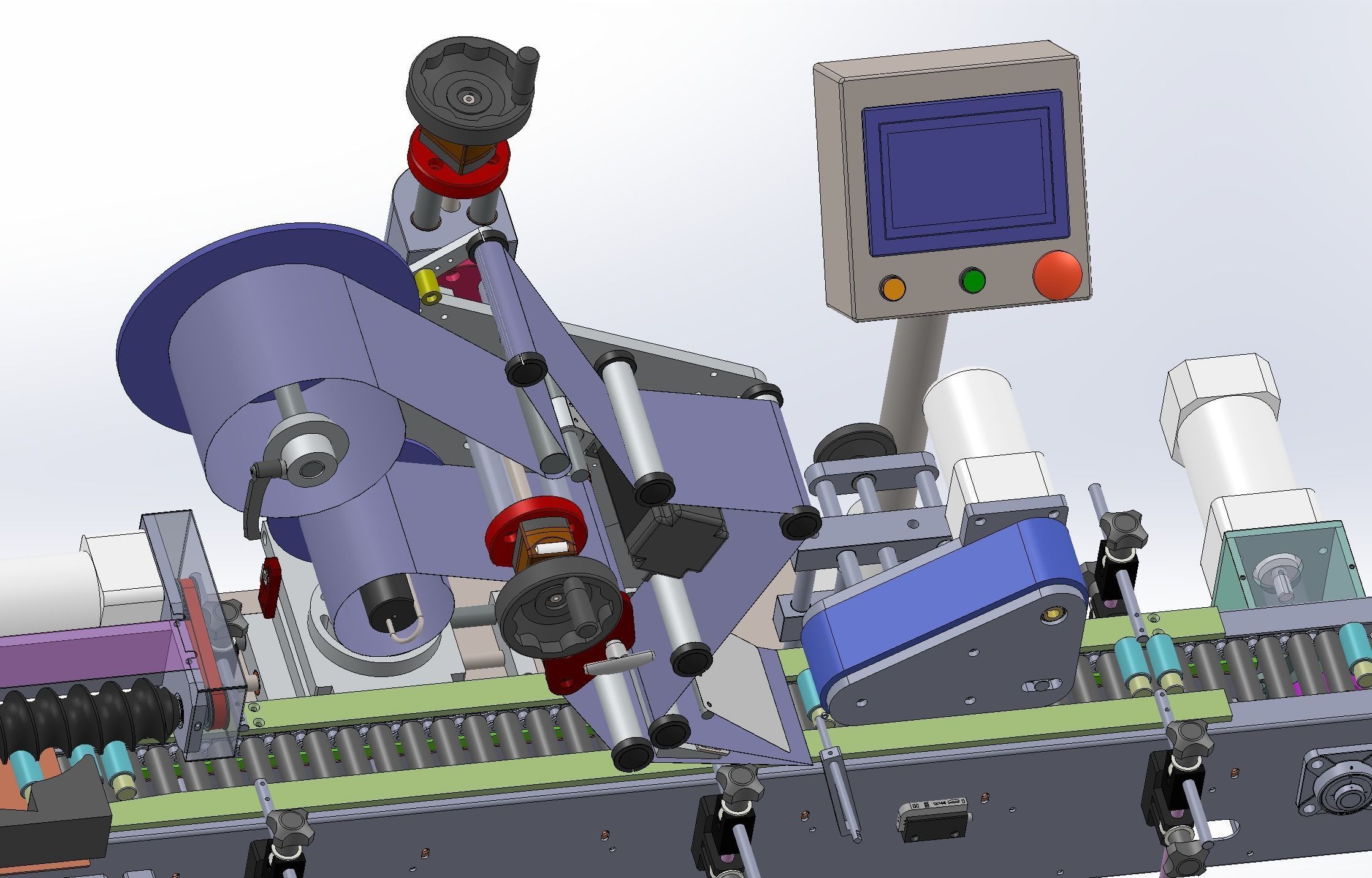

  2. Labeling machine mechanism

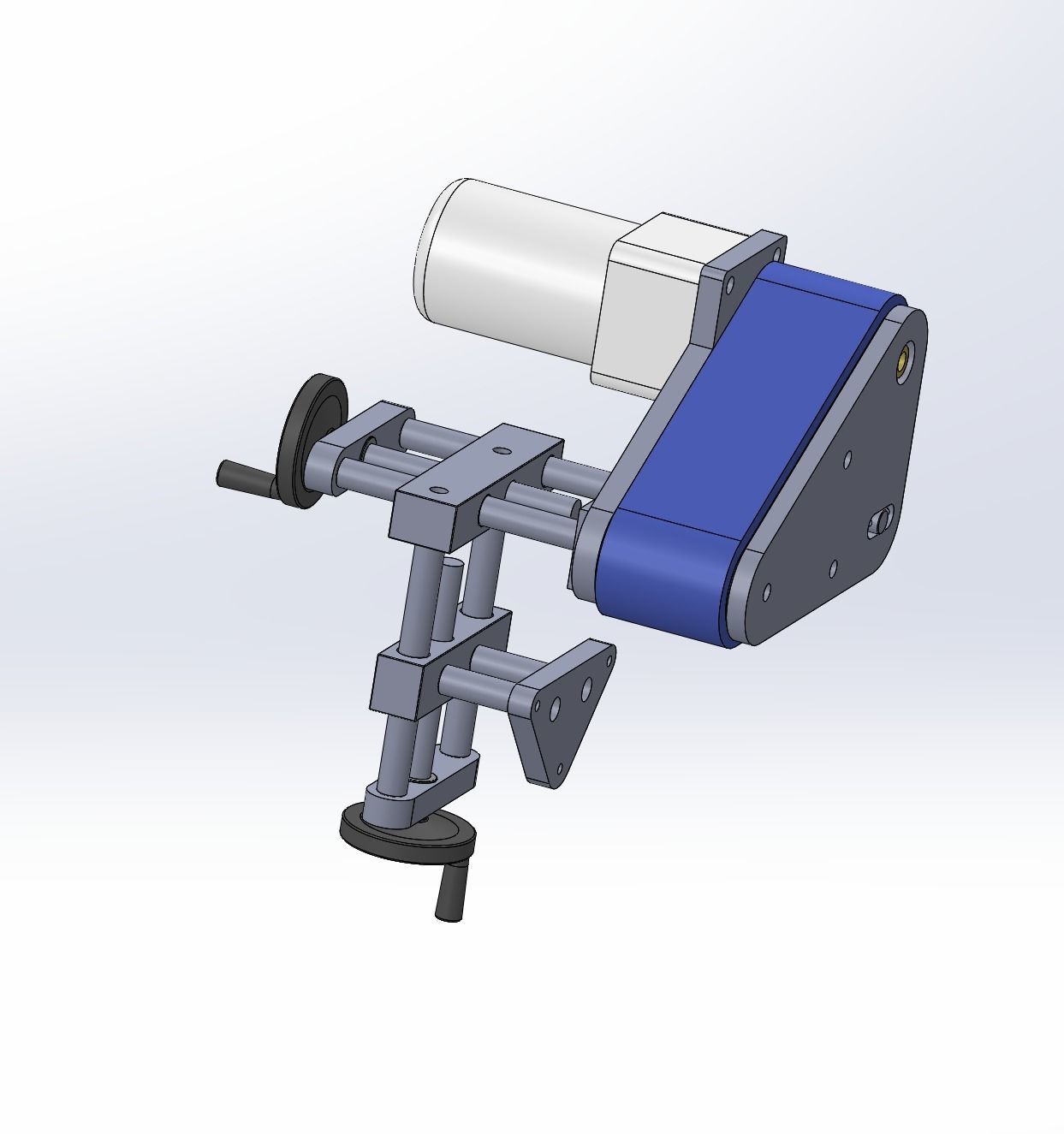

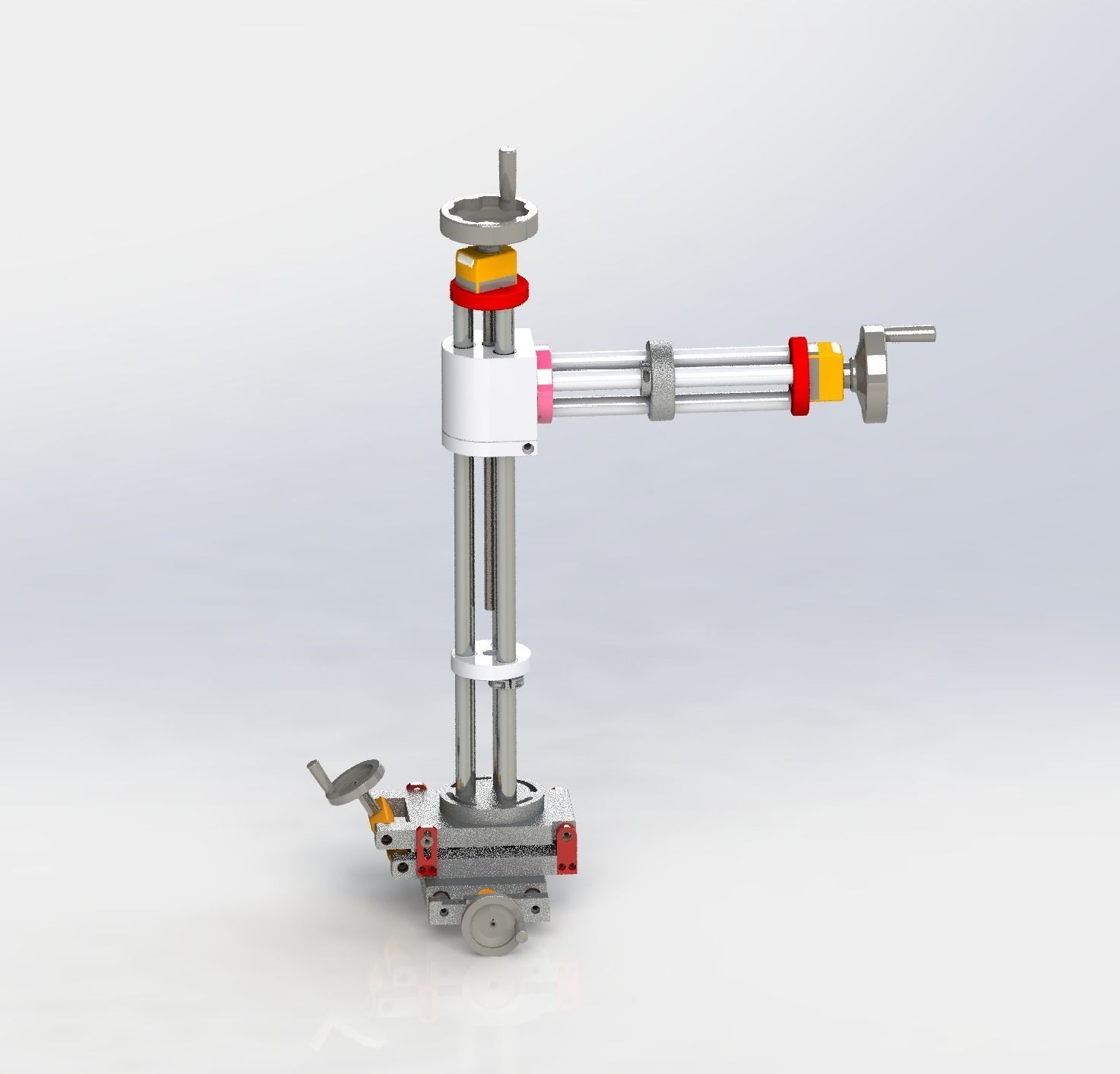

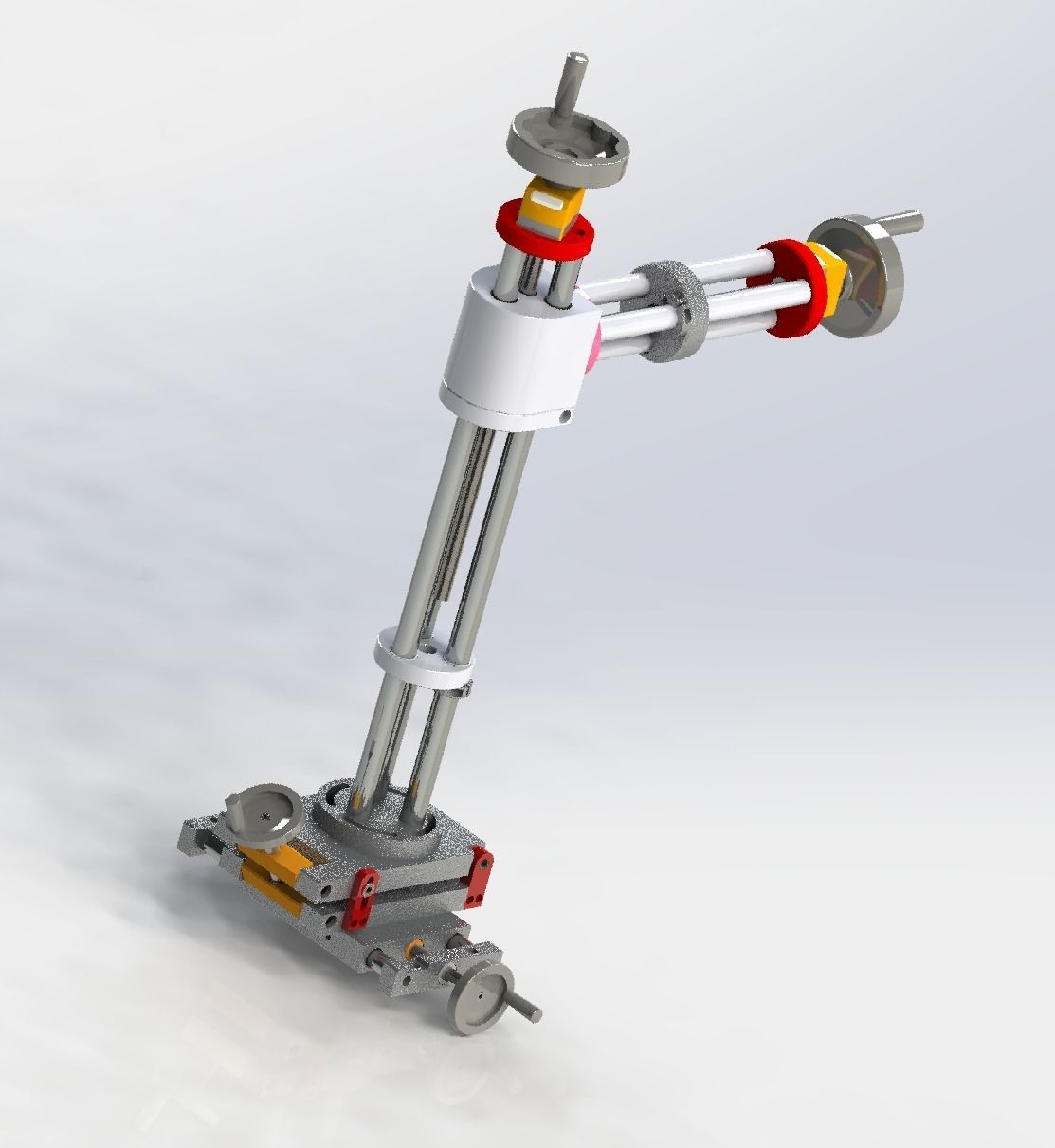

  3. Position adjustment mechanism, xyz triaxial adjustable
  4. Angle adjustment mechanism
  5. Off-type membrane mechanism
  6. Angle adjusting mechanism

Files format contains

-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

  • and other formats************************************** If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************
