Variable Pulley - Spring Mechanism 3D model

Description

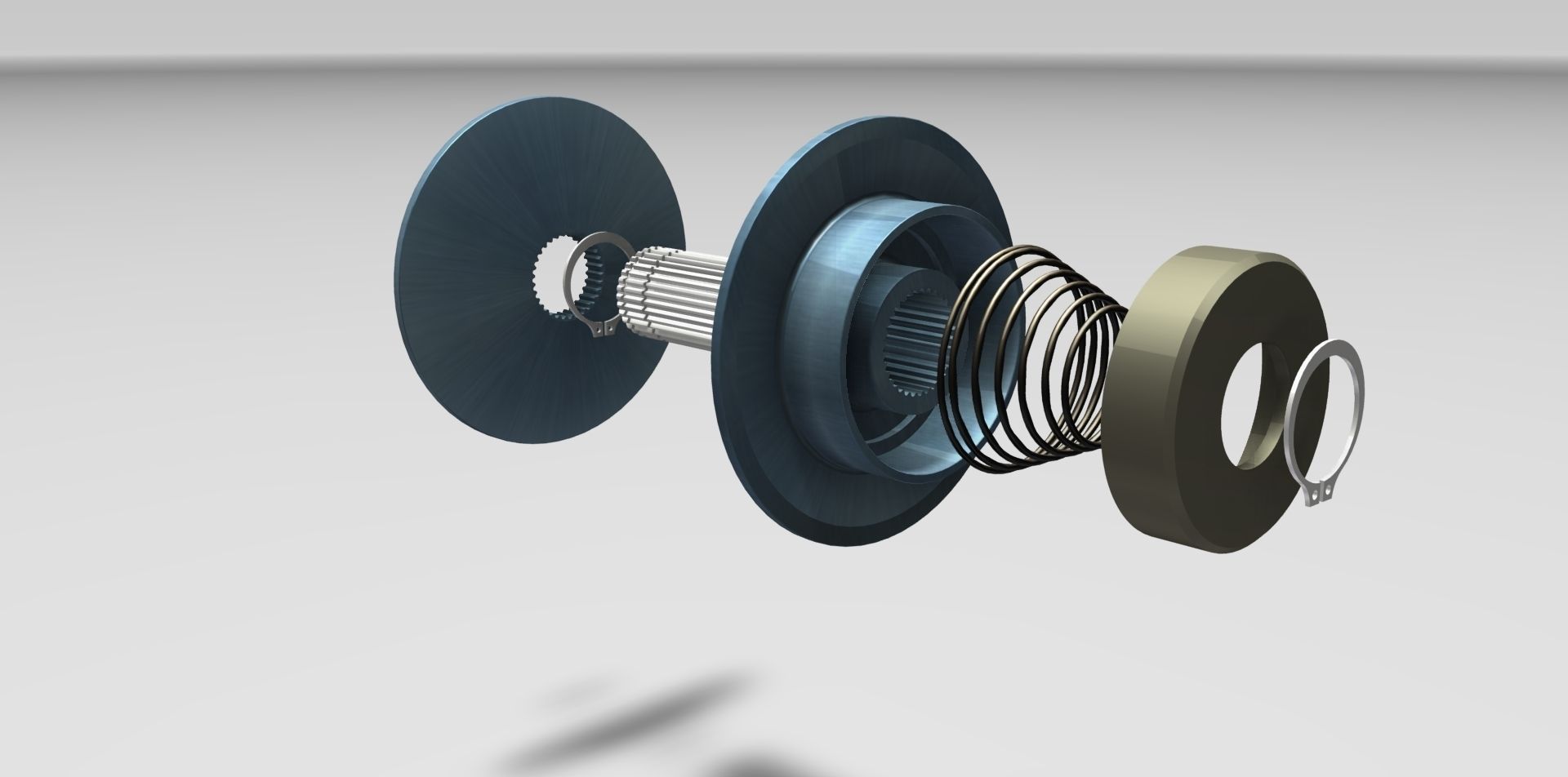

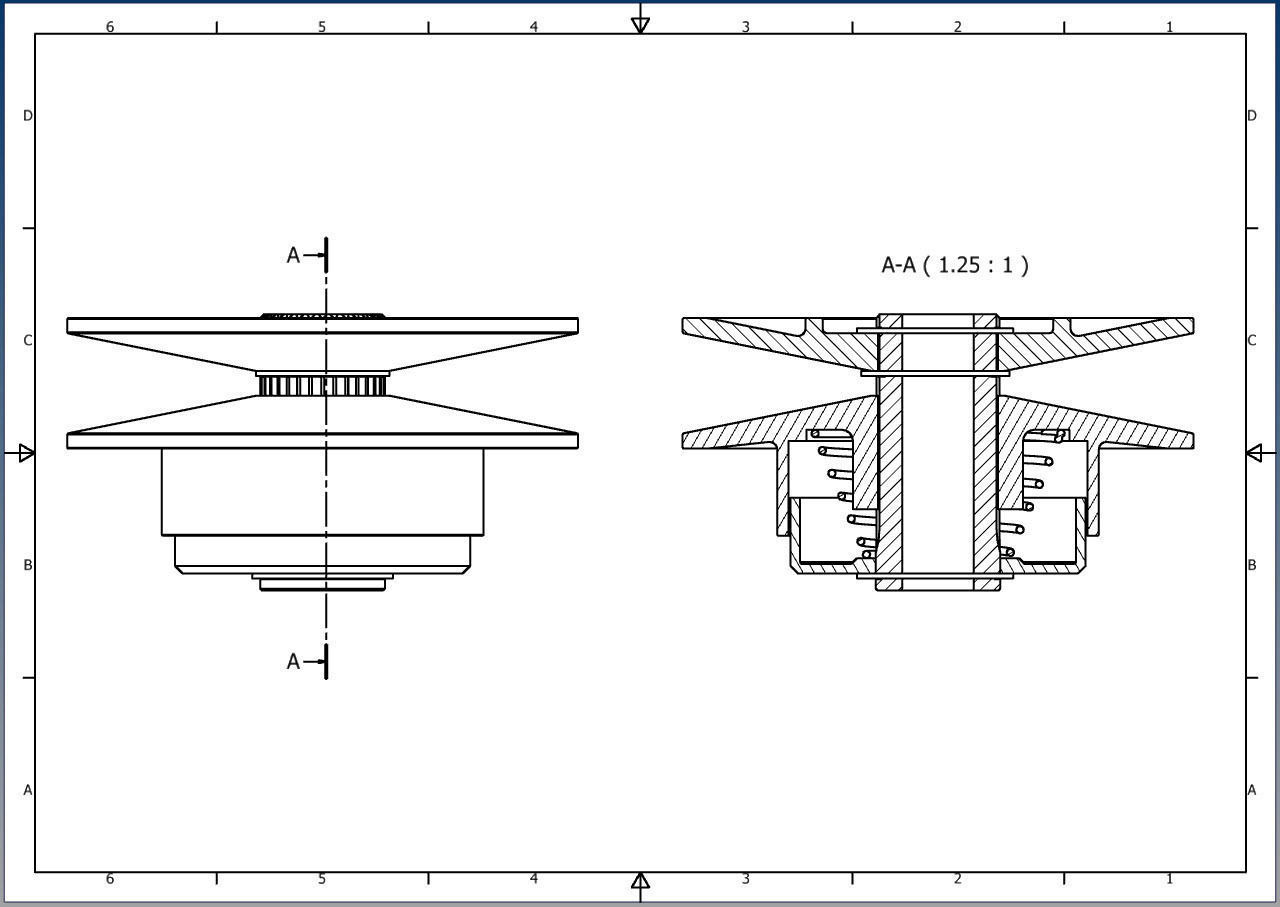

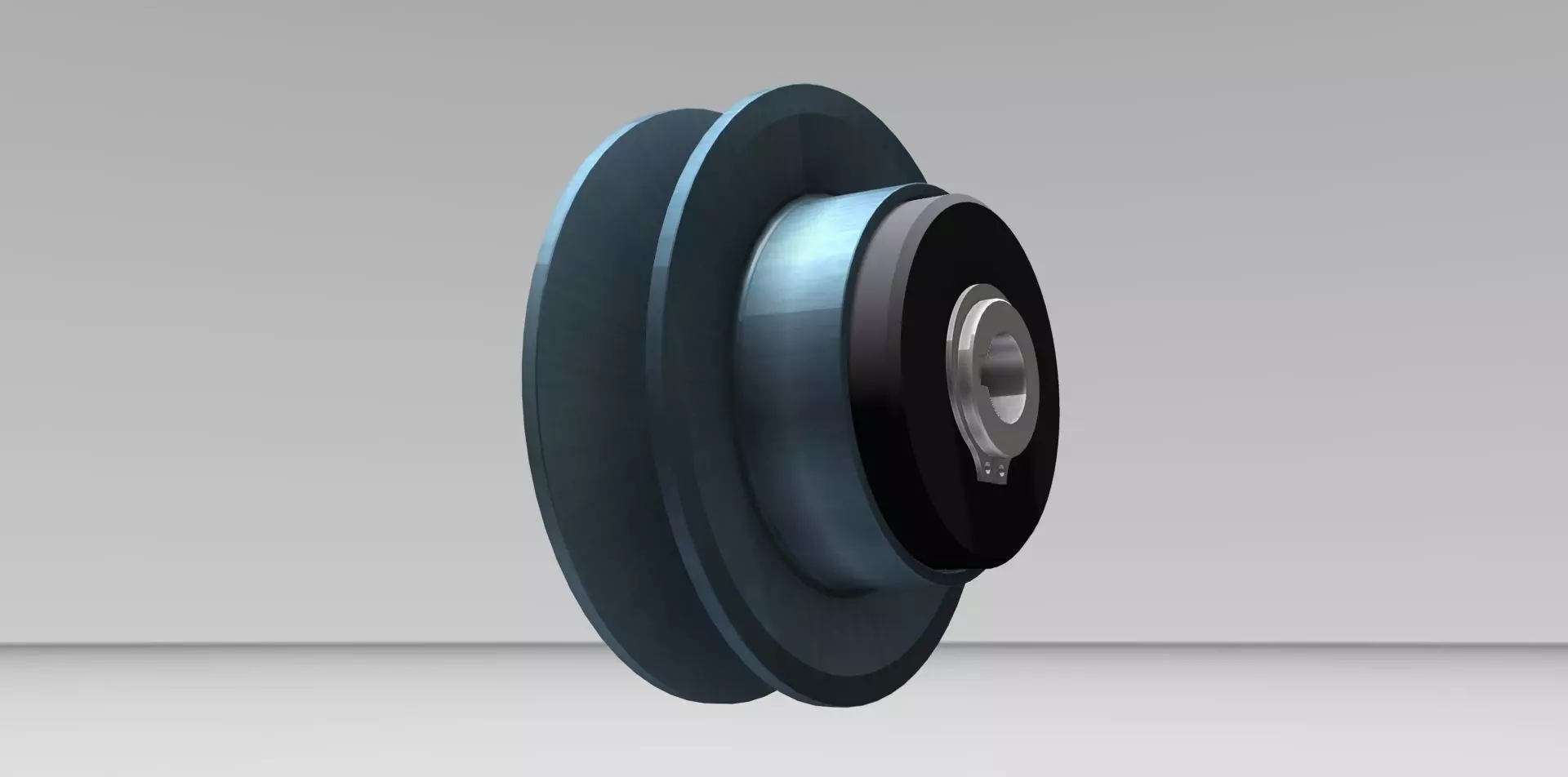

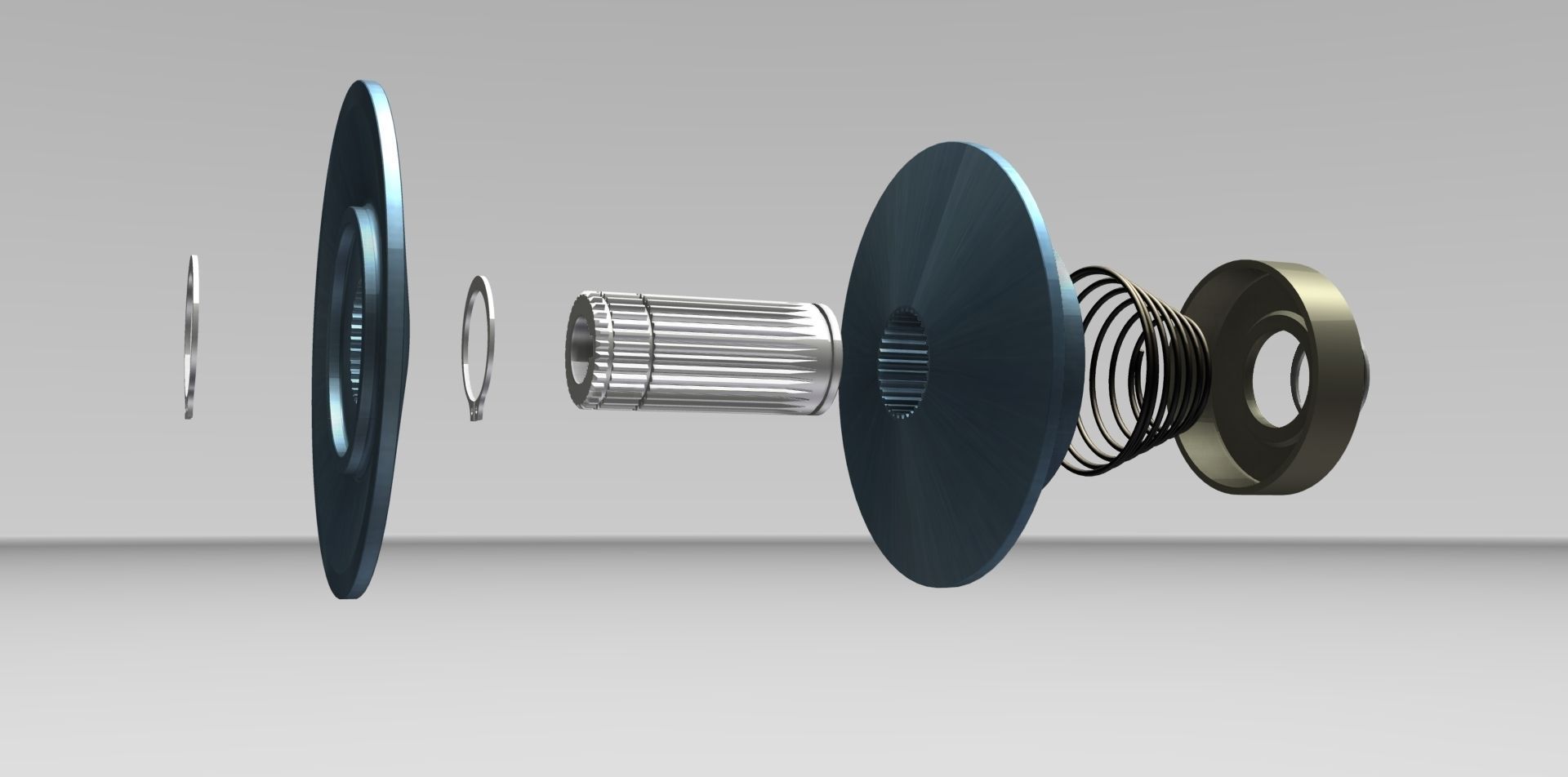

Speed variation is acomplished by increasing/decreasing the pulley’s channel. The return movement of the side flange is caused by the spring.

Everything is accurately modeled except for the spring.
