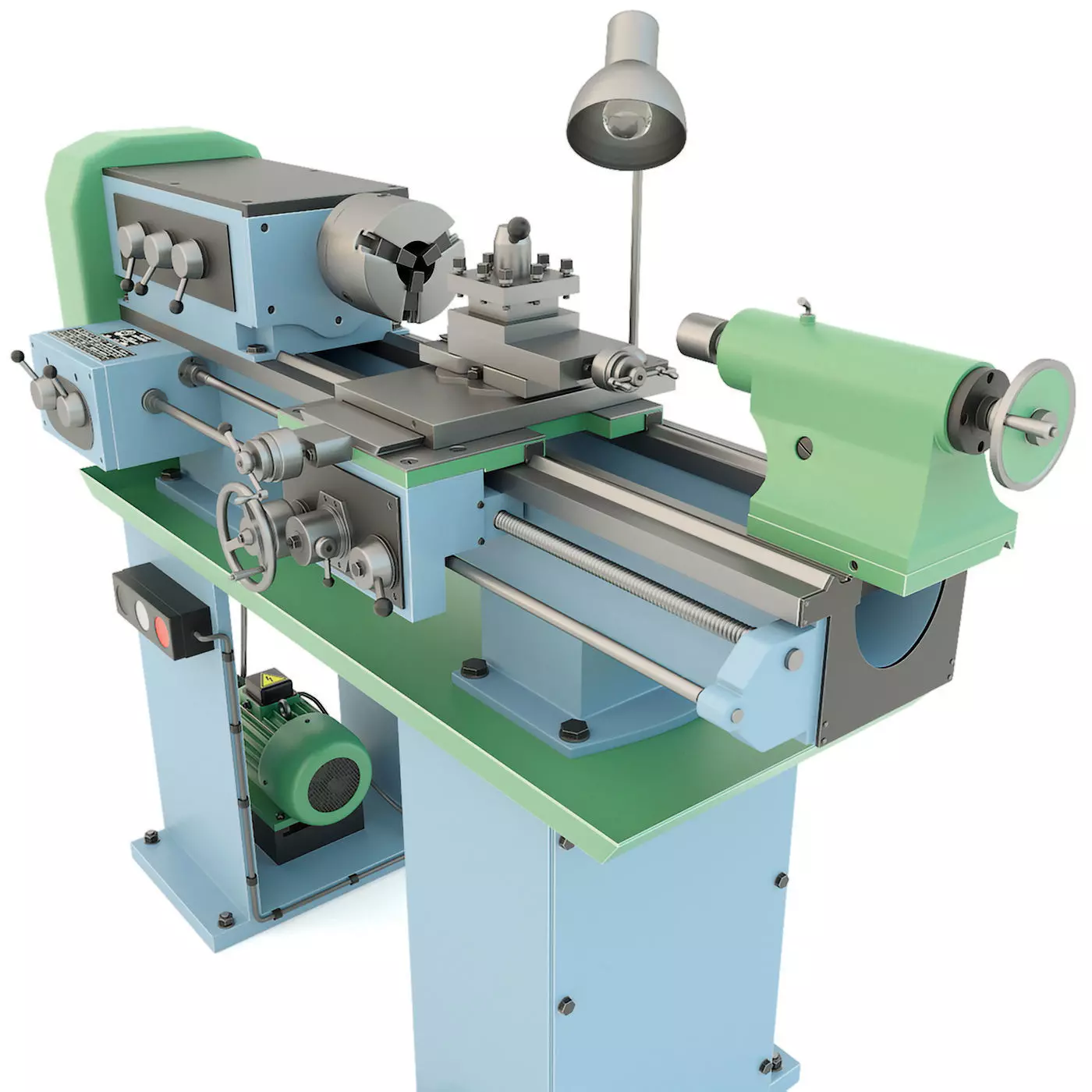

Turning machine TV-4 3D model

3d model: TV-4 Lathe is a detailed and detailed model. On the machine were taken into account and implemented as the smallest and largest elements adhere to the features of a real lathe, from which the model was recreated. In reality the lathe belongs to the light class of equipment. For this reason, it is popular with household craftsmen. In the process of creation, such parts as the frame, tailstock, chuck, headstock, electric motor, caliper, carriage, apron and other elements were implemented, which as a result make up the presented model. During the painting process, standard Corona and V-Ray materials were used, as well as the necessary textures, which allow you to further emphasize the presentable appearance of the lathe and give more realism. The model is well suited for embedding, in a particular industrial project, as well as visualization.

To give the most recognizable and realistic look, blue was chosen as the main paint color, and the elements and parts of the machine were painted in green and black. Thus, such a combination of colors in our opinion gives the machine an expressive feed, however, if necessary, the color scheme can easily be changed to the most popular for a particular project.

Basic parameters:Polys: 627468Verts: 621131

Model dimensions:length – 1627 mmwidth – 1367 mmheight – 636 mm

File Formats:

• 3Ds Max 2012, 2014 – Corona 1.7 (Standard materials scenes + Textures)
• 3Ds Max 2012, 2014 – V-Ray 3.60 (Standard materials scenes + Textures) – FBX (Universal format)
• OBJ (Universal format)
