Tray Plate Loading Module 3D model

Tray Plate Loading Module

Introduction

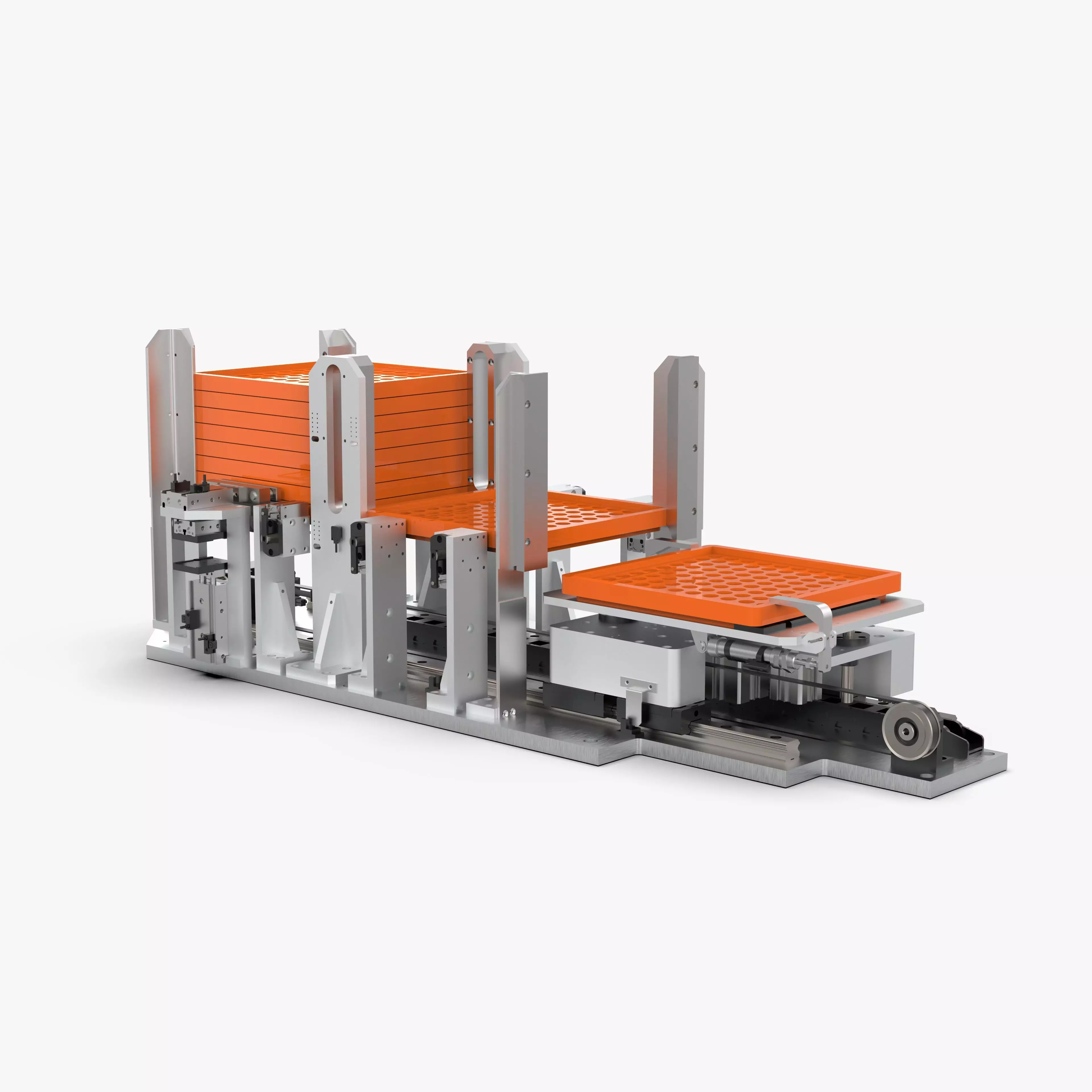

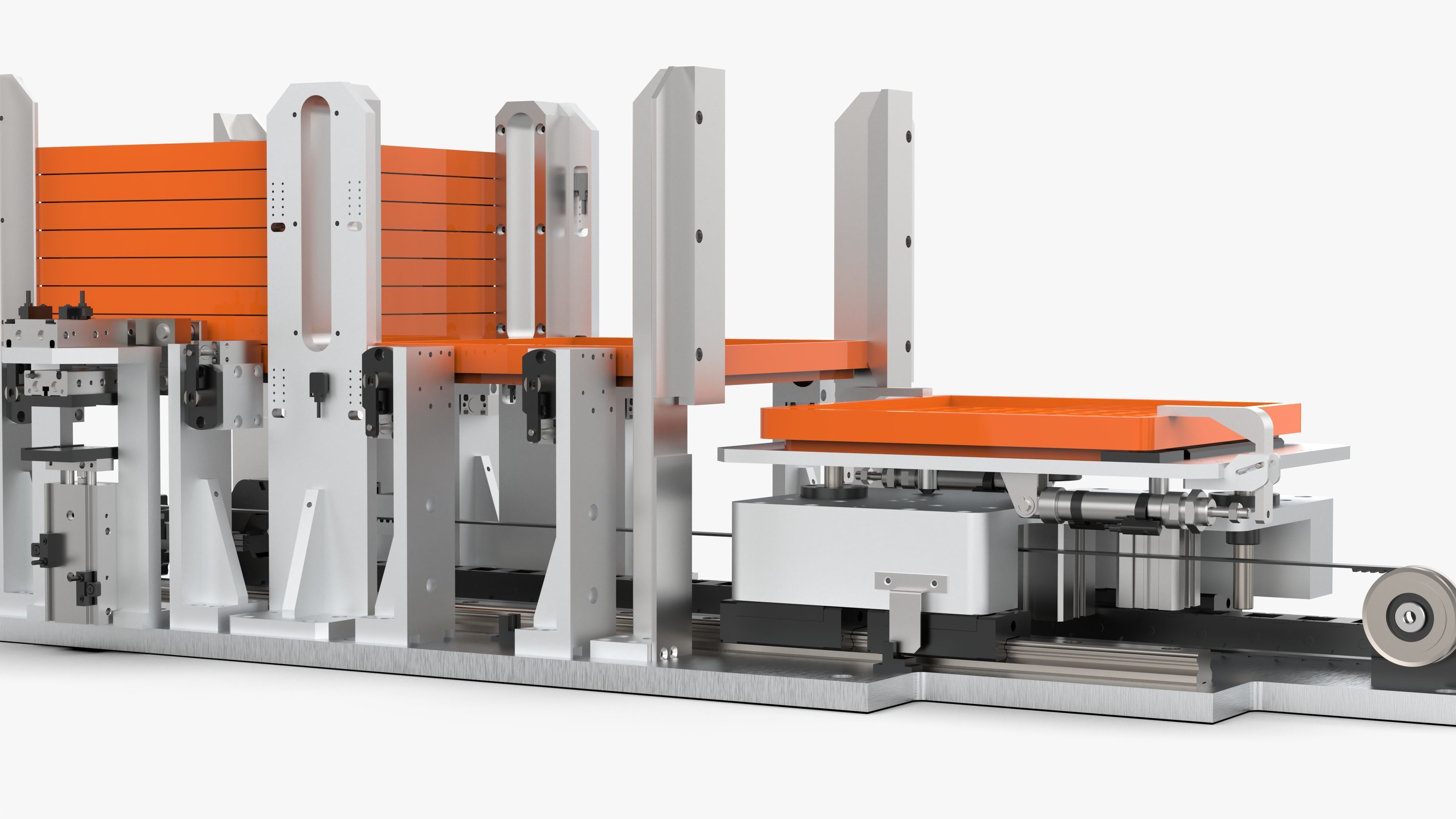

The utility model relates to a tray hoist structure, which is mainly used for lifting and transferring trays. A stack of full Tray trays is put into the feeding position, automatically lifted, empty Tray trays are moved horizontally for recovery, automatically lowered, and taken out from the discharge port. Including synchronous wheel, synchronous belt, stepper motor, ball screw, cylinder, linear slide rail, linear bearing, sensor and other components.

File Formats

• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 808,504
• Vertice: 2,425,512
