Tray loading and unloading machine 3D model

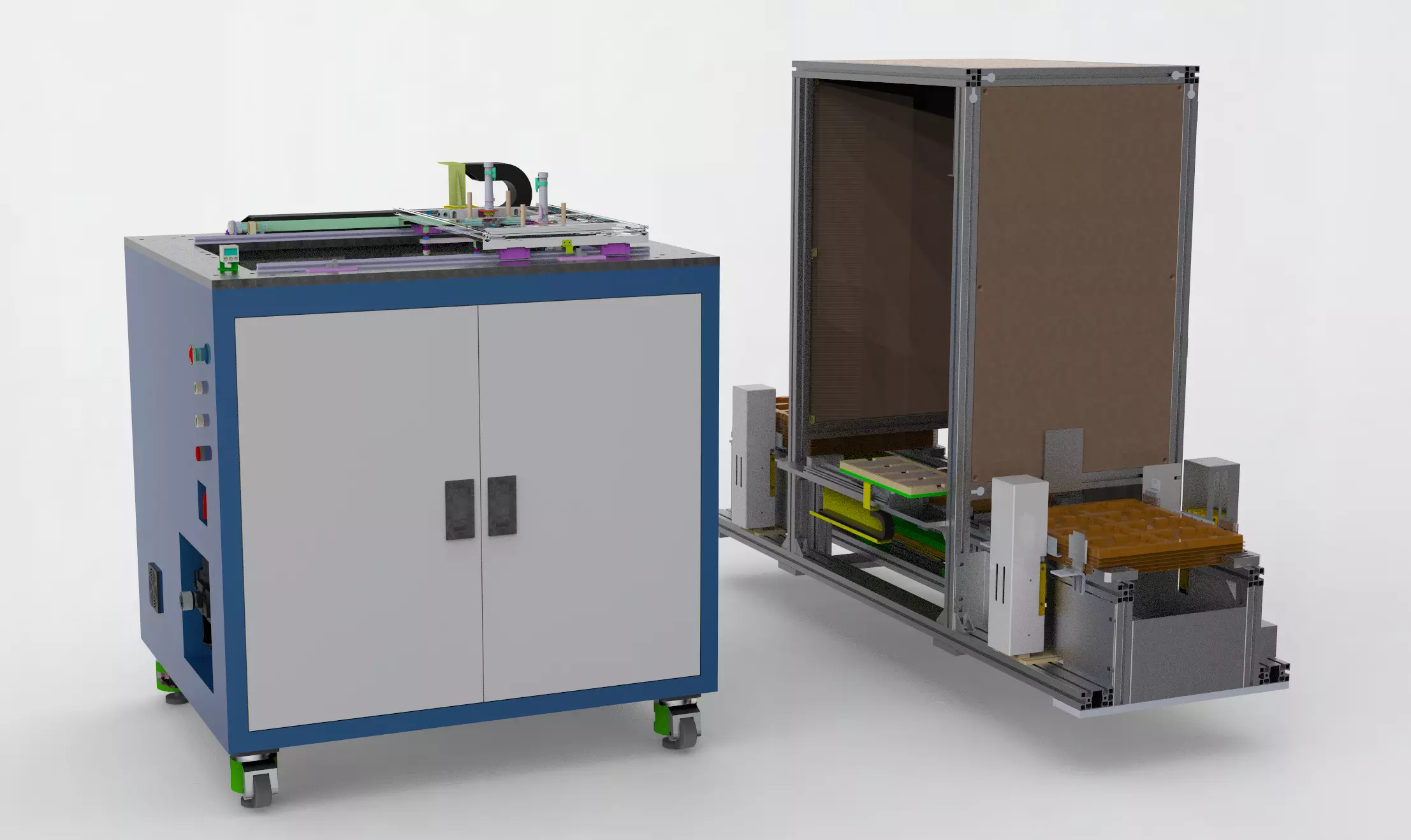

Tray loading and unloading machine

The device is a stacking feeding mechanism, through the multi-layer stacking, material, material forming an automatic feeding and unloading mechanism workflow

1. The whole stack of tray tray is placed in the working area -- the lead screw drives the tray tray up -- the suction claw moves to absorb the tray -- and moves it to the working position
2. The whole stack of tray tray is placed at the working position -- cylinder separation mechanism separates the bottom tray -- the lower mobile module is connected with the lower tray and moved to the working position -- loading and unloading material -- the lower mobile module is connected with the empty tray to the next working station -- cylinder separation mechanism collects and stacks the empty tray
