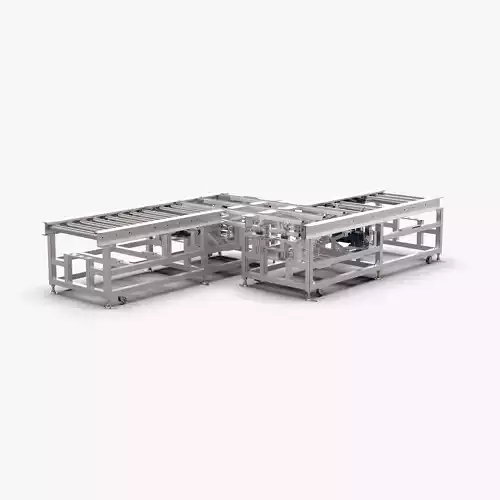

Transmission Conveyor 3D model
Description
Transmission Conveyor
Introduction
The drawing is a simplified diagram of the wire body. The structure of the transfer wire body in the figure is relatively clear. The motor drives the belt and transmits the torque through the roller, so that the object on the original A wire body can smoothly transition to the B wire body through the transfer wire body, and continue to complete the next section.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 444,050
- Vertice: 1,332,150
Transmission Conveyor
Royalty Free License
Transmission Conveyor
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)18.7 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- IGES (.ige, .igs, .iges)65.1 MB
- Stereolithography (.stl)21.2 MB
- OBJ (.obj, .mtl)41 MB
- STEP (.stp)18.6 MB
3D Model details
- Publish date2023-04-24
- Model ID#4457347
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 444,050
- Vertices 1,332,150
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
